13160 56th Court Clearwater, Florida 33760
866-788-4237 in the US or 727-572-9255
ext.265 for international calls
support@peripheralelectronics.com
©2006 AAMP™ of Florida, Inc.

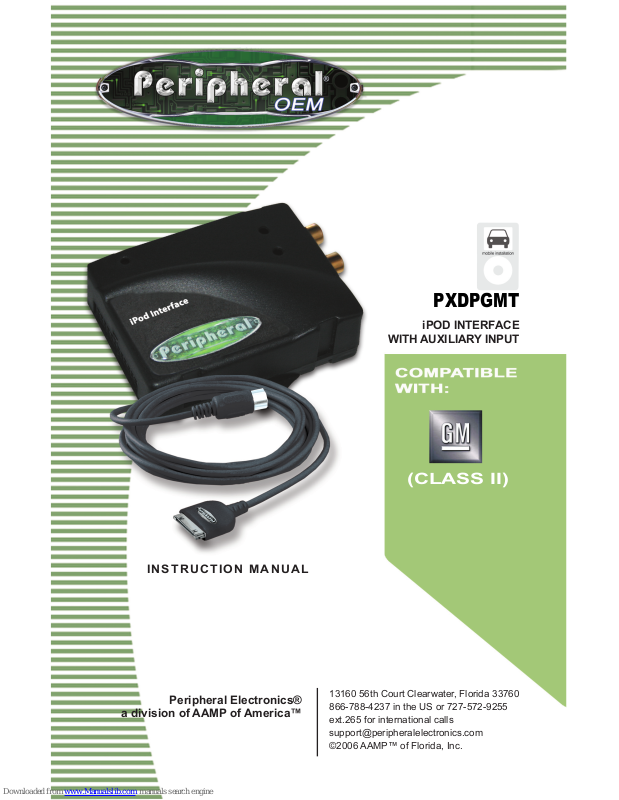

INSTRUCTION MANUAL
(CLASS II)
PXDPGMT
iPOD INTERFACE
WITH AUXILIARY INPUT
Peripheral Electronics®
a division of AAMP of America™
1
2
Table of Contents
Pages
CHAPTER 1 - Getting Started
1.1 Introduction 3
1.2 Precautions 3
1.3 Compatibility Notes 4
1.4 Harnesses Selection 4
CHAPTER 2 - Installation
2 Installation 4
2.1a Harness PXHGMT Installation 5
2.1b Harness PXHGMTX Installation 6
2.2 Initialization 7
CHAPTER 3 - Operation
3.1 Operation 7-10
3.1a Manual Mode 8
3.1b Advanced Mode 9-10
3.2 Troubleshooting 11
CHAPTER 4 - Important Info.
4.1 Warranty 12
4.2 Warning 13
4.3 FCC Statement 13
3
Chapter 1 - Getting Started
1.1 Introduction
Thank you for purchasing the Peripheral Electronics PXDPGMT interface
for OEM radios. Designed for Video, Generation 3, 4, Mini, and Nano iPods. The PXDPGMT has three Modes of operation; Advanced, Manual,
and Auxiliary Input. Advanced Mode allows you to use your factory stereo
buttons and steering wheel audio controls (if equipped) to directly control
your iPod. In Advanced Mode the iPod text is displayed on the factory
radio. Manual Mode allows you to control your iPod directly using the click
wheel controls. Auxiliary input mode allows an external audio device to
play through your factory system.
The PXDPGMT works with vehicles that have navigation-equipped radios,
non-navigation radios, and vehicles equipped with XM satellite radio (refer
to section 2.1b for details). At the press of a button, you can switch between iPod, auxiliary input, and XM satellite radio (if equipped).
For best results, please read this entire manual before installing your PXDPGMT. Visit the Peripheral web site at www.peripheralelectronics.com
and click “Tech Dept” then “Application Guides” to access the most up to
date PXDPGMT application guide
1.2 Precautions (Important, Please Read)
UPDATING iPod FIRMWARE
For proper operation of the PXDPGMT, your iPod must be updated with
the most recent version of rmware from Apple. This is done by accessing
apple’s web site: http://www.apple.com/ipod/download/.
PREVENTING DAMAGE TO YOUR VEHICLE OR iPod.
• The vehicle manufacturer recommends unplugging the iPod when not
in use.
• Do not plug in iPod until initialization is complete. Please see Section 2.2
for details.
• Prior to installation, ensure you know your radio security code.
• To eliminate the risk of an electrical short, we recommend removing the
negative terminal from the vehicles battery prior to installation.
PROPER MOUNTING LOCATION
Securely install the interface in a location free from; heat, humidity, moving
parts, sharp metal edges and direct sunlight. Secure the interface to a suitable location using; double sided tape, Velcro, or wire tires.
4
1.3 Compatibility Notes
This section will inform you of the specic requirements for your factory
radio to be compatible with the PXDPGMT. These notes will inform you of
any issues or circumstances that can affect the compatibility of our product
with your radio, audio system, or accessories. Not all Factory radios are
compatible with the PXDPGMT. The PXDPGMT will only work on models
equipped with the specications listed below. Please read and understand
these notes before proceeding:
Radio Requirements
Radios must have a CD and/or Tape player and must be XM compatible or
CD changer ready. This indicates that the required connection is present
on the rear of the head unit and that the radio has the necessary functionality to operate the PXDPGMT.
1.4 Harness Selection
The harness used is determined by whether or not your vehicle has an OEM
Satellite Radio tuner installed. If the vehicle has an XM tuner installed,
use the PXHGMTX harness. If the radio is CD changer ready, with or
without a CD changer use the PXHGMT harness. If the vehicle is XM
ready WITHOUT an XM tuner installed use the PXHGMT harness. If a
Factory CD changer is present the PXHGMTCD harness is required
to retain the CD changer when using both the PXHGMTX or the PXHGMT harnesses. If you do not have one of these harnesses please visit
your local Peripheral Electronics dealer. Visit the Peripheral web site at
www.peripheralelectronics.com and click “Tech Dept” and then “Application Guides” to access the most up to date PXDPGMT application guide.
Chapter 2 - Installation:
This chapter will explain how to install the PXDPGMT interface using the
PXHGMT and the PXHGMTX harnesses. Some installations require you
to make wiring connections. To eliminate the risk of an electrical short, we
recommend removing the negative terminal from the vehicles battery prior
to installation. If you do not feel comfortable making these connections, we
suggest you seek professional installation.
5
2.1a Harness PXHGMT: (No XM)
1. Carefully remove the radio from the dash of the vehicle.
2. Plug the male 12-pin connector of the PXHGMT harness into the female
12-pin port on the back of the radio. Next connect the factory male 12-pin
connector into the female 12-pin connector on the PXHGMT harness. If
the vehicle has an external 6 disc CD-Changer, plug the female 24-pin end
of the PXHGMTCD CD changer retention harness (sold separately) into
the male 24-pin connector on the PXHGMTX.
3. Make all necessary power connections.
YELLOW: Connect to 12V+ constant power.
BLACK: Connect to the vehicle’s Chassis Ground.
4. Optional Connections:
RED: Retains Accessory Power (RAP). Provides 12V(+) accessory power
after the vehicle is turned off up to 10 minutes, or until the drivers door is
open.
RED/WHITE: Non-functional wire; no connection is necessary.
Note: Insulate all wires that are on the PXDP3 harness that are not used
for installation
5. Connect the 8-pin connector on the iPod docking cable to the PXDPGMT interface. (DO NOT CONNECT IPOD AT THIS TIME, WAIT UNTIL
INITIALIZATION IS COMPLETE, SEE SECTION 2.2 FOR DETAILS)
6. Plug the male 24-pin connector of the PXHGMT harness into the PXDPGMT interface.
Part
#
PXHGMT
Male Plug
12 Pin Female Plug
FACTORY 12 PIN HARNESS
PXHGMT
Harness
12 Pin Male Plug
RCA CABLE
iPod PLUG
& CABLE
32 Pin Power
Audio Harness
PXDPGMT
OPTIONAL
AUDIO
SOURCE
FACTORY RADIO
iPod
(+) 12V Constat Power
(-) Chassis Ground
Red Wire From T-harness Optional
ACC +12V OUTPUT works with RAP
( Retained Accessory Power)
PHXGMTCD Harness
If Equipped with
W/CD Changer
6
2.1b Harness PXHGMTX: (With XM)
1. Locate the factory XM tuner. Remove any panels if necessary to access
XM tuner’s 16-pin harness. Unplug the 16-pin harness from the XM tuner.
2. Plug the male 16-pin end of the PXHGMTX harness into the 16-pin port
on the XM tuner. Next connect the factory male 16-pin into the female 16pin connector on the PXHGMTX harness. If the vehicle has an external
6 disc CD-Changer, plug the female 24-pin end of the PXHGMTCD CD
changer retention harness (sold separately) into the male 24-pin connector on the PXHGMTX.
3. Optional Connections:
RED: Retains Accessory Power (RAP). Provides 12V(+) accessory power
after the vehicle is turned off up to 10 minutes, or until the drivers door is
open.
RED/WHITE: Non-functional wire; no connection is necessary.
Note: Insulate all wires that are on the PXDP3 harness that are not used
for installation
4. Connect the 8-pin connector on the iPod docking cable to the PXDPGMT interface. (DO NOT CONNECT IPOD AT THIS TIME, WAIT UNTIL
INITIALIZATION IS COMPLETE, SEE SECTION 2.2 FOR DETAILS)
5. Plug the male 24-pin connector of the PXHGMTX harness (or PXHGMTCD CD changer retention harness) into the PXDPGMT interface.
Part # PXHGMTX
Male Plug
12 Pin Female Plug
Factory 12 Pin Harness
PXHGMTX Harness
12 Pin Male Plug
RCA
CABLE
iPod PLUG
& CABLE
32 Pin Power
Audio Harness
PXDPGMT
OPTIONAL
AUDIO
SOURCE
XM TUNER
iPod
Red Wire From T-harness Optional
ACC +12V OUTPUT works with RAP
( Retained Accessory Power)
If Equipped with W/CD Changer
PHXGMTCD Harness
7
2.2 Initialization:
Once you have completed the installation of your PXDPGMT interface, it
is important to allow the factory stereo time to recognize the new device.
This “hand shake” period occurs when the key is rst turned-on, and lasts
for just about 5 to 10 seconds. A green LED located on the top of the PX-
DPGMT will ash during the “hand shake.” ONCE THE GREEN LIGHT
IS ON SOLID THE INITIALIZATION IS COMPLETE. (NOTE: YOU MAY
NOT SEE THE GREEN LIGHT FLASH) Please do not press any buttons
until initialization is complete, or you will need to start the initializing “hand
shake” process over again by disconnecting and reconnecting the 24 pin
plug from the PXDPGMT and waiting through the “hand shake” period.
Chapter 3 - Operation:
This chapter will explain how to control the iPod from your factory radio In
Advanced Mode, Manual Mode and Auxiliary Input Mode.
Note: All factory steering wheel controls remain functional and operate the
same as the corresponding buttons on the radio. Ex: SEEK ▲on the steering
wheel controls will function the same as pressing SEEK ▲ on the radio.
3.1 Operation
GM FACTORY STEREO WITH NAVIGATION
VOLUME CONTROL
SEEK, UP/DOWN & SCAN
BUTTON #1
BUTTON #4
BUTTON #6
On Screen or “SOFT” PRESET BUTTONS
BUTTON #3
BUTTON #2
TUNING KNOB
& TRACK SELECT
BAND SELECTOR
Select
CH1
CUSTOM
STEREO
XM Preview
No Category Info
TITLE : No Title Info
: XM Preview
ARTIST
XM1
XM
Info
XM
Options
XM Previ XM Previ XM Previ
XM Previ XM Previ XM Previ
2:17
PM
SEEK
NAV
CONFIG
NAV
RPT
BAND
BUTTON #5
8
VOL
PREV
BAND
REV
AUDIO
AUTOEQAUTO
VOL
TYPE
TYPE
CD
AUX
FWD RDMNEXT
PWR
TUNE
INFO
SEEK
SCAN
1 2 3 4 5 6
GM FACTORY STEREO WITH CD PLAYER
GM FACTORY STEREO WITH NAVIGATION
VOLUME CONTROL
SEEK, UP/DOWN
& SCAN
TUNING KNOB
& TRACK SELECT
BAND SELECTOR
FM1, FM2, AM, XM1 & XM2
PRESET BUTTONS
#1 THROUGH #6
VOLUME CONTROL
SEEK, UP/DOWN & SCAN
BUTTON #1
BUTTON #4
BUTTON #6
On Screen or “SOFT” PRESET BUTTONS
BUTTON #3
BUTTON #2
TUNING KNOB
& TRACK SELECT
BAND SELECTOR
Select
CH1
CUSTOM
STEREO
XM Preview
No Category Info
TITLE : No Title Info
: XM Preview
ARTIST
XM1
XM
Info
XM
Options
XM Previ XM Previ XM Previ
XM Previ XM Previ XM Previ
2:17
PM
SEEK
NAV
CONFIG
NAV
RPT
BAND
BUTTON #5
VOL
PREV
BAND
REV
AUDIO
AUTOEQAUTO
VOL
TYPE
TYPE
CD
AUX
FWD RDMNEXT
PWR
TUNE
INFO
SEEK
SCAN
1 2 3 4 5 6
GM FACTORY STEREO WITH CD PLAYER
GM FACTORY STEREO WITH NAVIGATION
VOLUME CONTROL
SEEK, UP/DOWN
& SCAN
TUNING KNOB
& TRACK SELECT
BAND SELECTOR
FM1, FM2, AM, XM1 & XM2
PRESET BUTTONS
#1 THROUGH #6
VOL
PREV
BAND
REV
AUDIO
AUTOEQAUTO
VOL
TYPE
TYPE
TAPE
DISC
FWD RDMNEXT
PWR
TUNE
INFO
SEEK
SCAN
1 2 3 4 5 6
GM FACTORY STEREO WITH CASSETTE & CD PLAYER
VOLUME CONTROL
SEEK, UP/DOWN
& SCAN
TUNING KNOB
& TRACK SELECT
BAND SELECTOR
FM1, FM2, AM, XM1 & XM2
PRESET BUTTONS
#1 THROUGH #6
VOLUME CONTROL
SEEK, UP/DOWN & SCAN
BUTTON #1
BUTTON #4
BUTTON #6
On Screen or “SOFT” PRESET BUTTONS
BUTTON #3
BUTTON #2
TUNING KNOB
& TRACK SELECT
BAND SELECTOR
Select
CH1
CUSTOM
STEREO
XM Preview
No Category Info
TITLE : No Title Info
: XM Preview
ARTIST
XM1
XM
Info
XM
Options
XM Previ XM Previ XM Previ
XM Previ XM Previ XM Previ
2:17
PM
SEEK
NAV
CONFIG
NAV
RPT
BAND
BUTTON #5
Accessing the PXDPGMT Interface:
Press the BAND button on the radio until the display shows XM this is the
source where you can control the iPod.
Switching Between iPod, Auxiliary, and XM (if equipped):
Press the PRESET # 1 to switch between iPod, Auxiliary and XM (if
equipped) inputs on the interface.
NOTE: Once the interface is plugged in, PRESET # 1 becomes a switch to
select between iPod, Auxiliary, and XM while on the XM bands. PRESETS
2-6 can be used to store channels on all XM bands. All presets remain
functional on AM/FM bands.
3.1a Manual Mode
Press PRESET # 6 until “5 TO MANUAL” is displayed. Press PRESET #
5. The iPod will now be controllable using the click wheel controls.
9
3.1b Advanced Mode
Press PRESET # 6 until “4 TO NAV IPOD” is displayed. Press PRESET #
4. This will allow control of the iPod from the factory radio. The iPod controls will be locked and the display on the iPod will show “(check mark)”
on the screen.
Accessing Menu Options
Press the PRESET #6 BUTTON to switch between menu options, which
are: Select Playlist; Select Artist; Select Album; Select Genre; & Advanced
or Manual iPod Control Mode..
Menu Down
Press the PRESET # 3 to move down one folder in the menu.
Menu UP
Press the PRESET # 4 to move up one folder in the menu.
Select Menu Option
Press the PRESET # 5 to make a selection while navigating the menu.
Next Track
Turn the TUNE KNOB clockwise (right) to go forward a track.
NOTE: If the radio does not have a Tune Knob, but has a TUNE/SEEK ▲
button, press TUNE/SEEK ▲two times quickly to go forward a track
Previous Track
Turn the TUNE KNOB counterclockwise (left) to go backward a track.
NOTE: If the radio does not have a Tune Knob, but has a TUNE/SEEK
▼button, press TUNE/SEEK ▼two times quickly to go backward a track.
Fast Forward
Press SEEK ▲ button once to Fast Forward; Press SEEK ▲ button again
to resume play.
NOTE: If the radio does not have a Tune Knob, but has a TUNE/SEEK
▼button, press the TUNE/SEEK ▲ button one time to fast forward. Press
TUNE/SEEK ▲ button again to resume play.
Rewind
Press SEEK ▼ button once to Rewind; Press SEEK ▼button again to
resume play.
10
NOTE: If the radio does not have a Tune Knob, but has a TUNE/SEEK ▼
button, press the TUNE/SEEK ▼ button one time to fast rewind. Press
TUNE/SEEK ▼ again to resume play.
Browse by Artist
To browse by artist, press PRESET #6 until “Sel Artst” shows on the radio
display. Use PRESET #3 and PRESET #4 to move up and down through
the list of artists. Press PRESET #5 to select the artist. Use the TUNE
KNOB to move up and down through the tracks.
Browse by Album
To browse by album, press PRESET #6 until “Sel Album” shows on
the radio display. Use PRESET #3 and PRESET #4 to move up and
down through the list of albums. Press PRESET #5 to select the album
displayed on the screen. Use the TUNE KNOB to move up and down
through the tracks.
Browse by Genre
To browse by genre, press PRESET #6 until “Sel Genre” shows on
the radio display. Use PRESET #3 and PRESET #4 to move up and down
through the list of genres. Press PRESET #5 to select the genre displayed on the screen. Use the TUNE KNOB to move up and down through
the tracks.
Browse by Playlist
To browse by artist, press PRESET #6 until “Sel Artst” shows on the
radio display. Use PRESET #3 and PRESET #4 to move up and down
through the list of artists. Press PRESET #5 to select the artist displayed
on the screen. Use the TUNE KNOB to move up and down through
the tracks.
Display Options
Most GM radios will display iPod text automatically, which typically includes the song title and artist name. The text displayed will be determined
by what is stored on the iPod. If the radio has an INFO button (typically
found on NON Navigation radios); press INFO to switch through text display options like song title and artist name. Most Navigation radios feature
multiple line displays which show artist name and track at the same time.
Tutorial
Press the PRESET #2 to enter tutorial mode. The PXDPGMT has a
tutorial feature that can be used as a reminder of how the PRESETS #1
through #6 are used to access iPod functions. To reveal the tutorial information press PRESET # 2 multiple times to indicate push button number
and function.
11
Symptom Cause Remedy
No Power •Blown fuse in vehicle fuse
block.
•24-pin harness is not
seated correctly into the
PXDPGMT interface
•Replace fuse with same
amp rating. If the fuse
blows again, call tech
support.
•Check cable and wiring
connection.
Green light not solid •The radio is not recognizing
iPod2car interface
•24-pin harness is not
seated correctly into the
PXDPGMT interface
•Reinstall and verify if the
correct harness was used.
•Check cable and wiring
connection.
Can not change selection in
a folder
The folder only has one
selection i.e. Artist, Album,
Playlist or Song.
Use browse menu to select
new album, playlist, genre,
or artist
iPod is not charging •iPod Connection cable is
not properly mated to the
iPod
•iPod battery is defective
•Check cable and wiring
connection.
•Return to Apple for
service
Notes:
3.2 Troubleshooting
12
4.1 Warranty
One Year Limited Warranty
The quality controls used in the manufacture of this product will ensure
your satisfaction. This warranty applies only to the original purchaser of
this product from an authorized Peripheral Elecronics dealer.
This warranty covers any supplied or manufactured parts of this product
that, upon inspection by Peripheral Electronics authorized personnel, is
found to have failed in normal use due to defects in material or workmanship. This warranty does not apply to installation expenses.
Attempting to service or modify this unit, operating this unit under conditions other than the recommended voltage will render this WARRANTY
VOID.
Unless otherwise prescribed by law, Peripheral Electronics shall not be
liable for any personal injury, property damage and or any incidental or
consequential damages of any kind (including water damage) resulting
from malfunctions, defects, misuse, improper installation or alteration of
this product.
All parts of this Peripheral Electronics product are guaranteed for a period
of 1 year as follows:
Within the rst 12 months from date of purchase, subject to the conditions above, Peripheral Electronics will repair or replace the product at
their discretion, if it is defective in material or workmanship providing it is
returned to an Authorized Peripheral Electronic’s Dealer, with PROOF OF
PURCHASE from an authorized Peripheral Elecronics dealer.
13
4.2 Warning:
This equipment may be reset by unintentional electrostatic discharge
during operation. Exposure to direct sunlight or extreme heat may cause
damage or malfunction.
4.3 FCC Class B Radio Frequency
Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television recption, which can be
determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
1. Reorientate or relocate the receiving antenna.
2. Increase the separation between the equipment and reciever.
3. Connect the equipment into an outlet on a circuit differant from that of
which the reciever is connected.
4. Consult the dealer or an experienced radio / television technical
for help
Notice : The changes or modications not expressly approved by the
party responsible for compliance could void the user authority to operate
the equipment.
For consumer technical support call:
866-788-4237 in the US or 727-572-9255 ext.265 for international calls
Hours: 9:30 AM - 7:00 PM, EST, MON - THURS
9:30 AM - 6:00 PM, EST, FRI
14
www.peripheralelectronics.com
13160 56th Court Clearwater, Florida 33760
866-788-4237 in the US or 727-572-9255
ext.265 for international calls
support@peripheralelectronics.com
©2006 AAMP™ of Florida, Inc.
Peripheral Electronics®
a division of AAMP of America™
Loading...
