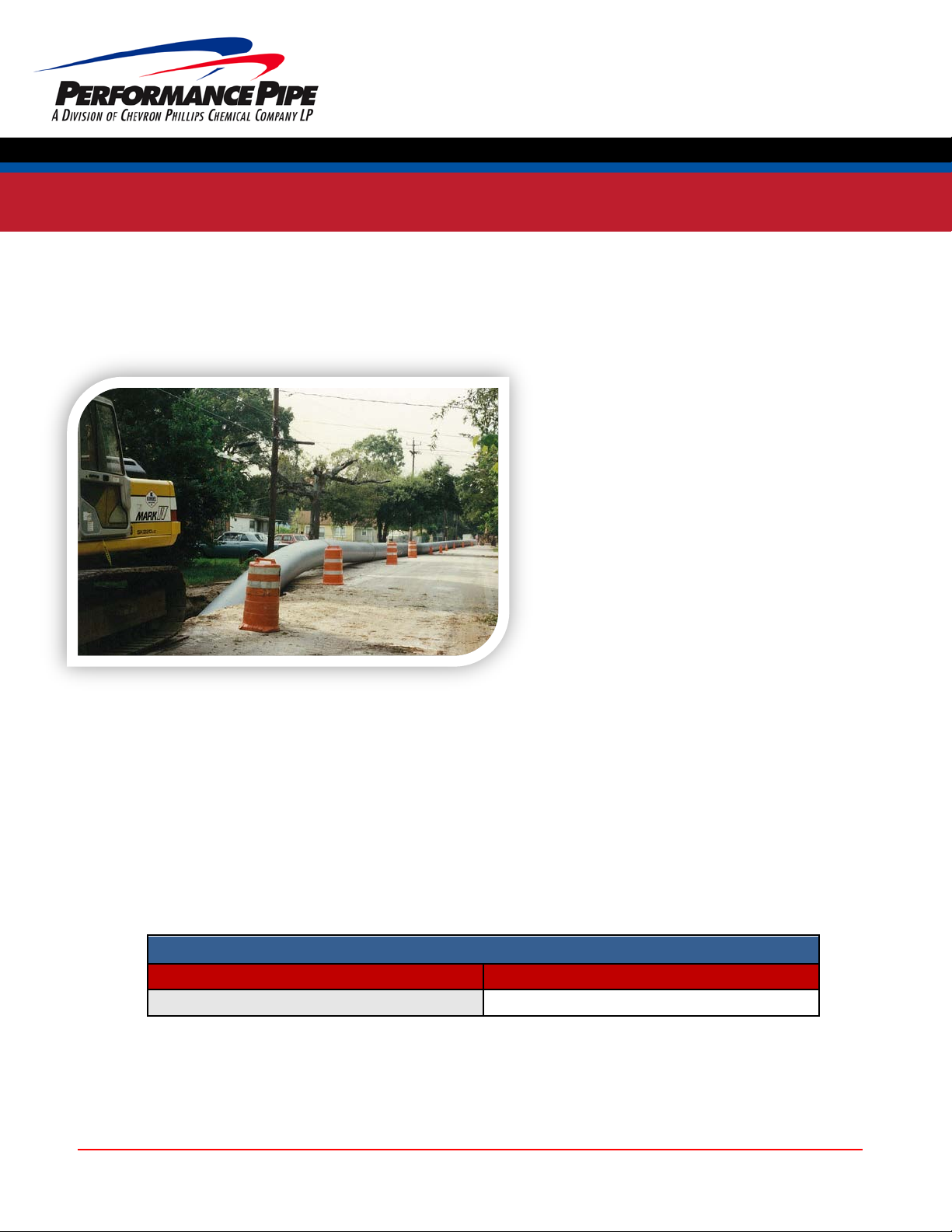

DRISCOPLEX® 4600/4700 Series HDPE
Standard product is solid gray with no stripes.
Optional Color Stripes to Identify the Application
Green
Wastewater
Key Benefits of Driscoplex® 4600/4700 HDPE piping:
DRISCOPLEX® 4600/4700 Series PE Pip ing
DRISCOPLEX® 4600/4700 Series PE Piping
HDPE Sewer Pipe
Sewer Piping is available to meet your
needs in compliance with ASTM F714
product standards.
Produced from only the highest rated HDPE
pipe material, DRISCO PLEX® 4600/4700
Series PE Piping is manufactured from
PE4710 resin as listed in PPI-TR4. The gray
pigmentation of Driscoplex® 4600/4700
Series HDPE pipe reduces glare and
reflects sufficient light to help facilitate TV
inspection of the pipe.
• Light gray color for TV inspection
• Leak tight, fully restrai ned hea t fusi on joints
• Excellent flow characteristics
• Impact resistance
• Flexible and durable for use in trenchless applications
• Excellent chemical resistance – not affected by hydrogen sulfide commonly found in
sanitary sewers
• Environmental benefits
Color Application
IPS – 4 Single Stripe / DIPS – 3 Sets of Dual Stripes
Bulletin PP 531 | February 2019 www.performancepipe.com © 2019 Chevron Phillips Chemical Compa ny LP
Performance Pipe, a division of Chevron Phillips Chemical Company LP | 5085 W. Park Blvd | Suite 5 00 | Plano, TX 75093 | Phone: 800-527-0662 | Fax: 972-599-7329
Cell Classification
ASTM D3350
445574E (Gray)
Density [4]
ASTM D1505
0.950 g/cc (Gray)
Melt Index [4]
ASTM D1238
0.08 g/10 min
Tensile Strength [5]
ASTM D638 Type IV
>3500 psi
Color; UV stabilizer [E]
ASTM D3350
Color with UV Stabilizer
This is not a p roduct spec ification and does not guar antee or establish s pecific m inimum or m aximum values or manufactu ring tole rance for
hese typica
ASTM F714
PR
ASTM F714
PR
Min
Wall
Min
Wall
Min
Wall
Min
Wall
manufacturing specification. Additional information avail abl e at www.performancepipe.com
DRISCOPLEX® 4600/4700 Series PE Pip ing
DriscoPlex® Series PE Piping Material Physical Properties
Property Standard Typical Value†
Material Designation ASTM F714 PE4710
Flexural Modulus [5] ASTM D790 >120,000 psi
SCG (PENT) [7] ASTM F1473 >500 hours
HDB at 73°F (23°C) [4] ASTM D2837 1600 psi
material or piping products to be s upplied. Value s obtained from tes ts of specimens taken from pipin g product may var y from t
values.
Additional Sizes and DR available. Contact Performance Pipe or visit www.performancepipe.com
Selected Dimension Ratios for DriscoPlex® 4700 DIPS Pipe
DIPS DR 19 DR 17
PR = 111 psi PR = 125 psi
Pipe
Size,
OD, in.
in.
4 4.800 0.253 4.264 1.59 0.282 4.201 1.76
6 6.900 0.363 6.130 3.28 0.406 6.130 3.64
8 9.050 0.476 8.040 5.64 0.532 8.040 6.26
10 11.100 0.584 9.861 8.49 0.653 9.861 9.42
12 13.200 0.695 11.727 12.00 0.776 11.727 13.32
14 15.300 0.805 12.351 16.12 0.900 12.351 17.89
16 17.400 0.916 14.046 20.85 1.024 14.046 23.14
18 19.500 1.026 15.741 26.19 1.147 15.741 29.07
20 21.600 1.137 17.436 32.13 1.271 17.436 35.66
24 25.800 1.358 20.829 45.85 1.518 20.829 50.88
This product flyer is intended for reference purposes. It should not be used in place of the advice from a licensed Professional Engineer. Pressure Ratings and
Pressure Class are based on operating temperature up to 80°F. Average inside diameter is calculated using Nominal OD and Minimum Wall pl us 6% for use in
estimating fluid flow. Actual ID will vary. When designing components to fit the pipe ID, refer to pipe dimensions and tolerances in the applicable pipe
Avg. ID Wgt.
in. in. lbs/ft in. in. lbs/ft
Avg. ID Wgt.
Selected Dimension Ratios for DriscoPlex® 4600 IPS Pipe
IPS DR 19 DR 17
Pipe
Size,
OD, in.
in.
2 2.375 0.125 2.110 0.39 0.140 2.079 0.43
4 4.500 0.237 3.998 1.39 0.265 3.939 1.55
6 6.625 0.349 5.886 3.02 0.390 5.799 3.36
8 8.625 0.454 7.663 5.12 0.507 7.549 5.69
10 10.750 0.566 9.551 7.96 0.632 9.409 8.83
12 12.750 0.671 11.327 11.20 0.750 11.160 12.43
14 14.000 0.737 12.438 13.50 0.824 12.254 14.98
16 16.000 0.842 14.215 17.63 0.941 14.005 19.57
18 18.000 0.947 15.992 22.32 1.059 15.755 24.77
20 20.000 1.053 17.768 27.55 1.176 17.506 30.58
22 22.000 1.158 19.545 33.34 1.294 19.256 37.00
24 24.000 1.263 21.322 39.67 1.412 21.007 44.03
PR = 111 psi PR = 125 psi
Avg. ID Wgt.
in. in. lbs/ft in. in. lbs/ft
Avg. ID Wgt.
