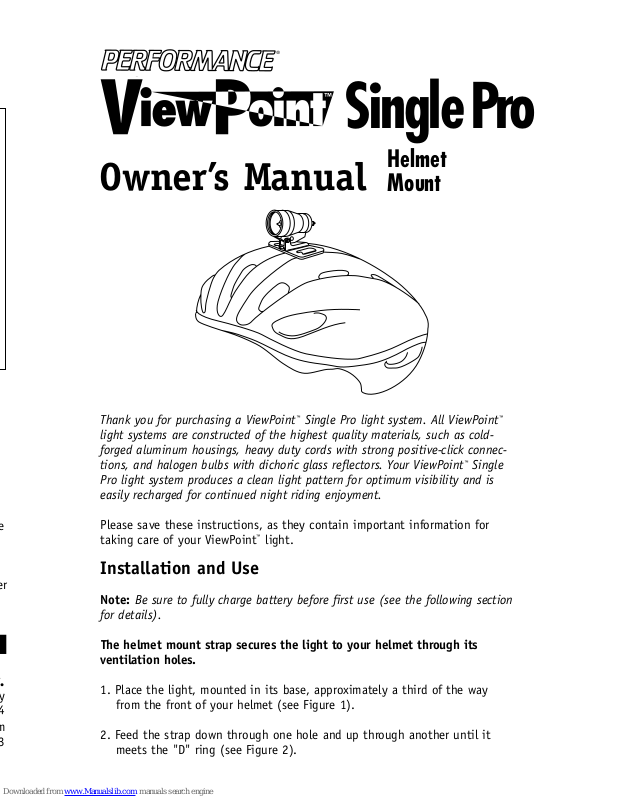

Thank you for purchasing a ViewPoint™Single Pro light system. All ViewPoint
™
light systems are constructed of the highest quality materials, such as coldforged aluminum housings, heavy duty cords with strong positive-click connections, and halogen bulbs with dichoric glass reflectors. Your ViewPoint™Single
Pro light system produces a clean light pattern for optimum visibility and is
easily recharged for continued night riding enjoyment.
Please save these instructions, as they contain important information for
taking care of your ViewPoint™light.
Installation and Use
Note: Be sure to fully charge battery before first use (see the following section
for details).
The helmet mount strap secures the light to your helmet through its
ventilation holes.
1. Place the light, mounted in its base, approximately a third of the way
from the front of your helmet (see Figure 1).
2. Feed the strap down through one hole and up through another until it
meets the "D" ring (see Figure 2).
SinglePro
Helmet
Mount
Owner’s Manual
Page 2
Page 3
Battery Charging
The ViewPoint™Pro Nickel Metal Hydride (NiMH) battery must be recharged using
only the 7.25 V, 500mA NiMH compatible battery charger included with your
light. Use only this recharger for NiMH batteries. Do not use any other charger. It
is extremely important that you always store your battery fully charged.
For the longest battery life, you should always recharge immediately after each
use. Never use a lead acid compatible charger on a NiMH battery.
To guarantee a full recharge, leave the battery plugged in for 10 hours.
Your ViewPoint™has a trickle charge feature which allows it to be left on
recharge indefinitely, without harm.
Also available for your ViewPoint™System
40-0322 NiMH 4.0 Ah (Compact) battery
00-2365 12 Watt flood bulb (30º beam)
00-8152 12 Watt spot bulb (10º beam)
40-0026 15 Watt intermediate bulb (20º beam)
00-8154 20 Watt flood bulb (30º beam)
