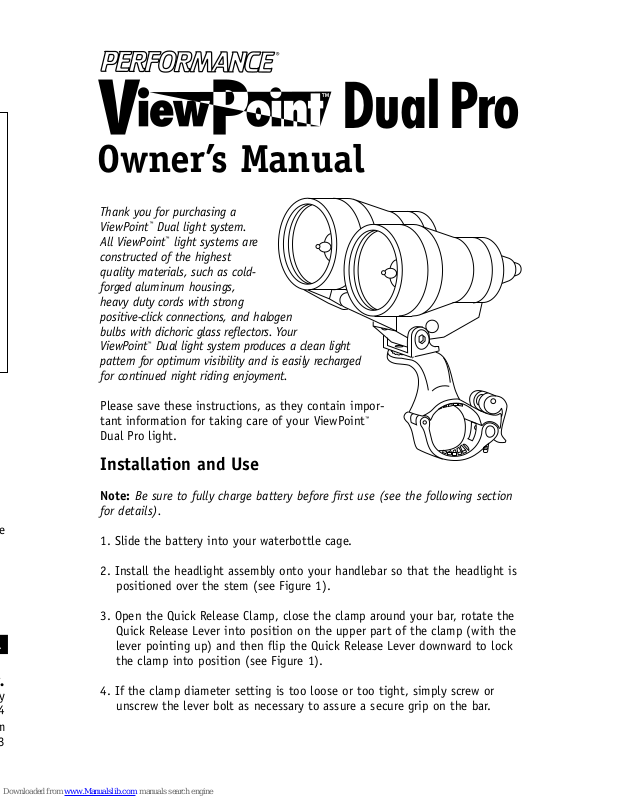

Page 1
Thank you for purchasing a
ViewPoint™Dual light system.
All ViewPoint™light systems are
constructed of the highest
quality materials, such as coldforged aluminum housings,
heavy duty cords with strong
positive-click connections, and halogen
bulbs with dichoric glass reflectors. Your
ViewPoint™Dual light system produces a clean light
pattern for optimum visibility and is easily recharged
for continued night riding enjoyment.
Please save these instructions, as they contain important information for taking care of your ViewPoint
™
Dual Pro light.
Installation and Use
Note: Be sure to fully charge battery before first use (see the following section
for details).
1. Slide the battery into your waterbottle cage.
2. Install the headlight assembly onto your handlebar so that the headlight is
positioned over the stem (see Figure 1).
3. Open the Quick Release Clamp, close the clamp around your bar, rotate the
Quick Release Lever into position on the upper part of the clamp (with the
lever pointing up) and then flip the Quick Release Lever downward to lock
the clamp into position (see Figure 1).
4. If the clamp diameter setting is too loose or too tight, simply screw or
unscrew the lever bolt as necessary to assure a secure grip on the bar.
Owner’s Manual
Dual Pro
Page 2
Page 3
NOTE: The high wattage bulbs cause the aluminum housings to get very
hot when the light is in use. Therefore, DO NOT TOUCH THE ALUMINUM
HOUSINGS WHILE THE LIGHTS ARE IN USE. Please use caution to avoid
burning yourself. For optimum durability, your ViewPoint™light should be
mounted on your bicycle or helmet in such a way to keep air flowing over
the system.
Battery Charging
The ViewPoint™Pro NiMH battery must be recharged using only the 7.25 V, 500mA
NiMH compatible battery charger included with your light. Use only this recharger
for NiMH batteries. Do not use any other charger. It is extremely important that
you always store your battery fully charged. For the longest battery life, you
should always recharge immediately after each use. Never use a lead acid com-
patible charger on a NiMH battery.
To guarantee a full recharge, leave the battery plugged in for 15 hours.
Your ViewPoint™has a trickle charge feature which allows it to be left on
recharge indefinitely, without harm.
Also available for your Viewpoint™System
40-0324 NiMH waterbottle style battery (6.0 Ah)
40-0026 15-watt intermediate bulb (20º beam)
00-8154 20-watt flood bulb (30º beam)
00-8152 12-watt spot bulb (10º beam)
00-2365 12-watt flood bulb (30º beam)
