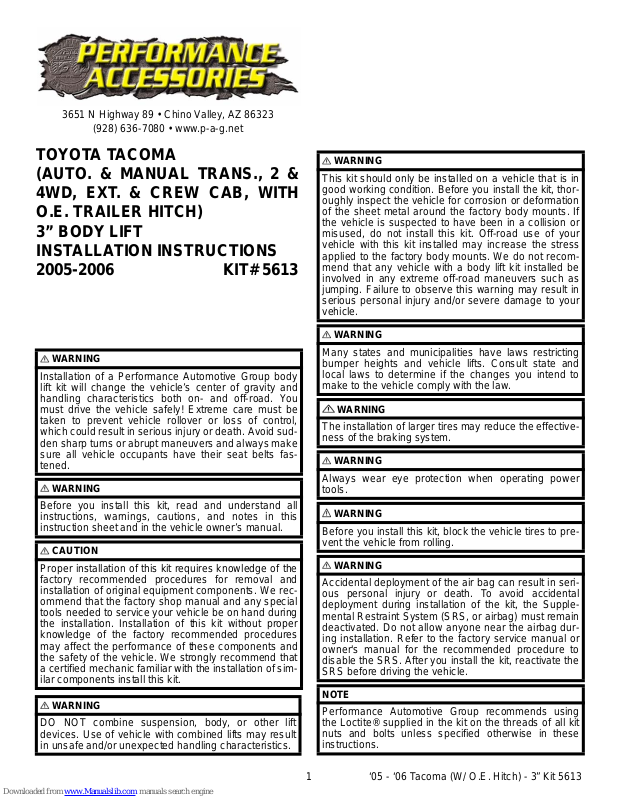

Performance 5613 Installation Instructions Manual

3651 N Highway 89 • Chino Valley, AZ 86323
(928) 636-7080 • www.p-a-g.net
TOYOTA TACOMA (AUTO. & MANUAL TRANS., 2 & 4WD, EXT. & CREW CAB, WITH O.E. TRAILER HITCH) 3” BODY LIFT INSTALLATION INSTRUCTIONS 2005-2006 KIT# 5613
WARNING
Installation of a Performance Automotive Group body lift kit will change the vehicle’s center of gravity and handling characteristics both on- and off-road. You must drive the vehicle safely! Extreme care must be taken to prevent vehicle rollover or loss of control, which could result in serious injury or death. Avoid sud­den sharp turns or abrupt maneuvers and always make sure all vehicle occupants have their seat belts fas­tened.
WARNING
Before you install this kit, read and understand all instructions, warnings, cautions, and notes in this instruction sheet and in the vehicle owner’s manual.
CAUTION
Proper installation of this kit requires knowledge of the factory recommended procedures for removal and installation of original equipment components. We rec­ommend that the factory shop manual and any special tools needed to service your vehicle be on hand during the installation. Installation of this kit without proper knowledge of the factory recommended procedures may affect the performance of these components and the safety of the vehicle. We strongly recommend that a certified mechanic familiar with the installation of sim­ilar components install this kit.
WARNING
DO NOT combine suspension, body, or other lift devices. Use of vehicle with combined lifts may result in unsafe and/or unexpected handling characteristics.
WARNING
This kit should only be installed on a vehicle that is in good working condition. Before you install the kit, thor­oughly inspect the vehicle for corrosion or deformation of the sheet metal around the factory body mounts. If the vehicle is suspected to have been in a collision or misused, do not install this kit. Off-road use of your vehicle with this kit installed may increase the stress applied to the factory body mounts. We do not recom­mend that any vehicle with a body lift kit installed be involved in any extreme off-road maneuvers such as jumping. Failure to observe this warning may result in serious personal injury and/or severe damage to your vehicle.
WARNING
Many states and municipalities have laws restricting bumper heights and vehicle lifts. Consult state and local laws to determine if the changes you intend to make to the vehicle comply with the law.
WARNING
The installation of larger tires may reduce the effective­ness of the braking system.
WARNING
Always wear eye protection when operating power tools.
WARNING
Before you install this kit, block the vehicle tires to pre­vent the vehicle from rolling.
WARNING
Accidental deployment of the air bag can result in seri­ous personal injury or death. To avoid accidental deployment during installation of the kit, the Supple­mental Restraint System (SRS, or airbag) must remain deactivated. Do not allow anyone near the airbag dur­ing installation. Refer to the factory service manual or owner's manual for the recommended procedure to disable the SRS. After you install the kit, reactivate the SRS before driving the vehicle.
NOTE
Performance Automotive Group recommends using the Loctite® supplied in the kit on the threads of all kit nuts and bolts unless specified otherwise in these instructions.
1 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
Before Starting Installation
Inside Cab
NOTE
Kit parts are prefaced by the word kit and appear in
bold print.
1. Carefully read all warnings and instructions com-
pletely before beginning.
2. Verify all parts have been received in this kit by checking the parts list at the end of this document.
NOTE
If parts are missing from kit, please be prepared to pro­vide the following information:
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
5. Inspector # from inside box cover
3. Only install this kit on the vehicle for which it is specified. If anytime during the installation you
encounter something different from what is outlined in the instructions, call technical support at (928) 636-7080.

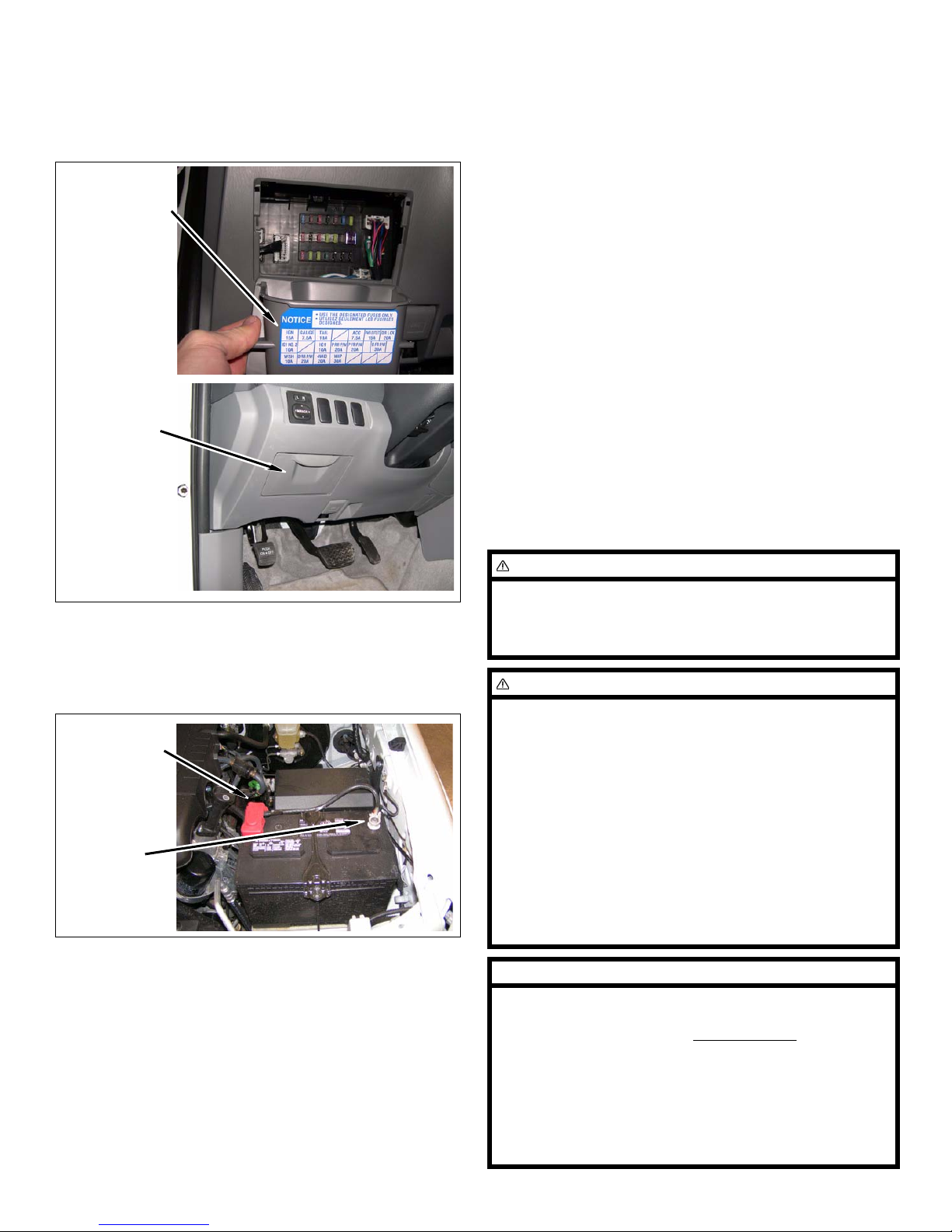

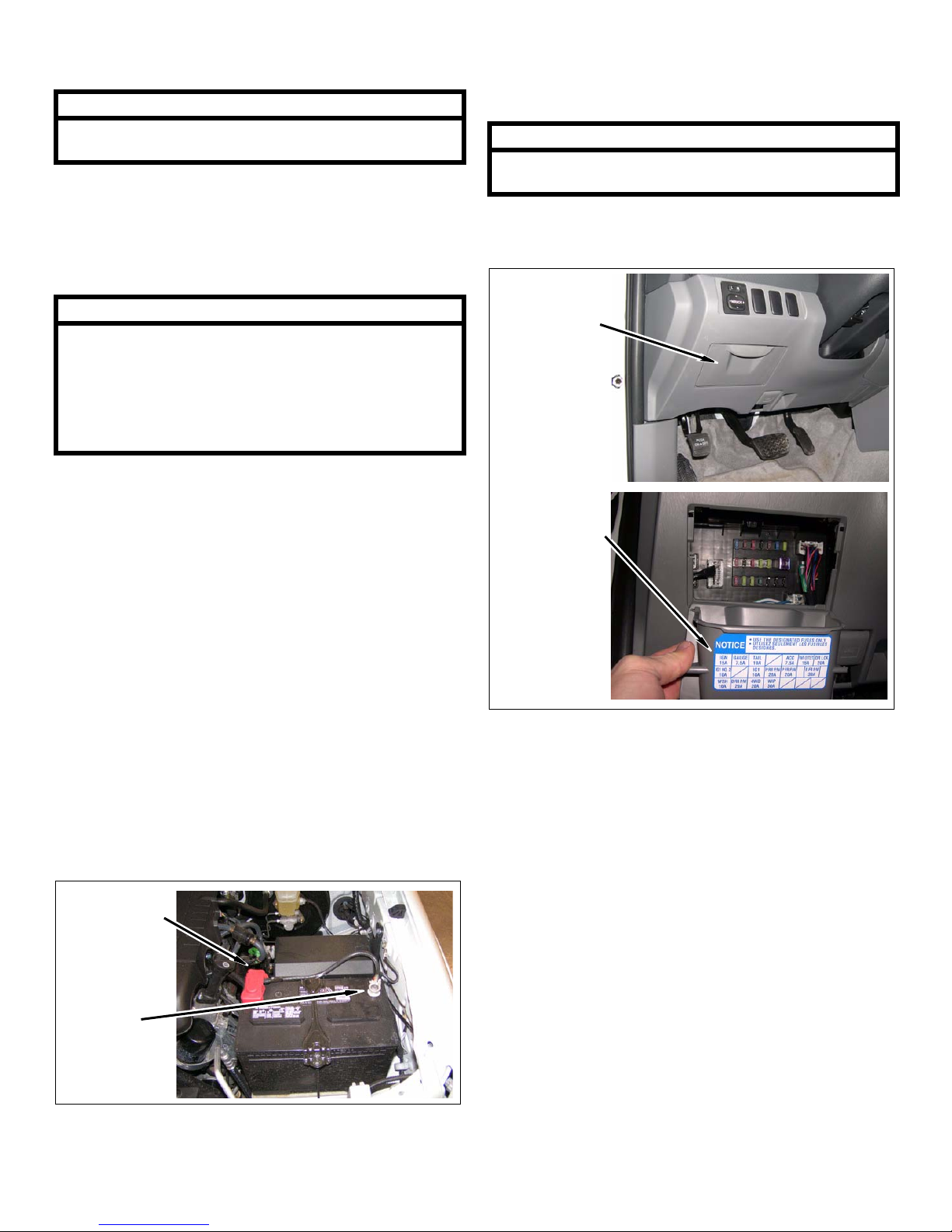

1. Airbag Fuse
NOTE
The location of the airbag fuse may vary; check the owner's manual.
a. Remove fuse cover. b. Remove airbag fuse.
Fuse Cover
Airbag Fuse
4. Special tools needed: a. Welder or access to a professional welding
shop.
b. Die grinder or similar tool capable of cutting
metal.
5. Park vehicle on a clean, dry, flat, level surface and block tires so vehicle cannot roll in either direction.
Engine Compartment
1. Disconnect both battery cables. Disconnect nega-
tive cable first, then positive cable.
Positive Cable (Red)
Negative Cable (Black)
Fuse Location May Vary
Prepare to Install Kit
Measurements
1. Measure and record distance between rear bumper
and bed
Driver Side ________ Passenger Side _________
2. Measure and record distance between cab and bed.
Driver Side ________ Passenger Side _________
2 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
Front of Vehicle
d. Remove two pop-up clips from fender wells.

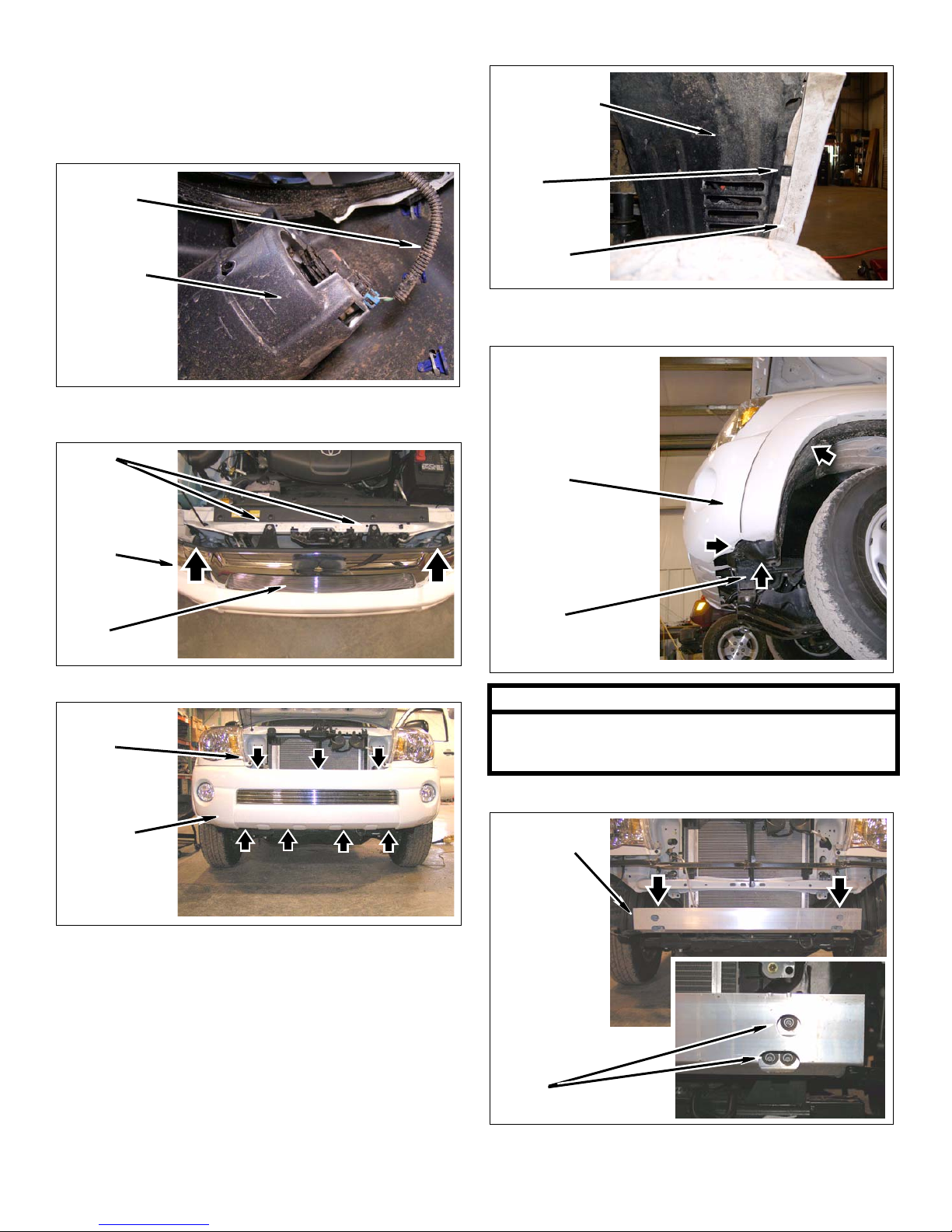

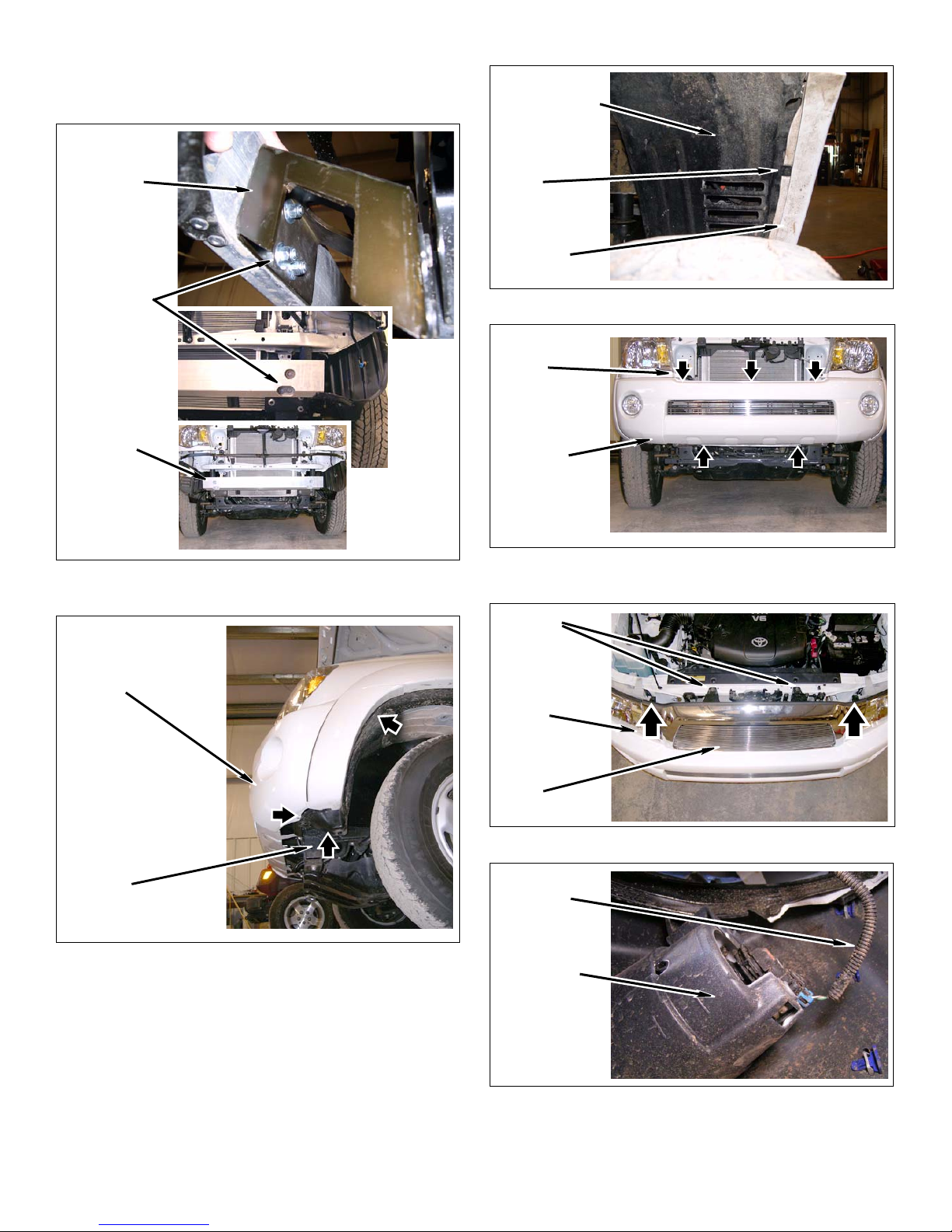

1. Front bumper a. Remove wiring harnesses from fog lights, if
equipped.
Wiring Harness
Fog Light
b. Remove two pop-up clips, two bolts and grill
from core support.
Bolts
Pop-up Clips
Fender Well
Pop-up Clip
Front Bumper
e. Remove six screws and front bumper fascia
from vehicle.
Front Bumper Fascia
Grill
c. Remove seven pop-up clips from front bumper.
Pop-up Clips
Front Bumper Fascia
Screws
NOTE
Use caution when removing front bumper fascia from vehicle. Carefully pull outward from fenders on the sides of front bumper cover to loosen.
f. Remove six nuts and front bumper from vehicle.
Front Bumper
Nuts
3 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613

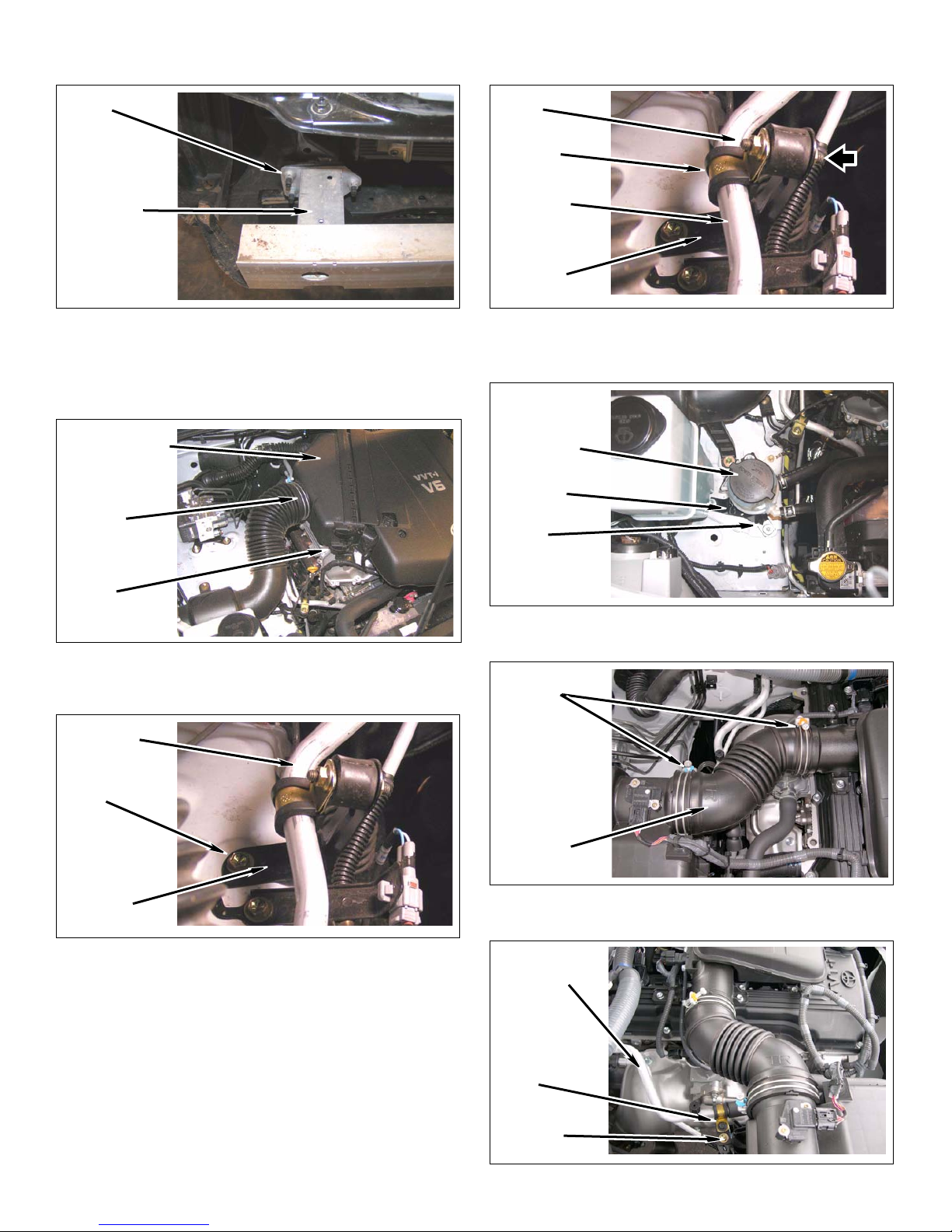

g. Remove six nuts and two front bumper brackets
from frame rails.
b. Remove two nuts, clamp and rubber isolator
from AC line and bracket.
Nuts
Front Bumper Brackets
Engine Compartment

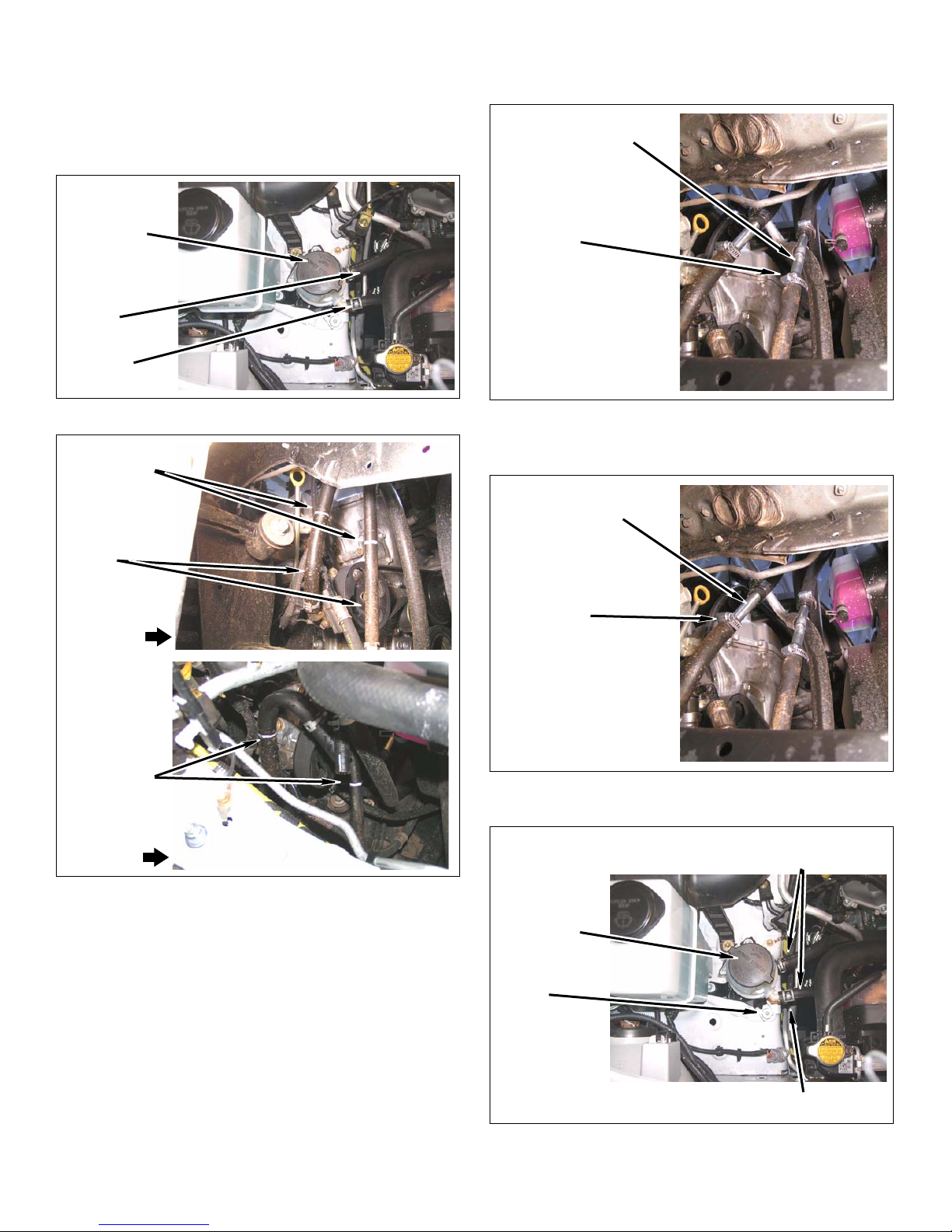

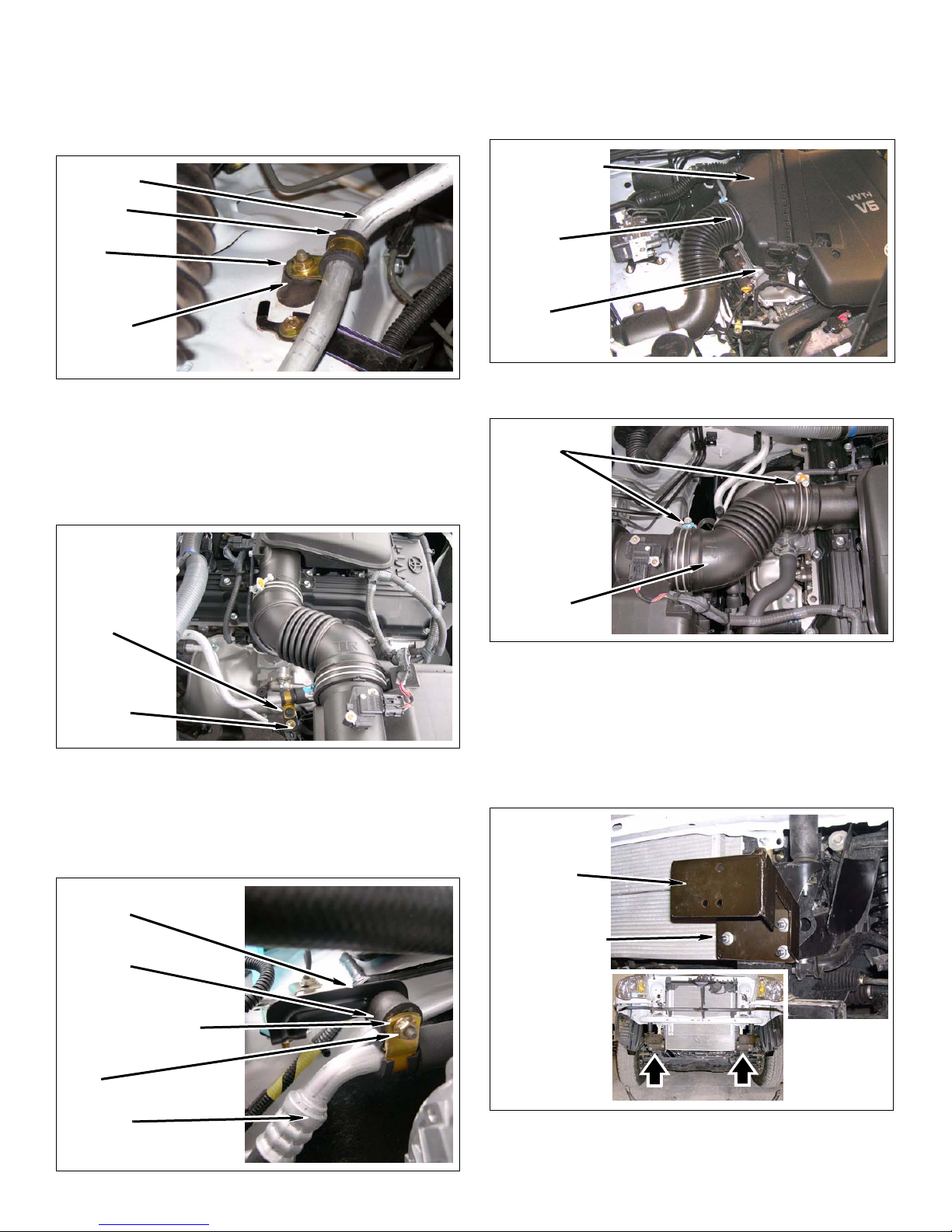

1. 6 cyl. models: Loosen airbox clamp, two clips and
remove airbox cover from engine.
Airbox Cover
Clamp
Nuts
Clamp
AC Line
AC Line Bracket
3. 6 cyl. models: Remove power steering reservoir, three bolts and bracket from fender. DO NOT DIS­CONNECT power steering lines.
Power Steering Reservoir
Bracket Bolts
Clips
2. 6 cyl. models: AC Line a. Remove bolt and AC line bracket from body.
AC Line
Bolt
AC Line Bracket

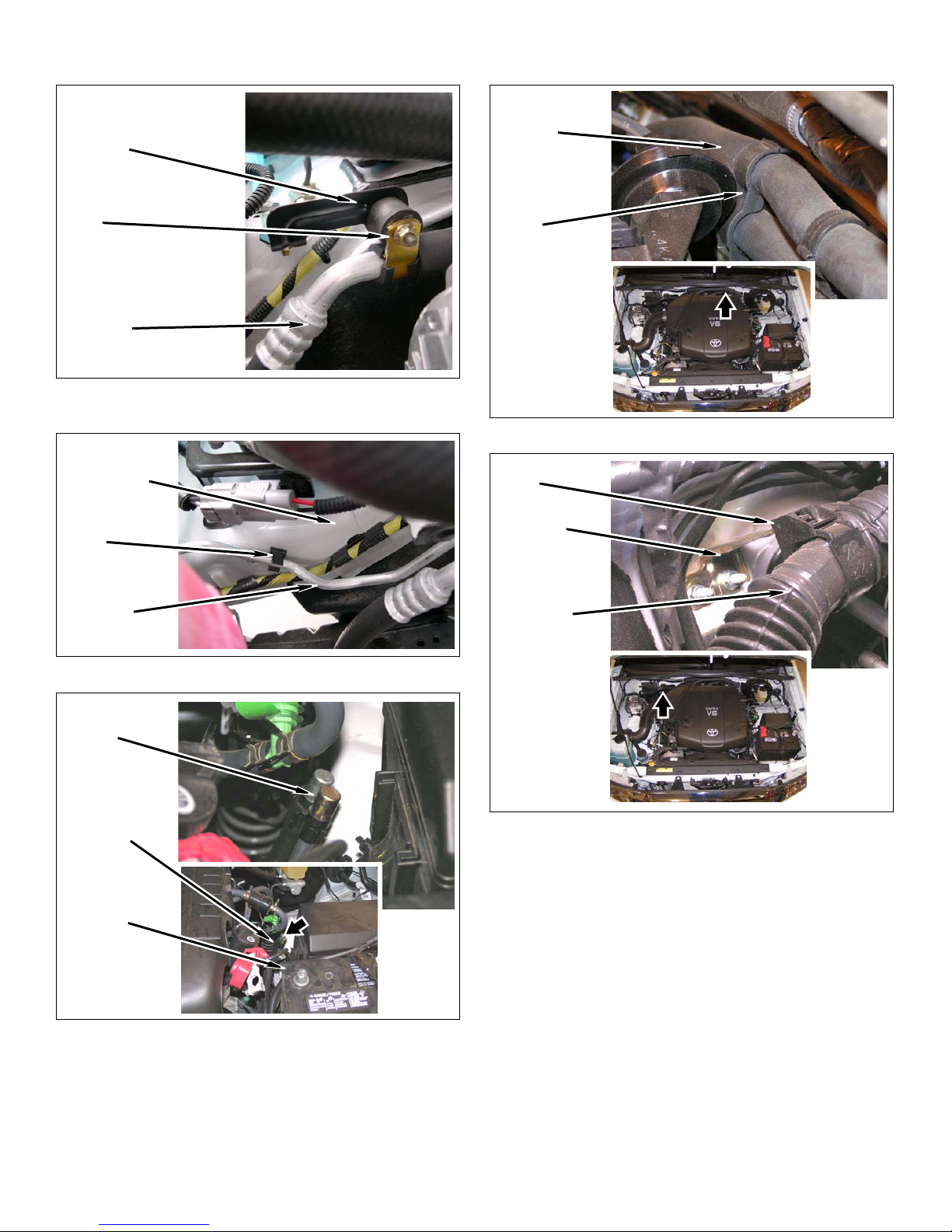

4. 4 cyl. models: Loosen two engine intake clamps and remove engine intake hose.
Clamps
Air Hose
5. 4 cyl. models: Remove bolt from passenger side AC line bracket.
AC Line
Bolt AC Line
Bracket
4 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613

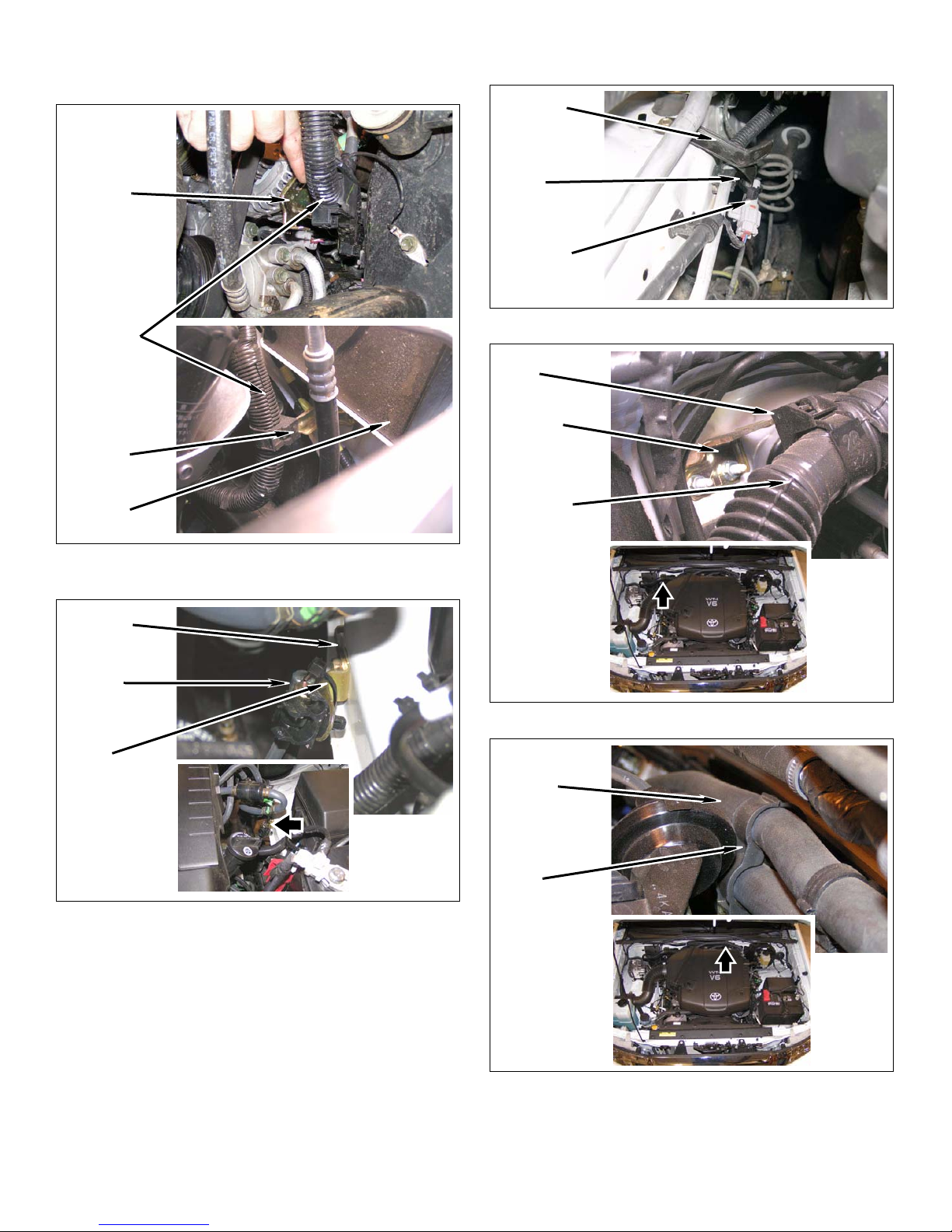

6. 4 cyl. models: Remove nut and AC line from pas­senger side AC line bracket.
AC Line Bracket

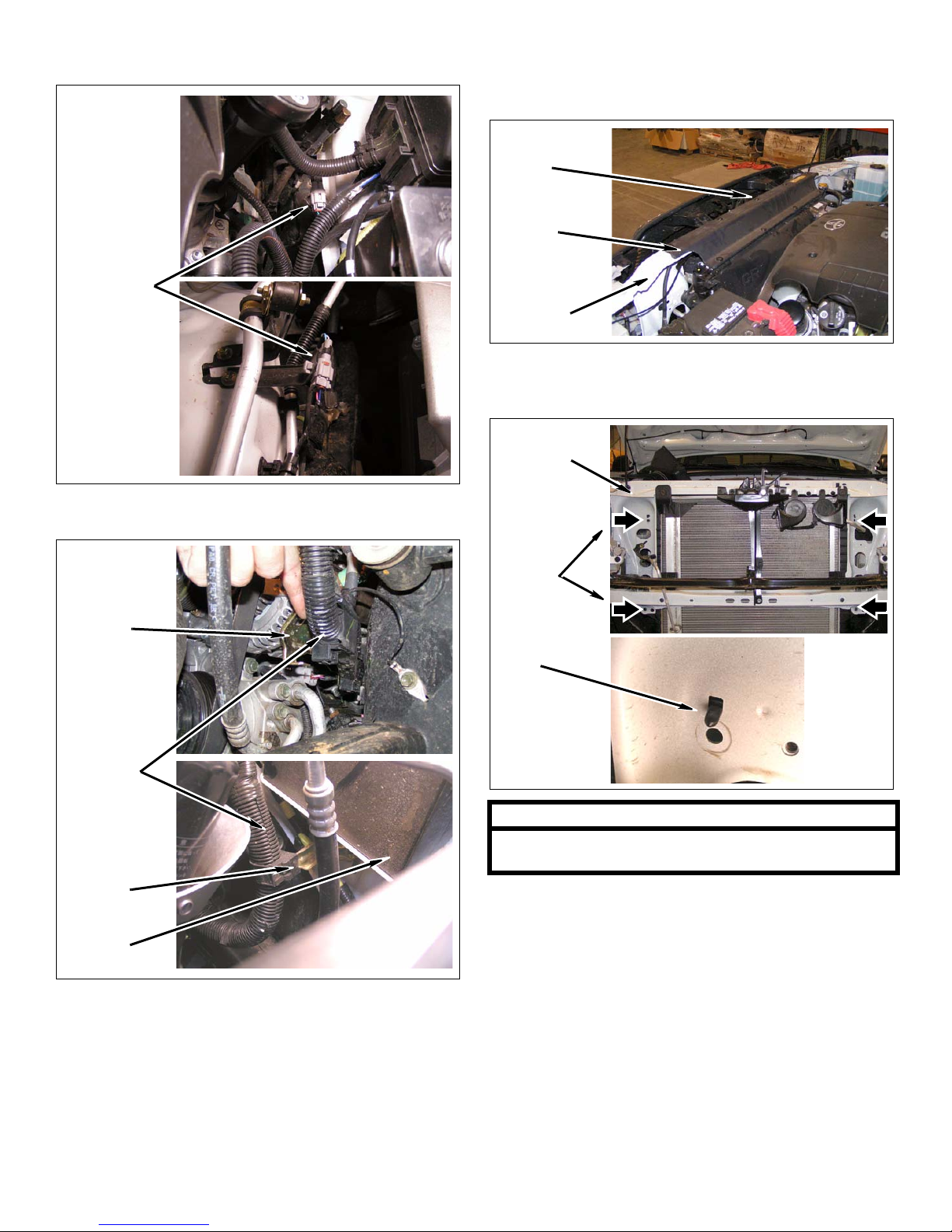

9. Remove heater hoses from clip on backside of engine.
Heater Hoses
Nut
AC Line
7. 4 cyl. models: Remove lower AC line from two clips and passenger side body.
Passenger Side Body
Clip
AC Line
Clip
10. Remove wire harness clip from firewall and bracket.
Clip
Bracket
Wire Harness
8. Remove vent tubes from driver side body bracket.
Vent Tubes
Bracket
Battery
5 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
11. Remove ABS wire harnesses from driver and pas­senger side brackets.
Driver Side
ABS Wire Harnesses

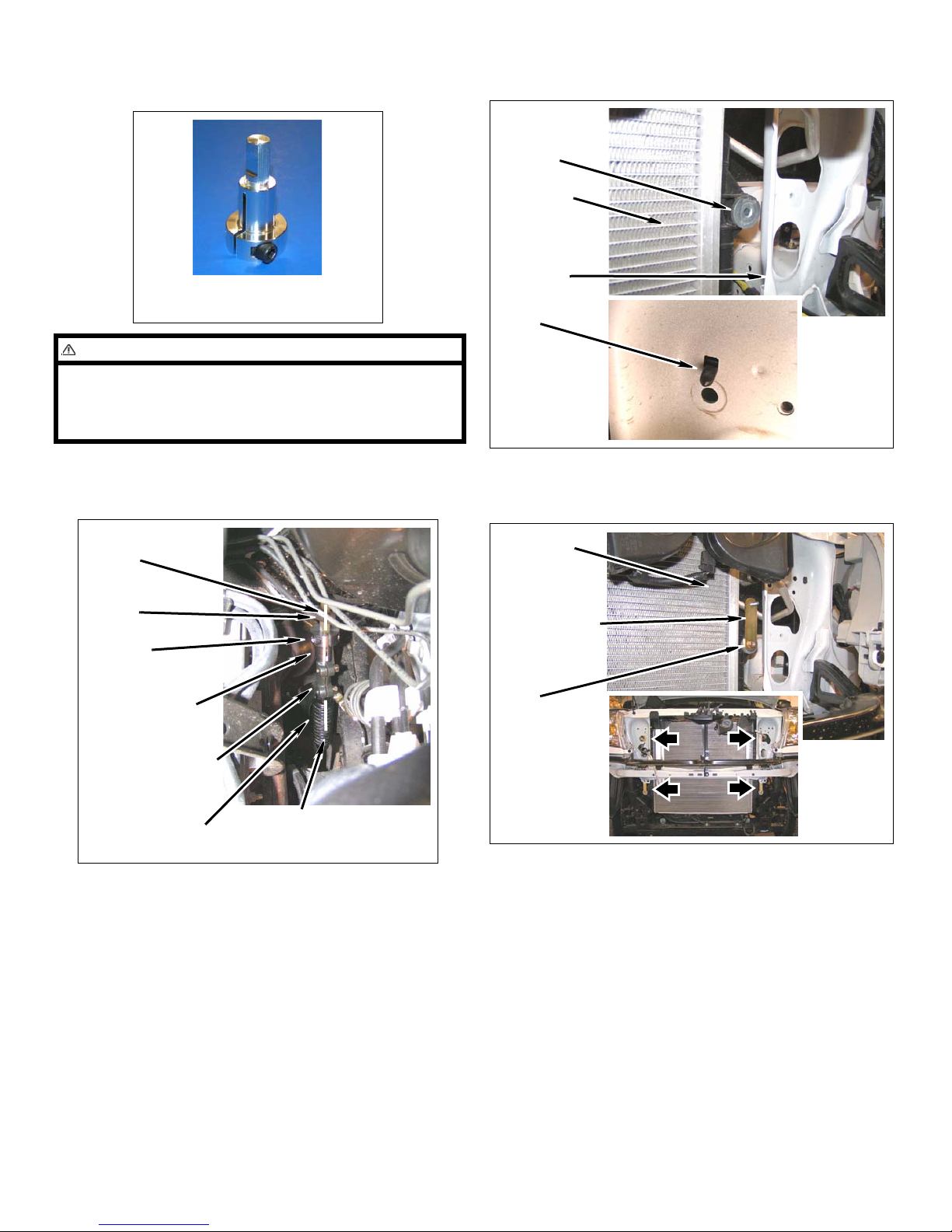

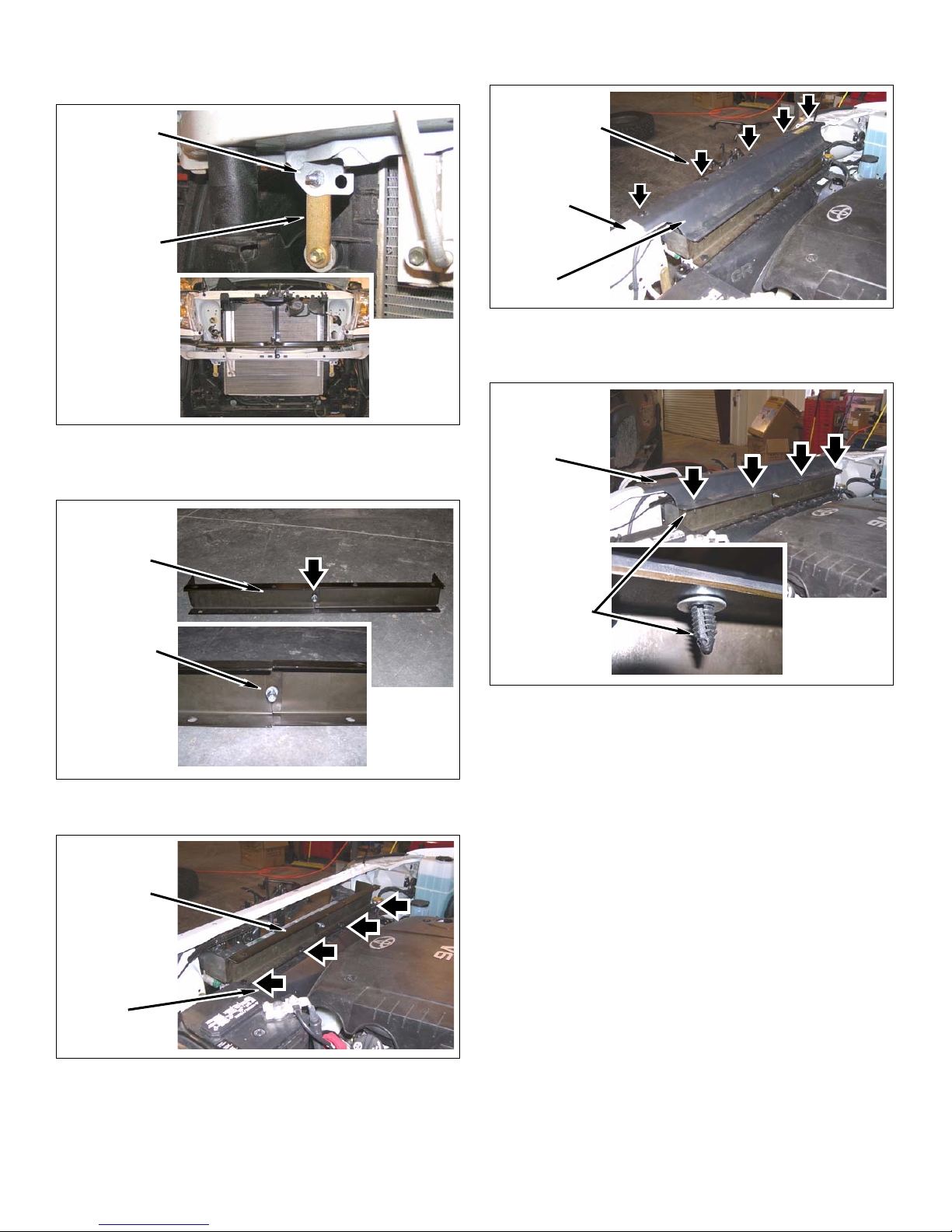

13. Radiator a. Remove nine pop-up clips and radiator cover
from core support.
Pop-up Clips
Radiator Cover
Core Support
b. Remove four bolts and radiator from core sup-
port. Allow radiator to hang on core support by tabs.
Passenger Side
12. Remove wire harness and two clips from alternator
bracket and driver side body bracket.
Alternator Bracket
Wire Harness
Body Bracket
Core Support
Radiator Bolts
Tab
NOTE
Lower the radiator onto the frame prior to the lifting pro­cedures.
Battery
6 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
14. Steering Shaft
Inside of Vehicle
WARNING
Accidental deployment of the air bag can result in seri­ous personal injury or death. To avoid accidental deployment during installation of the lift kit, the Supple­mental Restraint System (SRS, or airbag) must remain deactivated. Do not allow anyone near the airbag dur­ing installation. Refer to the factory service manual or owner's manual for the recommended procedure to disable the SRS. After kit installation, the SRS must be reactivated before driving the vehicle.
CAUTION
If the following step is not performed, the airbag clock­spring could be damaged. Do not turn the steering wheel while the steering shaft is disconnected.
a. Strap steering wheel to prevent accidental
movement.
b. Mark upper steering shaft in relation to coupler
and lower steering shaft.
Upper Steering Shaft

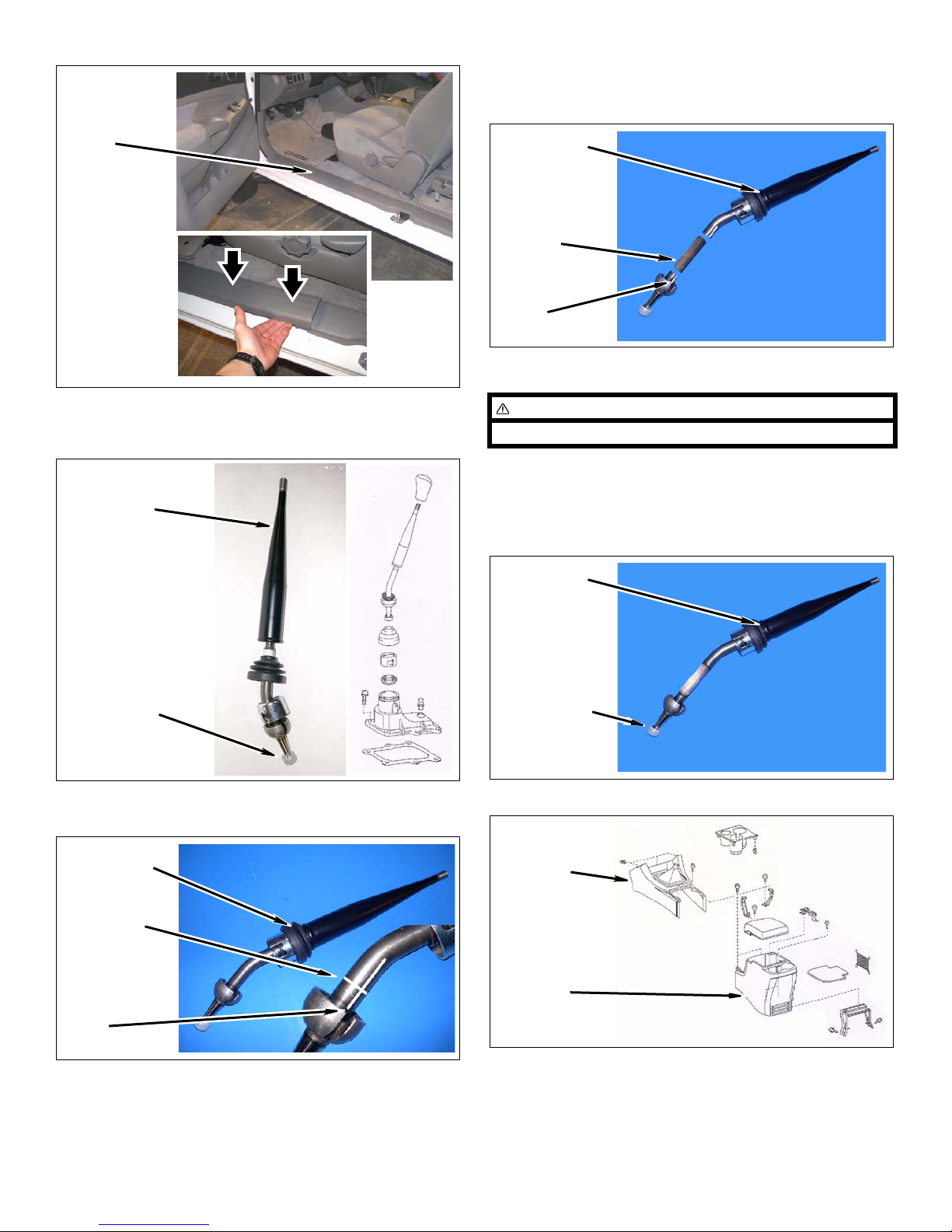

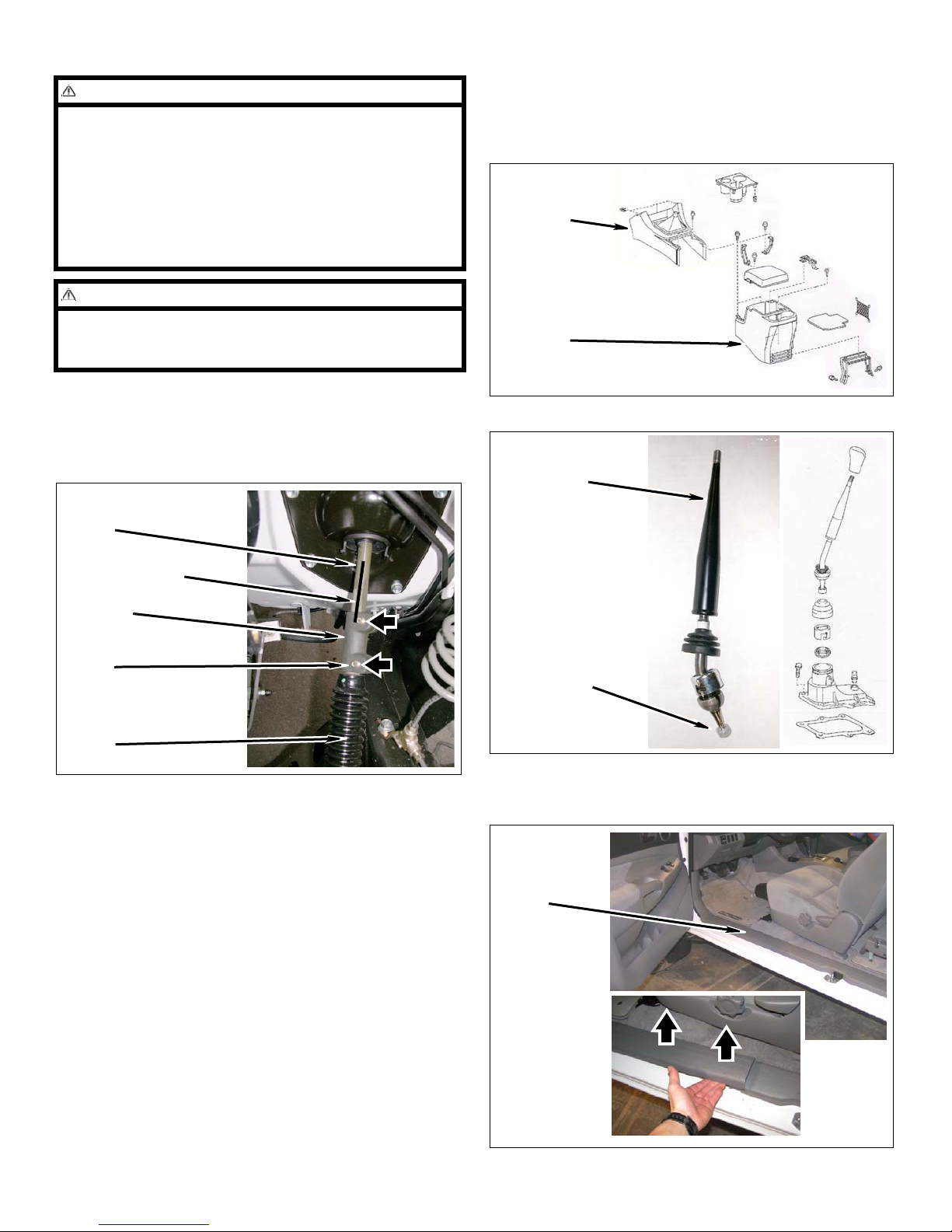

1. Manual transmission a. Remove center console and shifter console inte-
rior panels.
Shifter Console
Center Console
b. Remove shift lever from vehicle.
Shift Lever
Alignment Mark Coupler
Bolts
Lower Steering Shaft
c. Remove coupler bolts, slide coupler up onto
upper steering shaft and disconnect steering shaft.
d. Slide coupler down and off of upper steering
shaft.
e. Position steering coupler onto lower steering
shaft.
Plastic Cap

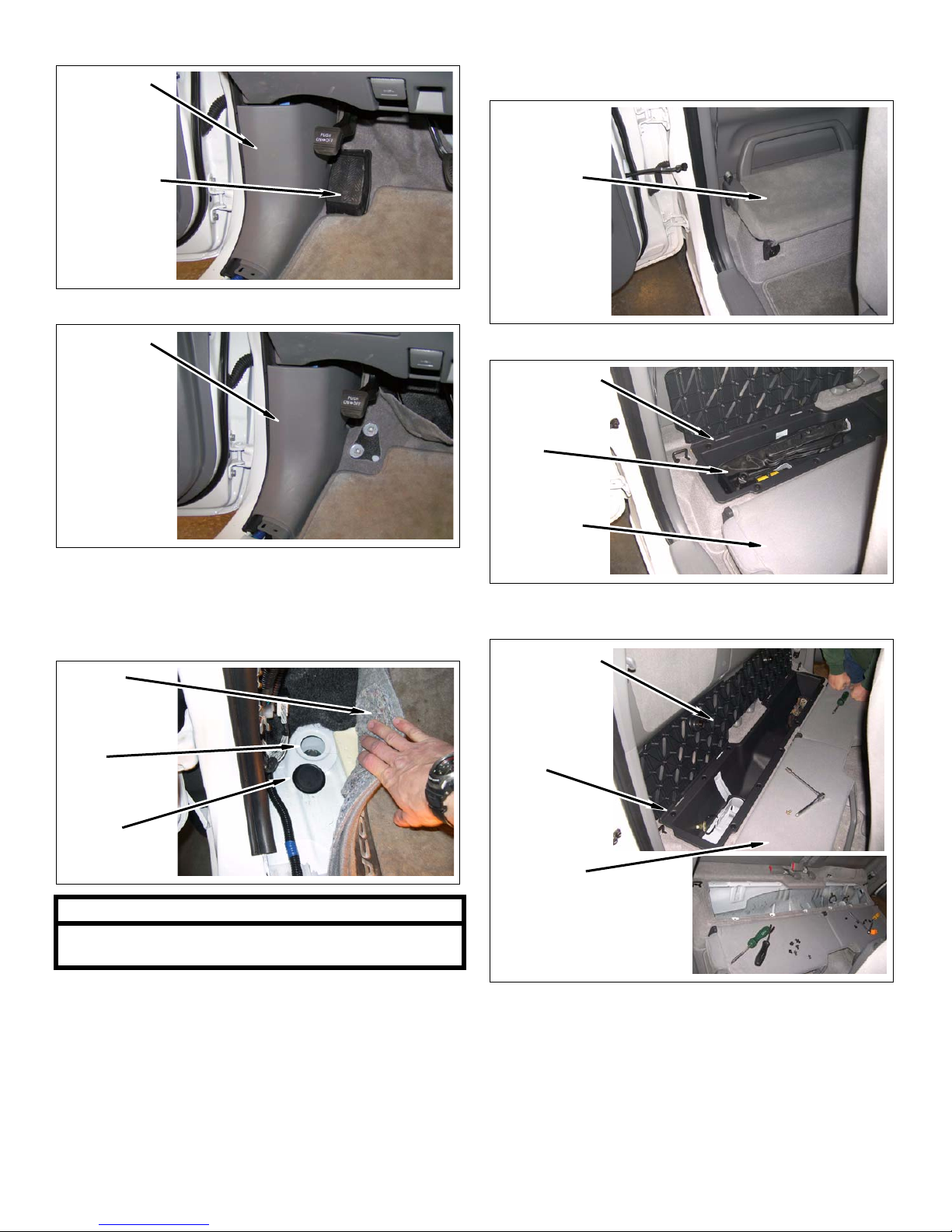

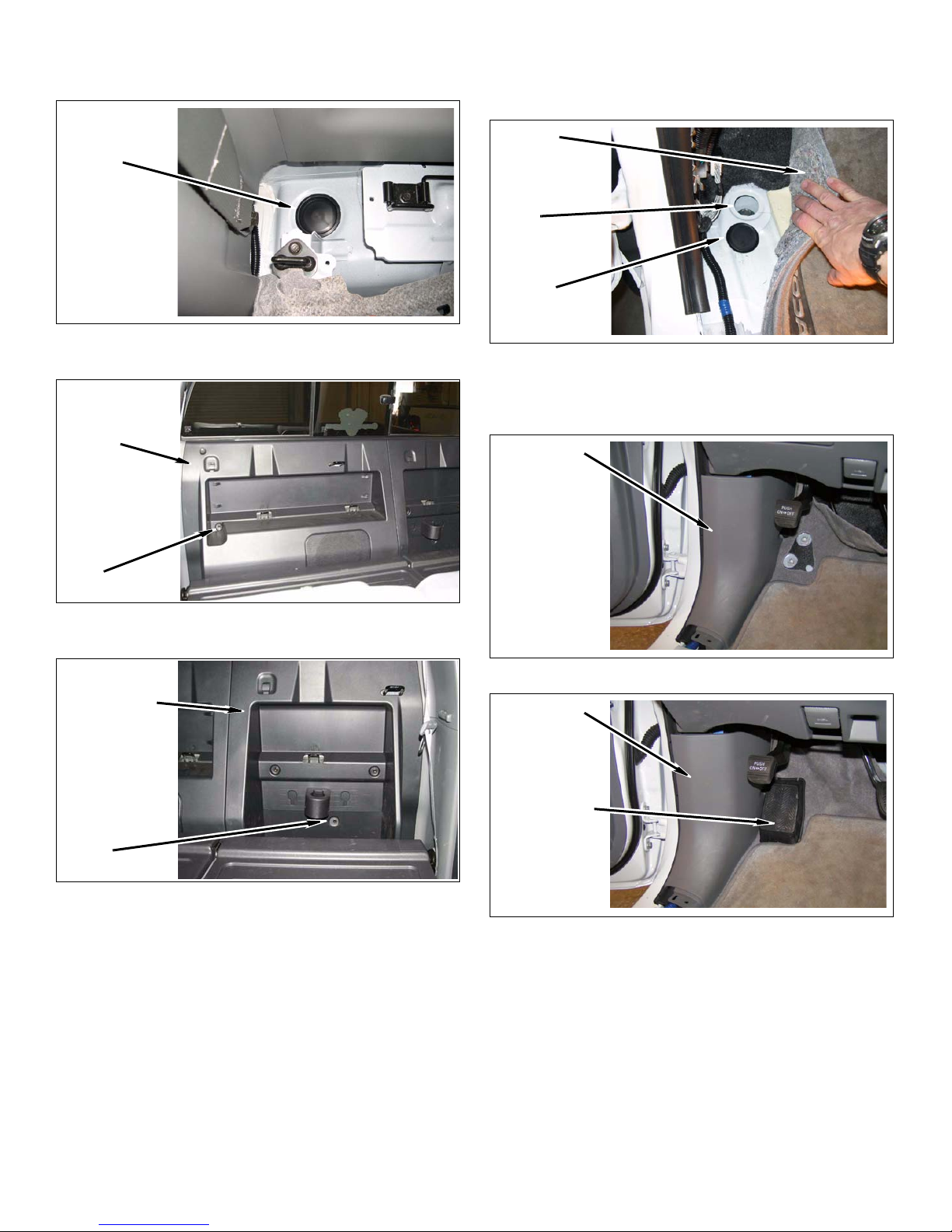

2. Front interior trim panels a. Remove driver and passenger door sill plates.
Door Sill Plate
7 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
b. Remove dead pedal.

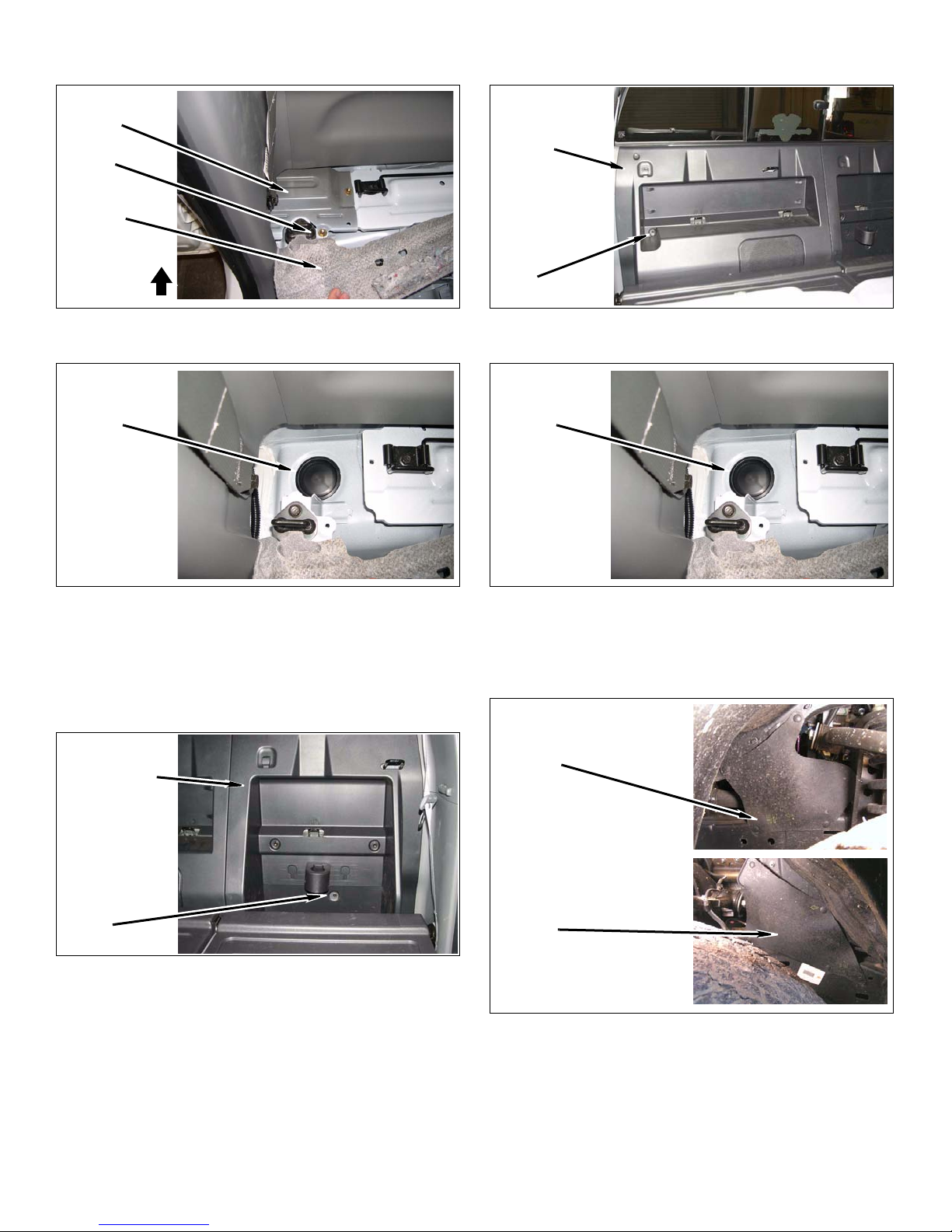

3. Extended cab models: Rear interior trim panels
Kick Panel
Dead Pedal
c. Remove driver and passenger kick panels.
Kick Panel
a. Fold down rear seats.
Rear Seat
b. Open floor storage tray and remove jack.
Storage Tray
Jack
Rear Seat
d. Pull driver and passenger carpet back from cor-
ner and expose body mount bolt access cover.
e. Remove driver and passenger body mount bolt
access cover.
Carpet
Body Mount Bolt
Access Cover
NOTE
Procedures may vary depending on cab model for access to rear body mount bolt access covers.
c. Remove pop-up clips and storage tray from
vehicle.
Storage Tray
Pop-up Clips
Rear Seat
d. Pull carpet up to expose driver and passenger
body mount access plates.
8 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
e. Remove four bolts, and driver and passenger
body mount access plates.
c. Remove bolt and pop-clips from passenger side
rear panel and cab.
Access Plate
Bolts
Carpet
Rear
f. Remove driver and passenger body mount bolt
access covers.
Access Cover
Passenger Side Rear Panel
Bolt
d. Remove driver and passenger body mount bolt
access covers.
Access Cover
4. Crew cab models: Rear interior trim panels a. Remove three headrests from seatbacks and
fold seatbacks down.
b. Remove three bolts and pop-clips from driver
side rear panel and cab.
Driver Side Rear Panel
Bolts

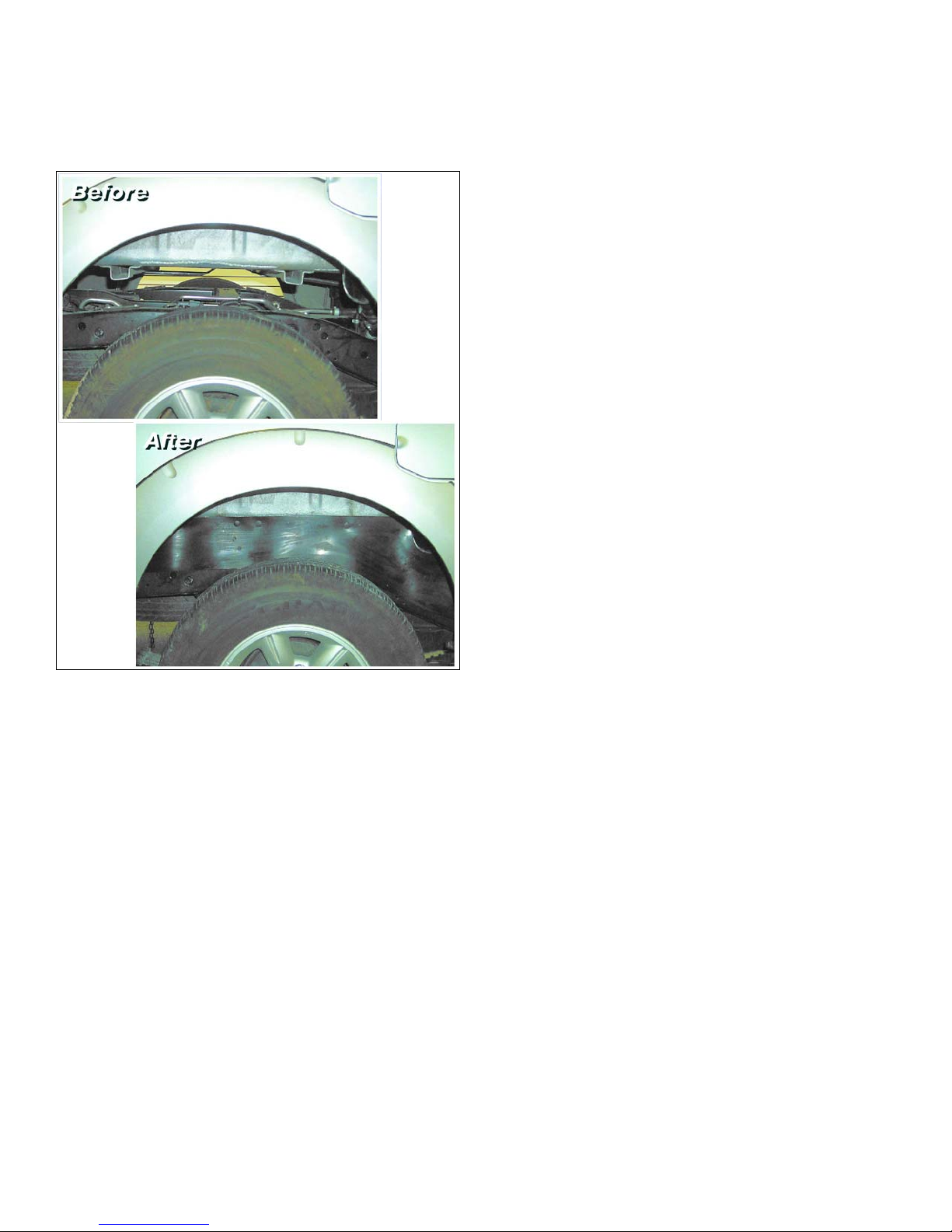

Underside of Vehicle
1. Remove all clips and two driver side engine guards
from driver side wheel well.
Driver Side
Front Engine Guard
Rear Engine Guard
2. Repeat above step for passenger side.
9 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613

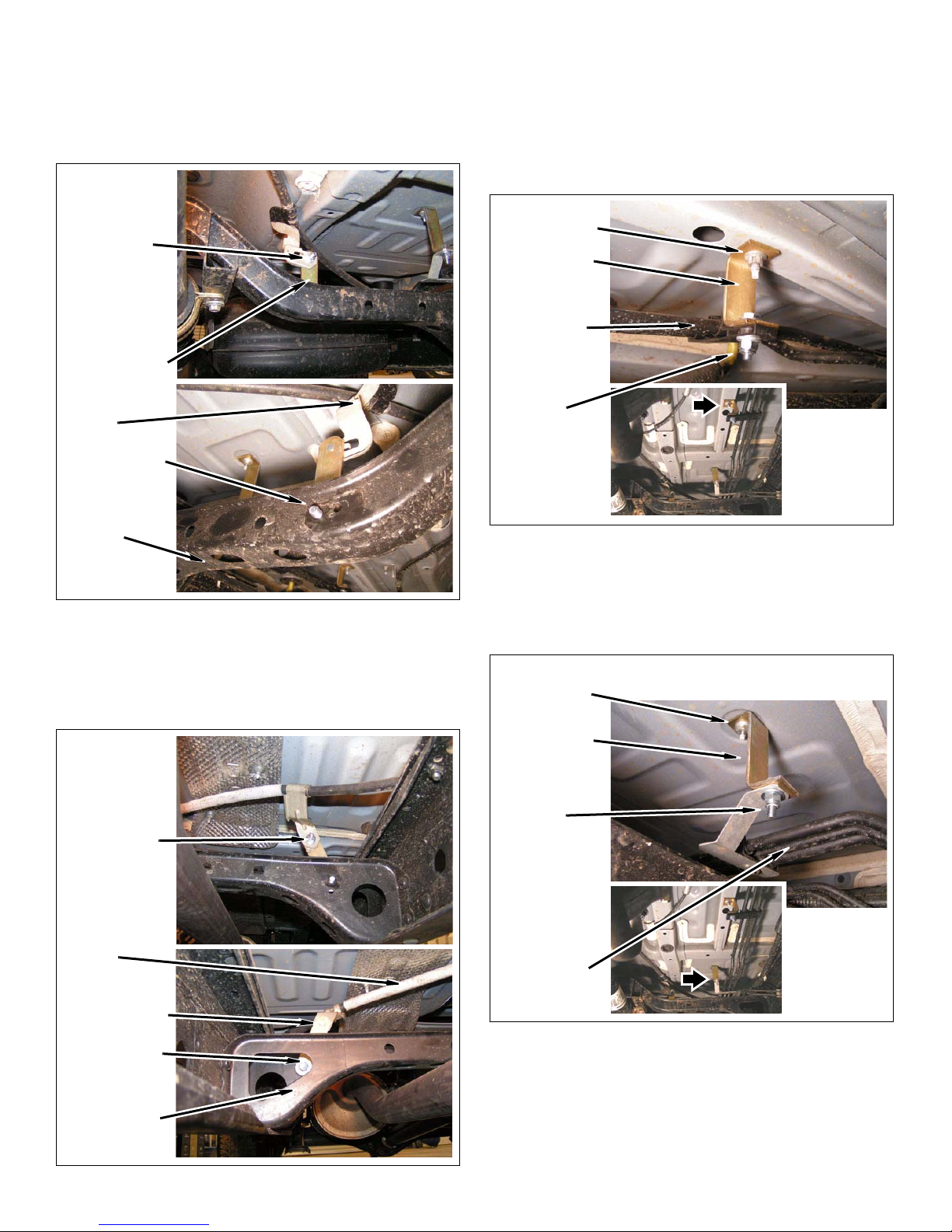

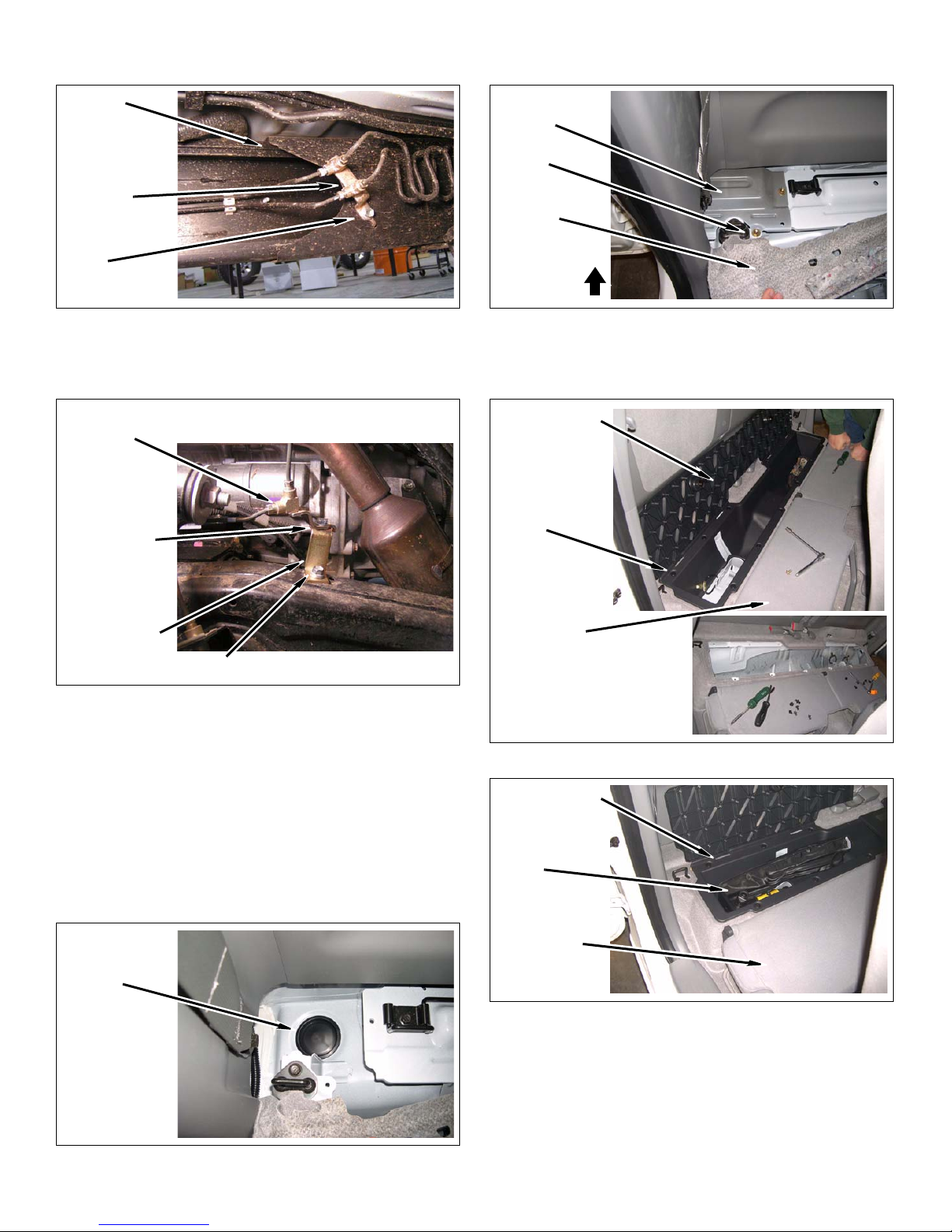

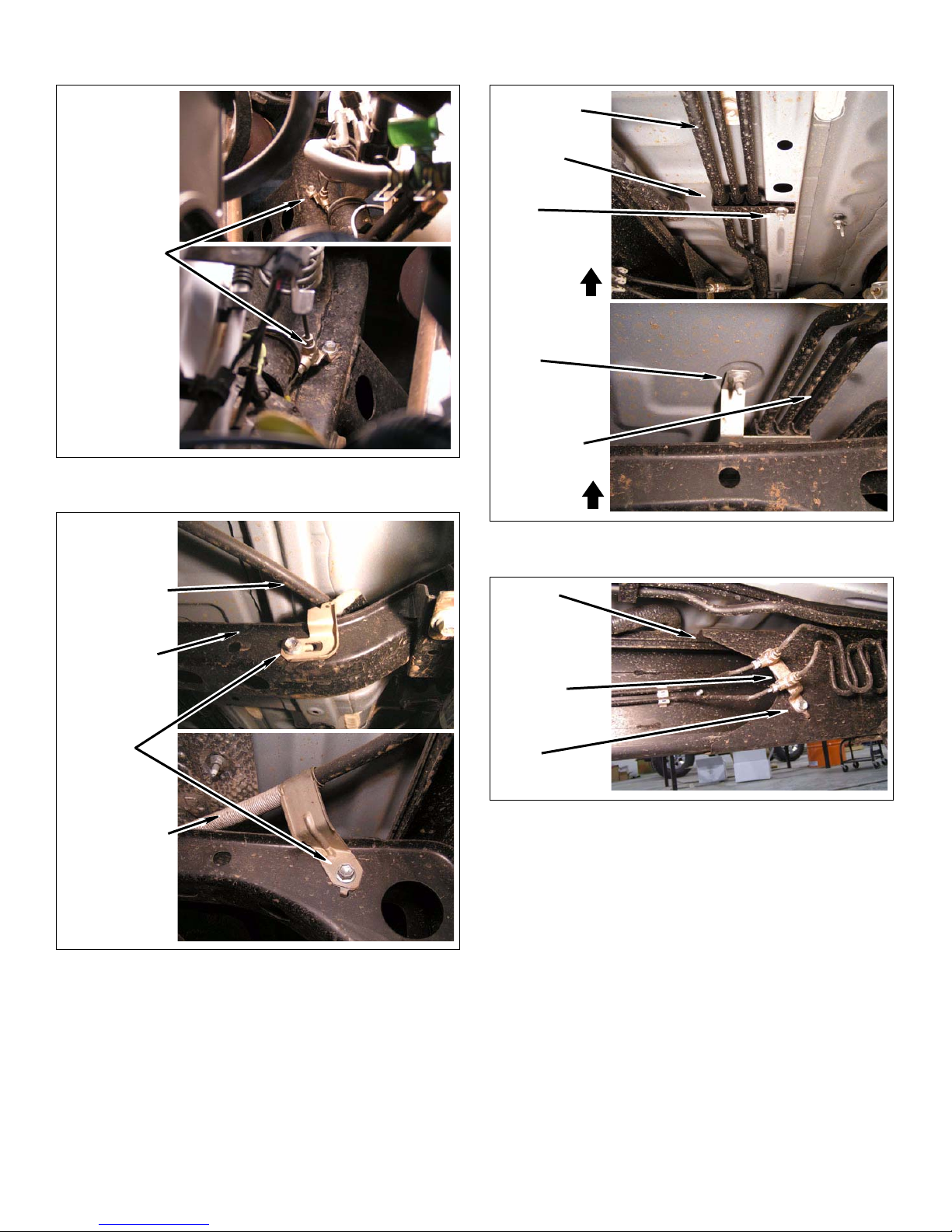

3. Remove two bolts and brake line brackets from driver and passenger side frame rails.
5. Remove two nuts and fuel line brackets from driver side body.
Driver Side
Bolt & Brake Line
Passenger Side
4. Remove two bolts and parking brake cable brackets
from crossmember.
Driver Side
Parking Brake Cable
Fuel Lines
Bracket
Nut
Front
Nut
Fuel Lines
Rear

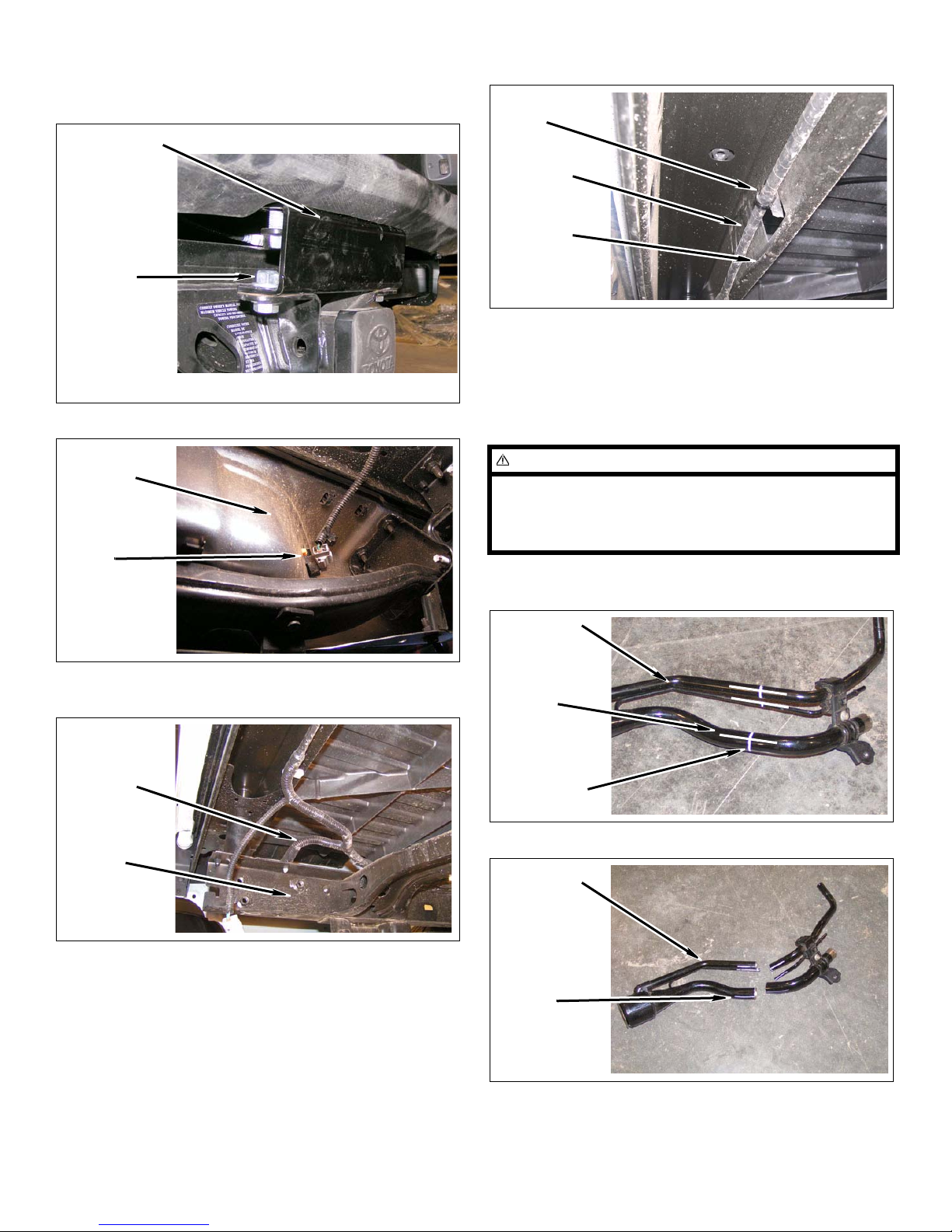

6. Remove bolt and brake line bracket from driver side frame.
Frame
Crossmember
Bolt & Bracket
Parking Brake Cable
Passenger Side
Brake Line Bracket
Bolt
10 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
Rear of Vehicle
2. Rear bumper
WARNING
Use extreme caution when working near the fuel lines and the fuel tank. Clean up spilled fuel immediately. A spark could cause an explosion or fire resulting in seri­ous personal injury and property damage.

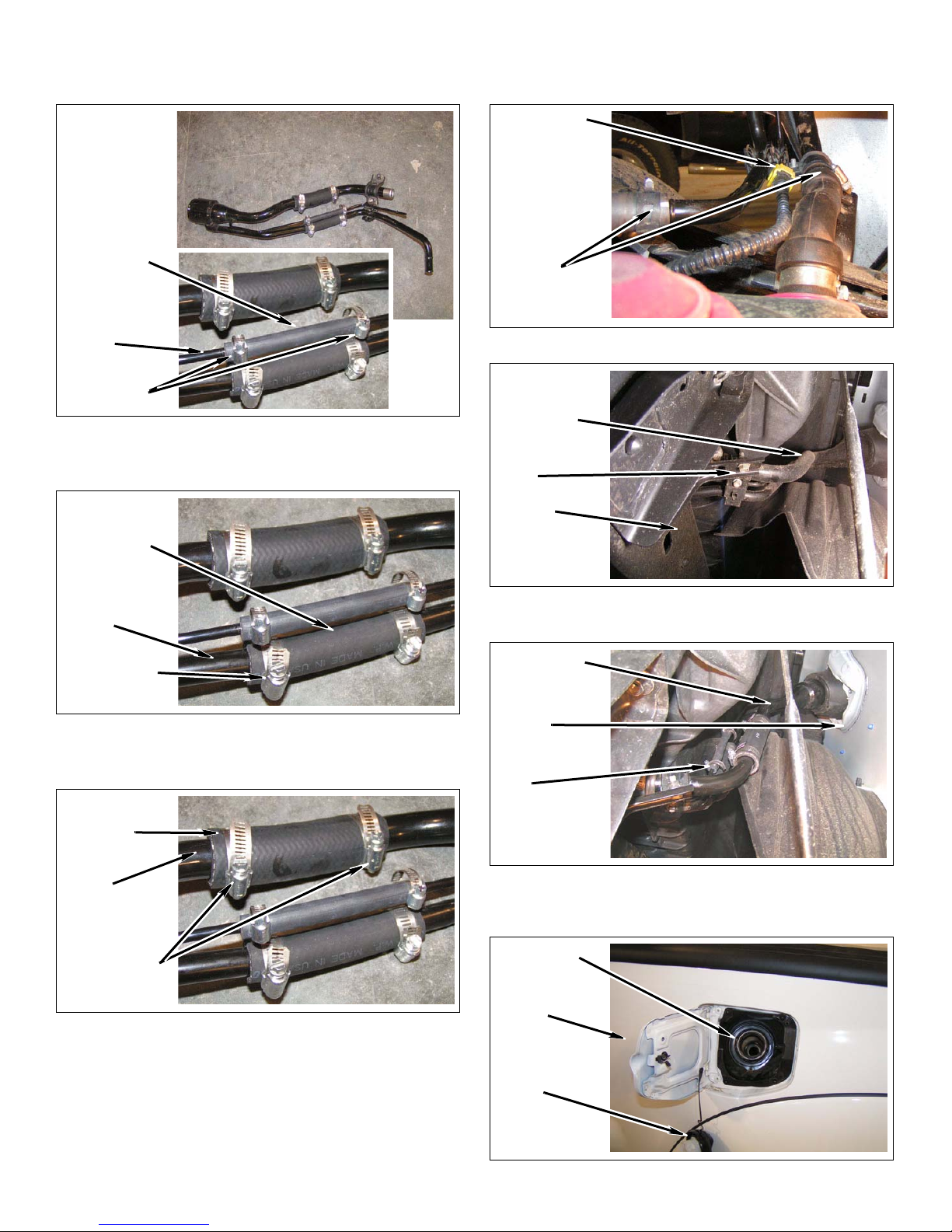

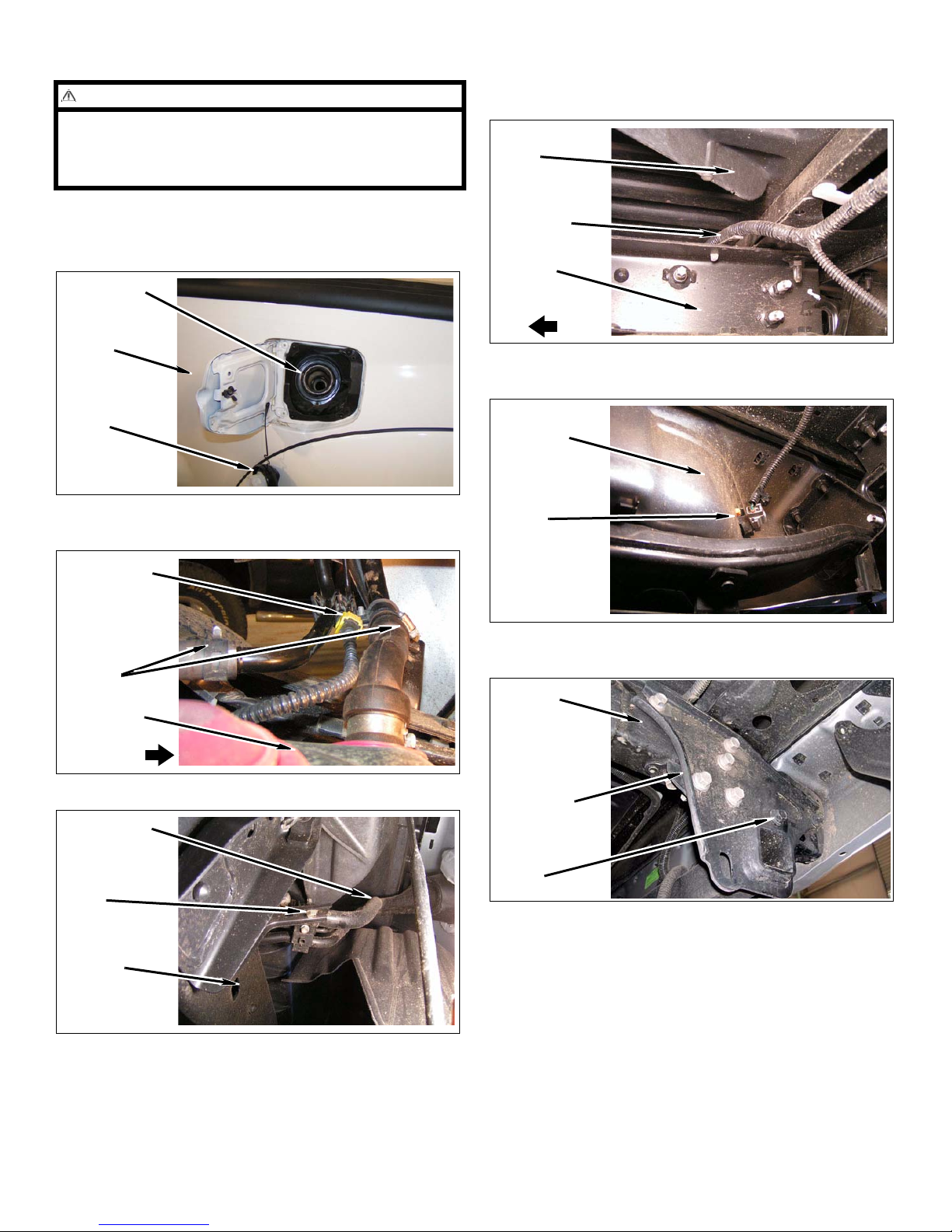

1. Fuel filler a. Remove fuel filler cap.
Fuel Filler
Body
Fuel Filler Cap
b. Loosen two hose clamps and disconnect vent
hose connector.
a. Remove rear bumper wire harness from driver
and passenger frame.
Bed
Wire Harness
Frame
Front
b. Remove two license plate lights from rear
bumper.
Rear Bumper
License Plate Light
Vent Hose
Clamp
Fuel Tank
Front
c. Remove bolt and fuel filler from vehicle.
Fuel Filler
Bolt
Frame

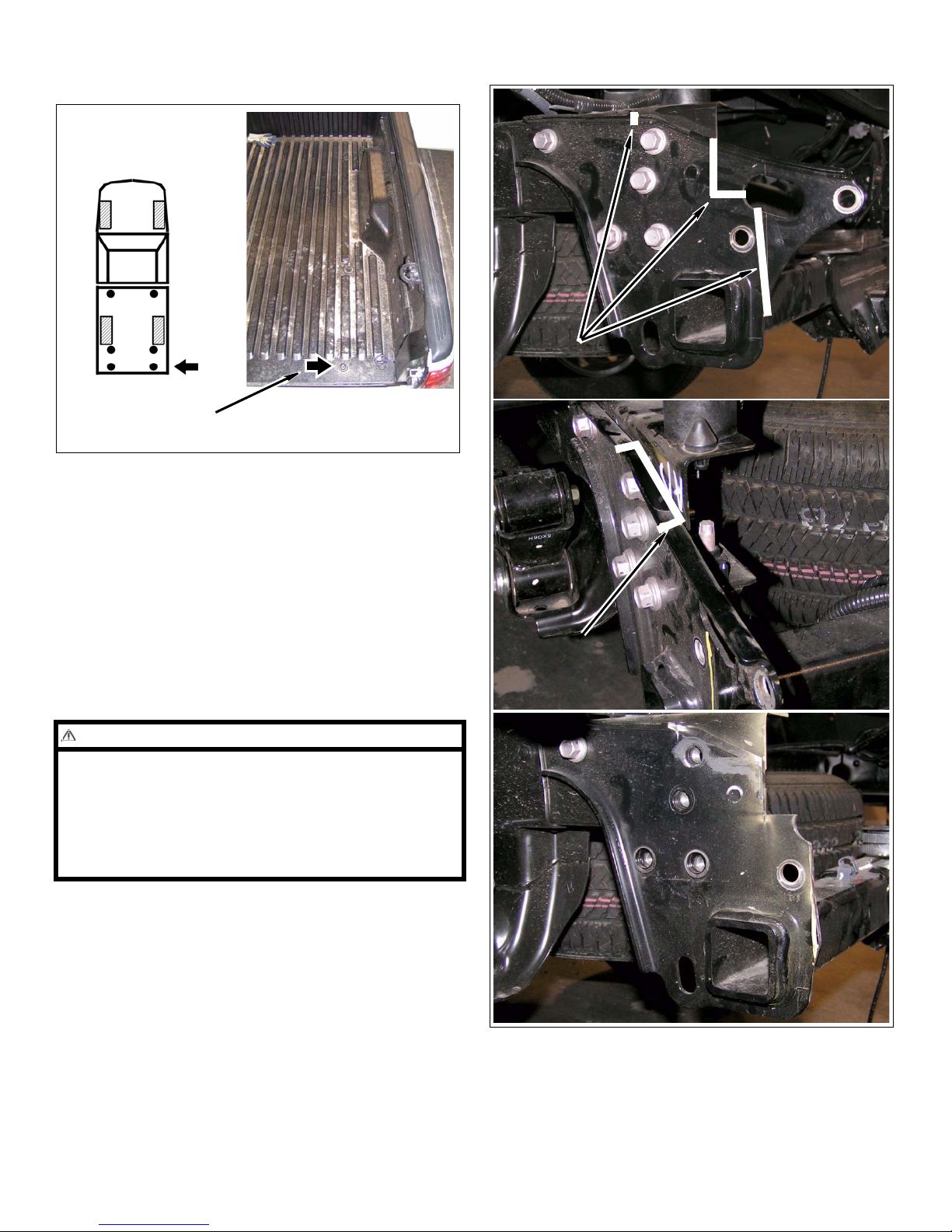

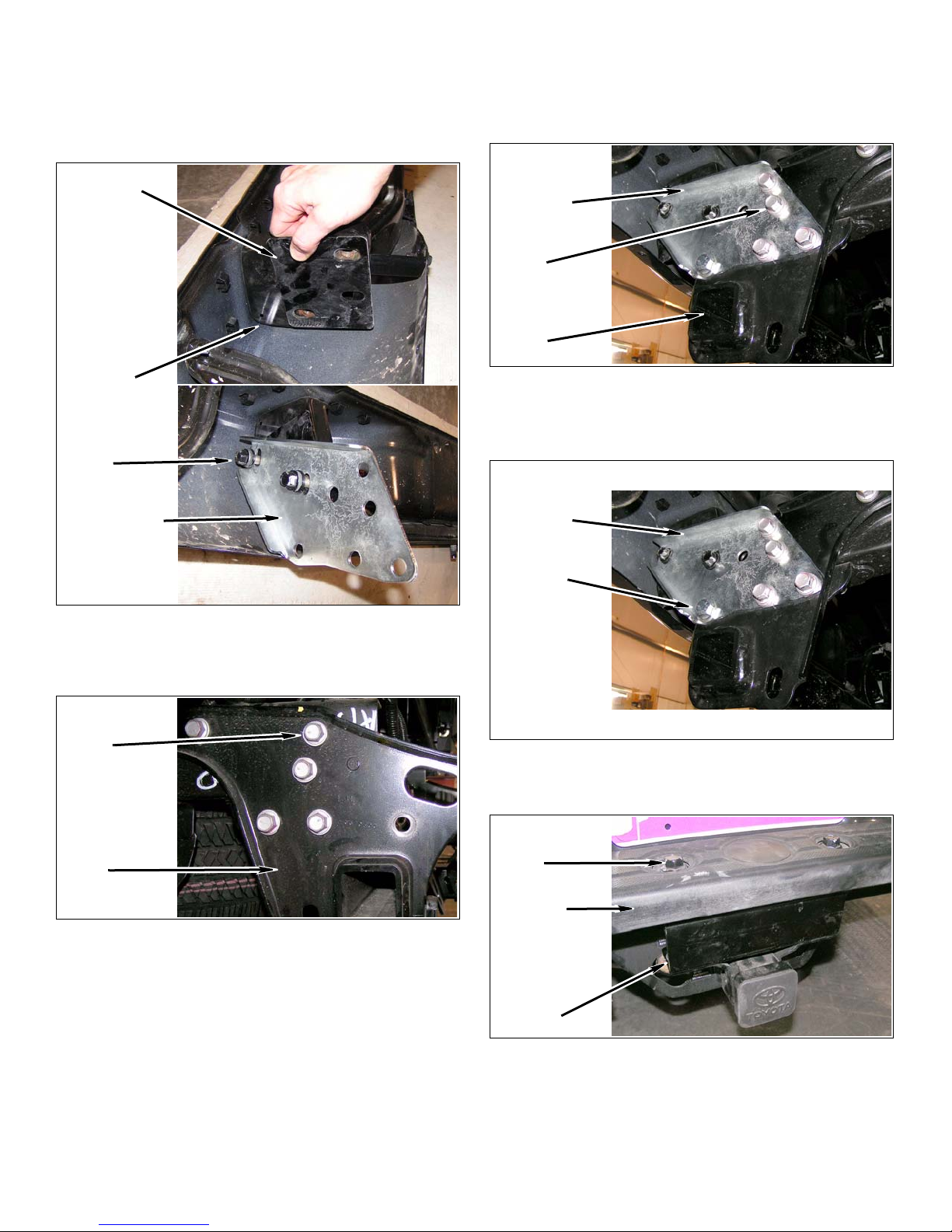

c. Remove four bolts and rear bumper from O.E.
trailer hitch brackets.
Frame
Trailer Hitch Brackets
Bolts
11 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
Install Kit
WARNING
Cab
1. Lift cab a. Loosen, but DO NOT REMOVE, cab mounting
bolts on driver side.
Loosen Bolts
Cab Mount
(Core Support)
At These Mounts
Use extreme caution when lifting body from frame. To prevent serious personal injury, ensure the lifting device is securely placed. Keep your hands out from between the body and frame.
CAUTION
Continually check hoses, wires, lines, etc. to be sure that everything is flexing properly and not binding, or damage to the vehicle could result. Be especially care­ful of the a/c hoses at the fire wall, the belt pulley, and at the core support. Ensure brake lines stretch while lifting. Bending the lines to gain ample slack may be necessary. Be extremely ca reful not to kink the lines.
2. Cab passenger side a. Remove captive washers from each factory cab
mount bolt.
Front Bolt & Washer
Cab Mount
(Mid Cab)
Cab Mount
(Rear Cab)
NOTE
The number of cab mounting bolts may vary with the length of the cab.
b. Remove bolt, nut, and lower washer from each
cab mount on passenger side.
Cab Mount
Remove Bolt
From These Mounts
Mid Bolt & Washer
Rear Bolt & Washer
Front, Mid & Rear Captive Washers
NOTE
The factory captive washers will be used with kit bolts.
b. Position a hydraulic jack and a wood block
under passenger side of cab (under the body seam). Slowly lift cab just enough to install a kit block on top of factory upper bushing.
Bolt
Nut & Lower Washer
WARNING
The kit blocks must be installed in addition to the fac­tory upper and lower bushings. Installing the kit blocks without the factory upper and lower bushings could result in damage to the vehicle and/or serious personal injury.
12 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613

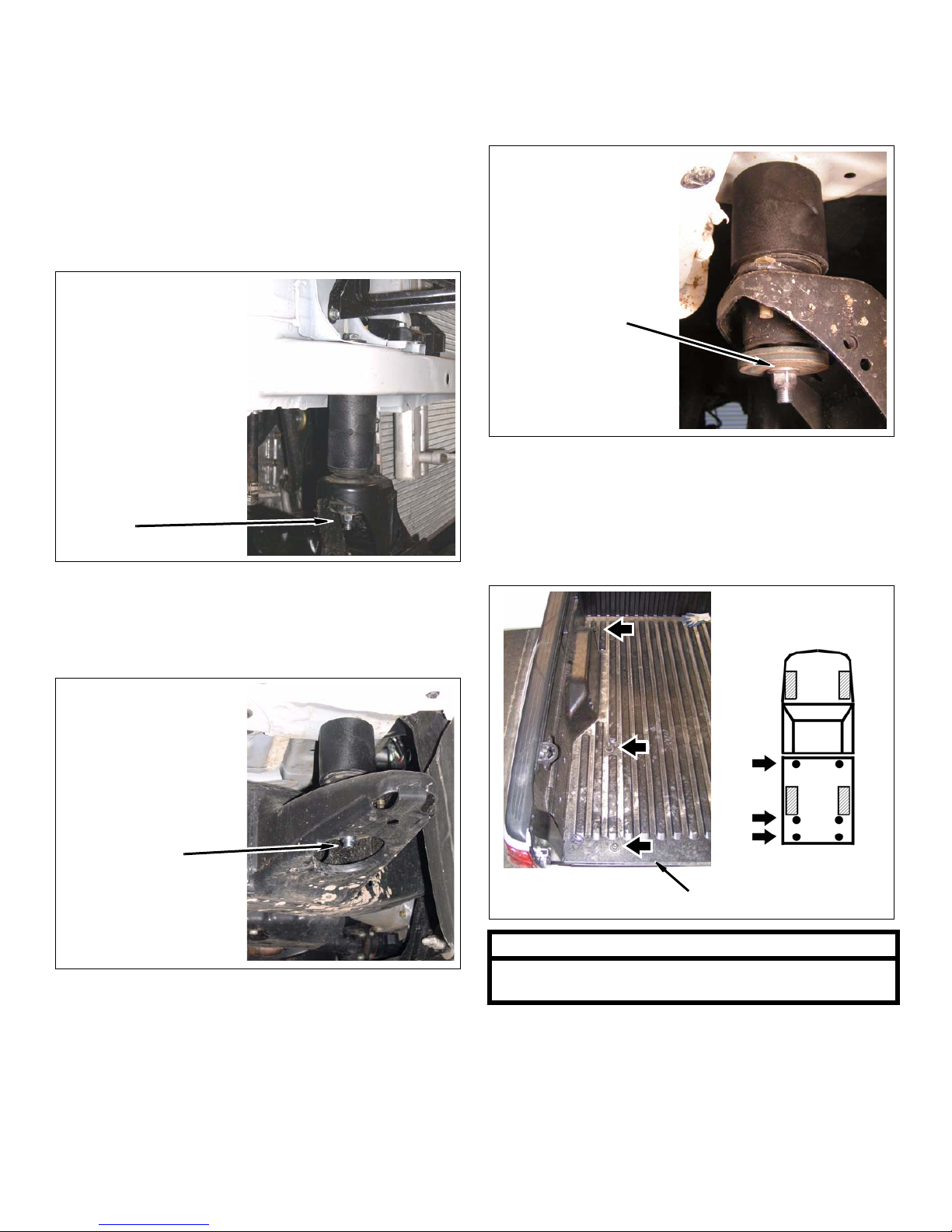

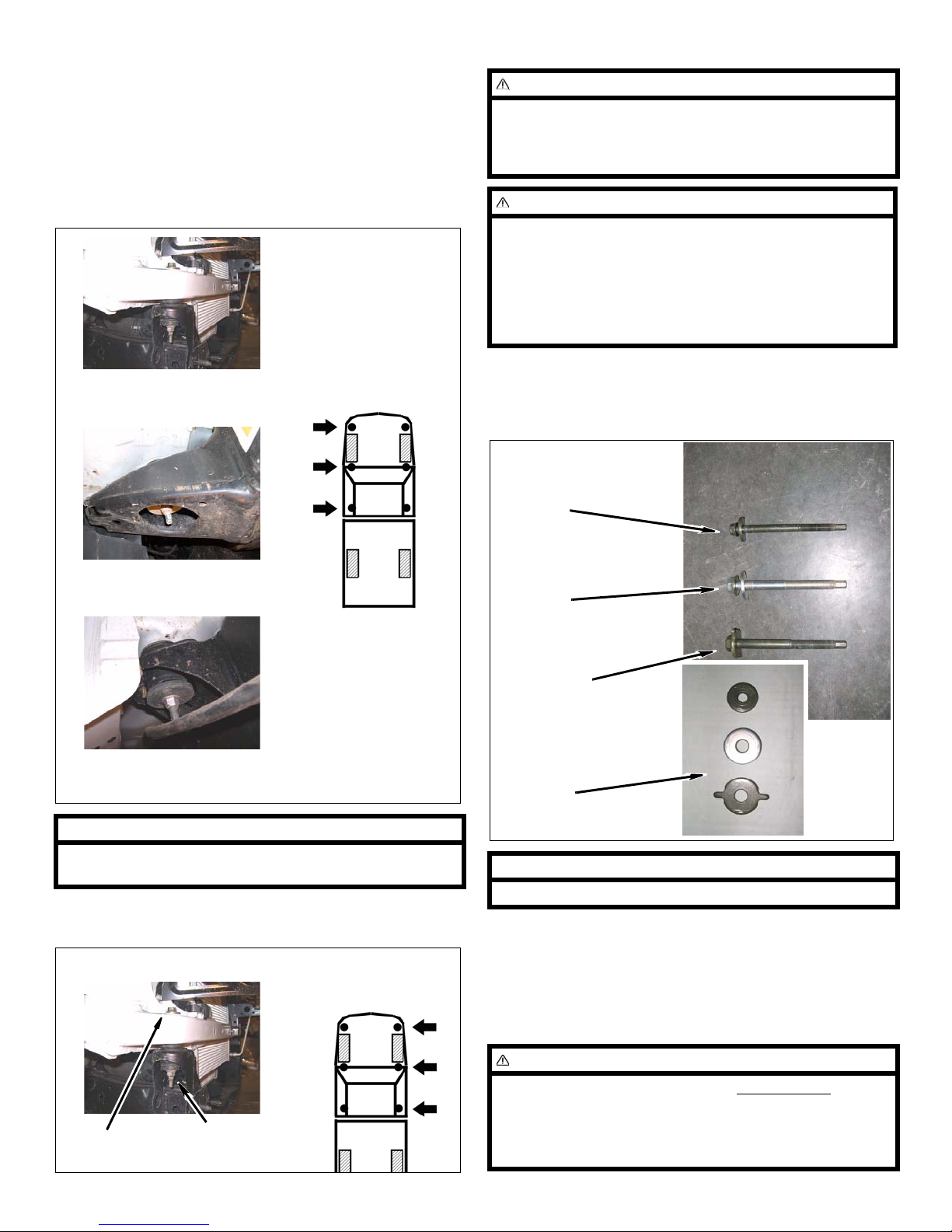

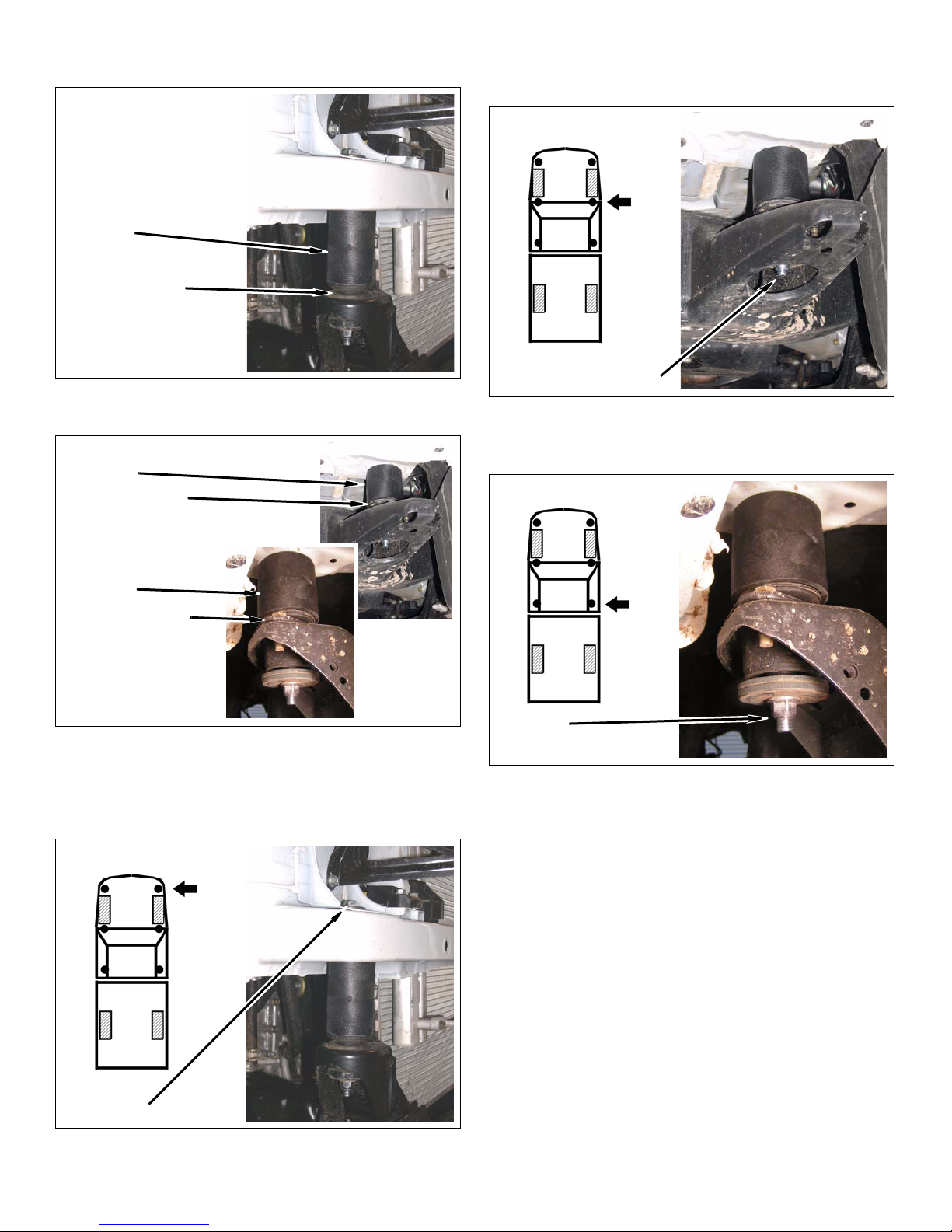

c. Install kit block (2” dia.) on upper bushings on
front core support cab mount.
Front Cab Mount
Kit Block (2” Dia.)
Upper Bushing
d. Inst all kit blocks (3” dia.) on upper bushings on
each remaining cab mount.
Kit Block
Mid Cab Mount
(3” Dia.) Upper Bushing
g. Install factory mid captive washer and kit bolt
(M12-1.75 x 200mm) on cab mount. DO NOT TIGHTEN.
Mid Cab Mount
Kit Bolt (M12-1.75 x 200mm)
h. Install factory rear captive washer and kit bolt
(M12-1.25 x 210mm) on cab mount. DO NOT TIGHTEN.
Rear Cab Mount
Kit Block (3” Dia.)
Upper Bushing
Rear Cab Mount
e. Lower cab onto kit blocks. f. Install factory front captive washer and a kit bolt
(3/8” x 8”) on core support cab mount. DO NOT TIGHTEN.
Front Cab Mount
Kit Bolt (M12-1.25 x 210mm)
Kit Bolt (3/8” x 8”)
13 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
3. Cab driver side a. Repeat previous steps on driver side of cab. b. Set cab-to-bed spacing according to previous
measurement.
c. Remove front core support cab mount kit bolts
(3/8” x 8”) and apply a few drops of kit Loctite® to threads. Install kit bolts, factory captive wash- ers, factory lower washers and kit nuts (3/8”
Nylock). Tighten kit bolts to 55 ft. lbs.
e. Remove rear cab mount kit bolts (M12-1.25 x
210mm) and apply a few drops of kit Loctite® to threads. Install kit bolts, factory captive wash- ers, factory lower washers and factory nuts.
Tighten kit bolts to 55 ft. lbs.
Rear Cab Mount
Front Cab Mount
Kit Bolt (3/8” x 8”),
Kit Nut
(3/8” Nylock), Factory Captive Washer & Lower Washer
d. Remove mid cab mount kit bolts (M12-1.75 x
200mm) and apply a few drops of kit Loctite® to threads. Install kit bolts, factory captive wash- ers, factory lower washers and kit nuts (12mm
Nylock). Tighten kit bolts to 55 ft. lbs.
Mid Cab Mount
Kit Bolt (M12-1.25 x 210mm), Factory Captive Washer, Lower Washer & Nut
Bed

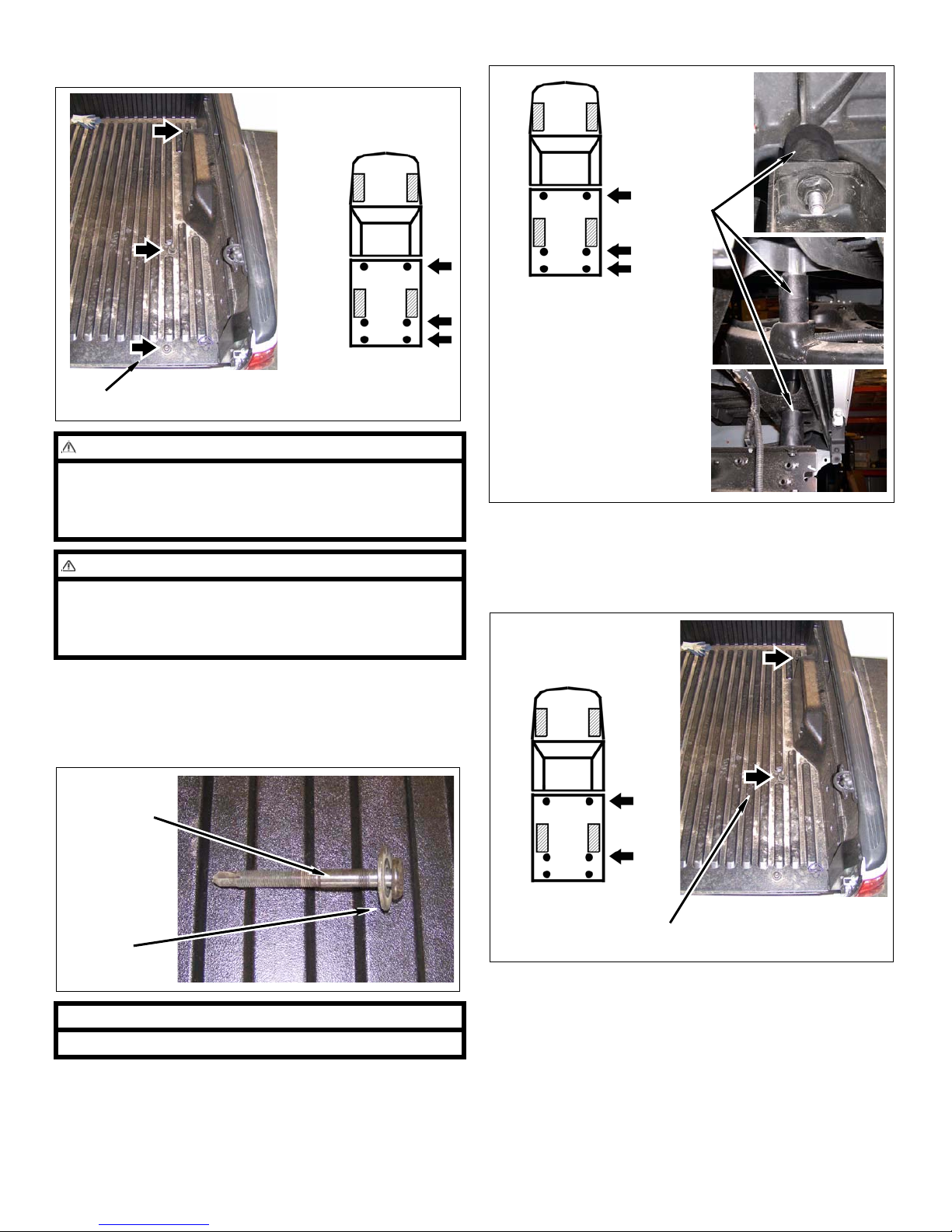

1. Lift bed a. Loosen, but DO NOT REMOVE, bed mounting
bolts on driver side.
Loosen Bolts
At These Mounts
Kit Bolt (M12-1.75 x 200mm),
Kit Nut
(12mm Nylock), Factory Captive Washer & Lower Washer
Bolts
NOTE
The number of bed mounting bolts may vary with the length of the bed.
14 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
2. Remove bolt from each bed mount on passenger side.
Remove Bolts
At These Mounts
Bolts
WARNING
c. Install kit blocks (2” dia.) on frame mounts.
Front Bed Mount
Kit Block (2” Dia.)
Mid Bed Mount
Use extreme caution when lifting the bed from the frame. To prevent serious personal injury, ensure the lifting device is securely placed. Keep your hands out from between the bed and frame.
CAUTION
To prevent damage to the vehicle while lifting the bed, continually check hoses, wires, brake lines, etc. to ensure everything is flexing properly and not binding. Ensure clearance between bed and cab is maintained.
3. Bed passenger side a. Remove captive washers from each factory bed
mount bolt.
Factory Bed Mount Bolt
Captive Washer
Rear Bed Mount
d. Lower bed onto kit blocks. e. At front and mid bed mounts, install kit bolts
(M12-1.25 x 160mm) and factory captive wash­ers. DO NOT TIGHTEN.
Install Kit Bolts
At These Mounts
Kit Bolts (M12-1.25 x 160mm)
NOTE
The factory captive washers will be used with kit bolts.
b. Using a hydraulic jack and a wood block, slowly
lift passenger side of bed a little more than 3”.
15 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
f. At rear bed mount, install kit bolt (M12-1.25 x
180mm) and factory captive washer. DO NOT TIGHTEN.
Install Kit Bolt At This Mount
a. Mark and cut driver and passenger O.E. trailer
hitch brackets along white lines as shown below.
BEFORE
Mark & Cut Here
Kit Bolt (M12-1.25 x 180mm)
g. Repeat previous steps on driver side of bed. h. Set bed-to-cab spacing according to previous
measurement.
i. Remove each kit bolt, one at a time, and apply a
few drops of kit Loctite® to threads. Install kit
bolt with factory captive washer.
Rear of Vehicle
1. Rear bumper
WARNING
The following procedure is intended only to enhance the appearance of the vehicle. The rear bumper will no longer be rated for towing of any kind. Towing with the rear bumper after it has been lifted can result in death, serious personal injury, or damage to the vehicle. Tow­ing after the bumper has been lifted should be accom­plished using a rated Class III receiver type hitch.
BEFORE
Mark & Cut Here
AFTER
16 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
b. Apply a small amount of kit Loctite® onto
threads of two factory bolts and install kit
bracket (rear bumper, passenger) and kit bracket (bumper, spacer) to passenger side
bumper with two factory bolts. DO NOT TIGHTEN.
Kit Plate (Rear Bumper, Spacer)
e. Apply a small amount of kit Loctite® onto
threads of eight factory bolts and install rear bumper and kit brackets (rear bumper) onto O.E. trailer hitch with eight factory bolts. DO NOT TIGHTEN.
Kit Bracket (Rear Bumper)
Factory Bolts
O.E. Trailer Hitch
Bumper
Factory Bolts
Kit Bracket (Rear Bumper, Passenger)
c. Repeat above step for driver side. d. Remove eight factory bolts from O.E. trailer
hitch and frame rails.
Factory Bolts
f. Install two kit brackets (rear bumper) onto O.E.
trailer hitch with two kit bolts (9/16” x 1-1/2”), four kit washers ( 9/16” SAE), and two kit nuts (9/16” stover). DO NOT TIGHTEN.
Kit Bracket (Rear Bumper)
Kit Bolt (9/16” x 1-1/2”), Kit Washers (9/16” SAE), Kit Nuts (9/16” Stover)
g. Install kit bracket (rear bumper, middle) onto
rear bumper with two factory bolts and nuts. DO NOT TIGHTEN.
O.E. Trailer Hitch
Factory Bolts
Bumper
Kit Bracket (Rear Bumper, Middle)
17 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
h. Inst all kit bracket (rear bumper, middle) onto
O.E. trailer hitch with two kit bolts (1/2” x 1”), four kit washers (1/2” SAE), and two kit nuts (1/ 2” stover). DO NOT TIGHTEN.
Kit Bracket (Rear Bumper, Middle)
Kit Bolt (1/2” x 1”), Kit Washers (1/2” SAE), Kit Nuts (1/2” Stover)
k. Install kit tie (zip) to rear crossmember and
bumper wiring harness.
Kit Tie (Zip)
Wire Harness
Cross­member
l. Set bumper to previous bed-to-bumper mea-
surements.
m. TIGHTEN all rear bumper hardware.
i. In stall license plate lights on rear bumper.
Rear Bumper
License Plate Light
j. Install rear bumper wiring harness on frame, if
possible.
Wire Harness
Frame
2. Fuel filler
WARNING
Use extreme caution when working near the fuel lines and the fuel tank. Clean up spilled fuel immediately. A spark could cause an explosion or fire resulting in seri­ous personal injury and property damage.
a. Mark fuel filler tubes with cut and alignment
lines.
Fuel Filler
Alignment Lines
Cut Lines
b. Cut fuel filler on cut lines.
Fuel Filler
Alignment Lines
c. Deburr edges of cut tubes.
18 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
d. Inst all kit extension (1/4” x 6” hose) between cut
breather tube on fuel filler with two kit clamps (#6 hose). DO NOT TIGHTEN.
Kit Extension (1/4” x 6”)
Breather Tube
Kit Clamps (#6 Hose)
g. Install fuel filler onto fuel tank with two factory
hose clamps and factory clip. DO NOT TIGHTEN.
Vent Hose
Clamp
h. Install factory bolt onto frame and fuel filler.
e. Install kit extension (5/8” x 6” hose) between cut
vent tube on fuel filler with two kit clamps (#10 hose). DO NOT TIGHTEN.
Kit Extension (5/8” x 6”)
Vent Tube
Kit Clamps (#10 Hose)
f. Install kit extension (1” x 6” hose) between cut
filler tube on fuel filler with two kit clamps (#20 hose). DO NOT TIGHTEN.
Kit Extension (1” x 6”)
Filler Tube
Fuel Filler
Bolt Frame
i. Adjust fuel filler and/or kit extensions (hose) to
body.
Fuel Filler
Body
Kit
Extensions
j. TIGHTEN all hardware.
Kit Clamps (#20 Hose)
k. Install fuel filler cap.
Fuel Filler
Body
Fuel Filler Cap
19 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
Underside of Vehicle
1. Parking brake cable
d. Install passenger side parking brake cable to kit
bracket with kit nut (1/4” Nylock) and kit washer (1/4” SAE).
a. Install kit bracket (3” w/ stud) to driver side
crossmember with factory bolt.
Kit Bolt (1/4” x 1”), Kit Washer (1/4” SAE), Kit Nut (1/4” Nylock)
Kit Bracket (3” W/ Stud)
Parking Brake Cable
Factory Bolt
Crossmember
2. Fuel lines a. Install kit bracket (2” stand off) to driver side
stud with factory nut.
Stud & Factory Nut
Kit Bracket (2” Stand Off)
Fuel Lines
Kit Bolt (1/4” x 1”), Kit Washer (1/4” SAE), Kit Nut (1/4” Nylock)
Driver Side Looking Back
b. Install fuel line bracket to kit bracket (2” stand
off) with kit bolt (1/4” x 1”), two kit washers (1/4” SAE) and kit nut (1/4” Nylock).
b. Install driver side parking brake cable to kit
bracket with kit nut (1/4” Nylock) and kit washer (1/4” SAE).
c. Install kit bracket (3” w/ stud) to passenger side
crossmember with factory bolt.
Kit Bolt (1/4” x 1”), Kit Washer (1/4” SAE), Kit Nut (1/4” Nylock)
Parking Brake Cable
Kit Bracket (3” W/ Stud)
Factory Bolt
c. Install kit bracket (3” Z-shaped) to driver side
stud with factory nut.
Stud & Factory Nut
Kit Bracket (3” Z-Shaped)
Kit Bolt (1/4” x 1”), Kit Washer (1/4” SAE), Kit Nut (1/4” Nylock)
Fuel Lines
Driver Side Looking Back
d. Install fuel line bracket to kit bracket (3” Z-
shaped) with kit bolt (1/4” x 1”), two kit washers (1/4” SAE) and kit nut (1/4” Nylock).
Crossmember
20 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
3. Carefully bend brake lines and install bolt and brake line bracket to frame.
b. Install driver and passenger body mount access
plates and bolts.
Frame
Brake Line Bracket
Bolt
4. Brake lines a. Install kit bracket (2” Z-shaped) and factory bolt
to driver side frame.
Brake Line Bracket
Kit Bolt (1/4” x 1”), Kit Washers (1/4” SAE), Kit Nut (1/4” Nylock)
Access Plate
Bolts
Carpet
Rear
c. Lay carpet down to cover driver and passenger
body mount access plates.
d. Install storage tray and pop-up clips to vehicle.
Storage Tray
Pop-up Clips
Kit Bracket (2” Z-Shaped)
Factory Bolt
b. Install brake line bracket to kit bracket (2” Z-
shaped) with kit bolt (1/4” x 1”), two kit washers (1/4” SAE) and kit nut (1/4” Nylock).
c. Repeat above steps for passenger side.
Inside of Vehicle
1. Extended cab models: Rear interior trim panels a. Install body mount access covers.
Access Cover
Rear Seat
e. Install jack into storage tray.
Storage Tray
Jack
Rear Seat
21 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
2. Crew cab models: Rear interior trim panels
3. Front interior trim panels
a. Install body mount access covers.
Access Cover
b. Install passenger side rear panel onto cab with
pop-clips and bolt.
Passenger Side Rear Panel
a. Install driver and passenger body mount bolt
access cover.
Carpet
Body Mount Bolt
Access Cover
b. Lay carpet down to cover driver and passen ger
body mount access covers.
c. Install driver and passenger kick panels.
Kick Panel
Bolt
c. Install driver side rear panel onto cab with pop-
clips and three bolts.
Driver Side Rear Panel
Bolts
d. Return seatbacks to upright position and install
three headrests onto seatbacks.
d. Install dead pedal.
Kick Panel
Dead Pedal
22 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
e. Install driver and passenger door sill plates.
Door Sill Plate
d. Position kit extension (manual shifter) between
two cut pieces of shifter lever. Ensure alignment marks on each cut shifter lever piece are aligned and rubber boot is on shift lever.
Shift Lever
Kit Extension (Manual Shifter)
Alignment Mark
e. Weld kit extension (manual shifter) in place.
4. Manual transmission a. Remove plastic cap from end of shift lever.
Shift Lever
Plastic Cap
b. Mark alignment and cut lines on shifter lever
below bend.
Shift Lever
WARNING
Welding should be performed by a certified welder.
f. Grind off any excess welds. g. Install plastic cap to end of shift lever. h. Install shifter lever.
Shift Lever
Plastic Cap
i. Install shift and center consoles.
Shifter Console
Cut Line
Alignment Line
c. Cut shifter lever along marked cut line.
Center Console
23 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
Engine Compartment
2. Radiator
1. Steering shaft
Kit Extension
(Steering)
WARNING
Verify the steering extension is securely installed as specified in the instructions. Failure to do so may cause steering malfunction, resulting in property dam­age or serious personal injury.
a. Install upper steering shaft into kit extension
(steering), ensuring marks on upper and lower steering shaft are aligned.
a. Cut off tabs on upper radiator mounts.
Upper Radiator Mount
Radiator
Core Support
Tab
b. Install four kit brackets (3” radiator) to radiator
mounts with four factory bolts. DO NOT TIGHTEN.
Alignment Mark
Upper Steering Shaft
Kit Bolt (3/8” x 1-1/4”)
Kit Extension (Steering)
Steering Coupler & Bolts
Lower Steering Shaft
Alignment Mark
b. Position kit extension (steering) into steering
coupler. Ensure marks on upper and lower steering shaft are aligned.
c. Apply a few drops of kit Loctite® to factory bolts
and kit bolt (3/8” x 1-1/4”).
Radiator
Kit Bracket (3” Radiator)
Factory Bolt
d. Install bolts and tighten to 33 lb.-ft.
24 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
c. Install radiator and four kit brackets to core sup-
port with four kit washers (1/4” SAE) and four kit nuts (1/4” Nylock). DO NOT TIGHTEN.
Kit Washer (1/4” SAE), Kit Nut (1/4” Nylock)
Kit Bracket (3” Radiator)
f. Install radiator cover to core support with five
factory pop-up clips.
Factory Pop-up Clips
Core Support
Radiator Cover
g. Install radiator cover to kit plates (radiator blo ck
off) with four kit clips (push) and four kit wash-
ers (1/4” SAE).
d. Assemble kit plates (radiator block off) with kit
bolt (1/4” x 1”), two kit washers (1/4” SAE) and
kit nut (1/4” Nylock). DO NOT TIGHTEN.
Kit Plates
(Radiator Block Off)
Kit Bolt
(1/4” x 1”),
Kit Washer
(1/4” SAE),
Kit Nut
(1/4” Nylock)
e. Install kit plates (radiator block off) to radiator
with four factory pop-up clips.
Kit Plates (Radiator Block Off)
Radiator Cover
Kit Clip (Push), Kit Washer (1/4” SAE)
h. Adjust radiator and ensure fan does not contact
fan shroud.
i. TIGHTEN all hardware.
Factory Pop-up Clips
25 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
3. Install wire harness and clips to alternator bracket and driver side body bracket. Adjust clips if neces­sary.
5. Install driver and passenger brake line wire har­nesses to brackets with two kit ties (zip).
Bracket
Alternator Bracket
Wire Harness
Body Bracket
Battery
4. Install vent hoses to driver side body bracket with kit tie (zip).
Kit Tie (Zip)
Wire Harness
6. Install wire harness clip to firewall bracket.
Clip
Bracket
Wire Harness
Bracket Vent
Hoses
Kit Tie (Zip)
7. Install heater hoses on clip and backside of engine.
Heater Hoses
Clip
26 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
8. 6 cyl. models: Power steering reservoir a. Remove reservoir cap and drain contents into
drain pan.
b. Remove two clamps and power steering lines
from reservoir.
Power Steering Reservoir
Power Steering Lines
Clamps
f. Install kit extension (7/16” OD x 5” L) between
cut power steering lines with two kit clamps (#6 hose). DO NOT TIGHTEN.
Kit Extension (7/16” OD x 5” L)
Kit Clamps (#6 Hose)
c. Mark power steering lines.
Cut Marks
Power Steering Lines
Front
Cut Marks
Front
g. Install kit extension (5/8” OD x 5” L) between
cut power steering lines with two kit clamps (#10 hose). DO NOT TIGHTEN.
Kit Extension (5/8” OD x 5” L)
Kit Clamps (#10 Hose)
h. Install power steering reservoir, lines, clamps,
and three bolts onto vehicle.
Power Steering Lines
d. Cut power steering lines along cut marks. e. Drain any remaining fluid from power steering
lines into drain pan.
Power Steering Reservoir
Bolts
Clamps
i. Adjust hoses and tighten all hardware.
27 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
9. 4 cyl. models: Power steering requires no modifica­tion.
d. Install AC line to kit bracket (3” w/ stud ) with kit
washer (1/4” SAE) and kit nut (1/4” Nylock).
10. 6 cyl. models: AC Line a. Install rubber isolator to body.
AC Line Clamp
Nut
Rubber Isolator
b. Install AC line and clamp onto rubber isolator
with nut.
11. 4 cyl. models: AC Line a. Install kit bracket (3” Z-shaped) to passenger
side AC line bracket with bolt.
Install Kit Bracket (3” Z­Shaped) Here
12. 6 cyl. models: Install airbox cover to engine with two clips. Tighten clamp.
Airbox Cover
Clamp
Clips
13. 4 cyl. models: Install air hose to engine with two clamps.
Clamps
Air Hose
AC Line Bracket
b. Install AC line to bottom of kit bracket (3” Z-
shaped) with kit bolt (1/4” x 1”), two kit washers (1/4” SAE) and kit nut (1/4” Nylock).
c. Install kit bracket (3” w/ stud) to rubber isolator
and passenger side AC line bracket with nut.
AC Line Bracket
Rubber Isolator
Install Kit Bracket (3” W/ Stud) Here
Nut
AC Line
Front of Vehicle
1. Front bumper a. Apply a small amount of kit Loctite® to six fac-
tory studs and install kit brackets (front bumper) to frame with six factory nuts.
Kit Bracket (Front Bumper)
Factory Studs & Nuts
28 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
b. Apply a small amount of kit Loctite® to six kit
bolts (3/8” x 1”) and install front bumper to kit brackets (front bumper) with twelve kit washers
(3/8” USS) and six kit nuts (3/8” Nylock).
Kit Bracket
(Front Bumper)
d. Install two pop-up clips to fender wells.
Fender Well
Pop-up Clip
Kit Bolts (3/8” x 1”), Kit Washers (3/8” USS), Kit Nuts (3/8” Nylock)
Front Bumper
c. Install front bumper cover to veh icl e wit h six fa c-
tory screws.
Front Bumper Fascia
Front Bumper
e. Install five pop-up clips to front bumper.
Pop-up Clips
Front Bumper
f. Install two pop-up clips, two bolts and grill to
core support.
Screws
Pop-up Clips
Screws
Grill
g. Inst all wiring harnesses to fog lights, if equipped.
Wiring Harness
Fog Light
h. Adjust bumper and tighten all hardware.
29 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
After Completing Installation
Miscellaneous
Inside Cab
1. Install airbag fuse and fuse block cover.
Airbag Fuse
Fuse Location May Vary
Fuse Cover
1. Apply kit label (warning) to dashboard in plain sight of all vehicle occupants.
2. Check all fasteners to ensure they are tight.
3. Ensure all wires, hoses, cables, etc. are properly
connected and there is ample slack.
4. Fill and check power steering reservoir with fresh power steering fluid. Start engine and turn wheel several times in either direction. Shut off engine and recheck power steering reservoir. Add fluid, if neces­sary.
Dynamic Vehicle Check
1. Check steering in both directions to ensure that
there is no bind. Check operation of clutch, brake system, and parking brake. Check operation of transmission and transfer case. Ensure there is full engagement in all gears and 4WD ranges. Check battery connections and electrical component oper­ations. Test-drive vehicle.
Engine Compartment
1. Connect both battery cables. Connect positive cable
first, then negative cable.
Positive Cable (Red)
Negative Cable (Black)
WARNING
Retorque all fasteners after 500 miles and after off road use. All body lift components should be visually inspected and fasteners retorqued during routine vehi­cle servicing.
CAUTION
Performance Automotive Group does not recommend any particular wheel and tire combinations for use with its body lifts and cannot assume responsibility for the customer’s choice of wheels and tires. Refer to your owner's manual for recommended tire sizes and warn­ings related to the use of oversized tires. Larger wheel and tire combinations increase stress and wear on steering and suspension components, which leads to increased maintenance and higher risk for component failure. Larger wheel and tire combinations also alter speedometer calibration, braking effectiveness, center of gravity, and handling characteristics. Consult an experienced local off road shop to find what wheel and tire combinations work best with your vehicle.
NOTE
All warranty information, instruction sheets, and other documents regarding the installation of this product must be retained by the vehicle owner contained in the instructions and on the warranty card will be required for any warranty claims. The vehicle owner needs to understand the modifications ma de to the vehicle and how they affect vehicle handling and performance. Failure to provide the customer with this information can result in damage to the vehicle and severe personal injury.
. Information
30 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
Accessories
The following accessories are also available: Kit # 6337: Gap Guards
31 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
Kit Parts List
Qty. Description
Qty. Description
Block
8 4 1 1 1 1 1 1 1 1 1 1 1
(2" x 3" spacer)
Block
(3" x 3" spacer)
Bracket Bracket Bracket Bracket Bracket Extension Extension Extension Label Label Loctite®
(front bumper, driver) (front bumper, passenger) (rear bumper, driver) (rear bumper, middle) (rear bumper, passenger)
(logo) (warning)
(1" x 6" rubber hose) (1/4" x 6" rubber hose) (5/8" x 6" rubber hose)
(6mL tube)
1 BP5603 (Bolt Bag)
Bolt
6 2 1 4 2 2 2 1
NOTE
(3/8"-16 x 1")
Bolt
(3/8"-16 x 8")
Bolt
(3/8"-24 x 1-1/4", socket head)
Bolt
(M12-1.25 x 160mm)
Bolt
(M12-1.25 x 180mm)
Bolt
(M12-1.25 x 210mm)
Bolt
(M12-1.75 x 200mm)
Extension
(steering)
1 HP5613 (Hardware Bag)
Bolt
2 7 2 1 2 7 2 4 2 4 4 1 1 1 2 13 2 8 2 1 1 2 4 4 24 12 4
(1/2" x 1")
Bolt
(1/4"-20 x 1")
Bolt
(9/16" x 1-1/2")
Bracket Bracket Bracket Bracket Clamp Clamp Clamp Clip Extension Extension Extension Nut Nut Nut Nut Nut Plate Plate Plate Tie Washer Washer Washer Washer
(2" stand off) (2" Z-shaped) (3" radiator w/ stud)
(3" Z-shaped) (#10 hose) (#20 hose) (#6 hose)
(push)
(5/8" OD x 1/2" ID x 5" L metal) (5/8" X 3" manual shifter)
(7/16" OD x 5" L metal) (1/2" Stover) (1/4"-20 Nylock) (12mm Nylock) (3/8"-16 Nylock) (9/16" Stover)
(radiator block off, driver) (radiator block off, passenger) (rear bumper)
(zip)
(1/2" SAE) (1/4" SAE) (3/8" USS) (9/16" SAE)
Depending on the vehicle configuration (automatic or manual transmission, 2WD or 4WD, cab length, bed length, etc.), some parts may not be used.
Copyright 03/06
Performance Automotive Group
www.p-a-g.net
32 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613
Loading...
