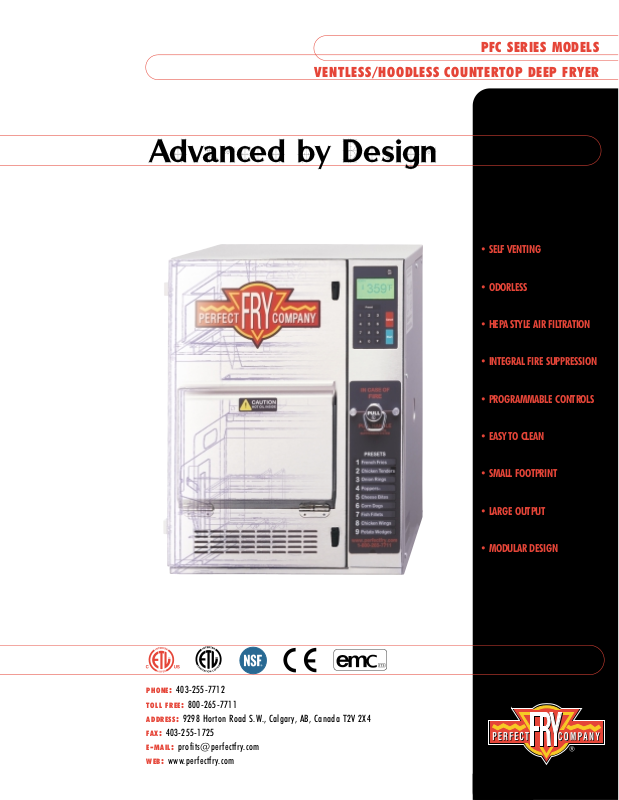

Page 1
PFC SERIES MODELS
VENTLESS/HOODLESS COUNTERTOP DEEP FRYER
PHONE: 403-255-7712
TOLL FREE: 800-265-7711
ADDRESS: 9298 Horton Road S.W., Calgary, AB, Canada T2V 2X4
FAX: 403-255-1725
E-MAIL: [email protected]
WEB: www.perfectfry.com
Advanced by Design
• SELF VENTING
• ODORLESS
• HEPA STYLE AIR FILTRATION
• INTEGRAL FIRE SUPPRESSION
• PROGRAMMABLE CONTROLS
• EASY TO CLEAN
• SMALL FOOTPRINT
• LARGE OUTPUT
• MODULAR DESIGN
Page 2
6-20R
17 ” (434mm) 16 ” (409mm)
23” (587mm)
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE ©2003 PERFECT FRY COMPANY 7/03 PRINTED IN CANADA
MODEL PFC1875 PFC3750 PFC5700 PFC5708
POWER SUPPLY (volts) 120 240 240 208
CURRENT (amps) 16 16 24 27
CIRCUIT CURRENT (amps) 20 20 30 minimum 30**
NEMA NUMBER 5-20 6-20 L6-30 No Cord
POWER (kilowatts) 1.9 3.8 5.7 5.7
CAPACITY (lbs/hr)* 30 45 60 60
BASKETS (included) 1 large 1 large 1 extra large 1 extra large
■■ Phase Single (3 wire)
■■ Cycles 50/60 Hz
■■ Weight 80 lb (36 kg)
■■ Shipping Weight 95 lb (43 kg)
■■ Shipping Dimensions Depth 22” (559 mm)
Width 22” (559 mm)
Height 27” (686 mm)
■■ Shipping Cube 7.56 ft
3
(.214 m3)
■■ Oil Capacity 2 US Gallons (8 liters)
■■ Construction 304 Stainless Steel
GENERAL SPECIFICATIONS (all models)
SPECIFICATIONS TABLE
International models
available upon
request.
*Based on up to 1 1/2
minute fast fries.
**For use on an
individual branch
circuit rated 30 amps
minimum. Power cord
and plug to be
installed on site by a
qualified electrician.
RECEPTACLE CONFIGURATIONS
BASKETS
CLEARANCES
1” all around and 0” on top.
AIRFLOW DIAGRAM
OIL LEVEL
DOOR OPEN
BASKET LIFT
10”
(254mm)
7”
(178mm)
5”
(127mm)
EXTRA LARGE
(32oz/6 servings)
OPTIONAL BASKET COVER
(used only with
Extra Large Basket)
LARGE
(16oz/3 servings)
2.5”
(64mm)
10”
(254mm)
5”
(127mm)
5-20R
L6-30R
