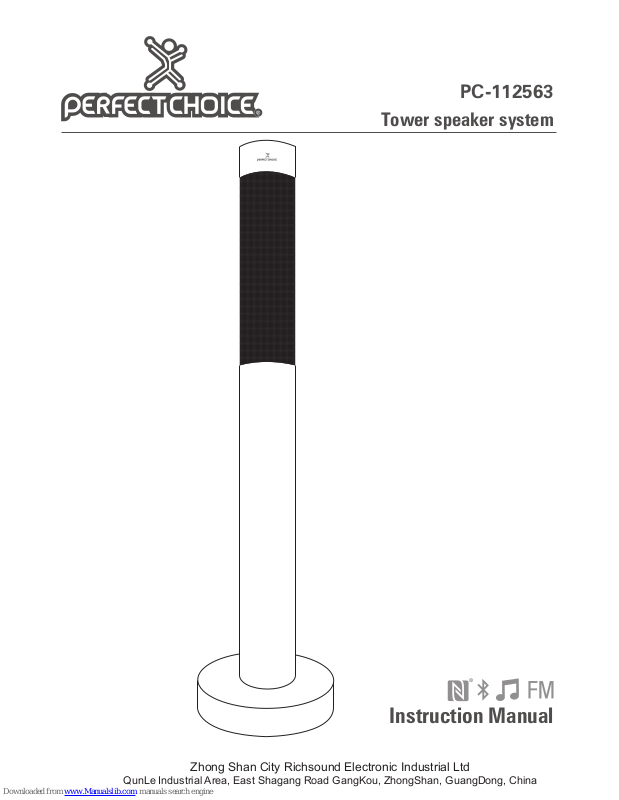

PC-112563
Instruction Manual
Tower speaker system
Zhong Shan City Richsound Electronic Industrial Ltd
QunLe Industrial Area, East Shagang Road GangKou, ZhongShan, GuangDong, China
Page 2
1
Contents
Important Safety Instructions .............................................................................................. 2
Safety .........................................................................................................................................................................................2
Warning ....................................................................................................................................................................................3
Identifying the Parts ............................................................................................................. 4
Main Unit .................................................................................................................................................................................4
Remote Control .....................................................................................................................................................................4
Preparations........................................................................................................................... 5
Prepare the Remote Control ............................................................................................................................................. 5
Precautions Concerning Batteries ..................................................................................................................................5
Connections ........................................................................................................................... 5
Connect Power ......................................................................................................................................................................5
Connect to External Audio Device..................................................................................................................................5
Basic Operations .................................................................................................................... 6
Power ........................................................................................................................................................................................6
Selecting Modes ....................................................................................................................................................................6
Set the Clock ........................................................................................................................................................................... 6
Adjust Volume Level ............................................................................................................................................................6
Mute Sound ............................................................................................................................................................................6
AUX Operation ....................................................................................................................... 6
Play With Bluetooth Device
.................................................................................................. 6
Pair Bluetooth-enabled Devices Manually ..................................................................................................................6
Pair with Bluetooth-enabled Device Using One Touch (NFC) ...............................................................................7
Listen to Music from Bluetooth Device .........................................................................................................................7
Listening to the FM Radio ..................................................................................................... 8
Presetting Stations ...............................................................................................................................................................8
Tuning in a Station ...............................................................................................................................................................8
Troubleshooting .................................................................................................................... 8
Specications
......................................................................................................................... 9
Standard Accessories
............................................................................................................ 9
Page 3
2
Important Safety Instructions
CAUTION
ATTENTION: RISQUE DE CHOC ELECTRIQUE-NE PAS
OUVRIR
RISK OF ELECTRIC
SHOCK DO NOT OPEN
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated “dangerous voltage”
within the product’s enclosure that may
be of sucient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
Safety
1 Read these instructions – All the safety and
operating instructions should be read before
this product is operated.
2 Keep these instructions – The safety and
operating instructions should be retained for
future reference.
3 Heed all warnings – All warnings on the
appliance and in the operating instructions
should be adhered to.
4 Follow all instructions – All operating and
use instructions should be followed.
5 Do not use this apparatus near water – The
appliance should not be used near water or
moisture – for example, in a wet basement or
near a swimming pool, and the like.
6 Clean only with dry cloth.
7 Do not block any ventilation openings.
Install in accordance with the manufacture’s
instructions.
8 Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce
heat.
9 Do not defeat the safety purpose of the
polarized or grounding plug. A polarized
plug has two blades with one wider than the
other. A grounding plug has two blades and a
third grounding prong. The wide blade or the
third prong is provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement
of the obsolete outlet.
10 Protect the power cord from being walked
on or pinched particularly at the plugs,
convenience receptacles, and at the point
where they exit from the apparatus.
11 Only use attachments/accessories specied by
the manufacturer.
12 Use only with the cart, stand, tripod, bracket,
or table specied by the manufacturer,
or sold with the apparatus. When
a cart or rack is used, use caution
when moving the cart/apparatus
combination to avoid injury from tip-over.
13 Unplug the apparatus during lightning storms
or when unused for long periods of time.
14 Refer all servicing to qualified personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power
supply cord or plug is damaged, liquid has
been spilled or objects have fallen into
the apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
15 This equipment is a Class II or double
in sulated electrical appliance. It has been
designed in such a way that it does not require
a safety connection to electrical earth.
Caution:
- Use of controls or adjustments or performance
of procedures other than herein may result in
hazardous radiation exposure or other unsafe
operation.
- Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type.
Warning
The appliance coupler is used as disconnect
device, the disconnect device shall remain
readily operable
The battery (battery or batteries or battery
pack) shall not be exposed to excessive heat
such as sunshine, re or the like.
Before operating this system, check the volt
age of this system to see if it is identical with
the voltage of your local power supply.
The ventilation should not be impeded by
covering the ventilation openings with items
such as newspaper, table-cloths, curtains etc.
Make sure there is at least 20 cm of space
above and at least 5cm of space on each side
of the unit.
Do not place this unit close to strong magnetic
eld.
Page 4
3
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment o and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet on
a circuit dierent from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/
TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with minimum distance 20cm
between the radiator & your body.
Correct Disposal of this product. This
marking indicates that this product should
not be disposed with other
household wastes throughout the EU.
To prevent possible harm to the environment
or human health from uncontrolled waste
disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To
return your used device, please use the return
and collection systems or contact the retailer
where the product was purchased. They can
take this product for environmental safe
recycling.
Warning: DO NOT INGEST
BATTERY,CHEMICAL BURN HAZARD
The remote control supplied with this product
contains a coin/button cell battery. If the coin/
button cell battery is swallowed, it can cause
sever internal burns in just 2 hours and lead
to death. Keep new and used batteries away
from children. If the battery compartment
does not close securely, stop using the
product and keep it away from children. If you
think batteries might have been swallowed
or placed inside any part of the body, seek
immediate medical attention.
The marking label is pasted on the bottom of
the equipment.
Do not place the unit on the amplifier or
receiver.
Don’t place this unit close to the damper, or
the moisture will affect the life of the laser
head.
Should any solid object or liquid fall into
the system, unplug the system and have
it checked by qualified personnel before
operating it any further.
Do not attempt to clean the unit with chemical
solvents as this might damage the nish. Use a
clean, dry or slightly damp cloth.
When removing the power plug from the wall
outlet, always pull directly on the plug, never
yank on the cord.
Depending on the electromagnetic waves
used by a television broadcast, if a TV is turned
on near this unit while it is also on, lines might
appear on the TV screen. Neither this unit nor
the TV are malfunctioning. If you see such
lines, keep this unit well away from the TV set.
No naked ame sources, such as lighted
candles, should be placed on the apparatus.
Changes or modications to this unit not
expressly approved by the party responsible
for compliance could void the user’s authority
to operate the equipment.
To reduce the risk of re or electric shock, do
not expose this apparatus to rain or moisture.
The apparatus shall not be exposed to
dripping or splashing and that objects lled
with liquids, such as vases, shall not be placed
on apparatus.
FCC STATEMENT
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Warning: Changes or modications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate
radio frequency energy and, if not installed
Page 5
4
Identifying the Parts
Remote Control
1 /BASS
- Select a preset sound effect: Bass 1, Bass 2,
Bass 3.
- Adjust the time.
2
H
/
- In bluetooth mode, skip to previous track.
- Tune to a radio station by searching backward.
- Select previous radio station.
- In Standby mode: Adjust brightness level.
3
BF
/
- In bluetooth mode, start or pause playback.
- Hold and press to enable Bluetooth pairing
mode in Bluetooth mode.
4
/MUTE
- Turn on this product from the Eco Power
standby mode.
- Press and hold to turn off the product and
switch to Eco Power standby mode.
- Mute or resume sound of unit.
5 /FUNCTION
- Select a source.
- Adjust the time.
6 +/-
Increase or decrease volume level.
7
/
G
- In bluetooth mode, skip to next track.
- Tune to a radio station by searching forward.
- Select next preset radio station.
- In Standby mode: Adjust brightness level.
8 M/
CLOCK
- Press and hold this button to set the clock in
Standby mode.
- Press and hold this button to search radio
stations automatically in tuner mode.
Main Unit
Top View
1 NFC sensing area.
2 -
Decrease the volume level.
3
Press this button to turn on or switch to the Eco
Power standby mode.
4 FUNCTION
Press this button repeatedly to select a source.
5 +
Increase the volume level.
6 Light
Light up blue when the unit is in ON mode.
7 Remote Control Sensor
8 Display Panel
Shows current status.
9 Power Light
Indicates mode of power.
Bottom View
1 AUX IN socket
Connect to TV or an external audio device.
2 AC~ Power supply socket.
Page 6
5
Connections
Connect Power
Caution:
- Risk of product damage! Ensure that the
power supply voltage corresponds to the
voltage printed on the back or the underside
of the unit.
- Before connecting the AC power cord, ensure
you have completed all other connections.
Connect the AC power cord to:
- the AC~ socket on this unit.
- the wall socket.
Connect to External Audio Device
Using AUX IN socket
- Use a RCA to RCA stereo audio cable(not
included) to connect the TV’s audio output
sockets to the AUX(R L) socket on the unit.
Preparations
Prepare the Remote Control
The provided Remote Control allows the unit to
be operated from a distance.
• EveniftheRemoteControlisoperatedwithin
the effective range (6m), remote control
operation may be impossible if there are any
obstacles between the unit and the remote
control.
• Ifthe Remote Controlis operatednearother
products which generate infrared rays, or if
other remote control devices using infrared
rays are used near the unit, it may operate
incorrectly. Conversely, the other products
may operate incorrectly.
Replace the Remote Control Battery
1 Use a needle to push the battery forward
through the hole on rear of remote control.
2 Remove the old battery.
3 Place a new CR2025 battery with correct
polarity (+/-) as indicated.
4 Then install the battery into remote control.
Precautions Concerning Batteries
• WhentheRemoteControlisnottobeusedfor
a long time (more than a month), remove the
battery from the Remote Control to prevent it
from leaking.
• Ifthebatteriesleak,wipeawaytheleakage
inside the battery compartment and replace
the batteries with new ones.
• Donotuseanybatteriesotherthanthose
specied.
• Do not heatordisassemblebatteries.Never
throw them in re or water.
• Donotcarryorstorebatterieswithother
metallic objects. Doing so could cause
batteries to short circuit, leak or explode.
• Neverrechargeabatteryunlessyouare
ceratin that it is a rechargeable battery.
Page 7
6
- Use a RCA to 3.5mm stereo audio cable to
connect the MP3’s headphone sockets to the
AUX(R L) socket on the unit.
366RG_KX
Basic Operations
Power
You can use all the functions on the main unit or
the remote control after connecting to a power
supply (called Standby Mode).
Turning the System On
Press the
button to turn the system on from
standby mode.
Note:
The set will switch to last selected source.
Turning the System O
Press
button on the main unit or press and
hold button on the remote control to turn the
system o and go to Eco mode.
Note:
Be sure to unplug the power cord from the outlet
when the system is not in use for an extended
period of time.
Selecting Modes
Press FUNCTION button switch between AUX,
TUNER and Bluetooth modes. The selected
mode will show on the display.
Note:
If there is no signal under the Bluetooth and AUX
modes, the unit will automatically switch o with
in 15 minutes.
Set the Clock
The built-in clock shows the correct time in the
display panel.
1. In standby mode, press and hold the CLOCK
button to activate the clock setting mode,
hour indicator will blink.
2. Set the hour with the or button.
3. Press CLOCK button to confirm, minute
indicator will blink.
4. Set the minutes with the or button.
5. Press the CLOCK button to conrm, the builtin clock starts operating and the seconds start
counting from 0.
Adjust Volume Level
During play, press the +/- buttons to increase/
decrease the volume level.
Mute Sound
During play, press the MUTE button to mute
or restore sound. Press this button again or +
buttons to cancel the eect.
AUX Operation
You can also listen to an external audio device
through this unit.
1. Pr e s s FUNCTION button on main unit
or remote control to select AUX for your
connection.
2. Operate your audio device directly for
playback features.
3. Press +/– to adjust the volume to your desired
level.
Play With Bluetooth Device
You can listen to music from a bluetooth-enabled
device via this player.
Pair Bluetooth-enabled Devices Manually
The rst time you connect your bluetooth device
to this player, you need to pair your device to this
player.
Page 8
7
Pair with Bluetooth-enabled Device Using
One Touch (NFC)
Using an NFC compatible bluetooth device, you
can establish a bluetooth connection by just
touching the unit with it.
- Make sure bluetooth and NFC function is
enabled on your device .
1 Turn on the NFC function on your device.
- Make sure your device in the wake-up mode.
NFC sensing area
2 Turn on the unit and switch to bluetooth
source.
3 Touch the NFC sensing area with your device,
the unit will pair and connect with your
device.
4 Touch this area again, the unit will disconnect
the bluetooth connection.
Tips:
Some NFC-enabled mobile devices cannot pair
directly with the unit via NFC, please try either
one of the solutions below:
- Please download the Apps “Tap-and-Pair” from
Google Play Store (https:// play. google. com)
and install.
- Pair with the unit manually first, then touch
again on the NFC sensing area.
Listen to Music from Bluetooth Device
• If the connected Bluetooth device supports
Advanced Audio Distribution Profile (A2DP),
you can listen to the music stored on the
device through the player.
•
If the device also supports Audio Video
Remote Control Profile (AVRCP), you can use
the player's remote control to play music
stored on the device.
Note:
- The operational range between this player and
a Bluetooth device is approximately 8 meters.
- Before you connect a Bluetooth device to this
unit, familiarize yourself with the Bluetooth
capabilities of the device.
- Compatibility with all Bluetooth devices is not
guaranteed.
- Any obstacle between this unit and a
Bluetooth device can reduce the operational
range.
- Keep this player away from any other
electronic device that may cause interference.
1. Turn on the Bluetooth function on your device.
2. Switch player's source to bluetooth, Display
panel shows "BLU T", then shows "NO BT" (if
no bluetooth device is connected).
3. Press and hold "
BF
/ " button on remote
control for a few seconds to activate bluetooth
pairing mode, display panel shows "PAIR".
4. Search for bluetooth device with your device.
5. Select “PC-112563” in the pairing list.
6. Enter “0000” for the password if necessary,
display panel shows "BLU T" again.
7. To disconnect connection, turn off the
bluetooth function on your device or switch
the player to another source.
Tips:
- If a connection exist, hold and press "
BF
/ "
button on remote control for a few seconds to
re-activate the pairing mode, the connection
will be interrupted.
- If no other bluetooth device pairs with this
player within two minutes, the player will
recover its previous connection.
- The player will also be disconnected when
your device is moved beyond the operational
range.
- If you want to reconnect your device to this
player, place it within the operational range.
- If the device is moved beyond the operational
range, when it is brought back, please check if
the device is still connected to the player.
- If they are connected, display panel shows
"BLU T".
- If the connection is lost, display panel shows
"NO BT". Follow the instruction above to pair
your device to the player again.
Page 9
8
1. Pair your device with the player.
2. Start to play music via your device (if it
supports A2DP)
3. Use supplied remote control to control play ( if
it supports AVRCP)
- To pause/resume play, press the
BF
/ .
-
To skip to a track, press the,H/G,
.
Listening to the FM Radio
Presetting Stations
Program radio stations automatically
1 Press the FUNCTION button to select the
TUNER source.
2 Press and hold the M/Clock button for a few
seconds to activate automatic programming.
All available stations are programmed in the
order of waveband reception strength.
- You can preset up to 20 FM stations.
- The first programed radio station is played
automatically.
Note:
- If the system is unplugged or if a power failure
occurs, the preset stations will not be erased.
• Tune to a preset radio station
- Press the
/
buttons to skip to previous/
next preset radio station.
Tuning in a Station
1 Press and hold the / buttons ( till the
digital display moves ), then release the
button, the frequency changes down or up
automatically until a station is found.
Troubleshooting
To keep the warranty valid, never try to repair the
system yourself. If you encounter problems when
using this unit, check the following points before
requesting service.
No power
- Ensure that the AC cord of the apparatus is
connected properly.
- Ensure that there is power at the AC outlet.
- Press standby button to turn the unit on.
Remote control does not work
- Before you press any function button, first
select the correct source.
- Reduce the distance between the remote
control and the unit.
- Insert the battery with its polarities (+/-)
aligned as indicated.
- Replace the battery.
- Aim the remote control directly at the sensor
on the front of the unit.
Poor radio reception
- Increase the distance between the unit and
your NFC compatible bluetooth device or the
TV and VCR.
Clock setting erased
- Power has been interrupted or the power cord
has been disconnected.
- Reset the clock.
No Response From the Unit
- Disconnect and reconnect the AC power plug,
then turn on the unit again.
Page 10
9
Specications
General
Power Requirements ...........................................................................................................................................AC120V~ 60Hz
Power Consumption
.................................................................................................................................................................30W
Output Power
.........................................................................................................................................................25W x 2 + 50W
Total Harmonic Distortion
....................................................................................................................................1%(1KHz, 1W)
Audio Input Sensitivity
........................................................................................................................................................500mV
Frequency Response
............................................................................................................................................... 40Hz - 20KHz
Unit Dimensions (W x D x H)
..........................................................................................................................Φ288 x 1192mm
Product operating temperature..................................................................................................................................0℃-40
℃
Speaker
Front Impedance ...........................................................................................................................................................................3Ω
Woofer Impedance
.......................................................................................................................................................................6Ω
Remote
Distance ........................................................................................................................................................................................... 6m
Angle
................................................................................................................................................................................................. 30
O
Standard Accessories
AC Power cord ................................................................................................................................................................................ x 1
Remote Control
............................................................................................................................................................................. x 1
Owner’s manual
............................................................................................................................................................................. x 1
Warranty Card
.................................................................................................................................................................................X 1
RCA to 3.5mm audio cable.........................................................................................................................................................x 1
Design and specications are subject to change without notice.
Loading...
