FLUO

The FLUO UV-Fluorescence measurement device is equipped with either with
two UV light sources, one in the near UV and one in the far UV or in case of
FLUO 365 only with the near UV light source. The dominant wave length of
the near UV illumination is 365nm while the dominant wave length of the far
UV illumination is 280nm. The FLUO can be equipped with 255nm replacing
the 280nm Illumination.

P

366nm ±5nm

280nm ±5nm

255nm ±5nm

H

15nm

15nm

12nm

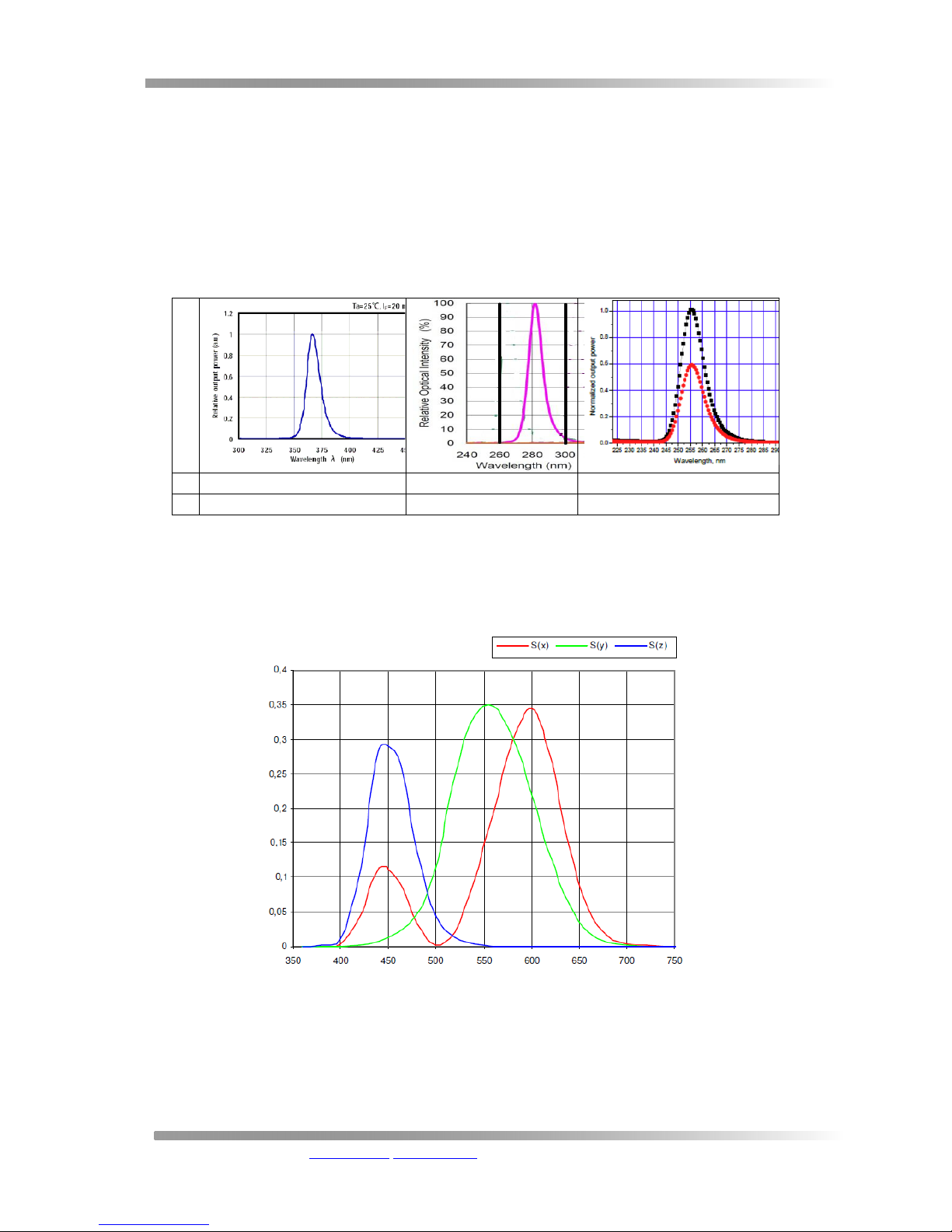

On the receiver side there are 3 bandwidths to measure the fluorescent effect
according to the sensitivity of human eyes, i.e. X (red sensitivity), Y (green
sensitivity), and Z (blue sensitivity).

The FLUO is supplied with a USB 2.0 cable to output data to a PC. As an
optional there is offered the FLUOcol Software which connects to the device.

FLUO Manual v2.02 GB.docx

4 / 13

6/29/2018

PERET GmbH/S.r.L www.peret.it [e-mail]

FLUO Manual v2.02 GB.docx

5 / 13

6/29/2018

PERET GmbH/S.r.L www.peret.it [e-mail]

Safety Instructions

For safety reasons it is absolutely necessary to read through the user's guide
and all of the instructions it contains. If the safety recommendations and
instructions in this User Guide are not complied with, measurement errors or
data loss or physical injury or property damage may result.

• FLUO is not intrinsically safe. Therefore, the device cannot be used in
an environment with explosive vapors where there is a risk of spark
ignition or in an area with strong electromagnetic fields. It should be
protected against chemicals, corrosive vapors, strong mechanical
vibrations and impacts.

• Use the FLUO in ambient temperatures between 15°C(59°F) and 40°C
(104°F), and do not expose them to direct sun light.

• The FLUO should never be opened as there are no user-serviceable
parts. Doing so voids the guarantee. Contact your authorized dealer if
repairs are necessary.

• To prevent the operator from looking directly into the light source the
FLUO should be positioned onto a substrate while taking a
measurement. If not positioned onto a substrate there cannot be taken
any measurements as the UV illumination will not switch on at all.

• To avoid incorrect handling, the FLUO should only be used by trained
personnel

• Use original PERET spare parts and accessories only.

• Use the original packaging exclusively when transporting.

• The FLUO is equipped with UV LEDs. Do never look directly into the

optical System of the device during measurement.

Important: This manual describes the current version of the FLUO hardware
and software. Future enhancements or modifications are reserved.

FLUO Manual v2.02 GB.docx

6 / 13

6/29/2018

PERET GmbH/S.r.L www.peret.it [e-mail]

How to use the FLUO

During a measurement in case of FLUO 365 there will be calculated three
measurement values, one for X, one for Y, and one for Z. In case of FLUO
(near and far UV) there will be displayed additional X, Y, and Z values for the
far UV response (280nm or 255nm). The FLUO can be used in two modes:
the color mode will show XYZ for near and far UV, the intensity mode will
show only the intensity of the near or the far UV. The mode is selected in the
configuration (see below).

The LCD shows the actual measurement value. The active light source and
the receptor are displayed by a flashing LED on top of the FLUO device.

Example:

Example 1: green color channel (Y), near UV illumination, color mode

Example 2: green color channel (Y), far UV illumination, color mode

Example 3: near UV illumination, intensity mode

Example 4: far UV illumination, intensity mode

A little triangle symbol in the left top corner of the LCD tells the operator, that
far UV is active. In case of near UV illumination there will be no triangle
symbol in the left top corner of the LCD.

FLUO Manual v2.02 GB.docx

7 / 13

6/29/2018

PERET GmbH/S.r.L www.peret.it [e-mail]

RESET the FLUO

Press the RESET button on the bottom side of the device to perform a
RESET. Resetting will delete all internally stored references. The Display will
show the device type for a few seconds.

in case of near UV LED only

in case of near and far UV LED

After a few seconds the display will change and show the actual firmware
version number

After initialization the device will show ‘0’. Now the device is ready for
measurements.

Press the RESET button and keep the right key depressed during reset
to perform a FACTORY RESET. The factory Reset will reset all settings and
configuration to its defaults.

Configure the device to your needs

The FLUO can be configured to your needs in a special configuration mode.
Press the right key for at least 5 seconds to enter configuration mode

The configuration mode is displayed by a ‘~’ in the left top corner of the LCD.

There are actually two settings that can be configured:

a) Average Solid Reference
b) Color Mode or Intensity Mode

FLUO Manual v2.02 GB.docx

8 / 13

6/29/2018

PERET GmbH/S.r.L www.peret.it [e-mail]

Click the right key to switch between below settings a) and b)

a) Use an average solid reference

The FLUO can be configured to calculate the average of a sequence of up to
10 readings on your reference patch. The number of readings that need to be
measured to calculate the reference can be configured in the configuration
mode

click the up key on the device to increment the number of readings

click the down key to decrement the number of readings

b) Select color display or intensity display

The FLUO can be used in two different modes.
In Color mode there will be displayed automatically the dominant fluorescent

color after any 100% reference reading. By clicking the right key after a
measurement the next XYZ color channel will be displayed – following by the
XYZ color channels of the far or near UV readings.

The intensity mode will display only two values, one for near UV and one for
Far UV, expressing the light emission inside the visual spectrum.

toggle between the two modes by clicking the left key on your device.

Exit the configuration mode

FLUO Manual v2.02 GB.docx

9 / 13

6/29/2018

PERET GmbH/S.r.L www.peret.it [e-mail]

Press the right key for at least 5 seconds to exit the configuration mode.
The current configuration will be saved.

Zero reference and target reference calibration

The FLUO measures relative fluorescence using a non-fluorescent reference
(0% or substrate) and a target fluorescent reference (100% target fluorescent
ink layer). Perform the following steps

1. Zero the FLUO on an area of the substrate clean of fluorescent ink or
use the black reference of the calibration target as zero reference.

2. Measure the 100% reference on a sample reference from your ink
supplier or your in house reference.

3. Measure on various locations of your printed product and check the
amount of fluorescent ink in relation to your reference.

Measure the zero reference

Position the FLUO with the aperture onto a non-fluorescent surface, for

example onto the substrate without fluorescent ink. Press down the ‘down’ key

and push the device to the front until zero appears in the LCD.

All measurement channels will be zeroed simultaneously.

Measure a single solid reference [C 0]..[C 1]

If the average number in the settings is set to zero, the calculation of an
average is disabled.

Position the FLUO with the aperture onto the fluorescent reference
surface, for example onto the substrate with fluorescent ink. Press down the

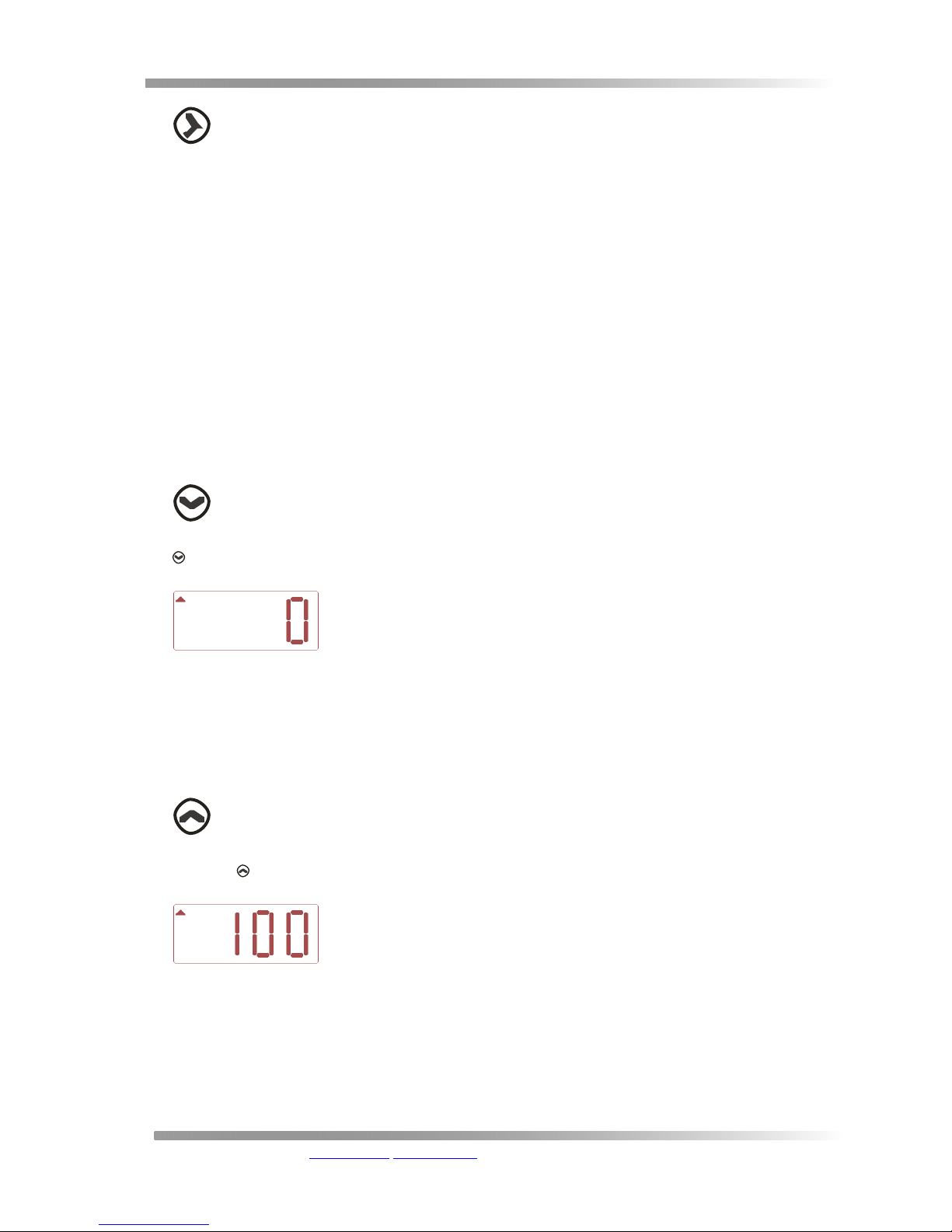

‘up’ key and push the device to the front until 100 appears in the LCD.

The max reference measurement measures all channels simultaneously and
sets the max. fluorescent signal for each illumination (near and far) separately
to 100%. The channel with the highest fluorescent response will automatically
be displayed. In case the Intensity mode is selected there will be set the
Intensity of the reference sample to 100% for near UV and for far UV.

FLUO Manual v2.02 GB.docx

10 / 13

6/29/2018

PERET GmbH/S.r.L www.peret.it [e-mail]

In Color mode you can check the relationship between fluorescent
responses in red, green and blue by clicking through the colors pressing the
‘next’ button. In Intensity mode you can toggle between near UV and far UV
Intensity by pressing the right button.

Measure an average solid reference [C 2]..[C 10]

If the reference measurement counter is greater than 1, there have to be
taken as many solid reference readings as specified in the settings.

Position the FLUO with the aperture onto the fluorescent reference
surface, for example onto the substrate with fluorescent ink. Press down the
‘up’ key and push the device to the front until [C 1] appears in the LCD.

Now measure the next reference again with the middle key depressed.

Continue to measure references until the number of references specified in
the settings is reached. Once all reference measurements are taken, the
device will calculate the average and set this average to 100%

Measure samples in color mode [CoL]

Position the FLUO with the aperture onto a fluorescent surface. Push the
device to the front until the measurement result appears in the LCD. The
measurement value of the currently selected color channel is displayed.

FLUO Manual v2.02 GB.docx

11 / 13

6/29/2018

PERET GmbH/S.r.L www.peret.it [e-mail]

The LED of the color is flashing.

The number displayed (79%) tells you, that the sample does emit only 79% of

the light in the ‘Y’ (green) light spectrum compared to your reference. As a

consequence, there are more fluorescent particles required to match your
reference.

Click the right key to select the next color channel. The color channel
selection will go through all color channels XYZ near followed by XYZ far
restarting with XYZ near again.

Measure a sample in intensity mode [Int]

In case your device has been configured to display the intensity only, there
will be calculated the difference between the reference intensity and the
sample intensity and displayed in terms of a percentage value.

Position the FLUO with the aperture onto a fluorescent surface. Push the
device to the front until the measurement result appears in the LCD. The
measurement value of the currently selected near or far channel is displayed.

The number -21 tells you that the fluorescent intensity of your sample is 21%
lower than the fluorescent intensity of your reference. In order to match your
reference there have to be added fluorescent pigments.

The near intensity measurement is displayed with RGB Led flashing. The far
intensity is displayed with FUV Led flashing.

FLUO Manual v2.02 GB.docx

12 / 13

6/29/2018

PERET GmbH/S.r.L www.peret.it [e-mail]

Click the right button on your device to toggle between near and far
intensity.

Underflow and Overflow measurements

The FLUO does automatically check the plausibility of measurement results
and displays proper warnings in case of invalid measurement:

Underflow

An underflow happens, if the measurement resolution is to low, such as
between 100% fluorescence and 0% fluorescence there are less than 50 ADC
digits (2% per digit). In this case the FLUO displays uF in the proper
measurement channel.

Overflow

The FLUO has a large dynamic range with auto Gain setting – such as an
overflow happens quite rarely. The overflow is reached whenever the signal
obtained in one channel is higher than the top level of the ADC. The overflow
for the proper channel is then displayed as oF.

Open aperture

For safety reasons the UV LED will not switch on if the device is not
positioned onto a substrate. In this case the Display will show ‘ooo’.

Measurement time to short

Keep the FLUO in front position until the measurement number appears in the
LCD. If you move the FLUO back to its parking position to early, the ‘---‘ in the
LCD tells you, that measurement time was too short.

FLUO Manual v2.02 GB.docx

13 / 13

6/29/2018

PERET GmbH/S.r.L www.peret.it [e-mail]

Replacing the batteries

The FLUO is powered by 2 1.5V Size AA Batteries

• Remove the cover from the battery compartment

• Remove the old batteries

• Insert the new batteries. Make sure you insert the batteries with the

polarity as described on the sticker inside the compartment

• Place back the battery cover into its position

• Dispose the old batteries in accordance with local regulations

• Replace always both batteries at the same time

• If you do not use the devices for an extended period of time it is

recommended to remove the batteries from the battery compartment.
