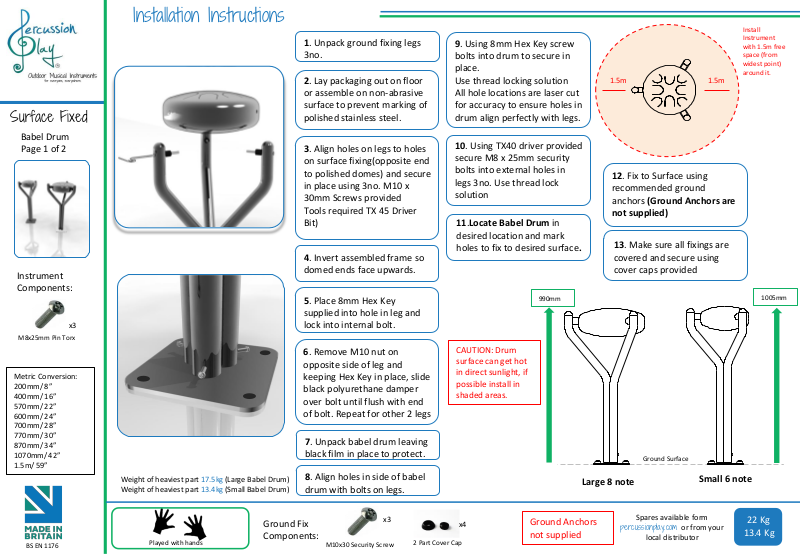

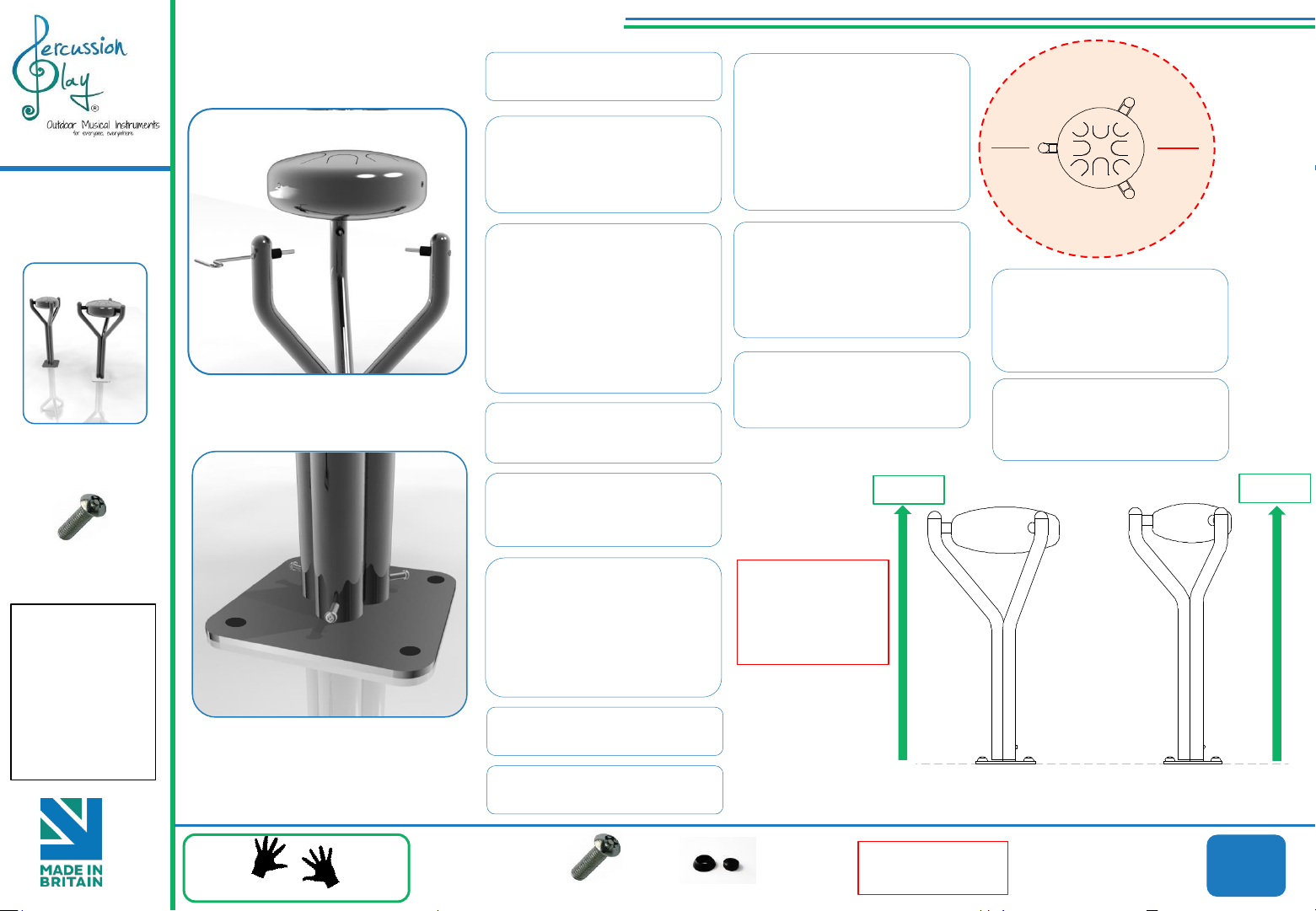

Page 1
Surface Fixed
Installation Instructions
1. Unpack ground fixing legs
3no.
2. Lay packaging out on floor
or assemble on non-abrasive
surface to prevent marking of
polished stainless steel.
9. Using 8mm Hex Key screw
bolts into drum to secure in
place.
Use thread locking solution
All hole locations are laser cut
for accuracy to ensure holes in
drum align perfectly with legs.
1.5m
1.5m
Install
Instrument
with 1.5m free
space (from
widest point)
around it.
Babel Drum
Page 1 of 2
Instrument
Components:
x3
M8x25mm Pin Torx
Metric Conversion:
200mm/ 8”
400mm/ 16”
570mm/ 22”
600mm/ 24”
700mm/ 28”
770mm/ 30”
870mm/ 34”
1070mm/ 42”
1.5m/ 59”
Weight of heaviest part 17.5kg (Large Babel Drum)
Weight of heaviest part 13.4kg (Small Babel Drum)
3. Align holes on legs to holes
on surface fixing(opposite end
to polished domes) and secure
in place using 3no. M10 x
30mm Screws provided
Tools required TX 45 Driver
Bit)
4. Invert assembled frame so
domed ends face upwards.
5. Place 8mm Hex Key
supplied into hole in leg and
lock into internal bolt.
6. Remove M10 nut on
opposite side of leg and
keeping Hex Key in place, slide
black polyurethane damper
over bolt until flush with end
of bolt. Repeat for other 2 legs
7. Unpack babel drum leaving
black film in place to protect.
8. Align holes in side of babel
drum with bolts on legs.
10. Using TX40 driver provided
secure M8 x 25mm security
bolts into external holes in
legs 3no. Use thread lock
solution
11.Locate Babel Drum in
desired location and mark
holes to fix to desired surface.
990mm
CAUTION: Drum
surface can get hot
in direct sunlight, if
possible install in
shaded areas.
12. Fix to Surface using
recommended ground
anchors (Ground Anchors are
not supplied)
13. Make sure all fixings are
covered and secure using
cover caps provided
Ground Surface
Large 8 note
1005mm
Small 6 note
BS EN 1176
Played with hands
Ground Fix
Components:
x3
M10x30 Security Screw
2 Part Cover Cap
x4
Ground Anchors
not supplied
Spares available form
percussionplay.com or from your
local distributor
22 Kg
13.4 Kg

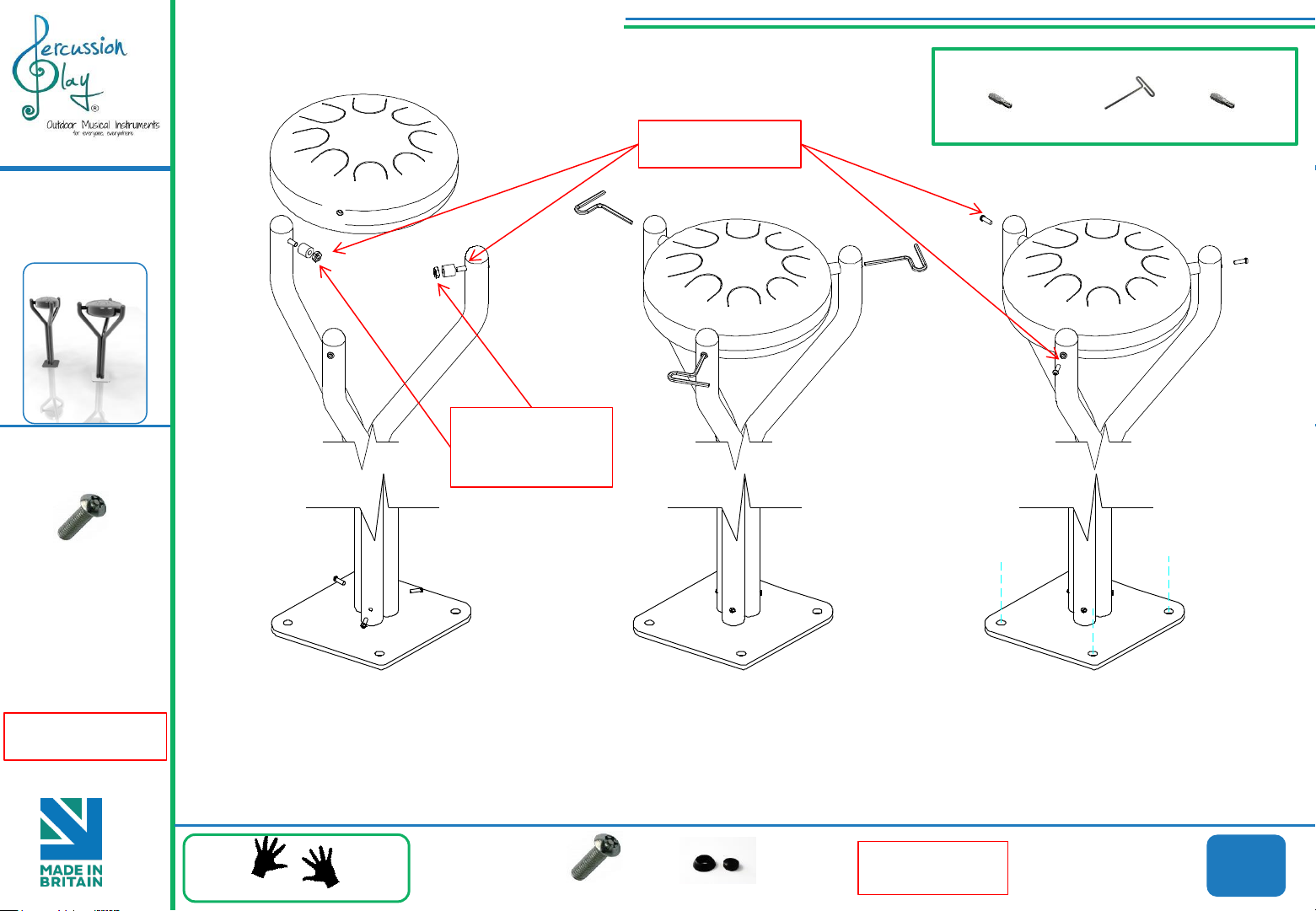

Page 2
Locate the Surface fix
Plate into the leg of the
instrument.
Fix instrument to Surface
fix plate using M10
Screws and use thread
locking solution to
prevent fixings working
loose.
Fix Surface Plate to the
ground surface Ground
Anchors Not provided
cover fixings with caps
provided
Assembly Guide PPBDL-S
Tools:
Surface Fixed
Babel Drum
Page 2 of 2
Instrument
Components:
x3
M8x25mm Pin Torx
Thread Lock Solution
Required
TX 45 Driver Bit
Remove M10
Nuts before
1 2 3
installing Drum
x1
Hex T Key
x1
x1
TX 40 Driver Bit
Thread Lock Solution
Required
BS EN 1176
Played with hands
Ground Fix
Components:
M10x30 Security Screw
x3
2 Part Cover Cap
x4
Ground Anchors
not supplied
Spares available form
percussionplay.com or from your
local distributor
22 Kg
13.4 Kg
