Page 1
Ground Fixed

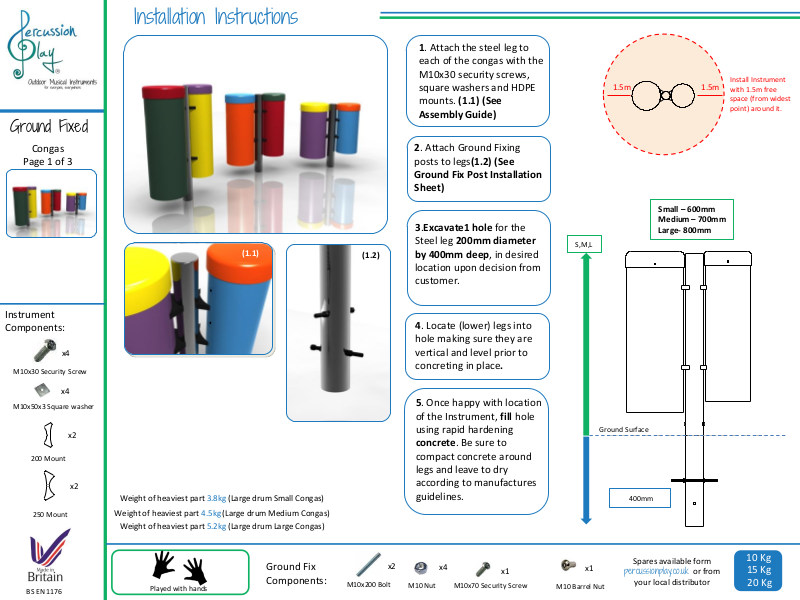

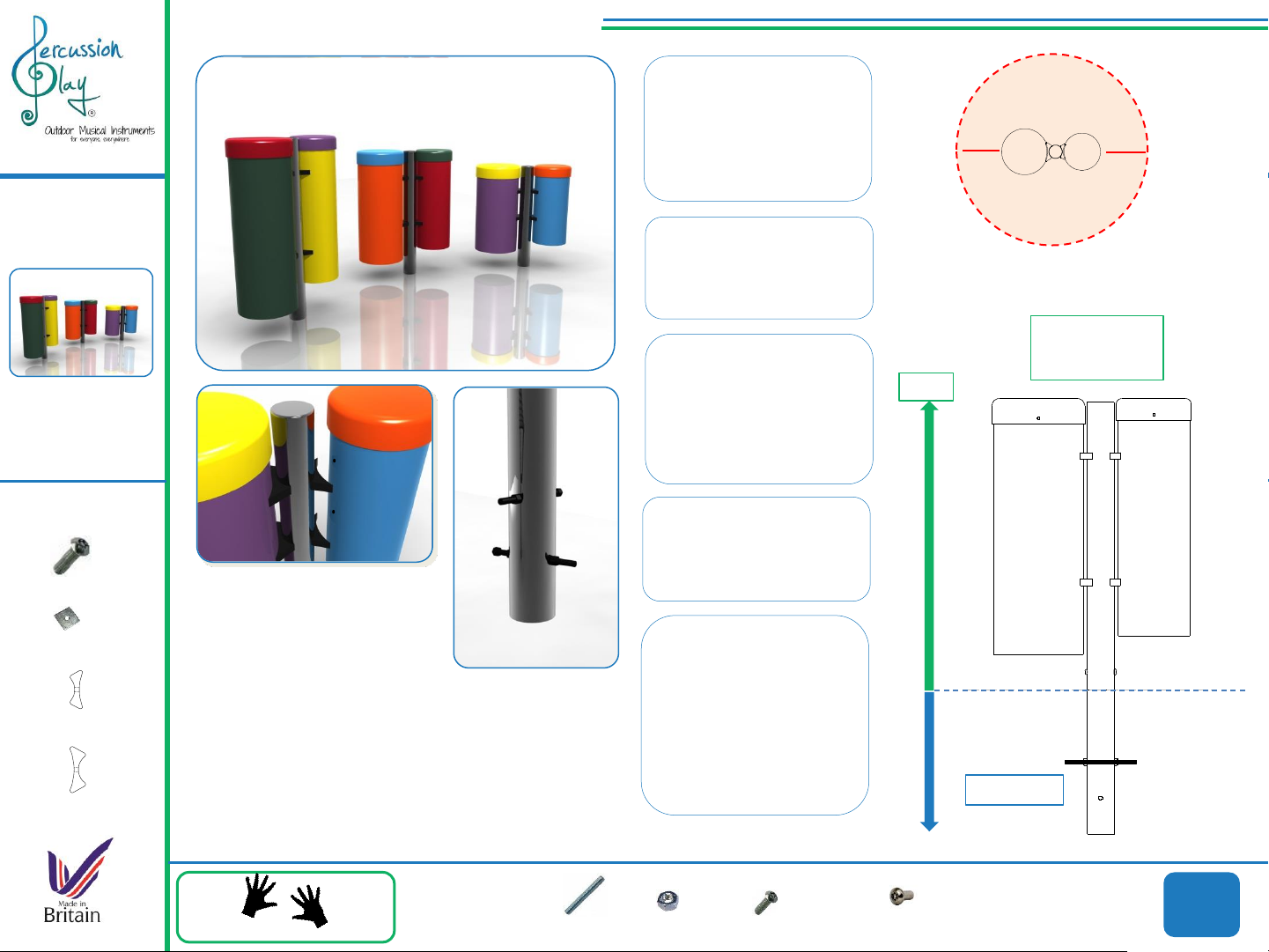

Installation Instructions
1. Attach the steel leg to
each of the congas with the
M10x30 security screws,
square washers and HDPE
mounts. (1.1) (See
Assembly Guide)
1.5m
1.5m
Install Instrument
with 1.5m free
space (from widest
point) around it.
Congas
Page 1 of 3
Instrument
Components:
x4
M10x30 Security Screw
x4
M10x50x3 Square washer
x2
200 Mount
x2
250 Mount
(1.1)
Weight of heaviest part 3.8kg (Large drum Small Congas)
Weight of heaviest part 4.5kg (Large drum Medium Congas)
Weight of heaviest part 5.2kg (Large drum Large Congas)
(1.2)
2. Attach Ground Fixing
posts to legs(1.2) (See
Ground Fix Post Installation
Sheet)
3.Excavate1 hole for the
Steel leg 200mm diameter
by 400mm deep, in desired
location upon decision from
customer.
4. Locate (lower) legs into
hole making sure they are
vertical and level prior to
concreting in place.
5. Once happy with location
of the Instrument, fill hole
using rapid hardening
concrete. Be sure to
compact concrete around
legs and leave to dry
according to manufactures
guidelines.
Small – 600mm
Medium – 700mm
Large- 800mm
S,M,L
Ground Surface
400mm
BS EN 1176
Played with hands
Ground Fix
Components:
M10x200 Bolt
x2
M10 Nut
x4
M10x70 Security Screw
x1
x1
M10 Barrel Nut
Spares available form
percussionplay.co.uk or from
your local distributor
10 Kg
15 Kg
20 Kg
Page 2
Ground Fixed
PPCONG FRONT PPCONG SIDE
PPCONG PLAN
M10x30 Pi n torx X4
M10x50x3 square washer X4
M10 Nut X4
M10x200 Threaded Bar X2
COMPONENTS LIST:
HDPE MOUNT 200 X2
HDPE MOUNT 250 X2
M10x70 Pi n torx X1
M10 Barrel Nut Pin torx X1
Duo
Page 2 of 3

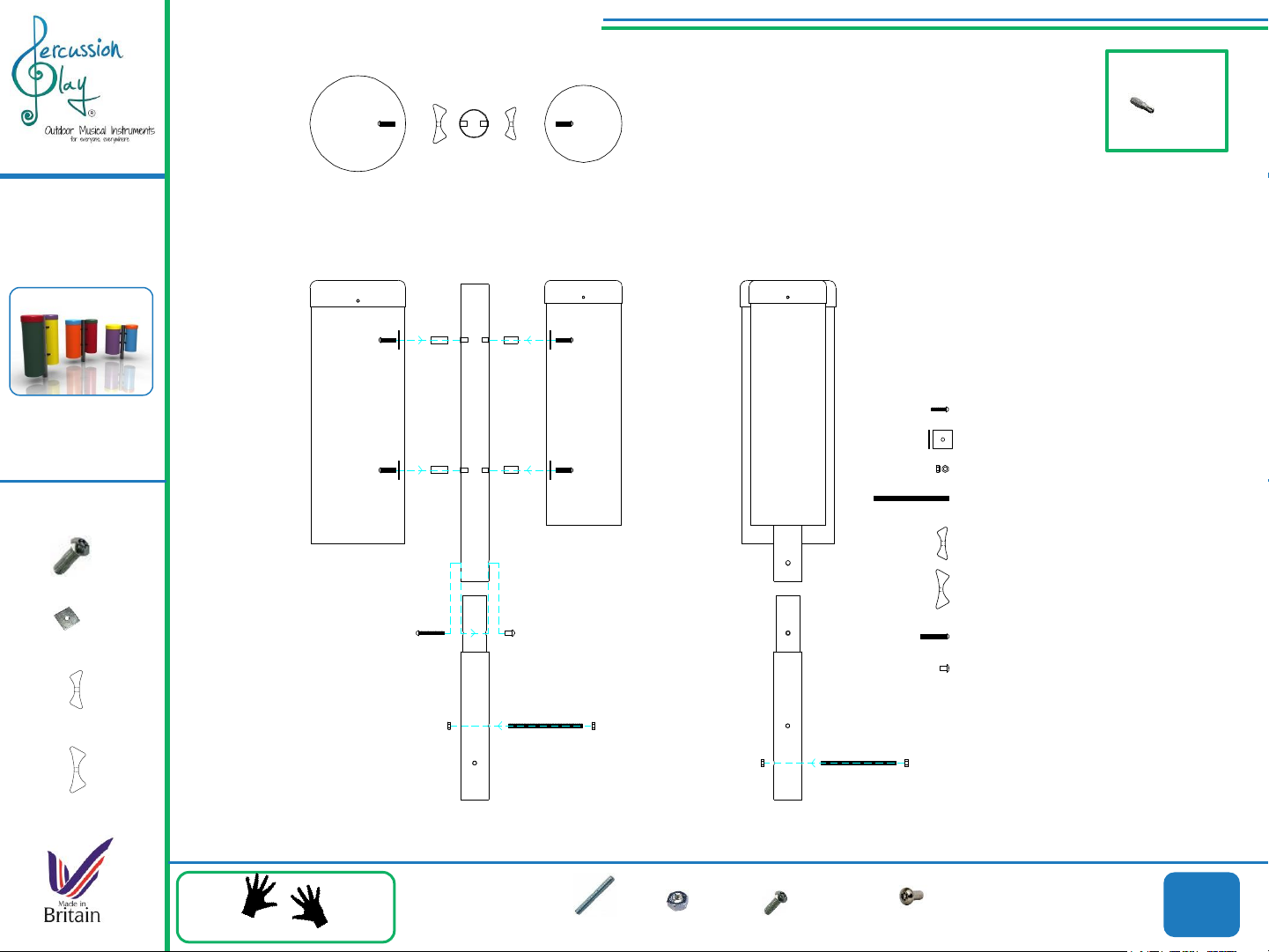

Assembly Guide PPCONG
Tools:
x1
TX 45 Driver Bit
(1.1)
Instrument
Components:
x4
M10x30 Security Screw
x4
M10x50x3 Square washer
x2
200 Mount
x2
250 Mount
BS EN 1176
Ground Fix
Played with hands
Components:
M10x200 Bolt
x2
x4
M10 Nut
M10x70 Security Screw
x1
x1
M10 Barrel Nut
Spares available form
percussionplay.co.uk or from
your local distributor
10 Kg
15 Kg
20 Kg
Page 3

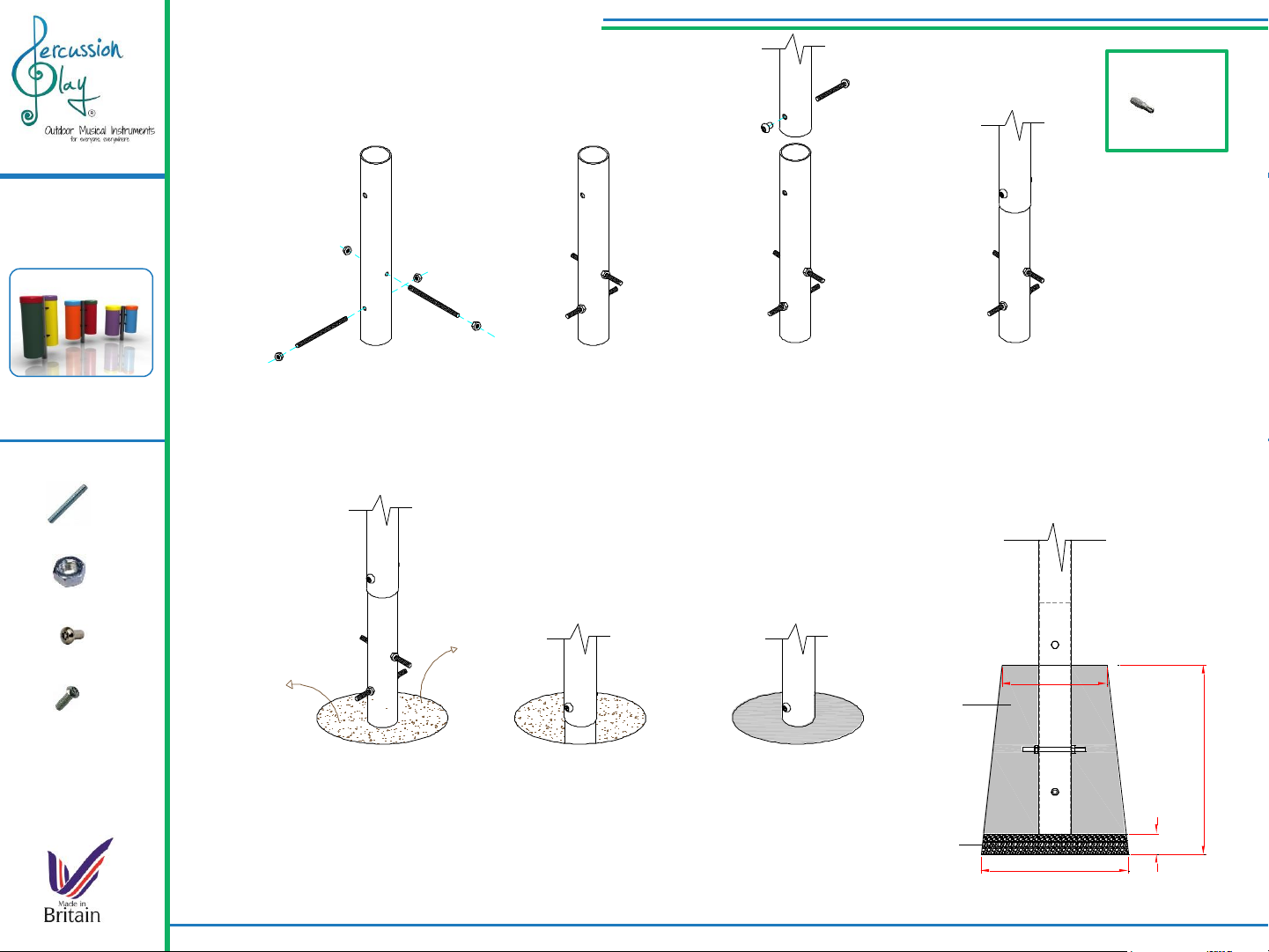

Ground Fix Post Installation
Insert M10x 200 Threaded
bar into pre drilled holes
in Ground Fixing Post
Fix M10x 200 Threaded
bar in place using M10
Nuts
Fill hole with fast drying
concrete to manufacturers
specifications.
Locate the Ground fix Post
into the leg of the
instrument.
Fix instrument to Ground
fix post using M10 bolt
and Barrel Nut and use
thread locking solution
to prevent fixings working
loose.
450
50
350
250
Aggregate
Concrete
Excavate 6 holes with a
250mm diameter tapering
down to 350mm diameter
and 450mm depth
Compact base of hole with
50mm of aggregate.
Lower ground Fix post
attached to instrument
into hole (check
instrument straight and
level before filling with
concrete)
Tools:
x1
TX 45 Driver Bit
Ground Fixed
Congas
Page 3 of 3
Components:
x2
M10x200 Bolt
x4
M10 Nut
x1
M10 Barrel Nut
x1
M10x70 Security Screw
1
5
2
(1.1)
6
3
7
4
BS EN 1176
400mm min depth
