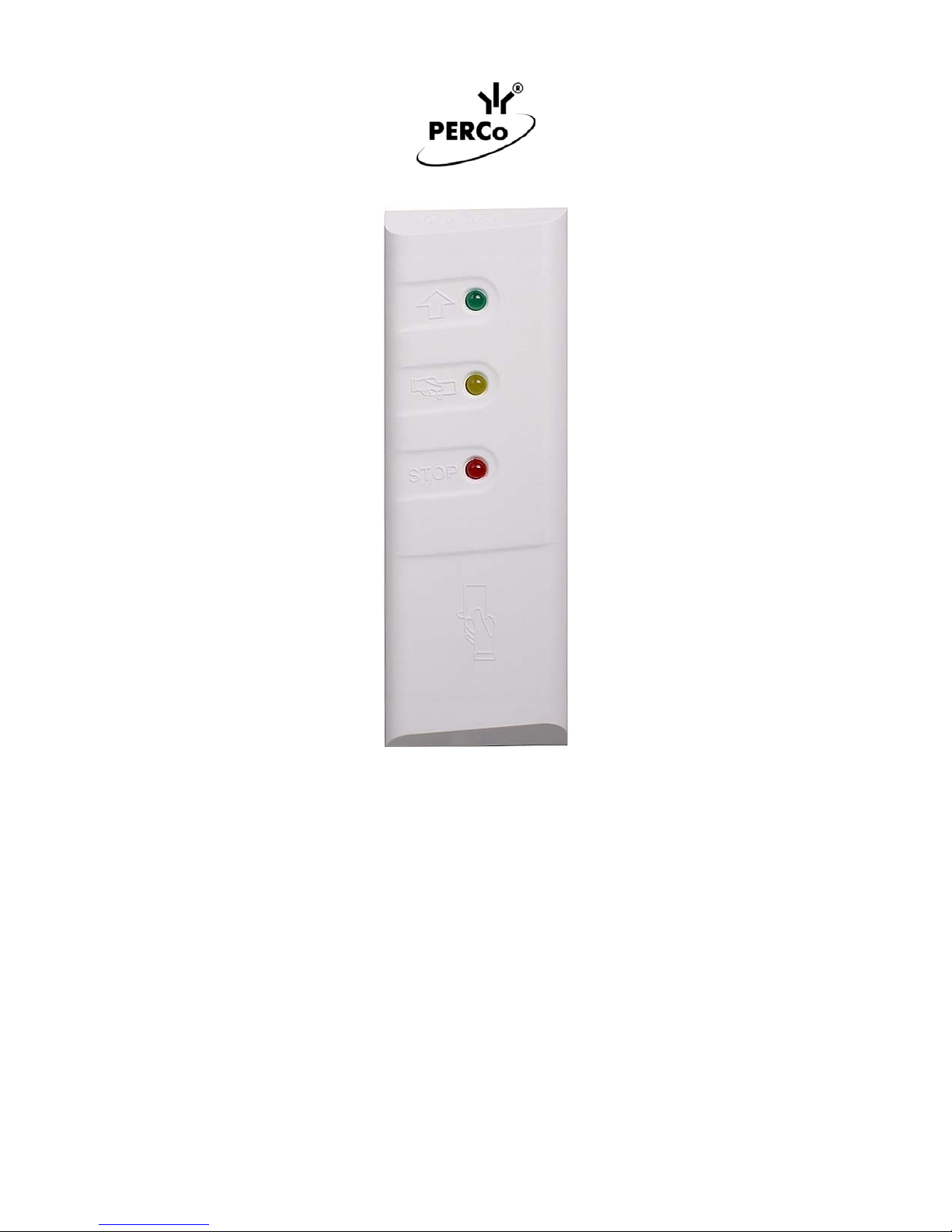

Lock Controller
CL-05.2
OPERATION MANUAL
Lock Controller
CL-05.2
Operation Manual
CONTENTS
1 APPLICATION.............................................................................................................3
2 OPERATION CONDITIONS........................................................................................3
3 TECHNICAL SPECIFICATIONS .................................................................................4
4 DELIVERY SET...........................................................................................................5
4.1 Standard delivery set.............................................................................................5
4.2 Additional equipment supplied upon request:........................................................5
5 PRODUCT DESCRIPTION .........................................................................................6
5.1 Design and operation ............................................................................................6
5.2 Signal parameters of OD control output ................................................................6
5.3 Signal parameters of “Door” and “DU” inputs ........................................................7
5.4 Signal parameters of the additional output ............................................................8
5.4.1 “Fire Alarm input”........................................................................................8
5.4.2 Output.........................................................................................................8
5.4.3 Synchronization ..........................................................................................8
5.5 Choosing IP-address setting method.....................................................................9
6 MARKING AND PACKAGING...................................................................................10
7 SAFETY REQUIREMENTS.......................................................................................10
7.1 Installation safety.................................................................................................10
7.2 Operation safety ..................................................................................................10
8 INSTALLATION.........................................................................................................11
8.1 General instructions.............................................................................................11
8.2 Cables .................................................................................................................11
8.3 Installation order ..................................................................................................11
8.4 Powering .............................................................................................................16
8.5 Connection via Ethernet network.........................................................................16
9 CONFIGURATION ....................................................................................................16
10 FIRMWARE UPDATE ...............................................................................................16
11 OPERATION .............................................................................................................17
11.1 ACM when operating as a part of ACS ............................................................17
11.2 Indication .........................................................................................................19
11.3 Troubleshooting ...............................................................................................19
11.3.1 Controller is not working ...........................................................................19
11.3.2 Controller is not recognized by the PC .....................................................19
12 TRANSPORTATION AND STORAGE ......................................................................20
13 MAINTENANCE ........................................................................................................21
APPENDIX 1. Controller connection through PoE-splitter .............................................22
APPENDIX 2. Controller Web-interface. User Manual ..................................................24
CL-05.2 Lock Controller
Dear customers!
Thank you for purchasing PERCo lock controller.
Please follow instructions given in this Manual carefully and this quality product will
provide many years of trouble-free use.
The Operation manual (hereinafter – the Manual) contains information on technical
characteristics, design and operation principle of CL-05.2 lock controller and is aimed at
providing a more complete use of the lock controller. The Manual also contains sections
on transportation, storage and installation of the lock controller. The Manual is to be used
together with operation documentation on other devices connected.
Abbreviations agreed in the Manual:
RC – remote control;
OD – operation device;
SZ – secured zone;
ACM – access control mode;
ACS – access control system.
1 APPLICATION
CL-05.2 lock controller (hereinafter – controller) is designed for managing one-way or
two-way (having two controllers of this model installed) entrance point. Controller features
built-in HID and EM-Marine proximity card reader and is able to control one
electromagnetic or electromechanical lock.
Note:
Having two CL-05.2 lock controllers installed for managing one two-way entrance
point, it is necessary to use normally-closed (opened when energized)
electromechanical locks as operation unit. Electromagnetic or normally-open
electromechanical locks in this configuration can be used only with additional
interposing relay installed.
Controller can be used as a standalone unit or as a part of PERCo-Web access control
system. Controller management and configuration can be performed through built-in web-
interface or PERCo-Web network Software.
2 OPERATION CONDITIONS
With regards to resistance to environmental exposure lock controller conforms to category
NF4 as per GOST 15150-69 (operation in premises with climate control).
Lock controller can be operated within the following conditions:
Ambient air temperature...............................................................from +1C to +40C
Relative air humidity at +25C...................................................................... max 80%
3
Operation Manual
3 TECHNICAL SPECIFICATIONS
Rated operating voltage..................................................................................... 12±1.2VDC
Consumption current ......................................................................................... max 0.15 A
Power consumption ................................................................................................ max 2 W
Number of controlled entrance points ................................................................................ 1
Number of RC inputs ......................................................................................................... 1
Proximity card types ................................................................................... HID, EM-Marine
Card reading distance at the rated operating voltage for different card types:
for HID cards ................................................................................................ min 5 cm
for EM-Marine cards...................................................................................... min 8 cm
Card reading distance with lock controller installed on metal surface:
for HID cards ................................................................................................. min 4 cm
for EM-Marine cards...................................................................................... min 7 cm
Lock controller connection interface standard.................................... Ethernet (IEEE 802.3)
Number of users (proximity cards)................................... from 10,000 to 50,000 (see Note)
Number of log events 1 ............................................... from 230,000 to 870,000 (see Note)
Note:

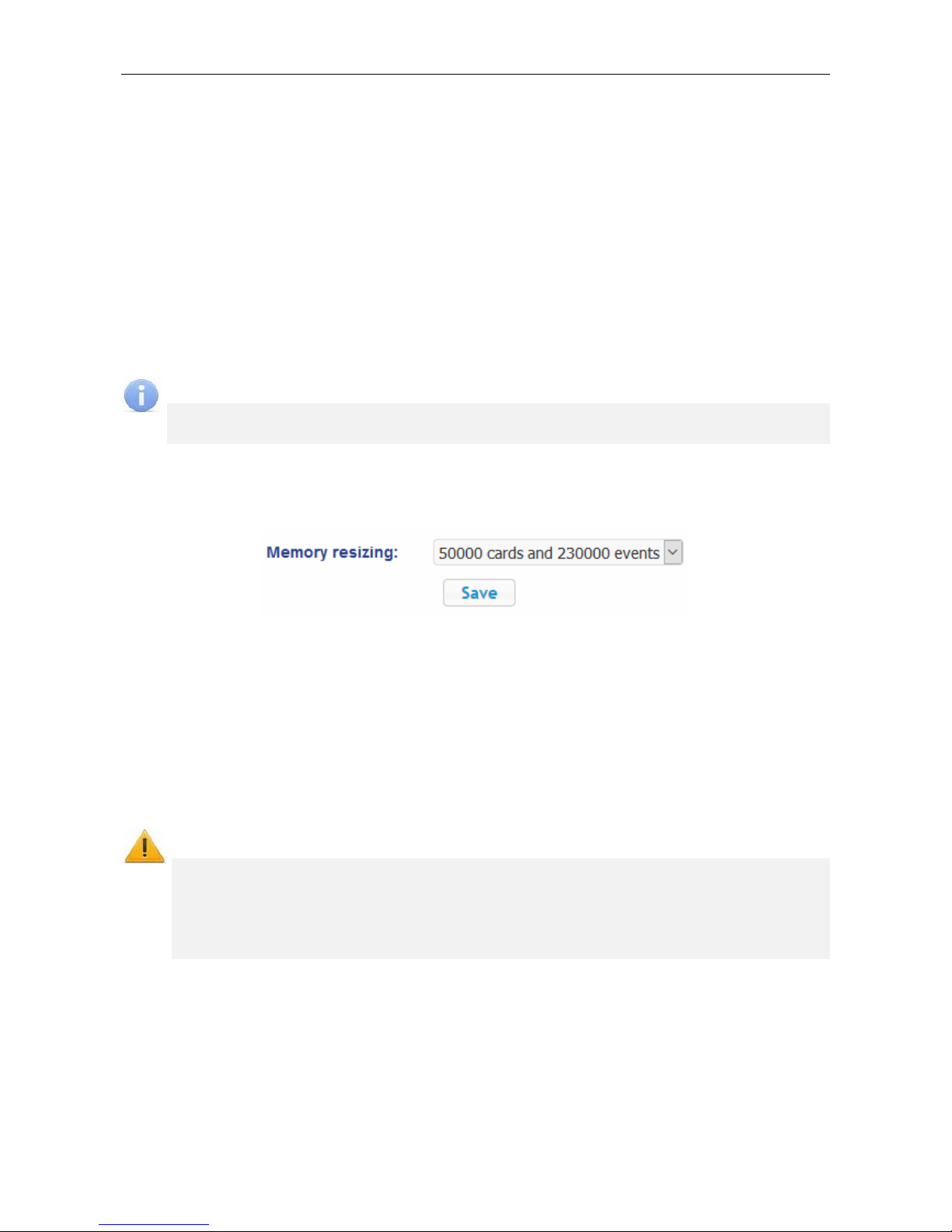

Possible options for allocating memory (see Appendix 2, Clause 3.4):
50,000 cards and 230,000 events – set by default,
40,000 cards and 390,000 events,
30,000 cards and 550,000 events,
20,000 cards and 710,000 events,
10,000 cards and 870,000 events.
Number of additional outputs 2 ........................................................................................... 1
Mean lifetime ........................................................................................................... 8 years
Electric shock protection class............................................ III under GOST R IEC 730-1-94
Housing protection class ................................................................... IP54 under EN 60529
Lock controller dimensions (without cable) ...................................................145×50×20 mm
Lock controller weight ........................................................................................ max 0.3 kg
Note:
Initially lock controller features: IP-address and MAC-address, stated in the product
certificate and at the inner side of the product housing; subnet mask: 255.0.0.0;
gateway IP-address: 0.0.0.0.
1
If log event is overloaded, new events start replacing the old ones (events are deleted in
blocks of 256).
2
Additional output configuration variants are described in Section 5.4.
4
CL-05.2 Lock Controller
4 DELIVERY SET
4.1 Standard delivery set
Controller ........................................................................................................................... 1
Metal base ......................................................................................................................... 1
Jumper ............................................................................................................................... 1
Suppressor (15-18V) ......................................................................................................... 1
Mounting kit:
plastic dowels ............................................................................................................ 4
screws ....................................................................................................................... 4
Package ............................................................................................................................. 1
Certificate ........................................................................................................................... 1
Operation manual .............................................................................................................. 1
4.2 Additional equipment supplied upon request:
Power supply unit .............................................................................................................. 1
PoE-splitter 1 ...................................................................................................................... 1
1
PoE-splitter allows controller powering via Ethernet network. Splitter can be used with
network commutators, supporting power transmission technology through PoE twisted-pair
cable and is compatible with IEEE 802.3af standard.
5
Operation Manual
5 PRODUCT DESCRIPTION
5.1 Design and operation
Controller is designed as a block of electronics in a plastic housing with three LED
indicators at the front panel. Protection of electronics from the negative impact of the
environment is provided by potting. Ethernet network connection cable and the cable for
other lock controller connections are located on the housing back side.
Controller features: non-volatile memory; non-volatile RTC-timer (real-time clock) and
sound indicator (piezoceramic radiator).
Controller features a built-in proximity card reader and operates with proximity cards of
max 64-bit code. Types of compatible cards: HID and EM-Marine.
Controller provides connection via Ethernet (IEEE 8 02.3) interface with TCP/IP (ARP, IP,
ICMP, TCP, UDP, DHCP) protocol stack support and PERCo-Web system communication
protocol application layer support.
Using electromechanical locks, opened when energized, it is possible to use two
controllers for managing one two-way entrance point (supporting zone changing).
Using LB- or LBP-series (production PERCo) electromechanical locks with terminal block,
controller traces lock circuit condition, which allows omitting door sensor (reed switch) use.
Door sensor is replaced by the lock terminal block.
Controller allows lock operation with the following devices:
RC-button (“Exit”);
proximity card, presented to the controller;
computer (when connected via Ethernet network and at the Software installation);
emergency unlocking device (“Fire Alarm”).
Apart from this it is possible to connect the following supplementary equipment:
door sensor (reed switch);
external light and sound (Alarm) indicator.
Controller as a part of ACS provides:
operation in ACM: “Open”, “Control”, “Closed”, “Arming”;
saving the set ACM in non-volatile memory in order to prevent its change at power
loss/recovery;
global zoning control function support;
commissioning function support;
verification function support;
possibility of operation unit arming and disarming;
sending signals to the central surveillance panel.
5.2 Signal parameters of OD control output

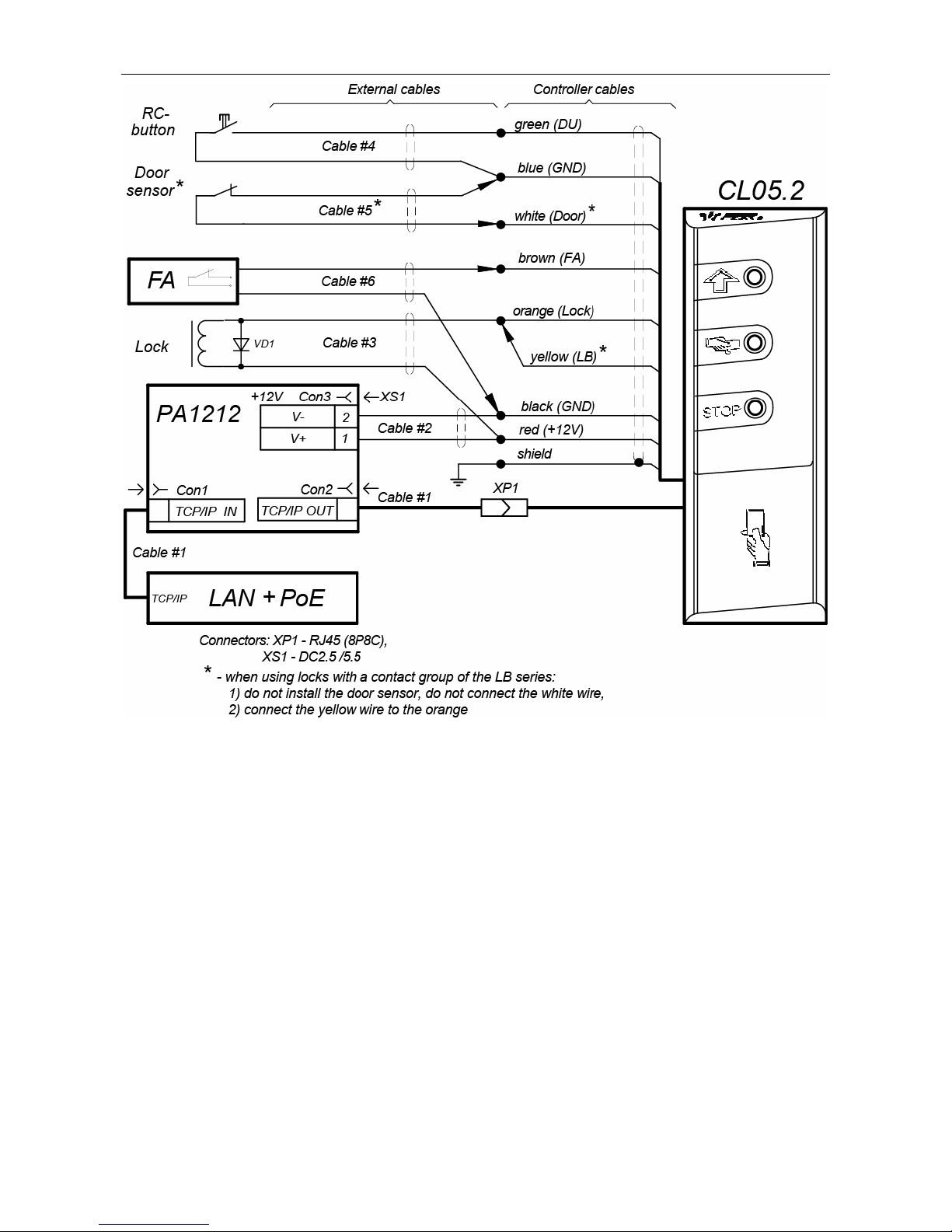

Controller features one OD control output: Lock (orange wire). Output type – open

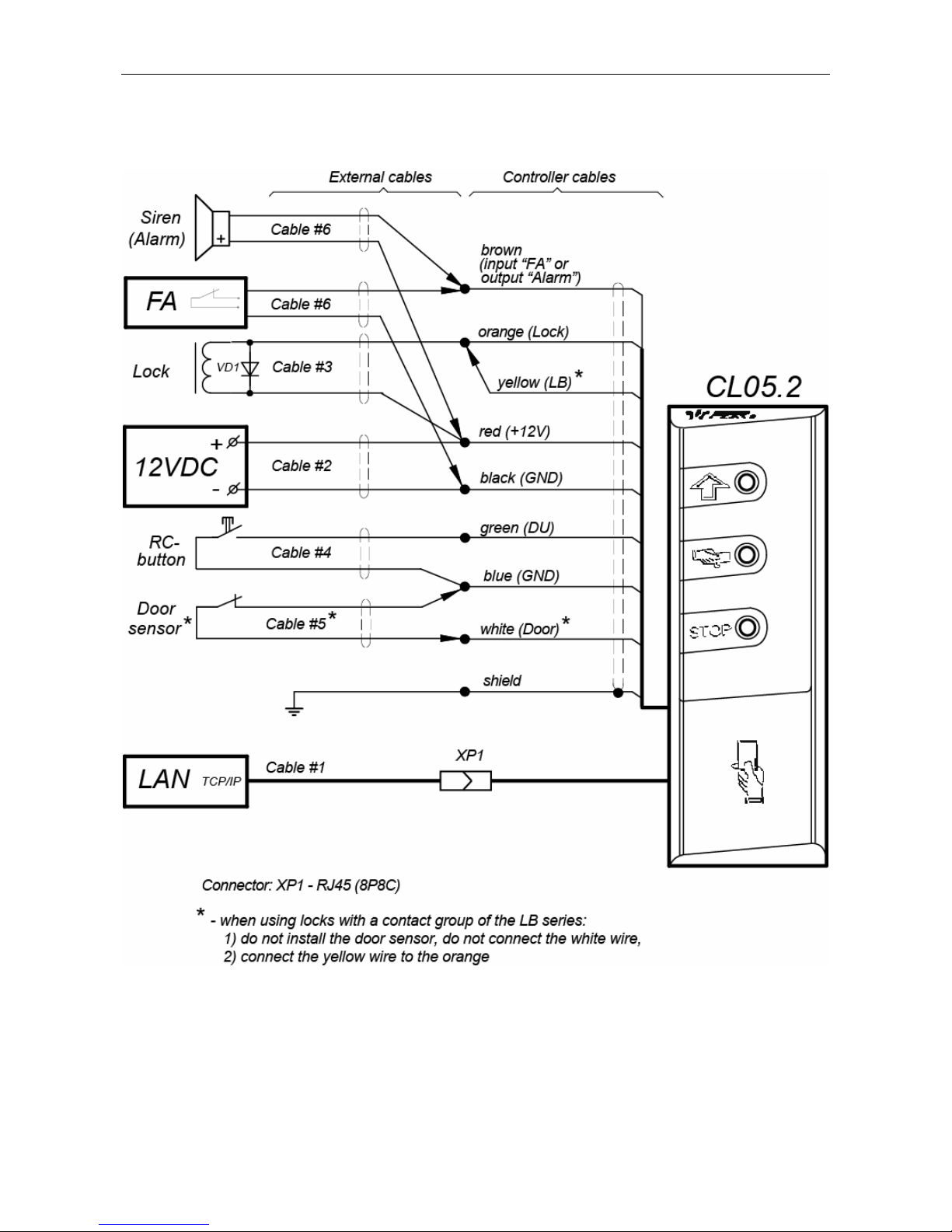

collector. OD connection scheme is provided on Fig. 3.
Output is used for OD control and has the following parameters:
maximum voltage direct current ................................................................................
30V
maximum current ........................................................................................................ 1A
Control output can support potential and pulse modes of lock operation. The mode is
chosen with OD “Control output operation mode” parameter.
6
CL-05.2 Lock Controller
At potential OD operation mode:
During a single passage, output gets activated for the period of time, defined in
Software by “Time of holding in unlocked state” parameter or until the passage
completion.
Having OD set for “Open” in ACM, output gets activated until the mode is changed.
At pulse OD operation mode:
During a single passage, output gets activated for the period of time, defined by “OD
control pulse duration” parameter. OD gets unlocked until passage completion.
Having OD set for ‘Open’ in ACM, output gets activated for the period of time, defined
by “OD control pulse duration” parameter. Output will be activated each time for
this period of time in one second after OD gets normalized.
Door input activation using door sensor (reed switch) indicates passage completion. Using
LB- or LBP-series electromechanical locks with terminal block, circuit break through
lock terminal block indicates passage completion.
5.3 Signal parameters of “Door” and “DU” inputs
Controller manages the states of two inputs: Door (white wire) and DU (green wire).
Connection scheme is given on Fig. 3. Inputs can be used as follows:
“Door” – for door sensor connection (reed switch);
“DU” – for RC-button connection (“Exit”).
Normally-open relay c
ontact or a scheme with open collector output can serve as a control
element. Control element is to provide the following signal characteristics:
control element – relay contact:
minimal commutated current ............................................................... max 1 mA
closed contact resistance
(considering connection cable resistance) ................................... max 300 Ohm
control element – scheme with open collector output:
closed contact voltage
(low level signal, on controller input) .................................................. max 0.8 V.
Note:
All the unconnected inputs are pulled to the power supply. In order to create a high
level signal, all the input contacts (“Door” and “DU”) feature resistors with 2 kOhm,
connected to the power line +3,3 V.
Activation of “Door” signal depends on its initial state description in “Contact normal
state” parameter in the Software:
if input is stated as “Open”, its activation is made by sending on it a low level
signal regarding GND contact. In this case normally open relay contact or open
collector output scheme can serve as the control element.
if input is stated as “Closed”, its activation is made by removing a low level signal
regarding GND contact from it. In this case normally open relay contact or open
collector output scheme can serve as the control element.
Having LB- or LBP-series electromechanical mortise locks with terminal block installed,
reed switch installation and Door input connection are not required. In this case lock
terminal block serves as the door sensor. Activation is made by circuit break through
terminal block, thus in the Software it is required to have “Closed” value set for “Normal
contact state” parameter.
“DU” input is “normally open” (its initial state is not described in the Software); thus its
activation is made by sending on it low level signal regarding GND contact.
7
Operation Manual
5.4 Signal parameters of the additional output
Controller has one additional output (brown cable), which, depending on configuration, can
be used as a Fire Alarm input (Section 5.4.1), as additional output (Section 5.4.2) or as a
synchronization channel at simultaneous operation of two controllers (Section 5.4.3).
This output is designed as a transistor n-p-n collector. In order to operate as an input, it is
connected to the power line +3.3 V through resistor with 4.7 kOhm resistance.
Choose additional output use variant in PERCo-Web Network Software. In order to set the
output operation mode, set the value according to Table 1 in “Type” parameter of the
“Additional output” controller resource.
Table 1. Output configuration in network Software
“Type” parameter value of the “Additional
output” controller resource
Output operation mode
“Fire Alarm”
“Fire Alarm” input for emergency unlocking
device (Section 5.4.1)
“Standard”,
“Alarm generator”,
“Security and fire alarm”
Control output for additional equipment
(Section 5.4.2)
“Synchronizing”
Clock bus of two controllers simultaneous
operation (Section 5.4.3)
5.4.1 “Fire Alarm input”
In “Fire Alarm input” mode the additional output is used for connecting emergency
unlocking device (“Fire Alarm”). Connection scheme is given on Fig. 3.
Normally open relay contact or a scheme with open collector output can serve as a control
element. Input signal parameters are the same as stated for Door and DU inputs
(Section 5.3).
Sending control signal from (“Fire Alarm”) emergency unlocking device, connected to the
controller on the input, OD gets unlocked and stays in that condition until signal removing.
Indication block green passage grant indicator is ON. All control commands are ignored.
5.4.2 Output
In “Output” mode the additional output can be used for:
external light and sound (Alarm) indicator connection,
signal transfer to the central observation board,
other additional equipment connection.
Connection scheme is given on Fig. 3.
Output signal parameters:
maxi
mum voltage DC ................................................................................. max 12 V
maximum current ..................................................................................... max 0.25 A
5.4.3 Synchronization
In “Synchronization” mode the output is used for synchronization of the simultaneous
operation of two controllers when two-sided entrance point is to be arranged. In this mode
controller outputs are connected between each other. This allows avoiding OD Breaking
event registration when making the passage in direction, opposite to the one, in which the

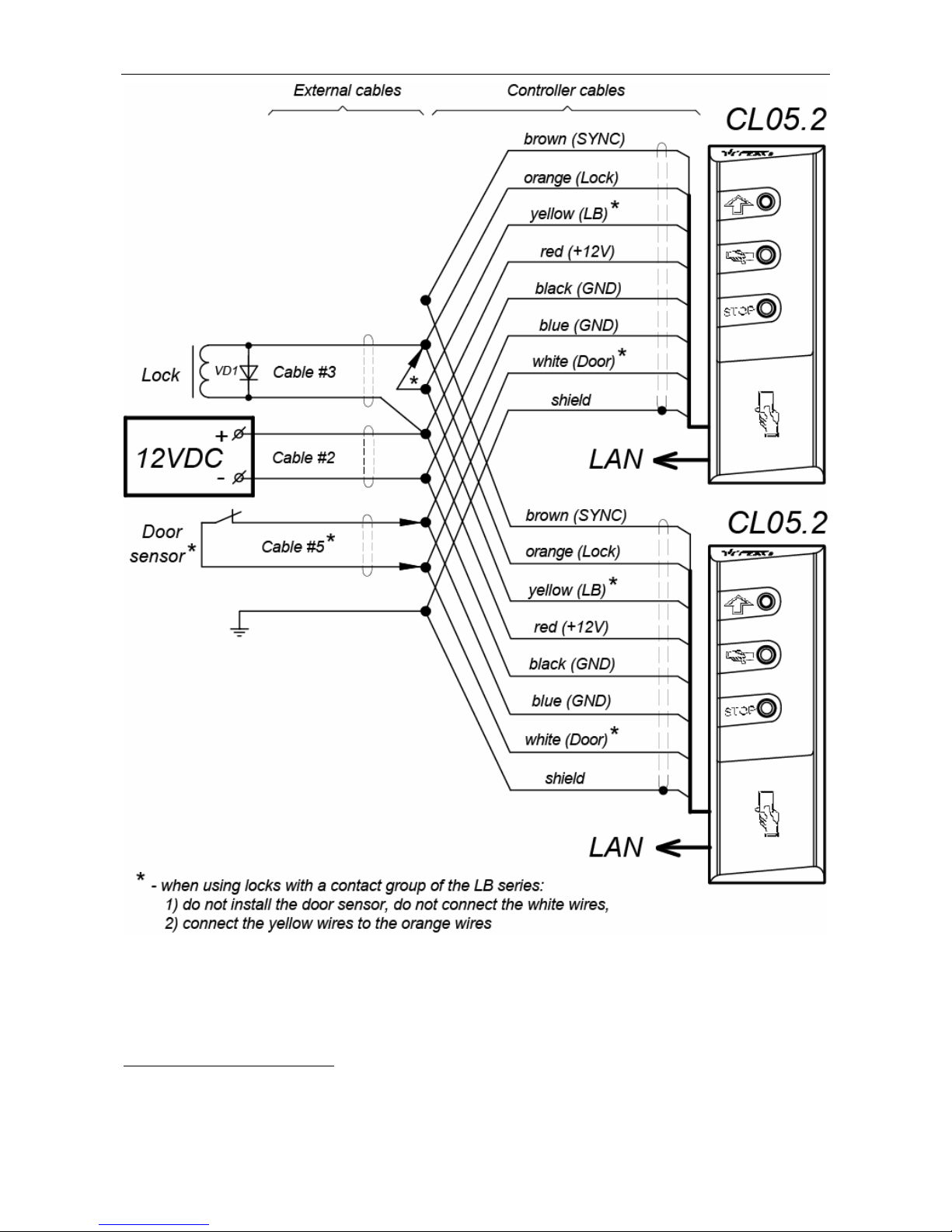

controller is installed. Connection scheme is given on Fig. 4. In this case other equipment
connection to the additional outputs is not allowed.
8
CL-05.2 Lock Controller
5.5 Choosing IP-address setting method
Controller IP-address setting method is chosen by jumper installation and removal on XP1
output on the controller back side. Output configuration is given on Fig. 1.
Attention!
Jumper installation and removal should be performed on de-energized equipment
only.
There are the following IP-address setting methods:
1. User mode. Jumper removed.
If the IP-address (gateway, subnet mask) has not been changed by the user, the
controller will operate with the initial settings: IP-address and MAC-address are
stated in the controller certificate on the controller board; subnet mask 255.0.0.0;
gateway IP-address 0.0.0.0.
If the IP-address (gateway, subnet mask) has been changed, the controller starts to
operate with the new settings immediately.
Note:
Controller network settings change is possible only from the PC through the Webinterface or from the Software. At that the controller and the PC are to be in one
subnet.
2. “IP-MODE”. 1–2 jumper position.
This mode is aimed at operation in networks with IP-address dynamic allocation. At
that the controller gets the IP-address (gateway, subnet mask) from DHCP-network
server/
3. “IP-DEFAULT”. 2–3 jumper position.
The controller operates with initial settings. IP-address and MAC-address are stated
in the Controller certificate and on the controller board; subnet mask 255.0.0.0;
gateway IP-address 0.0.0.0.
Controller access password is cleared.
Note:
User settings of the IP-address (gateway, subnet mask), in case they have been
set, are saved when switching to “IP DEFAULT” mode. With next powering, if the
jumper is removed, controller will start operating with these settings.
Table 2. Possible variants of jumper installation on XP1 output
№ Jumper position on XP1 Mode
1
User mode
2
“IP-MODE”
3
“IP-DEFAULT”
9
Operation Manual
6 MARKING AND PACKAGING
Controller has a marking label located on the back side of the housing. The location of the
label and other markers can be found on Fig. 1. The label features the following
information about the controller:
trademark and the manufacturer contact details;
product name and model number;
serial number;
year and month of manufacture;
power supply range;
consumption current.
Apart from this, the back side of controller housing features labels with the initial:
MAC – address;
IP – address.
Controller is packed in a carton box keeping it safe from the damages during
transportation and storage.
7 SAFETY REQUIREMENTS
7.1 Installation safety
Controller installation and maintenance should be carried out by qualified specialists who
have studied this Manual.
Attention!
Controller connection and jumper installation should be carried out with de-
energized equipment and disconnected power supplies.
Cabling should be executed with the general electrical and work safety rules
observance.
Controller installation should be carried out by fault-free instruments only.
Power supply installation safety requirements are provided in power supply operation
Manual.
7.2 Operation safety
Controller operation should be carried out with the general electrical and work safety rules
observance.
Do not use!
Controller when power supply voltage does not comply with the technical
characteristics described in Section 3 ”Technical specifications”.
Controller in operation conditions that do not conform to those given in Section 2
”Operation conditions”.
Power supply operation safety requirements are provided in power supply operation
Manual.
10
CL-05.2 Lock Controller
8 INSTALLATION
Observe the instructions given in Section 7.1 during controller installation.
8.1 General instructions
It is recommended to install controller near OD. Controller should be installed at a place
with easy access for proximity card presentation.
Controller should be installed at least 50 cm away from the readers and other controllers.
8.2 Cables
During controller installation, use cables given in Table 3.
Table 3. Cables used during controller installation
№ Connected equipment
Max.
length, m
Type
Min. wire
cross-section,
mm
2
Example
1 Ethernet (IEEE 802.3) 100
Four twisted pair
cables of no less
than 5
th
category
0.2
2 Power supply 10
3 OD – Lock 10
Twin cable 0.75
PVC isolation
cord (2×0,75
two-colour)
4 RC-button
5 Door sensor
6
Fire Alarm device
Additional equipment to
the output
10 Twin cable 0.2
RAMCRO
SS22AF-T
(2×0,22) or
CQR-2
The following requirements should be considered when laying all the signal cables
(Ethernet, RC-button, door sensor and to the lock) and low-voltage power cables:
it is recommended to install controller at least 1 meter apart from any other external
readers and other EMI sources. EMI sources may reduce proximity card reading
distance and be the cause of system operation malfunctions. The sources of
electromagnetic interferences are: readers, AC lines, electric generators, electric
motors, AC relays, thyristor light regulators, PC displays, computer and telephone
signal communication lines;
all signal cables, sensors, OD and low-voltage power cables should be laid at least
50 cm away from the alternating current cables, powerful motor control cables, pumps,
drives, etc.;
all signal cables can cross power cable only at a right angle;
cable growth (except for Ethernet cable) is to be performed with soldering only.
8.3 Installation order
Follow the requirements given in Section 8.1. Controller connection should be carried out
according to the scheme, given on Fig. 3, using the cables, given in Table 3. Follow this
sequence during controller installation:
1. Unpack the box and check carefully controller delivery set according to Section 4. The
equipment should be free of any mechanical damages.
2. Choose controller installation place. Follow the instructions given in Section 8.1 when
choosing the installation place.
11
Operation Manual

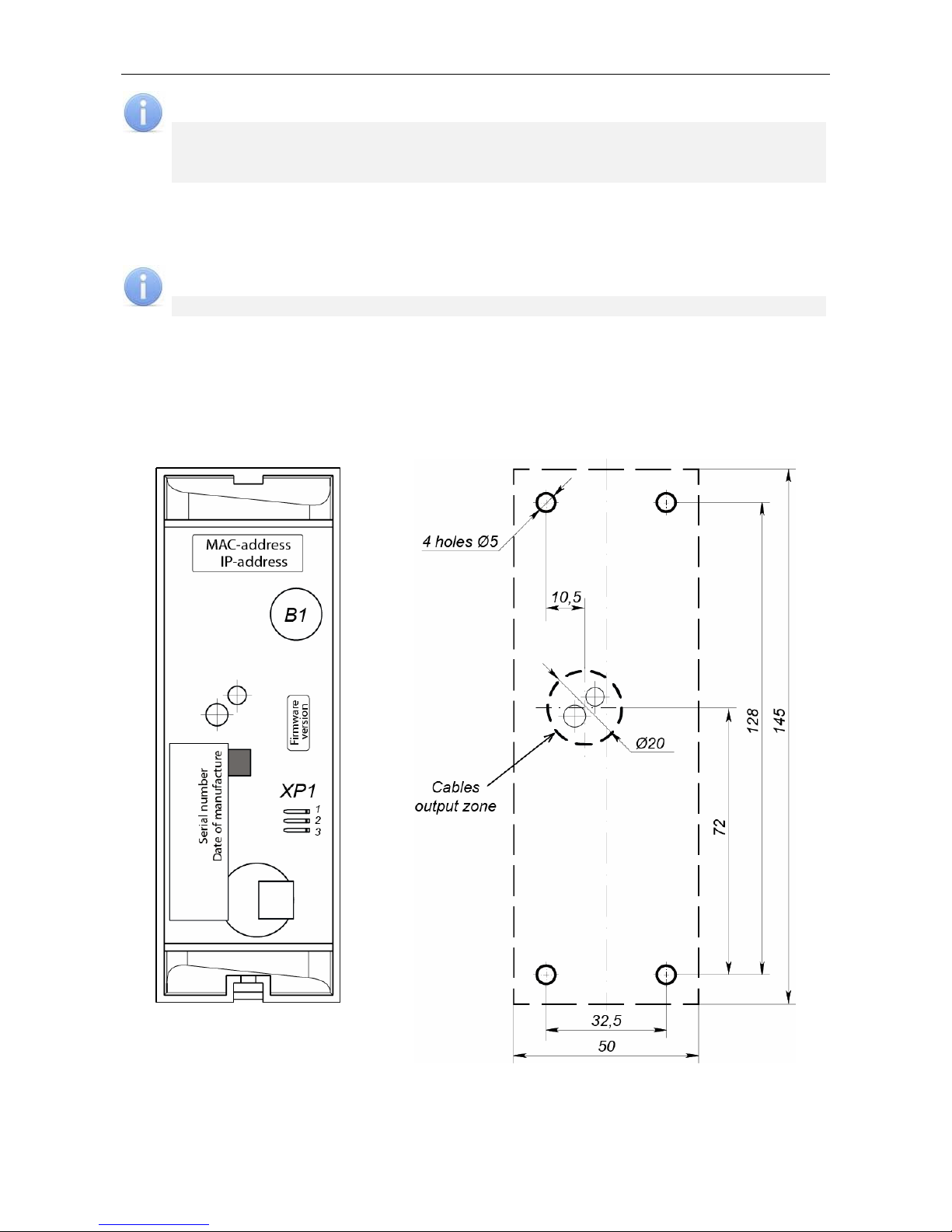

3. Mark and prepare holes on installation surface for the metal base mounting and for
cabling as per scheme given on Fig. 2.
4. Loosen the screw located at the bottom side of controller housing and fixing it to the
metal base. Remove the metal base.
5. Fix the metal base on the installation surface with four screws from the delivery set.
6. Choose controller IP-address setting method (Section 5.5) and install jumper on XP1
output according to Table 2. if required. Jumper positioning is given on Fig. 1.
7. Pull controller cables through the cable hole on the installation surface. It is required to
provide no less than 10 mm cable bend radius at the controller base during controller
fixing. It is recommended to leave some spare cable length in order to retract controller
from the wall and have access to the jumpers.
8. Install controller on the metal base and fix it with a screw in the bottom side of the
housing.
Attention!
If the connected lock does not have the spark protection circuit, it is required to
use a spark protection diode (VD1 on Fig. 3). For example, Schottky diode, used
with operation current no less than 1A, of 1N5819 type.
If the connected electromagnet lock does not have demagnetizing circuit, it is
required to install the bidirectional suppressor from the delivery set. Suppressor
is installed near the lock (VD1 on Fig. 3).
It is recommended to use only electromechanical locks during controller
connection through PoE-splitter (instructions provided in Appendix), thus it is
required to use the spark protection diode (VD1 on Fig. 5) of 1N5819 type. It is
FORBIDDEN to use suppressor in this case!
9. Prepare door for lock installation and install the lock in accordance with its operation
documentation. Connect cable #3 (FIg. 3, Table 3) to the lock.
10. Ground lock housing or its locking plate in order to protect it from static electricity. If
the lock is installed on the metal door, ground the door leaf. Grounding is to be
performed with a wire of minimum 0.75 mm2 cross-section.
11. Set the RC-button (“Exit”). RC-button installation place is to be chosen considering
user access convenience (e.g. near the door). Connect cable #4 (Fig. 3, Table 3) to
RC-button.
12. In case required, install magnet door sensor (reed switch). During installation, the
magnet sensor should be fixed on the door frame and the magnet should be fixed on
the door, providing stable sensor contact closing when the door is closed. Connection
is made by cable #5 (Fig. 3, Table 3). Using LB or LBP-series electromechanical locks
with terminal block, controller traces lock circuit condition, which allows omitting door
sensor (reed switch) use. Door sensor is replaced by the lock terminal block. In this
case controller Door input is to stay connected.
13. In case required, make the installation of the additional equipment (e.g. Alarm).
Connect cable #6 (Fig. 3, Table 3) to the additional equipment.
14. Connect cables from the additional equipment to the standard controller cable
according to scheme given on Fig. 3.
15. If simultaneous operation of two controllers for managing double-sided door is
required, install and connect the second controller. Connection is made in parallel
according to the cable colours (except for RC-button – usually it is not used and if
needed, it can be connected separately to each of the controllers according to the
scheme given on Fig. 3). Connection scheme is given on Fig. 4. Do not connect
anything to the interconnected brown wires (SYNC.
12
CL-05.2 Lock Controller
Note:
Use normally closed electromechanical locks as an OD in this configuration.
Electromagnet or normally open electromechanical locks can be used only having
the interposing relay installed.
16. Connect Ethernet cable, coming from controller to the local network. Use RJ45
adapter from the delivery set and cable #1 in order to make an extension (Fig. 3,
Table 3).
Note:
Controller power connection through PoE-splitter is given in Appendix 1.
17. Install power supply to its permanent operation position. Connect cable #2 (Fig. 3,
Table 3) to the power supply and to the controller.
18. Lay and fix cables using plastic staples (e.g. SC4-6, SC5-7, SC7-10). During cable
installation and cable laying it is necessary to consider the requirements given in
Section 8.2.
19. Check lack of breaks and short circuits in all the lines.
Figure 1. Controller back side
outline
Figure 2. Hole spacing for controller installation
(housing dimensions and a hole for cable laying are
dotted)
13
Operation Manual
Figure 3. Controller connection scheme
14
CL-05.2 Lock Controller
Figure 4. Scheme of the parallel connection of two controllers
for managing double-sided door 1
1
The given scheme features connection of locks, open when energized (normally closed
electromechanical locks). In order to connect locks, open when de-energized (normally open
electromechanical locks and electromagnet locks), install the supplementary relay with normally
closed contacts connected to the lock power supply circuit.
15
Operation Manual
8.4 Powering
When power supply is turned ON, all the light indicators on lock controller housing will start
blinking for 3 seconds. After this period of time, controller indicators will show the latest
ACM installed.
During controller first powering, after installation completion or after memory formatting, a
simultaneous blinking of all the three indicators 2 times at a second will be initiated on the
controller housing, indicating lack of controller settings. In this case configuration is to be
transferred to the controller. This can be done through Web-interface or with the Software.
8.5 Connection via Ethernet network
On order to connect to the controller via Ethernet network, the computer is to be in one
subnet with the controller. During the first connection computer network settings change
may be required.
Initially all PERCo controllers feature IP-addresses from the 10th subnet, thus it is required
to add IP-address to the additional parameters of computer TCP/IP: 10.x.x.x (x-random
numbers) and subnet mask 255.0.0.0. Such servers and services as DNS and WINS are
not required. Controller is to be connected to the same network segment or directly to the
computer network card output.

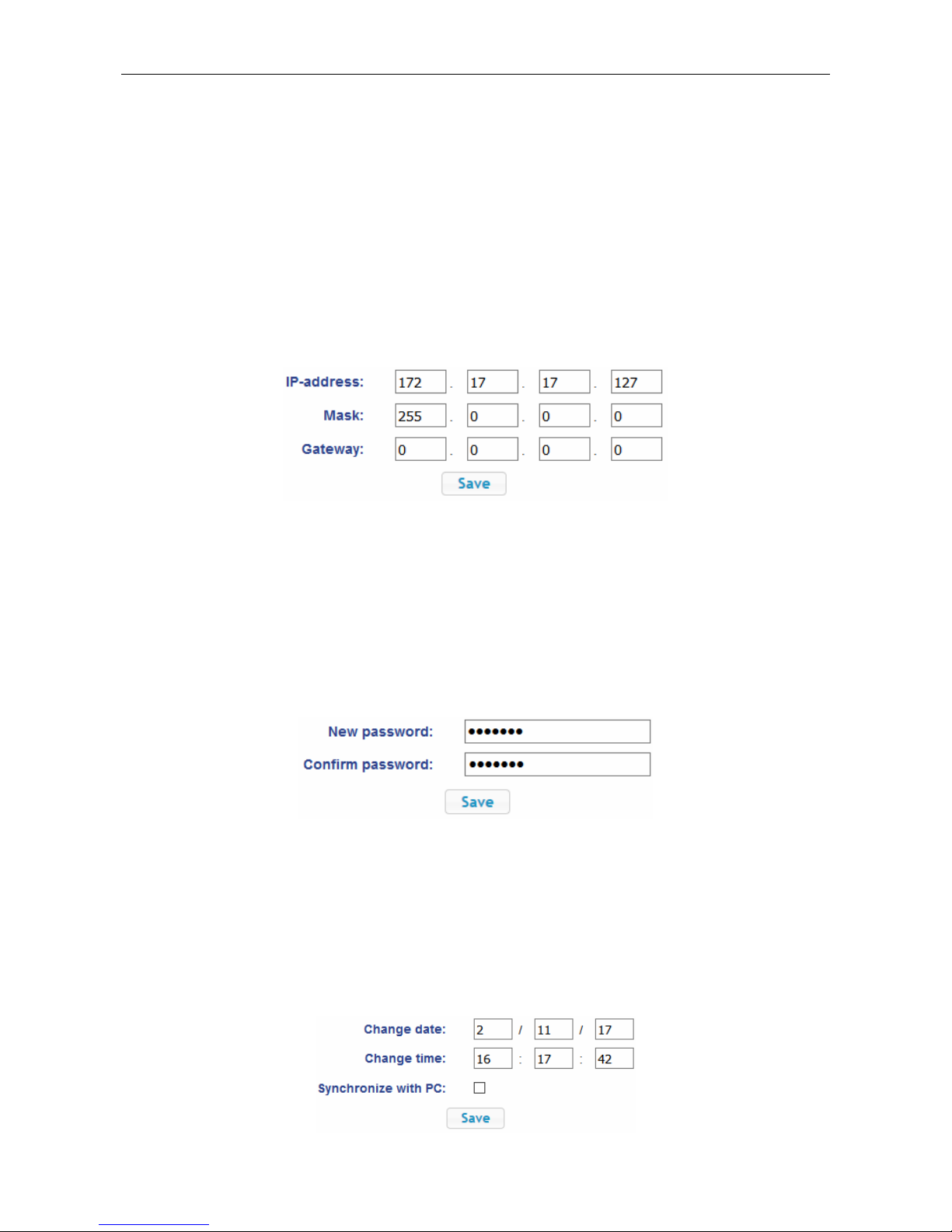

When connection is made, all the network settings of the controller can be changed to the
ones recommended by the system administrator from the Software or through Webinterface.
9 CONFIGURATION
Controller configuration, access cards transfer to the controller and a change of an ACM
can be done:
1. through controller’s Web-interface (see Appendix 2);
2. through Web-browser in PERCo-Web system;
3. by using the following local software, installed on the computer:
“Local software” SL01 (license is not required);
“Local software with verification” SL02;
Note:
You can purchase additional software from authorized PERCo dealers. Also, the
software, the licensing procedure and the electronic versions of the user's manuals
on the software are available on the PERCo website at www.perco.com under
“Support”.
10 FIRMWARE UPDATE
Use “Firming” program to update the firmware and to format the PERCo-Web system
controller memory. You can download the current version on our web-site
www.perco.com.

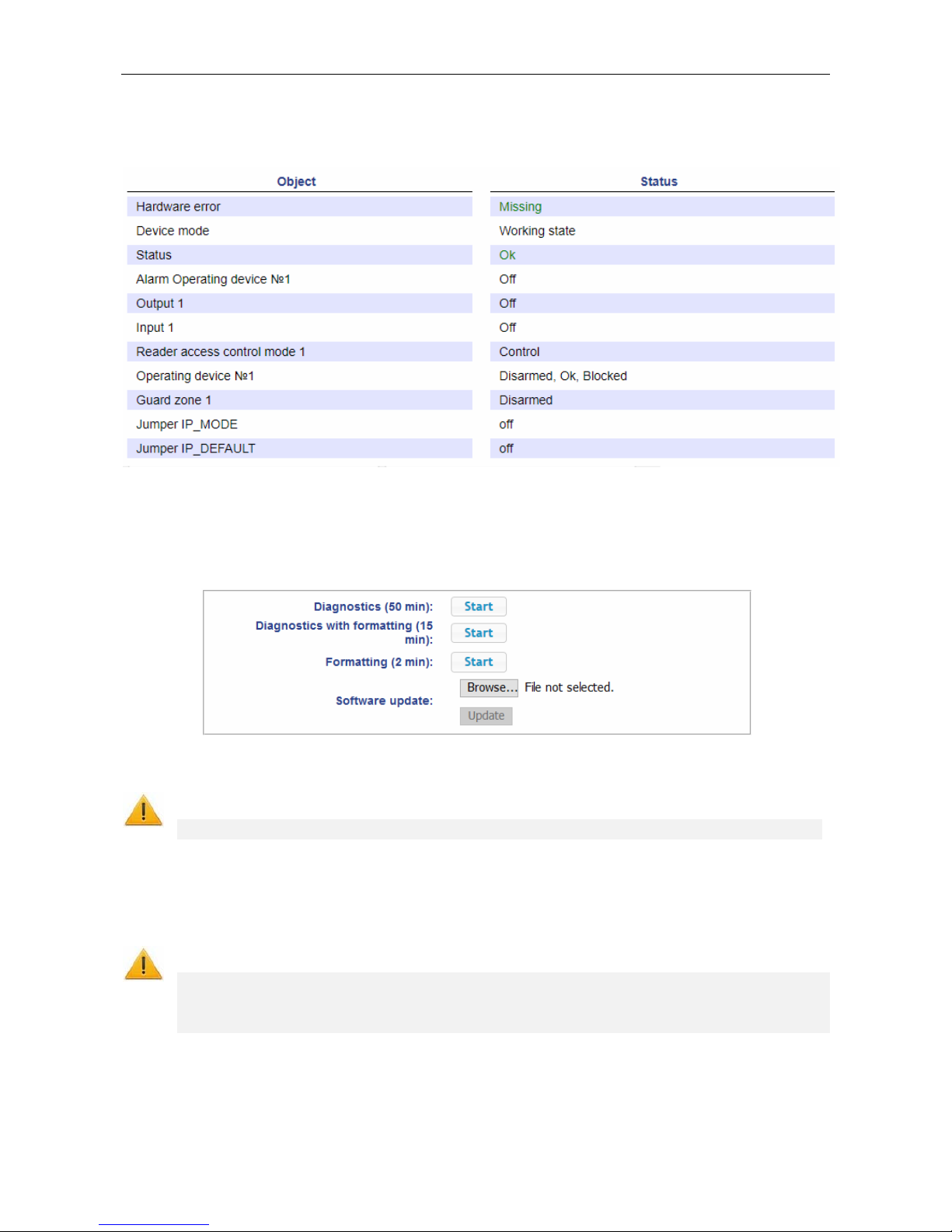

You can also update the firmware and format the memory through the Web-interface of the
controller in “Diagnostics” section (Appendix 3, Clause 9).
16
CL-05.2 Lock Controller
11 OPERATION
Observe safety instructions given in Section 7.2 during controller operation.
Do not!
Use abrasive or chemically active materials for cleaning external surfaces of
controller housing.
Jerk and hit controller housing, lock, door sensor, RC-button and connecting
cables in order to prevent their mechanical damage or deformation.
After configuration initiation controller can operate in the following modes:
Without connection to ACS (access control system) server
In case connection to Ethernet network and to the PC is unavailable, controller will start
executing the following functions:
Accepts presented cards identifiers from the built-in reader and, in accordance with
their existence in the list, stored in controller memory, grants or bans the access.
Controls the connected OD.
Arms and disarms protective zones, controls OD in “Arming” ACM; activates
additional output in “Alarm” mode.
Fixes events in the controller memory event log.
Supports passage time control and commissioning function.
Global zoning control function becomes available when controller is connected to the
network and when connection with other system controllers is provided.
Connecting to the PC with “Local Software” installed:
Events from log event are automatically relocated into programme database each
time the programme is initiated. The data can be also relocated by clicking on the
corresponding button in the programme.
Data on identifier owner (full name) are stored in programme database.
Verification is available in case “Local Software with verification” is installed.
Connected to ACS (access control system) server
Apart from the functions, supported during standalone operation, the following functions
also become available:
Data from the log event get automatically relocated into security system server
database.
Verification function is available depending on network Software modules installed.
11.1 ACM when operating as a part of ACS
ACM change is performed by the simultaneous order from the Software to both passage
directions.
Controller as a part of ACS provides the following ACM through OD (ACM indication is
given in Table 4):
“Open” ACM – free passage mode.
OD gets unlocked until ACM change.
RC-button (“Exit”) pressing is ignored.
“Control” ACM – main operation mode as an ACS element.
OD is blocked.
17
Operation Manual
Presenting the access card, meeting all the passage grant criteria, to the reader.
OD gets unlocked for “Time of holding in unlocked state”.
“Closed” ACM – passage ban mode.
OD is blocked until ACM change.
RC-button (“Exit”) pressing is ignored.
Any access card presentation is registered as ACM violation.
“Arming” ACM
OD is blocked until ACM change.
RC-button (“Exit”) pressing is ignored.
Protective zone arming, including OD.
Arming / Disarming can be made by double presentation of the access card, having
corresponding rights, to the reader.
Passage through OD (OD breaking) switches protective zone, including OD, into
“Alarm” mode.
Table 4. Controller indication
Indicators
Card presentation ACM
Green Yellow Red
Sound,
s
No configuration No 5 Hz 5 Hz 5 Hz Off
“Open”
On Off Off Off
“Control”
Off On Off Off
“Arming”
Off 1 Hz 1Hz Off
No
“Closed”
Off Off On Off
“Open”
On Off Off 0.2
“Control”
Card has no access rights
“Arming”
Any card
“Closed”
Off Off On 0.5
“Open”
“Control”
On Off Off 0.2
Card has access right
“Arming”
Off Off On 0.5
“Open”
“Control”
Card has access and arming/ disarming
right
“Arming”
1
On Off Off 0.2
At taking (switch to
“Arming” ACM)
“Arming”
Off 1 Hz 1Hz 0.2
“Open”
Repeated
presentation of
the card with
arming right
At non-taking2 (until
return to the initial
ACM)
“Control”
Off Off 1sec 1
Verification/ commissioning waiting time Any Off 2 Hz Off 0.2
1
Presentation of card having disarming rights in “Arming” ACM leads to: protective zone
removal, including OU disarming and OU unlocking for “Time of holding in unlocked state”.
After this period of time controller switches to ACM, set before protective zone arming (“Open” or
“Control”; in case the previous ACM was “Closed”, then it switches to “Control” ACM).
2
Sound and light indication is ON for 1 sec.
18
CL-05.2 Lock Controller
11.2 Indication
Possible variants of ACM indication, controller states and reactions to identifier
presentation are given in Table 4. Indication is located on the indication module, featuring
three light indicators on the controller housing front panel.
Note:
During access card identifier reading in any ACM, sound signal 0.2 sec. long is
sent, yellow light indicator changes its state for 0.2 sec. Other indicators state
does not change.
Having card access granted, light indication is on for “Time of holding in
unlocked state” or until passage completion. If the passage is banned,
indication will be ON for 2 sec.
11.3 Troubleshooting
Possible faults to be corrected by the customer themselves are given below. Contact the
manufacturer if other fault or malfunction occurs.
11.3.1 Controller is not working
Possible causes of the controller malfunction are as follows:
1. Power supply malfunction – check the power supply.
2. Malfunction of the equipment, connected to controller outputs (lock, door sensor,
RC-button) – make sure the connected devices are faultless.
3. Faulty controller connection lines of other devices – make sure the connection
lines are operable.
4. Faulty radio components on the controller board – the controller needs repair at
the manufacturer.
11.3.2 Controller is not recognized by the PC
Possible causes of the malfunction:
1. No network settings in the computer – set computer IP-address and subnet mask.
Computer is to be connected either directly to the computer network card network
connector or to the same Hub/Switch to which the computer is connected.
2. Incorrect controller password has been used. In the Software check correctness of
the password used.
3. Computer malfunctions (with the Software, with databases, etc.).
Diagnostics of this malfunction is made by initiating the following command:
ping x.x.x.x
where x.x.x.x – IP-address of the controller.
If there is connection, you will see the following lines:
Answer from x.x.x.x: number of bytes=32 time<10mc TTL=128
If there is no connection (answer), check the correctness of routing sets in your
network.
4. Malfunctions of Ethernet network equipment, HUB located between computer and
controller, SWITCH and other network equipment including connection cables.
Diagnostics of this malfunction is made by initiating the following command:
ping x.x.x.x -l 576
where x.x.x.x – IP-address of the controller.
If there is connection and the standard minimal packet (576 bytes) is not fragmented,
you will see the following lines:
Answer from x.x.x.x: number of bytes=576 time<10mc
TTL=128
19
Operation Manual
In this case it can be said that IP-packets are not fragmented to the size smaller than
576 bytes and the chosen connection should function correctly.
If it is impossible to get the positive answer, this means that on the IP-packet route
there is a network commutating equipment, fragmenting IP-packets up to the size
smaller than 576 bytes. Check the settings of this equipment and, if possible, increase
MTU size. Usually this parameter is marked as MaxMTU or IPMTU.
5. If several variants of commutation are possible, use this command.
ping x.x.x.x -l 576 -t
Commutating in different ways, look at the response time, choosing the connection,
giving the quickest response time.
6. Controller malfunctions. Faulty operation of the elements, providing connection via
Ethernet (IEEE 802.3) interface.
If controller does not detect connection to Ethernet, connect it to the cable, from which
another controller operates. If controller does not detect connection to Ethernet or
connection with it cannot be restored, i.e. this controller is to be sent back to the
manufacturer for diagnostics.
12 TRANSPORTATION AND STORAGE
Controller in the original package should be transported in closed freight containers or
other closed type cargo transport units.
The storage of the controller is allowed indoors at ambient temperature from -20°C to
+40°C and relative air humidity up to 98% at +25°C.
20
CL-05.2 Lock Controller
13 MAINTENANCE
Operation and technical staff, responsible for controller technical maintenance, is to know
its design and operation rules.
Follow the rules given in Section 7 “Safety requirements” of this Manual when making any
works on technical maintenance.
Attention!
Disconnect controller from the power supply before making technical
maintenance works.
Test equipment is to be checked beforehand.
Once in three months maintenance operations made on scheduled basis according to
program #1 are to be made. List of works is given in Table 5. Reports on technical
maintenance works made on regularly scheduled basis are to be put in the scheduled
works register book.
It is necessary to observe interval, technological order and methodic of scheduled works
execution.
Table 5. List of works to be made on regularly scheduled basis #1
(technological card #1)
Type of
works
Execution order
Equipment,
instruments,
materials
Norms and observed
phenomena
1.1 Disconnect power supply from AC
mains and remove dust, dirt and damp from
all controller surfaces.
Cleaning
waste, brush
grainer.
No signs of dirt and damp.
1.2 Remove covers from the power supply.
If there is a reserve power supply
(accumulator), remove any dust, dirt, damp
and oxides from the terminals.
Check the reserve power supply voltage. If
needed, charge or change the battery.
Screwdriver,
cleaning
waste, brush
grainer,
C4352
indicator.
Voltage is to comply with data
given in the battery certificate
(min 12,6 V).
1.3 Remove dust, dirt and corrosion from
jumper contact surfaces and from the safety
fuse.
Cleaning
waste, brush
grainer,
benzine
B-70.
No corrosion stains, no dirt.
1.4 Check the rated value and OD safety
fuse operability.
1.5 Check all the external circuit
connections.
Connections are to comply
with the scheme.
1 Exterior check ; controller and power supply cleaning
1.6 Recover connection, in case the wire
has been broken.
Change the wire if isolation has been
damaged.
No isolation damages and no
wire breaks.
2 Normal
operation
check
2.1 Check controller operability as per
Section 11.
Controller indication
according to Section 11.2.
Signal forming on the output
according to
its configuration.
Technical maintenance of other devices, connected to the controller, is given in operation
documentation for these devices.
21
Operation Manual
APPENDIX 1. Controller connection through PoE-splitter
Attention!
Instruction provided refers to the splitters included in additional equipment
delivery set.
Total power consumption of the controller and of all the devices powered by it
should not exceed 12 W. It is also recommended to leave min 10% reserve
power.
Splitter description
PoE-splitter (hereinafter – splitter) is designed for energizing equipment, connected via
Ethernet network. Splitter operates with any network commutators (hereinafter – Switch),
supporting technology of electric power transmission via PoE twisted pair wire and
compatible with IEEE 802.3af standard.
Splitter is designed as a block of electronics in a plastic housing featuring the following
outputs:
Con 1 – output for Ethernet cable from Switch connection.
Con 2 – output for Ethernet controller cable connection;
Con 3 – power output for controller power cable connection.
Note:
For some models of splitters output voltage is chosen with the switcher. Operating
with PERCo equipment it is necessary to turn the switcher into “12V” mode.
Connection sequence
Follow this sequence during controller connection through splitter:
1. Choose splitter installation place. Do not install splitter at more than 2 m distance
from the controller.
2. Connect Ethernet cable from controller to Con2 output of the splitter (Table 3).
3. Connect controller power-supply circuits to Con3 output of the splitter. Connection
scheme is given in Fig. 5 (other connections are to be made according to Fig. 3,
Fig. 4, attachment plug for connection to the output is included into splitter delivery
set).
Attention!
It is OBLIGATORY to install a spark protection diode VD1 (Fig. 3, Fig. 4) of 1N5819
type during lock connection. DO NOT use suppressors instead of spark protection
diodes. It is recommended to use electromechanical locks only.
4. Connect Ethernet cable from Switch to Con1 output of the splitter.
5. After verification between Switch and splitter, controller will be energized.
Disconnect Ethernet (coming from Switch) cable from Con1 output of the splitter to de-
energize controller.
22
CL-05.2 Lock Controller
Figure 5. Controller connection scheme through PoE-splitter
23
User Manual
APPENDIX 2. Controller Web-interface. User Manual
CONTENTS
1. WEB-INTERFACE OPPORTUNITIES ......................................................................25
2. CONNECTION TO WEB-INTERFACE OF THE CONTROLLER ..............................25
3. SETTING...................................................................................................................27
3.1 Change of network setting of the controller .........................................................27
3.2 Setting of the access password of the controller .................................................27
3.3 Change the system time of the controller ............................................................27
3.4 Choice of Settings of memory allocation .............................................................28
4. CONFIGURATION ....................................................................................................28
4.1 The choice of the controller configuration ............................................................28
4.2 Configuration of the Settings of the controller resources .....................................29
4.2.1 Operating devices.....................................................................................29
4.2.2 Physical contacts (inputs and outputs) .....................................................30
4.2.3 Readers....................................................................................................31
4.2.4 The reading format of the card identifiers .................................................31

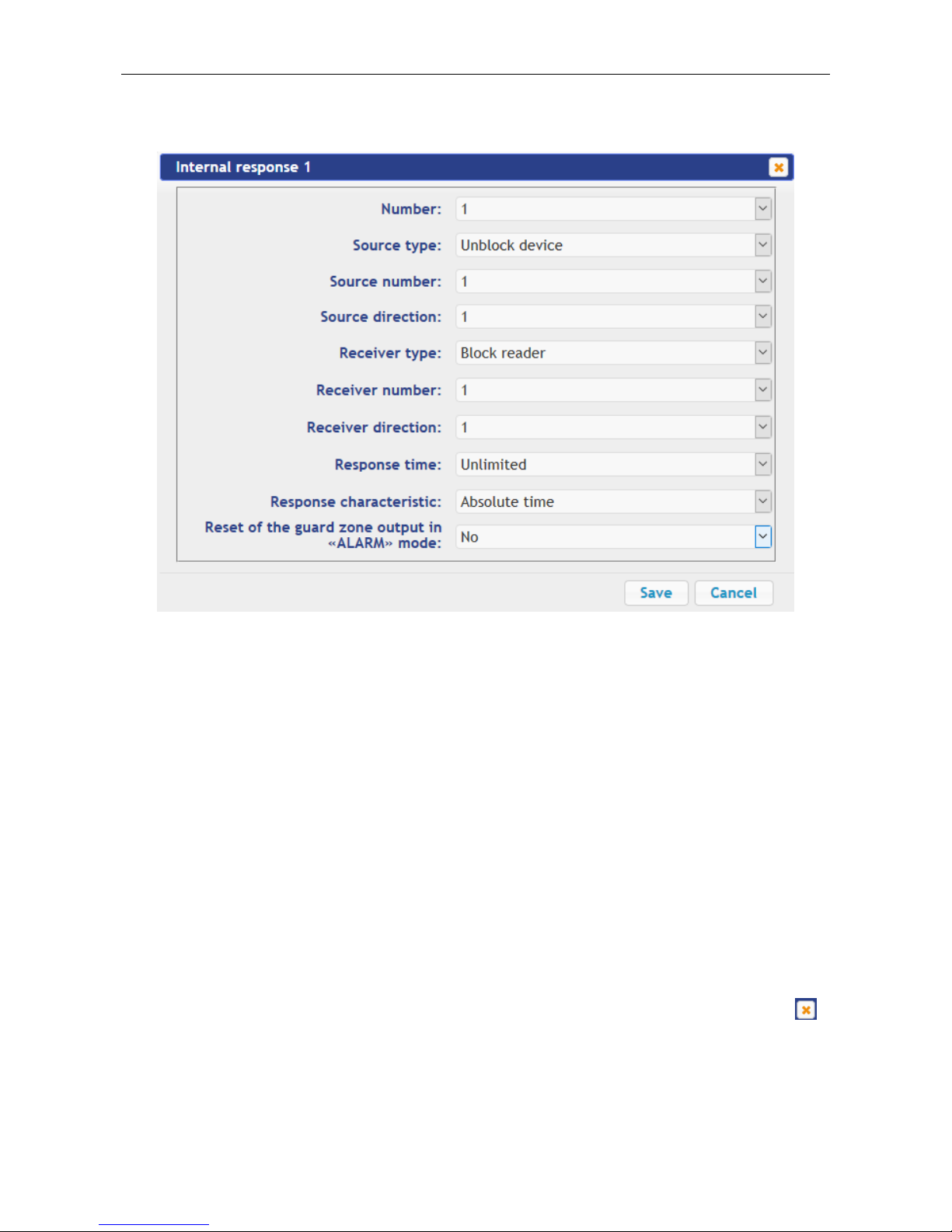

4.2.5 Internal responses ....................................................................................31

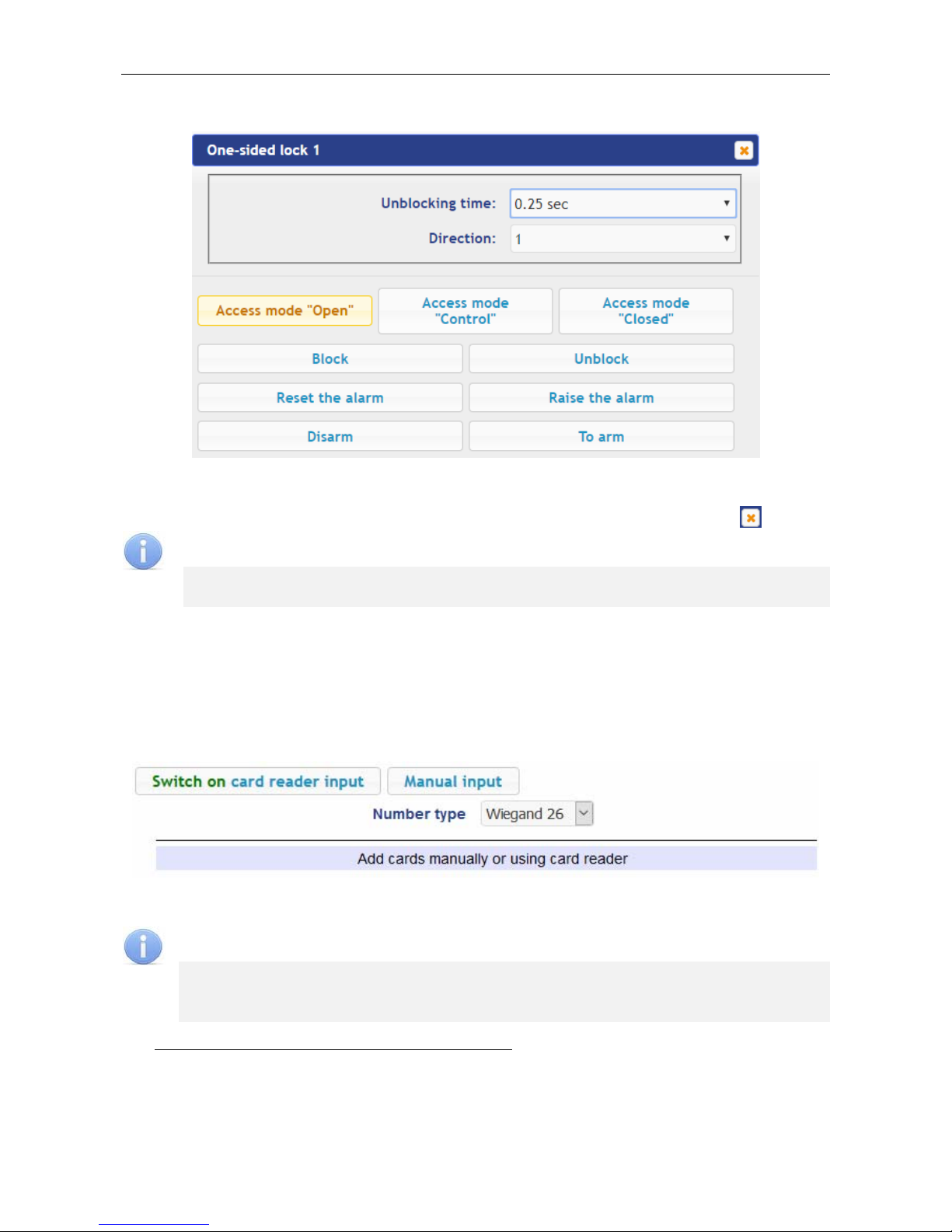

5. CONTROL OF OPERATING DEVICE ......................................................................32
6. ACCESS CARDS ......................................................................................................33
6.1 Entering of the cards identifiers ...........................................................................33
6.2 The list of stored cards ........................................................................................34

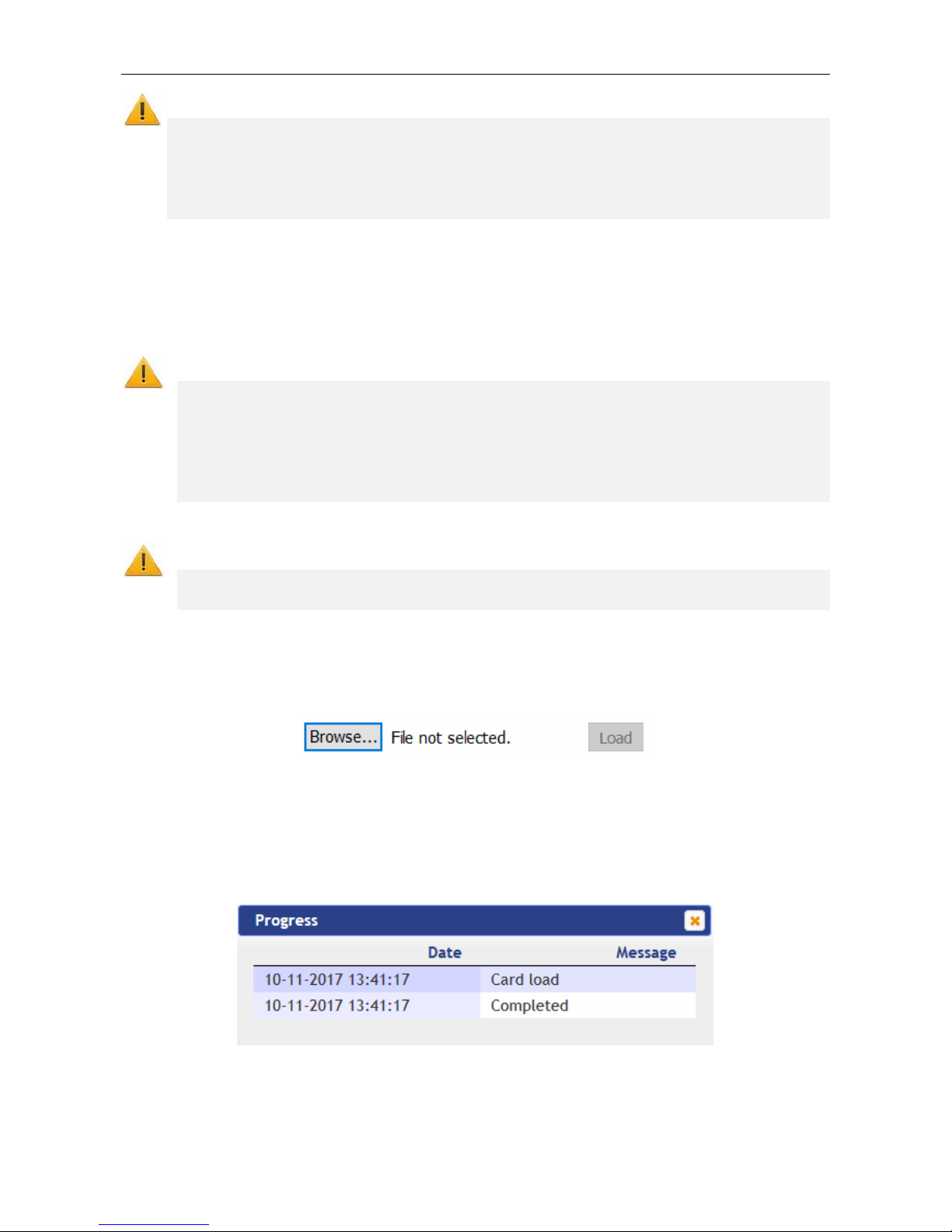

6.3 Loading the identifiers from a file.........................................................................36

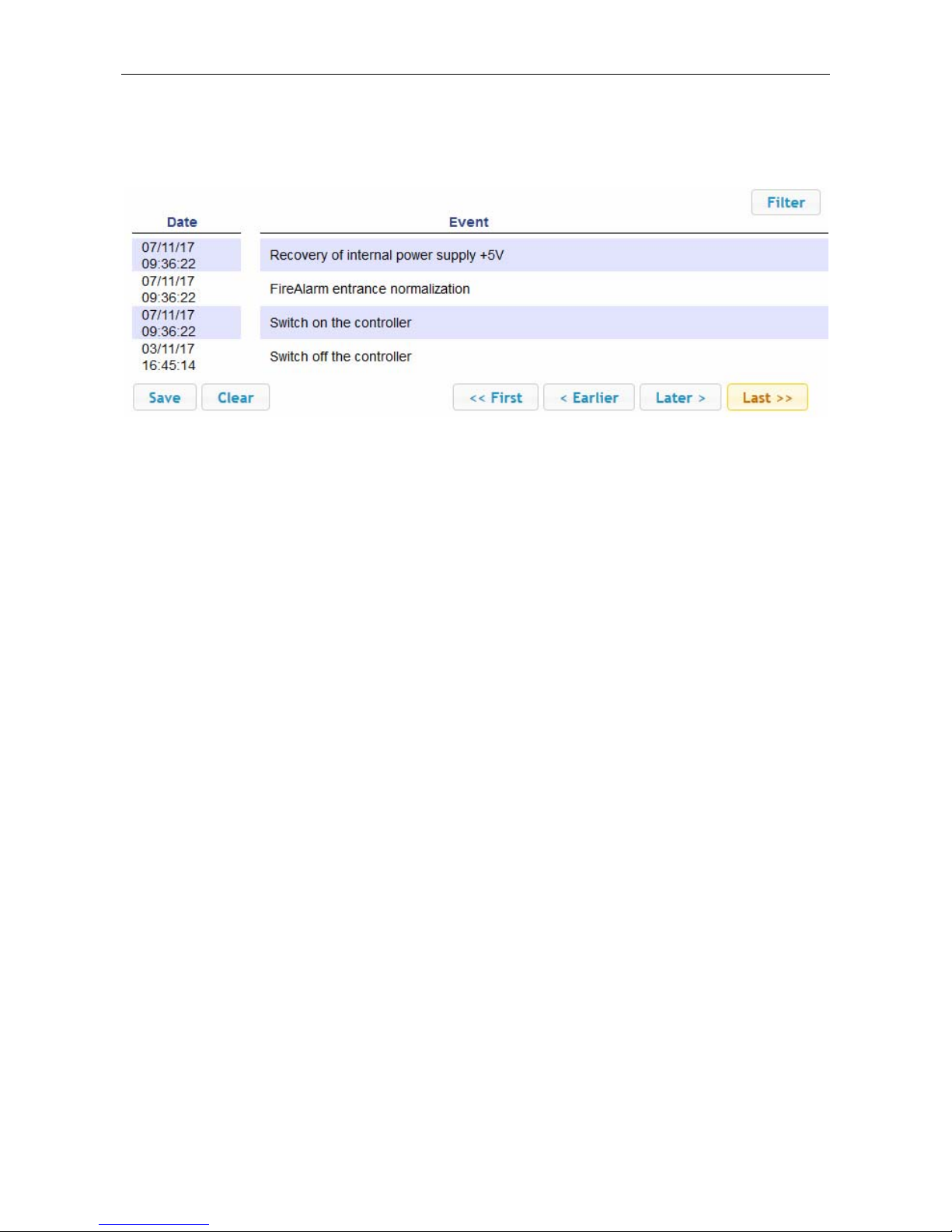

7. EVENTS....................................................................................................................37
8. STATUS ....................................................................................................................38
9. DIAGNOSTICS..........................................................................................................38
24
CL-05.2 Web-interface
1. WEB-INTERFACE OPPORTUNITIES
Using Web-interface without installation of additional software allows performing following
steps for the controller and connected devices:
Change configurations, access password and time of built-in clocks of the controller.
Configure Settings of operational device, readers and other equipment’s of the
controller.
Set ACM for controller and operation devices.
Record the access card numbers in the controller memory, assign them the rights for
arming or disarming.
Monitor event log of the controller and save them as a file.
Control the status of the controller and connected devices, monitor the event log.
Troubleshoot the controller, format the memory and update the embedded software.
Attention!
It is possible only with the Web-interface select controller configuration and Settings
of built-in memory (access cards/events).
Note:
Change of configurations via Web-interface of the controller is not available if the
controller is under control of network or local software of PERCo systems (you can
only monitor the configuration; operations are forbidden). The access to Webinterface is allowed if the software is configured to “Allow Web-interface”. It is
possible after stopping the operation of the software and stopping the server of
PERCo system.
2. CONNECTION TO WEB-INTERFACE OF THE CONTROLLER
Connection between the controller and the computer is performed via Ethernet interface
(IEEE 802.3). Make sure that the computer and the controller are on the same subnet
Ethernet. It may become necessary to change network settings of the computer, browser
settings and to check operation of the network. IP-address of the controller is specified in
the certificate and the controller board.
To connect the controller to Web-interface:
1. Open Web-browser (e.g. Internet Explorer).
Note:
Web-interface was tested with the Web-browsers: Microsoft IE version 10 or higher,
Google Chrome version 32 or higher, Mozilla Firefox version 32 or higher, Opera
version 30 or higher, Microsoft Edge and for MacOS Apple Safari 9 or higher. If you use
other browsers and outdated versions, malfunctions of the Web-interface can appear.
2. Enter in the address bar IP-address of the controller and press the button “Enter” on
the keyboard. If necessary, enter the access password to the controller. By default,
there is no password. When entering the password, the content of the field “User
name” doesn’t matter.
3. After that the main Web-page of the controller interface is opened. At the home page
are displayed the model, configuration, network settings of the controller and the
version of embedded software. Every time when you open the main page, current data
read from the controller are displayed there.
25
User Manual
On the page, you can select following:
1. The title bar if he page contains PERCo trademark and buttons to select the language
of Web-interface. By clicking on the PERCo company logo you navigate to the main
page from other sections of Web-interface.
2. Sidebar of the Web-interface navigation. The panel has the following structure
“Network”
“Password”
“Time”
“Settings”
“Memory usage”
“Template”
“Operation devices”
“Physical contacts”
“Readers”
“Card format”
“Configuration”
“Edit”
“Internal responses”
“Operating device control”
“Input”
“List”
“Access cards”
“Load from file”
“Events”
“Status”
“Diagnostic”
3. Working area of the page.
26
CL-05.2 Web-interface
3. SETTING
3.1 Change of network setting of the controller
The controller has following configurations by default (they are specified in the certificate of
the device and on the labels on the controller):
MAC-address 00-25-0B-xx-xx-xx, where xx – is a number from 00 to FE;
IP-address 10.x.x.x, where x – – is a number from 0 to 254;
Subnet mask 255.0.0.0.
To change network settings of the controller (only in user mode, Section 5.5 of Operation
manual):
1. Click consistently in the Web-interface menu: “Settings” → “Network”. The page
with working area will be opened:
2. In the input fields “IP-address:”, “Mask:”, “Gateway:” the new values of network
Settings of the controller.
3. Click “Save” button. New network settings will be saved in the controller.
3.2 Setting of the access password of the controller
By default, access password of the controller is not specified. To change or set the new
password:
1. Click in the Web-interface menu: “Settings” → “Password”. The page with working
area will be opened:
2. In the “New password:” field enter the new password of the controller, in the
“Confirm password:” field enter the password again to confirm the correct input.
3. Click the “Save” button. The new password will be saved in the controller.
3.3 Change the system time of the controller
To change the time:
1. Click in the Web-interface menu: “Settings” → “Time”. The page with working area
will be opened:
27
User Manual
2. In the input fields “Change Date:”, “Change Time:” change the set values.
3. If necessary, put tick “Synchronize with PC:” to synchronize the time and date of the
controller with the computer connected to the Web-interface.
4. Click the “Save” button.
3.4 Choice of Settings of memory allocation
By default, the controller memory is allocated to store data up to 50,000 access cards and
up to 230,000 events. The user is able to change the memory allocation of the controller in
accordance with the controller configuration. Other options of memory allocation:
10,000 cards and 870,000 events,
20,000 cards and 710,000 events,
30,000 cards and 550,000 events,
40,000 cards and 390,000 events.
Note:
In software PERCo-Web are supported all these options, but their choice is only
available in the Web interface.
To change Settings on the memory allocation of the controller:
1. Click in the Web-interface menu: “Settings” → “Memory usage”. The page with
working area will be opened:
2. In dropdown list “Memory resizing:” select one of the variants of the memory
allocation:
3. Click the “Save” button.
4. CONFIGURATION
4.1 The choice of the controller configuration
There is only one configuration template “CL05.2 Controller” available for CL-05.2
controller. By default, controller is configured according to this template.
Attention!
If you change the configuration, the previous configuration and at the internal
responses of all resources of the controller will be deleted. In the new template for
the resources of the controller is installed default configuration. The list of
downloaded access cards, related user information, rights and parameters of
access remain the same.
To change the configuration of the controller:
1. Click in the Web-interface menu: “Configuration” → “Template”. The page with
working area will be opened.
2. Press “CL05.2 Controller” template.
3. In the opened window click “Continue”. The controller configuration will be changed.
Change the configuration template can take 30 seconds.
28

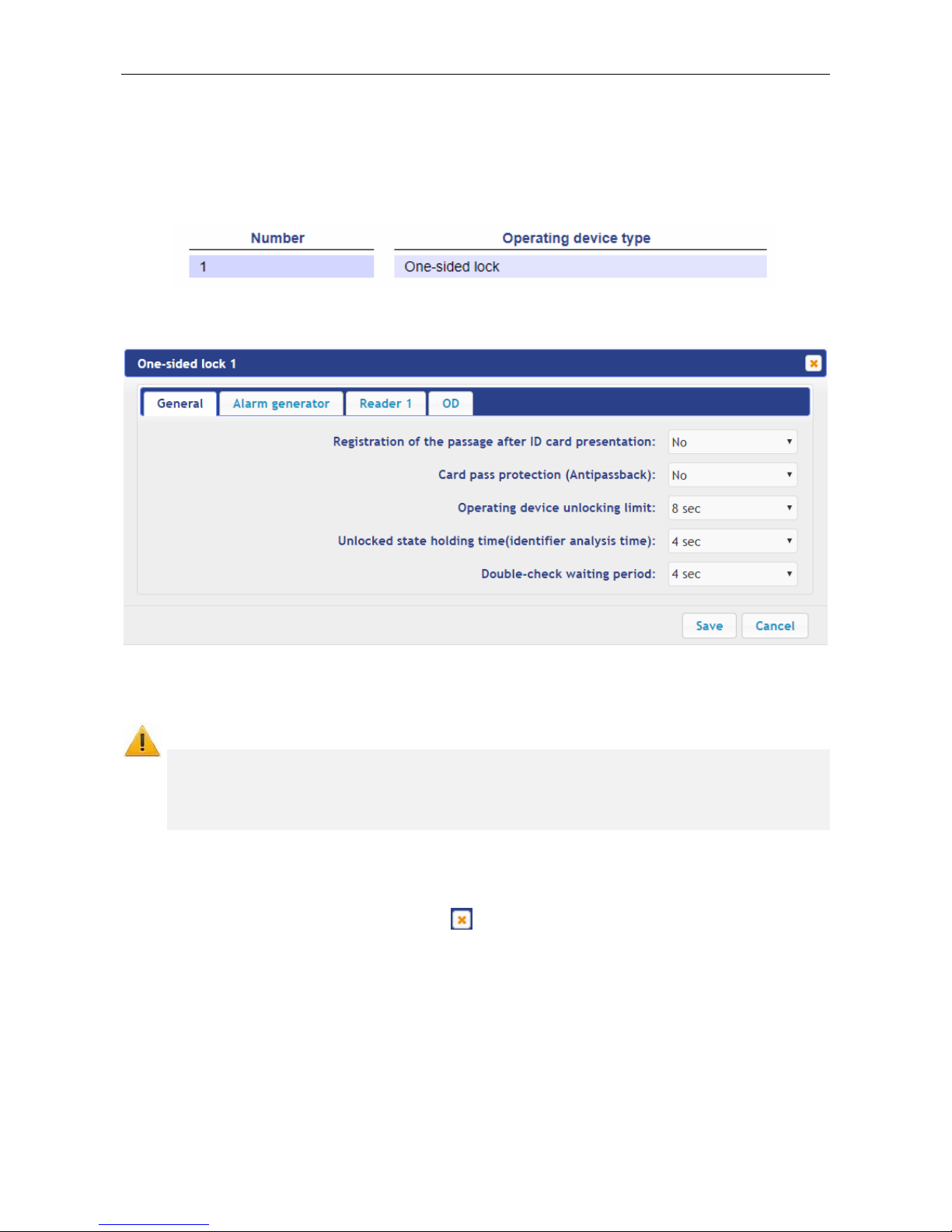

CL-05.2 Web-interface
4.2 Configuration of the Settings of the controller resources
4.2.1 Operating devices
To configure Settings of the controller resources to control OD:
1. Click consistently in the Web-interface menu: “Configuration” → “Edit” →
“Operating devices”. The page with working area will be opened:
2. To change Settings of the OD, click in the working area of the page on a line with his
name (“One-sided lock”). The window with the OD name will appear:
3. In the opened window on the tabs “General”, “Alarm generator”, “Reader 1”,
“Operating device” make the necessary changes of the Settings for corresponding
resources.
Attention!
For the resource “Reader 1”, the parameter “Card rights number” indicates the
number of the set of card rights used for passing with this reader. By default, value
“1” is set everywhere for parameter “Rights number” and for correct operation of
the controller it’s not recommended to change this value.
4. Click the “Save” button. The window will be closed, changed Settings will be passed to
the controller.
5. To exit the window with the name of the OD without saving the changes, click the
“Cancel” button or the “Close” button .
29

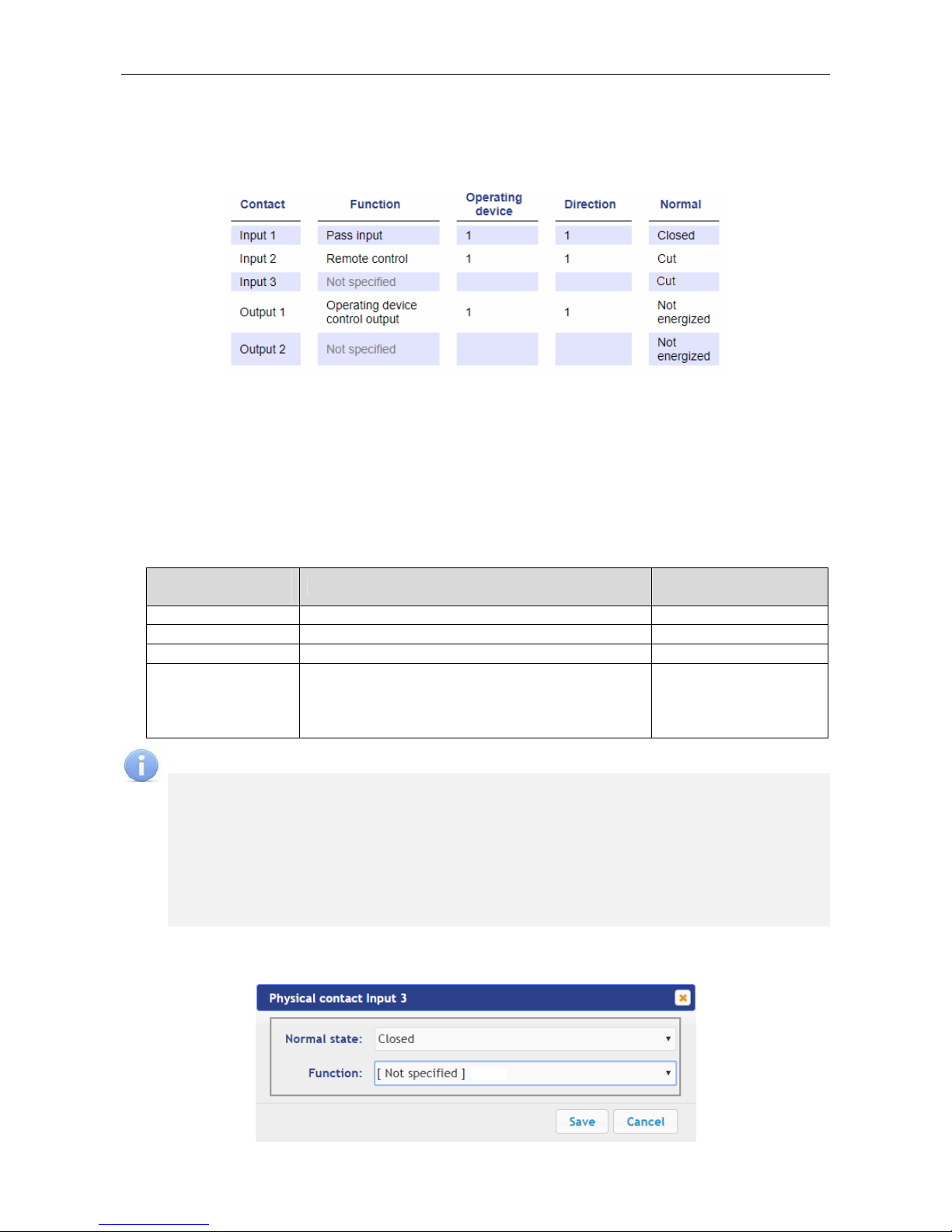

User Manual
4.2.2 Physical contacts (inputs and outputs)
To configure the Settings of the controller inputs and outputs:
1. Click consistently in the Web-interface menu: “Configuration” → “Edit” → “Physical
contacts”. The page with working area will be opened:
The page lists all the controller inputs and outputs.
By default, for inputs and outputs which are used for OD (lock) operation
corresponding functions are set (for inputs – PASS / RC, for outputs – OD operation /
RC-panel indication) and there are set number and direction of OD, to which current
contact is connected.
For inputs and outputs which are not used for OD operation, by default, value “Not
specified” is set. These outputs and inputs are available for setting (and changing in
future) its functions.
Name in Web-
interface
Function Wire color
Input 1 Always – Door sensor, Door (Pass) white
Input 2 Always – RC-button, DU green
Output 1 Always – Lock operation, Lock orange
Input 3 / Output 2
1) Input Fire Alarm,
2) Output Alarm (siren),
3) Input - output SYNC (synchronization of 2
controllers)
brown
Notes:
Input 3 or Output 2 of CL-05.2 controller are led in one leading-out wire – brown
wire.
“SYNC” function (synchronizing input-output for common operation of 2 CL-05.2
controllers) for input 3 / output 2 can be set only via net software of PERCo
systems (see Operating Manual, Section 5.4.3).
It is possible to restore to factory default settings by resetting configuration
template (see Clause 4.1).
2. Click in the working area of the page on the line with the name of the input (output).
The window with the physical contact will be opened:
30

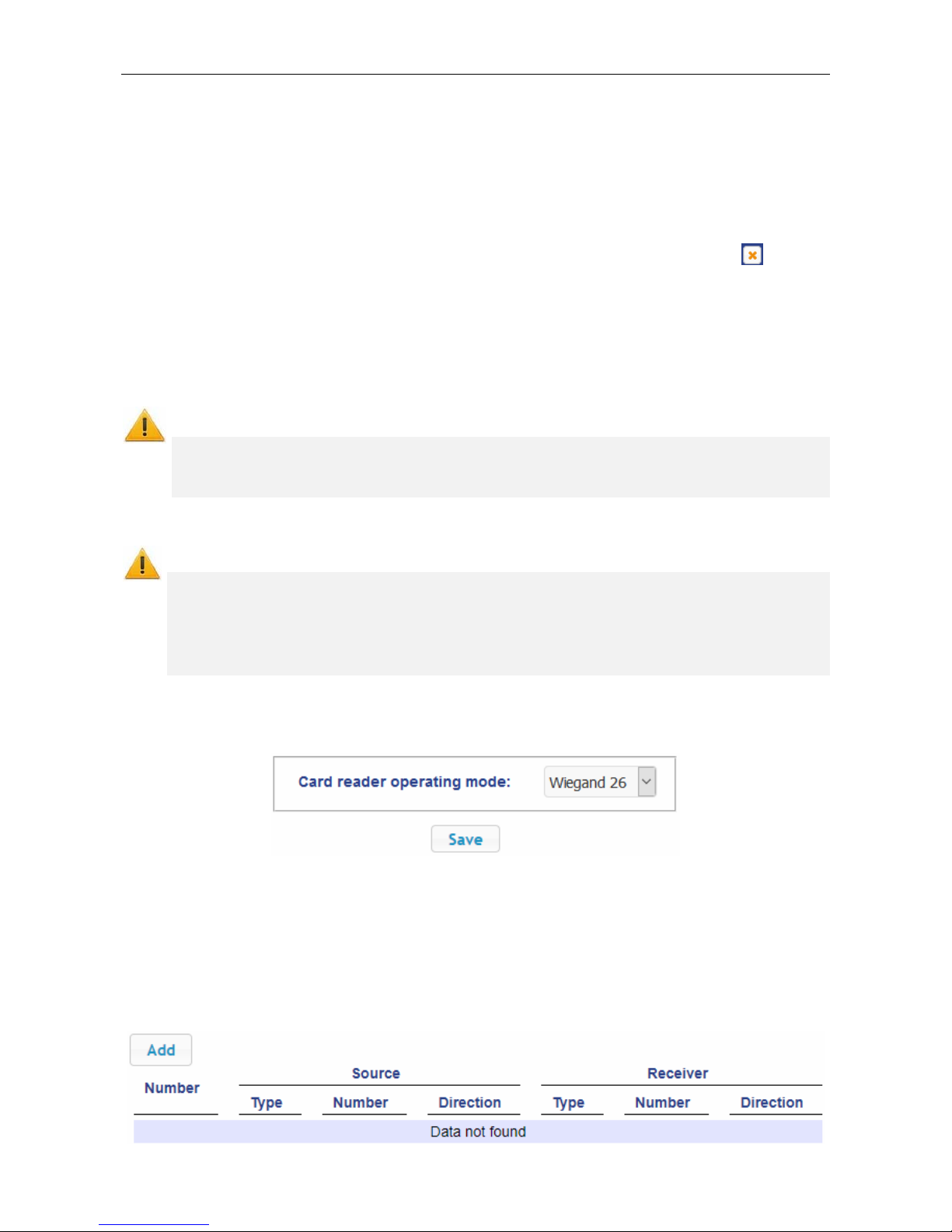

CL-05.2 Web-interface
3. In the opened window make necessary changes of the Settings:
selector “Normal state:” defines the normal state of the contact – it is “Opened”
or “Closed” for inputs or “Energized” and “Not energized” for outputs;
selector “Function:” sets the function of the contact.
4. Click the “Save” button. The window with the physical contact name will be closed,
the changed Settings of inputs (outputs) will be passed to the controller.
5. To exit from the window of physical contact without saving changes, click the button
“Cancel”. Also, it is possible to close the window using the “Close” button .
4.2.3 Reader
There is only one inbuilt reader in controller configuration template. Adding extra reader is
impossible. This controller is designed to operate only one-sided door, operation of twosided door is possible only with the help of two controllers, synchronized between each
other for common operation (see Operating manual, Section 5.4.3).
Attention!
To avoid incorrect device operation do not change the settings of inbuilt
reader #1, used for OD operation! If necessary, it is possible to restore to factory
default settings by resetting configuration template (see Clause 4.1).
4.2.4 The reading format of the card identifiers
Attention!
Change of this parameter when you have already entered the access control
cards, results in the passage on these cards will be impossible.
When connecting to the controller working under software of PERCo systems,
the current formant may not be shown (nothing is selected from the formats). In
this case to change the reading format of card identifiers is PROHIBITED.
To select the reading format of card identifiers:
1. Click consistently in the Web-interface menu: “Configuration” → “Edit” → “Card
format”. The page with working area will be opened:
2. Using the drop-down list “Card reader operating mode”: select one of offered
formats and click the “Save” button.
4.2.5 Internal responses
To set internal responses of the controller:
1. Click consistently in the Web-interface menu: “Configuration” → “Edit” →
“Internal responses”. The page with working area will be opened:
31
User Manual
2. To add the new response, click the “Add” button, to change the Settings of internal
response or delete it, click in the working area of the page on the line with the
response name. The window “Internal response (number)” will be opened:
3. In the opened window make the necessary changes of the Settings:
Selector “Number:” sets the number of response (from 1 to 40).
Selector “Source type:” specifies the launch condition of the controller response.
Selector “Source number:” (“Receiver number:”) and “Source direction:”
(“Receiver direction:”) determine numbers and directions of corresponding
resources of the controller which are sources (receivers) of the response.
Selector “Receiver type:” specifies the controller response under condition of the
responses launch.
Selector “Response time:” and “Response characteristics:” set corresponding
Settings of the response.
4. Click the “Save” button. The window “Internal response (number)” will be closed,
the changed Settings will be passed to the controller.
5. To remove the response from the list, click the “Delete” button. The window “Internal
response (number)” will be closed, the internal response will be deleted.
6. To exit the window Internal response (number) without saving changes, click the
“Cancel” button. Also, it is possible to close the window using the “Close” button
.
5. CONTROL OF OPERATING DEVICE
To control the operating device and change the operation mode in the direction with
associated reader, make following:
1. Click in the Web-interface menu: “Operating device control”.
32
CL-05.2 Web-interface
2. Click in the working area of the page on the line with OD “Lock #1”. The control window
with selected OD will be opened:
3. Using the buttons at the bottom part of the window, give the necessary command. The
control window will be closed; the command will be passed to the controller. To close
the window without submitting command is possible with the “Close” button .
Note:
When you unlock the OD will be unblocked for the time chosen in the drop-down
list “Unlock time”.
6. ACCESS CARDS
6.1 Entering of the cards identifiers
To enter the card identifiers:
1. Click consistently in the Web-interface menu: “Access cards” → “Enter”. The page
with working area will be opened:
2. If necessary, use the dropdown list in the heading of the “Number type” column,
select the format to display the cards identifiers.
Note:
The display format is not the format of reading of the card identifiers (set in the
“Configuration” section, Clause 4.2.4), when you change the display format, the
format of reading does not change.
3. Entering of the card identifiers from the reader
:
In the working area of the page click the “Switch on card reader input” button.
Present your card to one of the readers included in the controller configuration. The
card identifier will appear in the working area of the page. Also, you will see the
buttons “Save” and “Load to emergency list”.
33

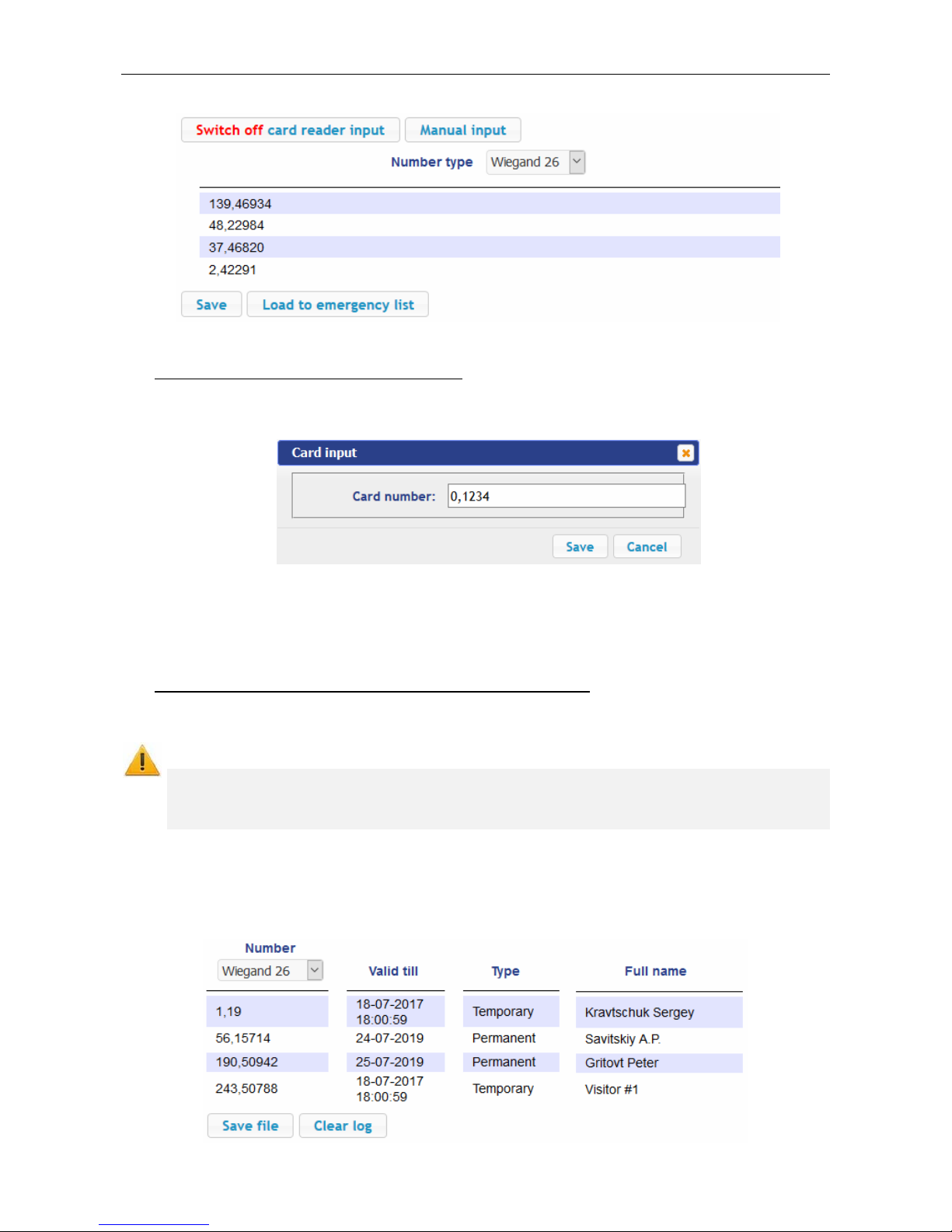

User Manual
If necessary, similarly add other cards.
In the working area of the page click the “Switch off card reader input” button.
4. Entering of the card identifiers manually:
In the working area of the page click the “Manual input” button. The window “Card
input” will be opened:
In the “Card number:” field enter the card identifier. Click the “Save” button. The
window “Card input” is closed; the card identifier appears in the working area of
the page.
If necessary, similarly, add the other cards.
5. To transfer the entered card identifiers to the controller, click the “Save” button in the
working area of the page. The identifiers will be transferred to the main list of the cards
in section “List”.
Attention!
When you enter the card identifiers in the list of the controller, by default they are
granted rights of access over all ODs connected to the controller (all 12 sets of rights
for each card have the status “Unblocked”), Clause 6.2.
6.2 The list of stored cards
To work with the list of the cards stored previously in the controller’s memory:
1. Click consistently in the Web-interface menu: “Access cards” → “List”. The page
with working area will be opened:
34

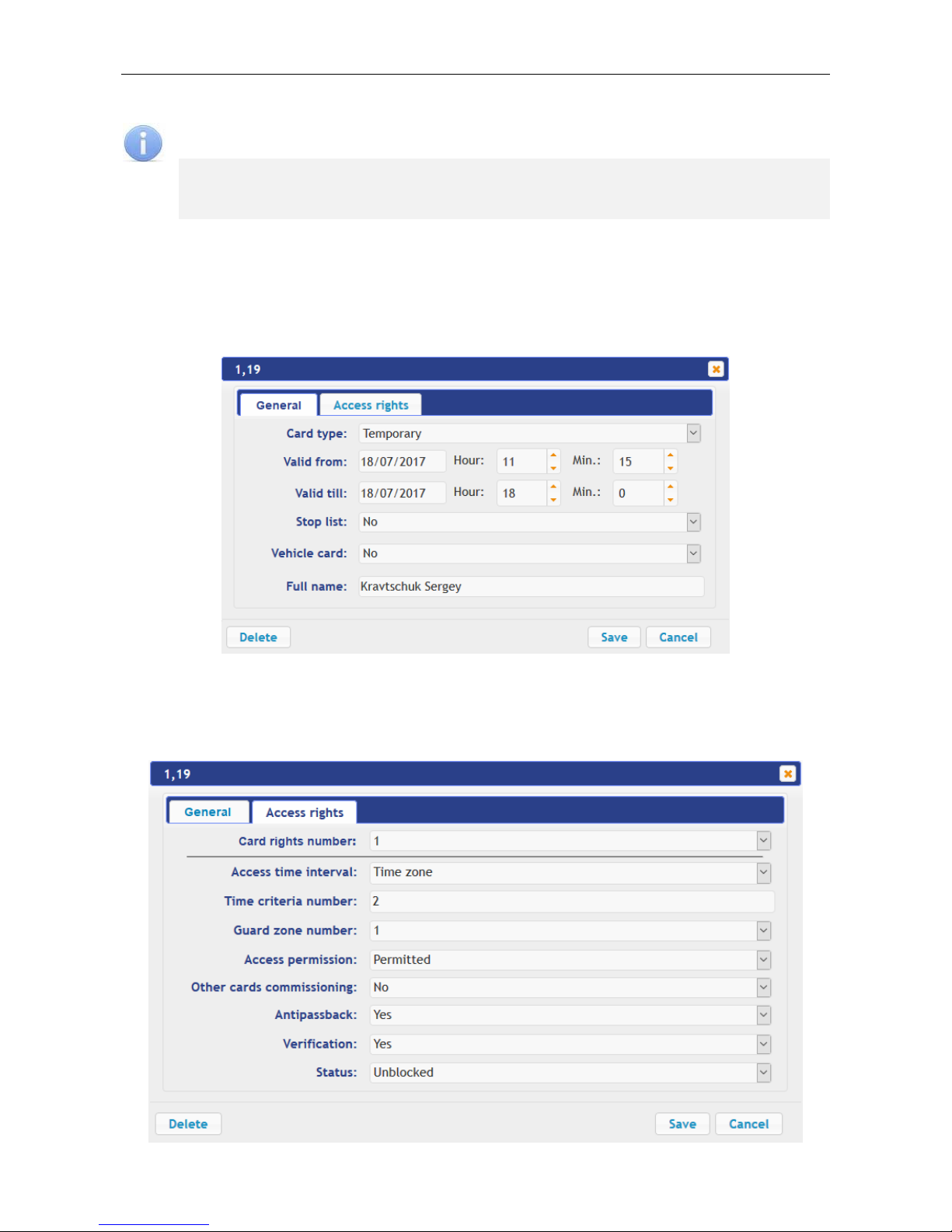

CL-05.2 Web-interface
2. If necessary, use the dropdown list in the heading of the “Number” column, select the
format to display the cards identifiers.
Note:
The display format is not the format of reading of the card identifiers (set in the
“Configuration” section, Clause 4.2.4), when you change the display format, the
format of reading does not change.
3. To save the cards to a file, click the “Save file” button. The cards will be saved in the
file cards.bin, which can be used as a backup card list.
4. To remove all the cards from the controller memory, click the “Clear log” button.
5. To change the Settings, select one of the cards in the working area of the page. The
window of the identifier of the selected card opens:
6. If necessary, in the opened window on the “Essential” tab change the card Settings.
7. Go to the “Access rights” tab. It is possible to set access rights for this card. To do
this, select the number of the set using the drop-down list “Card rights number:” and
configure the Settings:
35
User Manual
Attention!
Rights number, set for the card, should correspond to parameter “Card rights
number:” of “Reader” resource, set in section “Configuration” “Edit”
“Operation devices”. By default, value “1” is set everywhere for parameter “Rights
number” and for correct operation of the controller it’s not recommended to change
this value.
8. To delete the card, click the “Delete” button at the bottom part of the window.
9. To save changed Settings of the card, click the “Save” button. The window will be
closed, changed Settings will be passed to the controller.
The Settings of the set of access rights correspond to similar Settings in network
software of PERCo systems.
Attention!
Setting of Settings of time access criteria via the controller is possible only in
network software of PERCo systems. In the Web-interface is only possible to
change the time criterion (time zone, weekly schedule, flexible daily schedule,
flexible weekly schedule) and transition from one set of time Settings to another set
by changing his number. The number of time criterion corresponds to order number
of the set of Settings of time criterion in the network software.
6.3 Loading the identifiers from a file
Attention!
When loading the list of cards from the file to the controller, previously loaded cards
are deleted automatically from the controller memory.
The list of the cards can be loaded only from the file cards.bin, created via Webinterface of the controller earlier. To download the numbers of the card from a text file:
1. Click consistently in the Web-interface menu: “Access cards” → “Load from file”.
The page with working area will be opened:
2. Click the “Browse…” button. In the opened window of the Explorer specify location
and name of the file with the card list and click the “Open” button. The explorer
window will be closed; the file name will be indicated in the field near the “Browse…”
button.
3. Click the “Load” button. The window “Progress” will be opened containing
information about the boot process.
36
CL-05.2 Web-interface
7. EVENTS
To view the event log of the registration of the controller:
1. Click in the Web-interface menu: “Events”. The page with working area will be
opened:
2. By default, all events stored in the controller memory are displayed, by 20 events on
the page. To move through the pages of the event, use the buttons located in the
lower part of the working area. The events in the working area of the page are
displayed in reverse chronological order.
3. There is possibility of selection in the report of events by categories and time. To do
this, click the “Filter” button, the window “Filter” will be opened:
4. In the dropdown list “Selected categories: [number]” put ticks the event categories
which should be reported. Following categories of events are available:
“ID Card access”
“Guard zone status change”
“Guard zone resource state change”
“Change input/output state change”
“Access without ID Card”
“Functioning”
5. Use the fields “Range beginning point” and “Range end point” to set the period of
the report.
6. Click the “Apply” button to apply the filter, click the “Cancel” button to cancel any
made changes. The window “Filter” closes, the report will display the events in
accordance with the filter settings.
7. To save the events to a file, click the “Save” button at the bottom part of working area
of the page. The events will be saved in the file events.txt.
8. To delete all events from the controller memory, click the “Clear” button at the bottom
part of working area of the page.
37
User Manual
8. STATUS
To view the controller status and status of all his resources click in the Web-interface
menu “Status”. The page with working area will be opened:
9. DIAGNOSTICS
For diagnostics and maintenance of the controller:
1. Click in the Web-interface menu: “Diagnostic”. The page with working area will be
opened:
2. To start testing the status of the controller hardware click the “Start” button in the
line “Diagnostics (50 min):”. In the confirmation window click “OK”.
Attention!
When testing the controller, the event log is automatically cleared.
3. For diagnostic purposes of the controller with the previous formatting, click the
“Start” button in the line “Diagnostics formatting (15 min):”.
4. To start formatting the internal memory of the controller, click the “Start” button in
the line “Format (2 min):”. In the confirmation window click “OK”.
Attention!
When formatting the controller memory, the information about configuration, access
cards, time and area zones, controller password and events in the event log is
automatically cleared.
5. To update the controller software (firmware), indicate the location of the software file
using the “Browse” button and click the “Update” button.
38
PERCo
Polytechnicheskaya str., 4, block 2
194021, Saint Petersburg
Russia
Tel: +7 812 247 04 64
E-mail: export@perco.com
support@perco.com
www.perco.com
www.perco.com
Loading...
