User Manual
3BaysGSA PRO - Golf Swing Analyzer
10,000 DATA POINTS CAPTURED PER SWING
[For iPod, iPhone and iPad User]
PREFACE
Congratulations on purchasing the 3BaysGSA PRO( MX-G102i ). The unique combination of features and ease of use
of your new swing analysis device will allow you to record your swing motions and parameters. Through GSA PRO app,
you are able to review your swing information and playback your swing arc on iPod, iPhone and iPad.
WARNING:
The signals used by this monitor may interfere with a pacemaker or other implanted devices.
Consult the manufacturer of the implant device and your physician before using this monitor.
SAFETY PRECAUTION
Please read all safety information prior to using the Golf Swing Analyzer. Failure to do so may result in
unnecessary injury.
1. Please read all the information in this manual or any other literature included in the box before using the device.
Please keep this manual for future reference.
2. Operate the device only as intended. Do not use for any other purpose.
3. Do not place heavy objects on the device and keep the device away from humid, dusty and smoky environments.
4. Do not use water, chemicals or detergent to clean the device. Clean the surface with a soft cloth.
5. Do not use excessive force on the buttons.
6. Keep out of extreme heat or cold. The device is only operable between 0 and 40 .
7. To avoid damage, make sure you do not drop, smash, bend or crash the device.
8. Keep the device away from strong magnetic fields.
1
C
C
9. Do not disassemble or modify the device yourself.
10. Use only Perception Digital authorized parts and accessories. Parts and accessories not approved for use with the
device may damage the unit.
11. Data can be damaged because of physical impact, lightning and power failure.
12. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
DISCLAIMER
Accuracy of Collected Information
Perception Digital will on its own initiative, correct or erase any personal data which is incomplete, inaccurate or
outdated for the purposes for which it is used. You always have the right to access and correct the personal information
you have provided, and you are encouraged to ensure that your contact information and any other information you have
provided is accurate, complete and up-to-date by visiting 3BaysGSA website: www.3bayslife.com/gsa.
Disclaimer
3BaysGSA is providing this manual and its contents on an "as is" and "as available" basis and makes no representations
or warranties of any kind, whether express or implied, with respect to the availability, accuracy, reliability or content of
the manual or any website. To the fullest extent permissible pursuant to applicable law, 3BaysGSA disclaims all such
representations and warranties, express or implied, including, but not limited to, warranties of title or non-infringement
or implied warranties of merchantability and fitness for a particular purpose. In addition, 3BaysGSA does not represent
or warrant that this manual or 3BaysGSA website will be uninterrupted or error-free, that the defects will be corrected,
or that the 3BaysGSA website or the server that makes the website available are free of viruses or other harmful
components. Applicable law may not allow the exclusion of certain warranties, so the above exclusion may not apply to
you.
2
Table of Contents
Introduction
Device and Accessories
Charging you device
How to installation
1. Install GSA PRO mobile app
2. Pair your device with GSA PRO app
3. Install the device on your golf club
How to record your swing motions
1. Record your swing
2. Swing records transmission
How to use GSA PRO app
1. Function keys on main screen
2. Connect Wizard
3. Club selection
4. View selection of your swing arc
5. Playback of your swing arc
6. Review all your golf parameters
7. Check your statistical records
8. Best swing setup
9. Compare your current swing with your best swing
10. Sharing
11. Settings
12. Help
LED light indication
Trouble Shooting
Product Specification
Customer Service
3
Introduction
Description
3BaysGSA PRO is a patent pending innovation in golf swing technology. It records your swing motion and sends the
information straight to your mobile phone through its unique GSA PRO app, which compares each swing against your
own or your instructor’s best swing for greater accuracy.
The following table lists out the definition of some specific names using in this manual.
Item
Club Head
Grip
Club Face
Consistency
Club Head Speed
Face Angle
Swing Path
Swing Tempo
Back Swing Time
Down Swing Time
Impact Force
Attainable ball speed (ABS)
Attainable shot distance (ASD) This gives you the attainable distance in the golf shot, from start to landing area.
The head of the golf club which strikes the ball.
Grip is how you hold the club. Your hands should be fixed on the club; they don’t move. Their only
job is to hold, like clamps. They don’t manipulate it by snapping the wrist or forcing the club.
The surface on the head of a golf club used to strike the ball directly.
This compares each swing information and shows you how close each swing is to being repeated.
This gives you how fast the club heads is travelling as it hits the ball.
This gives you where your clubface is at impact relative to the target, OPEN, SQUARE, CLOSED.
This gives you what path your club is just before impact, INSIDE, SQUARE, CLOSED
This gives you the rhythm of your swing speed during the backswing and downswing ( in ratio )
This gives you the time taken to swing from set up to the top of the backswing in seconds.
This gives you the time taken to swing from the top of the backswing down to the impact, in seconds
This gives you the amount of pressure in lbs/kg that you have hit the ball at impact, the higher the
number the more solid you have impacted the ball.
This gives you the speed that the golf ball leaves the club head at impact, a very useful tool for
custom fitting new golf clubs for you, i.e. setting the correct stiffness in the golf shaft.
4

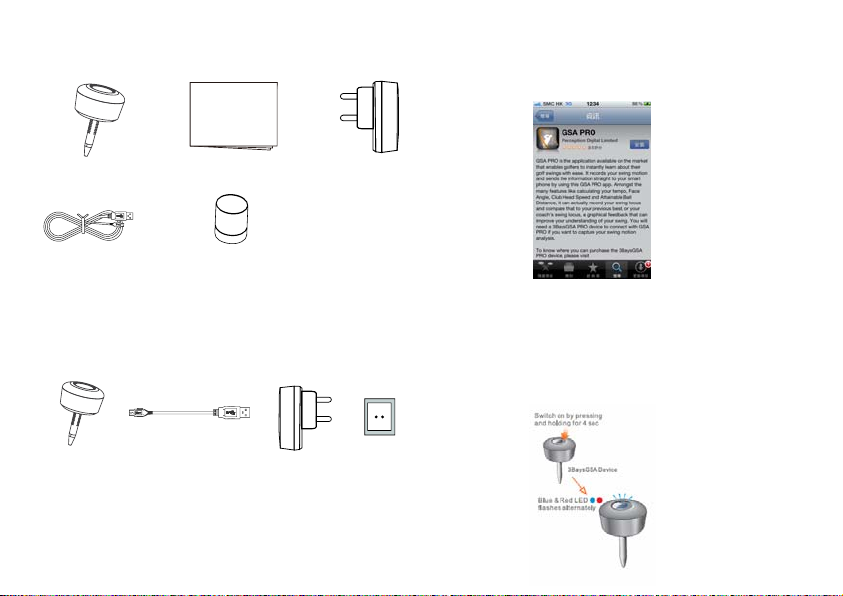

Device and Accessories
Quick Start Guide
3BaysGSA Quick Start Guide Charger
How to installation
1. Install GSA PRO mobile app
1.1 Access App Store and search for “GSA Pro”
USB Cable
Leather Bag
Charging your device
Please charge your 3BaysGSA PRO via the USB adaptor as
following before use.
3BaysGSA
Charging: Red LED lights up and Blue LED is flashing
Fully Charged: Both Red and Blue LED light up
Low Battery: Red light is flashing
USB Cable
Charger
AC Power
1.2 Select and install GSA PRO into your mobile

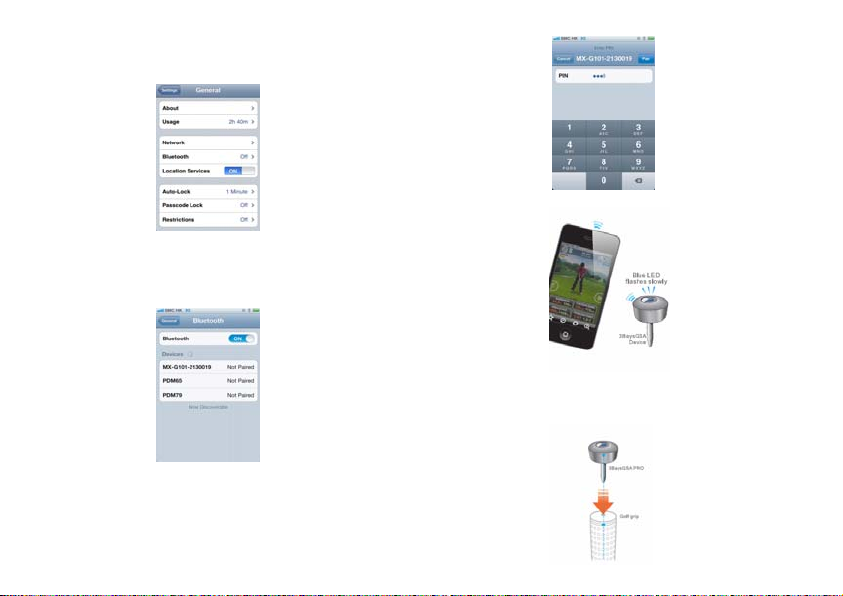

2. Pair your device with GSA PRO app
2.1 Start GSA PRO apps in your mobile
2.2 Long Press the Power button for 5s to turn on your
device and start with pairing mode Blue & Red LED
should flash alternately.
