Pepperl Fuchs VB24-1000 Data Sheet

Barcode scanner VB24-1000

Technical Data

General specifications

Light source laser diode
Light type modulated visible red light
Laser nominal ratings

Note LASER LIGHT , DO NOT STARE INTO BEAM
Laser class 2
Wave length 630 nm ... 680 nm

Model Number

VB24-1000

Barcode scanner

Features

• Line scanner

• Simple operation via function keys:
test mode, code teaching and code
optimization

• Code reconstructor

• Connect up to 32 scanners to a net­work with ID-Net

TM

• Two-digit LC display

• Mechanical focus adjustment

• Two serial interfaces RS 232 / RS 485

Function

The barcode scanner is a line scanner for 1D
barcodes. Thanks to its high-performance
optics and integrated code reconstruction
technology, the scanner offers a high level of
reliability in reading difficult-to-detect 1D bar­codes.
The barcode scanner also features a
mechanical focus adjustment function, which
allows for a large reading distance range.
A function key and several LEDs on the bar­code scanner provide support when parame­terizing, teaching in barcodes and testing. In
live operation, the LEDs provide information
about the relevant reading status. The inte­grated display provides the user with a whole
host of information, including the reading
results.
Simple parameterization can be performed
via the PC software.

Pulse length 5 ms
Scan rate up to 900 s

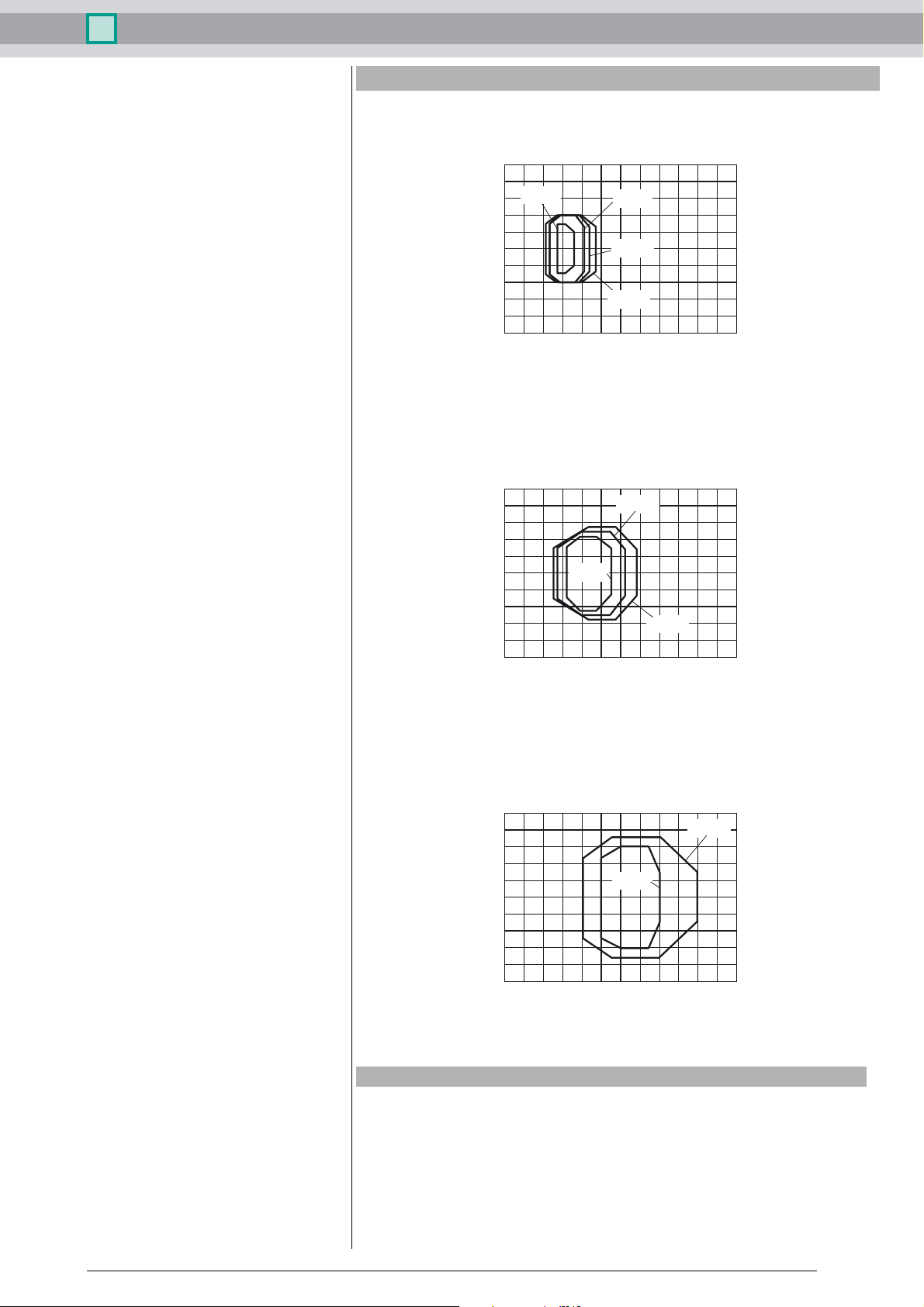

Read distance 200 ... 1000 mm
Depth of focus up to 600 mm
Angle of divergence 50 °
Optical face frontal
Ambient light limit 30000 Lux
Resolution 0.2 mm

Indicators/operating means

Operating display LED blue: Power on, LED green: Ready to read (READY), LED

Electrical specifications

Operating voltage UB10 ... 30 V DC
Power consumption P0max. 6 W

Interface

Interface type serial , RS 232 and RS 485 up to 115.2 kBit/s

Input

Input type External triggering , optocoupled
Input voltage max. 10 ... 30 V DC
Input current max. 12 mA

Input 1

Input type IN2 optocoupled
Input voltage max. 10 ... 30 V DC
Input current max. 12 mA

Output

Signal output 2, programmable, optocoupled
Switching voltage max. 30 V DC
Switching current max. 40 mA

Ambient conditions

Ambient temperature 0 ... 50 °C (32 ... 122 °F)
Storage temperature -20 ... 70 °C (-4 ... 158 °F)
Relative humidity 90 % , noncondensing
Shock resistance IEC 68-2-27 Test EA 30G; 11 ms; 3 impacts on each axis
Vibration resistance IEC 68-2-6 Test FC 1.5 mm ; 13 ... 55 Hz ; 2 hours on each axis

Mechanical specifications

Protection degree IP65
Connection 2 m cable with 25-pin Sub-D connector
Material

Housing aluminum
Mass 570 g

Compliance with standards and direc­tives

Directive conformity EMC Directive 2004/108/EC
Standard conformity

Noise immunity EN 61000-6-2:2005

Emitted interference EN 55022

Protection degree EN 60529

Laser class IEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11

green: Read successfully (GOOD), LED yellow: External trigger
signal pending (TRIGGER), LED yellow: Communication active
(COM), LED red: "no read" (STATUS)

ID-NET™ up to 1 Mbit/s

except for deviations pursuant to Laser Notice No. 50, dated
June 24, 2007

-1

Accessories

CBX100

Connector box for barcode scanner

Other suitable accessories can be found at

Release Date: 2012-08-17 14:17 Date of issue: 2012-08-17 241974_eng.xml

Subject to reasonable modifications due to technical advances. Copyright Pepperl+Fuchs, Printed in Germany

1

Dimensions

VB24-1000Barcode scanner

M5

34

85

101

42

13

10

7.5

10

41.4

27.941.9

M5

87.7 5.2

4 x M4

81 12.1

Electrical connection

1

25-pin D-sub connector pinout

Pin Name

14

Function

9, 13 +UB Power supply input voltage +
7, 25 GND Power supply input voltage ­1 GND Chassis Cable shield connected to chassis
18 IN TRG (A) External Trigger A (polarity insensitive)
19 IN TRG (B) External Trigger B (polarity insensitive)
6 IN 2 (A) Input 2 A (polarity insensitive)
10 IN 2 (B) Input 2 B (polarity insensitive)
8 OUT 1 + Output 1 +
22 OUT 1 - Output 1 ­11 OUT 2 + Output 2 +
12 OUT 2 - Output 2 ­20 RX R

S232 Auxiliar
21 TX RS232 Auxiliary RS232
23 ID + High speed internal network ID-NET +
24 ID - High speed internal network ID-NET ­14, 15, 16, 17 NC Not connected

Pin RS232 RS485 RS485

2 TX TX + RTX +

3 Main
4

interface RTS TX - RTX -

5 signals

RX

CTS

y R

13

25

S232

full-duplex half-duplex

RX +

-

RX

37.837
