Splitter boxes V3-4A-E2-V19
Dimensions
92.2
52.9 34.4
ø 4.4 ø 4.4
M12
Model Number
V3-4A-E2-V19
Splitter box 4 x M8 single allocation,
with 8-pole M12 plug
Features
• Fast, flexible installation/separation
• LED indicator for module supply and I/
O status
• Degree of protection IP67
20
93
1
3
30
2
4
ø 4.4 ø 4.4
Technical data
General specifications
Number of pins 3
UL File Number E191152
Color black
Electrical specifications
Operating voltage UB24 V DC, max. 30 V DC
Operating current I
Current loading capacity ≤ 2 A per channel,
Output
Number/Type 4
Ambient conditions
Ambient temperature -30 ... 80 °C (-22 ... 176 °F)
Mechanical specifications
Connection type 4 x socket M8 x 1 3-pin
Degree of protection IP67 according to EN 60529
Mass approx. 93 g
Flammability 94 V-0
Compliance with standards and
directives
Standard conformity
Degree of protection EN 60529
≤ 5 mA per channel indication element
B
≤ 2 A per plug-in station,
≤ 4 A total current per splitter box
1 x Male connector M12 8-pin
27
16.6
Release date: 2018-03-22 11:19 Date of issue: 2018-03-22 204158_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
1

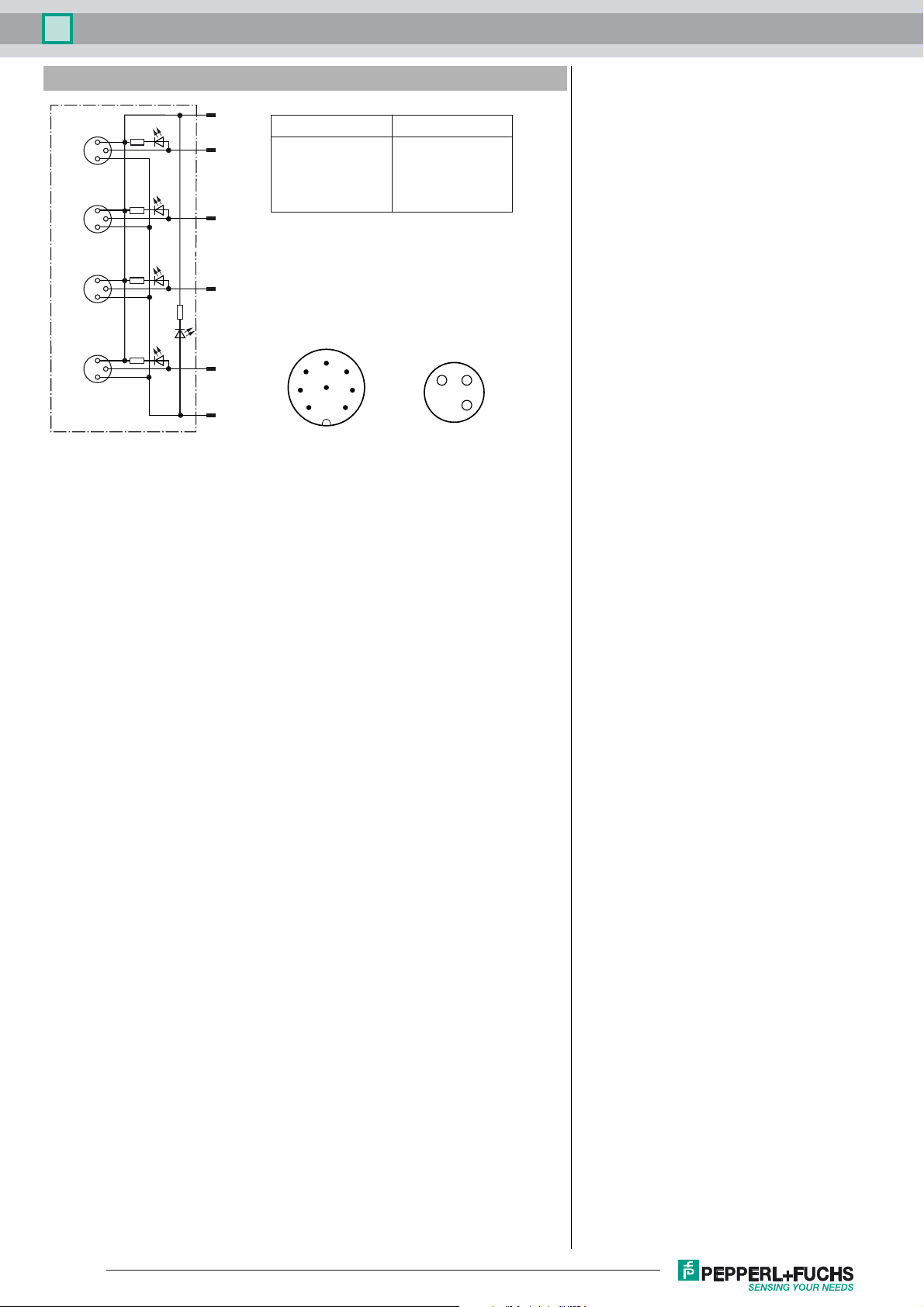

Electrical connection
V3-4A-E2-V19Splitter boxes
3
1
2
3
4
4
1
3
4
1
3
4
1
3
4
1
L
P
J
T
S
A
M12-connector -V19 M8-socket/pole
P 1/4 (A)
J 2/4 (A)
T 3/4 (A)
S 4/4 (A)
A 1 ... 4/1 (+24 V)
L 1 ... 4/3 (0 V)
Displays
A
S
LT
P
M12-connector -V19
J
3 (-)
M8-socket
4 (A)
1 (+)
Release date: 2018-03-22 11:19 Date of issue: 2018-03-22 204158_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
2
