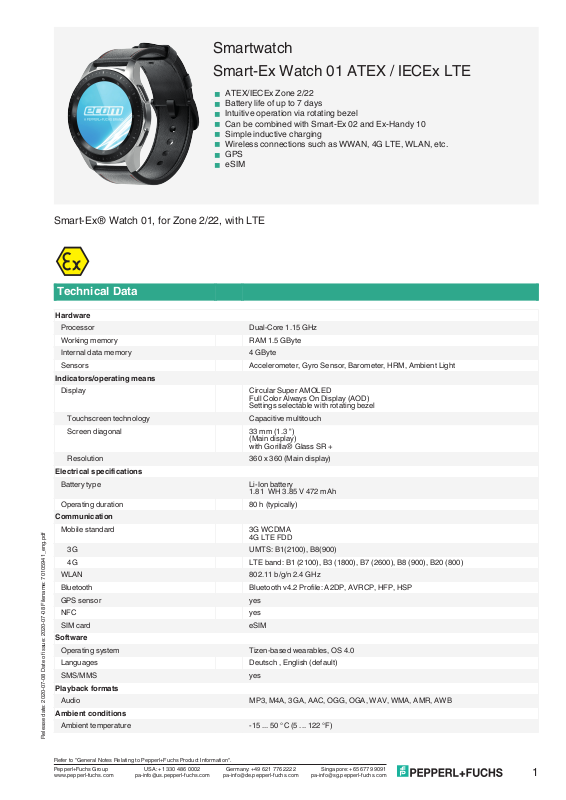

Pepperl Fuchs Smart-Ex Watch 01 Technical Data

Smartwatch

Germany: [phone]Pepperl+Fuchs Group

Refer to "General Notes Relating to Pepperl+Fuchs Product Information".

USA: [phone] Singapore: [phone]

www.pepperl-fuchs.com [e-mail] [e-mail]

[e-mail]

Smart-Ex Watch 01 ATEX / IECEx LTE

ATEX/IECEx Zone 2/22

<

Battery life of up to 7 days

<

Intuitive operation via rotating bezel

<

Can be combined with Smart-Ex 02 and Ex-Handy 10

<

Simple inductive charging

<

Wireless connections such as WWAN, 4G LTE, WLAN, etc.

<

GPS

<

eSIM

<

Smart-Ex® Watch 01, for Zone 2/22, with LTE

Technical Data

Hardware

Processor Dual-Core 1.15 GHz

Working memory RAM 1.5 GByte

Internal data memory 4 GByte

Sensors Accelerometer, Gyro Sensor, Barometer, HRM, Ambient Light

Indicators/operating means

Display Circular Super AMOLED

Touchscreen technology Capacitive multitouch

Screen diagonal 33 mm (1.3 ")

Resolution 360 x 360 (Main display)

Electrical specifications

Battery type Li-Ion battery

Operating duration 80 h (typically)

Communication

Mobile standard 3G WCDMA

3G UMTS: B1(2100), B8(900)

4G LTE band: B1 (2100), B3 (1800), B7 (2600), B8 (900), B20 (800)

WLAN 802.11 b/g/n 2.4 GHz

Bluetooth Bluetooth v4.2 Profile: A2DP, AVRCP, HFP, HSP

GPS sensor yes

NFC yes

SIM card eSIM

Software

Operating system Tizen-based wearables, OS 4.0

Languages Deutsch , English (default)

SMS/MMS yes

Playback formats

Audio MP3, M4A, 3GA, AAC, OGG, OGA, WAV, WMA, AMR, AWB

Ambient conditions

Ambient temperature -15 ... 50 °C (5 ... 122 °F)

Release date: 2020-07-08 Date of issue: 2020-07-08 Filename: 70105941_eng.pdf

Full Color Always On Display (AOD)
Settings selectable with rotating bezel

(Main display)
with Gorilla® Glass SR +

1.81 WH 3.85 V 472 mAh

4G LTE FDD

1

Smartwatch Smart-Ex Watch 01 ATEX / IECEx LTE

Germany: [phone]Pepperl+Fuchs Group

Refer to "General Notes Relating to Pepperl+Fuchs Product Information".

USA: [phone] Singapore: [phone]

www.pepperl-fuchs.com [e-mail] [e-mail]

[e-mail]

Technical Data

Mechanical specifications

Mass 63 g (without strap)

Dimensions Clock : 46 mm x 49 mm x 13 mm

Data for application in connection with hazardous areas

ATEX approval

ATEX certificate CML 19 ATEX2087X

ATEX marking 1 II 3G Ex ic IIC T5 Gc

International approvals

IECEx approval

IECEx certificate IECEx CML 19.0061X

IECEx marking Ex ic IIC T5 Gc

General information

Scope of delivery Smart-Ex® Watch 01

Wristband : 155 mm x 22 mm

1 II 3D Ex ic IIIB T100 °C Dc

Ex ic IIIB T100 °C Dc

Charger
Quick Start Guide
Documentation

Release date: 2020-07-08 Date of issue: 2020-07-08 Filename: 70105941_eng.pdf

2
