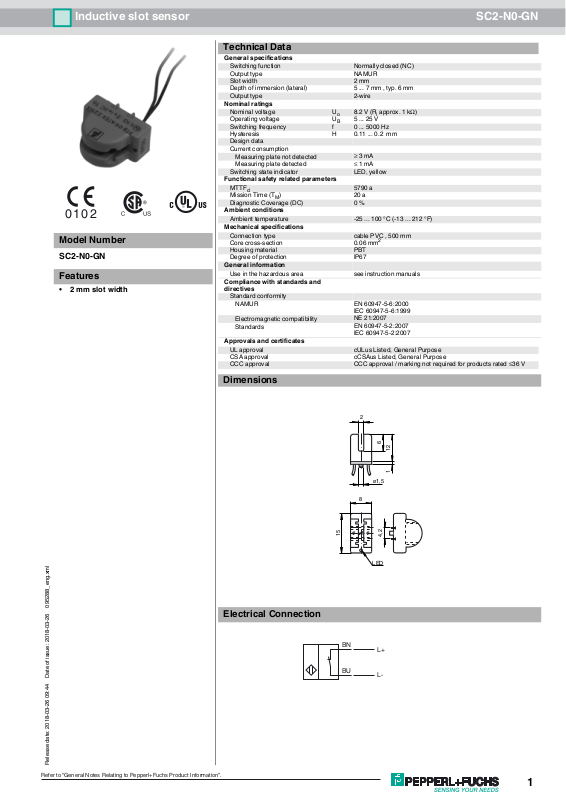

Inductive slot sensor SC2-N0-GN
Technical Data
General specifications
Switching function Normally closed (NC)
Output type NAMUR
Slot width 2 mm
Depth of immersion (lateral) 5 ... 7 mm , typ. 6 mm
Output type 2-wire
Nominal ratings
Nominal voltage Uo8.2 V (Ri approx. 1 kΩ)
0102
Model Number
SC2-N0-GN
Features
• 2 mm slot width
Operating voltage U
Switching frequency f 0 ... 5000 Hz
Hysteresis H 0.11 ... 0.2 mm
Design data
Current consumption
Measuring plate not detected
Measuring plate detected
Switching state indicator LED, yellow
Functional safety related parameters
MTTFd 5790 a
Mission Time (T
Diagnostic Coverage (DC) 0 %
Ambient conditions
Ambient temperature -25 ... 100 °C (-13 ... 212 °F)
Mechanical specifications
Connection type cable PVC , 500 mm
Core cross-section 0.06 mm
Housing material PBT
Degree of protection IP67
General information
Use in the hazardous area see instruction manuals
Compliance with standards and
directives
Standard conformity
NAMUR
Electromagnetic compatibility
Standards
Approvals and certificates
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval CCC approval / marking not required for products rated ≤36 V
) 20 a
M
Dimensions
5 ... 25 V
B
≥ 3 mA
≤ 1 mA
EN 60947-5-6:2000
IEC 60947-5-6:1999
NE 21:2007
EN 60947-5-2:2007
IEC 60947-5-2:2007
2
Electrical Connection
2
6
121
ø1,5
8
15
BN
BU
4,2
LED
L+
L-
Release date: 2018-03-26 09:44 Date of issue: 2018-03-26 095288_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
1
Inductive slot sensor SC2-N0-GN
Data for application in connection with hazardous
areas
Equipment protection level Ga , Gb , Gc (ic) , Da , Mb
Equipment protection level Ga
Type of protection intrinsic safety
CE marking 0102
Certificates
Appropriate type
ATEX certificate
ATEX marking
Standards
IECEx certificate
IECEx marking
Standards
Effective internal inductivity C
Effective internal inductance L
i
i
Maximum permissible ambient temperature T
for ATEX
for IECEx
SC2-N0...
PTB 99 ATEX 2219 X
¬ II 1G Ex ia IIC T6...T1 Ga
EN 60079-0:2012+A11:2013 , EN 60079-11:2012
IECEx PTB 11.0091X
Ex ia IIC T6...T1 Ga
IEC 60079-0:2011 , IEC 60079-11:2011
≤ 150 nF
A cable length of 10 m is considered.
≤ 150 µH
A cable length of 10 m is considered.
Also observe the maximum permissible ambient temperature stated in the general technical data.
amb
Keep to the lower of the two values.
= 16 V , Ii = 25 mA , Pi = 34 mW ,
at U
i
T6 : 55 °C (131 °F)
T5 : 67 °C (152.6 °F)
T4 : 95 °C (203 °F)
T3 : 95 °C (203 °F)
T2 : 95 °C (203 °F)
T1 : 95 °C (203 °F)
at U
= 16 V , Ii = 25 mA , Pi = 64 mW ,
i
T6 : 48 °C (118.4 °F)
T5 : 60 °C (140 °F)
T4 : 88 °C (190.4 °F)
T3 : 88 °C (190.4 °F)
T2 : 88 °C (190.4 °F)
T1 : 88 °C (190.4 °F)
at U
= 16 V , Ii = 52 mA , Pi = 169 mW ,
i
T6 : 23 °C (73.4 °F)
T5 : 35 °C (95 °F)
T4 : 63 °C (145.4 °F)
T3 : 63 °C (145.4 °F)
T2 : 63 °C (145.4 °F)
T1 : 63 °C (145.4 °F)
at U
= 16 V , Ii = 76 mA , Pi = 242 mW ,
i
T6 : 6 °C (42.8 °F)
T5 : 18 °C (64.4 °F)
T4 : 46 °C (114.8 °F)
T3 : 46 °C (114.8 °F)
T2 : 46 °C (114.8 °F)
T1 : 46 °C (114.8 °F)
at Ui = 16 V , Ii = 25 mA , Pi = 34 mW ,
T6 : 72 °C (161.6 °F)
T5 : 87 °C (188.6 °F)
T4 : 100 °C (212 °F)
T3 : 100 °C (212 °F)
T2 : 100 °C (212 °F)
T1 : 100 °C (212 °F)
at U
= 16 V , Ii = 25 mA , Pi = 64 mW ,
i
T6 : 65 °C (149 °F)
T5 : 80 °C (176 °F)
T4 : 100 °C (212 °F)
T3 : 100 °C (212 °F)
T2 : 100 °C (212 °F)
T1 : 100 °C (212 °F)
at U
= 16 V , Ii = 52 mA , Pi = 169 mW ,
i
T6 : 40 °C (104 °F)
T5 : 55 °C (131 °F)
T4 : 75 °C (167 °F)
T3 : 75 °C (167 °F)
T2 : 75 °C (167 °F)
T1 : 75 °C (167 °F)
at U
= 16 V , Ii = 76 mA , Pi = 242 mW ,
i
T6 : 23 °C (73.4 °F)
T5 : 38 °C (100.4 °F)
T4 : 54 °C (129.2 °F)
T3 : 54 °C (129.2 °F)
T2 : 54 °C (129.2 °F)
T1 : 54 °C (129.2 °F)
Release date: 2018-03-26 09:44 Date of issue: 2018-03-26 095288_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
2
Inductive slot sensor SC2-N0-GN
Equipment protection level Gb
Type of protection intrinsic safety
CE marking 0102
Certificates
Appropriate type
ATEX certificate
ATEX marking
Standards
IECEx certificate
IECEx marking
Standards
Effective internal inductivity C
Effective internal inductance L
i
i
Maximum permissible ambient temperature T
Equipment protection level Gc (ic)
Type of protection intrinsic safety
CE marking
SC2-N0...
PTB 99 ATEX 2219 X
¬ II 1G Ex ia IIC T6…T1 Ga
EN 60079-0:2012+A11:2013 , EN 60079-11:2012
IECEx PTB 11.0091X
Ex ia IIC T6...T1 Ga
IEC 60079-0:2011 , IEC 60079-11:2011
≤ 150 nF
A cable length of 10 m is considered.
≤ 150 µH
A cable length of 10 m is considered.
Also observe the maximum permissible ambient temperature stated in the general technical data.
amb
Keep to the lower of the two values.
at U
= 16 V , Ii = 25 mA , Pi = 34 mW ,
i
T6 : 72 °C (161.6 °F)
T5 : 87 °C (188.6 °F)
T4 : 100 °C (212 °F)
T3 : 100 °C (212 °F)
T2 : 100 °C (212 °F)
T1 : 100 °C (212 °F)
at U
= 16 V , Ii = 25 mA , Pi = 64 mW ,
i
T6 : 65 °C (149 °F)
T5 : 80 °C (176 °F)
T4 : 100 °C (212 °F)
T3 : 100 °C (212 °F)
T2 : 100 °C (212 °F)
T1 : 100 °C (212 °F)
at U
= 16 V , Ii = 52 mA , Pi = 169 mW ,
i
T6 : 40 °C (104 °F)
T5 : 55 °C (131 °F)
T4 : 75 °C (167 °F)
T3 : 75 °C (167 °F)
T2 : 75 °C (167 °F)
T1 : 75 °C (167 °F)
at U
= 16 V , Ii = 76 mA , Pi = 242 mW ,
i
T6 : 23 °C (73.4 °F)
T5 : 38 °C (100.4 °F)
T4 : 54 °C (129.2 °F)
T3 : 54 °C (129.2 °F)
T2 : 54 °C (129.2 °F)
T1 : 54 °C (129.2 °F)
Certificates
ATEX certificate
ATEX marking
Standards
Effective internal inductivity C
Effective internal inductance L
Maximum permissible ambient temperature T
i
i
amb
PF13CERT2895 X
¬ II 3G Ex ic IIC T6...T1 Gc
EN 60079-0:2012+A11:2013 , EN 60079-11:2012
≤ 150 nF
A cable length of 10 m is considered.
≤ 150 µH
A cable length of 10 m is considered.
Also observe the maximum permissible ambient temperature stated in the general technical data.
Keep to the lower of the two values.
at U
= 20 V , Ii = 25 mA , Pi = 34 mW ,
i
T6 : 66 °C (150.8 °F)
T5 : 81 °C (177.8 °F)
T4 : 100 °C (212 °F)
T3 : 100 °C (212 °F)
T2 : 100 °C (212 °F)
T1 : 100 °C (212 °F)
at U
= 20 V , Ii = 25 mA , Pi = 64 mW ,
i
T6 : 65 °C (149 °F)
T5 : 80 °C (176 °F)
T4 : 100 °C (212 °F)
T3 : 100 °C (212 °F)
T2 : 100 °C (212 °F)
T1 : 100 °C (212 °F)
at U
= 20 V , Ii = 52 mA , Pi = 169 mW ,
i
T6 : 40 °C (104 °F)
T5 : 55 °C (131 °F)
T4 : 75 °C (167 °F)
T3 : 75 °C (167 °F)
T2 : 75 °C (167 °F)
T1 : 75 °C (167 °F)
at U
= 20 V , Ii = 76 mA , Pi = 242 mW ,
i
T6 : 23 °C (73.4 °F)
T5 : 38 °C (100.4 °F)
T4 : 54 °C (129.2 °F)
T3 : 54 °C (129.2 °F)
T2 : 54 °C (129.2 °F)
T1 : 54 °C (129.2 °F)
Release date: 2018-03-26 09:44 Date of issue: 2018-03-26 095288_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
3
Inductive slot sensor SC2-N0-GN
Equipment protection level Da
Type of protection intrinsic safety
CE marking 0102
Certificates
Appropriate type
ATEX certificate
ATEX marking
Standards
IECEx certificate
IECEx marking
Standards
Effective internal inductivity C
Effective internal inductance L
i
i
Maximum permissible ambient temperature T
Equipment protection level Mb
Type of protection intrinsic safety
Certificates
Appropriate type
IECEx certificate
IECEx marking
Standards
Effective internal inductivity C
Effective internal inductance L
i
i
Maximum permissible ambient temperature T
SC2-N0...
PTB 99 ATEX 2219 X
¬ II 1D Ex ia IIIC T135°C Da
EN 60079-0:2012+A11:2013 , EN 60079-11:2012
IECEx PTB 11.0091X
Ex ia IIIC T135°C Da
IEC 60079-0:2011 , IEC 60079-11:2011
≤ 150 nF
A cable length of 10 m is considered.
≤ 150 µH
A cable length of 10 m is considered.
Also observe the maximum permissible ambient temperature stated in the general technical data.
amb
Keep to the lower of the two values.
at U
= 16 V , Ii = 25 mA , Pi = 34 mW : 100 °C (212 °F)
i
at U
= 16 V , Ii = 25 mA , Pi = 64 mW : 100 °C (212 °F)
i
at U
= 16 V , Ii = 52 mA , Pi = 169 mW : 75 °C (167 °F)
i
at U
= 16 V , Ii = 76 mA , Pi = 242 mW : 54 °C (129.2 °F)
i
SC2-N0...
IECEx PTB 11.0091X
Ex ia I Mb
IEC 60079-0:2011 , IEC 60079-11:2011
≤ 150 nF
A cable length of 10 m is considered.
≤ 150 µH
A cable length of 10 m is considered.
Also observe the maximum permissible ambient temperature stated in the general technical data.
amb
Keep to the lower of the two values.
at U
= 16 V , Ii = 25 mA , Pi = 34 mW : 100 °C (212 °F)
i
at U
= 16 V , Ii = 25 mA , Pi = 64 mW : 100 °C (212 °F)
i
at U
= 16 V , Ii = 52 mA , Pi = 169 mW : 75 °C (167 °F)
i
at U
= 16 V , Ii = 76 mA , Pi = 242 mW : 54 °C (129.2 °F)
i
Release date: 2018-03-26 09:44 Date of issue: 2018-03-26 095288_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
