Pepperl Fuchs ODT-MAC431-LD-WH-MC Data Sheet
Stationary read device ODT-MAC431-LD-WH-MC
Function
The stationary reader is a reading system for the recognition of data matrix codes. With a
powerful signal processor and optimized decoding algorithms, the device delivers delivers
extremely high reading speeds.
The configuration is easy and comfortable via the standard Ethernet interface using a standard
web browser or via serial port.
The device is supported by an VGA video output. In addition, the device has an integrated
error image memory.
Typical operative range of stationary readers are:
- Document handling
-Printing machines
- Identification in packaging and warehousing technology
- Detection of PCBs
Indicating / Operating means
Model Number
ODT-MAC431-LD-WH-MC
Stationary multicode read device for all
common 1D, 2D, and Pharmacodes at
speeds of 10 m/s, angled line of vision,
side illumination, VGA resolution, Ethernet, VGA output, RS 232 interface
Features
• All common 1D or 2D codes can be
read
• 30 scans per second
• High passage speed
10 m/s
•VGA output
• Integrated error image memory
11
Match
Status
LAN
TRG
Good
Fail
PWR
10
9
8
7
6
Electrical connection
RS 232
Pin Signal
1 +UB
2 TX RS232
3 GND
4 RX RS232
5 IN 5 / OUT 3
LAN
Pin Signal
1 TX+ Ethernet
2 RX+ Ethernet
3 TX- Ethernet
4 RX- Ethernet
1
5
4
3
2
LAN
24VDC + IO
2
3
4
1
RS 232
VGA
1
2
3
4
5
VGA
Pin Signal
1 Socket LAN
2 Socket RS 232
3 Connector 24VDC + IO
4 Socket VGA
5 PWR
6 Status
7 Match
8 Fail
9 Good
10 TRG
11 LAN
1
7
6
5
1 OUT VSYNC
2 GND
3 OUT R
4 OUT G
5 GND
6 OUT B
7 OUT HSYNC
(24 V DC + I/O)
5
6
7
1
8
Pin Signal
1 IN TRG / OUT 1
2 +UB
3 OUT Good / IN 1
4 OUT Fail / IN 2
5 IN 3
6 IN 4 / OUT 2
7 GND
8 OUT Match
2
3
4
4
3
2
Release date: 2012-04-24 14:40 Date of issue: 2013-09-03 240346_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
1

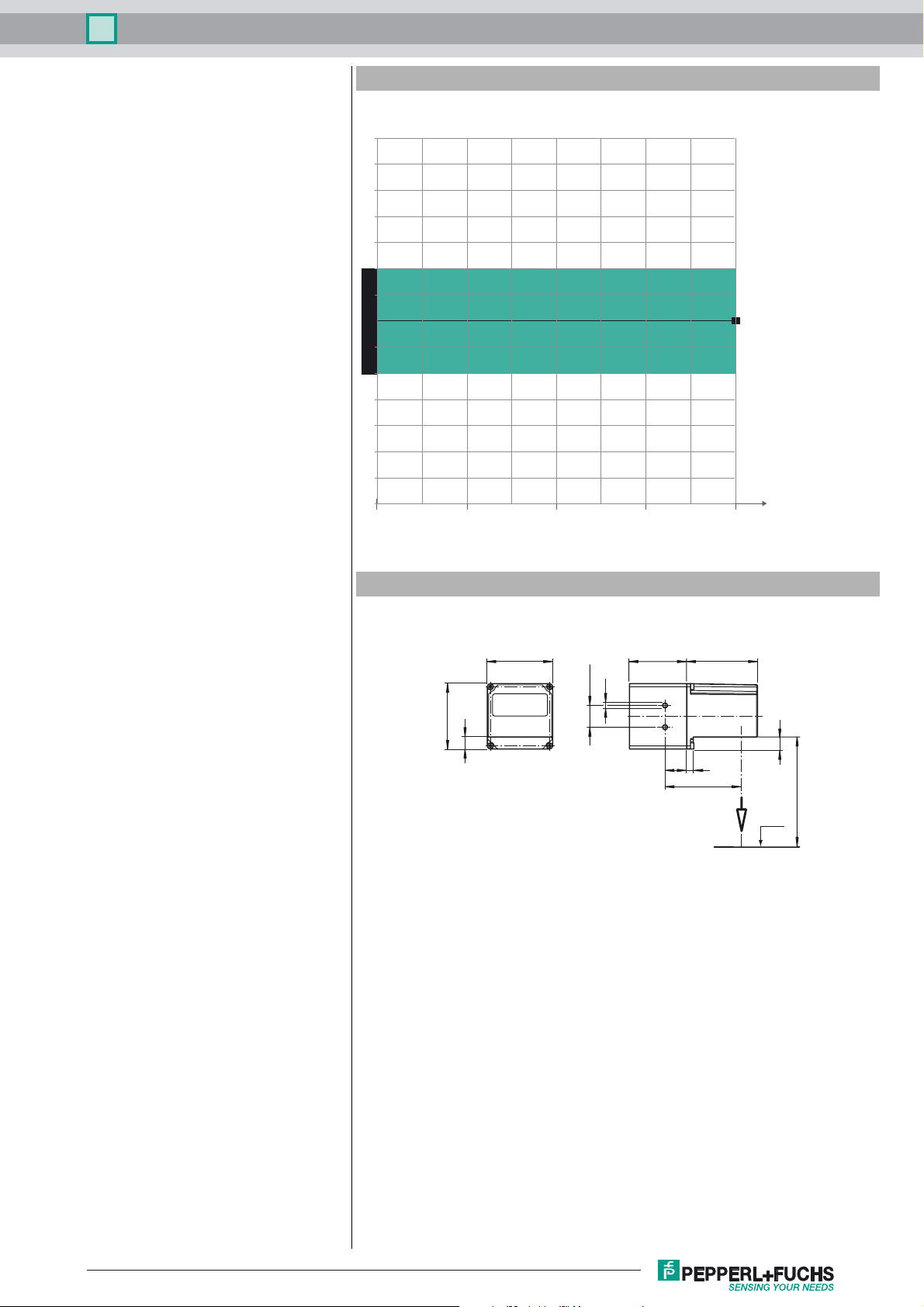

ODT-MAC431-LD-WH-MCStationary read devic e
Technical data
General specifications
Light type Integrated LED lightning (white)
Symbologies Maxi Code, PDF 417, Data Matrix, QR Code, MicroPDF 417,
Read distance 100 mm
Depth of focus ± 5 mm
Reading field max. 50 mm x 30 mm
Modul size ≥ 0.33 mm
Sensor principle Camera system
Evaluation frequency max. 30 Hz
Ta rge t v el oc ity triggered ≤ 10 m/s
Nominal ratings
Camera
Ty pe C MOS , G lob al s hut te r
Number of pixels 752 x 480 pixels
Gray scale 256
Image recording real-time , Program-controlled or triggered externally
Indicators/operating means
Operating display LED green: Ready for operation
LED indicator for good/poor reading , Trigger , LAN , Match code
Electrical specifications
Operating voltage UB24 V DC ± 15% , PELV
No-load supply current I
Power consumption P
Interface
Physical Ethernet
Protocol TCP/ IP
Transfer rate 100 MBit/s
Cable length max. 30 m
Output
Number/Type 4 electronic outputs, PNP
Switching voltage 24 V ± 15 %
Switching current 100 mA each output
Cable length max. 30 m
Output 1
Output type Video output, RGB (75 Ohm), 1 Vpp
Resolution VGA, 800 x 600 pixels
Cable length 2 m
Ambient conditions
Ambient temperature 0 ... 45 °C (32 ... 113 °F)
Storage temperature -20 ... 60 °C (-4 ... 140 °F)
Mechanical specifications
Protection degree IP65
Connection 8-pin, M12x1 connector, standard (supply+IO) M12 x 1 female
Material
Housing powder coated diecast zinc
Mass approx. 760 g
Compliance with standards and directives
Directive conformity
EMC Directive 2004/108/EC EN 61326-1 , EN 61000-6-4
Standard conformity
Noise immunity EN 61326-1
Emitted interference EN 61000-6-4
Protection degree EN 60529
Laser class IEC 60825-1:2007
GoCode, UCC Composite, Aztec Code, Code 39, Code 128,
UPC, EAN, JAN, Int 2 of 5, Codabar, Code 93, UCC RSS,
POSTNET, PLANET, Japanese Post, Australia Post, Royal Mail,
RM4SCC, KIX Code, Codablock, Pharmacode
max. 250 mA
0
6 W
0
connector, 5-pin, standard (IO) 4-pin, M12x1 socket, standard
(LAN) Video: 7-pin socket
Accessories
V19-G-2M-PUR-ABG
Female cordset, M12, 8-pin, shielded,
PUR cable
V15S-G-5M-PUR-ABG
Male cordset, M12, 5-pin, shielded, PUR
cable
V1SD-G-2M-PUR-ABG-V45-G
Connection cable, M12 to RJ-45, PUR
cable 4-pin, CAT5e
V1SD-G-2M-PUR-ABG-V45X-G
Connection cable, M12 to RJ-45, PUR
cable 4-pin, CAT5e
V19-G-2,5M-PUR-ABG-SUBD25
Connection cable, M12 to SUB-D, PUR
cable 8-pin
ODZ-MAC-CAB-VIDEO
Video cable VGA
Other suitable accessories can be found at
Release date: 2012-04-24 14:40 Date of issue: 2013-09-03 240346_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
2
