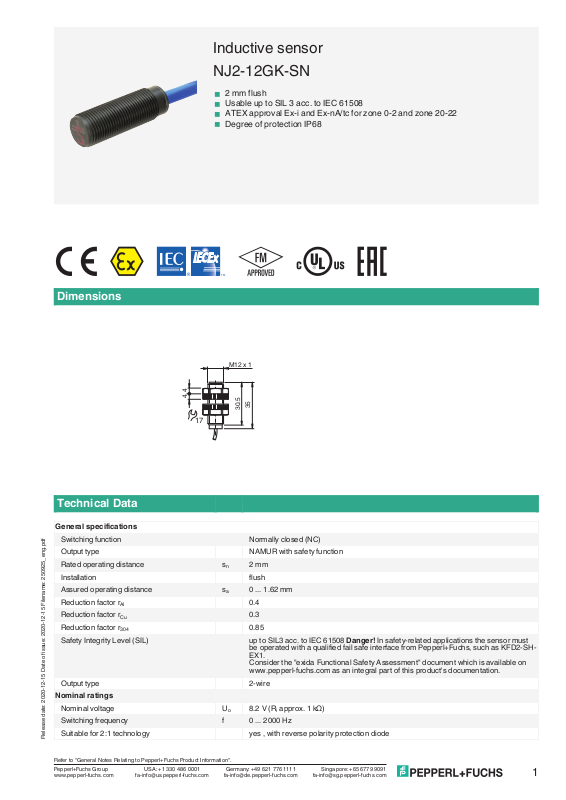

Inductive sensor
NJ2-12GK-SN
<2 mm flush
<Usable up to SIL 3 acc. to IEC 61508
<ATEX approval Ex-i and Ex-nA/tc for zone 0-2 and zone 20-22
<Degree of protection IP68
|
M12 X 1 |
|
<![if ! IE]> <![endif]>4 4 |
<![if ! IE]> <![endif]>30.5 |
<![if ! IE]> <![endif]>35 |
|
17 |
|
|
|
General specifications |
|
|
<![if ! IE]> <![endif]>eng.pdf |
|
Switching function |
|
Normally closed (NC) |
|
Output type |
|
NAMUR with safety function |
|
<![if ! IE]> <![endif]>_ |
|
|
|
|
<![if ! IE]> <![endif]>250925 |
|
Installation |
sn |
flush |
|
|
Rated operating distance |
2 mm |
|
<![if ! IE]> <![endif]>Filename: |
|
|
|
|
|
Reduction factor rAl |
sa |
0.4 |
|
|
|
Assured operating distance |
0 ... 1.62 mm |
|
<![if ! IE]> <![endif]>12-15 |
|
|
|
|
|
Reduction factor rCu |
|
0.3 |
|
<![if ! IE]> <![endif]>- |
|
|
|
|
<![if ! IE]> <![endif]>2020 |
|
Reduction factor r304 |
|
0.85 |
|
|
|
||
<![if ! IE]> <![endif]>issue:of |
|
Safety Integrity Level (SIL) |
|
up to SIL3 acc. to IEC 61508 Danger! In safety-related applications the sensor must |
|
|
|
EX1. |
|
|
|
|
|
be operated with a qualified fail safe interface from Pepperl+Fuchs, such as KFD2-SH- |
<![if ! IE]> <![endif]>Date |
|
|
|
Consider the "exida Functional Safety Assessment" document which is available on |
|
|
|
www.pepperl-fuchs.com as an integral part of this product's documentation. |
|
<![if ! IE]> <![endif]>12-15 |
|
|
|
|
|
Output type |
|
2-wire |
|
<![if ! IE]> <![endif]>2020- |
|
|
|
|
|
Nominal ratings |
|
|
|
<![if ! IE]> <![endif]>date: |
Nominal voltage |
Uo |
8.2 V (Ri approx. 1 kΩ) |
|
|
|
|||
<![if ! IE]> <![endif]>Release |
|
Switching frequency |
f |
0 ... 2000 Hz |
|
Suitable for 2:1 technology |
|
yes , with reverse polarity protection diode |
Refer to "General Notes Relating to Pepperl+Fuchs Product Information". |
|
|
1 |
||
Pepperl+Fuchs Group |
USA: +1 330 486 0001 |
Germany: +49 621 776 1111 |
Singapore: +65 6779 9091 |
||
www.pepperl-fuchs.com |
fa-info@us.pepperl-fuchs.com |
fa-info@de.pepperl-fuchs.com |
fa-info@sg.pepperl-fuchs.com |
|
Inductive sensor |
|
NJ2-12GK-SN |
|
|
|
Technical Data |
|
|
|
|
|
|
|
|
|
Current consumption |
|
|
|
|
Measuring plate not detected |
|
≥ 3 mA |
|
|
Measuring plate detected |
|
≤ 1 mA |
|
|
Functional safety related parameters |
|
|
|
|
Safety Integrity Level (SIL) |
|
SIL 3 |
|
|
MTTFd |
|
10660 a |
|
|
Mission Time (TM) |
|
20 a |
|
|
Diagnostic Coverage (DC) |
|
0 % |
|
|
Compliance with standards and directives |
|
|
|
|
Standard conformity |
|
|
|
|
NAMUR |
|
EN 60947-5-6:2000 |
|
|
|
|
IEC 60947-5-6:1999 |
|
|
Standards |
|
EN 60947-5-2:2007 |
|
|
|
|
EN 60947-5-2/A1:2012 |
|
|
|
|
IEC 60947-5-2:2007 |
|
|
|
|
IEC 60947-5-2 AMD 1:2012 |
|
|
Approvals and certificates |
|
|
|
|
IECEx approval |
|
|
|
|
Equipment protection level Ga |
|
IECEx PTB 11.0092X |
|
|
Equipment protection level Gb |
|
IECEx PTB 11.0092X |
|
|
Equipment protection level Da |
|
IECEx PTB 11.0092X |
|
|
Equipment protection level Mb |
|
IECEx PTB 11.0092X |
|
|
ATEX approval |
|
|
|
|
Equipment protection level Ga |
|
PTB 00 ATEX 2049 X |
|
|
Equipment protection level Gb |
|
PTB 00 ATEX 2049 X |
|
|
Equipment protection level Gc (nA) |
|
PF15CERT3754X |
|
|
Equipment protection level Da |
|
PTB 00 ATEX 2049 X |
|
|
Equipment protection level Dc (tc) |
|
PF15CERT3774X |
|
|
EAC conformity |
|
TR CU 012/2011 |
|
|
FM approval |
|
|
|
|
Control drawing |
|
116-0165 |
|
|
UL approval |
|
cULus Listed, General Purpose |
|
|
Ordinary Location |
|
E87056 |
|
|
Hazardous Location |
|
E501628 |
|
|
Control drawing |
|
116-0454 |
|
|
CCC approval |
|
|
|
|
Hazardous Location |
|
2020322315002308 |
|
|
NEPSI approval |
|
|
<![if ! IE]> <![endif]>eng.pdf |
|
NEPSI certificate |
|
GYJ16.1392X |
|
Ambient conditions |
|
|
|
|
|
|
|
|
<![if ! IE]> <![endif]>250925 |
|
Ambient temperature |
|
-40 ... 100 °C (-40 ... 212 °F) |
|
Mechanical specifications |
|
|
|
<![if ! IE]> <![endif]>Filename:15- |
|
Housing material |
|
Crastin (PBT), black |
|
|
Connection type |
|
cable silicone , 2 m |
|
|
Core cross-section |
|
0.34 mm2 |
<![if ! IE]> <![endif]>-12 |
|
|
|
|
|
Sensing face |
|
Crastin (PBT), black |
|
<![if ! IE]> <![endif]>2020 |
|
|
||
|
Degree of protection |
|
IP68 |
|
<![if ! IE]> <![endif]>issue: |
|
|
||
|
Cable |
|
|
|
<![if ! IE]> <![endif]>of |
|
|
|
|
|
Cable diameter |
|
4.8 mm ± 0.2 mm |
|
<![if ! IE]> <![endif]>15Date |
|
|
||
|
Bending radius |
|
> 10 x cable diameter |
|
<![if ! IE]> <![endif]>-12- |
|
|
|
|
|
General information |
|
|
|
<![if ! IE]> <![endif]>2020 |
|
|
|
|
|
Use in the hazardous area |
|
see instruction manuals |
|
<![if ! IE]> <![endif]>Release date: |
|
|
|
|
|
|
|
|
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
