Pepperl Fuchs NJ0, 8-5GM-N DATASHEET

17

20

8

M5 x 0.5

2.5

Germany: [phone]Pepperl+Fuchs Group

Refer to "General Notes Relating to Pepperl+Fuchs Product Information".

USA: [phone] Singapore: [phone]

www.pepperl-fuchs.com [e-mail] [e-mail]

[e-mail]

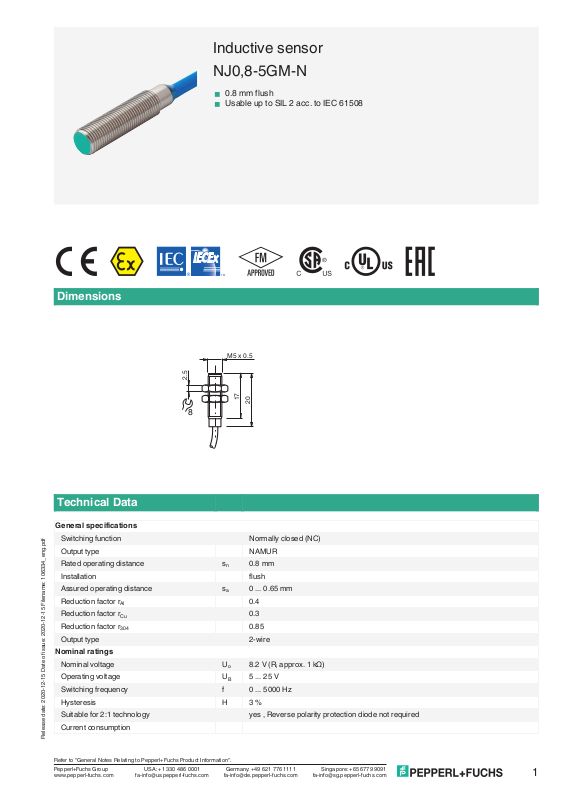

Dimensions

Inductive sensor

NJ0,8-5GM-N

0.8 mm flush

<

Usable up to SIL 2 acc. to IEC 61508

<

Technical Data

General specifications

Switching function Normally closed (NC)

Output type NAMUR

Rated operating distance s

Installation flush

Assured operating distance s

Reduction factor rAl 0.4

Reduction factor rCu 0.3

Reduction factor r

Output type 2-wire

Nominal ratings

Nominal voltage U

Operating voltage U

Switching frequency f 0 ... 5000 Hz

Hysteresis H 3 %

Suitable for 2:1 technology yes , Reverse polarity protection diode not required

Current consumption

Release date: 2020-12-15 Date of issue: 2020-12-15 Filename: 106334_eng.pdf

0.85

304

0.8 mm

n

0 ... 0.65 mm

a

8.2 V (Ri approx. 1 kΩ)

o

5 ... 25 V

B

1

Inductive sensor NJ0,8-5GM-N

Germany: [phone]Pepperl+Fuchs Group

Refer to "General Notes Relating to Pepperl+Fuchs Product Information".

USA: [phone] Singapore: [phone]

www.pepperl-fuchs.com [e-mail] [e-mail]

[e-mail]

Technical Data

Measuring plate not detected ≥ 3 mA at nominal voltage

Measuring plate detected ≤ 1 mA at nominal voltage

Functional safety related parameters

MTTF

d

Mission Time (TM) 20 a

Diagnostic Coverage (DC) 0 %

Compliance with standards and directives

Standard conformity

NAMUR EN 60947-5-6:2000

Standards EN 60947-5-2:2007

Approvals and certificates

IECEx approval

Equipment protection level Ga IECEx PTB 11.0037X

Equipment protection level Gb IECEx PTB 11.0037X

Equipment protection level Da IECEx PTB 11.0037X

Equipment protection level Mb IECEx PTB 11.0037X

ATEX approval

Equipment protection level Ga PTB 00 ATEX 2048 X

Equipment protection level Gb PTB 00 ATEX 2048 X

Equipment protection level Da PTB 00 ATEX 2048 X

EAC conformity TR CU 012/2011

FM approval

Control drawing 116-0165

UL approval

Ordinary Location E87056

Hazardous Location E501628

Control drawing 116-0452

CSA approval cCSAus Listed, General Purpose

CCC approval

Hazardous Location 2020322315002256

NEPSI approval

NEPSI certificate GYJ16.1393X

Ambient conditions

Ambient temperature -25 ... 100 °C (-13 ... 212 °F)

Mechanical specifications

Connection type cable PVC , 2 m

Core cross-section 0.14 mm

Housing material Stainless steel 1.4305 / AISI 303

Sensing face PBT

Degree of protection IP67

Cable

Cable diameter 2.6 mm ± 0.2 mm

Bending radius > 10 x cable diameter

General information

Use in the hazardous area see instruction manuals

1050 a

IEC 60947-5-6:1999

EN 60947-5-2/A1:2012
IEC 60947-5-2:2007
IEC 60947-5-2 AMD 1:2012

2
