Pepperl Fuchs NBB10-30GM50-E2-C3-V1 Data Sheet

Inductive sensor NBB10-30GM50-E2-C3-V1

Technical Data

General specifications

Switching element function PNP NO

Model Number

NBB10-30GM50-E2-C3-V1

Features

• 10 mm flush

• Weld slag resistant coating

• Ceramic coated sensing face

Accessories

EXG-30

Quick mounting bracket with dead stop

V1-G-OR2M-POC

Female cordset, M12, 4-pin, TPE cable, welding-bead resis­tant

V1-W-OR2M-POC

Female cordset, M12, 4-pin, TPE cable, welding-bead resis­tant

Rated operating distance s
Installation flush
Output polarity DC
Assured operating distance sa0 ... 8.1 mm
Reduction factor r
Reduction factor rCu 0.2
Reduction factor r

Nominal ratings

Operating voltage UB10 ... 30 V DC
Switching frequency f 0 ... 10 Hz
Hysteresis H typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Vol tag e d rop Ud≤ 3 V
Operating current I
Off-state current I
No-load supply current I
Switching state indicator Multihole-LED, yellow
Mag. Field strength, AC fields 150 mT
Mag. Field strength, DC fields 150 mT

Functional safety related parameters

MTTFd 1835 a
Mission Time (T
Diagnostic Coverage (DC) 0 %

Ambient conditions

Ambient temperature -25 ... 70 °C (-13 ... 158 °F)

Mechanical specifications

Connection type Connector M12 x 1 , 4-pin
Housing material Brass, PTFE coated
Sensing face Ceramic coated
Protection degree IP67

Compliance with standards and directives

Stan dard conf ormit y

Sta ndar ds

Approvals and certificates

UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval CCC approval / marking not required for products rated ≤36 V

0.3

Al

0.6

304

) 20 a

M

Dimensions

10 mm

n

0 ... 200 mA

L

0 ... 0.5 mA typ. 0.1 µA at 25 °C

r

≤ 15 mA

0

EN 60947-5-2:2007
IEC 60947-5-2:2007

Electrical Connection

M30 x 1.5

5

50

36

LED

65

6

M12 x 1

1

L+

4

3

L-

Release date: 2014-02-12 07:55 Date of issue: 2014-02-12 910208_eng.xml

Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.

1

Inductive sensor NBB10-30GM50-E2-C3-V1

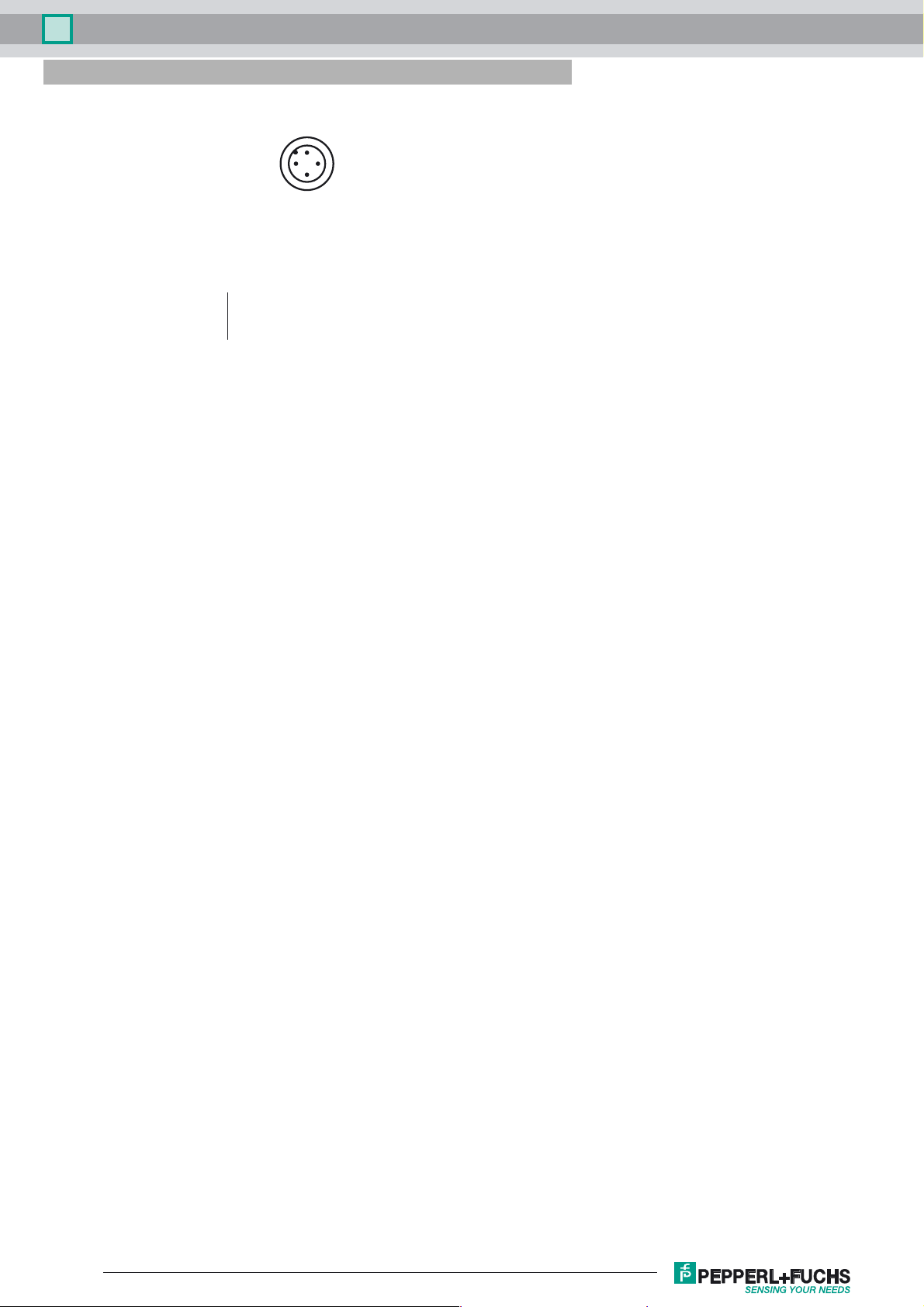

Pinout

1

2

Wire colors in accordance with EN 60947-5-2

1 BN
2 WH
3 BU
4 BK

(brown)
(white)
(blue)
(black)

4

3
