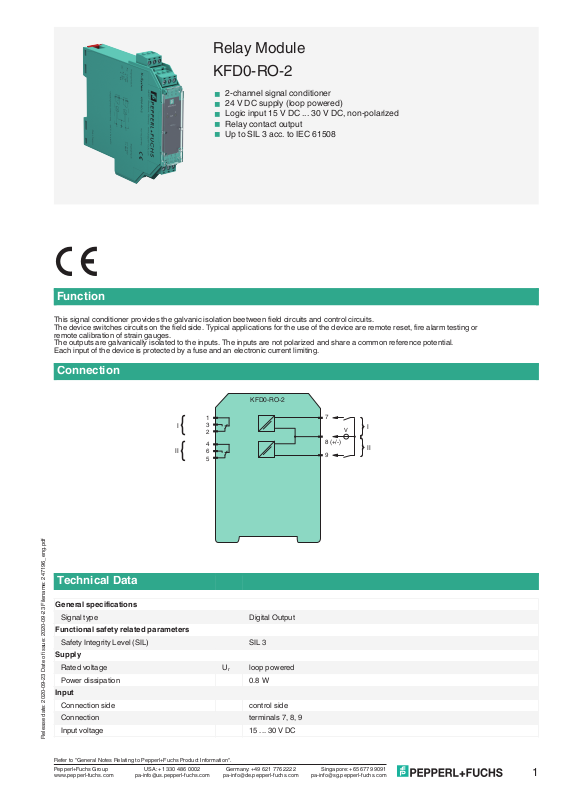

Pepperl Fuchs KFD0-RO-2 DATASHEET

Relay Module

KFD0-RO-2

2

3

1

5

6

4

7

8 (+/-)

9

I

II

I

II

V

Germany: [phone]Pepperl+Fuchs Group

Refer to "General Notes Relating to Pepperl+Fuchs Product Information".

USA: [phone] Singapore: [phone]

www.pepperl-fuchs.com [e-mail] [e-mail]

[e-mail]

KFD0-RO-2

2-channel signal conditioner

<

24 V DC supply (loop powered)

<

Logic input 15 V DC ... 30 V DC, non-polarized

<

Relay contact output

<

Up to SIL 3 acc. to IEC 61508

<

Function

This signal conditioner provides the galvanic isolation beetween field circuits and control circuits.
The device switches circuits on the field side. Typical applications for the use of the device are remote reset, fire alarm testing or
remote calibration of strain gauges.
The outputs are galvanically isolated to the inputs. The inputs are not polarized and share a common reference potential.
Each input of the device is protected by a fuse and an electronic current limiting.

Connection

Technical Data

General specifications

Signal type Digital Output

Functional safety related parameters

Safety Integrity Level (SIL) SIL 3

Supply

Rated voltage U

Power dissipation 0.8 W

Input

Connection side control side

Connection terminals 7, 8, 9

Input voltage 15 ... 30 V DC

Release date: 2020-09-23 Date of issue: 2020-09-23 Filename: 247196_eng.pdf

r

loop powered

1

Relay Module KFD0-RO-2

Germany: [phone]Pepperl+Fuchs Group

Refer to "General Notes Relating to Pepperl+Fuchs Product Information".

USA: [phone] Singapore: [phone]

www.pepperl-fuchs.com [e-mail] [e-mail]

[e-mail]

Technical Data

Input current ≤ 21 mA per channel

Output

Connection side field side

Connection terminals 1, 2, 3; 4, 5, 6

Contact loading 230 V AC/4 A/cos φ > 0.7; 30 V DC/4 A resistive load

Energized/De-energized delay approx. 10 ms / approx. 5 ms

Mechanical life 5 x 106 switching cycles

Electrical life 105 switching cycles , at maximium load

Transfer characteristics

Switching frequency < 10 Hz

Galvanic isolation

Input/Output reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V

Output/Output basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 V

Indicators/settings

Display elements LEDs

Labeling space for labeling at the front

Directive conformity

Electromagnetic compatibility

Directive 2014/30/EU EN 61326-1:2013 (industrial locations)

Low voltage

Directive 2014/35/EU EN 61010-1:2010

Conformity

Electromagnetic compatibility NE 21:2006

Degree of protection IEC 60529:2001

Ambient conditions

Ambient temperature -20 ... 65 °C (-4 ... 149 °F)

Mechanical specifications

Degree of protection IP20

Connection screw terminals

Mass approx. 100 g

Dimensions 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) , housing type B2

Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001

General information

Supplementary information Observe the certificates, declarations of conformity, instruction manuals, and manuals

where applicable. For information see www.pepperl-fuchs.com.

eff

eff

Release date: 2020-09-23 Date of issue: 2020-09-23 Filename: 247196_eng.pdf

2
