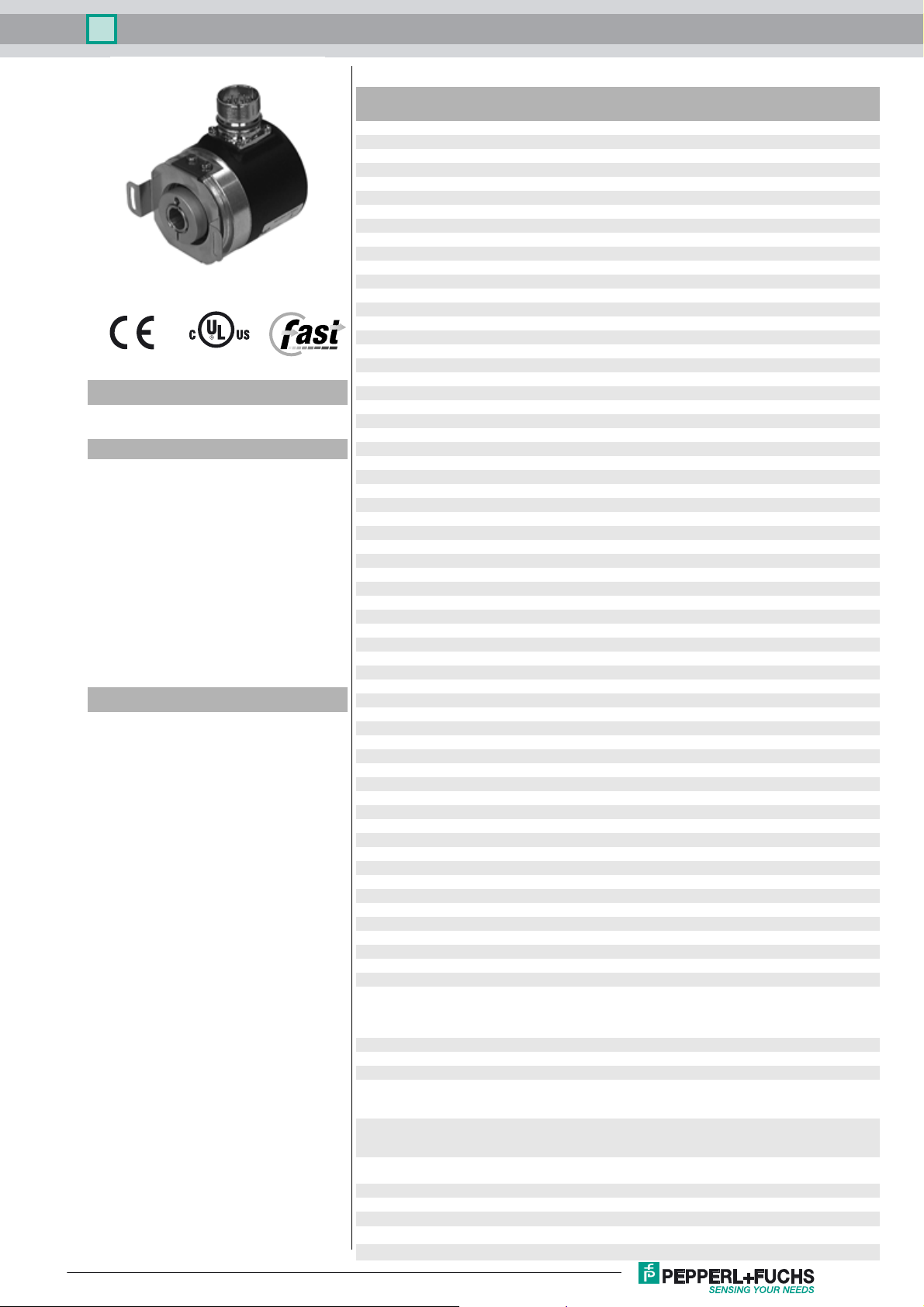

Pepperl Fuchs FSS58 Data Sheet

Singleturn absolute encoder FSS58
Technical data
Functional safety related parameters
MTTFd 120 a
Model Number
FSS58
Features
• Industrial standard housing Ø58 mm
• 13 Bit singleturn
• Output code: gray and binary
• Short-circuit proof push-pull out­put
• Inputs for selecting counting di­rection, LATCH, and PRESET
• Code change frequency up to 400 kHz
• Recessed hollow shaft
Description
The emphasis for this series is on rapid data trans­fer. Position data are read directly out of the Gray code disc. The high code switching frequency of 400 kHz is achieved by consciously avoiding the use of a microcontroller. The FSS58 singleturn absolute encoder is equip­ped with a recessed hollow shaft. The encoder housing has a diameter of 58 mm. The recessed hollow shaft is available with diameters of 10 mm, 12 mm and 15 mm. This version in particular represents a simple and cost-effective mounting solution. The shaft hub connection is already integrated into the rotary en­coder. The rotary encoder is held in place by a torque rest.
Mission Time (T L
1.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load
10h
Diagnostic Coverage (DC) 0 %
Electrical specifications
Operating voltage U No-load supply current I Power consumption P Linearity ± 0.5 LSB Output code Gray code, binary code and Gray excess code Code course (counting direction) cw ascending (clockwise rotation, code course ascending) Code preparation time 0.3 ms
Interface
Interface type Push-pull, parallel , short-circuit protected Resolution
Single turn 13 Bit Load current 20 mA Voltage drop 2.5 V Signal voltage
High operating voltage minus voltage drop
Low 2.8 V Rise time 300 ns De-energized delay 300 ns Code change frequency 400 kHz
Input 1
Input type Selection of counting direction (cw/ccw) Signal voltage
High 10 ... 30 V
Low 0 ... 2 V Input current < 6 mA Signal duration 10 ms Switch-on delay 1 ms Switch-off delay 1 ms
Input 2
Input type Temporary storage (LATCH) Signal voltage
High 10 ... 30 V
Low 0 ... 2 V Input current < 6 mA Signal duration 100 µs Switch-on delay < 0.1 ms Switch-off delay < 0.1 ms
Input 3
Input type zero-set (PRESET) Signal voltage
High 10 ... 30 V
Low 0 ... 2 V Input current < 6 mA Signal duration 10 ms Switch-on delay < 1 ms
Connection
Connector type 9424 (M23), 19-pin Cable Ø9 mm, 12 x 2 x 0.14 mm2, 2 m
Standard conformity
Degree of protection DIN EN 60529, IP65 Climatic testing DIN EN 60068-2-3, no moisture condensation Emitted interference EN 61000-6-4:2007 Noise immunity EN 61000-6-2:2005 Shock resistance DIN EN 60068-2-27, 100 g, 6 ms Vibration resistance DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz
Ambient conditions
Operating temperature -40 ... 85 °C (-40 ... 185 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F) (cable models: -5 ... 70 °C)
Mechanical specifications
Material
Combination 1 housing: powder coated aluminum
Combination 2 (Inox) housing: stainless steel
Mass approx. 200 g (combination 1)
Rotational speed max. 12000 min Moment of inertia 30 gcm Starting torque 5 Ncm
) 20 a
M
B
0
0
10 ... 30 V DC max. 140 mA 2 W , without output drivers
cable models:
-30 ... 70 °C (rigid wiring)
-5 ... 70 °C (flexible wiring)
flange: aluminum shaft: stainless steel
flange: stainless steel shaft: stainless steel
approx. 400 g (combination 2)
-1
2
Release date: 2014-06-23 14:03 Date of issue: 2016-01-26 t26559_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
Approvals and certificates
1
Singleturn absolute encoder FSS58
Dimensions
3.3
1.3
øD*
ø58
max. insertion depth = 30 min. insertion depth = 15
Lay-on edge
torque rest
Recessed hollow shaft
3.3
1.3
øD*
ø58
72
d**
~18
72
d**
Connector 9424, axial
~28
20
3.2
24
Connector 9424, radial
* D = shaft diameter, according to type code ** Aluminium: d = 59, stainless steel: d = 61
~28
Cable gland PG9, axial
20
5
3.2
72
ø63
20˚
25
30
72
ø63
20˚
max. insertion depth = 30 min. insertion depth = 15
Lay-on edge
torque rest
Recessed hollow shaft
~18
Cable gland PG9,
R100
ø7
radial
~33
* D = shaft diameter according to type code ** Aluminium: d = 59, stainless steel: d = 61
25 30
Release date: 2014-06-23 14:03 Date of issue: 2016-01-26 t26559_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
2
Singleturn absolute encoder FSS58
Electrical connection
Signal Cable Ø9 mm, 24-core Connector 9424, 19-pin Explanation
GND (rotary encoder) White 6 Power supply
(rotary encoder) Brown 12 Power supply
U
b
Data bit 1 Green 1 Data output
Data bit 2 Yellow 2 Data output
Data bit 3 Grey 3 Data output
Data bit 4 Pink 4 Data output
Data bit 5 Blue 5 Data output
Data bit 6 Red 7 Data output
Data bit 7 Black 8 Data output
Data bit 8 Violet 9 Data output
Data bit 9 Grey/Pink 10 Data output
Data bit 10 Red/Blue 11 Data output
Data bit 11 White/Green 13 Data output
Data bit 12 Brown/Green 14 Data output
Data bit 13 White/Yellow 15 Data output
White/Grey - Reserved
Grey/Brown 19 Reserved
V/R White/Pink 16 Input for selection of counting direction
LATCH Pink/Brown 17 Temporary storage input
White/Blue - Reserved
PRESET Brown/Blue 18 Zero setting input
White/Red - Reserved
Brown/Red - Reserved
14 5
3 4
113
2
18
12
11
17 10 19
15
6
9
8
16
7
Release date: 2014-06-23 14:03 Date of issue: 2016-01-26 t26559_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
3
Singleturn absolute encoder FSS58
Inputs
Input for temporary storage (LATCH) Input zero setting (PRESET)
IN
Filter
U
e
Pull down
Logic
Input level: "0"
"1" 10 V ... 30 V, Ie < 6 mA
0 V ... 2 V,
Input for selection of counting direction (V/R)
IN
U
e
Pull up
Filter
Logic
Input for selection of counting direction (V/R)
The counting direction for the absolute value rotary encoder as seen looking on the shaft is defined as right rotating (cw) rising or descending. The counting direction can be reversed with the V/R input. If the input is not used, the counting direction is defined as rising (standard), the level is at "1". Pulse duration T > 10 ms.
Input level: "1" or unused = rising code value with direction of rotation cw. Input level: "0" = descending code value for direction of rotation cw.
Input for temporary storage (LATCH)
With LATCH input "active", the position data on the parallel interface are "frozen". This makes it possible to accept position data without errors (especially for binary position data), since any change in the data during the read procedure is prevented. If this input is unused, its value is "0". Pulse duration T > 100 µs.
Input level: "1" = position data saved and stable at the output. Input level: "0" or unused = position data free running at the output.
Input zero setting (PRESET)
By means of the PRESET input, the absolute value rotary encoder can be adjusted electronically to position value 0. Pulse duration T > 10 ms. Input level: "0" or unused = inactive. Input level: "1" = Data output word is set to 0.
Release date: 2014-06-23 14:03 Date of issue: 2016-01-26 t26559_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
4
Singleturn absolute encoder FSS58
Order code
FSS58 3 N–00
Number of bits singleturn
13 8192
Option 2
N Not expanded
Output code
B Binary
G Gray
Option 1
3 V/R, LATCH, PRESET
Exit position
A Axial
R Radial
Connection type
K2 Cable Ø9 mm, 12 x 2 x 0.14 mm, 2 m*
AD Plug connector type 9424, 19-pin
Shaft dimension/flange version
F1A Recessed hollow shaft Ø10 mm x 30 mm
F2A Recessed hollow shaft Ø12 mm x 30 mm
F3A Recessed hollow shaft Ø15 mm x 30 mm
Housing material
N Aluminium, powder coated
I Inox*
Principle of operation
S Singleturn
Shaft version
S Recessed hollw shaft
Data format
F Fast parallel
* Housing material I only available with axial exit position
Release date: 2014-06-23 14:03 Date of issue: 2016-01-26 t26559_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
5
