Pepperl Fuchs ECN20IL Data Sheet

Cable pull ECN20IL-*

Technical data

General specifications

Device type Industrial Line
Measuring range 1250 ... 5000 mm
Construction type 55 mm, 80 mm, 130 mm
Repeat accuracy 0.1 %
Hysteresis H 0.1 %
Linearity ± 0.1 %

Functional safety related parameters

B

300000

10d

Ambient conditions

Ambient temperature -30 ... 70 °C (-22 ... 158 °F)

Mechanical specifications

Rope diameter 0.55 mm
Bending radius min. 14 mm
Breaking force min. 330 N
Retraction speed 8 m/s
Degree of protection IP64
Material

Housing anodized aluminum or aluminum with Hart Coat coating

Model Number

ECN20IL-*

Cable pull

Features

• Robust aluminum drum housing

• Compact design

• Bellows with steel tip

• Wide range of mounting options

• Up to 5 m of measuring cable

• Housing can be coated as an opti­on (Hart Coat)

• Rust and acid-resistant measuring
cable

Rope Stainless steel 1.4401/316

Life span up to 10

General information

Scope of delivery Shaft coupling for mounting a rotary encoder depending on

Accessories

Optional accessories #272502

6

Cycles

the flange type , Mounting clips , 3 x M4 x 8 bolts for
mounting the adapter , Sealing elements (various seals for
mounting a rotary encoder) , Hexagon socket wrench, 1.3
AF

SL-BCA
Ball for ball joint

Description

Cable pull with a robust design to suit a wide range
of requirements.

Release date: 2016-06-09 10:12 Date of issue: 2016-06-09 t174841_eng.xml

Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.

www.pepperl-fuchs.com [e-mail] [e-mail]

USA: [phone] Singapore: [phone]

Germany: [phone]Pepperl+Fuchs Group

[e-mail]

1

Cable pull ECN20IL-*

Dimensions

For design 80/130

D

M6 x 8

D

E

F C

A

B

For design 55

E

Servo flange

Clamping flange

I

I

D

M6 x 8

CF

L

T

H

L

T

H

D

A

B

Servo flange

I

H

Clamping flange

I

H

2

Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.

www.pepperl-fuchs.com [e-mail] [e-mail]

USA: [phone] Singapore: [phone]

Germany: [phone]Pepperl+Fuchs Group

[e-mail]

L

T

L

T

Release date: 2016-06-09 10:12 Date of issue: 2016-06-09 t174841_eng.xml

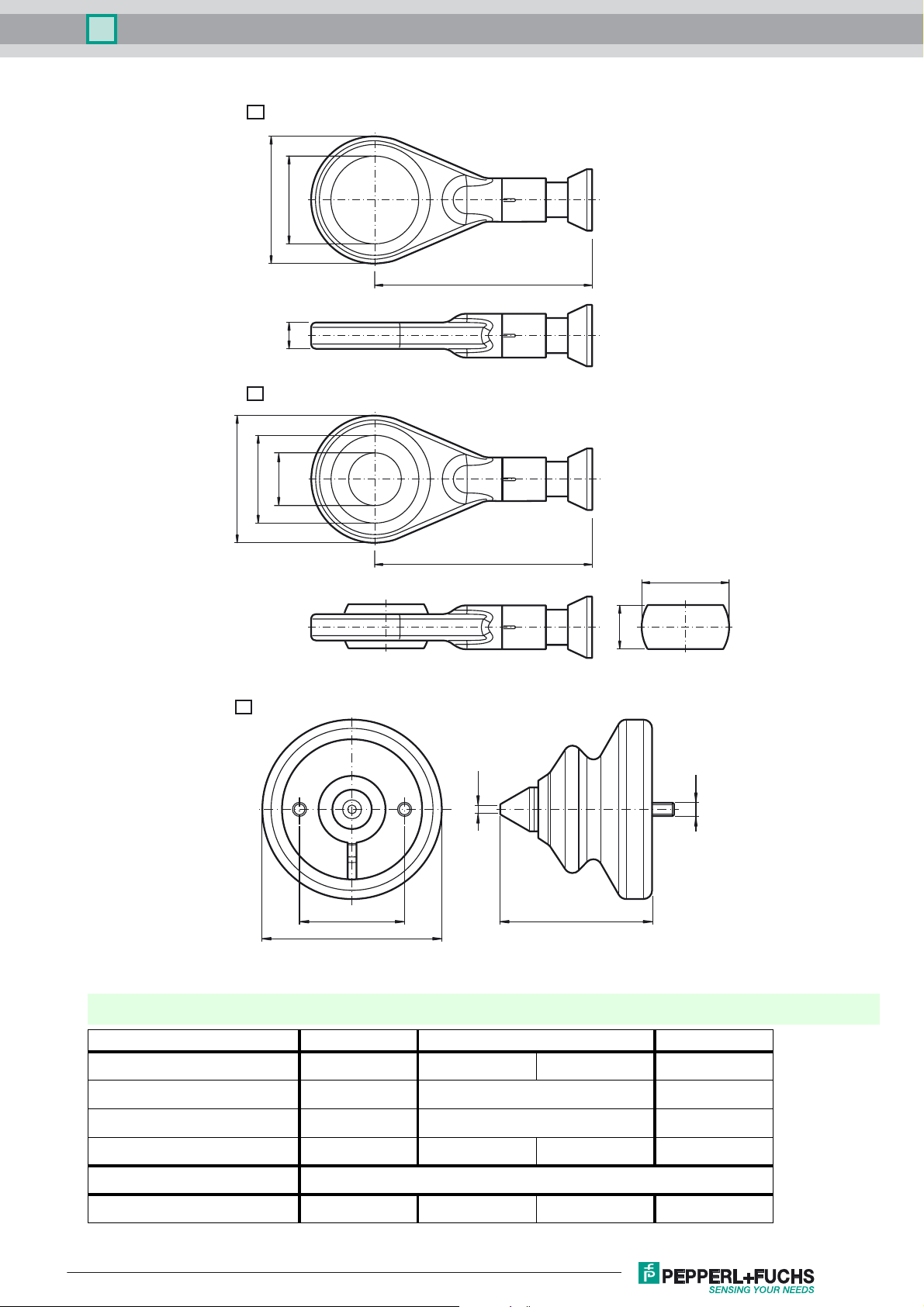

Cable pull ECN20IL-*

A

ø 20

ø 29

~ 50

6

C

ø 29

1

ø 20

ø 12

24

ø 41

~ 50

ø 1.8

ø 20

10

M3

34.7

Variable Data and Dimensions

Technical Data Design 55 Design 80 Design 130

Measuring length (in m) 1.25 02 03 05

Drum size (incl. cable) (in mm) 125 200 333.3

Spring retraction force (in N) 4-6 5-15 15-20

Weight (in kg) 0.5 1 1.1 2

Dimensions (in mm)

A 32354559

Release date: 2016-06-09 10:12 Date of issue: 2016-06-09 t174841_eng.xml

Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.

www.pepperl-fuchs.com [e-mail] [e-mail]

USA: [phone] Singapore: [phone]

Germany: [phone]Pepperl+Fuchs Group

[e-mail]

3

Cable pull ECN20IL-*

B 47586886

C 55 80 130

D 465080

E 19.5 31 52

F 85 110 112

Flange dimensions for adapting rotary encoders

Design 55 80 130 80 130 80 130

Flange type Clamping flange Servo flange Clamping flange

Designation X5 X1 X3 X2

H (= flange Ø) (in mm) 20 50 33 36

Clamping circuit Ø (in mm) 30 42 26 48

I (= shaft Ø) (in mm) 6 6 6 10

Wavelength (in mm) 15 10 11.5 20

Dimensions (in mm)

Length L 31 20 24 22 36.8 34.8

Depth D 23 3.8 3.8 3.8 10 10

Model Number

ECN2 0 I L - 1 -

Flange type

Servo flange Ø 50 mm/42 mm/3 x M4; shaft Ø 6 mm x

X1

10 mm

Clamping flange Ø 36/48 mm/3 x M4; shaft; Ø 10 mm x

X2

20 mm

Servo flange Ø 33 mm/26 mm/4 x M3; shaft Ø 6 mm

X3

x 11.5 mm

Clamping flange Ø 20 mm/30 mm/3 x M3; shaft Ø

X5

6x15 mm (only with length of measing cable A1)

Material

A STD anodized aluminum

H Aluminum, Hart Coat coating

Cable mounts

A Ring PE carrier

C Ball joint

Length of measuring cable

A1 1.25 m (only with flange type X5)

02 2 m

03 3 m

05 5 m

Release date: 2016-06-09 10:12 Date of issue: 2016-06-09 t174841_eng.xml
