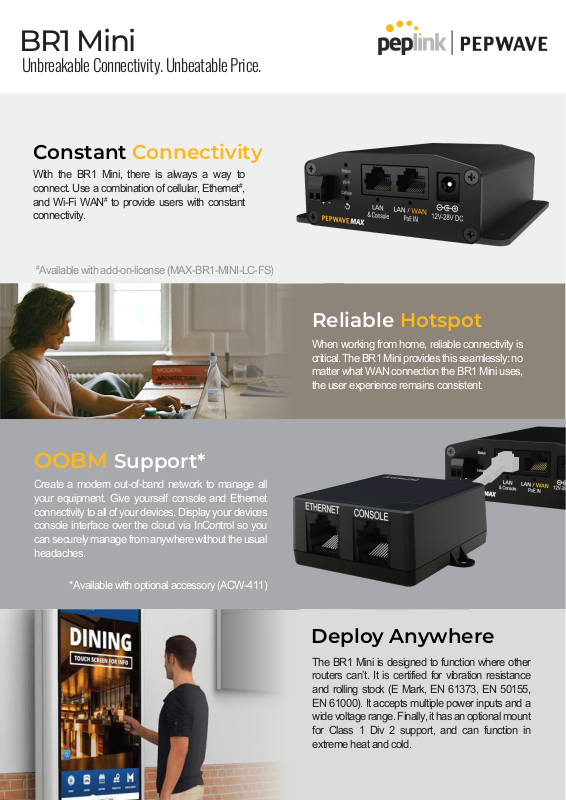

BR1 Mini
Unbreakable Connectivity. Unbeatable Price.
Constant Connectivity
With the BR1 Mini, there is always a way to
#
connect. Use a combination of cellular, Ethernet
#
and Wi-Fi WAN
connectivity.
#
Available with add-on-license (MAX-BR1-MINI-LC-FS)
to provide users with constant
,
OOBM Support*
Create a modern out-of-band network to manage all
your equipment. Give yourself console and Ethernet
connectivity to all of your devices. Display your devices
console interface over the cloud via InControl so you
can securely manage from anywhere without the usual
headaches.
*Available with optional accessory (ACW-411)
Reliable Hotspot
When working from home, reliable connectivity is
critical. The BR1 Mini provides this seamlessly: no
matter what WAN connection the BR1 Mini uses,
the user experience remains consistent.
Deploy Anywhere
The BR1 Mini is designed to function where other
routers can’t. It is certified for vibration resistance
and rolling stock (E Mark, EN 61373, EN 50155,
EN 61000). It accepts multiple power inputs and a
wide voltage range. Finally, it has an optional mount
for Class 1 Div 2 support, and can function in
extreme heat and cold.
Specifications
WAN Interface
MAX BR1 Mini
1x 10/100M Ethernet Port
#
1x Embedded LTE Modem with Redundant SIM Slot
LAN Interface
Wi-Fi Interface
Drop-in Mode
Number of PepVPN SpeedFusion Peers
Router Throughput
Number of IPsec Tunnels
Recommended Users
Downlink/Uplink Datarate
Cellular and GPS
Antenna Connector
Power Input
DC Jack/Terminal Block: 12V – 28V DC
Passive PoE Input (WAN Port, 12V – 28V DC)
Power Consumption
Dimensions
Weight
1x 10/100M Ethernet Port
802.11b/g/n Wi-Fi WAN
#
or AP
2/5 *
100 Mbps
5
60
150Mbps/50Mbps (CAT 4)
300Mbps/50Mbps (CAT 6)
2x SMA Antenna Connectors
1x SMA GPS Antenna Connector
1x Wi-Fi Connector
12W (max.)
4.1 x 4.3 x 1.2 inches
105 x 110 x 30 mm
0.54 pound, 244 grams
-40° – 149°F, -40° – 65°COperating Temperature
Power
Terminal Block
4.1 inches
105 mm
10/100M
Ethernet LAN
Reset
Button
SMA Cellular
Antenna Connectors
1.2 inches
30 mm
4.3 inches
110 mm
10/100M Ethernet LAN
(usable as WAN)
12V – 28V
DC Jack
Humidity
EN 61373: Shock and Vibration Resistance,
Certifications
Electronic Equipment used on Rolling Stock,
EN 61000: Electromagnetic Compatibility
Warranty
Package Content
12V2A Power Supply, 1x GPS Antenna
1x WiFi Antenna, 2x 2dBi 4G LTE Antennas
Ordering Information
Product Code
MAX-BR1-MINI-LTE-US-T
MAX-BR1-MINI-LTE-E-T
LTE
MAX-BR1-MINI-LTE-MX-T
MAX-BR1-MINI-LTEA-W-T
LTEA
MAX-BR1-MINI-LTEA-P-T
Carrier/Region
United States
Europe/International
Latin America/Australia
Americas/EMEA
Asia Pacific
15% – 95% (non-condensing)
FCC, CE, IC, RoHS, E-Mark,
EN 50155: Railway Applications -
1-Year Limited Warranty
MAX BR1 MINI,
Embedded
Modem
1
1
1
1
1
Standard
CAT 4
CAT 4
CAT 4
CAT 6
CAT 6
#
Available with add-on-license MAX-BR1-MINI-LC-FS
* 2 PepVPN Peers are enabled by default. Can be
increased to 5 Peers using license PVN-LC-05.
LTE Bands
B2, B4, B5, B12, B13
B1, B3, B5, B7, B8, B20,
B38 (TDD), B40(TDD), B41 (TDD)
B1, B2, B3, B5, B7, B8, B28, B40
B1, B2, B3, B4, B5, B7, B8 , B12,
B13, B20, B25, B26, B29, B30, B41
B1, B3, B5, B7, B8, B18, B19, B21,
B28, B38, B39, B40, B41
3G Bands
HSPA+: B2, B5
WCDMA/HSPA+/DC-HSPA+: B1, B5, B8
WCDMA/HSPA+/DC-HSPA+: B1, B2, B5, B8
2500WCDMA/HSPA+/DC-HSPA+:
B1, B2, B3, B4, B5, B8
WCDMA/HSPA+/DC-HSPA+:
B1, B5, B6, B8, B9, B19
TD-SCDMA: B39
Add-On License / Accessories
DescriptionProduct Code
MAX-BR1-MINI-LC-FS
ACW-749 Class 1 Division 2 Mounting Kit for BR1 Mini
Failover software license and related feature set for BR1-MINI, enables Ethernet and Wi-Fi WAN
Software license key. Enables up to 5 PepVPN peersPVN-LC-05
PoE injector for delivering passive PoE power to the BR1 MiniACW-102
Serial Console Port Adapter for BR1 Mini seriesACW-411
www.peplink.com
©Peplink. All rights reserved.
Ref no.: max-br1-mini-202103-v21
