Page 1
Ceiling Mount
1
Installation recommendation
3
2
4
AP One AX

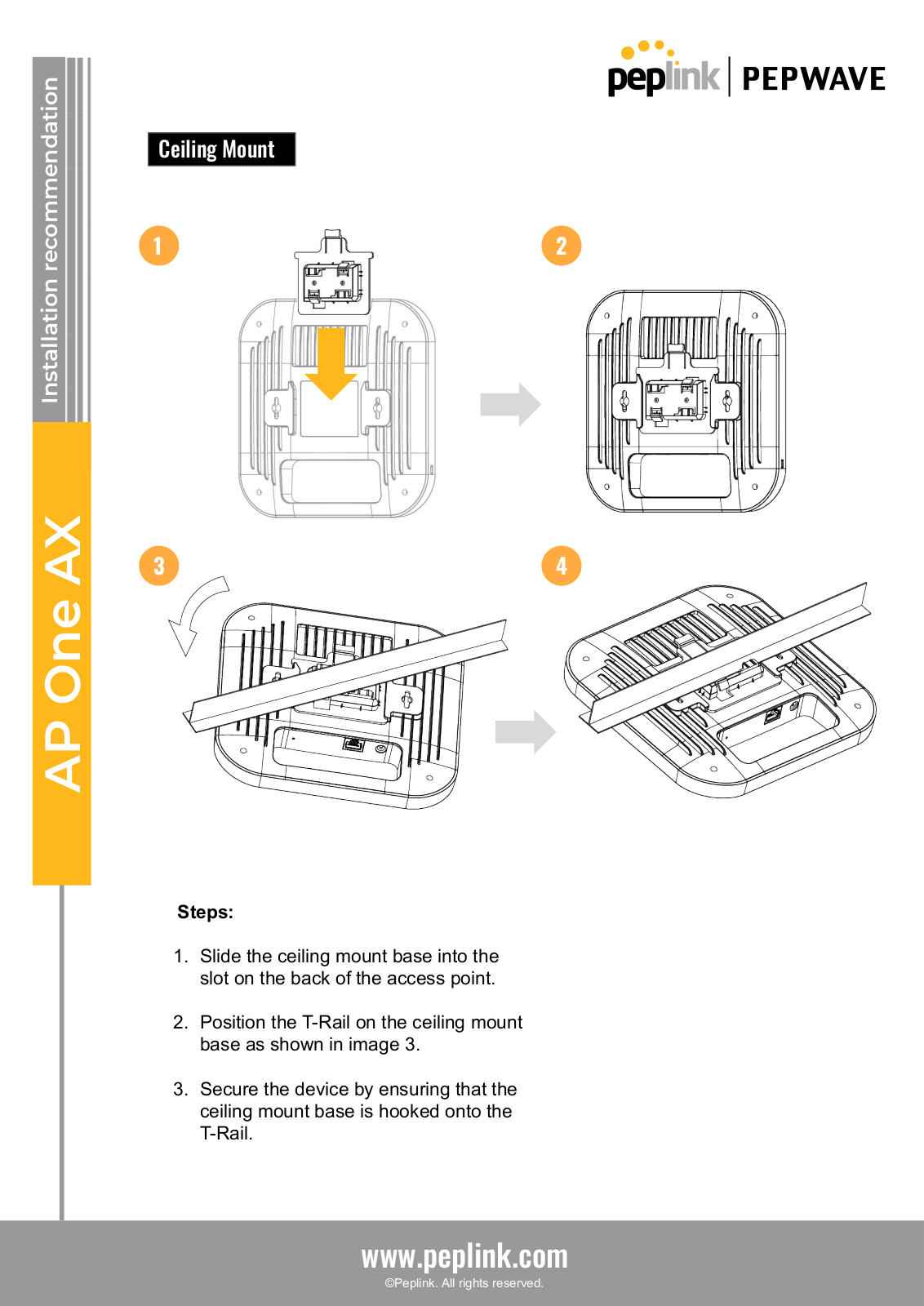

Steps:
1. Slide the ceiling mount base into the
slot on the back of the access point.
2. Position the T-Rail on the ceiling mount
base as shown in image 3.
3. Secure the device by ensuring that the
ceiling mount base is hooked onto the
T-Rail.
www.peplink.com
©Peplink. All rights reserved.
Page 2
Wall Mount
1
Installation recommendation

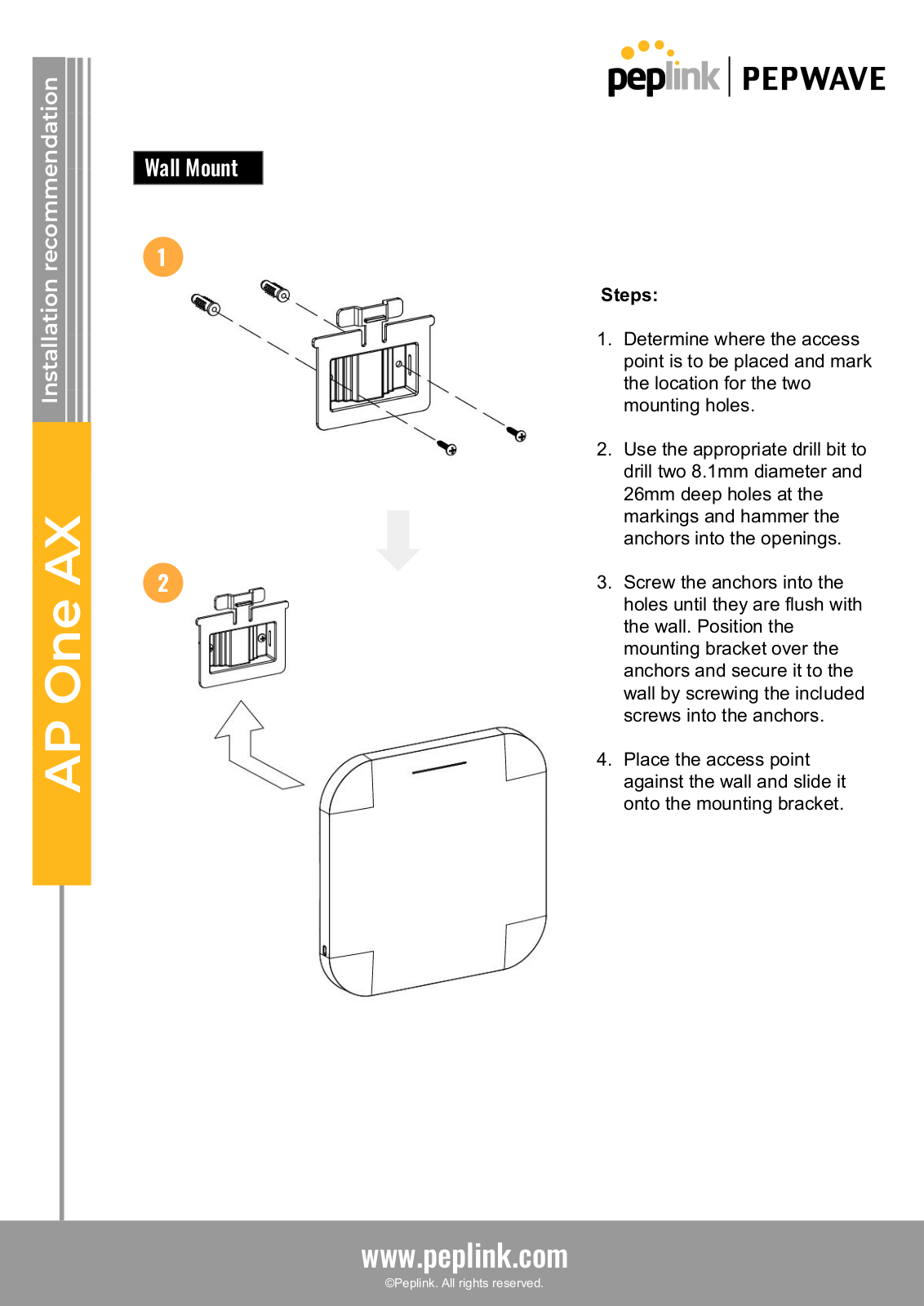

Steps:
1. Determine where the access
point is to be placed and mark
the location for the two
mounting holes.
2. Use the appropriate drill bit to
drill two 8.1mm diameter and
26mm deep holes at the
markings and hammer the
anchors into the openings.
AP One AX
2
3. Screw the anchors into the
holes until they are flush with
the wall. Position the
mounting bracket over the
anchors and secure it to the
wall by screwing the included
screws into the anchors.
4. Place the access point
against the wall and slide it
onto the mounting bracket.
www.peplink.com
©Peplink. All rights reserved.
