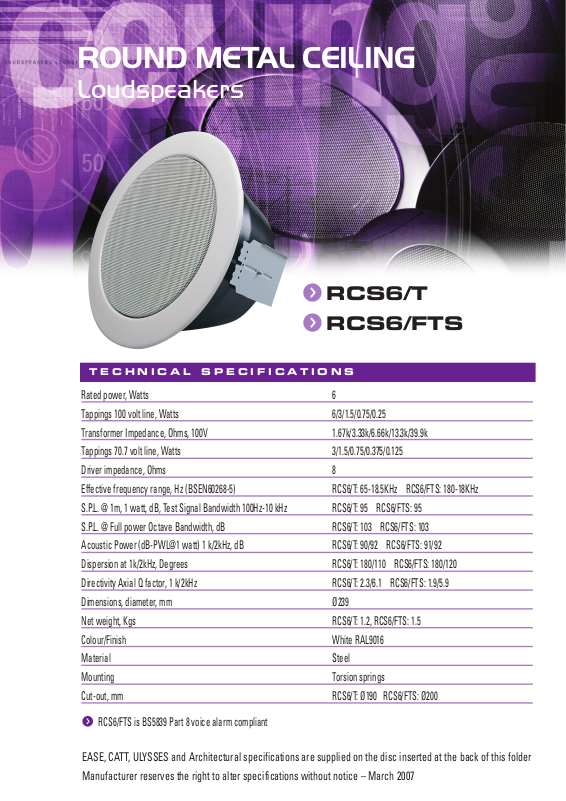

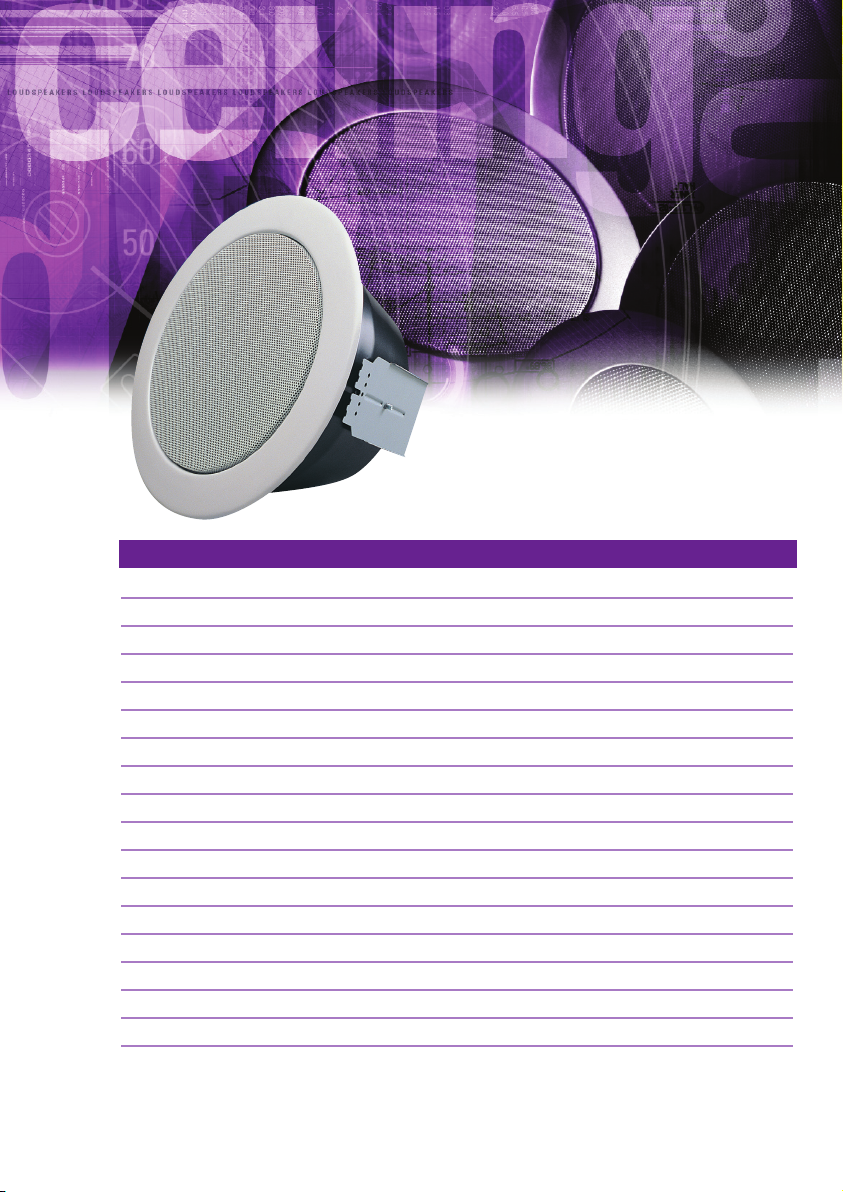

ROUND METAL CEILING
Loudspeakers
Rated power, Watts 6
Tappings 100 volt line, Watts 6/3/1.5/0.75/0.25
Transformer Impedance, Ohms, 100V 1.67k/3.33k/6.66k/13.3k/39.9k
Tappings 70.7 volt line, Watts 3/1.5/0.75/0.375/0.125
Driver impedance, Ohms 8
Effective frequency range, Hz (BSEN60268-5) RCS6/T: 65-18.5KHz RCS6/FTS: 180-18KHz
S.P.L. @ 1m, 1 watt, dB, Test Signal Bandwidth 100Hz-10 kHz RCS6/T: 95 RCS6/FTS: 95
S.P.L. @ Full power Octave Bandwidth, dB RCS6/T: 103 RCS6/FTS: 103
Acoustic Power (dB-PWL@1 watt) 1 k/2kHz, dB RCS6/T: 90/92 RCS6/FTS: 91/92
Dispersion at 1k/2kHz, Degrees RCS6/T: 180/110 RCS6/FTS: 180/120
Directivity Axial Q factor, 1 k/2kHz RCS6/T: 2.3/6.1 RCS6/FTS: 1.9/5.9
Dimensions, diameter, mm Ø239
Net weight, Kgs RCS6/T: 1.2, RCS6/FTS: 1.5
Colour/Finish White RAL9016
Material Steel
Mounting Torsion springs
Cut-out, mm RCS6/T: Ø190 RCS6/FTS: Ø200
f
RCS6/FTS is BS5839 Part 8 voice alarm compliant
EASE, CATT, ULYSSES and Architectural specifications are supplied on the disc inserted at the back of this folder
Manufacturer reserves the right to alter specifications without notice – March 2007
TECHNICAL SPECIFICATIONS
f
RCS6/T
f
RCS6/FTS
Page 2
Penton UK Ltd
Unit 2 Teville Industrials | Dominion Way | Worthing | West Sussex | BN14 8NW
www.penton.org
f
RCS6/T
f
RCS6/FTS

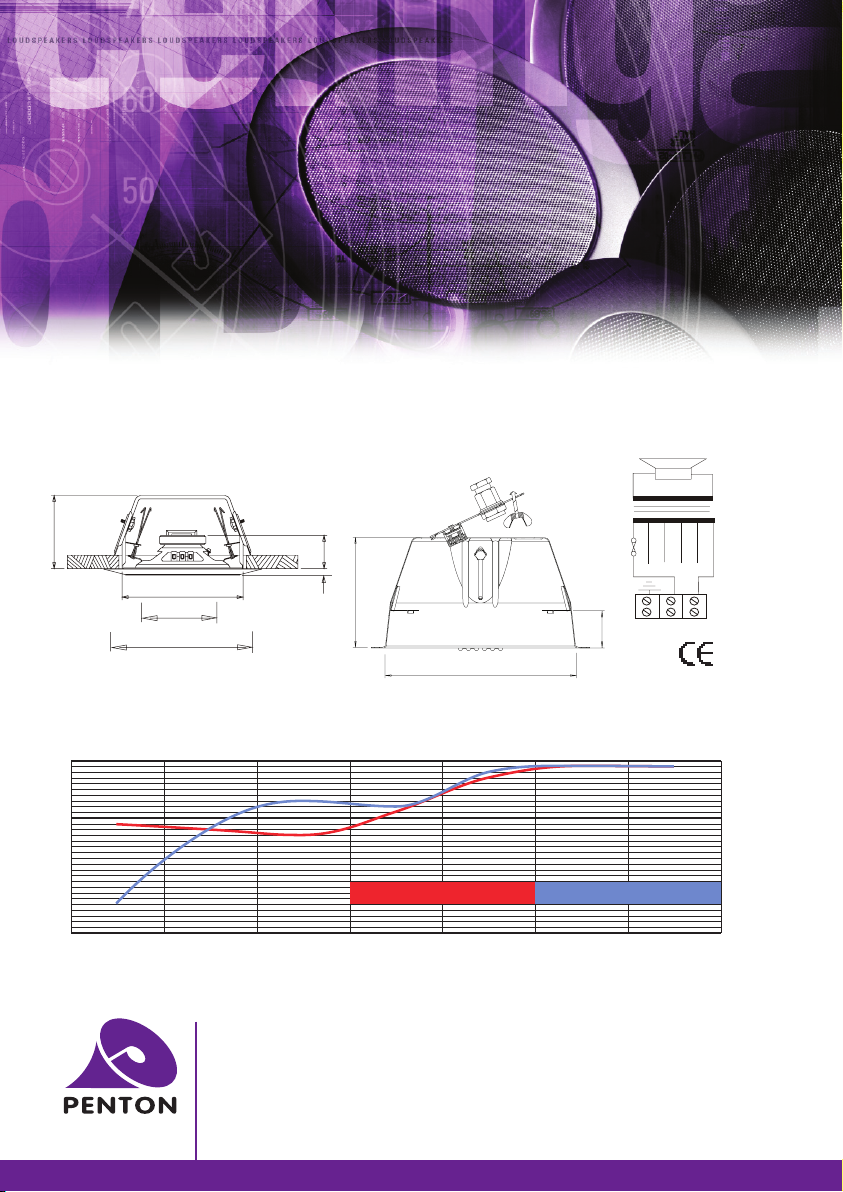

ROUND METAL CEILING LOUDSPEAKERS
125 250 500 1k 2k 4k 8k
70
75
80
85
90
95
100
Effective Frequency Range
speech octave band sensitivity
sensitivity (1W, 1m) dB
Frequency Hz
Average SPL 95dB Average SPL 95dB
f
RCS6/T 65Hz - 18.5KHz
f
RCS6/FTS 180Hz - 18KHz
r
RCS6/T
side view
unit: mm
r
circuit
diagram
RCS6/FTS
100V
CO MMON
6W
3W
1.5W
0.75W
0.25W
110
50
Ø
190 (cutout)
10
Ø
175
( Grille )
Ø 239
37
1
1
0
Ø200 (cut out)
r
RCS6/FTS
side view
(gland not supplied)
unit: mm
