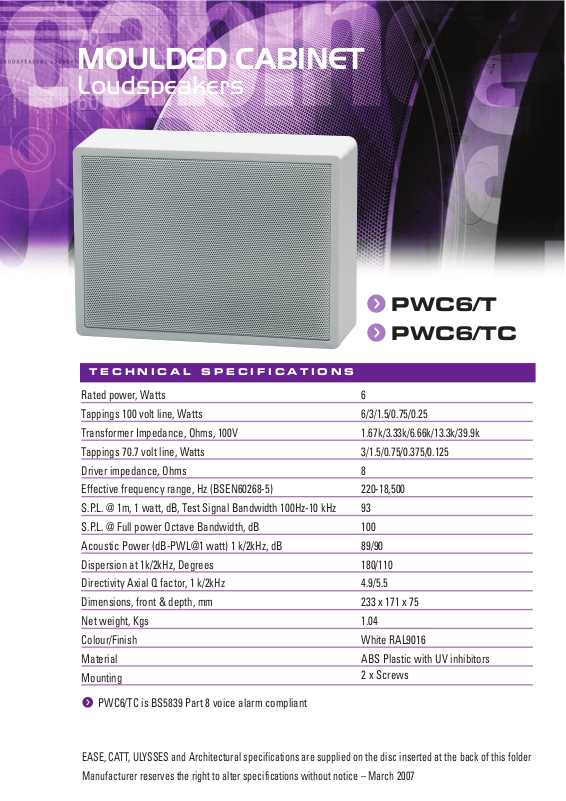

Page 1

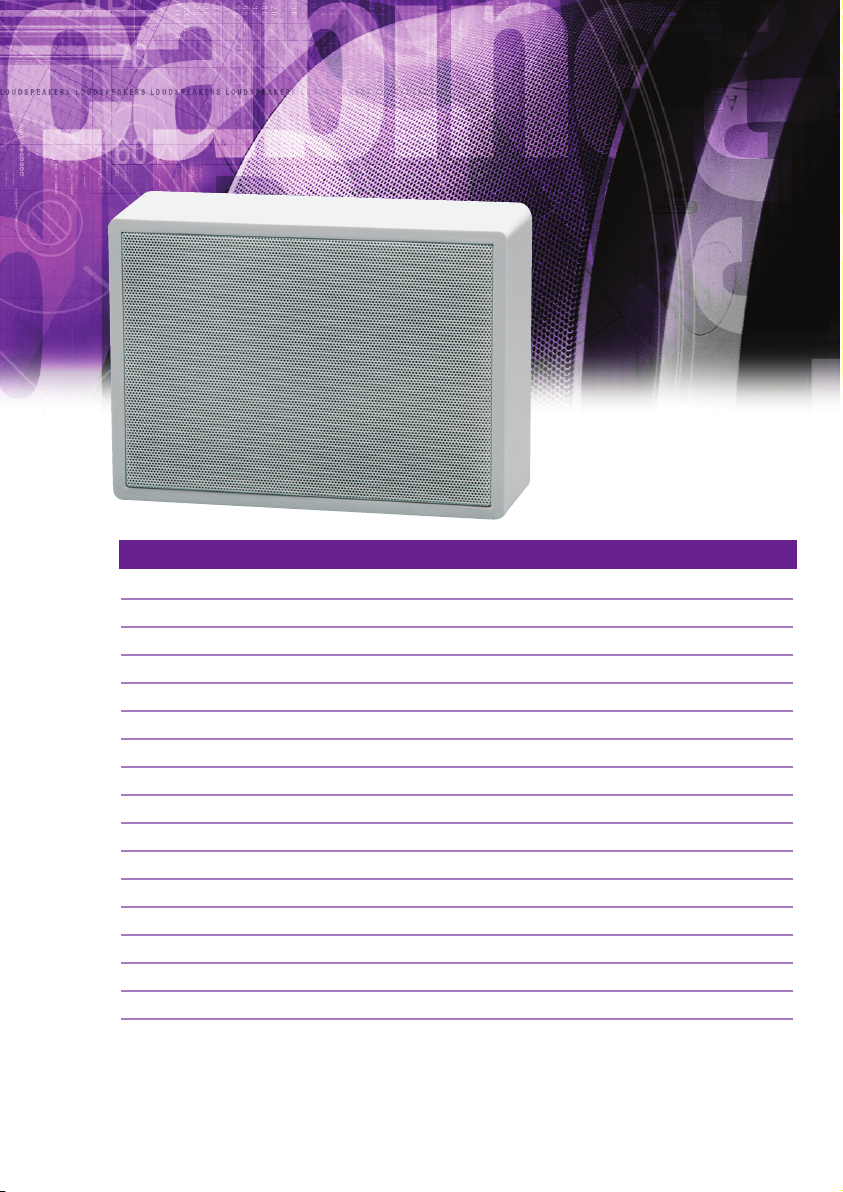

MOULDED CABINET
Loudspeakers
Rated power, Watts 6
Tappings 100 volt line, Watts 6/3/1.5/0.75/0.25
Transformer Impedance, Ohms, 100V 1.67k/3.33k/6.66k/13.3k/39.9k
Tappings 70.7 volt line, Watts 3/1.5/0.75/0.375/0.125
Driver impedance, Ohms 8
Effective frequency range, Hz (BSEN60268-5) 220-18,500
S.P.L. @ 1m, 1 watt, dB, Test Signal Bandwidth 100Hz-10 kHz 93
S.P.L. @ Full power Octave Bandwidth, dB 100
Acoustic Power (dB-PWL@1 watt) 1 k/2kHz, dB 89/90
Dispersion at 1k/2kHz, Degrees 180/110
Directivity Axial Q factor, 1 k/2kHz 4.9/5.5
Dimensions, front & depth, mm 233 x 171 x 75
Net weight, Kgs 1.04
Colour/Finish White RAL9016
Material ABS Plastic with UV inhibitors
Mounting
2 x Screws
f
PWC6/TC is BS5839 Part 8 voice alarm compliant
EASE, CATT, ULYSSES and Architectural specifications are supplied on the disc inserted at the back of this folder
Manufacturer reserves the right to alter specifications without notice – March 2007
TECHNICAL SPECIFICATIONS
f
PWC6/T
f
PWC6/TC
Page 2
PWC6/T
f
PWC6/TC
f

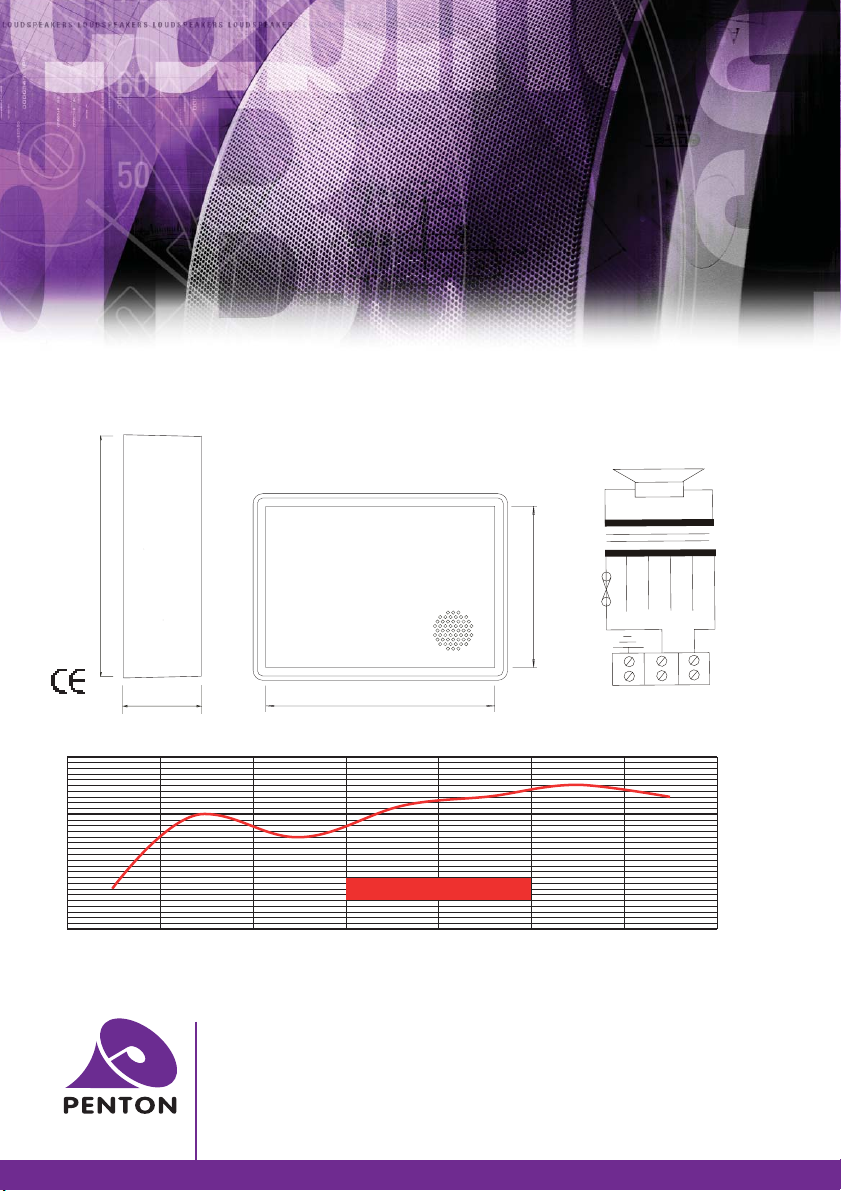

MOULDED CABINET LOUDSPEAKERS
side view
r
r
unit: mm
233
speech octave band sensitivity
100
95
90
85
80
75
sensitivity (1W, 1m) dB
70
125 250 500 1k 2k 4k 8k
Effective Frequency Range
225
75
front view
unit: mm
209
Average SPL 93dB
Frequency Hz
PWC6/T PWC6/TC 220Hz - 18,500Hz
f
147
circuit
r
diagram
PWC6/TC
W
W
5
5
7
2
.
.
0
0
THERMAL FUSE
100V COMMON
W
W
W
5
3
6
.
1
Penton UK Ltd
Unit 2 Teville Industrials | Dominion Way | Worthing | West Sussex | BN14 8NW
T: +44 (0)1903 215315 | F: +44(0)1903 215415 | E: [email protected]
www.pentonuk.co.uk
