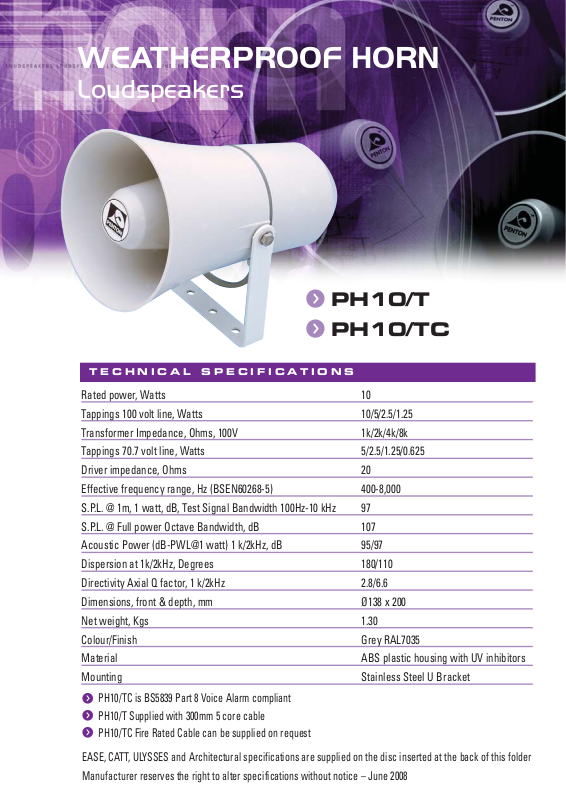

Page 1

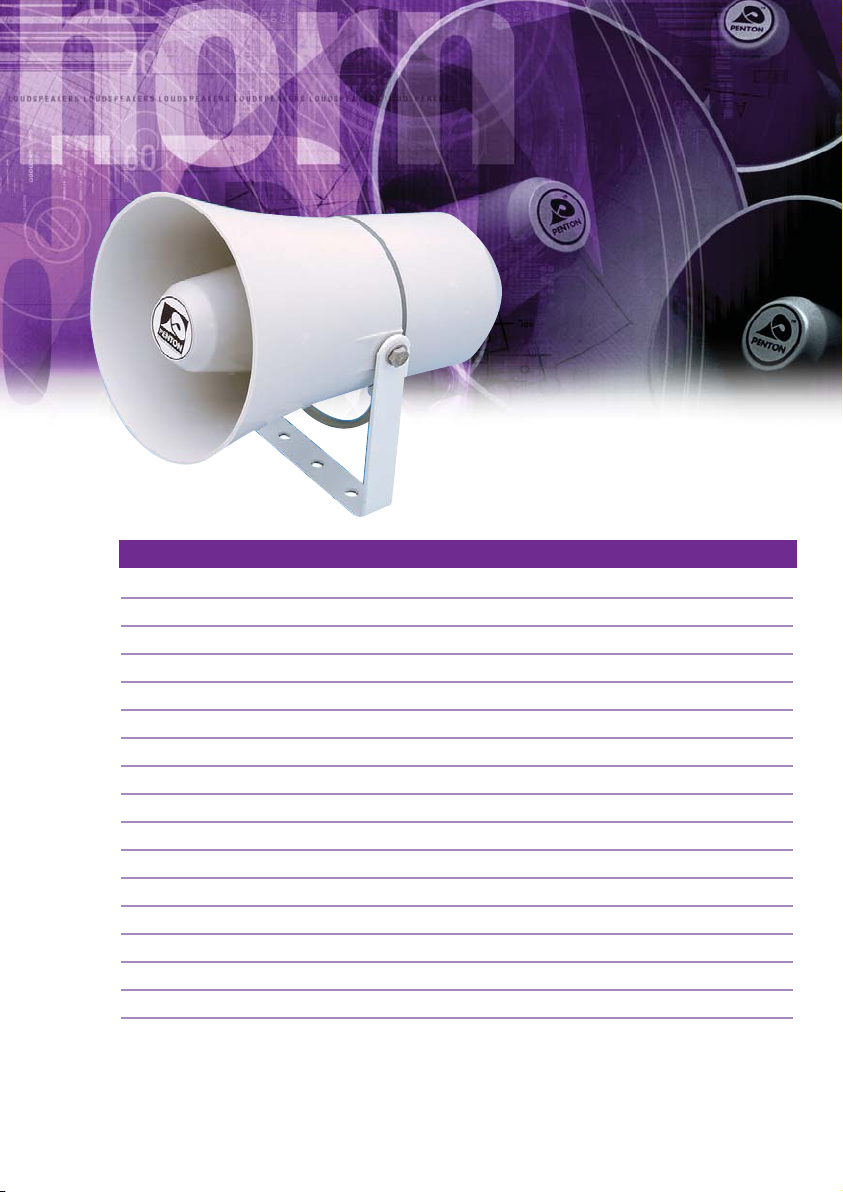

WEATHERPROOF HORN
Loudspeakers
Rated power, Watts 10
Tappings 100 volt line, Watts 10/5/2.5/1.25
Transformer Impedance, Ohms, 100V 1k/2k/4k/8k
Tappings 70.7 volt line, Watts 5/2.5/1.25/0.625
Driver impedance, Ohms 20
Effective frequency range, Hz (BSEN60268-5) 400-8,000
S.P.L. @ 1m, 1 watt, dB, Test Signal Bandwidth 100Hz-10 kHz 97
S.P.L. @ Full power Octave Bandwidth, dB 107
Acoustic Power (dB-PWL@1 watt) 1 k/2kHz, dB 95/97
Dispersion at 1k/2kHz, Degrees 180/110
Directivity Axial Q factor, 1 k/2kHz 2.8/6.6
Dimensions, front & depth, mm Ø138 x 200
Net weight, Kgs 1.30
Colour/Finish Grey RAL7035
Material ABS plastic housing with UV inhibitors
Mounting Stainless Steel U Bracket
f
PH10/TC is BS5839 Part 8 Voice Alarm compliant
f
PH10/T Supplied with 300mm 5 core cable
f
PH10/TC Fire Rated Cable can be supplied on request
EASE, CATT, ULYSSES and Architectural specifications are supplied on the disc inserted at the back of this folder
Manufacturer reserves the right to alter specifications without notice – June 2008
TECHNICAL SPECIFICATIONS
f
PH10/T
f
PH10/TC
Page 2
PH10/T
f
PH10/TC
f

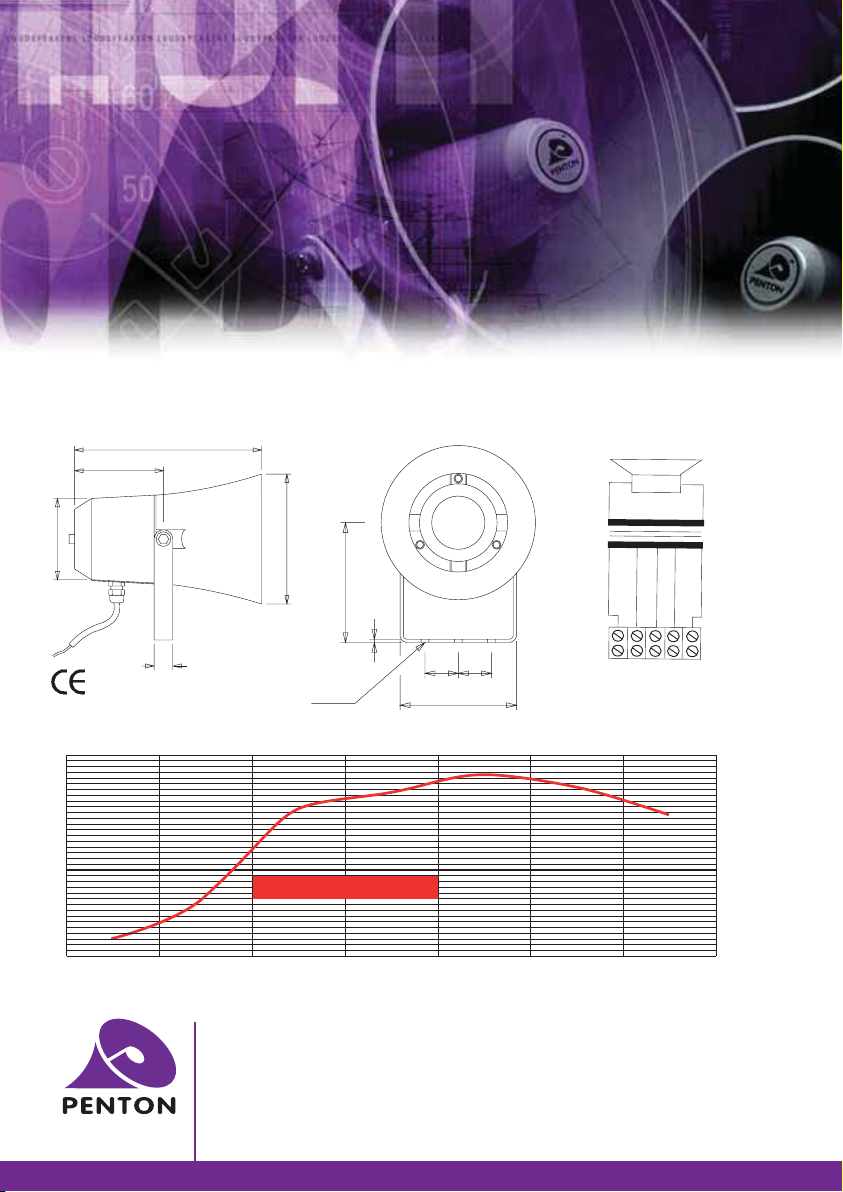

WEATHERPROOF HORN LOUDSPEAKERS
side view
r
unit: mm
200
95
87
Ø
1 x PG9
Gland
20
speech octave band sensitivity
110
100
90
80
70
60
sensitivity (1W, 1m) dB
50
40
125 250 500 1k 2k 4k 8k
Effective Frequency Range
Average SPL 97dB
138
Ø
front view
r
unit: mm
108
2.5
30 30
7
Ø
3x
Frequency Hz
PH10/T PH10/TC 400Hz - 8,000Hz
f
105
circuit
r
diagram
PH10/T
W
5
.2
1
100V COMMON
W
2.5
W
0
5W
1
Penton UK Ltd
Unit 2 Teville Industrials | Dominion Way | Worthing | West Sussex | BN14 8NW
www.pentonuk.co.uk
