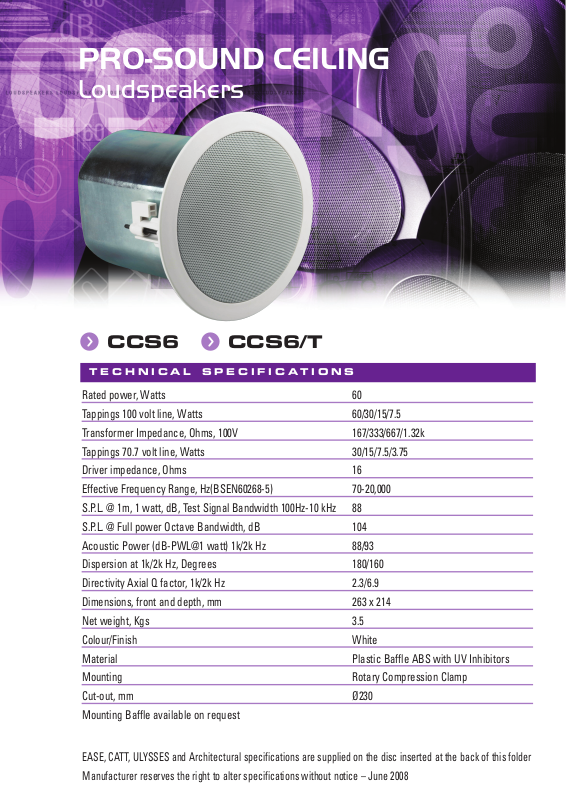

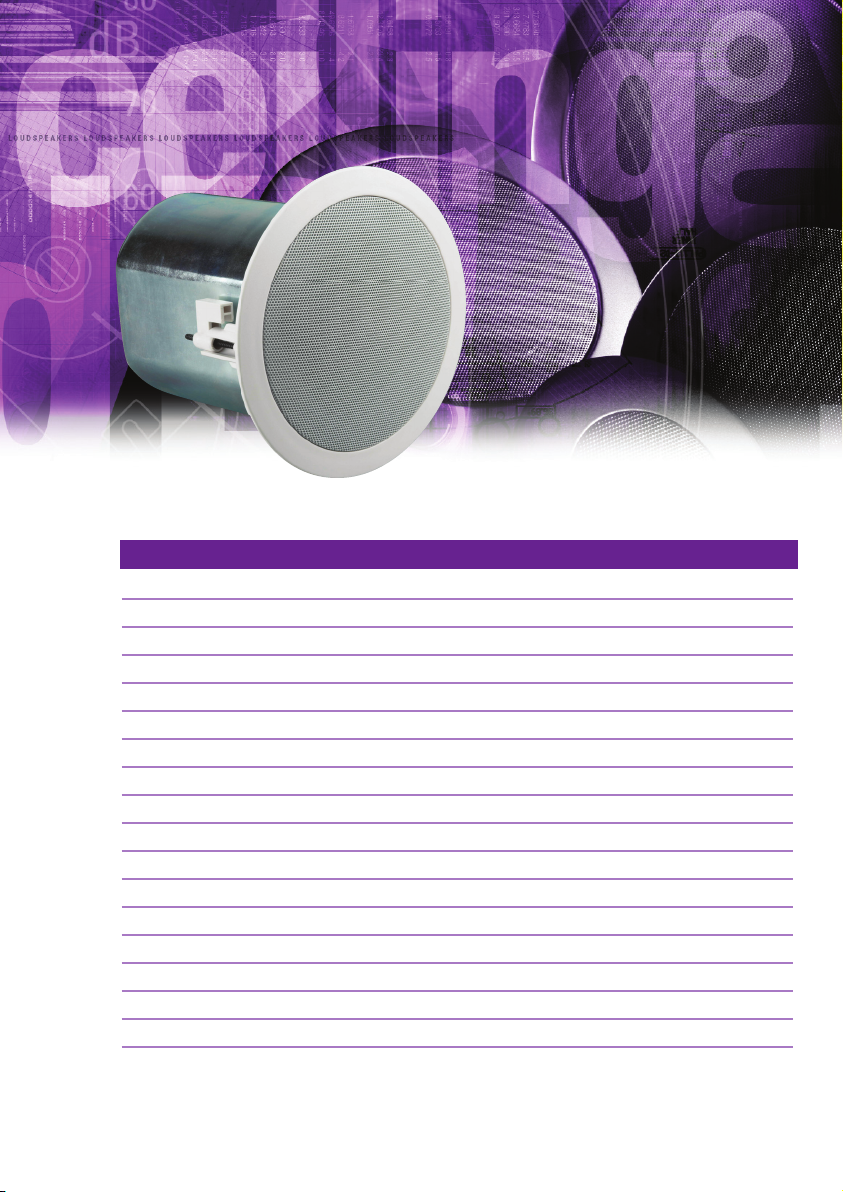

PRO-SOUND CEILING
Loudspeakers
CCS6
f
TECHNICAL SPECIFICATIONS
Rated power, Watts 60
Tappings 100 volt line, Watts 60/30/15/7.5
Transformer Impedance, Ohms, 100V 167/333/667/1.32k
Tappings 70.7 volt line, Watts 30/15/7.5/3.75
Driver impedance, Ohms 16
Effective Frequency Range, Hz(BSEN60268-5) 70-20,000
S.P.L. @ 1m, 1 watt, dB, Test Signal Bandwidth 100Hz-10 kHz 88
S.P.L. @ Full power Octave Bandwidth, dB 104
Acoustic Power (dB-PWL@1 watt) 1k/2k Hz 88/93
Dispersion at 1k/2k Hz, Degrees 180/160
Directivity Axial Q factor, 1k/2k Hz 2.3/6.9
Dimensions, front and depth, mm 263 x 214
Net weight, Kgs 3.5
Colour/Finish White
Material Plastic Baffle ABS with UV Inhibitors
Mounting Rotary Compression Clamp
Cut-out, mm Ø230
Mounting Baffle available on request
CCS6/T
f
EASE, CATT, ULYSSES and Architectural specifications are supplied on the disc inserted at the back of this folder
Manufacturer reserves the right to alter specifications without notice – June 2008
Page 2
CCS6
f
CCS6/T
f

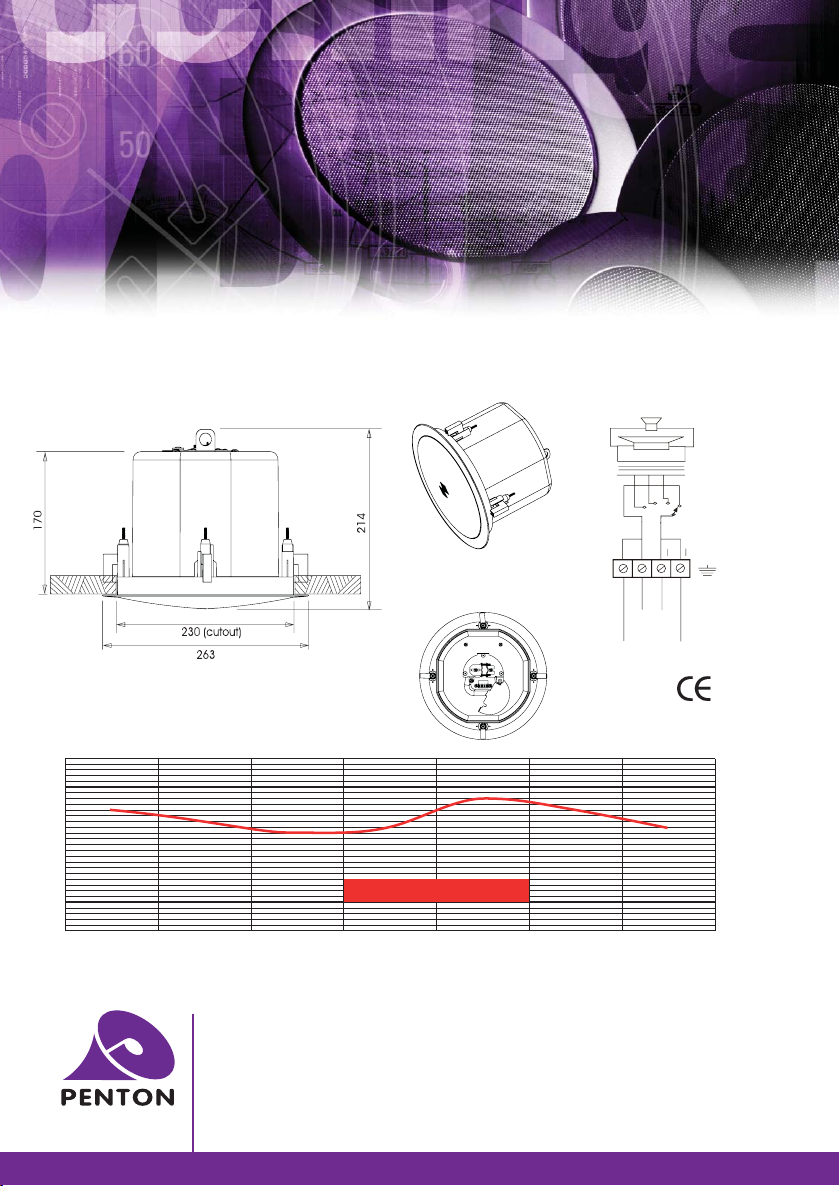

PRO-SOUND CEILING LOUDSPEAKERS
CCS6/T
r
side view
unit: mm
speech octave band sensitivity
100
95
90
85
80
75
sensitivity (1W, 1m) dB
70
125 250 500 1k 2k 4k 8k
Effective Frequency Range
CCS6/T
r
isogonal
view
CCS6/T
r
rear view
Average SPL 88dB
Frequency Hz
CCS6/T 70Hz - 20KHz
f
circuit
r
diagram
CCS6/T
30W30W
15W15W
7.5W7.5W
COMMONCOMMON
+
+
3
1
2
<
<
)
)
>
IN
<
)
)
>
OUT(Loop)
60W60W
E
4
<
