Page 1

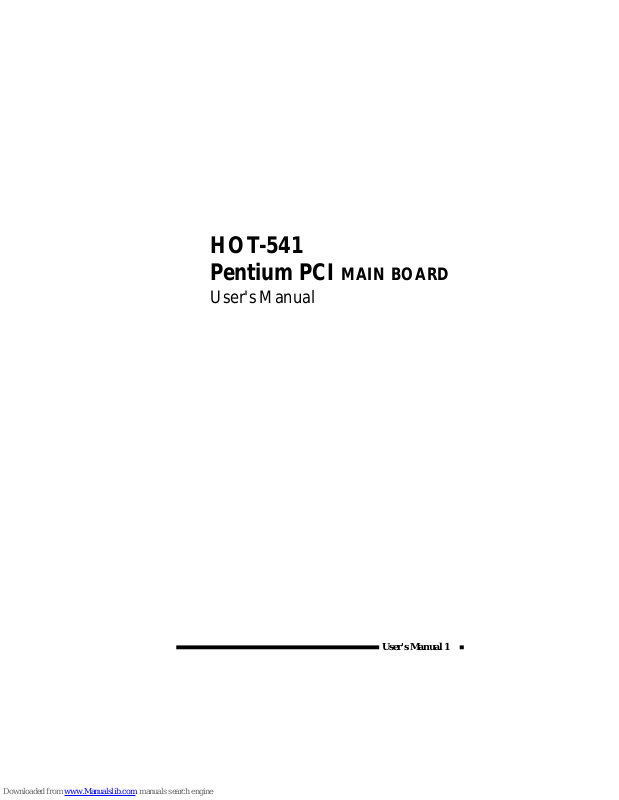

User's Manual 1
HOT-541
Pentium PCI MAIN BOARD
User's Manual
Page 2
2 User's Manual
NOTICE
Copyright 1995.
All Right Reserved
Manual Ver 2.0 ( for 541V2.0, 2.1, 2.2)
All information, documentation, and specifications contained in this manual are subject to change
without prior notification by the manufacturer.
The author assumes no responsibility for any errors or omissions which may appear in this docu-
ment nor does it make a commitment to update the information contained herein.
TRADEMARKS
Intel is a registered trademark of Intel Corporation
PC/AT is a registered trademark of International Business Machine Corporation.
OS/2 is a registered trademark of IBM Corporation.
All other brand and product names referred to in this manual are trademarks or registered trade-
marks of their respective holders.
Page 3
User's Manual 3
TABLE OF CONTENTS
PREFACE................................................................................... 5
CHAPTER 1 INTRODUCTION ........................................................ 6
Specification ............................................................................................6
541 Mainboard Description ...................................................................8
541 Mainboard Layout .........................................................................10
CHAPTER 2 JUMPER SETTING ....................................................11
System Clock Selection .........................................................................11
Pentium CPU Clock Multiplier .............................................................. 12
Onboard Regulator & VRM Selection ................................................... 13
Onboard Voltage Regulator Output Selection .....................................14
AT Bus Clock Selection .........................................................................15
Cache Type Selection ............................................................................16
Standard Type Cache Size Selection ....................................................18
Cache Voltage Selection ........................................................................19
I/O Port Setting & Parallel Port DREQ Selection ................................... 20
Flash EPROM Jumper ............................................................................21
Clear CMOS ........................................................................................... 22
Clear Password ......................................................................................22
Connectors ............................................................................................23
CHAPTER 3 MEMORY CONFIGURATION ......................................26
Memory Configuration Reference Table ...............................................27
Chapter 4 Power management ..............................................................28
Power Management Description ..........................................................28
EPMI Connector .................................................................................... 29
CHAPTER 5 AMI BIOS SETUP ...................................................30
BIOS Setup Feature ................................................................................ 31
Navigating with the keyboard in WinBIOS Setup.................................32
Standard Setup .......................................................................................34
Advanced Setup .................................................................................... 36

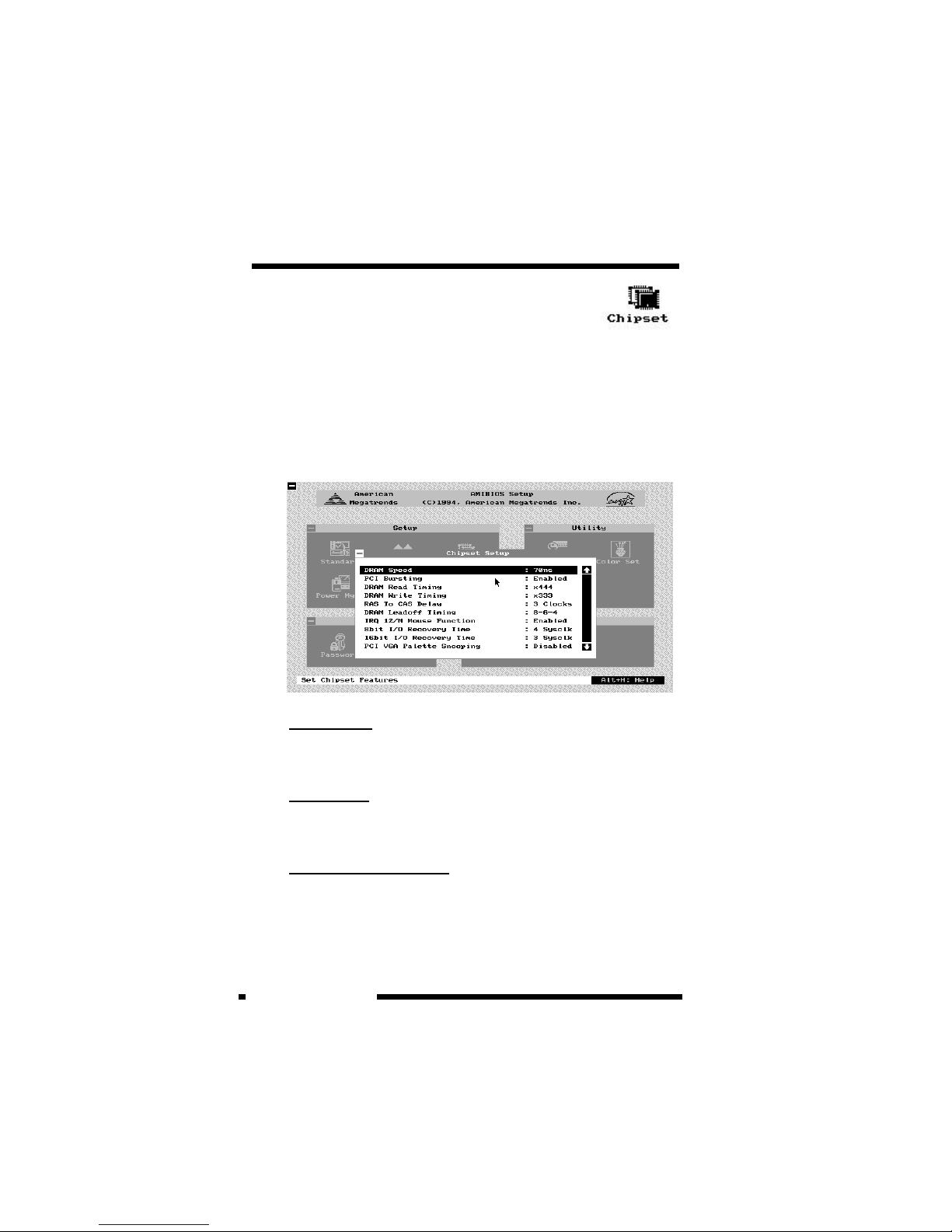

Chipset Setup ......................................................................................... 40

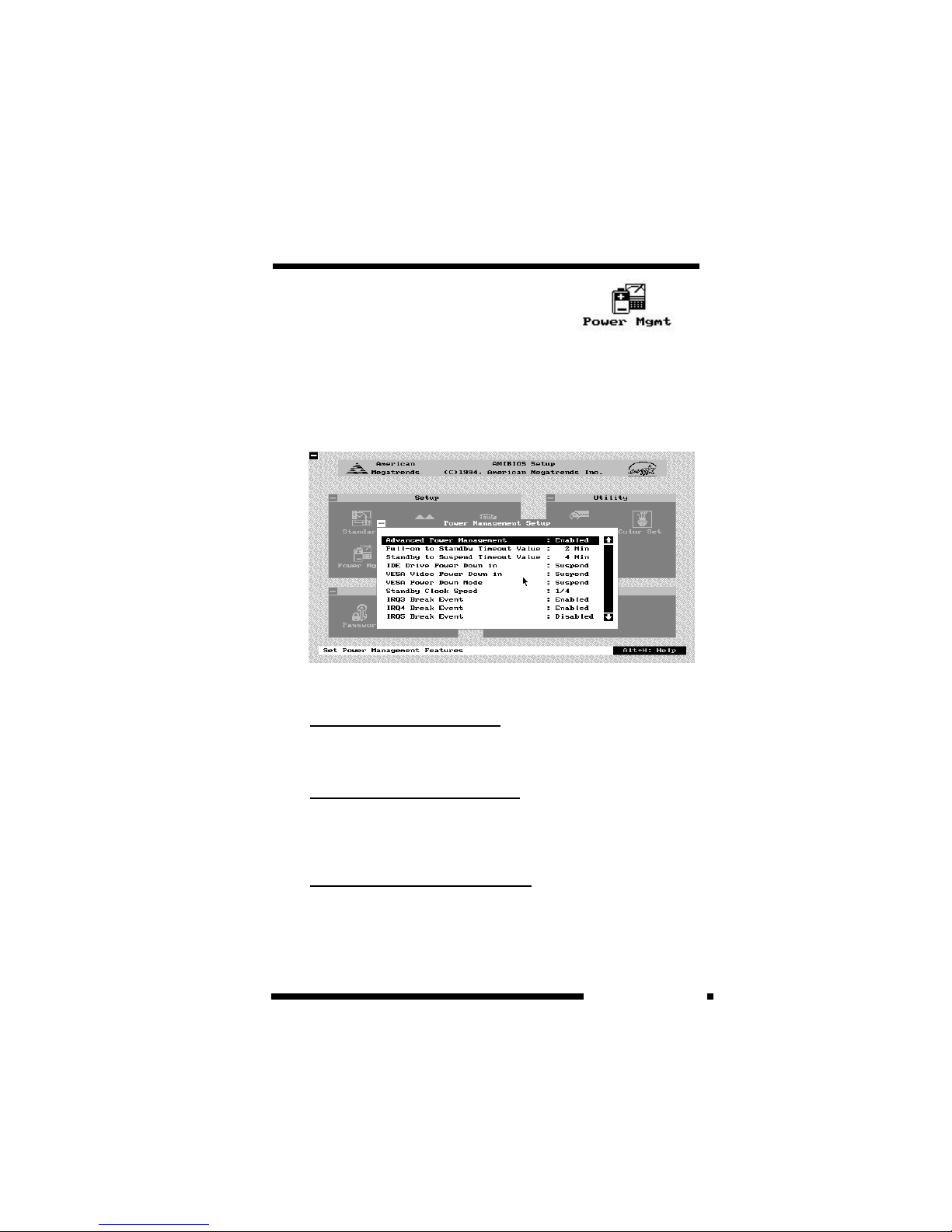

Power Management Setup ....................................................................43
Peripheral Setup .................................................................................... 45
WinBIOS Password Support ................................................................. 47
Page 4
4 User's Manual
CHAPTER 6 AWARD BIOS SETUP ..............................................49
Entering Setup ........................................................................................ 49
Using Control Keys ................................................................................50
The Main Menu .....................................................................................51
Standard CMOS Setup ..........................................................................53
BIOS Features Setup .............................................................................. 57
Chipset Features Setup ..........................................................................60
Power Management Setup .................................................................... 64
PCI Configuration Setup........................................................................ 67
Password Setting ....................................................................................69
IDE HDD Auto Detection ......................................................................70
APPENDIX A AMI BIOS REFERENCE .........................................73
APPENDIX B AWARD BIOS REFERENCE .....................................74
Page 5
User's Manual 5
HOT-541 mainboard is a highly integrated IBM PC/AT compatible system
board. The design will accept Pentium processors operating in 75MHz,
90MHz, 100MHz, 120MHz, and 133MHz, and also features high-performance asynchronous and pipelined burst secondary cache memory support
with size of 256KB and 512KB. The memory subsystem is designed to support up to 128 MB of EDO RAM or standard Fast Page DRAM in standard 72pin SIMM socket. A type 5 or type 7 Pentium CPU socket provides access to
future processor enhancements.
HOT-541 provides a new level of I/O integration. Intel's T-Chip 82430 PCISet
chip set provides increased integration and improved performance over other
chip set designs. The T-Chip chipset provides an integrated Bus Mastering
IDE controller with two high performance IDE interfaces for up to four IDE
devices.
The SMC Super I/O controller provides the standard PC I/O functions: floppy
interface, two FIFO serial ports, one SPP/EPP/ECP capable parallel port.
Up to four PCI local bus slots provide a high bandwidth data path for datamovement intensive functions such as graphics, and up to four ISA slots complete the I/O function.
The HOT-541 provides the foundation for cost effective, high performance,
highly expandable platforms, which deliver the latest in Pentium processor
and I/O standard
Preface
Page 6
6 User's Manual
Chapter1 Introduction
Specification
CPU Function
CPU clock: 75/90/100/120/133 MHz
Fully supports Intel's 3.3V Pentium processors
Optional VRM socket for Intel's future P55C processors
Chipset
Intel T-Chip PCISet 82437FX, 82438FX, and 82371FB
Memory
Supports two banks of EDO RAM and Fast Page DRAM
ranging from 8MB to 128MB
Supports 1M x 32 (4MB), 2M x 32 (8MB), 4M x 32(16MB),
and 8M x 32 (32MB) 72-pins SIMMs
Cache Memory
Integrated L2 write-back cache controller
- Pipelined Burst or standard SRAM
- 256KB or 512KB Direct Mapped
Power Management Function
Provides four power management modes : Full on,
Standby, and Suspend
Supports Microsoft APM
Provides EPMI (External Power Management Interrupt)
pin
Page 7
User's Manual 7
Expansions
32-bit PCI bus slot x 4
16-bit ISA bus slot x 4
2-channel PCI IDE port
- Support up to 4 IDE devices
- PIO Mode 4 transfers up to 16 MB/sec
- Integrated 8 x 32-bit buffer for PCI IDE burst transfers
One floppy port
One parallel port
- Supports SPP (PS/2 compatible bidirectional Parallel
Port), EPP (Extended Parallel Port), and ECP (Extended
Capabilities Port) high performance parallel port.
Two serial ports
- Supports 16C550 compatible UARTS.
One or two PS/2 mouse ports
Board Design
Dimension 22cm x 28cm
Page 8
8 User's Manual
541 Mainboard Description
4
5
6
8
9
10
The major components of
541 mainboard are illustrated and described right
and below. Please take a
minute to become familiar
with the board design.
1. Chipset ASIC
541 mainboard is designed
around a set of highly integrated Intel T-Chip PCISet,
which offers optimum performance on PCI and ISA
base system for a cache
controller, a local DRAM
controller, and an integrated Peripherals controller.
2. System Microprocessor
541 mainboard accept member of the 3.3V Pentium family and future
P55C high performance 64-bit microprocessors in PGA package. The
mainboard is designed to run at a clock speed from 50 to 66MHz on CPU
bus clock, and 75 to 133 MHz on CPU core clock.
3. Secondary Cache Architecture
541 maniboard support pipelined burst or standard SRAM on external
cache memory with size of 256KB or 512KB, and a Card Edge Low Profile
(CELP) socket provides flexibility for cache module options.
4. Memory Architecture
541 mainboard features four 72-pin SIMM (Single In-line Memory Module) sockets organized into two banks, which allow flexible memory configuration and expansion. It may use 4MB, 8MB, 16MB and 32MB EDO
or Fast Page SIMMs to expand memory from 8MB to 128MB.
11
1
1
1 1
3
3
3
2
7
Page 9
User's Manual 9
5. PCI Expansion Slots
541 mainboard provides four 32-bit PCI expansion slots, which may
accommodate many third-party expansion cards and increase flexibility
in designing custom platforms.
6. ISA Expansion Slots
541 mainboard provides four 16-bit ISA expansion slots, which may
accommodate many third-party expansion cards and enormous flexibility in designing custom platforms.
7. Voltage Regulator & VRM
The on-board volt regulator or VRM (Voltage Regulator Module) provides
power for the Pentium process, PCISet and secondary cache. It provides
3.3V range for Pentium P54C family and 3.3V/2.5V for P55C.
8. On-board PCI IDE Controller
541 mainboard provides a on-board 2-channel IDE controller with high
speed data transfer rate. It support up to four IDE devices.
9. On-board Floppy Controller
541 mainboard provides a on-board floppy controller that support 360KB,
1.2MB, 720KB, 1.44MB, and 2.88MB type floppy disk drives.
10. On-board Serial/Parallel Port
541 mainboard provides two serial (COM) ports and one parallel port.
11. System BIOS
541 mainboard provides licensed AMI WinBIOS or Award system BIOS
which are particularly designed to offer optimise performance of the
mainboard.
12. Attached Accessories
one 40-pin hard disk drive flat cable
one 34-pin floppy disk drive flat cable
one 9-pin and 25-pin serial connector with cable
one 25-pin parallel port connector with cable
Page 10
10 User's Manual

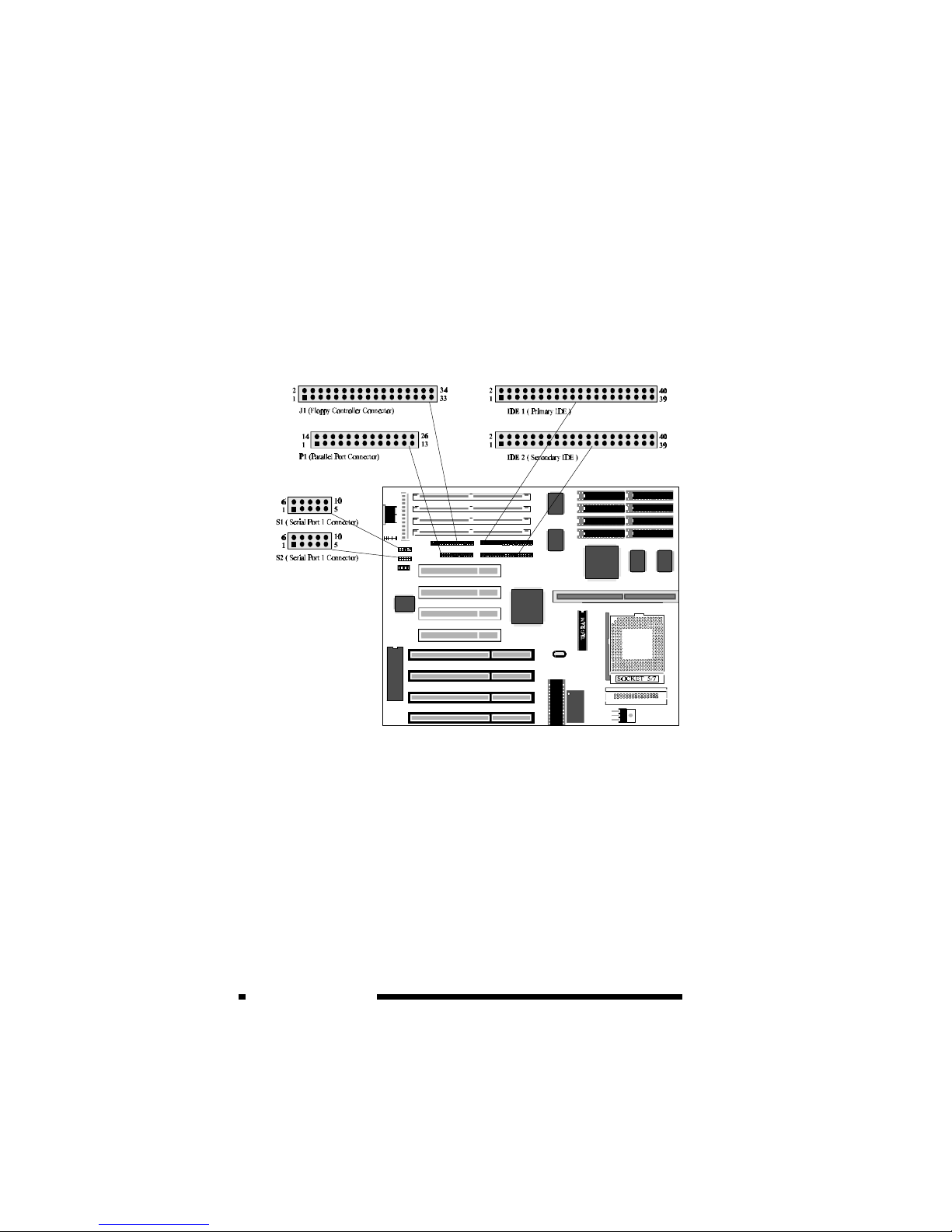

541 Mainboard Layout
Page 11
User's Manual 11
Chapter2 Jumper Setting
System Clock Selection
541 mainboard features a clock generator to provide adjustable system
clock frequency. JP15 and JP16 are
2-pin jumpers which determine the
system clock frequency.
Proper jumper settings for generating 50MHz to 66MHz clock frequency for Pentium system are
shown bellow.
50MHz System Clock
60MHz System Clock
66MHz System Clock
Page 12
12 User's Manual
Pentium CPU Clock Multiplier
2 : 3
50 / 75
2 : 3
50 / 75
60 / 90
60 / 90
66 / 100
66 / 100
1 : 2
50 / 100
1 : 2
50 / 100
60 / 120
60 / 120
66 / 132
66 / 132
1 : 3
50 / 150
1 : 3
50 / 150
60 / 180
60 / 180
2 : 5
60 / 150
2 : 5
60 / 150
66 / 166
66 / 166
541 mainboard provides JP3
and JP58 to figure up Pentium
CPU core clock multiplier. By
inserting or removing jumper
caps on JP3 and JP58, the user
can change the Host Bus
Clock/CPU Core Clock ratio
from 1 : 1.5 to 1 : 3.
Page 13
User's Manual 13
Onboard regulator & VRM Selection
541 mainboard is designed an onboard
voltage regulator to provide 3.3V ranger for
pentium(P54C) and a optional VRM (Voltage Regulator Module) to offer 3.3V/2.5V
ranger for future P55C processors.
For P55C processors, they need two voltage
level, 3.3V for CPU I/O and 2.5V for CPU
core.
Nomarlly, VRM supports both voltage level
, but some particular VRM, they only provide 2.5V and require onboard regulator to
complement 3.3V to P55C.
Page 14
14 User's Manual
Onboard Voltage Regulator Output Selection
541 mainboard is designed to offer several CPU voltages level for
Pentium(P54C) family requirements. 3.3V for standard 75/90/
100/120/133MHz Pentium processor, 3.45V for VR s-spec
Pentium processor (3.3V +5% -
0%), and 3.6V for VRE s-spec
Pentium processor ( 3.45V to 3.6V).
Page 15
User's Manual 15
AT Bus Clock Selection
541 mainboard provides a jumper
JP18 to set the AT bus (ISA bus)
clock that divide from system
clock, the available settings are
SCLK/6 and SCLK/8.
Please refer the follow table to set
the AT bus clock.
Note : 8MHz AT bus clock is rec-
ommended.
Page 16
16 User's Manual
Cache Type Selection
Onboard Standard Cache
RAM
CELP socket for Cache
Module
Onboard standard asynchronous cache
541 mainboard provides 9 pcs DIP socket to accommodate standard
asynchronous cache, with default size of 256KB and upgradable to
512KB. (please refer to section of "Standard Type Cache Selection ")
Standard asynchronous cache module
541 mainboard provides one CELP ( Card Edge Low Profile ) socket to
accommodate 256KB standard asynchronous cache module. (The same
CELP socket also accommodate pipelined burst cache module)

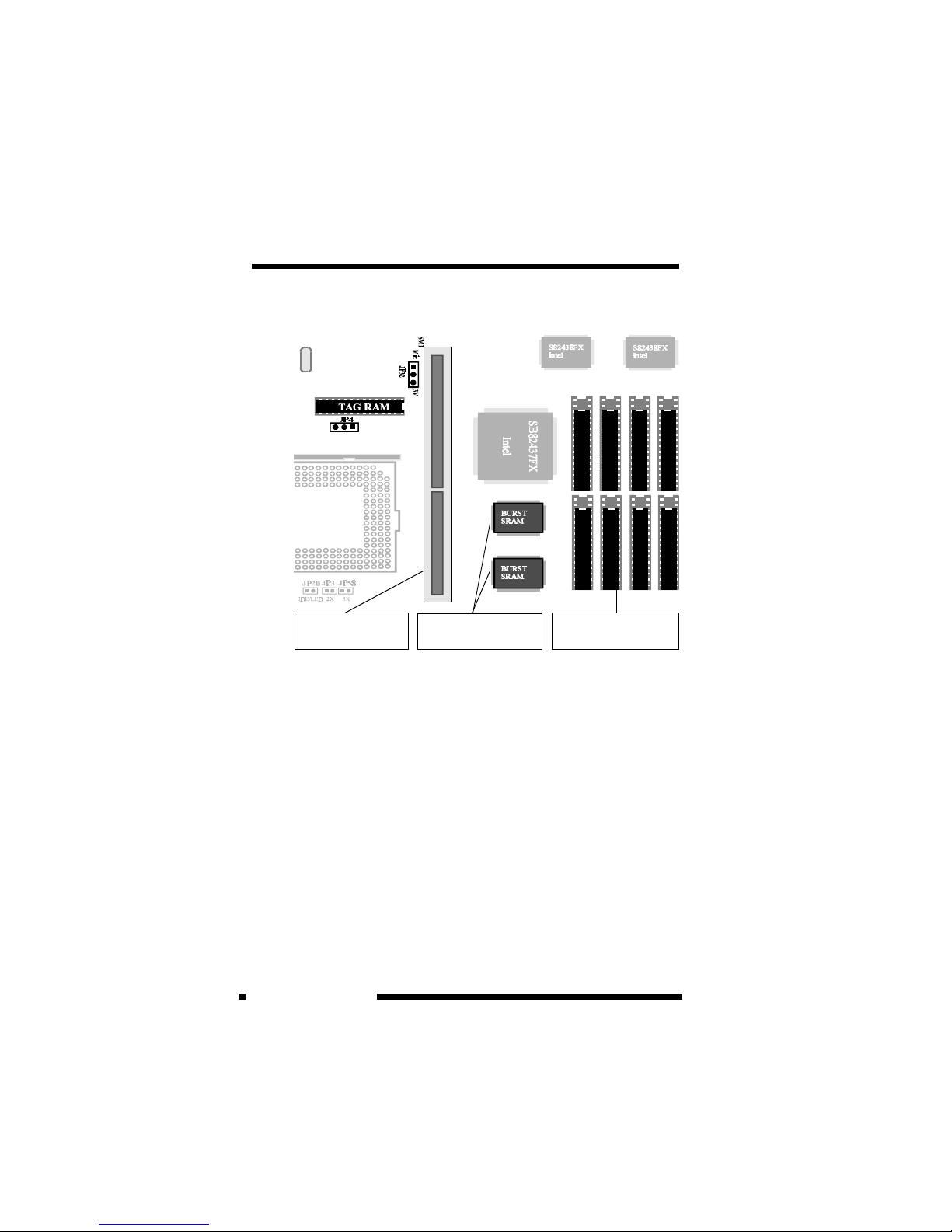

541 mainboard support several types cache scheme including onboard
standard asynchronous cache RAM, standard asynchronous cache module, onboard pipelined burst cache SRAM, and pipelined burst cache
module.
Onboard Pipelined Burst
Cache RAM
Page 17
User's Manual 17
Onboard pipelined burst cache RAM
A factory option on 541 mainboard is an integrated 256KB external cache
implemented with two 32K x 32 pipelined burst SRAM devices soldered
to the mainboard. A 5v 32KB x 8 external Tag SRAM is required.
Pipelined Burst cache module
If the HOT-541 is ordered with no cache installed, the cache can be added
later in a field upgrade by installing a pipelined burst cache module into
the socket. The CELP socket can accommodate 256KB cache modules.
Page 18
18 User's Manual

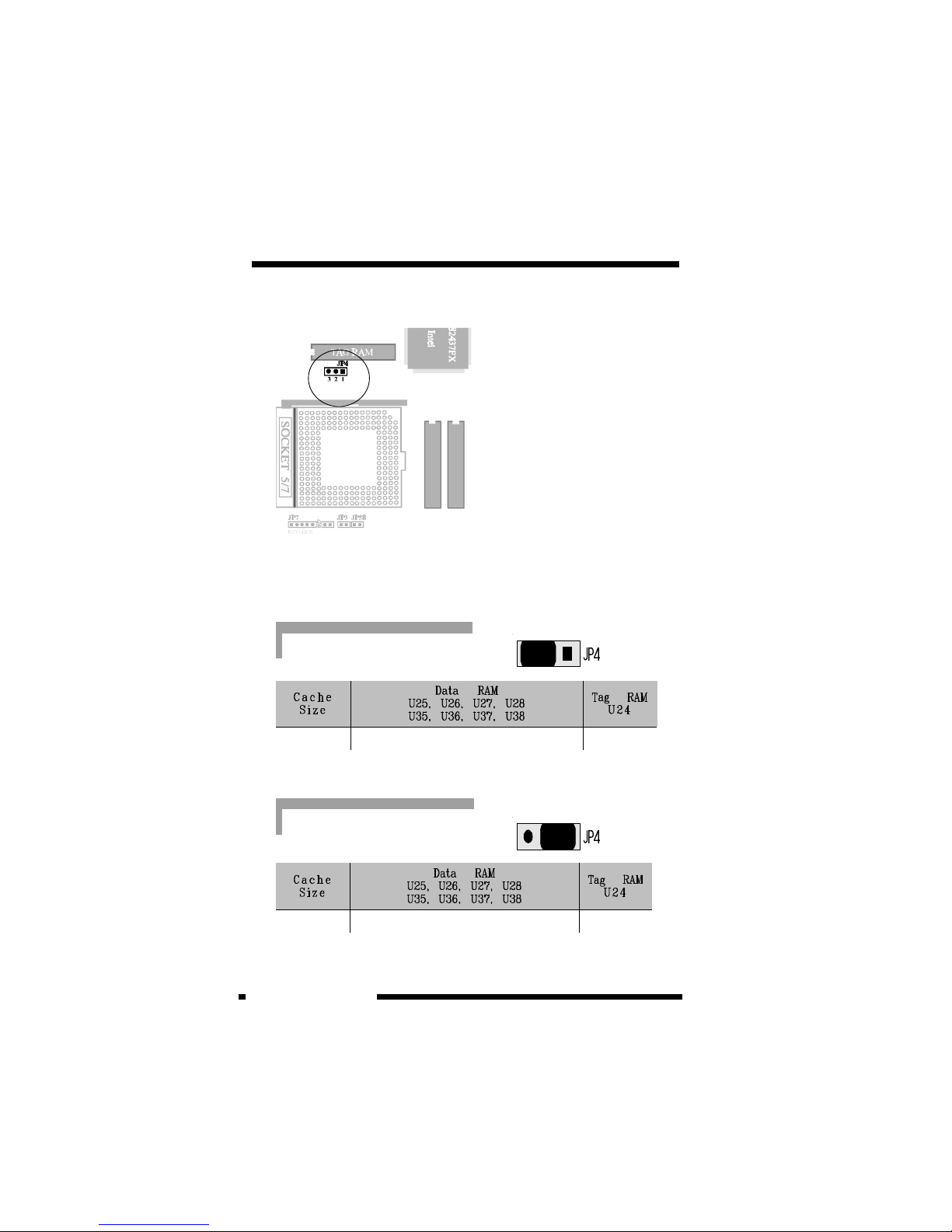

Standard Type Cache Size Selection
Note : All Data SRAM must be mixed mode, and Tag SRAM must be 5V.
All of Data and Tag SRAM must with a speed of 15ns or faster.
256 KB Cache Memory
256KB 32K x 8 32K x 8
512 KB Cache Memory
512KB 64K x 8 32K x 8
541 mainboard supports standard
type extended cache memory sizes
of 256KB and 512KB. Cache
memory is realized by eight Data
SRAM and one Tag SRAM. The
512KB configuration uses eight
64KB x 8 SRAM, each of SRAM
fills the entire socket. The 256KB
configuration uses eight 32KB x 8
SRAM, note that each of the 32KB
x 8 SRAM do not fill the entire
socket, just leaving the top four pin
holes empty.
Page 19
User's Manual 19
Cache Voltage Selection
541 support support either mixed
mode SRAM (3V I/O and 5V voltage) or 3V SRAM (3V I/O and 3V
voltage).
The standard 5V SRAM (5V I/O,
5V voltage) is not supported.
541 provide jumpers JP32 to set
the voltage required of SRAM in
use including onboard standard
asynchronous SRAM and onboard
pipelined burst SRAM.
For standard asynchronous SRAM
module and pipelined burst SRAM
module on CELP socket, JP32
should be fixed on mixed mode.
Page 20
20 User's Manual
I/O Port Setting & Parallel Port DREQ Selection
I/O Port Setting
541 mainboard provide JP59 for
Enabling or Disabling onboard
floppy controller, Parallel port,
and Serial ports.
When onboard I/O port isn't required, the user may disable them
from BIOS setup or from JP59.
Parallel Port DREQ Selection
541 mainboard onboard parallel port supports ECP mode (Extended Capabilities Port), and provide two available DMA Request lines DREQ1
and DREQ3 for it.
When an ECP mode device is in use, the user may assign DREQ1 or DREQ3
for parallel port. If SPP/EPP mode is selected, the user may ignore those
jumpers.
Page 21
User's Manual 21
Flash EPROM Jumper
541 mainboard supports two types of
flash EPROM, 5 volt and 12 volt. By
setting up jumper JP9, you can update both types of flash EPROM with
new system BIOS files as they come
available.
BIOS UPGRADES
Flash memory makes distributing BIOS upgrades easy. A new version of
the BIOS can be installed from a diskette.
The flash upgrade utility, Amiflash.com or Awdflash.exe , has two notice
for BIOS upgrades:
1 Flash utility can't work under protected/virtual mode. Memory
manager like QEMM.386, EMM386 should not be loaded. (or
simplly bypass all config.sys and autoexec.bat on system boot
up.
2 Flash utility supports both 5V and 12V Flash EEPROM.
Page 22
22 User's Manual

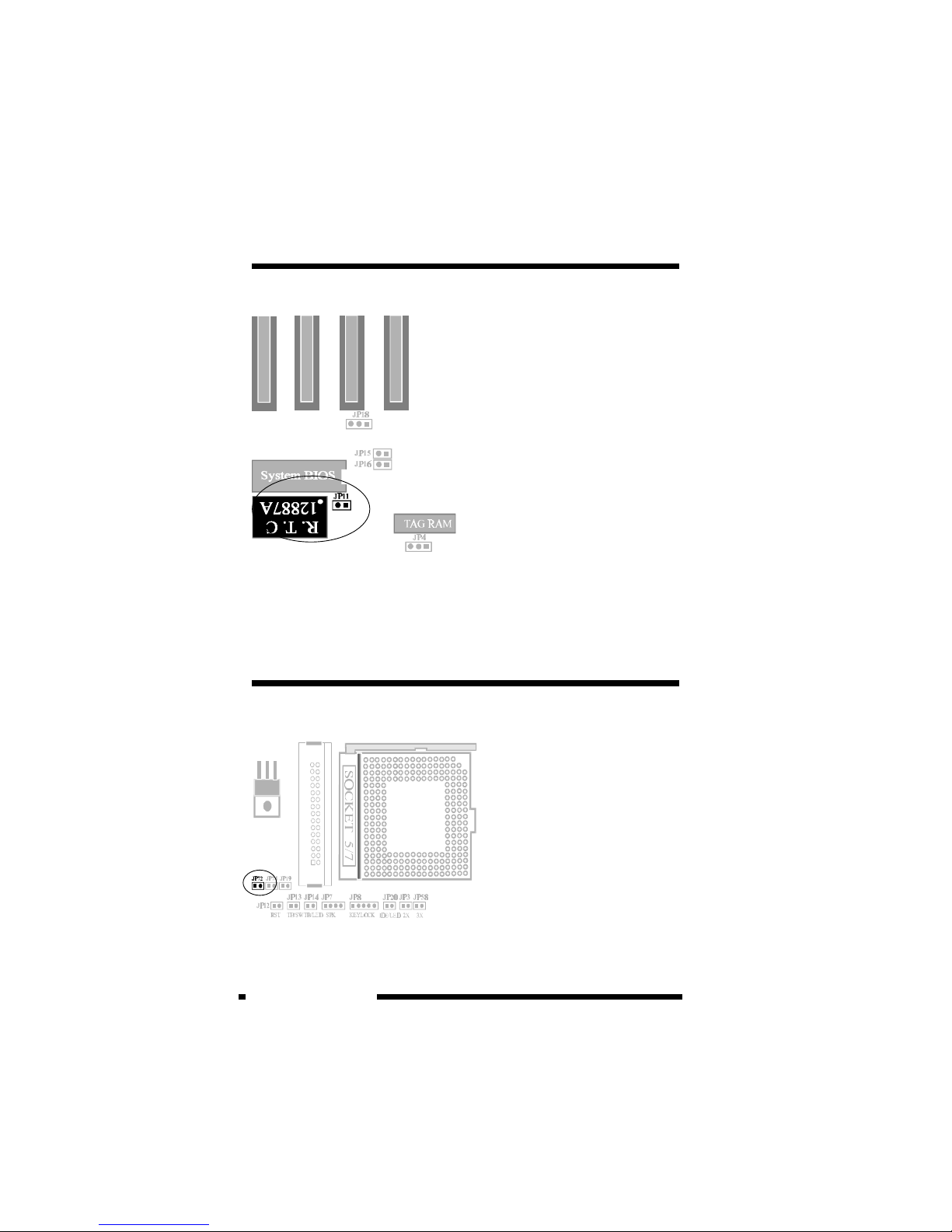

Clear Password
Clear CMOS
541 mainboard supports jumper JP11
for discharge mainboard's CMOS
memory. The CMOS memory retains
the system configuration information
in the component of R.T.C.
You should short this jumper for a
moment when you wish to clear
CMOS memory, and then make sure
open this jumper for normal operation to retain your new CMOS data.
Note: Clear CMOS & R.T.C function
available only when "DS12887A" is
in use.
Allows system password to be
cleared by shorting jumper JP72 and
turning the system on, " Password is
cleared by jumper, (JCP) ! " message
will shown up on power-on screen.
The system should then be turned
off and the jumper JP72 should be
returned to OPEN to restore normal
operation. The procedure should
only be done if the user password
has been forgotten.
Page 23
User's Manual 23
Connectors
Power Connector
PS/2 Mouse Connector
541 mainboard provides two type of
PS/2 style mouse connectors, one for
12 pin header JP52 near by keyboard
connector and one for optional mini
DIN type connector.
12 pin header connector support two
type connection (Type A and Type B)
for PS/2 mouse, the right table shows
the pinout connection for each type.
PIN TYPE A TYPE B
1 Empty Clock
2 Ground Empty
3 Clock Ground
4 Ground VCC
5 VCC Data
6 Empty Empty
7 Empty
8 Empty
9 Data
10 Empty
Keyboard Connector
541 mainboard provides access to ATstyle keyboard connector integrated on
the back panel, a PS/2 style keyboard
and PS/2 style mouse connector are
optional.
PIN Name Function Pin Name Function
1 PWRGD Power Good 7 GND Ground
2 + 5 V + 5 volts Vcc 8 GND Ground
3 + 12 V + 12 volts 9 - 5 V - 5 volts
4 - 12 V - 12 volts 10 + 5 V + 5 volts Vcc
5 GND Ground 11 + 5 V + 5 volts Vcc
6 GND Ground 12 + 5 V + 5 volts Vcc
Page 24
24 User's Manual
I/O Connectors
The mainboard contains pin header connections for cabling, to the serial, parallel, floppy, and IDE interfaces. List figure show the locations of
these connectors and the orientation of pin 1 on each.
Page 25
User's Manual 25
Front Panel Connectors & Display Switche
The mainboard contains pin header connections for cabling, to the Hardware Reset, Turbo LED, PC Speaker, Key Lock/Power LED, and Hard
Drive IDE LED. List figure show the locations of these connectors and
display switcher.
Page 26
26 User's Manual
Chapter3 Memory Configuration
541 mainboard support great flexibility of different on-board fast page
mode and EDO DRAM up to 128MB.
On-board four SIMM sockets are organized into two banks, with two
SIMM sockets assigned to one memory bank. 541 mainboard supports
4MB, 8MB, 16MB and 32MB 72-pin SIMM modules.
The table on next page shows the possible memory combinations of
541 mainboard.
Notes:
* Both two banks are auto banking.
* All SIMMs must be 70 ns or faster.
* All banks can use either single-sided or double-sided SIMMs.
* Fast page mode SIMM and EDO SIMM can not mixed within
the same memory bank.
Page 27
User's Manual 27
Memory Configuration Reference Table
Page 28
28 User's Manual
Chapter4 Power Management
Power Management Modes Description
541 mainboard provides four power management modes for reducing power consumption : Full-on , (Doze), Standby , and Suspend.
541 mainboard provide EPMI connector to enhanced power management.
Full-on mode. The Full-on mode is the normal operating mode of
the PC system. In this mode, the Standby timer starts counting if no
activity is taking place, when the programmable time-out period has
expired, the system will enter to Standby mode. The types of activity
monitored include IRQ3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 ,14, and 15.
DOZE mode. CPU and system reduce to half of normal frequency.
In this mode, the STANDBY timer starts counting if no activity is
taking place. The activities monitored are the same as in Full-on
mode.( Note : AMI BIOS doesn't support this mode)
STANDBY mode. CPU and system reduce to a lower frequency. In
this mode, the SUSPEND timer starts counting if no activity is taking
place. The activities monitored are the same as in Full-on mode.
SUSPEND mode. In this mode, if S-Series CPU is present, 541
mainboard will stop the CPU clock (0MHz), slow down the system
clock, power down the secondary cache. The activities monitored
are the same as in Full-on mode.
Page 29
User's Manual 29
EPMI Connector
EPMI (External Power Management Interrupt) pin, when shorted once,
it fill put the system directly into power management SUSPEND mode.
Auto-wake up activities includes, K/B, mouse, ..., is programmable in
the BIOS power management.
541 mainboard provide JP19 for EPMI function connector, and JP74
for power saving indicate LED connector.
Page 30
30 User's Manual
Chapter5 AMI BIOS Setup
BIOS Setup configures system information that is stored in CMOS RAM.
WINBIOS Setup has an easy-to-use graphical user interface that will be
immediately recognizable to anyone who has ever used Microsoft Windows. WinBIOS Setup sets a new standard in BIOS user interfaces.
Starting WinBIOS Setup
As POST executes, the following message appears :
Hit <DEL> if you want to run SETUP
Press <Del> to run WinBIOS Setup.
Bus Mouse and Microsoft Mouse Support on BIOS Setup :
The following types of mouse devices are supported.
* PS/2- type mouse.
* Bus mouse that use IRQs 3, 4, or 5 (IRQ2 is not supported).
* Microsoft-compatible mouse.
* Logitech C-series-compatible mouses using the MM protocol.
WinBIOS Setup can be accessed via keyboard, mouse, or pen. The
mouse click functions are :
single click to change or select both global and current field and double
click to perform an operation in the selected field.
Page 31
User's Manual 31
BIOS Setup Feature
Each section contains several icons. Clicking on each icon activates
a specific function. The WinBIOS Setup icons and functions are
described in this chapter. The sections are :
Setup
This section has five icons that permit you to set system configuration options such as date, time hard disk type, floppy type, chipset
parameter, power management, and peripheral I/O setup.
Utilities
This section has two icons that perform system functions.
Security
This section has one icon that control WinBIOS security features.
The WinBIOS Setup main menu, shown below, is organized into four
windows. Each window corresponds to a section in this chapter.
Page 32
32 User's Manual
Default
This section has two icons that permit you to select a group of
settings for all WinBIOS Setup options.
Each WinBIOS Setup option has two default settings. These settings can be applied to all WinBIOS Setup options when you select the Default section on the WinBIOS Setup main menu. The
types of default are:
Original
Optimal
These settings restore old setup values.
These settings provide that best performance characteristics.
Page 33
User's Manual 33
Navigating with the Keyboard in WinBIOS
Setup
WinBIOS Setup has a built-in keyboard driver that uses simple keystroke combinations :
Page 34
34 User's Manual
Standard Setup
Date and Time Configuration
Select the Standard option. Select the Date and
Time icon. The current values for each category
are displayed. Enter new values through the
keyboard.
Floppy Drive A:, Floppy Drive B:
Move the cursor to these fields via and select the
floppy type. The settings are 360KB 51/4 inch,
1.2MB 51/4 inch, 720KB 31/2 inch, 1.44MB inch,
or 2.88MB 31/2 inch.
The WinBIOS Standard Setup option described in this section are selected by choosing the appropriate high-level icon from the WinBIOS
Setup main menu selection screen. The selection window follows.
Page 35
User's Manual 35

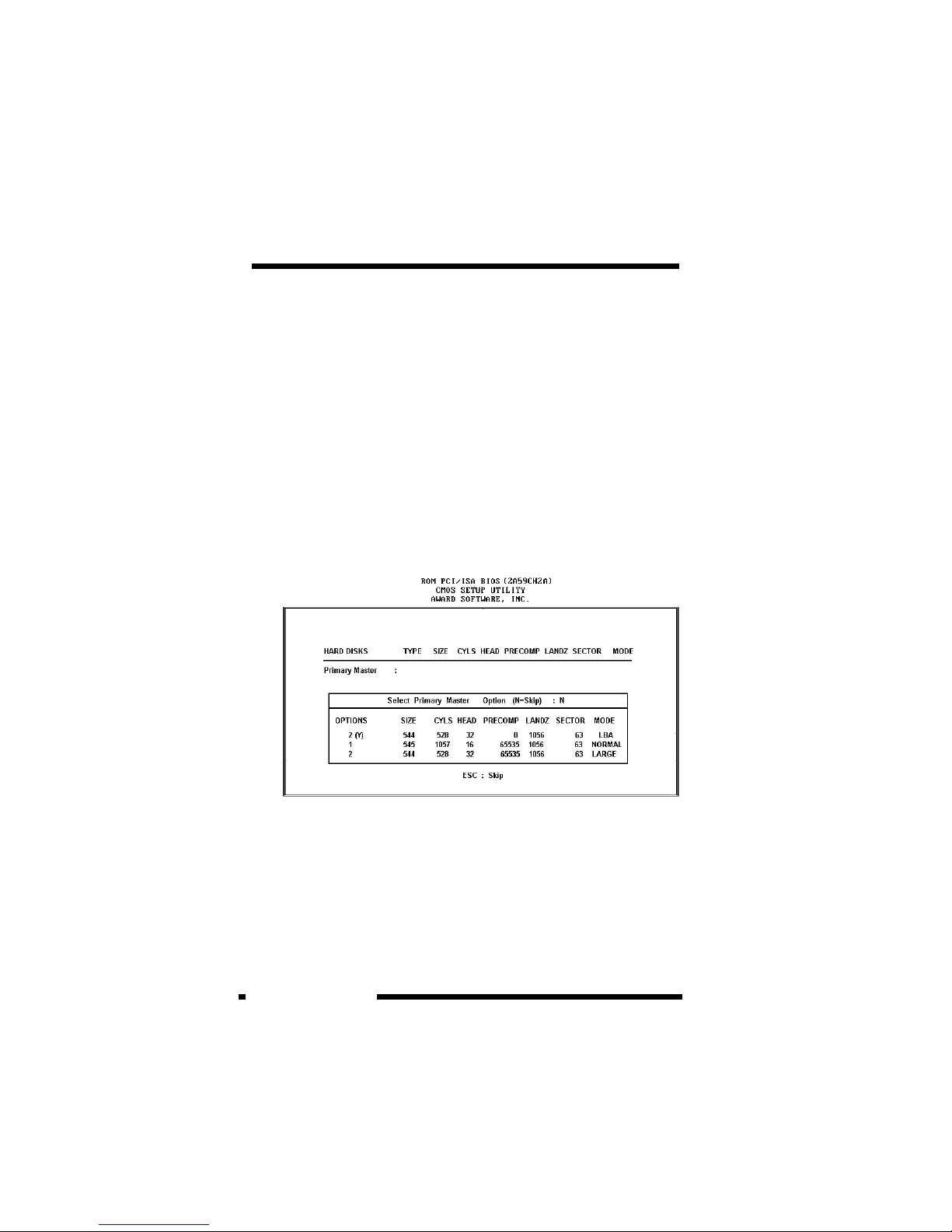

Master Disk Type, Slave Disk Type
Select one of these hard disk drive icons to configure
the drive named in the option. A scrollable screen that
lists all valid disk drive types is displayed. Select the
correct type and press <Enter>. If the hard disk drive
is an IDE drive, select IDE Setup from the Utility section
of the WinBIOS Setup main menu to allow WinBIOS to
automatically detect the IDE drive parameters and report them on this screen.
Using IDE Setup (Only for IDE drivers)
If you select IDE Setup from the Utility section of the
WinBIOS Setup main menu, WinBIOS automatically
finds all IDE hard disk drive parameters. WinBIOS places
the hard disk drive parameters that it finds in the Drive
Type fields in Standard Setup.
Page 36
36 User's Manual
Advanced Setup
System Keyboard
Select this icon to configure the present or absent of keyboard. The
options are Present or Absent.
Primary Display
Select this icon to configure the type of monitor attached to the computer. The settings are Mono, CGA 40 x 25, CGA 80 x 25, VGA/
EGA, or Absent.
Mouse Support
When this option is enabled, WinBIOS supports a PS/2-type mouse.
The options are Enabled or Disabled.
The WinBIOS Advanced Setup options described in this section are selected by choosing the appropriate high-level icon from the WinBIOS
Setup main menu. The selection window is shown below.
These items listed below might have a little bit distinct from your BIOS
setting for different BIOS versions.
Note :
Page 37
User's Manual 37
Above 1 MB Memory Test
When this option is enabled, the WinBIOS memory test is performed
on all system memory. When this option is disabled, the memory
test is done only on the first 1 MB of system memory. The settings
are Enabled or Disabled .
Memory Test Tick Sound
This option enables or disables the ticking sound during the memory
test. The settings are Enabled or Disabled .
Extended BIOS RAM Area
This option specify where the hard disk information is stored. In the
Top 1KB, beginning at 639K of the system programing area or in the
system BIOS area in low memory beginning at 0:300.
System Boot Up Num Lock
When On, this option turns on Num Lock when the system is pow-
ered on so the end user can use the arrow keys on both the numeric
keypad and the keyboard. The settings are On or Off.
Floppy Drive Seek At Boot
When this option enabled, WinBIOS performs a Seek command on
floppy drive A: before booting the system. The settings are Enabled
or Disabled.
Floppy Drive Swapping
When this feature enabled, the BIOS will swap floppy drive assignments so that Drive A: will function as Drive B: and Drive B: as Drive
A:. The settings are Enabled or Disabled.
System Boot Up Sequence
This option sets the sequence of boot drive (either floppy drive A; or
hard disk drive C:) that WinBIOS attempts to boot from after POST
completes. The settings are C: , A: or A:, C:.
System Boot Up CPU Speed
This option sets the speed of the CPU at system boot time. The settings are High or Low.
Page 38
38 User's Manual
Password Checking
This option enables the password check option every time the system boots or the end user runs Setup. If Always is chosen a user
password prompt appears every time the computer is tuned on. If
Setup is chosen, the password prompt appears if WinBIOS is ex-
ecuted.
Cache Memory
This option enabled or disabled internal cache (L1) and external cache
(L2) memory. The settings are Both, Internal, or Disabled.
System BIOS Shadow Cacheable
When this option is set to Enabled, the system BIOS ROM area from
F0000h ~ FFFFFh is copied (shadowed) to RAM and cacheable for
faster execution. The settings are Enabled or Disabled.
Video ROM C000, 32K
When this option is set to Enabled, the video ROM area from C0000h
~ C7FFFh is copied (shadowed) to RAM for faster execution. The
settings are Enabled, Cache, or Disabled.
Adapter ROM xxxx, 16K,
These options enable shadowing of the contents of the ROM area
xxxx in the option title. The settings are Enabled, Cache, or Dis-
abled. The ROM area that is not used by ISA adapter cards will be
allocated to PCI adapter cards.
IDE Block Mode
If your IDE hard disk drive supports block transfer mode. This feature
enable multiple sector reads and writes for IDE drives to enhance
data transfer rate. The options are 2, 4, 8, 16, 32, 64, Auto, and
Disabled.
Onboard PCI IDE
This feature specifies PCI on-board 2-channel IDE controller be enabled or disabled.
IDE 32 Bit Transfers
This feature allows 32-bit data transfer between the system and the
IDE hard disks if the hard disk controller supports 32-bit transfer.
Page 39
User's Manual 39
Onboard PCI IDE PIO Mode
This feature specifies PCI on-board IDE controller's PIO speed mode.
The options are Mode 0, Mode 1, Mode 2, Mode 3, Mode 4, Opti-
mal, and Auto.
Onboard PCI IDE 32bit Mode
IDE 32-bit transfers will enhance data transfer rate on IDE interface,
but only 32-bit PCI IDE controller supports it on this mainboard.
Primary Master LBA Mode
If your primary master IDE hard disk over 528MB, please enables
this LBA (Large Block Addressing) mode feature. The settings are
Enabled or Disabled.
Primary Slave LBA Mode
If your primary slave IDE hard disk over 528MB, please enables this
LBA (Large Block Addressing) mode feature. The settings are En-
abled or Disabled.
Secondary Master LBA Mode
If your secondary master IDE hard disk over 528MB, please enables
this LBA (Large Block Addressing) mode feature. The settings are
Enabled or Disabled.
Secondary Slave LBA Mode
If your secondary slave IDE hard disk over 528MB, please enables
this LBA (Large Block Addressing) mode feature. The settings are
Enabled or Disabled.
Secondary Ctrl Drives Present
This feature specifies how many IDE hard disk drive connect to secondary channel port. The options are 1, 2, and None .
Page 40
40 User's Manual
Chipset Setup
DRAM Speed
This category is used to set the speed of DRAM in use. The options
are 60ns and 70ns .
PCI Bursting
This category is used to defined PCI Bursting is "Enable" or "Dis-
able" setting.
DRAM Read Burst Timing
This category to set the DRAM Read Burst Timing. The timing used
depends on the type of DRAM (standard page mode or EDO burst
mode) on a per-bank basis. The options are x4444, x3333, and
x2222.
The WinBIOS Chipset Setup options described in this section are selected by choosing the appropriate high-level icon from the WinBIOS
Setup main menu. The selection window is shown below.
These items listed below might have a little bit distinct from your BIOS
setting for different BIOS versions.
Note :
Page 41
User's Manual 41
RAM Write Burst Timing
This category to set the DRAM Write Burst Timing. The timing used
depends on the type of DRAM (standard page mode or EDO burst
mode) on a per-bank basis. The options are x4444, x3333, and x2222.
DRAM RAS To CAS Delay
This category to set the DRAM RAS to CAS Delay to controls the
DRAM page miss and row miss leadoff timings. The options are 3
and 2 CLKs.
DRAM R/W Leadoff Timing
This category to set the RAS DRAM Read/Write Leadoff timings for
page/row miss cycles. The options are 8-6-3, 7-5-3, 8-6-4 , and 7-5-4
CLKs.
8 Bit I/O Recovery Time
This category is used to add additional recovery delay between CPU
or PCI master originated 8-bit I/O cycles to the ISA Bus. The options
are 1, 2, 3, 4, 5, 6, 7, 8 Sysclk , and Disabled .
16-Bit I/O Recovery Time
This category is used to add additional recovery delay between CPU
or PCI master originated 16-bit I/O cycles to the ISA Bus. The options are 1, 2, 3, 4 Sysclk , and Disabled .
PCI VGA Palette Snooping
This category must be set to enabled if there is any ISA VGA adapter
card installed in the system, and disabled if there is any PCI VGA
adapter card installed in the system.
Pipeline Burst Cache NA#
When pipeline burst cache are used in the second level| cache or
the second level cache is disabled, enable this category may improve system performance.
PCI IDE Card Selection
This category is used to indicate an add-on PCI IDE card is present or
absent. When system detected an add-on PCI IDE card is present,
BIOS will disabled the onboard PCI IDE controller automatically.
Page 42
42 User's Manual
PCI Primary IDE INT# Line
This category is used to assign a interrupt line to add-on PCI primary
IDE controller.
PCI Secondary IDE INT# Line
This category is used to assign a interrupt line to add-on PCI secondary IDE controller.
IRQxx Available to
This category is used to assign the interrupt lines to ISA bus or to PCI/
PnP.
Page 43
User's Manual 43
Power Management Setup
Advanced Power Management
This feature allows the user to enable or disable 541 mainboard
power management function.
Full-on to Standby Timeout Value
This feature specifies the length of timeout of system entering Standby
mode from full-on mode. The timer option are from 1 min to 256
min or disabled.
Standby to Suspend Timeout Value
This feature specifies the length of timeout of system entering Suspend mode from Standby mode. The timer option are from 1 min to
256 min or disabled.
The WinBIOS Power Management Setup options described in this section are selected by choosing the appropriate high-level icon from the
WinBIOS Setup main menu. The selection window is shown below.
These items listed below might have a little bit distinct from your BIOS
setting for different BIOS versions.
Note :
Page 44
44 User's Manual
IDE Drive Power Down In
This feature specifies the IDE hard disk drive whether power down
or not when standby or suspend timer is expired.
VESA Video Power Down In
This feature specifies the display screen whether power down or not
when standby timer is expired.
IRQxx Break Event
This feature specifies whether the IRQxx (xx: 1, 3, 4, 5, 6, 7, 9, 10,
11, 12, 14, and 15) will be monitored or not. When system gets into
power management mode, any IRQ activities will resume system to
Full-on mode.
Page 45
User's Manual 45
Peripheral Setup
Programming Mode
The options are Auto or Manual.
On Auto mode, first the BIOS checks for the present of other ISA
add-on floppy drive controller, serial port, and parallel port.
If ISA add-on serial ports present and use COM1 & COM2, then the
on-board serial ports will be set to COM3 & COM4.
If ISA add-on serial ports absent, or if ISA add-on serial ports use
COM3 & COM4, then the on-board serial ports will be set to COM1
& COM2.
If ISA add-on serial ports present and use COM1, 2, 3, and 4, then
the on-board serial ports will be set to Disabled.
For the parallel port, if ISA add-on parallel ports present and use
LPT1, then the on-board parallel port will be set to LPT2.
The WinBIOS Peripheral Setup options described in this section are
selected by choosing the appropriate high-level icon from the WinBIOS
Setup main menu. The selection window is shown below.
These items listed below might have a little bit distinct from your BIOS
setting for different BIOS versions.
Note :
Page 46
46 User's Manual
If ISA add-on parallel port absent, or if ISA add-on parallel port use
LPT2, then the on-board parallel port will be set to LPT1.
If ISA add-on parallel present and occupied LPT1 and LPT2, then the
on-board parallel port will be set to Disabled.
Choose Manual to set these items manually.
Onboard FDC
This option enables the onboard floppy drive controller. The options are Enabled and Disabled.
Serial Port1
This option enables the use and setting the address of the first serial
port on mainboard. The options are 3F8H, 3E8H, 2E8H and Dis-
abled.
Serial Port2
This option enables the use and setting the address of the secondary
serial port on mainboard. The options are 2F8H, 3E8H, 2E8H , and
Disabled.
Parallel Port
This option enables the use and setting the address of the parallel
port on mainboard. The options are 3BCH, 378H, 278H, and Dis-
abled.
Parallel Port Mode
This category specifies on-board parallel port mode. The options
are Normal ( support IBM XT/AT compatible parallel port ) and Ex-
tended ( support SPP, EPP, and ECP ).
Parallel Port Extended Mode
This category specifies on-board parallel port extended mode. The
options are SPP ( PS/2 type bidirectional Parallel Port ), EPP1.7 or
EPP1.9 ( Extended Parallel Port), and ECP ( Extended Capabilities
Port ).
Page 47
User's Manual 47
WinBIOS Password Support
WinBIOS Setup has an optional password feature. The system can be
configured so that all users must enter a password every time the system boots or when WinBIOS Setup is executed. The following screen
appears when you select the password icon.
You can enter a password by:
typing the password on the keyboard,
selecting each letter via the mouse, or
selecting each letter via the pen stylus.
Pen access must be customized for each specific hardware platform.
The password check option is enabled in Advanced Setup by choosing
either Always or Setup. The password is stored in CMOS RAM.
The password can be from 1 to 6 alphanumeric word. Please make
sure the password is noted down. If password is forgotten, the CMOS
RAM must be drain and system must be refigure them. WinBIOS will
then display the following :
Page 48
48 User's Manual
Select the Password icon from the Security section of WinBIOS main
menu. Enter the password and press <Enter>. The screen does not
display the characters entered. After the new password is entered,
retype the new password as prompted and press <Enter>.
If the password confirmation is incorrect, an error message appears. If
the new password is entered without error, press <Esc> to return to
the WinBIOS Setup Main Menu. The password is stored in CMOS
RAM after WinBIOS Setup completes. The next time the system boots,
you are prompted for the password if the password function is present
and is enabled.
Remember the Password
Keep a record of the new password when the password is changed. If
you forget the password, you must drain CMOS RAM and reconfigure
the system.
Warning : Retain a safe record of your password. If you've forgot-
ten or loosed the password, the only way to access the system is to
clear CMOS memory, please refer to "Clear CMOS" or "Clear Pass-
word" section on chapter 2.
Page 49
User's Manual 49
Chapter6 Award BIOS Setup
HOT-541's BIOS ROM has a built-in Setup program that allows users to
modify the basic system configuration. This type of information is stored
in battery-backed RAM so that it retains the Setup information when the
power is turned off.
Entering Setup
Power on the computer and press <Del> immediately will allow you
to enter Setup. The other way to enter Setup is to power on the computer, when the below message appear briefly at the bottom of the
screen during the POST (Power On Self Test), press <Del> key or
simultaneously press <Ctrl>,<Alt>, and <Esc> keys.
TO ENTER SETUP BEFORE BOOT PRESS CTRL-ALT-ESC OR DEL KEY
If the message disappears before you respond and you still wish to
enter Setup, restart the system to try again by turning it OFF the ON or
pressing the "RESET" button on the system case. You may also restart
by simultaneously press <Ctrl>,<Alt>, and <Delete> keys. If you
do not press the keys at the correct time and the system does not boot,
an error message will be displayed and you will again be asked to,
PRESS F1 TO CONTINUE, CTRL-ALT-ESC OR DEL TO ENTER SETUP
Page 50
50 User's Manual
Using Control Keys
BIOS Setup has a built-in keyboard driver that uses simple keystroke combinations :
< Esc >
< PgUp >
< PgDn >
< F2 >
< F3 >
< F5 >
< F6 >
< F7 >
< F10 >
Page 51
User's Manual 51
The Main Menu
Once you enter HOT-541 Award BIOS CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to select
from nine setup functions and two exit choices. Use arrow keys to select
among the items and press <Enter> to accept or enter the sub-menu.
Standard CMOS setup
This setup page includes all the items in a standard compatible BIOS.
BIOS features setup
This setup page includes all the items of Award special enhanced
features.
Chipset features setup
This setup page includes all the items of chipset features.
Power Management Setup
This setup page includes all the items of Power Management features.
Page 52
52 User's Manual
PCI Configuration setup
This category specifies the value (in units of PCI bus blocks) of the
latency timer for this PCI bus master and the IRQ level for PCI device.
Power-on with BIOS defaults
Load BIOS Defaults
BIOS defaults loads the values required by the system for the maximum
performance. However, you may change the parameter through the
Option Setup Menu.
Load Setup Defaults
Setup defaults loads the values required by the system for the minimum performance. However, you may change the parameter through
the Setup Menu.
IDE HDD auto detection
Automatically configure IDE hard disk drive parameters.
Password setting
Change, set, or disable password. It allows you to limit access to the
system and Setup, or just to Setup.
Save & Exit setup
Save CMOS value change to CMOS and exit setup
Exit without saving
Abandom all CMOS value changes and exit setup.
Page 53
User's Manual 53
Standard CMOS Setup
Date
The date format is <day>, <date> <month> <year>. Press
<F3> to show the calendar.
Time
The time format is <hour> <minute> <second>. The time is
calculated base on the 24-hour military-time clock. For example. 5
p.m. is 17:00:00.
The items in Standard CMOS Setup Menu are divided into 10 categories.
Each category includes none or more than one setup items. Use the
arrow keys to highlight the item and then use the <PgUp> or <PgDn>
keys to change the value you want in each item.
Page 54
54 User's Manual
Daylight saving
The category adds one hour to the clock when daylight-saving time
begins. It also subtracts one hour when standard time begins.
Drive C type/Drive D type
The category identify the types of hard disk drive C or drive D that has
been installed in the computer. There are 46 predefined types and a
user definable type. Type 1 to Type 46 are predefined. Type User is
user-definable.
Press PgUp or PgDn to select a numbered hard disk type or type the
number and press <Enter>. Note that the specifications of your drive
must match with the drive table. The hard disk will not work properly
if you enter improper information for this category. If your hard disk
drive type is not matched or listed, you can use Type User to define
your own drive type manually.
If you select Type User, related information is asked to be entered to
the following items. Enter the information directly from the keyboard
and press <Enter>. Those information should be provided in the
documentation from your hard disk vendor or the system manufacturer.
If a hard disk drive has not been installed select NONE and press <Enter>.
Page 55
User's Manual 55
Drive A type/Drive B type
The category identify the types of floppy disk drive A or drive B that
has been installed in the computer.
Video
The category selects the type of adapter used for the primary system
monitor that must matches your video display card and monitor. Although secondary monitors are supported, you do not have to select
the type in Setup.
Error halt
The category determines whether the computer will stop of an error is
detected during power up.
Page 56
56 User's Manual
Memory
The category is display-only which is determined by POST (Power On
Self Test) of the BIOS.
Base Memory
The POST of the BIOS will determine the amount of base (or conventional) memory installed in the system. The value of the base
memory is typically 512K for systems with 512K memory installed
on the mainboard, or 640K for systems with 640K or more memory
installed on the mainboard.
Extended Memory
The BIOS determines how much extended memory is present during the POST. This is the amount of memory located above 1MB in
the CPU's memory address map.
Expanded Memory
Expanded Memory is memory defined by the Lotus/Intel/
Microsoft(LIM) standard as EMS. Many standard DOS applications
can not utilize memory above 640K, the Expanded Memory
Specification(EMS) swaps memory which not utilized by DOS with
a section, or frame, so these applications can access all of the system
memory. Memory can be swapped by EMS is usually 64K within
1MB or memory above 1MB, depends on the chipset design.
Expanded memory device drive is required to use memory as Expanded Memory.
Other Memory
This refers to the memory located in the 640K to 1024K address
space. This is memory that can be used by different applications.
Dos uses this area to load device drivers to keep as much base
memory free for application programs. It is mostly use by the Shadow
RAM.
Page 57
User's Manual 57
BIOS Features Setup
CPU Internal Cache
This category enabled CPU internal cache to speed up memory access. The default value is enabled.
External Cache
This category enabled onboard external cache to speed up memory
access. The default value is enabled.
Quick Power On Self Test
This category speeds up Power On Self Test (POST) after you power
on the computer. If it is set to Enabled, BIOS will shorten or skip some
check items during POST.
Boot Sequence
This category determines which drive computer searches first for the
disk operating system. Default value is A, C.
Swap Floppy Drive
When this category enabled, the BIOS will swap floppy drive assignments so that Drive A: will function as Drive B: and Drive B: as Drive A:.
Page 58
58 User's Manual
Boot Up Floppy Seek
During POST, BIOS will determine if the floppy disk drive installed is
40 or 80 tracks. 360K type is 40 tracks while 720K, 1.2M and 1.44M
are all 80 tracks.
Boot Up NumLock Status
When this option enabled, BIOS turns on Num Lock when system is
powered on so the end user can use the arrow keys on both the numeric keypad and the keyboard.
Boot Up System Speed
This option sets the speed of the CPU at system boot time. The settings
are High or Low.
Gate A20 Option
When this category sets to Normal, the A20 signal is controller by
keyboard controller. When this category sets to Fast, the A20 signal is
controlled by post 92 or chipset specific method.
Security Option
This category allows you to limit access to the system and Setup, or
just to Setup.
When System is selected, the system will not boot and access to Setup
will be denied if the correct password is not entered at the prompt.
When Setup is selected, the system will boot, but access to Setup will
be denied if the correct password is not entered at the prompt.
PCI VGA Palette Snoop
This category must be set to enabled if there is any ISA VGA adapter
card installed in the system, and disabled if there is any PCI VGA adapter
card installed in the system.
Video BIOS Shadow
It determines whether video BIOS will be copied to RAM, however, it
is optional from chipset design. Video Shadow will increase the video
speed.
Page 59
User's Manual 59
C8000-CBFFF Shadow/EC000-EFFFF Shadow
These categories determine whether optional ROM will be copied to
RAM by 16K byte.
Page 60
60 User's Manual
Chipset Features Setup
DRAM RAS# Precharge Time
This category set the DRAM RAS Precharge Timing. The options are
4 and 3 CLKs.
DRAM R/W Leadoff Timing
This category set the RAS DRAM Read/Write Leadoff timings for page/
row miss cycles. The options are 8/6 and 7/5 CLKs.
DRAM RAS To CAS Delay
This category set the DRAM RAS to CAS Delay to controls the DRAM
page miss and row miss leadoff timings. The options are 3 and 2 CLKs.
DRAM Read Burst Timing
This category set the DRAM Read Burst Timing. The timing used
depends on the type of DRAM (standard page mode or EDO burst
mode) on a per-bank basis. The options are x4444, x3333, and x2222.
DRAM Write Burst Timing
This category set the DRAM Write Burst Timing. The timing used
depends on the type of DRAM (standard page mode or EDO burst
mode) on a per-bank basis. The options are x4444, x3333, and
x2222.
Page 61
User's Manual 61
System BIOS Cacheable
This category allows the user to set whether the system BIOS
F000~FFFF areas are cacheable or non-cacheable.
Video BIOS Cacheable
This category allows the user to set whether the video BIOS
C000~C7FF areas are cacheable or non-cacheable.
8 Bit I/O Recovery Time
This category is used to add additional recovery delay between CPU
or PCI master originated 8-bit I/O cycles to the ISA Bus. The options
are 1, 2, 3, 4, 5, 6, 7, 8, and NA .
16-Bit I/O Recovery Time
This category is used to add additional recovery delay between CPU
or PCI master originated 16-bit I/O cycles to the ISA Bus. The options
are 1, 2, 3, 4, 5, 6 , 7, 8, and NA.
IDE HDD Block Mode
This category is used to set IDE HDD Block Mode. IF your IDE Hard
Disk supports block mode, then you can enable this function to speed
up the HDD access time. If not, please disable this function to avoid
HDD access error.
IDE Primary Master PIO
In this category, there are five modes defined in manual mode and
one automatic mode. There are 0, 1, 2, 3, 4, and AUTO . The default
settings for on board Primary Master PIO timing is Auto.
IDE Primary Slave PIO
In this category, there are five modes defined in manual mode and
one automatic mode. There are 0, 1, 2, 3, 4, and AUTO . The default
settings for on board Primary Slave PIO timing is Auto.
IDE Secondary Master PIO
In this category, there are five modes defined in manual mode and
one automatic mode. There are 0, 1, 2, 3, 4, and AUTO . The default
settings for on board Secondary Master PIO timing is Auto.
Page 62
62 User's Manual
IDE Secondary Slave PIO
In this category, there are five modes defined in manual mode and
one automatic mode. There are 0, 1, 2, 3, 4, and AUTO. The default
settings for on board Secondary Slave PIO timing is Auto.
On-Chip Primary PCI IDE
This category is used to defined on chip Primary PCI IDE controller is
"Enable" or "Disable " setting.
On-Chip Secondary PCI IDE
This category is used to defined on chip Secondary PCI IDE controller
is "Enable" or "Disable" setting.
PCI Slot IDE 2nd Channel
This category is used to defined add-on PCI IDE secondary controller is
"Enable" or "Disable " setting.
PCI Concurrency
This category is used to defined PCI Concurrency is "Enable" or "Dis-
able" setting.
PCI Streaming
This category is used to defined PCI Streaming is "Enable" or "Disable"
setting.
PCI Bursting
This category is used to defined PCI Bursting is "Enable" or "Disable"
setting.
Onboard FDC Control
This category specifies onboard floppy disk drive controller. This setting allows you to connect your floppy disk drives to the onboard floppy
connector. Choose the "Disabled" settings if you have a separate control card.
Onboard Serial Port 1
This category is used to define onboard serial port 1 to COM1/3F8H,
COM2/2F8H, COM3/3E8H, COM4/2E8H or Disabled.
Page 63
User's Manual 63
Onboard Serial Port 2
This category is used to define onboard serial port 2 to COM1/3F8H,
COM2/2F8H, COM3/3E8H, COM4/2E8H, Disabled.
Onboard Parallel Port
This category specifies onboard parallel port address to 378H, 278H,
3BCH or Disabled.
Onboard Printer Mode
This category specifies onboard parallel port mode. The options are
EPP(Extended Parallel Port), ECP (Extended Capabilities Port), Extended,
and Compatible.
Page 64
64 User's Manual
Power Management Setup
Power Management
This category determines the options of the power management function. Default value is Disable. The following pages tell you the options of each item & describe the meanings of each options.
Disabled Global Power Management will be disabled
User Define Users can configure their own power management
Min Saving Predefined timer values are used such that all tim-
ers are in their maximum value
Max Saving Predefined timer values are used such that all tim-
ers minimum value
PM Control by APM
If this category set to No, system BIOS will ignore APM when power
managing the system.
If this category setup to Yes, system BIOS will wait for APM's prompt
before it enter any PM mode e.g. DOZE, STANDBY or SUSPEND.
Page 65
User's Manual 65
Video Off Method
Blank Screen The system BIOS will only blanks off the screen
when disabling video.
V/H SYN+Blank In addition to Blank Screen, BIOS will also turn
off the V-SYNC & H-SYNC signals from VGA cards
to monitor.
DPMS This function is enabled for only the VGA card
supporting DPM.
Doze Mode
1 Min~1 Hr Defines the continuous idle time before the sys-
tem entering DOZE mode.
Disable System will never enter DOZE mode.
Standby Mode
1 Min~1 Hr Defines the continues idle time before the sys-
tem entering STANDBY mode.
Disable System will never enter STANDBY mode.
Suspend Mode
1 Min~1 Hr Defines the continuous idle time before the sys-
tem entering SUSPEND mode.
Disable System will never enter SUSPEND mode.
HDD Power Down
1~15Min Defines the continuous HDD idle time before the
HDD entering power saving mode (motor off).
Suspend BIOS will turn the HDD's motor off when system
is in SUSPEND mode.
Disable HDD's motor will not off.
IRQ3 (Wake-Up Event)
If this category sets to Off, the IRQ3 event's activity will not re-activate
the system from Power Management.
If this category sets to On, the IRQ3 event's activity will re-activate
system from Power Management.
Page 66
66 User's Manual
IRQ4 (Wake-Up Event)
If this category sets to Off, the IRQ4 event's activity will not reactive
the system from Power Management.
If this category sets to On, the IRQ4 event's activity causes the system
reactive from Power Management.
IRQ8 (Wake-Up Event)
If this category sets to Off, the IRQ8 event's activity will not reactive
the system from Power Management.
If this category sets to On, the IRQ8 event's activity causes the system
reactive from Power Management.
IRQ12 (Wake-Up Event)
If this category sets to Off, the IRQ12 event's activity will not reactive
the system from Power Management.
If this category sets to On, the IRQ12 event's activity causes the system reactive from Power Management.
Power Down Activities
If these categories sets to Off, the event's activity will not be monitored to enter power management.
If this category sets to On, the event's activity will be monitored to
enter power management.
COM Post Accessed LPT Ports Accessed
Drive Ports Accessed IRQ 3 (COM 2)
IRQ 4 (COM1) IRQ 5 (LPT 2)
IRQ 6 (Floppy Disk) IRQ 7 (LPT 1)
IRQ 8 (RTC Alarm) IRQ 9 (IRQ 2 Redir)
IRQ 10 (Reserved) IRQ 11 (Reserved)
IRQ 12 (PS/2 Mouse) IRQ 13 (Coprocessor)
IRQ 14 (Hard Disk) IRQ 15 (Reserved)
Page 67
User's Manual 67
PCI Configuration Setup
PnP BIOS Auto-Config
If enable this category, system BIOS will auto config Add-on devices
under operating system that support PnP function.
Slot x Using INT#
The options in these categories are AUTO, A, B, C and D.
AUTO : BIOS will ask the PCI device which INT# does it want to use
for interrupt ,check out which IRQ is available from the above and tell
the device which IRQ has been assigned to it.
A, B, C, D : These options are reserved for "Dirty" cards from which
the system BIOS cannot tell which INT it use!
Note :
1. Choose "AUTO" for all devices unless you know exactly which
card is a dirty device & which INTs does that card uses!
2. Choose only "AUTO" for multifunction PCI devices because
options A, B, C, D will force the BIOS to assign IRQs for function 0 only!
1st Available IRQ
The system BIOS will assign these available IRQs to the first found PCI
device. The available options are 5, 7, 9, 10, 11, 12, 14, 15 and NA.
Page 68
68 User's Manual
2nd Available IRQ
The system BIOS will assign these available IRQs to the second found
PCI device. The available options are 5, 7, 9, 10, 11, 12, 14, 15 and
NA.
3rd Available IRQ
The system BIOS will assign these available IRQs to the third found
PCI device. The available options are 5, 7, 9, 10, 11, 12, 14, 15 and
NA.
4th Available IRQ
The system BIOS will assign these available IRQs to the fourth found
PCI device. The available options are 5, 7, 9, 10, 11, 12, 14, 15 and
NA.
PCI IRQ Activated by
To tell the chipset the IRQ signals input is level or edge trigger.
PCI IDE IRQ Map to
The options in this category are : PCI-AUTO, PCI-SLOTx, ISA.
PCI-AUTO : The system BIOS will scan for PCI IDE devices & deter-
mine the location of the PCI IDE device.
PCI-SLOTx (x=1~4) : The BIOS will assign IRQ 14 for primary IDE
INT#, and IRQ 15 for secondary IDE INT# for the specified slot.
ISA : The BIOS will not assign any IRQs even if PCI IDE card is found.
Because some IDE cards connect the IRQ 14 & 15 directly from ISA
slot through a extended cord. (this cord is called Legacy Header)
Primary IDE INT#
To tell which INT# does the primary IDE port on PCI IDE cad is using
for its interrupts.
Secondary IDE INT#
To tell which INT# does the secondary IDE port on PCI IDE cad is using
for its interrupts.
Page 69
User's Manual 69
Password Setting
When you select this function, the following message will appear at the
center of the screen to assist you in creating a password.
ENTER PASSWORD
Type the password, up to eight characters, and press <Enter>. The password typed now will clear any previously entered password from CMOS
memory. You will be asked to confirm the password. Type the password
again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.
To disable password, just press <Enter> when you are prompted to enter password. A message will confirm the password being disabled. Once
the password is disabled, the system will boot and you can enter Setup
freely.
PASSWORD DISABLED
If you select System at Security Option of BIOS Features Setup Menu, you
will be prompted for the password every time the system is rebooted or
any time you try to enter Setup. If you select Setup at Security Option of
BIOS Features Setup Menu, you will be prompted only when you try to
enter Setup.
Warning : Retain a safe record of your password. If you've forgotten
or loosed the password, the only way to access the system is to clear
CMOS memory, please refer to "Clear CMOS" or "Clear Password " section on chapter 2.
Page 70
70 User's Manual
IDE HDD Auto Detection
The Enhanced IDE features was included in all 541 Award BIOS. Below is
a brief description of this feature.
1. Setup Change
( I ) Auto-Detection
BIOS setup will display all possible modes that supported by the
HDD including NORMAL, LBA & LARGE.
If HDD does not support LBA modes, no 'LBA' option will be shown.
If no of cylinders is less than or equal to 1024, no 'LARGE' option
will be show
Users can select a mode which is appropriate for them.
( II ) Standard CMOS Setup
CYLS HEADS PRECOMP LANDZONE SECTOR MODE
Drive C:User(516MB) 1120 16 65535 1119 59 NORMAL
Drive D:User(203MB) 684 16 65535 685 38 -----------
When HDD type is in 'user' type, the "MODE" option will be opened for user to
select their own HDD mode.
Page 71
User's Manual 71
2. HDD Modes
The 541 Award BIOS supports 3 HDD modes : NORMAL, LBA & LARGE.
( I ) NORMAL mode
Generic access mode in which neither the BIOS nor the IDE controller will make any transformations during accessing.
The maximum number of cylinders, head & sectors for NORMAL
mode are 1024, 16 & 63
no. Cylinder (1024)
x no. Head ( 16)
x no. Sector ( 63)
x no. per sector ( 512)
528 Megabyte
If user set his HDD to NORMAL mode, the maximum accessible
HDD size will be 528 Megabytes even though its physical size may
be greater than that!
( II ) LBA (Logical Block Addressing) mode
A new HDD accessing method to overcome the 528 Megabytes
bottleneck. The number of cylinders, head & sectors shown in setup
may not be the number physically contained in the HDD.
During HDD accessing, the IDE controller will transform the logical address described by sector, head & cylinder number into its
own physical address inside the HDD.
The maximum HDD size supported by LBA mode is 8.4 Gigabytes
which is obtained by the following formula:
no. Cylinder (1024)
x no. Head ( 255)
x no. Sector ( 63)
x no. per sector ( 512)
8.4 Gigabyte
Page 72
72 User's Manual
( III ) LARGE mode
Extended HDD access mode supported by Award Software.
Some IDE HDDs contain more than 1024 cylinder without LBA
support. The 541 Award BIOS provides another alternative to support these kinds of HDD !
Example of LARGE mode
CYLS. HEADS SECTOR MODE
1120 16 59 NORMAL
560 32 59 LARGE
BIOS tricks DOS that the number of cylinders is less than 1024 by
dividing it by 2. At the same time, the number of heads is multiplied by 2. A reverse transformation process will be made inside
INT13h in order to access the right HDD address the right HDD
address!
Maximum HDD size
no. Cylinder (1024)
x no. Head ( 32)
x no. Sector ( 63)
x no. per sector ( 512)
1 Gigabyte
If user set his HDD to NORMAL mode, the maximum accessible
HDD size will be 528 Megabytes even though its physical size may
be greater than that!
To support LBA or LARGE mode of HDDs, there must be some
software involved. All these software are located in the Award HDD
Service Routine(INT 13h). It may be failed to access a HDD with
LBA (LARGE) mode selected if you are running under a Operating
System which replaces the whole INT 13h.
3. Remarks
Page 73
User's Manual 73
Appendix A AMI BIOS Reference
Error message
Refresh Failure
Parity Error
Base 64KB Memory
Failure
Timer Not Operational
Processor error
8042 - Gate A20
Failure
Processor Exception
interrupt Error
Display Memory Read/
Write Error
ROM Checksum Error
CMOS Shutdown
Register Read/Write
Error
Cache Error/External
Cache Bad
Description
The memory refresh circuitry on the mainboard
is faulty.
Parity error in the first 64KB of memory.
Memory failure in first 64KB.
Memory failure in the first 64KB of memory, or
Timer 1 on the mainboard is not functioning.
The CPU on the mainboard generated an error.
The keyboard controller (8042) may be bad. The
BIOS cannot switch to protected mode.
The CPU generated an exception interrupt.
The system video adapter is either missing or its
memory is fault error.
The ROM checksum value does not match the
value encoded in the BIOS
The shutdown register for CMOS RAM failed.
The external cache is faulty.
Error Beeps and Message
Error can occur during POST (Power On Self Test), which is performed
every time the system is powered on. Fatal errors are communicated
through a series of audible beeps. All errors except Beep Code 8 are fatal
errors. Fatal errors do not allow the system to continue the boot process.
Most displayed errors allow the system to continue the boot process.
Beeps
1
2
3
4
5
6
7
8
9
10
11
Page 74
74 User's Manual
Appendix BAward BIOS Reference
BIOS Reference - POST Message
When the BIOS encounters an error that requires that user to correct something, either a beep code will sound or a message will be displayed in a
box in the middle of the screen and the message "PRESS F1 TO CONTINUE,
CTRL-ALT-ESC OR DEL TO ENTER SETUP" will be shown in the information
box at the bottom.
POST Beep
Currently there are two kind of beep codes in BIOS.
The one code indicates that a video error has occurred and the BIOS can-
not initialize the video screen to display any additional information. This
beep code consists of a single long followed by three short beeps. The
other one code indicates that your DRAM error has occurred. This beep
code consists of a single long beep repeatedly.
: Video error
.......... : DRAM error
One or more of the following messages may be displayed if the BIOS
detects an error during the POST. This list indicates the error messages for
all Award 541 BIOSes:
"CMOS BATTERY HAS FAILED"
CMOS battery is no longer functional. It should be replayed.
"CMOS CHECKSUM ERROR"
Checksum of CMOS is incorrect. This can indicate that CMOS become corrupt.
This error may have been caused by a weak battery. Check that battery and replace
if necessary.
Error Message
Page 75
User's Manual 75
"DISPLAY SWITCH IS SET INCORRECTLY"
Display switch on the mainboard can be set to either monochrome or color.
This indicates the switch is set to a different than indicated in Setup. Determine which setting is correct, and then either turn off the system and change
the jumper, or enter Setup and change the VIDEO selection.
"FLOPPY DISK(S) fail (80)" Unable to reset floppy subsystem
"FLOPPY DISK(S) fail (40)" Floppy type dismatch
"Hard Disk(s) fail(80)" HDD reset failed
"Hard Disk(s) fail(40)" HDD controller diagnostics failed
"Hard Disk(s) fail(20)" HDD initialization error
"Hard Disk(s) fail(10)" Unable to recalibrate fixed disk
"Hard Disk(s) fail (08)" Sector Verify failed
"Keyboard is locked out"
BIOS detect the keyboard is locked. P17 of keyboard controller is pulled
low.
"Keyboard error or no keyboard present"
Cannot initialize the keyboard. Make sure the keyboard is attached correctly and no keys are being pressed during the boot.
"BIOS ROM checksum error - System halted"
The checksum of ROM address F0000H~FFFFFH is bad.
"Memory test fail"
BIOS reports the memory test fail if the onboard memory is tested error.
Page 76
76 User's Manual
FCC Notice:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy. If not installed and used properly, in strict accordance with
the manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause interference to radio
or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or
more of the following measures :
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/television technician for help and
for additional suggestions.
The user may find the following booklet prepared by the Federal Communications Commission helpful “How to Identify and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing
Office. Washington, DC 20402, Stock 004-000-00345-4
FCC Warning
The user is cautioned that changes or modifications not expressly approved by
the manufacturer could void the user’s authority to operate this equipment.
Note : In order for an installation of this product to maintain compliance with
the limits for a Class B device, shielded cables and power cord must be used.
Loading...
