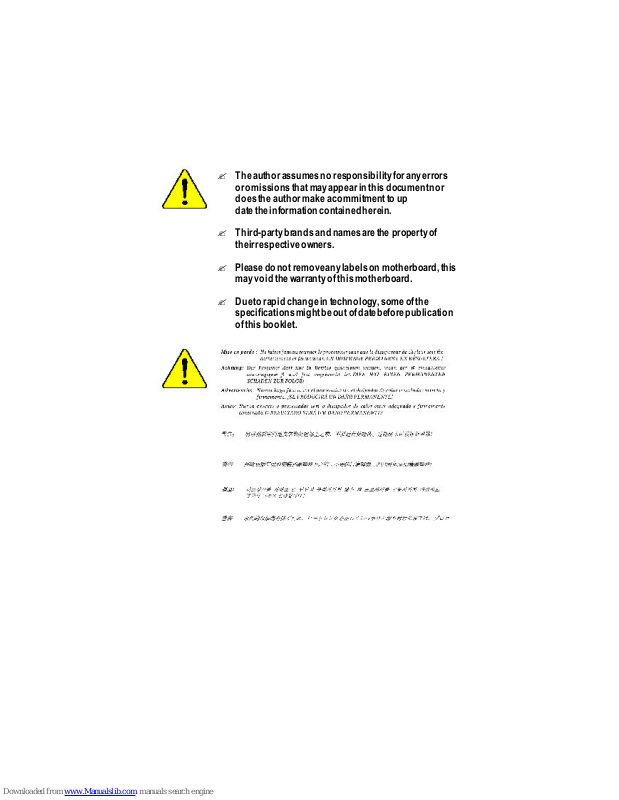

? The author assumes no responsibility for any errors

or omissions that may appear in this document nor does the author make a commitment to up date the information contained herein.

? Third-party brands and names are the property of

their respective owners.

? Please do not remove any labels on motherboard, this

may void the warranty of this motherboard.

? Due to rapid change in technology, some of the

specifications might be out of date before publication of this booklet.

Declaration of Conformity

We, Manuf acturer/I mport er

(f ull address)

G.B.T. Technology Trä ding GMbH

Ausschlager Weg 41, 1F, 20537 Hamburg, Germany

declare t hat t he product

( descript ion of t he apparatus, system, installat ion to which it ref ers)

Mother Board

GA-8 SI ML

is in conf ormit y with

(ref erence to the specif icat ion under which conf ormity is declared)

in accordance wit h 89/336 EEC-EMC Directive

? EN 55011 Limit s and methods of measurement

of radio disturbance characteristics of indust rial,scientific and medical (I SM high f requency equipment

? EN 61000-3-2*

? EN 60555-2

Dist urbances in supply systems cause by household appliances and similar elect rical equipment “Harmonics”

? EN 55013

Limit s and methods of measurement of radio disturbance characteristics of broadcast receivers and associated equipment

? EN 61000-3-3* Dist urbances in supply systems cause

by household appliances and similar elect rical equipment “Volt age f luctuat ions”

? EN 55014 Limit s and methods of measurement

of radio disturbance characteristics of household elect rical appliances, port able tools and similar elect rical apparat us

? EN 50081-1 Generic emission st andard Part 1:

Residual commercial and light industry

? EN 50082-1

Generic immunit y st andard Part 1:

Residual commercial and light industry

? EN 55015 Limit s and methods of measurement

of radio disturbance characteristics of f luorescent lamps and luminaries

Generic emission st andard Part 2:

I ndustrial environment

? EN 55081-2

I mmunit y from radio int erf erence of broadcast receivers and associated equipment

Generic emission st andard Part 2:

I ndustrial environment

? EN 55082-2

? EN 55022 Limit s and methods of measurement

of radio disturbance characteristics of inf ormation technology equipment

lmmunit y requirement s for household

appliances t ools and similar apparatus

? ENV 55104

Cabled dist ribution syst ems; Equipment f or receiving and/or distribution f rom sound and t elevision signals

EMC requirement s for unint erruptible power syst ems (UPS)

? EN50091-2

? EN 55020

? DIN VDE 0855 ? part 10 ? part 12

(EC conf ormity marking)

? CE marking

The manufacturer also declares the conformity of above mentioned product with the actual required safety standards in accordance with LV D 73/ 23 EEC

Saf ety requirements for mains operat ed elect ronic and related apparatus f or household and similar general use

? EN 60950

? EN 60065

Saf ety of household and similar elect rical appliances

? EN 60335

Manufacturer/Importer

Signat ure:

Name:

(S tamp)

Dat e : Dec. 18, 2001

? EN 60555-3

Ti mmy H u ang

Timm y Huang

? EN 50091-1

FCC Part 15, Su b part B, Sectio n 15.107(a) an d Section 15.109 (a),Clas s B Digi tal Device

DECLARATION OF CONFORMITY

Pe r FCC Part 2 Sect ion 2.1077(a)

Res ponsible Party Name:

Addres s:

Ph one/Fax No:

h ereby declares that the product

Product Name:

Con forms to the follo wing specifications:

Th is device co mplies wi th part 15 of the FCC Rules . Operati on is s ubject to t he follo wing two conditi ons: (1) This device may not cau se harmful and (2) this device must accept any inference received, in cluding that may cause undesired operation.

Repres entative Person’s Name:

Sig nature:

Eric Lu

Su pplementary Information:

Model Nu mber:

17358 Railr oad Street City of Indus tr y, CA 91748

G.B.T. INC. (U.S.A.)

(818) 854-9338/ (818) 854-9339

Moth er board GA-8 S IML

Date:

ERIC LU

De c. 18,2001

USER’S MANUAL

GA-8SIML

P4 Titan-DDR Motherboard

Pentium®4 Processor Motherboard

Rev. 1.1 First Edition

12ME-8SIML-1101

GA-8SIML Motherboard

Table of Content

Revision History ..............................................................................4

Item Checklist ..................................................................................4

WARNING! .......................................................................................5

Chapter 1 Introduction .......................................................................6

Features Summary................................................................................................ 6

GA-8SIML Motherboard Layout .......................................................................... 8

Chapter 2 Hardware Installation Process ............................................9

Step 1: Install the Central Processing Unit (CPU) .........................................10

CPU Installation ................................................................................ 10

CPU Heat Sink Installation .............................................................. 11

Step 2: Install memory modules ....................................................................... 12

Step 3: Install expansion cards ......................................................................... 13

Step 4: Connect ribbon cables, cabinet wires, and power supply ............. 14

I/O Back Panel Introduction ............................................................ 14

Connectors Introduction .................................................................. 16

Chapter 3 BIOS Setup .................................................................... 22

The Main Menu (For example: BIOS Ver. :FA) ..............................................23

Standard CMOS Features ................................................................................. 25

Advanced BIOS Features ................................................................................... 28

Advanced Chipset Features .............................................................................. 31

Integrated Peripherals ....................................................................................... 33

Table of Content

Power Management Setup ................................................................................ 38

PnP/PCI Configurations ...................................................................................... 41

PC Health Status .................................................................................................. 43

Frequency/Voltage Control ................................................................................ 45

Load Fail-Safe Defaults ...................................................................................... 47

Load Optimized Defaults .................................................................................... 48

Set Supervisor/User Password .......................................................................... 49

Save & Exit Setup ................................................................................................. 50

Exit Without Saving .............................................................................................51

Chapter 4 Technical Reference ........................................................52

Block Diagram ..................................................................................................... 52

@ BIOS Introduction ........................................................................................... 53

Chapter 5 Appendix ....................................................................... 54

GA-8SIML Motherboard

Revision Revision Note Date

1.1 Initial release of the GA-8SIML motherboard user's manual. Jan. 2002

? The GA-8SIML motherboard

? IDE cable x 1/ Floppy cable x 1

? CD for motherboard driver & utility (TUCD)

? GA-8SIML user’s manual

? Internal COM B Cable (Optional)

Revision History

Item Checklist

WARNING!

Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To

protect them against damage from static electricity, you should follow some precautions whenever you

work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have

one, touch both of your hands to a safely grounded object or to a metal object, such as

the power supply case.

3. Hold components by the edges and try not touch the IC chips, leads or connectors, or

other components.

4. Place components on a grounded antistatic pad or on the bag that came with the

components whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX

power connector on the motherboard.

If the motherboard has mounting holes, but they don’t line up with the holes on the base and there are

no slots to attach the spacers, do not become alarmed you can still attach the spacers to the mounting

holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so be careful

of your hands). In this way you can still attach the motherboard to the base without worrying about short

circuits. Sometimes you may need to use the plastic springs to isolate the screw from the motherboard

PCB surface, because the circuit wire may be near by the hole. Be careful, don’t let the screw contact

any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may damage the

board or cause board malfunctioning.

Installing the motherboard to the chassis…

WARNING!

GA-8SIML Motherboard

Chapter 1 Introduction

to be continued......

Features Summary

Form Factor ? 22.9cm x 24.3cm Micro ATX size form factor, 4 layers PCB.

CPU ? Socket 478 for Intel® Micro FC-PGA2 Pentium® 4 processor

??Support Intel ® Pentium ® 4 (Northwood, 0.13um) processor

? Intel Pentium®4 400MHz FSB

? 2nd cache depends on CPU

Chipset ? SiS 650 Host/Memory controller

? SiS 961 MuTIOL Media I/O

Memory ? 2 184-pin DDR DIMM sockets

? Supports DDR333/DDR266/200 SDRAM

? Supports Up to 2 un-buffer DIMM DDR333 or up to 2 un-buffer

Double-sided DIMM DDR266/200

? Supports up to 2GB DDR DRAM (Max)

? Supports only 2.5V DDR DIMM

? Supports 64bit DRAM integrity mode

I/O Control ? W83697HF

Slots ? 1 Universal AGP slot (1X/2X/4X) device support

? 3 PCI slot supports 33MHz & PCI 2.2 compliant

? 1 CNR(Communication and Networking Riser) Slot

On-Board IDE ? 2 IDE bus master (UDMA33/ATA66/ATA100) IDE ports for up to 4

ATAPI devices

? Supports PIO mode3,4 (UDMA 33/ATA66/ATA100) IDE & ATAPI

CD-ROM

On-Board Peripherals ? 1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M

and 2.88M bytes.

? 1 Parallel port supports Normal/EPP/ECP mode

? 1 Serial port (COMA),1 VGA port,COMB on board

? 4 USB ports (Rear USB x 2,by optional cable)

? 1 Front Audio Connector*

*For PCB 1.1ver only

Introduction

Please set the CPU host frequency in accordance with your processor’s specifications.

We don’t recommend you to set the system bus frequency over the CPU’s specification

because these specific bus frequencies are not the standard specifications for CPU,

chipset and most of the peripherals. Whether your system can run under these specific

bus frequencies properly will depend on your hardware configurations, including CPU,

Chipsets,SDRAM,Cards… .etc.

? 1 IrDA connector for IR

Hardware Monitor ? CPU/System Fan Revolution detect

? CPU/System Fan Control

? CPU Overheat Warning

? System Voltage Detect

On-Board Sound ? Realtek ALC201A CODEC

? Line In/Line Out/Mic In/CD In/ SPDIF/Game Port

On-Board LAN ? Builit in RTL8100L Chipset

? 1 RJ45 port

On-Board VGA ? Builit in SiS650 Chipset

PS/2 Connector ? PS/2 Keyboard interface and PS/2 Mouse interace

BIOS ? Licensed Award BIOS, 2M bit Flash ROM

Additional Features ? PS/2 Keyboard power on by password

? PS/2 Mouse power on

? STR(Suspend-To-RAM)

? AC Recovery

? USB KB/Mouse wake up from S3

? Supports @BIOS

GA-8SIML Motherboard

DIMM_LED

SPDIF

F_AUDIO*

*For PCB 1.1ver only

GA-8SIML Motherboard Layout

GA-8SIML

KB_MS

COMA

COMB

LPT

GAME

LINE_IN

LINE_OUT

MIC_IN

USB/

LAN

AUX_12V

CD_IN

F_PANEL

BATTERY

SYS _FAN

SiS 650

SOCKET478

CPU_FAN

ATX

FDD

IDE1

IDE2

AGP

PCI1

PCI2

PCI3

F_USB

DDR2

DDR1

W83697HF

FWH

RTL8100

AC97

CNR

SiS 961

VGA

S_IRQ

Buzzer

Hardware Installation Process

To set up your computer, you must complete the following steps:

Step 1- Install the Central Processing Unit (CPU)

Step 2- Install memory modules

Step 3- Install expansion cards

Step 4- Connect ribbon cables, cabinet wires, and power supply

Step 5- Setup BIOS software

Step 6- Install supporting software tools

Chapter 2 Hardware Installation Process

Step 2

Step4

Step3

Step 4

Step1

GA-8SIML Motherboard

Step 1: Install the Central Processing Unit (CPU)

CPU Installation

Pin1 indicator Pin1 indicator

CPU Top View CPU Bottom View

Socket Actuation Lever

1. Pull up the CPU socket lever

and up to 90-degree angle.

Pin1 indicator

2. Locate Pin 1 in the socket and look

for a (golden) cut edge on the CPU

upper corner. Then insert the CPU

into the socket.

3. Press down the CPU socket

lever and finish CPU installation.

? Please make sure the CPU type is supported by the motherboard.

? If you do not match the CPU socket Pin 1 and CPU cut edge well, it will cause

improper installation. Please change the insert orientation.

Hardware Installation Process

CPU Heat Sink Installation

1. Hook one end of the cooler

bracket to the CPU socket first.

2. Hook the other end of the

cooler bracket to the CPU

socket.

? Please use Intel approved cooling fan.

? We recommend you to apply the thermal tape to provide better heat

conduction between your CPU and heatsink.

(The CPU cooling fan might stick to the CPU due to the hardening of the

thermal paste. During this condition if you try to remove the cooling fan, you

might pull the processor out of the CPU socket alone with the cooling fan, and

might damage the processor. To avoid this from happening, we suggest you to

either use thermal tape instead of thermal paste, or remove the cooling fan with

extreme caution.)

? Make sure the CPU fan power cable is plugged in to the CPU fan connector,

this completes the installation.

? Please refer to CPU heat sink user’s manual for more detail installation

procedure.

GA-8SIML Motherboard

? Please note that the DIMM module can only fit in one direction due to the one

notches. Wrong orientation will cause improper installation. Please change

the insert orientation.

DDR

1. The DIMM slot has a notch, so the

DIMMmemory module can only fit in one direction.

2. Insert the DIMM memory module verticallyinto the

DIMM slot. Then push it down.

3. Close the plastic clip at both edges of theDIMM slots

to lock the DIMM module.

Reverse the installation steps when you wish to

remove the DIMM module.

Step 2: Install memory modules

The motherboard has 2 dual inline memory module (DIMM) sockets. The BIOS w ill automatic ally

detects memory type and size. To install the memory module, just push it vertically into the DIMM Slot

.The DIMM module can only fit in one direction due to the notch. Memory size can vary between

sockets.

Total Memory Sizes With Unbuffered DDR DIMM

Dev ic es used on DIMM 1 DIMM x 64 / x 72 2 DIMMs x 64 / x 72

64 Mbit (2Mx 8x 4 banks ) 128 MBy tes 256 MBy tes 64 Mbit (1Mx 16x 4 banks ) 32 MBy tes 64 MBy tes 128 Mbit(4Mx 8x 4 banks ) 256 MBy tes 512 MBy tes 128 Mbit(2Mx 16x 4 banks ) 64 MBy tes 128 M By tes 256 Mbit(8Mx 8x 4 banks ) 512 MBy tes 1 GBy tes 256 Mbit(4Mx 16x 4 banks ) 128 MBy tes 256 MBy tes 512 Mbit(16Mx 8x 4 banks ) 1 GBy tes 2 GBy tes 512 Mbit(8Mx 16x 4 banks ) 256 MBy tes 512 MBy tes

Hardware Installation Process

Step 3: Install expansion cards

1. Read the related expansion card’s instruction document before install the expansion card into the computer.

2. Remove your computer’s chassis cover, necessary screws and slot bracket from the computer.

3. Press the expansion card firmly into expansion slot in motherboard.

4. Be sure the metal contacts on the card are indeed seated in the slot.

5. Replace the screw to secure the slot bracket of the expansion card.

6. Replace your computer’s chassis cover.

7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.

8. Install related driver from the operating system.

AGP Card

Please carefully pull out the small whitedrawable bar at the end of the AGP slot when you try to install/ Uninstall the AGP card. Please align the AGP card to the onboard AGP slot and press firmly down on the slot . Make sure your AGP card is locked by the small white- drawable bar.

Established on the existing SDRAM industry infrastructure, DDR (Double Data Rate) memory is a

high performance and cost-effective solution that allows easy adoption for memory vendors, OEMs and system integrators.

DDR memory is a sensible evolutionary solution for the PC industry that builds on the existing

SDRAM infrastructure, yet makes awesome advances in solving the system performance bottleneck by doubling the memory bandwidth. DDR SDRAM w ill offer a superior so lution and migration path from existing SDRAM designs due to its availability, pricing and overall market support. PC2100 DDR memory (DDR266) doubles the data rate through reading and writing at both the rising and falling edge of the clock, achieving data bandwidth 2X greater than PC133 when running with the same DRAM clock frequency. With peak bandwidth of 2.1GB per second, DDR memory enables system OEMs to build high performance and low latency DRAM subsystems that are suitable for servers, workstations, highend PC 's a nd value desktop SM A sy stem s. W ith a core voltage of only 2.5 Volts compared to conventional SDRAM's 3.3 volts, DDR memory is a compelling solution for small form factor desktops and notebook applications.

DDR Introduction

GA-8SIML Motherboard

Step 4: Connect ribbon cables, cabinet wires, and power

supply

Step4-1:I/O Back Panel Introduction

? PS/2 Keyboard and PS/2 Mouse Connector

?This connector supports standard PS/2 keyboard

and PS/2 mouse.

? ?

? USB & LAN Connector

?Before you connect your device(s) into USB

connector(s), please make sure your device(s)

such as USB keyboard,mouse, scanner, zip,

speaker..etc. Have a standard USB interface. Also

make sure your OS (Win 95 with USB supplement,

Win98, Windows 2000, Windows ME, Win NT

with SP 6) supports USB controller. If your OS

does not support USB controller, please contact

OS vendor for possible patch or driver upgrade.

For more information please contact your OS or

device(s) vendors.

USB 0

USB 1

LAN

PS/2 Mouse Connector

(6 pin Female)

PS/2 Keyboard Connector

(6 pin Female)

Hardware Installation Process

? Game /MIDI Ports

? Audio Connectors

?This connector supports joystick, MIDI keyboard

and other relate audio devices.

? After install onboard audio driver, you may

connect speaker to Line Out jack, micro phone to MIC In jack. Device like CD-ROM , walkman etc can be connected to Line-In jack.

Line In

MIC In

Line Out

? Parallel Port , Serial Port and VGA Port (LPT/COMA/VGA)

?This connector supports 1 standard COM port

,1 Parallel port and 1 VGA port. Device like

printercan be connected to Parallel port ; mouse

and modem etc can be connected to Serial ports.

Parallel Port

(25 pin Female)

COMA VGA

Serial Port

(9 pin Male)

VGA Port

(15 pin Female)

Joystick/ MIDI (15 pin Female)

GA-8SIML Motherboard

Connectors Introduction

A) AUX_12V

B) CPU_FAN

C) ATX

D) IDE1/IDE2

E) FLOPPY

F) IR

G) SYS_FAN

H) CI

I) F_PANEL

J) F_USB

K) BAT

L) COMB

M) S_IRQ

N) SPDIF

O) F_AUDIO *

P) CD_IN

*For PCB 1.1ver only

Hardware Installation Process

B ) CPU_FAN (CPU FAN Connector)

+12V/Control

Sense

GND

?This connector (ATX +12V) suppliesthe CPU

operation voltage (Vcore).

If this " ATX+ 12V connector" is not connected,

system cannot boot.

A) AUX_12V ( +12V Power Connector)

? Please note, a proper installation of the CPU

cooler is essential to prevent the CPU from

running under abnormal condition or damaged

by overheating.The CPU fan connector

supports Max. current up to 600 mA.

J ) SYS_FAN (System FAN Connector)

+12V

GND

+12V

GND

+12V/Control

Sense

GND

H) CI (CASE OPEN)

? This 2 pin connector allows your system to

enable or disable the system alarm if the sys

tem case begin remove.

Signal

GND

GA-8SIML Motherboard

E ) FDD (Floppy Connector)

IDE1

IDE2

D ) IDE1/ IDE2 (IDE1/IDE2 Connector)

? Important Notice:

Please connect first harddisk to IDE1

and connect CDROM to IDE2.

O) F_AUDIO (Front Audio Connector)*

? If you want to use "Front Audio" connector,

you must move 3-4,5-6 Jumper. In order to

utilize the front audio header, your chassis must

have front audio connector. Also please make

sure the pin assigment on the cable is the same

as the pin assigment on the MB header. To find

out if the chassis you are buying support front

audio connector, please contact your dealer.

Front Audio (L)

GND

MIC

Rear Audio (R)

Rear Audio (L)

Front Audio (R)

*For PCB 1.1ver only

Hardware Installation Process

P) CD_IN (CD Audio Line In)

CD-L

CD-R GND

N)SPDIF

VCC

SPDIF Out

GND

? The SPDIF output is capable of providing

digital audio to external speakers or com

pressed AC3 data to an external Dolby

Digital Decoder. Use this feature only when

your stereo system has digital output

function.

L) COM B

M) S_IRQ

(For special design, for example: PCMCIA add on card)

Signal

GND

GA-8SIML Motherboard

C ) ATX (ATX Power)

PS-ON(Soft On/Off)

3.3V

GND

VCC

+12V

5V SB (Stand by +5V)

Power Good

3.3V

GND

GND GND

VCC

-12V

-5V

?AC power cord should only be connected to

your power supply unit after ATX power cable

and other related devices are firmly

connected to the mainboard.

?Be careful with the polarity of the IR

connectorwhile you connect the IR. Please

contact you nearest dealer for optional IR

device.

F)IR

VCC(+5V)

IR Data Input GND

IR Data Output

? Be careful with the polarity of the front

panel USB connector. Check the pin

assignment while you connect the front

panel USB cable. Please contact your

nearest dealer for optional front panel

USB cable.

GND

USB 3+

Power

USB 2-

USB 2+

GND

USB 3-

Power

J) F_USB (Front USB Connector)

Hardware Installation Process

I) F_PANEL (2x7 pins jumper)

? Please connect the power LED, PC speaker, reset switch and power switch etc of your chassis

front panel to the F_PANEL connector according to the pin assignment above.

HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)

Pin 2: LED cathode(-)

SPK (Speaker Connector) Pin 1: VCC(+)

Pin 2- Pin 3: NC

Pin 4: Data(-)

RST (Reset Switch) Open: Normal Operation

Close: Reset Hardware System

PD+/PD_G-/PD_Y-(Power LED) Pin 1: LED anode(+)

Pin 2: LED cathode(-)

Pin 3: LED cathode(-)

PW (Soft Power Connector) Open: Normal Operation

Close: Power On/Off

HD+

PD_Y-

2 14

PD+

PW-

PW+

RST-

SPK+

SPK-

RST+

HD-

PD_G-

K) Battery

CAUTION

? Danger of explosion if battery is incorrectly

replaced.

? Replace only with the same or equivalent

type recommended by the manufacturer.

? Dispose of used batteries according to the

manufacturer’s instructions.

GA-8SIML Motherboard

<?> Move to previous item

<?> Move to next item

<?> Move to the item in the left hand

<?> Move to the item in the right hand

<Esc> Main Menu - Quit and not save changes into CMOS Status Page Setup Menu and

Option Page Setup Menu - Exit current page and return to Main Menu

<+/PgUp> Increase the numeric value or make changes

<-/PgDn> Decrease the numeric value or make changes

<F1> General help, only for Status Page Setup Menu and Option Page Setup Menu

<F2> Reserved

<F3> Reserved

<F4> Reserved

<F5> Restore the previous CMOS value from CMOS, only for Option Page Setup Menu

<F6> Load the file-safe default CMOS value from BIOS default table

<F7> Load the Optimized Defaults

<F8> Dual BIOS/Q-Flash function

<F9> Reserved

<F10> Save all the CMOS changes, only for Main Menu

BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the

basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it

retains the Setup information when the power is turned off.

Chapter 3 BIOS Setup

ENTERING

Power ON the computer and press <Del> immediately will allow you to enter Setup.

CONTROL

SETUP

KEYS

BIOS Setup

? Standard CMOS Features

This setup page includes all the items in standard compatible BIOS.

? Advanced BIOS Features

This setup page includes all the items of Award special enhanced features.

? Advanced Chipset Features

This setup page includes all the items of chipset special features.

Main Menu

The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Status Page Setup Menu / Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible

selections for the highlighted item. To exit the Help Window press <Esc>.

The Main Menu (F or example: BIOS Ver. :FA)

If you want detail data setting before “BIOS ver FA“, please download the manual from Gigabyte web http://www.gigabyte.com.tw.

Once you enter Award BIOS CMOS Setup Utility, the Main Menu (Figure 1) will appear on the screen.

The Main Menu allows you to select from eight setup functions and two exit choices. Use arrow keys to

select among the items and press <Enter> to accept or enter the sub-menu.

?Standard CMOS Features ?Frequency/Voltage Control

?Advanced BIOS Features Load Fail-Safe Defaults

?Advanced Chipset Features Load Optimized Defaults

?Integrated Peripherals Set Supervisor Password

?Power Management Setup Set User Password

?PnP/PCI Configurations Save & Exit Setup

?PC Health Status Exit Without Saving

ESC:Quit ????:Select Item

F8: Q-Flash F10:Save & Exit Setup

Time, Date, Hard Disk Type...

Figure 1: Main Menu

GETTING HELP

GA-8SIML Motherboard

? Integrated Peripherals

This setup page includes all onboard peripherals.

? Power Management Setup

This setup page includes all the items of Green function features.

? PnP/PCI Configurations

This setup page includes all the configurations of PCI & PnP ISA resources.

? PC Health Status

This setup page is the System auto detect Temperature, voltage, fan, speed.

? Frequency/Voltage Control

This setup page is control CPU’s clock and frequency ratio.

? Load Fail-Safe Defaults

Fail-Safe Defaults indicates the value of the system parameters which the system would

be in safe configuration.

? Load Optimized Defaults

Optimized Defaults indicates the value of the system parameters which the system would

be in best performance configuration.

? Set Supervis or password

Change, set, or disable password. It allows you to limit access to the system and Setup,

or just to Setup.

? Set User password

Change, set, or disable password. It allows you to limit access to the system.

? Save & Exit Setup

Save CMOS value settings to CMOS and exit setup.

? Exit Without Saving

Abandon all CMOS value changes and exit setup.

BIOS Setup

Standard CMOS Features

Date (mm:dd:yy) Fir, Jan 25 2002 Item Help

Time (hh:mm:ss) 22:31:24 Menu Level ?

Change the day, month,

?IDE Primary Master [None] year and century

?IDE Primary Slave [None]

?IDE Secondary Master [None] <Week>

?IDE Secondary Slave [None] Sun. to Sat.

Drive A [1.44M, 3.5 in.] <Month>

Drive B [None] Jan. to Dec.

Floppy 3 Mode Support [Disabled]

<Day>

Halt On [All, But Keyboard] 1 to 31 (or maximum

allowed in the month)

Base Memory 640K <Year>

Extended Memory 130048K 1999 to 2098

Total Memory 131072K

????: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Figure 2: Standard CMOS Features

? Date

The date format is <week>, <month>, <day>, <year>.

?Week The week, from Sun to Sat, determined by the BIOS and is display only ?Month The month, Jan. Through Dec.

?Day The day, from 1 to 31 (or the maximum allowed in the month) ?Year The year, from 1999 through 2098

GA-8SIML Motherboard

? Time

The times format in <hour> <minute> <second>. The time is calculated base on the 24-hour military-

time clock. For example, 1 p.m. is 13:00:00.

? IDE Primary Master, Slave / IDE Secondary Master, Slave

The category identifies the types of hard disk from drive C to F that has been installed in the computer.

There are two types: auto type, and manual type. Manual type is user-definable; Auto type which will

automatically detect HDD type.

Note that the specifications of your drive must match with the drive table. The hard disk will not work

properly if you enter improper information for this category.

If you select User Type, related information will be asked to enter to the following items. Enter the

information directly from the keyboard and press <Enter>. Such information should be provided in the

documentation form your hard disk vendor or the system manufacturer.

?CYLS. Number of cylinders

?HEADS Number of heads

?PRECOMP Write precomp

?LANDZONE Landing zone

?SECTORSNumber of sectors

If a hard disk has not been installed select NONE and press <Enter>.

? Drive A / Drive B

The category identifies the types of floppy disk drive A or drive B that has been installed in the

computer.

?None No floppy drive installed

?360K, 5.25 in. 5.25 inch PC-type standard drive; 360K byte capacity.

?1.2M, 5.25 in. 5.25 inch AT-type high-density drive; 1.2M byte capacity

(3.5 inch when 3 Mode is Enabled).

?720K, 3.5 in. 3.5 inch double-sided drive; 720K byte capacity

?1.44M, 3.5 in. 3.5 inch double-sided drive; 1.44M byte capacity.

?2.88M, 3.5 in. 3.5 inch double-sided drive; 2.88M byte capacity.

BIOS Setup

? Floppy 3 Mode Support (for Japan Area)

?Disabled Normal Floppy Drive. (Default value)

?Drive A Drive A is 3 mode Floppy Drive.

?Drive B Drive B is 3 mode Floppy Drive.

?Both Drive A & B are 3 mode Floppy Drives.

? Halt on

The category determines whether the computer will stop if an error is detected during power up.

?NO Errors The system boot will not stop for any error that may be detected

and you will be prompted.

?All Errors Whenever the BIOS detects a non-fatal error the system will be stopped.

?All, But Keyboard The system boot will not stop for a keyboard error; it will stop for

all other errors. (Default value)

?All, But Diskette The system boot will not stop for a disk error; it will stop for all

other errors.

?All, But Disk/Key The system boot will not stop for a keyboard or disk error; it will

stop for all other errors.

? Memory

The category is display-only which is determined by POST (Power On Self Test) of the BIOS.

Base Memory

The POST of the BIOS will determine the amount of base (or conventional) memory

installed in the system.

The value of the base memory is typically 512 K for systems with 512 K memory

installed on the motherboard, or 640 K for systems with 640 K or more memory

installed on the motherboard.

Extended Memory

The BIOS determines how much extended memory is present during the POST.

This is the amount of memory located above 1 MB in the CPU’s memory

address map.

GA-8SIML Motherboard

Adv anced BIOS Features

? BIOS Flash Protection

This field lets you determine the states that flash BIOS

?Auto BIOS enables flash write access automatically when updating BIOS data/DMI/

ESCD. (Default Value)

?Enabled During POST, DMI/ESCD would not be updated. But flash tools can update BIOS

always.

? First / Second / Third Boot Device

This feature allows you to select the boot device priority.

?Floppy Select your boot device priority by Floppy.

Advanced BIOS Features

BIOS Flash Protection [Auto] Item Help

First Boot Device [Floppy] Menu Level ?

Second Boot Device [HDD-0] [Auto]

Third Boot Device [CDROM] Allows BIOS to

Boot Up Floppy Seek [Disabled] update flash data

BootUp Num-Lock [On] during POST. It still

Password Check [Setup] prevents other

Interrupt Mode [APIC] unauthorized utilities

HDD S.M.A.R.T. Capability [Disabled] to update flash

[Enabled]

Always prevent BIOS

and unauthorized

utilities to update

flash

?????: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Figure 3: Advanced BIOS Features

BIOS Setup

?LS120 Select your boot device priority by LS120.

?HDD-0~3 Select your boot device priority by HDD-0~3.

?SCSI Select your boot device priority by SCSI.

?CDROM Select your boot device priority by CDROM.

?ZIP Select your boot device priority by ZIP.

?USB-FDD Select your boot device priority by USB-FDD.

?USB-ZIP Select your boot device priority by USB-ZIP.

?USB-CDROM Select your boot device priority by USB-CDROM.

?USB-HDD Select your boot device priority by USB-HDD.

?LAN Select your boot device priority by LAN.

?Disabled Select your boot device priority by Disabled.

? Boot Up Fl oppy Seek

During POST, BIOS will determine the floppy disk drive installed is 40 or 80 tracks. 360 K type is

40 tracks 720 K, 1.2 M and 1.44 M are all 80 tracks.

?Enabled BIOS searches for floppy disk drive to determine it is 40 or 80 tracks. Note

that BIOS can not tell from 720 K, 1.2 M or 1.44 M drive type as they are

all 80tracks.

?Disabled BIOS will not search for the type of floppy disk drive by track number. Note

that there will not be any warning message if the drive installed is 360 K. (Default value)

? BootUp Num-Lock

When set On, allows the BIOS to automatically enable the Num Lock Function when the system

boots up.

?On Keypad is number keys. (Default value)

?Off Keypad is arrow keys.

? Passwor d Check

This feature allows you to limit access to the system and Setup, or just to Setup.

Please refer to the detail on P.48

?System The system can not boot and can not access to Setup page will be denied

if the correct password is not entered at the prompt.

GA-8SIML Motherboard

?Setup The system will boot, but access to Setup will be denied if the correct

password is not entered at the prompt. (Default value)

? Interrupt Mode

?APIC Through IOAPIC generate more IRQ for system use.(Default value)

?PIC Use AT stantard IRQ controlles to generate IRQ.

When you already have IOAPIC enable system and want to upgrade the system please note, since running an IOAPIC enabled OS (like Windows NT,Windows 2000, Windows XP...) system with none IOAPIC HW support will cause the system to hang. Following are some situations users might run into:

1.An IOAPIC enabled OS and change the BIOS setting from IOAPIC to PIC, this will cause your system

to hang.)

? HDD S.M.A.R.T Capability

S.M.A.R.T. stands for Self-Monitoring and Analysis Reporting Technology which allows your hard

disk drive to report any read/write errors and issue a warning with LDCM installed.

?Enabled Enable HDD S.M.A.R.T. Capability. ?Disabled Disable HDD S.M.A.R.T. Capability. (Default value)

BIOS Setup

Adv anced Chipset Features

Figure 4: Advanced Chipset Features

Advanced Chipset Features

Top Performance [Disabled] Item Help

Configure DRAM Timing [Auto] Menu Level ?

x CAS Latency Setting Auto

x DRAM RAS Active Time 6T

x DRAM RAS Precharge Time 3T

x DRAM RAS to CAS Delay 3T

AGP Aperture Size [64MB]

?????: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

We would not suggest you change the chipset default setting unless you really need it.

? Top Performance

If you wish to maximize the performance of your system, set "Top Performance" as "Enabled".

?Disabled Disable this function. (Default Value)

?Enabled Enable Top Performance function.

? Configure DRAM Timing

Warning: Wrong DRAM Timing may make system can’t boot .Clear CMOS to overcome wrong Timing issue)

?Auto Will be automatically detected by BIOS. (Default Value)

?Manual Set Configure DRAM Timing to Manual.

? CAS Latency Setting

This feature allows you to select the CAS latency Time, When any DDR DIMM installed.

?2T Set CAS Latency Setting to 2T.

?2.5T Set CAS Latency Setting to 2.5T.

GA-8SIML Motherboard

?3T Set CAS Latency Setting to 3T.

?Auto Will be automatically detected by BIOS. (Default Value)

? DRAM RAS Active Time

?4T Set DRAM RAS Active Time to 4T.

?5T Set DRAM RAS Active Time to 5T.

?6T Set DRAM RAS Active Time to 6T. (Default value)

?7T Set DRAM RAS Active Time to 7T.

? DRAM RAS Precharge Time

This feature allows you to set the DRAM RAS# Precharge Time.

?2T Set DRAM RAS Precharge Time to 2T.

?3T Set DRAM RAS Precharge Time to 3T. (Default value)

?4T Set DRAM RAS Precharge Time to 4T.

? DRAM RAS to CAS Delay

This feature allows you to set the delay time that from the DRAM RAS# active to CAS#.

?2T Set DRAM RAS to CAS Delay to 2T.

?3T Set DRAM RAS to CAS Delay to 3T. (Default value)

?4T Set DRAM RAS to CAS Delay to 4T.

? AGP Aperture Size

(This feature allows you to select the main memory frame size for AGP use)

?4MB AGP Aperture Size is 4MB.

?8MB AGP Aperture Size is 8MB.

?16MB AGP Aperture Size is 16MB.

?32MB AGP Aperture Size is 32MB.

?64MB AGP Aperture Size is 64MB. (Default value)

?128MB AGP Aperture Size is 128MB.

?256MB AGP Aperture Size is 256MB.

BIOS Setup

Integrated Peripherals

Figure 5: Integrated Peripherals

Integrated Peripherals

IDE1 Conductor Cable [Auto] Item Help

IDE2 Conductor Cable [Auto] Menu Level ?

On-Chip Primary PCI IDE [Enabled] [Auto]

On-Chip Secondary PCI IDE [Enabled] Auto-detect IDE

AC97 Audio [Enabled] cable type

AC97 Modem [Enabled]

System share Memory Size [32MB] [ATA66/100]

USB Controller [Enabled] Set Conductor cable

USB Legacy Support [Disabled] to ATA66/100

Onboard LAN Function [Enabled]

Init Display First [AGP] [ATA33]

Onboard FDC [Enabled] Set Conductor cable

Onboard Serial Port A [3F8/IRQ4] to ATA33

Onboard Serial Port B [2F8/IRQ3]

Serial Port B Mode [Normal]

Onboard Parallel Port [378/IRQ7]

Parallel Port Mode [ECP]

?EPP Mode Select EPP1.7

ECP Mode Use DMA [3]

Game Port Address [201]

Midi Port Address [330]

Midi Port IRQ [10]

?????: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

GA-8SIML Motherboard

? IDE1 Conductor Cable

?Auto Will be automatically detected by BIOS. (Default Value)

?ATA66/100 Set IDE1 Conductor Cable to ATA66/100 (Please make sure your IDE device

and cable is compatible with ATA66/100).

?ATA33 Set IDE1 Conductor Cable to ATA33 (Please make sure your IDE device and

cable is compatible with ATA33).

? IDE2 Conductor Cable

?Auto Will be automatically detected by BIOS. (Default Value)

?ATA66/100 Set IDE2 Conductor Cable to ATA66/100 (Please make sure your IDE device

and cable is compatible with ATA66/100).

?ATA33 Set IDE2 Conductor Cable to ATA33 (Please make sure your IDE device and

cable is compatible with ATA33).

? On-Chip Primary PCI IDE

When enabled, allows you to use the onboard primary PCI IDE.

?Enabled Enable onboard 1st channel IDE port. (Default value)

?Disabled Disable onboard 1st channel IDE port.

? On-Chip Secondary PCI IDE

When enabled, allows you to use the onboard secondary PCI IDE.

?Enabled Enable onboard 2nd channel IDE port. (Default value)

?Disabled Disable onboard 2nd channel IDE port.

? AC97 Audio

?Enabled Enable onboard AC'97 audio function. (Default Value)

?Disabled Disable this function.

? AC97 Modem

?Enabled BIOS will search MC97 Codec (AMR Modem Card). If found, MC97 function

will be enabled. If no MC97 Codec found, MC97 function will be disabled.

BIOS Setup

(Default Value)

?Disabled Disable this function.

? Share Memory Size

?4MB/8MB/16MB/32MB/64MB Set onchip VGA shared memory size.(Default Value:32MB)

? USB Controller

Disable this option if you are not using the onboard USB feature.

?Enabled Enable USB Controller. (Default value)

?Disabled Disable USB Controller.

? USB Legacy Support

?Enabled Enable USB Legacy Support. ?Disabled Disable this function.(Default Value)

? Onboard Lan

?Disabled Disable this function. ?Enabled Enable Onboard Lan Chip function. (Default Value)

? Init Display First

This feature allows you to select the first initation of the monitor display from which card, when you

install an AGP VGA card and a PCI VGA card on board.

?PCI Set Init Display First to PCI Slot.

?AGP Set Init Display First to AGP. (Default value)

? OnBoard FDC

When enabled, the fioppy diskette drive (FDD) controller is activated.

?Disabled Disable this function.

?Enabled Enable on board floppy disk controller.(Default value)

? Onboard Serial Port A

?Auto BIOS will automatically setup the port A address.

?3F8/IRQ4 Enable onboard Serial port A and using daddress 3F8 , IRQ4. (Default Value)

GA-8SIML Motherboard

?2F8/IRQ3 Enable onboard Serial port A and using daddress 2F8 , IRQ3. ?3E8/IRQ4 Enable onboard Serial port A and using daddress 3E8 , IRQ4. ?2E8/IRQ3 Enable onboard Serial port A and using daddress 2E8 , IRQ3.

?Disabled Disable onboard Serial port A.

? Onboard Serial Port B

?Auto BIOS will automatically setup the port B address. ?3F8/IRQ4 Enable onboard Serial port B and using daddress 3F8 , IRQ4. ?2F8/IRQ3 Enable onboard Serial port B and using daddress 2F8 , IRQ3. (Default Value) ?3E8/IRQ4 Enable onboard Serial port B and using daddress 3E8 , IRQ4.

?2E8/IRQ3 Enable onboard Serial port B and using daddress 2E8 , IRQ3. ?Disabled Disable onboard Serial port B.

? Serial Port B Mode

(This item allows you to select the IR modes if the serial port B is used as an IR port.Set at Normal , if

you use COM2 as the serial port as the serial port, instead as an IR port.)

?ASKIR Set onboard I/O chip UART to ASKIR Mode. ?IrDA Set onboard I/O chip UART to IrDa Mode.

?Normal Set onboard I/O chip UART to Normal Mode. (Default Value)

? OnBoard Parallel port

This feature allows you to select from a given set of parameters if the parallel port uses the onboard I/

O controller.

?378/IRQ7 Enable On Board LPT port and using address 378, IRQ7.(Default Value)

?278/IRQ5 Enable On Board LPT port and using address 278, IRQ5.

?3BC/IRQ7 Enable On Board LPT port and using address 3BC, IRQ7.

?Disabled Disable onboard Parallel port.

? Parallel Port Mode

This feature allows you to connect with an advanced print via the port mode it supports.

?SPP Using Parallel port as Standard Parallel Port.

?EPP Using Parallel port as Enhanced Parallel Port.

?ECP Using Parallel port as Extended Capabilities Port.(Default Value)

?ECP+EPP Using Parallel port as ECP & EPP mode.

BIOS Setup

? EPP Version

This feature allows you to select the EPP type version.

?EPP 1.9 Compliant with EPP 1.9 version. ?EPP 1.7 Compliant with EPP 1.7 version.(Default Value)

? Parallel Port DMA

This feature allows you to select Direct Memory Access(DMA) channel if the ECP mode selected.

?3 Set Parallel Port DMA to 3.(Default Value)

?1 Set Parallel Port DMA to 1.

? OnBoard Game Port

This feature allows you to select the game port address or disable it.

?Disabled Disable OnBoard Game Port.

?201h Set OnBoard Game Port to 201h. (Default Value) ?209h Set OnBoard Game Port to 209h.

? OnBoard Midi Port

This feature allows you to select the Midi port address or disable it.

?Disabled Disable onboard Midi Port. ?300h Set onboard Midi Port to 300h.

?330h Set onboard Midi Port to 330h. (Default Value) ?290h Set onboard Midi Port to 290h.

? Midi IRQ Select

This feature allows you to select Midi IRQ is enabled.

?IRQ 5 / 10 (Default Value:10)

GA-8SIML Motherboard

Power Management Setup

ACPI Suspend Type [S1(POS)] Item Help

MODEM Use IRQ [AUTO] Menu Level ?

Soft-Off by Power Button [Off]

System After AC Back [Off]

IRQ [3-7, 9-15], NMI [Enabled]

ModemRingOn/WakeOnLan [Enabled]

PME Event Wake Up [Enabled]

USB Device Wake-up From S3 [Disabled]

Power On by Mouse [Disabled]

KB Power ON Password [Enter]

Resume by Alarm [Disabled]

x Month Alarm NA

x Day of Month Alarm 0

x Time (hh:nn:ss) Alarm 0 0 0

??????: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Figure 6: Power Management Setup

? ACPI Suspend Type

?S1(POS) Set ACPI suspend type to S1. (Default Value)

?S3(STR) Set ACPI suspend type to S3.

? MODEM Use IRQ

?AUTO Set MODEM Use IRQ to Auto. (Default value)

?3 Set MODEM Use IRQ to 3.

?4 Set MODEM Use IRQ to 4.

?5 Set MODEM Use IRQ to 5.

?7 Set MODEM Use IRQ to 7.

BIOS Setup

?9 Set MODEM Use IRQ to 9.

?10 Set MODEM Use IRQ to 10.

?11 Set MODEM Use IRQ to 11.

? Soft-off by Power Button

?Off The user press the power button once, he can turn off the system.

(Default Value)

?Suspend The user press the power button once, then he can enter suspend mode.

? System after AC Back

?Last State When AC-power back to the system, the system will return to the Last state

before AC-power off.

?Off When AC-power back to the system, the system will be in "Off" state.

(Default Value)

?On When AC-power back to the system, the system will be in "On" state.

? IRQ [3-7, 9-15], NMI

?Disabled Disable this function.

?Enabled Enable this function. (Default value)

? ModemRingOn/WakeOnLAN

An incoming call via modem awakes the system from its soft-off mode./When set at Enabled, an input

signal comes from the other client/server on the LAN awarks the system from a soft off state if

connected over LAN.

?Disabled Disable Modem Ring on/wake on Lan function.

?Enabled Enable Modem Ring on/wake on Lan. (Default Value)

? PME Event Wake UP

When set at Enabled, any PCI-PM event awarkes the system from a PCI-PM controlled state

?Disabled Disable this function.

GA-8SIML Motherboard

?Enabled Enable PME Event Wake up. (Default Value)

? USB Device Wake-up From S3

When set at Enabled, it allows USB Device to activate the system from ACPI S3 power saving

mode.

?Enabled Enable USB Device Wakeup.

?Disabled Disable USB Device Wakeup. (Default Value)

? Power On by Mouse

?Enabled Enable PS2 Mouse Power Up Control function. (Default Value)

?Disabled Disable this function.

? KB Power ON Password

?Enter Input password (from 1 to 8 characters) and press Enter to set the Keyboard

Power On Password.

? Resume by Alarm

You can set "Resume by Alarm" item to enabled and key in Data/time to power on system.

?Disabled Disable this function. (Default Value)

?Enabled Enable alarm function to POWER ON system.

If RTC Alarm Lead To Power On is Enabled.

Month Alarm : NA, 1~31

Day of Month Alarm : 1~31

Time ( hh: mm: ss) Alarm : (0~23) : (0~59) : (0~59)

BIOS Setup

PnP/PCI Configurations

Figure 7: PnP/PCI Configurations

? Resources Controlled By

?Manual User can set the PnP resource (I/O Address, IRQ & DMA

channels) used by legacy ISA DEVICE.

?Auto BIOS automatically use these PnP rescuers. (Default value)

? IRQ Resources ( 3,4,5,7,9,10,11,12,14,15 )

?PCI Device The resource is used by PCI device.

?Reserved Set the resource to reserved.

PnP/PCI Configurations

Resources Controlled By [Auto] Item Help

x?IRQ Resources Press Enter Menu Level ?

PCI1 IRQ Assignment [Auto] [Auto]

PCI2 IRQ Assignment [Auto] Assign PnP resource

PCI3 IRQ Assignment [Auto] (I/O address, IRQ &

DMA channels) for Plug

and Play compatible

devices automatically

[Manual]

Assign resource

manually

??????: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

GA-8SIML Motherboard

? PCI1 IRQ As signment

?Auto Auto assign IRQ to PCI1. (Default value)

?3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI4.

? PCI2 IRQ As signment

?Auto Auto assign IRQ to PCI2. (Default value) ?3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI1/5.

? PCI3 IRQ As signment

?Auto Auto assign IRQ to PCI3. (Default value)

?3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI2/6.

BIOS Setup

PC Health Status

Figure8: PC Health Status

? Reset Case Open Status ? Case Status

If the case is closed, "Case Status" will show "Closed".

If the case have been opened, "Case Status" will show "Opened". If you want to reset "Case Status" value, set "Reset Case Open Status" to "Yes" and save CMOS, your computer will restart.

? Current Voltage (V) VCORE / +3.3V / +5V / +12V

?Detect system’s voltage status automatically.

PC Health Status

Reset Case Open Status [Disabled] Item Help

Case Status [No] Menu Level ?

VCORE 1.71V

+3.3V 3.29V

+5V 4.99V

+12V 11.73V

Current System Temp. 27°C/ 80°F

Current CPU Temperature 25°C/ 77°F

Current CPU FAN Speed 4821 RPM

Current System FAN Speed 0 RPM

CPU Warning Temperature [Disabled]

System FAN Fail Warning [Disabled]

CPU FAN Fail Warning [Disabled]

??????: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

GA-8SIML Motherboard

? Current System Temperature

?Detect System Temp. automatically.

? Current CPU Temperature

?Detect CPU Temp. automatically.

? Current CPU Fan / System Fan Fan Speed (RPM)

?Detect Fan speed status automatically.

? CPU Warning Temperature

?60°C / 140°F Monitor CPU Temp. at 60°C / 140°F.

?70°C / 158°F Monitor CPU Temp. at 70°C / 158°F.

?80°C / 176°F Monitor CPU Temp. at 80°C / 176°F.

?90°C / 194°F Monitor CPU Temp. at 90°C / 194°F.

?Disabled Disable this function.(Default value)

? Fan Fail Alarm

CPU/ System

?No Fan Fail Alarm Function Disable. (Default Value)

?Yes Fan Fail Alarm Function Enable.

BIOS Setup

Frequency/Voltage Control

Figure 9: Frequency/Voltage Control

Frequency/Voltage Control

CPU Clock Ratio [15X] Item Help

Linear Frequency Control [Disabled] Menu Level ?

? CPU Clock 100

? DRAM Clock (MHz) N/A

? AGP Clock (MHz) N/A

? PCI Clock (MHz) N/A

CPU OverVoltage Control [Normal]

Normal CPU Vcore 1.750V

??????: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Note: If system hangs up before enter CMOS setup utility, wait for 20 sec for times out reboot . When time out occur, system will reset and run at CPU default Host clock at next boot.

? Those items will be available when "Linear Frequency Control" is set to Enabled.

? CPU Clock Ratio

?8X~24X It’s depends on CPU Clock Ratio.

? Linear Frequency Control

When set to "Enabled", you can adjust CPU / DRAM / AGP / PCI linear frequency. For power

End-User use only.

?Disabled Disable this function. (Default value)

?Enabled Enable this function.

GA-8SIML Motherboard

? DRAM Clock (MHz)

This feature allows you to adjust the DRAM frequency, When "Linear Frequency Control" is set to

Enabled.

?Please set DRAM Clock according to your requirement.

If you use DDR200 DRAM module, please set “DRAM Clock(MHz)” to 100. If you use DDR333 DRAM module, please set “DRAM Clock(MHz)” to 166.

Incorrect using it may cause your system broken. For power End-User use only!

? AGP Clock (MHz)

This feature allows you to adjust the AGP frequency, When "Linear Frequency Control" is set to

Enabled.

?Please set AGP Clock according to your requirement.

Incorrect using it may cause your system broken. For power End-User use only!

? PCI Clock (MHz)

This feature allows you to adjust the PCI frequency, When "Linear Frequency Control" is set to

Enabled.

?Please set PCI Clock according to your requirement.

Incorrect using it may cause your system broken. For power End-User use only!

? CPU OverVoltage Control

?Supports adjustable CPU Vcore from 1.100V to 1.850V by 0.025V step.

(Default value: Normal)

? Normal CPU Vcore

?Display your CPU Vcore Voltage.

BIOS Setup

Load Fail-Safe Defaults

Fail-Safe defaults contain the most appropriate values of the system parameters that allow

minimum system performance.

?Standard CMOS Features ?Frequency/Voltage Control

?Advanced BIOS Features Load Fail-Safe Defaults

?Advanced Chipset Features Load Optimized Defaults

?Integrated Peripherals Set Supervisor Password

?Power Management Setup Set User Password

?PnP/PCI Configurations Save & Exit Setup

?PC Health Status Exit Without Saving

ESC:Quit ????:Select Item

F8: Q-Flash F10:Save & Exit Setup

Load Fail-Safe Defaults

Figure 10: Load Fail-Safe Defaults

Load Fail-Safe Defaults? (Y/N)?Y

GA-8SIML Motherboard

Load Optimized Defaults

Selecting this field loads the factory defaults for BIOS and Chipset Features which the

system automatically detects.

?Standard CMOS Features ?Frequency/Voltage Control

?Advanced BIOS Features Load Fail-Safe Defaults

?Advanced Chipset Features Load Optimized Defaults

?Integrated Peripherals Set Supervisor Password

?Power Management Setup Set User Password

?PnP/PCI Configurations Save & Exit Setup

?PC Health Status Exit Without Saving

ESC:Quit ????:Select Item

F8: Q-Flash F10:Save & Exit Setup

Load Optimized Defaults

Figure 11: Load Optimized Defaults

Load Optimized Defaults? (Y/N)?Y

BIOS Setup

Set Supervisor/User Password

When you select this function, the following message will appear at the center of the screen to assist

you in creating a password.

Type the password, up to eight characters, and press <Enter>. You will be asked to confirm the

password. Type the password again and press <Enter>. You may also press <Esc> to abort the

selection and not enter a password.

To disable password, just press <Enter> when you are prompted to enter password. A message

“PASSWORD DISABLED” will appear to confirm the password being disabled. Once the password is

disabled, the system will boot and you can enter Setup freely.

The BIOS Setup program allows you to specify two separate passwords:

SUPERVISOR PASSWORD and a USER PASSWORD. When disabled, anyone may access

all BIOS Setup program function. When enabled, the Supervisor password is required for entering the

BIOS Setup program and having full configuration fields, the User password is required to access only

basic items.

If you select “ System” at “ Password Check” in Advance BIOS Features Menu, you will be

prompted for the password every time the system is rebooted or any time you try to enter Setup Menu.

If you select “Setup” at “Password Check” in Advance BIOS Features Menu, you will be prompted

only when you try to enter Setup.

?Standard CMOS Features ?Frequency/Voltage Control

?Advanced BIOS Features Load Fail-Safe Defaults

?Advanced Chipset Features Load Optimized Defaults

?Integrated Peripherals Set Supervisor Password

?Power Management Setup Set User Password

?PnP/PCI Configurations Save & Exit Setup

?PC Health Status Exit Without Saving

ESC:Quit ????:Select Item

F8: Q-Flash F10:Save & Exit Setup

Change/Set/Disable Password

Figure 12: Password Setting

Enter Password:

GA-8SIML Motherboard

Sav e & Exit Setup

Type “Y” will quit the Setup Utility and save the user setup value to RTC CMOS.

Type “N” will return to Setup Utility.

?Standard CMOS Features ?Frequency/Voltage Control

?Advanced BIOS Features Load Fail-Safe Defaults

?Advanced Chipset Features Load Optimized Defaults

?Integrated Peripherals Set Supervisor Password

?Power Management Setup Set User Password

?PnP/PCI Configurations Save & Exit Setup

?PC Health Status Exit Without Saving

ESC:Quit ????:Select Item

F8:Q-Flash F10:Save & Exit Setup

Save Data to CMOS

Figure 13: Save & Exit Setup

Save to CMOS and EXIT (Y/N)? Y

BIOS Setup

Exit Without Saving

Type “Y” will quit the Setup Utility without saving to RTC CMOS.

Type “N” will return to Setup Utility.

?Standard CMOS Features ?Frequency/Voltage Control

?Advanced BIOS Features Load Fail-Safe Defaults

?Advanced Chipset Features Load Optimized Defaults

?Integrated Peripherals Set Supervisor Password

?Power Management Setup Set User Password

?PnP/PCI Configurations Save & Exit Setup

?PC Health Status Exit Without Saving

ESC:Quit ????:Select Item

F8: Q-Flash F10:Save & Exit Setup

Abandon all Data

Figure 14: Exit Without Saving

Quit Without Saving (Y/N)? N

GA-8SIML Motherboard

Revision History

Chapter 4 Technical Reference

Block Diagram

Pentium 4

Socket 478

CPU

SiS 650

AC97

CODEC

SiS 961

CPUCLK+/- (100MHz)

System Bus 100MHz

DDR

100/133/166MHz

ZCLK (66MHz)

HCLK+/- (100MHz)

66 MHz

33 MHz

14.318 MHz

48 MHz

24 MHz

33 MHz

LPC BUS

AGP 1X/2X/4X

AGPCLK

(66MHz)

3 PCI

PCICLK

(33MHz)

AC97 Link

MIC

LINE-IN

LINE-OUT

4 USB

Ports

ATA33/66/100

IDE Channels

Floppy

LPT Port

PS/2

KB/Mouse

COM

Ports

CNR

ICS

952001AF

ZCLK (66MHz)

CPUCLK+/- (100MHz)

AGPCLK (66MHz)

HCLK+/- (100MHz)

PCICLK (33MHz)

USBCLK (48MHz)

14.318 MHz 33 MHz

BIOS

W83697HF

Technical Reference

@ BIOSTM Introduction

Gigabyte announces @ BIOS

Windows BIOS live update utility

Have you ever updated BIOS by yourself? Or like

many other people, you just know what BIOS is,

but always hesitate to update it? Because you think

updating newest BIOS is unnecessary and actually

you don’t know how to update it.

Maybe not like others, you are very experienced in BIOS updating and spend quite a lot of time

to do it. But of course you don’t like to do it too much. First, download different BIOS from website and

then switch the operating system to DOS mode. Secondly, use different flash utility to update BIOS.

The above process is not a interesting job. Besides, always be carefully to store the BIOS source

code correctly in your disks as if you update the wrong BIOS, it will be a nightmare.

Certainly, you wonder why motherboard vendors could not just do something right to save your

time and effort and save you from the lousy BIOS updating work? Here it comes! Now Gigabyte

announces @BIOS— the first Windows BIOS live update utility. This is a smart BIOS update

software. It could help you to download the BIOS from internetand update it. Not like the other BIOS

update software, it’s a Windows utility. With the help of “@BIOS’, BIOS updating is no more than a

click.

Besides, no matter which mainboard you are using, if it’s a Gigabyte’s product*, @BIOS help

you to maintain the BIOS. This utility could detect your correct mainboard model and help you to

choose the BIOS accordingly. It then downloads the BIOS from the nearest Gigabyte ftp site

automatically. There are several different choices; you could use “Internet Update” to download and

update your BIOS directly. Or you may want to keep a backup for your current BIOS, just choose

“Save Current BIOS” to save it first. You make a wise choice to use Gigabyte, and @BIOS update

your BIOS smartly. You are now worry free from updating wrong BIOS, and capable to maintain and

manage your BIOS easily. Again, Gigabyte’s innovative product erects a milestone in mainboard

industries.

For such a wonderful software, how much it costs? Impossible! It’s free! Now, if you buy a

Gigabyte’s motherboard, you could find this amazing software in the attached driver CD. But please

remember, connected to internet at first, then you could have a internet BIOS update from your

Gigabyte @BIOS.

GA-8SIML Motherboard

Revision History

Chapter 5 Appendix

Picture below are shown in Windows ME (TUCD driver version 1.94)

Appendix A: SiS 650 Chipset Driver Installation (Must Install!)

A. SiS 650 VGA Driver Installation

Insert the driver CD-title that came with your motherboard into your CD-ROM driver, the driver

CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device

icon in "My computer", and execute the setup.exe.

(4)

(3)

(2)

(1)

1.Click "SiS 650 VGA Driver "

item.

2.Click "Next".

4.Click "Next".

3.Click "Next".

6.Click "Finish" to restart computer.

(6)

(5)

5.Click "Next".

Appendix

B: SiS AGP Driver Installation

Insert the driver CD-title that came with your motherboard into your CD-ROM driver, the driver

CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device

icon in "My computer", and execute the setup.exe.

(4)

(3)

(2)

(1)

1.Click "SiS AGP Driver item.

3.Click "Next".

2.Click "Next".

4.Click "Finish" to restart computer.

(6)

(5)

GA-8SIML Motherboard

Revision History

Appendix B: RealTek AC’97 Audio Driver

(1)

1.Click " RealTek AC’97 Audio Driver"

item.

(2)

(3)

3.Click "Finish" to restart computer.

(4)

2.Click "Next".

Revision History

Appendix C: RealTek 8100/8139 Network Driver

"RealTek 8100/8139 Network Driver" under Windows ME will auto install. If you would like to

install LAN driver, please refer to attached README.txt file for detail instruction. Please install the

driver through CD-ROM by the path D:\Network\Rtl (This manual assumes that your CD-ROM

device drive letter is D:).

(1)

(2)

Press "Network" icon.

Click "Driver Information".

Appendix

Appendix D: BIOS Flash Procedure

BIOS update procedure:

If your OS is Win9X, we recommend that you used Gigabyte @BIOSTM Program to flash BIOS.

Methods and steps:

I. Update BIOS through Internet

a. Click "Internet Update" icon

b. Click "Update New BIOS" icon

c. Select @BIOSTM sever ("Gigabyte @BIOSTM sever 1 in Taiwan" and "Gigabyte

@BIOSTM sever 2 in Taiwan" are available for now, the others will be completedsoon)

d. Select the exact model name on your motherboard

e. System will automatically download and update the BIOS.

(3)

(1) (2)

Press "Tools" icon.

1.Click "Gigabyte Utilities".

2.Click "@BIOS Writer Utility

v1.08m".

Click "?".

Click here.

GA-8SIML Motherboard

II. Update BIOS NOT through Internet:

a. Do not click "Internet Update" icon

b. Click "Update New BIOS"

c. Please select "All Files" in dialog box while opening the old file.

d. Please search for BIOS unzip file, downloading from internet or any other methods (such as:

8SIML.F1).

e. Complete update process following the instruction.

III. Save BIOS

In the very beginning, there is "Save Current BIOS" icon shown in dialog box. It means to save

the current BIOS version.

IV. Check out supported motherboard and Flash ROM:

In the very beginning, there is "About this program" icon shown in dialog box. It can help you

check out which kind of motherboard and which brand of Flash ROM are supported.

Note:

a. In method I, if it shows two or more motherboard's model names to be selected, please make

sure your motherboard's model name again. Selecting wrong model name will cause the

system unbooted.

b. In method II, be sure that motherboard's model name in BIOS unzip file are the same as your

motherboard's. Otherwise, your system won't boot.

c. In method I, if the BIOS file you need cannot be found in @BIOSTM server, please go onto

Gigabyte's web site for downloading and updating it according to method II.

d. Please note that any interruption during updating will cause system unbooted

Appendix

We use GA-7VTX motherboard and Flash841 BIOS flash utility as example.

Please flash the BIOS according to the following procedures if you are now under the DOS mode.

Flash BIOS Procedure:

STEP 1:

(1) Please make sure you have set "Auto" for BIOS Feature Setup (BIOS Flash Protection). For

more detail please refer to page 28.

(2) Please make sure your system has installed the extraction utility such as winzip or pkunzip.

Firstly you have to install the extraction utility such as winzip or pkunzip for unzip the files. Both of

these utilities are available on many shareware download pages like http://www.shareware.cnet.

com

STEP 2: Make a DOS boot diskette. (See example: Windows 98 O.S.)

Beware: Windows ME/2000 are not allowed to make a DOS boot diskette.

(1) With an available floppy disk in the floppy drive. Please leave the diskette "UN-write protected"

type. Double click the "My Computer" icon from Desktop, then click "3.5 diskette (A)" and right

click to select "Format (M)"

GA-8SIML Motherboard

"Copy system files", after that press "Start". That will format the floppy and transfer the needed

system files to it.

Beware: This procedure will erase all the prior data on that floppy, so please proceed accordingl

(3) After the floppy has been formatted completely, please press "Close".

Appendix

STEP 3: Download BIOS and BIOS utility program.

(1) Please go to Gigabyte website http://www.gigabyte.com.tw/index.html, and click "Support".

(2) From Support zone, click the "Motherboards BIOS & Drivers".

GA-8SIML Motherboard

(3) We use GA-7VTX motherboard as example. Please select GA-7VTX by Model or Chipset

optional menu to obtain BIOS flash files.

(4) Select an appropriate BIOS version (For example: F4), and click to download the file. It will pop

up a file download screen, then select the "Open this file from its current location" and press "OK".

Appendix

(5) At this time the screen shows the following picture, please click "Extract" button to unzip the files.

(6) Please extract the download files into the clean bootable floppy disk A mentioned in STEP 2, and

press "Extract".

GA-8SIML Motherboard

STEP 4: Make sure the system will boot from the floppy disk.

(1) Insert the floppy disk (contains bootable program and unzip file) into the floppy drive A. Then,

restart the system. The system will boot from the floppy disk. Please press <DEL> key to enter

BIOS setup main menu when system is boot up.

(2) Once you enter the BIOS setup utility, the main menu will appear on the screen. Use the arrows

to highlight the item "BIOS FEATURES SETUP".

AMIBIOS SIMPLE SETUP UTILITY - VERSION 1.24b

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP

CHIPSET FEATURES SETUP SUPERVISOR PASSWORD

POWER MANAGEMENT SETUP USER PASSWORD

PNP / PCI CONFIGURATION IDE HDD AUTO DETECTION

LOAD BIOS DEFAULTS SAVE & EXIT SETUP

LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC: Quit ????? : Select Item (Shift)F2 : Change Color F5: Old Values

F6: Load BIOS Defaults F7: Load Setup Defaults F10:Save & Exit

Time, Date , Hard Disk Type…

Appendix

(3) Press "Enter" to enter "BIOS FEATURES SETUP" menu. Use the arrows to highlight the item

"1st Boot Device", and then use the "Page Up" or "Page Down" keys to select "Floppy".

(4) Press "ESC" to go back to previous screen. Use the arrows to highlight the item "SAVE & EXIT

SETUP" then press "Enter". System will ask "SAVE to CMOS and EXIT (Y/N)?" Press "Y"

and "Enter" keys to confirm. Now the system will reboot automatically, the new BIOS setting

will be taken effect next boot-up.

AMIBIOS SETUP - BIOS FEATURES SETUP

1st Boot Device : Floppy

2nd Boot Device : IDE-0

3rd Boot Device : CDROM

S.M.A.R.T. for Hard Disks : Disabled

BootUp Num-Lock : On ESC: Quit ????: Select Item

Floppy Drive Seek : Disabled F1 : Help PU/PD/+/- : Modify

Password Check : Setup F5 : Old Values (Shift)F2: Color

F6 : Load BIOS Defaults

F7 : Load Setup Defaults

AMIBIOS SIMPLE SETUP UTILITY - VERSION 1.24b

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP

CHIPSET FEATURES SETUP SUPERVISOR PASSWORD

POWER MANAGEMENT SETUP USER PASSWORD

PNP / PCI CONFIGURATION IDE HDD AUTO DETECTION

LOAD BIOS DEFAULTS SAVE & EXIT SETUP

LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC: Quit ????? : Select Item (Shift)F2 : Change Color F5: Old Values

F6: Load BIOS Defaults F7: Load Setup Defaults F10:Save & Exit

Save Data to CMOS & Exit SETUP

Save to CMOS and EXIT (Y/N)? Y

GA-8SIML Motherboard

STEP 5: BIOS flashing.

(1) After the system boot from floppy disk, type "A:\> dir/w" and press "Enter" to check the entire

files in floppy A. Then type the "BIOS flash utility" and "BIOS file" after A:\>. In this case you

have to type "A:\> Flash841 7VTX.F4" and then press "Enter".

(2) Now screen appears the following Flash Utility main menu. Press "Enter", the highlighted item

will locate on the model name of the right-upper screen. Right after that, press "Enter" to start

BIOS Flash Utility.

Starting Windows 98…

Microsoft(R) Windows98

A:\> dir/w

Volume in drive A has no label

Volume Serial Number is 16EB-353D

Directory of A:\

COMMAND.COM 7VTX.F4 FLASH841.EXE

3 file(s) 838,954 bytes

0 dir(s) 324,608 bytes free

A:\> Flash841 7VTX.F4

Appendix

(3) It will pop up a screen and asks "Are you sure to flash the BIOS?" Press [Enter] to continue the

procedure, or press [ESC] to quit.

Beware: Please do not turn off the system while you are upgrading BIOS. It will render your

BIOS corrupted and system totally inoperative.

(4) The BIOS flash completed. Please press [ESC] to exit Flash Utility.

Are you sure to flash the BIOS?

[Enter] to continue Or [Esc] to cancel?

EXIT?

[Enter] to continue Or [Esc] to cancel?

GA-8SIML Motherboard

STEP 6: Load BIOS defaults.

Normally the system redetects all devices after BIOS has been upgraded. Therefore, we highly

recommend reloading the BIOS defaults after BIOS has been upgraded. This important step

resets everything after the flash.

(1) Take out the floppy diskette from floppy drive, and then restart the system. The boot up screen will

indicate your motherboard model and current BIOS version.

(2) Don't forget to press <DEL> key to enter BIOS setup again when system is boot up. Use the

arrows to highlight the item "LOAD SETUP DEFAULTS" then press "Enter". System will ask

"Load Setup Defaults (Y/N)?" Press "Y" and "Enter" keys to confirm.

AMIBIOS SIMPLE SETUP UTILITY - VERSION 1.24b

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP

CHIPSET FEATURES SETUP SUPERVISOR PASSWORD

POWER MANAGEMENT SETUP USER PASSWORD

PNP / PCI CONFIGURATION IDE HDD AUTO DETECTION

LOAD BIOS DEFAULTS SAVE & EXIT SETUP

LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC: Quit ????? : Select Item (Shift)F2 : Change Color F5: Old Values

F6: Load BIOS Defaults F7: Load Setup Defaults F10:Save & Exit

Load Setup Defaults

Load Setup Defaults? (Y/N)?N

Appendix

(3) Use the arrows to highlight the item "SAVE & EXIT SETUP" and press "Enter". System will

ask "SAVE to CMOS and EXIT (Y/N)?" Press "Y" and "Enter" keys to confirm. Now the

system will reboot automatically, the new BIOS setting will be taken effect next boot-up.

(4) Congratulate you have accomplished the BIOS flash procedure.

AMIBIOS SIMPLE SETUP UTILITY - VERSION 1.24b

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP

CHIPSET FEATURES SETUP SUPERVISOR PASSWORD

POWER MANAGEMENT SETUP USER PASSWORD

PNP / PCI CONFIGURATION IDE HDD AUTO DETECTION

LOAD BIOS DEFAULTS SAVE & EXIT SETUP

LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC: Quit ????? : Select Item (Shift)F2 : Change Color F5: Old Values

F6: Load BIOS Defaults F7: Load Setup Defaults F10:Save & Exit

Save Data to CMOS & Exit SETUP

Save to CMOS and EXIT (Y/N)? Y

GA-8SIML Motherboard

Appendix D: Acronyms

Acronyms Meaning

ACPI Advanced Configuration and Power Interface

APM Advanced Power Management

AGP Accelerated Graphics Port

AMR Audio Modem Riser

ACR Advanced Communications Riser

BIOS Basic Input / Output System

CPU Central Processing Unit

CMOS Complementary Metal Oxide Semiconductor

CRIMM Continuity RIMM

CNR Communication and Networking Riser

DMA Direct Memory Access

DMI Desktop Management Interface

DIMM Dual Inline Memory Module

DRM Dual Retention Mechanism

DRAM Dynamic Random Access Memory

DDR Double Data Rate

ECP Extended Capabilities Port

ESCD Extended System Configuration Data

ECC Error Checking and Correcting

EMC Electromagnetic Compatibility

EPP Enhanced Parallel Port

ESD Electrostatic Discharge

FDD Floppy Disk Device

FSB Front Side Bus

HDD Hard Disk Device

IDE Integrated Dual Channel Enhanced

IRQ Interrupt Request

I/O Input / Output

IOAPIC Input Output Advanced Programmable Input Controller

ISA Industry Standard Architecture

LAN Local Area Network

to be continued......

Appendix

Acronyms Meaning

LBA Logical Block Addressing

LED Light Emitting Diode

MHz Megahertz

MIDI Musical I nstrument Digital Interface

MTH Memory Translator H ub

MPT Memory Protocol Translator

NIC Network Interface Card

OS Operating System

OEM Original Equipment Manufacturer

PAC PCI A.G.P. Controller

POST Power-On Self Test

PCI Peripheral Component Interconnect

RIMM Rambus in-line Memory Module

SCI Special Circumstance Instructions

SECC Single Edge Contact Cartridge

SRAM Static Random Access Memory

SMP Symmetric Multi-Processing

SMI System Management Interrupt

USB Universal Serial Bus

VID Voltage ID

GA-8SIML Motherboard

Technical Support/RMA Sheet

Customer/Country: Company: Phone No.:

Contact Person: E-mail Add. :

Model name/Lot Number: PCB revision:

BIOS version: O.S./A.S.:

Hardware Mfs. Model name Size: Driver/Utility:

Configuration

CPU

Memory

Brand

Video Card

Audio Card

HDD

CD-ROM /

DVD-ROM

Modem

Network

AMR / CNR

Keyboard

Mouse

Power supply

Other Device

Problem Description:

Pentium GA-8SIML User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
