Pentax RPLS740B User Manual

120
VAC

black

white

black

white

black (LINE)

white (NEUTRAL)

blue (LOAD)

The icon indicates the current
program has been activated at sunset.

The icon indicates the current
program has been activated at sunrise.

The LED illuminates when the load state
is on.

Briefly press this button to turn the
lights on or off. See “Temporary
Override” in Section 5.1.4.

Press for 3 seconds to enter the
setup menus.

Indicates the mode of
operation (see Section 5.1)

Indicates the current program

Indicates the load on/off state

Indicates the time and day

Press this button to display today’s sunrise time.
Press this button to display today’s sunset time.

RPLS740B/RPLS741B

User guide

7-day Solar Programmable Wall Switch



The RPLS740B/RPLS741B programmable wall switch has been designed to control lights and motors:



Applications

Load types Maximum load Examples

• fluorescent lights

Lights and resistive
loads (except tungsten)

Tungsten lights

Motors 3/4 hp

1800 W
(15 A @ 120 V)

1440 W
(12 A @ 120 V)

• compact fluorescent lights (CFL)

• electronic ballasts

• sodium lamps

• block heaters

• incandescent lights

• halogen lights

• pool filter pumps

• fans

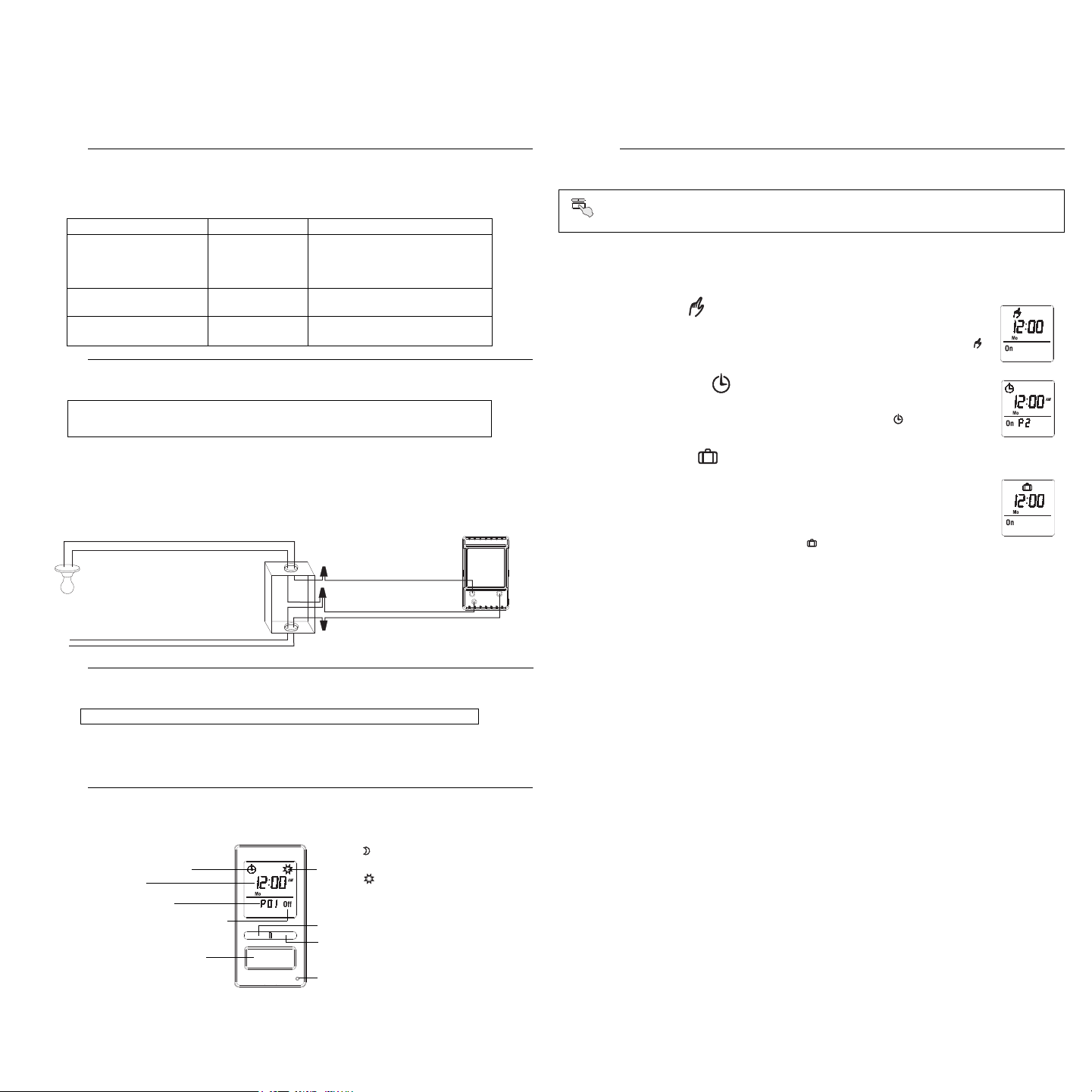

Installation

NOTE:

This switch cannot be used if there is no neutral wire
(white wires joint together) inside the electrical box.

 Cut power at the circuit breaker to avoid electric shock.
 Remove the existing switch.
 Install the new switch (see the appropriate section below).
 Apply power at the circuit breaker.

1.



Setup Menus

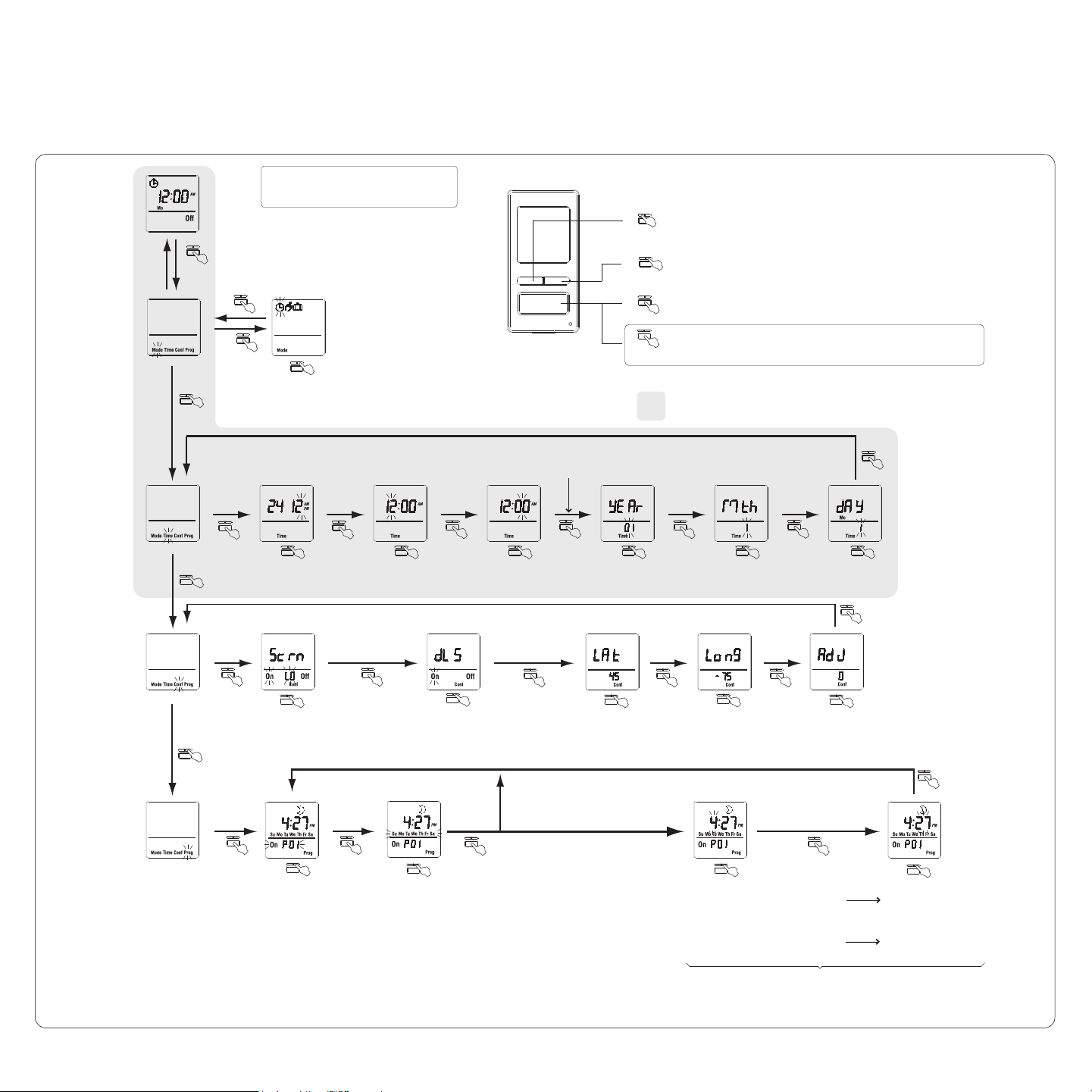

Press the main button for 3 seconds to enter the setup menus. Refer to

(3 sec.)

the menu flowchart sheet on how to navigate the menus.

5.1 Mode Menu

You can use the Mode menu to select one of the three modes of operation (see sections 5.1.1 to 5.1.3).

5.1.1 Manual Mode

In Manual mode, the RPLS740B/RPLS741B operates like a regular switch. To turn the
lights on or off, briefly press the main button. The icon appears when the switch is in
Manual mode.

2.

5.1.2 Automatic Mode

In Automatic mode, the RPLS740B/RPLS741B turns the lights on or off according to the
set programs (see Section 5.4). The icon as well as the current program number are

displayed.

5.1.3 Random Mode

In Random mode, the RPLS740B/RPLS741B has no specific times to turn the lights on or
off. This mode is designed to give the impression the house is occupied during your
absence. It is similar to the Automatic mode except there is no fixed program. The
programs are automatically set to different times by the RPLS740B/RPLS741B every day.

The icon appears when the switch is in Random mode.
The first “On” program occurs at sunset. Each “On” program lasts between 1 hour and 1

hour and 30 minutes; each “Off” program lasts between 15 and 30 minutes. The last “Off”
program occurs between 10:30 pm and midnight.

5.1.4 Temporary Override

When the RPLS740B/RPLS741B is in Automatic or Random mode, you can press the main button at any
time to override the default state for the current program. The lights will turn off if they are on and vice versa.
The icon (On or Off) of the new state flashes to indicate that the state is temporary. The new state is
maintained until you press the main button again or till the next “On” or “Off” program.

5.

5.2 Time Menu

3.



The RPLS740B/RPLS741B will turn the lights on at sunset and turn them off at 11:00 pm by default. If these
settings are appropriate for you, you only need to set the time and date (see shaded zone in the menu
flowchart sheet). If the switch’s sunset time does not correspond to the actual sunset time, see sections 5.3.3
and 5.3.4.



Quick Start-up

Set the time and date before using the timer for the first time.

Operation

The time display flashes on the screen when the time has not yet been set or after a 4-hour power outage.
Use the Time menu to select the time format (12-hour or 24-hour) and to set the clock and date.

NOTE: The date is used to determine the sunset and sunrise times.

5.3 Configuration Menu (Conf)

Use the Configuration menu to set the following parameters (see sections 5.3.1 to 5.3.4).

5.3.1 Backlight mode (SCRN)

4.

The screen is lit at high intensity for 8 seconds when you press any button. The rest of the time, depending
on the backlight mode selected, the screen behaves as follows:

Scrn Off: The screen is not lit.
Scrn On HI: The screen is lit at high intensity.
Scrn On LO: The screen is lit at low intensity (default mode).

5.3.2 Automatic Daylight Savings Time Changeover (DLS)

When automatic daylight savings time changeover is on (DLS On), the RPLS740B/RPLS741B changes to

RPLS740B/RPLS741B 1/8

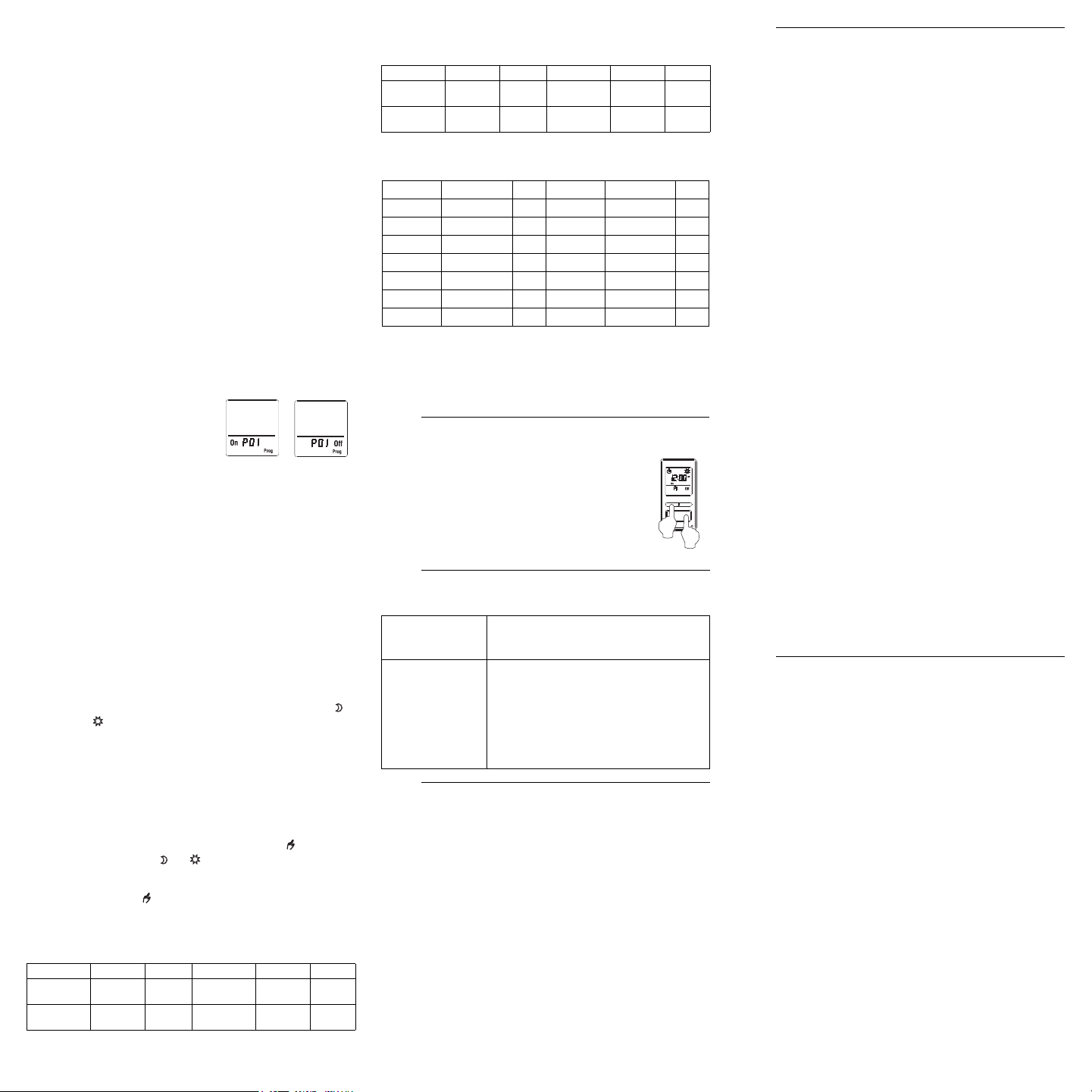

daylight savings time (summer time) at 2:00 am on the second Sunday of March and changes back to
normal time (winter time) at 2:00 am on the first Sunday of November. This function is enabled (DLS On) by
default.

5.3.3 Latitude and Longitude Coordinates (

The coordinates are used to turn the lights on at sunset and off at sunrise. The latitude is set to +45 and lon­gitude to -75 by default. These settings provide approximate sunset and sunrise times for most North Ameri­can cities. To obtain your city’s coordinates (or those of a nearby city), see the coordinates table. You can

LAT and LONG

)

also obtain this information at www.geonames.org or with a Global

“P01 On” “P01 Off”

Positioning System (GPS) device. The accuracy of the sunset and
sunrise times depends on the accuracy of the coordinates you enter
for your city.

NOTE: Enter a negative value for a south latitude or a west longitude.

5.3.4 Correction Factor (ADJ)

If your city’s time zone is based on political or economic boundaries
instead of its coordinates, your lights might switch on or off too early or
too late with respect to sunrise and sunset. In this case, apply a
correction factor (+1 or -1 hour; refer to addendum). Otherwise, leave
it at 0 (default value).

5.4 Program Menu (Prog)

Use the Program menu to set the programs; i.e. the times you want
the lights to turn On or Off when the switch is in Automatic mode. To
set a program, proceed as follows:

 Select a program number (see section 5.4.1)
 Set the day(s) of the program (see section 5.4.2)
 Set the program start time (see section 5.4.3)

5.4.1 Selecting a program number

You can set up to 7 “On” programs
(“P01 On” to “P07 On”) and 7 “Off”
programs (“P01 Off” to “P07 Off”). For
example, select an “On” program to set
when to turn the lights on; select an
“Off” program to set when to turn the
lights off.

5.4.2 Setting the day(s) of the program

After selecting a program, set the day(s) of the program. You can
select a specific day, all 7 days or “none”. Choose “none” for any
unused program.

5.4.3 Setting the program start time

After setting the day(s) of the program, set its start time. You can
select either a specific time, the sunset time or the sunrise time:

• To select a specific time:
(1) Advance to the hour setting and select the hour.
(2) Advance to the minutes setting and select the minutes.

• To select sunset or sunrise time:
(1) Advance to the hour setting and select the sunset time or
sunrise time. (When you scroll, the sunset time and

sunrise time appear between 11 pm and 12 am.)
(2) To enter an offset (from -70 to +70 minutes in 10-minute
increments) between the sunset or sunrise time and the
program start time, advance to the minutes setting and change
the minutes.

• EXAMPLE: If the sunset time is 6:13 pm and you change the

minutes to display 6:43 pm, you have entered a delay of 30
minutes. If, later in the year, the sunset time is 4:01 pm, the
program will start at 4:31 pm.

• NOTE: When you enter an offset, appears along with

or when you display the sunset or sunrise time. To
remove the offset, display the sunset or sunrise time and

change the minutes until disappears.

5.4.4 Examples

Example 1: The lights turn on at sunset and off at 11:00 pm every day
(default setting).

Program Days Time Program Days Time

P01 On All 7

P02 On to
P07 On

Example 2: The lights turn on at sunset and off at sunrise every day.

Program Days Time Program Days Time

P01 On All 7

P02 On to
P07 On

days
None — P02 Off to

days
None — P02 Off to

sunset P01 Off All 7

P07 Off

sunset P01 Off All 7

P07 Off

days
None —

days
None —

11:00

pm

sunrise

Example 3: The lights turn on at 8:00 pm every day and turn off at
10:00 pm every day except on Saturday night when they turn off at
1:00 am.

Program Days Time Program Days Time

P01 On All 7 days 8:00 pm P01 Off Sunday (Su) 10:00 pm
P02 On None — P02 Off Monday (Mo) 10:00 pm
P03 On None — P03 Off Tuesday (Tu) 10:00 pm
P04 On None — P04 Off Wednesday (We) 10:00 pm
P05 On None — P05 Off Thursday (Th) 10:00 pm
P06 On None — P06 Off Friday (Fr) 10:00 pm
P07 On None — P07 Off Sunday (Su) 1:00 am

Be careful about overlapping!

For example, if you set “P01 Off” at 10:00 pm for all 7 days and set
“P02 Off” to 11:00 pm for Saturday, on Saturday, the lights will turn off
at 10:00 pm, not 11:00 pm since “P01 Off” is set to an earlier time than
“P02 Off”.

Reset to default Settings



To return the switch to its default settings,
simultaneously press both main and left buttons and
hold. The software version will appear for 5 seconds.
RST will appear for the next 5 seconds. Release the
buttons when all segments appear on the screen. The
switch is now reset (see default settings in the menu
flowchart).

Troubleshooting



The display is faded
or irregular.

The sunset or sunrise
time is inaccurate.

Specifications



Supply: 120 VAC, 60 Hz
Maximum load: 1800 watts
Operating temperature range: -15 °C to 50 °C (5 °F to 122 °F)
Storage temperature range: -40 °C to 60 °C (-40 °F to 140 °F)
Power outage: The screen is blank. Only the time must be set if the

outage lasts more than 4 hours; all other settings and programs are
permanently saved.

Latitude range: from -65° to +65°
Solar table precision: +/- 11 min. (within ±60° latitude)
Certification: UL (c UL us)

The ambient temperature is either below
or above switch’s operating temperature.

• The date or time is wrong
(see section 5.2).

• The longitude or latitude is wrong
(see section 5.3.3).

• The correction factor is wrong
(see section 5.3.4).

• You have entered an offset
(see section 5.4.3).

Warranty



Honeywell warrants this product, excluding battery, to be free from
defects in the workmanship or materials, under normal use and ser­vice, for a period of one (1) year from the date of purchase by the con­sumer. If at any time during the warranty period the product is
determined to be defective or malfunctions, Honeywell shall repair or
replace it (at Honeywell's option).
If the product is defective,
(i) return it, with a bill of sale or other dated proof of purchase, to

the place from which you purchased it, or

(ii) call Honeywell Customer Care at 1-800-468-1502. Customer

Care will make the determination whether the product should be
returned to the following address: Honeywell Return Goods,
Dock 4 MN10-3860, 1885 Douglas Dr N, Golden Valley, MN

55422, or whether a replacement product can be sent to you.
This warranty does not cover removal or reinstallation costs. This war­ranty shall not apply if it is shown by Honeywell that the defect or mal­function was caused by damage which occurred while the product was
in the possession of a consumer.

6.

Honeywell's sole responsibility shall be to repair or replace the product
within the terms stated above. HONEYWELL SHALL NOT BE LIABLE
FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING,
DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WAR­RANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF
THIS PRODUCT. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so this limitation may not
apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEY­WELL MAKES ON THIS PRODUCT. THE DURATION OF ANY
IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MER­CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS

7.

HEREBY LIMITED TO THE ONE-YEAR DURATION OF THIS WAR­RANTY. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may have other
rights which vary from state to state.
If you have any questions concerning this warranty, please write Hon­eywell Customer Relations, 1985 Douglas Dr, Golden Valley, MN
55422 or call 1-800-468-1502. In Canada, write Retail Products
ON15-02H, Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive,
Scarborough, Ontario M1V4Z9.

Customer Assistance



If you have any questions about your light switch, go to
http://yourhome.honeywell.com, or call Honeywell Customer Care

8.

toll-free at 1-800-468-1502.

9.

10.

RPLS740B/RPLS741B 2/8

120
Vca

noir

blanc

noir

blanc

noir (LINE)

blanc (NEUTRAL)

bleu (LOAD)

Indique le mode de
fonctionnement (voir section 5.1)

Indique l’heure et le jour
Indique le programme en cours
Indique l’état marche/arrêt

(On/Off) de la charge
Appuyer brièvement sur cette

touche pour allumer ou éteindre
les lumières. Voir “Dérogation
temporaire” dans la section 5.1.4.

Appuyer pendant 3 secondes
pour entrer dans les menus.

Le témoin s’allume lorsque l’état
de la charge est à “Marche” (On).

L’icône indique que le programme en
cours a été activé au coucher du soleil.

L’icône indique que le programme
en cours a été activé au lever du soleil.

Appuyer sur cette touche pour afficher
l’heure du lever du soleil d’aujourd’hui.

Appuyer sur cette touche pour afficher
l’heure du coucher du soleil d’aujourd’hui.

RPLS740B/RPLS741B

Guide de l’utilisateur

Interrupteur mural programmable — solaire et 7 jours

1.



L’interrupteur mural programmable RPLS740B/RPLS741B a été conçu pour commander des appareils
d’éclairage et des moteurs.





Applications

Types de charge Charge maximale Exemples

Éclairages et charges
résistives (sauf
tungstène)

Éclairages tungstène

Moteurs 3/4 hp

1800 W
(15 A à 120 V)

1440 W
(12 A à 120 V)

• éclairage fluorescent

• éclairage fluorescent compact

• ballasts électroniques

• éclairage au sodium

• chauffe-moteur

• éclairage incandescent

• éclairage halogène

• pompes

• ventilateurs

Installation

NOTA :

Mettre le circuit hors tension à partir du disjoncteur afin d'éviter tout risque de choc électrique.

L’interrupteur ne peut être utilisé s’il n’y a pas de fil neutre
(fils blancs reliés ensemble) dans la boite électrique.

 Enlever l’interrupteur existant.
 Installer le nouvel interrupteur (voir la section appropriée ci-dessous).
 Remettre le circuit sous tension à partir du disjoncteur.



(3 sec.)

5.1 Menu Mode

Vous pouvez utiliser le menu Mode pour sélectionner l’un des trois modes de fonctionnement (voir les
sections 5.1.1 à 5.1.3).

5.1.1 Mode Manuel

En mode Manuel, le RPLS740B/RPLS741B fonctionne comme un interrupteur conventionnel.
Pour allumer ou éteindre les lumières, appuyer brièvement sur la touche principale. L’icône
apparaît lorsque l’interrupteur est en mode Manuel.

2.

5.1.2 Mode Automatique

En mode Automatique, le RPLS740B/RPLS741B allume et éteint les lumières selon les
programmes réglées (voir la section 5.4). L’icône ainsi que le numéro du programme en

cours sont affichés.

5.1.3 Mode Aléatoire

En mode Aléatoire, le RPLS740B/RPLS741B n’a pas de moment précis pour allumer ou
éteindre les lumières. Ce mode sert à donner l’impression que votre résidence est occupée
pendant votre absence. Il est semblable au mode Automatique, sauf qu’il n’y a pas de
programme fixe. Les programmes sont automatiquement réglés chaque jour par le RPLS740B/

RPLS741B à des heures différentes. L’icône apparaît lorsque l’interrupteur est en mode
Aléatoire.
Le premier programme « Marche » se produit au coucher du soleil. Chaque programme
« Marche » dure entre 1 heure et
minutes. Le dernier programme « Arrêt » se produit entre 22h30 et minuit.

Menus de réglage

Appuyer sur la touche principale pendant 3 secondes pour entrer dans les menus. Consulter
la feuille de l’organigramme des menus pour savoir comment naviguer dans les menus.

1 heure et demie,

et chaque programme « Arrêt » dure entre 15 et 30

5.1.4 Dérogation temporaire

Lorsque le RPLS740B/RPLS741B est en mode Automatique ou Aléatoire, vous pouvez, en tout temps,
appuyer sur la touche principale pour déroger à l’état en cours; les lumières s’éteindront si elles sont
allumées et vice versa. L’icône (On ou Off) du nouvel état clignote pour indiquer que l’état est temporaire. Le
nouvel état est maintenu jusqu’à ce qu’on appuie de nouveau sur la touche principale ou jusqu’au prochain
programme « Marche » (On) ou « Arrêt » (Off).

3.



Le RPLS740B/RPLS741B allumera les lumières au coucher du soleil et les éteindra à 23h par défaut. Si ces
réglages vous conviennent, vous n’avez qu’à régler l’heure et la date (voir la case grise dans la feuille de
l’organigramme des menus). Si l’heure du coucher du soleil de l’interrupteur diffère de l’heure réelle du
coucher du soleil, voir les sections 5.3.3 et 5.3.4.



RPLS740B/RPLS741B 3/8

Démarrage rapide

Régler l’heure et la date avant d’utiliser l’interrupteur pour la première fois.

Fonctionnement

5.2 Menu Heure (Time)

L’affichage de l’heure clignote à l’écran lorsque l’heure n’est pas encore réglée ou après une panne de
courant de plus de 4 heures. Utiliser le menu Heure pour sélectionner le format d’heure (12 heures ou 24
heures) ainsi que pour régler l’horloge et la date.

NOTA : La date sert à déterminer l’heure du coucher du soleil et celle du lever du soleil.

5.3 Menu Configuration (Conf)

4.

Utiliser le menu Configuration pour régler les paramètres suivants (voir les sections 5.3.1 à 5.3.4).

5.3.1 Mode de rétroéclairage (SCRN)

L'écran est allumé à haute intensité pendant 8 secondes lorsque vous appuyez sur un bouton. Le reste du temps,
selon le mode de rétroéclairage choisi, l'écran se comporte comme suit :

Scrn Off : L’écran n’est pas éclairé.
Scrn On HI : L’écran est éclairé à haute intensité.
Scrn On LO : L’écran est éclairé à basse intensité (mode par défaut).

5.3.2 Passage automatique à l’heure avancée (DLS)

Quand le passage automatique à l’heure avancée est activé (DLS On), le
avancée (heure d'été) à 2h le deuxième dimanche de mars et passe à l’heure normale (heure d'hiver) à 2h le premier
dimanche de novembre. La fonction est activée (DLS On) par défaut.

5.3.3 Latitude et longitude (LAT et LONG)

Les coordonnées servent à allumer les lumières au coucher du soleil et les éteindre au lever du soleil. Par
défaut, la latitude est à +45 et la longitude est à -75. Ces réglages offrent des heures approximatives de cou-

RPLS740B/RPLS741B

passe à l’heure

5.
