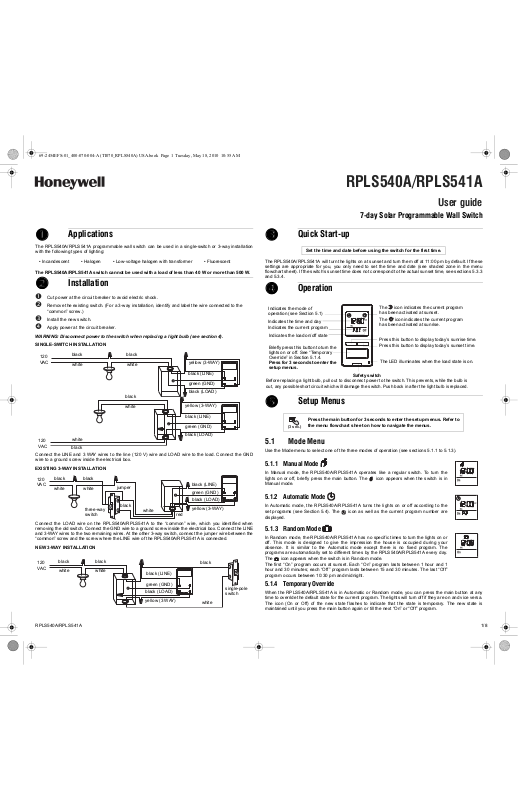

RPLS540A/RPLS541A
User guide
7-day Solar Programmable Wall Switch
The RPLS540A/RPLS541A programmable wall switch can be used in a single-switch or 3-way installation
with the following types of lighting:
• Incandescent • Halogen • Low-voltage halogen with transformer • Fluorescent
The RPLS540A/RPLS541A switch cannot be used with a load of less than 40 W or more than 500 W.
Applications
Installation
Cut power at the circuit breaker to avoid electric shock.
Remove the existing switch. (For a 3-way installation, identify and label the wire connected to the
“common” screw.)
Install the new switch.
Apply power at the circuit breaker.
WARNING: Disconnect power to the switch when replacing a light bulb (see section 4).

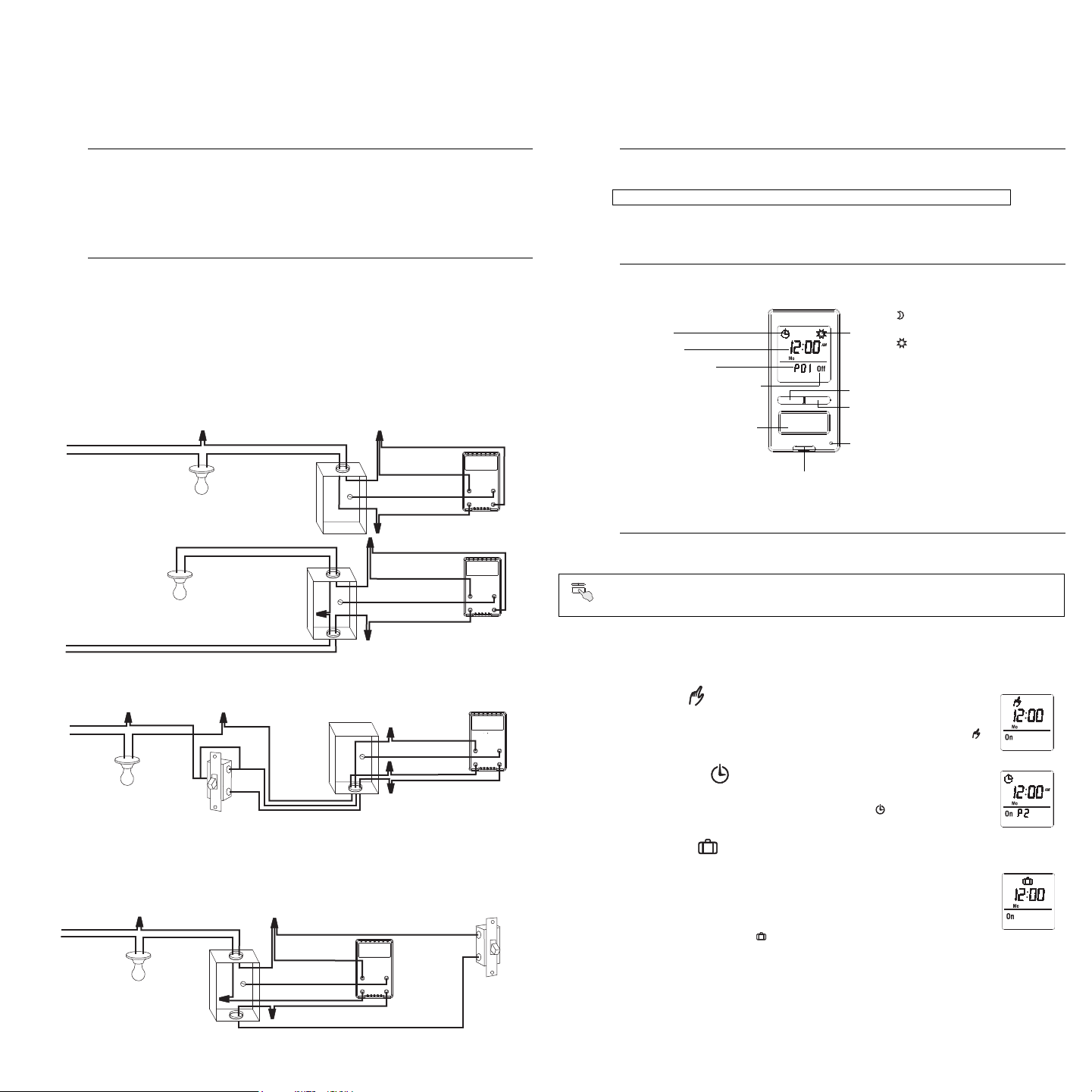

SINGLE-SWITCH INSTALLATION
1.
The RPLS540A/RPLS541A will turn the lights on at sunset and turn them off at 11:00 pm by default. If these
settings are appropriate for you, you only need to set the time and date (see shaded zone in the menu
flowchart sheet). If the switch’s sunset time does not correspond to the actual sunset time, see sections 5.3.3
2.
and 5.3.4.
Quick Start-up
Set the time and date before using the switch for the first time.
Operation
Setup Menus
3.
4.
5.
Press the main button for 3 seconds to enter the setup menus. Refer to
(3 sec.)
the menu flowchart sheet on how to navigate the menus.
5.1 Mode Menu
Connect the LINE and 3 WAY wires to the line (120 V) wire and LOAD wire to the load. Connect the GND
wire to a ground screw inside the electrical box.
EXISTING 3-WAY INSTALLATION
Connect the LOAD wire on the RPLS540A/RPLS541A to the “common” wire, which you identified when
removing the old switch. Connect the GND wire to a ground screw inside the electrical box. Connect the LINE
and 3-WAY wires to the two remaining wires. At the other 3-way switch, connect the jumper wire between the
“common” screw and the screw where the LINE wire of the RPLS540A/RPLS541A is connected.
NEW 3-WAY INSTALLATION
RPLS540A/RPLS541A 1/8

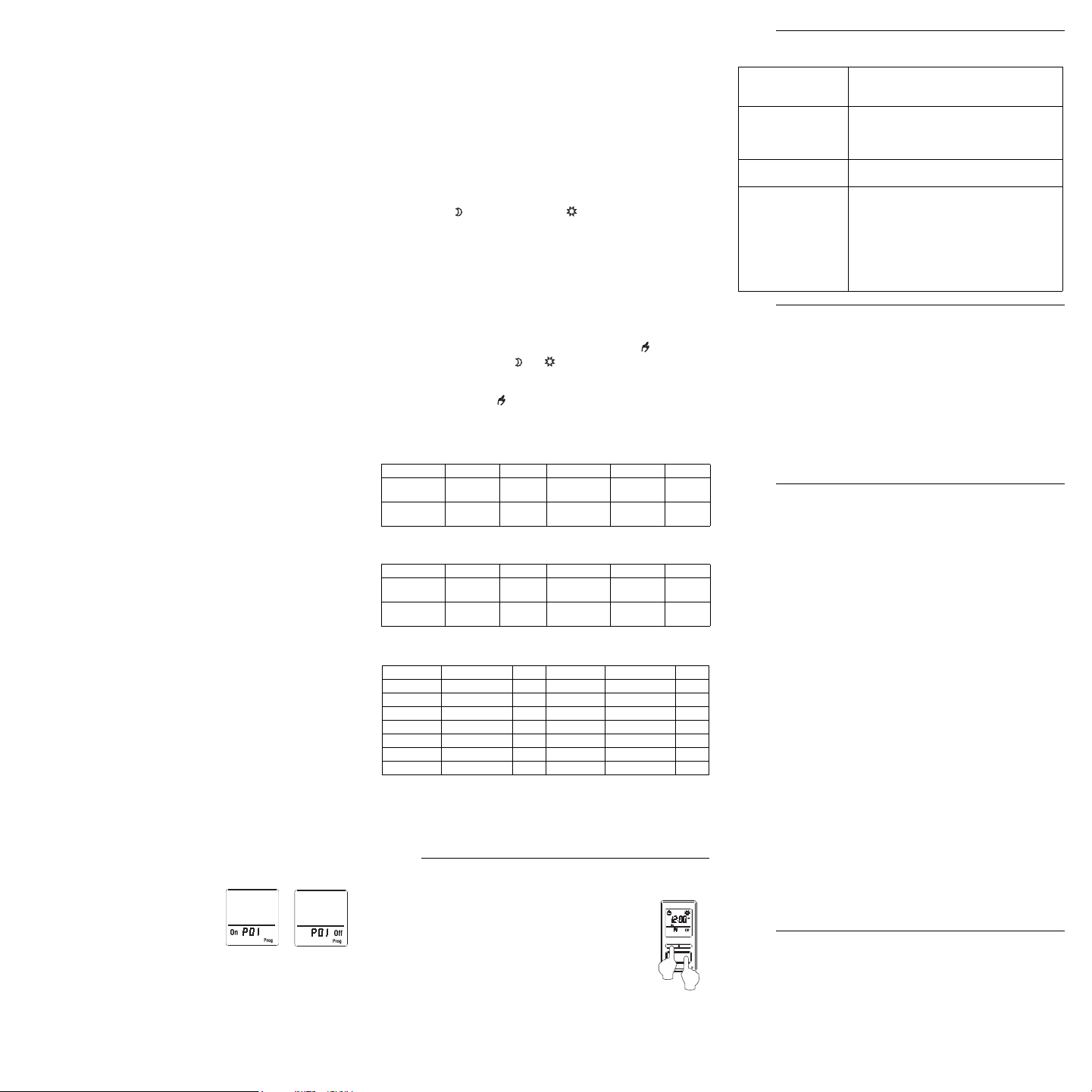

Use the Mode menu to select one of the three modes of operation (see sections 5.1.1 to 5.1.3).
5.1.1 Manual Mode
In Manual mode, the RPLS540A/RPLS541A operates like a regular switch. To turn the
lights on or off, briefly press the main button. The icon appears when the switch is in
Manual mode.
5.1.2 Automatic Mode
In Automatic mode, the RPLS540A/RPLS541A turns the lights on or off according to the
set programs (see Section 5.4). The icon as well as the current program number are
displayed.
5.1.3 Random Mode
In Random mode, the RPLS540A/RPLS541A has no specific times to turn the lights on or
off. This mode is designed to give the impression the house is occupied during your
absence. It is similar to the Automatic mode except there is no fixed program. The
programs are automatically set to different times by the RPLS540A/RPLS541A every day.
The icon appears when the switch is in Random mode.
The first “On” program occurs at sunset. Each “On” program lasts between 1 hour and 1
hour and 30 minutes; each “Off” program lasts between 15 and 30 minutes. The last “Off”
program occurs between 10:30 pm and midnight.
5.1.4 Temporary Override
When the RPLS540A/RPLS541A is in Automatic or Random mode, you can press the main button at any
time to override the default state for the current program. The lights will turn off if they are on and vice versa.
The icon (On or Off) of the new state flashes to indicate that the state is temporary. The new state is
maintained until you press the main button again or till the next “On” or “Off” program.
5.2 Time Menu
“P01 On” “P01 Off”
The time display flashes on the screen when the time has not yet been
set or after a 4-hour power outage. Use the Time menu to select the
time format (12-hour or 24-hour) and to set the clock and date.
NOTE: The date is used to determine the sunset and sunrise times.
5.3 Configuration Menu (Conf)
Use the Configuration menu to set the following parameters (see
sections 5.3.1 to 5.3.4).
5.3.1 Backlight mode (SCRN)
The screen is lit at high intensity for 8 seconds when you press any
button. The rest of the time, depending on the backlight mode
selected, the screen behaves as follows:
Scrn Off: The screen is not lit.
Scrn On HI: The screen is lit at high intensity.
Scrn On LO: The screen is lit at low intensity (default mode).
5.3.2 Automatic Daylight Savings Time Changeover (
When automatic daylight savings time changeover is on (DLS On), the
RPLS540A/RPLS541A changes to daylight savings time (summer
time) at 2:00 am on the second Sunday of March and changes back to
normal time (winter time) at 2:00 am on the first Sunday of November.
This function is enabled (DLS On) by default.
5.3.3 Latitude and Longitude Coordinates (
The coordinates are used to turn the lights on at sunset and off at sunrise. The latitude is set to +45 and longitude to -75 by default. These
settings provide approximate sunset and sunrise times for most North
American cities. To obtain your city’s coordinates (or those of a nearby
city), see the coordinates table. You can also obtain this information at
www.geonames.org or with a Global Positioning System (GPS)
device. The accuracy of the sunset and sunrise times depends on the
accuracy of the coordinates you enter for your city.
NOTE: Enter a negative value for a south latitude or a west longitude.
LAT and LONG
DLS
5.3.4 Correction Factor (ADJ)
If your city’s time zone is based on political or economic boundaries
instead of its coordinates, your lights might switch on or off too early or
too late with respect to sunrise and sunset. In this case, apply a
correction factor (+1 or -1 hour; refer to addendum). Otherwise, leave
it at 0 (default value).
5.4 Program Menu (Prog)
Use the Program menu to set the programs; i.e. the times you want
the lights to turn On or Off when the switch is in Automatic mode. To
set a program, proceed as follows:
Select a program number (see section 5.4.1)
Set the day(s) of the program (see section 5.4.2)
Set the program start time (see section 5.4.3)
5.4.1 Selecting a program number
You can set up to 7 “On” programs
(“P01 On” to “P07 On”) and 7 “Off”
programs (“P01 Off” to “P07 Off”).
Select an “On” program to set when to
turn the lights on. Select an “Off”
program to set when to turn the lights
off.
5.4.2 Setting the day(s) of the program
After selecting a program, set the day(s) of the program. You can
select a specific day, all 7 days or “none”. Choose “none” for any
unused program.
5.4.3 Setting the program start time
After setting the day(s) of the program, set its start time. You can
select either a specific time, the sunset time or the sunrise time:
• To select a specific time:
(1) Advance to the hour setting and select the hour.
(2) Advance to the minutes setting and select the minutes.
• To select sunset or sunrise time:
(1) Advance to the hour setting and select the sunset time or
sunrise time. (
sunrise time
(2) To enter an offset (from -70 to +70 minutes in 10-minute
increments) between the sunset or sunrise time and the
program start time, advance to the minutes setting and change
the minutes.
• EXAMPLE: If the sunset time is 6:13 pm and you change the
minutes to display 6:43 pm, you have entered a delay of 30
minutes. If, later in the year, the sunset time is 4:01 pm, the
program will start at 4:31 pm.
• NOTE: When you enter an offset, appears along with
or when you display the sunset or sunrise time. To
remove the offset, display the sunset or sunrise time and
change the minutes until disappears.
When you scroll, the sunset time and
appear between 11 pm and 12 am
5.4.4 Examples
Example 1: The lights turn on at sunset and off at 11:00 pm every day
(default setting).
)
Program Days Time Program Days Time
P01 On All 7
P02 On to
P07 On
Example 2: The lights turn on at sunset and off at sunrise every day.
)
Program Days Time Program Days Time
P01 On All 7
P02 On to
P07 On
Example 3: The lights turn on at 8:00 pm every day and turn off at
10:00 pm every day except on Saturday night when they turn off at
1:00 am.
Program Days Time Program Days Time
P01 On All 7 days 8:00 pm P01 Off Sunday (Su) 10:00 pm
P02 On None — P02 Off Monday (Mo) 10:00 pm
P03 On None — P03 Off Tuesday (Tu) 10:00 pm
P04 On None — P04 Off Wednesday (We) 10:00 pm
P05 On None — P05 Off Thursday (Th) 10:00 pm
P06 On None — P06 Off Friday (Fr) 10:00 pm
P07 On None — P07 Off Sunday (Su) 1:00 am
For example, if you set “P01 Off” at 10:00 pm for all 7 days and set
“P02 Off” to 11:00 pm for Saturday, on Saturday, the lights will turn off
at 10:00 pm, not 11:00 pm since “P01 Off” is set to an earlier time than
“P02 Off”.
To return the switch to its default settings,
simultaneously press both main and left buttons and
hold. The software version will appear for 5 seconds.
RST will appear for the next 5 seconds. Release the
buttons when all segments appear on the screen. The
switch is now reset (see default settings in the menu
flowchart).
The screen is blank. • A light bulb is burned out.
The display is faded
or irregular.
days
None — P02 Off to
days
None — P02 Off to
Reset to Default Settings
Troubleshooting
sunset P01 Off All 7
P07 Off
sunset P01 Off All 7
P07 Off
Be careful about overlapping!
• The safety switch is pulled out (see
section 4).
• The load is less than 40 W.
• The ambient temperature is either
below or above the switch’s operating
temperature.
days
None —
days
None —
The metal plate is hot. This is normal with high loads (maximum
.)
11: 00
pm
sunrise
The sunset or sunrise
time is inaccurate.
Supply: 120 VAC, 60 Hz
Minimum load: 40 watts
Maximum load: 500 watts
Operating temperature range: -15 °C to 50 °C (5 °F to 122 °F)
Storage temperature range: -40 °C to 60 °C (-40 °F to 140 °F)
Power outage: The screen is blank. Only the time must be set if the
outage lasts more than 4 hours; all other settings and programs are
permanently saved
Latitude range: from -65° to +65°
Solar table precision: +/- 11 min. (within ±60° latitude)
Certification: UL (c UL us)
Honeywell warrants this product, excluding battery, to be free from
defects in the workmanship or materials, under normal use and service, for a period of one (1) year from the date of purchase by the consumer. If at any time during the warranty period the product is
determined to be defective or malfunctions, Honeywell shall repair or
replace it (at Honeywell's option).
If the product is defective,
(i) return it, with a bill of sale or other dated proof of purchase, to
(ii) call Honeywell Customer Care at 1-800-468-1502. Customer
This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Honeywell that the defect or malfunction was caused by damage which occurred while the product was
in the possession of a consumer.
Honeywell's sole responsibility shall be to repair or replace the product
within the terms stated above. HONEYWELL SHALL NOT BE LIABLE
FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING,
DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF
6.
THIS PRODUCT. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so this limitation may not
apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS PRODUCT. THE DURATION OF ANY
IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS
HEREBY LIMITED TO THE ONE-YEAR DURATION OF THIS WARRANTY. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may have other
rights which vary from state to state.
If you have any questions concerning this warranty, please write Hon-
7.
eywell Customer Relations, 1985 Douglas Dr, Golden Valley, MN
55422 or call 1-800-468-1502. In Canada, write Retail Products
ON15-02H, Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive,
Scarborough, Ontario M1V4Z9.
If you have any questions about your light switch, go to
http://yourhome.honeywell.com, or call Honeywell Customer Care
toll-free at 1-800-468-1502.
Specifications
Warranty
the place from which you purchased it, or
Care will make the determination whether the product should be
returned to the following address: Honeywell Return Goods,
Dock 4 MN10-3860, 1885 Douglas Dr N, Golden Valley, MN
55422, or whether a replacement product can be sent to you.
Customer Assistance
of 500 W).
• The date or time is wrong
(see section 5.2).
• The longitude or latitude is wrong
(see section 5.3.3).
• The correction factor is wrong
(see section 5.3.4).
• You have entered an offset
(see section 5.4.3).
8.
9.
10.
RPLS540A/RPLS541A 2/8
RPLS540A/RPLS541A
120
Vca
120
Vca
noir (LOAD)
jaune (3-WAY)
vert (GND)
noir (LINE)
noir (LOAD)
jaune (3-WAY)
vert (GND)
noir (LINE)
noir
blanc
noir
blanc
noir
blanc
noir
blanc
noir (LOAD)
jaune (3-WAY)
noir
blanc
rouge
120
Vca
cavalier
interrupteur
à trois voies
vert (GND)
noir (LINE)
noir
blanc
noir
blanc
120
Vca
interrupteur
unipolaire
noir (LOAD)
jaune (3-WAY)
vert (GND)
noir (LINE)
noir
blanc
noir
blanc
noir
blanc
Le témoin s’allume lorsque l’état de la
charge est à “Marche” (On).
Appuyer brièvement sur cette touche
pour allumer ou éteindre les lumières.
Voir “Dérogation temporaire” dans la
section 5.1.4.
Appuyer pendant 3
secondes pour entrer dans les menus.
Indique le mode de
fonctionnement (voir section 5.1)
Indique le programme en cours
Appuyer sur cette touche pour afficher
l’heure du lever du soleil d’aujourd’hui.
Commutateur de sécurité
Avant de remplacer une ampoule, tirer sur la languette pour mettre l’interrupteur hors tension.
Ceci prévient, lorsque l’ampoule est enlevée, tout risque de court-circuit qui pourrait
endommager l’interrupteur. Une fois l’ampoule remplacée, replacer la languette.
Indique l’état marche/arrêt (On/Off)
de la charge
Indique l’heure et le jour
L’icône indique que le programme en
cours a été activé au coucher du soleil.
L’icône indique que le programme
en cours a été activé au lever du soleil.
Appuyer sur cette touche pour afficher
l’heure du coucher du soleil d’aujourd’hui.
Guide de l’utilisateur
Interrupteur mural programmable — solaire et 7 jours
L’interrupteur RPLS540A/RPLS541A peut être utilisé aussi bien pour une installation conventionnelle que
pour une installation à 3 voies avec les types d’éclairage suivants :
• Incandescent • Halogène • Halogène basse tension avec transformateur • Fluorescent
Le RPLS540A/RPLS541A ne peut être utilisé pour une charge inférieure à 40 W ou supérieure à 500 W.
Applications
Installation
Mettre le circuit hors tension à partir du disjoncteur afin d'éviter tout risque de choc électrique.
Enlever l’interrupteur existant (pour une installation à 3 voies, identifier et marquer le fil relié à la borne
« commun »).
Installer le nouvel interrupteur (voir la section appropriée ci-dessous).
Remettre le circuit sous tension à partir du disjoncteur.
MISE EN GARDE : Mettre l’interrupteur hors tension lorsque vous remplacez une ampoule (voir la
section 4).
INSTALLATION CONVENTIONNELLE
1.
Le RPLS540A/RPLS541A allumera les lumières au coucher du soleil et les éteindra à 23h par défaut. Si ces
réglages vous conviennent, vous n’avez qu’à régler l’heure et la date (voir la case grise dans la feuille de
l’organigramme des menus). Si l’heure du coucher du soleil de l’interrupteur diffère de l’heure réelle du
2.
coucher du soleil, voir les sections 5.3.3 et 5.3.4.
Démarrage rapide
Régler l’heure et la date avant d’utiliser l’interrupteur pour la première fois.
Fonctionnement
Menus de réglage
3.
4.
5.

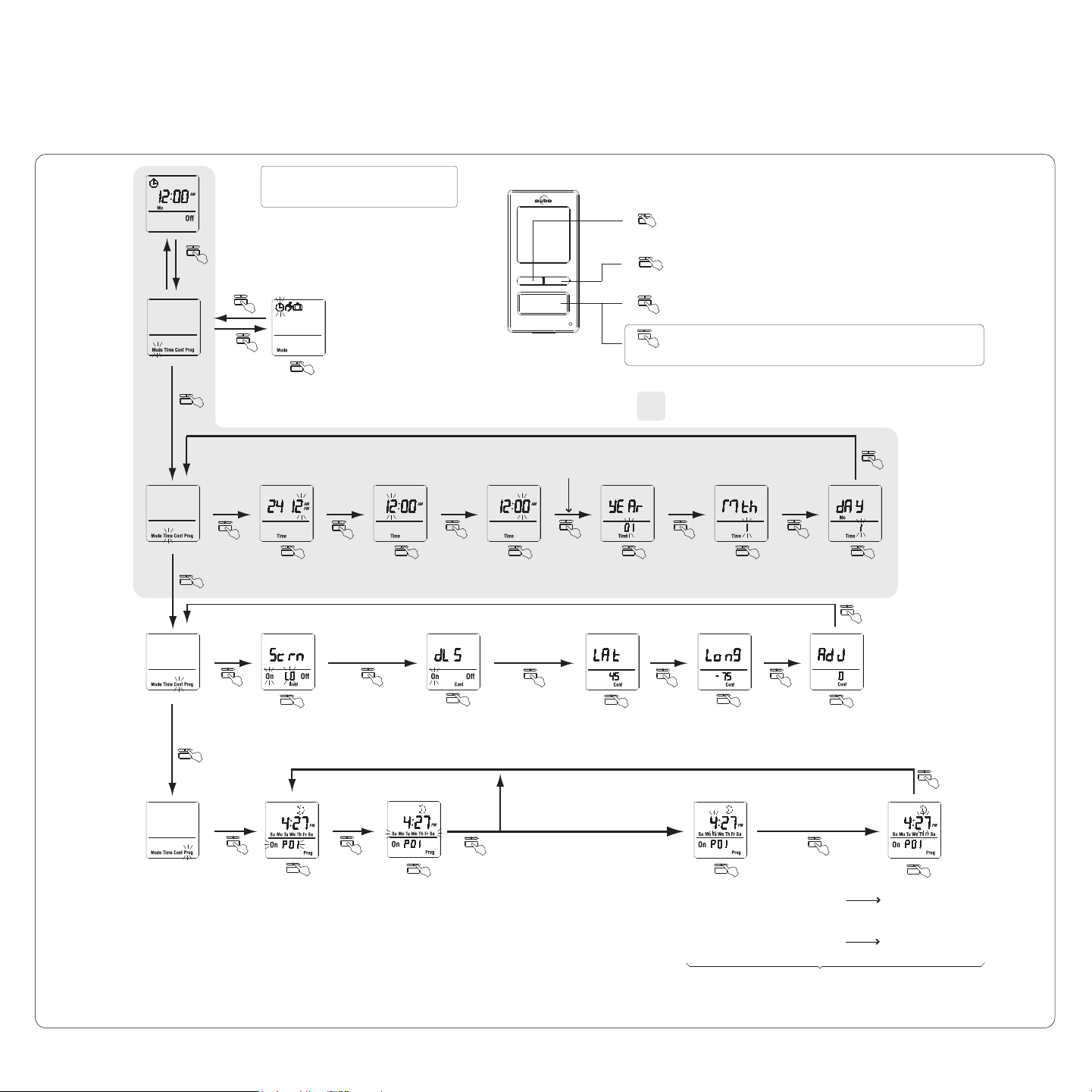

Appuyer sur la touche principale pendant 3 secondes pour entrer dans les menus. Consulter
(3 sec.)
la feuille de l’organigramme des menus pour savoir comment naviguer dans les menus.
5.1 Menu Mode
Vous pouvez utiliser le menu Mode pour sélectionner l’un des trois modes de fonctionnement (voir les
Relier les fils « LINE » et « 3-WAY » à la ligne 120 Vca et le fil « LOAD » à la charge. Relier le fils « GND » à
la vis de mise à la terre dans la boite électrique.
INSTALLATION EXISTANTE À 3 VOIES
Relier le fil « LOAD » du RPLS540A/RPLS541A au fil « commun » identifié lorsque vous avez enlevé
l’ancien interrupteur. Relier le fils « GND » à la vis de mise à la terre dans la boite électrique. Relier les fils «
LINE » et « 3-WAY » aux deux fils restants. Pour l’autre interrupteur à 3 voies, relier le fil de raccord (fourni)
entre la borne « commun » et la borne sur laquelle le fil « LINE » du RPLS540A/RPLS541A est relié.
NOUVELLE INSTALLATION À 3 VOIES
RPLS540A/RPLS541A 3/8

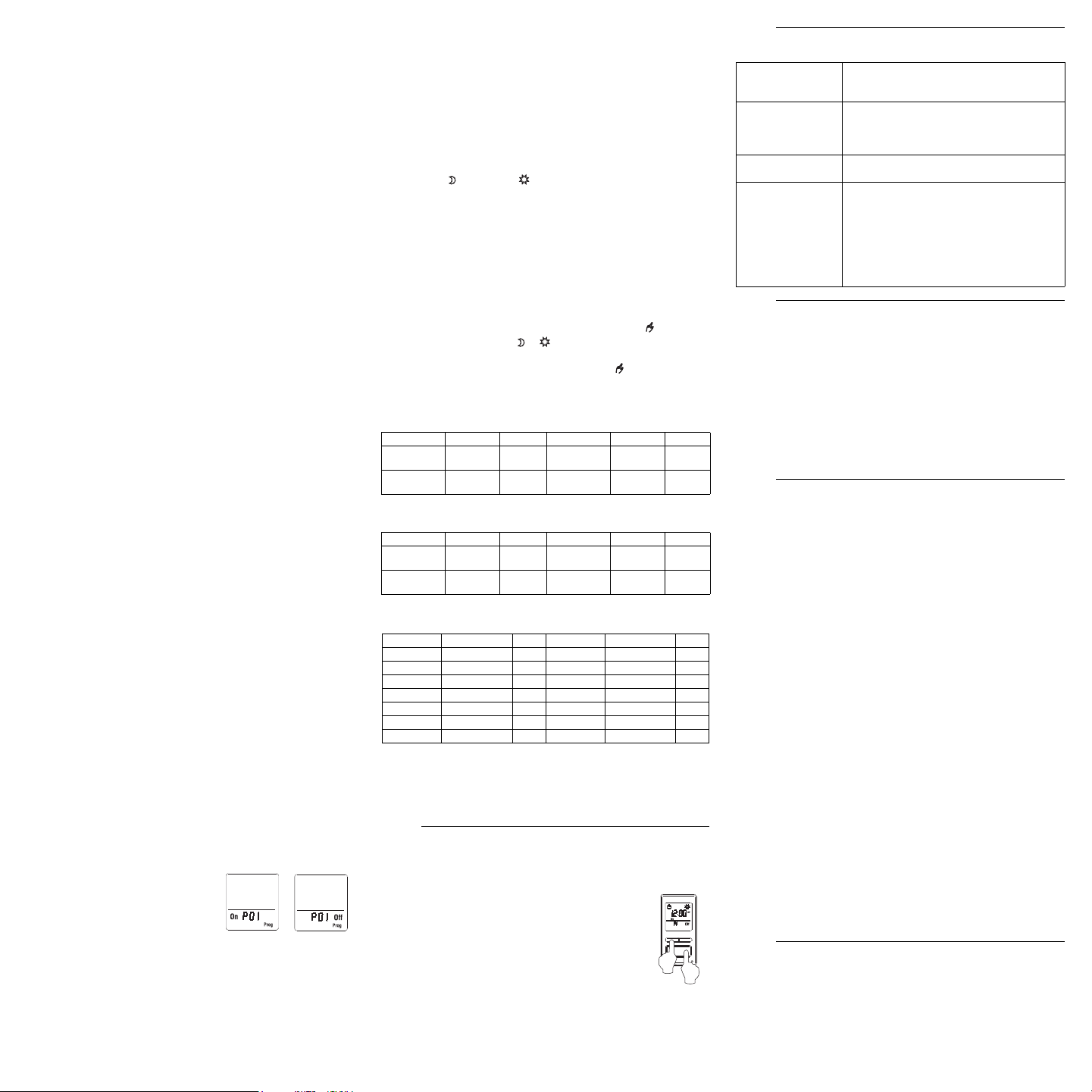

sections 5.1.1 à 5.1.3).
5.1.1 Mode Manuel
En mode Manuel, le RPLS540A/RPLS541A fonctionne comme un interrupteur
conventionnel. Pour allumer ou éteindre les lumières, appuyer brièvement sur la touche
principale. L’icône apparaît lorsque l’interrupteur est en mode Manuel.
5.1.2 Mode Automatique
En mode Automatique, le RPLS540A/RPLS541A allume et éteint les lumières selon les
programmes réglées (voir la section 5.4). L’icône ainsi que le numéro du programme en
cours sont affichés.
5.1.3 Mode Aléatoire
En mode Aléatoire, le RPLS540A/RPLS541A n’a pas de moment précis pour allumer ou
éteindre les lumières. Ce mode sert à donner l’impression que votre résidence est occupée
pendant votre absence. Il est semblable au mode Automatique, sauf qu’il n’y a pas de
programme fixe. Les programmes sont automatiquement réglés chaque jour par le
RPLS540A/RPLS541A à des heures différentes. L’icône apparaît lorsque l’interrupteur
est en mode Aléatoire.
Le premier programme « Marche » se produit au coucher du soleil. Chaque programme
« Marche » dure entre 1 heure et 1 heure et demie, et chaque programme « Arrêt » dure
entre 15 et 30 minutes. Le dernier programme « Arrêt » se produit entre 22h30 et minuit.
5.1.4 Dérogation temporaire
Lorsque le RPLS540A/RPLS541A est en mode Automatique ou Aléatoire, vous pouvez, en tout temps,
appuyer sur la touche principale pour déroger à l’état en cours; les lumières s’éteindront si elles sont
Loading...
