Pentax DS2 User Manual

SLR Digital Camera

Operating Manual

For optimum camera performance, please read the Operating Manual before using the camera.

Thank you for purchasing the PENTAX U Digital Camera. Please read this manual before using the camera in order to get the most out of all the features and functions. Keep this manual safe, as it can be a valuable tool in helping you to understand all the camera’s capabilities.

Lenses you can use

In general, lenses that can be used with this camera are DA, D FA and FA J lenses and lenses that have an Aperture s (Auto) position. To use any other lens or accessory, see p.37 and p.182.

Regarding copyrights

Images taken using the U that are for anything other than personal enjoyment cannot be used without permission according to the rights as specified in the Copyright Act. Please take care, as there are even cases where limitations are placed on taking pictures even for personal enjoyment during demonstrations, performances or of items on display. Images taken with the purpose of obtaining copyrights also cannot be used outside the scope of use of the copyright as laid out in the Copyright Act, and care should be taken here also.

Regarding trademarks

• PENTAX and smc PENTAX are trademarks of PENTAX Corporation.

• The SD logo is a trademark.

• All other brands or product names are trademarks or registered trademarks of their respective owners.

To users of this camera

• There is a possibility that recorded data may be erased or that the camera may not function correctly when used in surroundings such as installations generating strong electromagnetic radiation or magnetic fields.

• The liquid crystal panel used in the LCD display is manufactured using extremely high precision technology. Although the level of functioning pixels is 99.99% or better, you should be aware that 0.01% or fewer of the pixels may not illuminate or may illuminate when they should not. However, this has no effect on the recorded image.

This product supports PRINT Image Matching III. PRINT Image Matching enabled digital still cameras, printers and software help photographers to produce images more faithful to their intentions. Some functions are not available on printers that are not PRINT Image Matching III compliant. Copyright 2001 Seiko Epson Corporation. All Rights Reserved. PRINT Image Matching is a trademark of Seiko Epson Corporation. The PRINT Image Matching logo is a trademark of Seiko Epson Corporation.

Regarding PictBridge

PictBridge allows the user to connect the printer and digital camera directly, using the unified standard for the direct printout of images. You can print images directly from the camera through a few simple operations.

• There is a possibility that the illustrations and the display screen of the LCD monitor in this manual are different from the actual product.

FOR SAFE USE OF YOUR CAMERA

We have paid close attention to the safety of this product. When using this product, we request your special attention regarding items marked with the following symbols.

Warning

Caution

This symbol indicates that violating this item could cause serious personal injury. This symbol indicates that violating this item could cause minor or medium personal injury, or material loss.

ABOUT THE CAMERA

Warning

• Do not disassemble or modify the camera. High voltage areas are present inside the camera, with the risk of electric shock.

• If the camera interior is exposed due to dropping or otherwise damaging the camera, never touch the exposed portion. There is the risk of electric shock.

• To avoid the risk of it being swallowed by mistake, keep the SD Memory Card out of the reach of small children. Seek medical attention immediately if a memory card is accidentally swallowed.

• Wrapping the strap around your neck is dangerous. Take care that small children do not hang the strap over their necks.

• Do not look directly at the sun through the camera with the telephoto lens attached, as viewing the sun may damage your eyes. Viewing directly with the telephoto lens may lead to a loss of eyesight.

• Be sure to store batteries out of the reach of children. Seek medical assistance immediately if a battery is accidentally swallowed.

• Always use the AC adapter exclusively developed for this product, with the specified power and voltage. Using an AC adapter not exclusive to this product, or using the exclusive AC adapter with an unspecified power or voltage can cause a fire, electric shock, or camera breakdown.

• If any irregularities occur during use, such as smoke or a strange odor, stop use immediately, remove the batteries or the AC adapter, and contact your nearest PENTAX service center. Continued use could cause a fire or electric shock.

• During thunderstorms, unplug and discontinue use of the AC adapter. Continued use could cause equipment failure, a fire, or electric shock.

Caution

• Do not short the batteries or dispose of the batteries in fire. Do not disassemble the batteries. The batteries could explode or catch fire.

• Do not charge any batteries other than rechargeable Ni-MH batteries. The batteries could explode or catch fire. Of the batteries that can be used in this camera, only the Ni-MH batteries can be recharged.

• Remove the batteries from the camera immediately if they become hot or begin to smoke. Be careful not to burn yourself during removal.

• Some portions of the camera heat up during use. There is the risk of low temperature burns when holding such portions for long periods.

• Do not place your finger or cover with clothing when discharging the flash. Fingers or clothing may be burned.

PRECAUTIONS FOR BATTERY USAGE

• Only use specified batteries with this camera. Use of other batteries can cause a fire or explosion.

• Replace the batteries at the same time. Do not mix battery brands, type or an old battery with a new one. It may cause explosion or a fire.

• The batteries should be inserted correctly with regard to polarity (+ and –) marked on the batteries and the camera. Not inserting batteries correctly may cause explosion or a fire.

• AA lithium batteries, AA alkaline batteries and disposable CR-V3 are not rechargeable. Do not disassemble the batteries. Recharging and disassembling can cause explosion or leakage.

Care to be Taken During Handling

• Take the Worldwide Service Network that is included in the package. This will be useful if you experience problems abroad.

• When the camera has not been used for a long time, confirm that it is still working properly, particularly prior to taking important pictures (such as at a wedding or during traveling). Pictures cannot be guaranteed if recording, playback or transferring your data to a computer, etc. is not possible due to a malfunction of your camera or recording media (SD Memory Card), etc.

• Do not clean the product with organic solvents such as thinner or alcohol benzene.

• Do not subject to high temperatures or high humidity. Do not leave the camera in a vehicle, as the temperature can get very high.

• Do not store the camera with preservatives and chemicals. Storage in high temperatures and high humidity can cause molding. Remove from case and store in a dry and well-ventilated location.

• This camera is not waterproof, and should not be used in the rain or where the camera could get wet.

• Do not subject the camera to strong vibrations, shocks, or pressure. Use a cushion to protect the camera from vibrations of motorcycles, automobiles, or ships.

• The temperature range for camera use is 0°C to 40°C (32°F to 104°F).

• The LCD display may appear black under high temperatures, but will return to normal as temperatures normalize.

• The LCD display may respond more slowly at low temperatures. This is due to liquid crystal properties, and is not a fault.

• Periodic inspections are recommended every one to two years to maintain high performance.

• Sudden temperature changes will cause condensation on the inside and outside of the camera. Place the camera in your bag or a plastic bag, removing the camera after temperature of the camera and surroundings are equalized.

• Avoid contact with garbage, mud, sand, dust, water, toxic gases, or salts. These could cause a camera breakdown. Wipe dry any rain or water drops on the camera.

• Refer to “Precautions When Using the SD Memory Card” (p.30) regarding the SD Memory Card.

• Use a lens brush to remove dust accumulated on the lens or viewfinder. Never use a spray blower for cleaning as it may damage the lens.

• Please do not press forcefully on the LCD monitor. This could cause breakage or malfunction.

Regarding Product Registration

In order to better service you, we request that you complete the product registration, which can be found on the CD-ROM supplied with the camera or the PENTAX website. Thank you for your cooperation. Refer to the PENTAX PHOTO Browser 2.1/PENTAX PHOTO Laboratory 2.1 Operating Manual (Windows users: p.10, Mac OS users: p.12) for more information.

FOR SAFE USE OF YOUR CAMERA..................................................1

ABOUT THE CAMERA.........................................................................1

PRECAUTIONS FOR BATTERY USAGE............................................2

Care to be Taken During Handling .......................................................2

Contents ...............................................................................................4

Composition of the Operating Manual ..................................................9

Before Using Your Camera 11

U Camera Characteristics ............................................ 12

Checking the Contents of the Package...................................... 13

Names of Working Parts ............................................................. 14

Camera...............................................................................................14

LCD Monitor Indications .....................................................................16

Viewfinder Indications.........................................................................20

LCD Panel Indications ........................................................................22

Getting Started 23

Attaching the Strap ...................................................................... 24

Inserting the Batteries ................................................................. 25

Batteries..............................................................................................26

Battery Level Indicator........................................................................27

Approximate Image Storage Capacity and Playback Time

(new batteries)....................................................................................27

Using the AC Adapter (Optional) ........................................................28

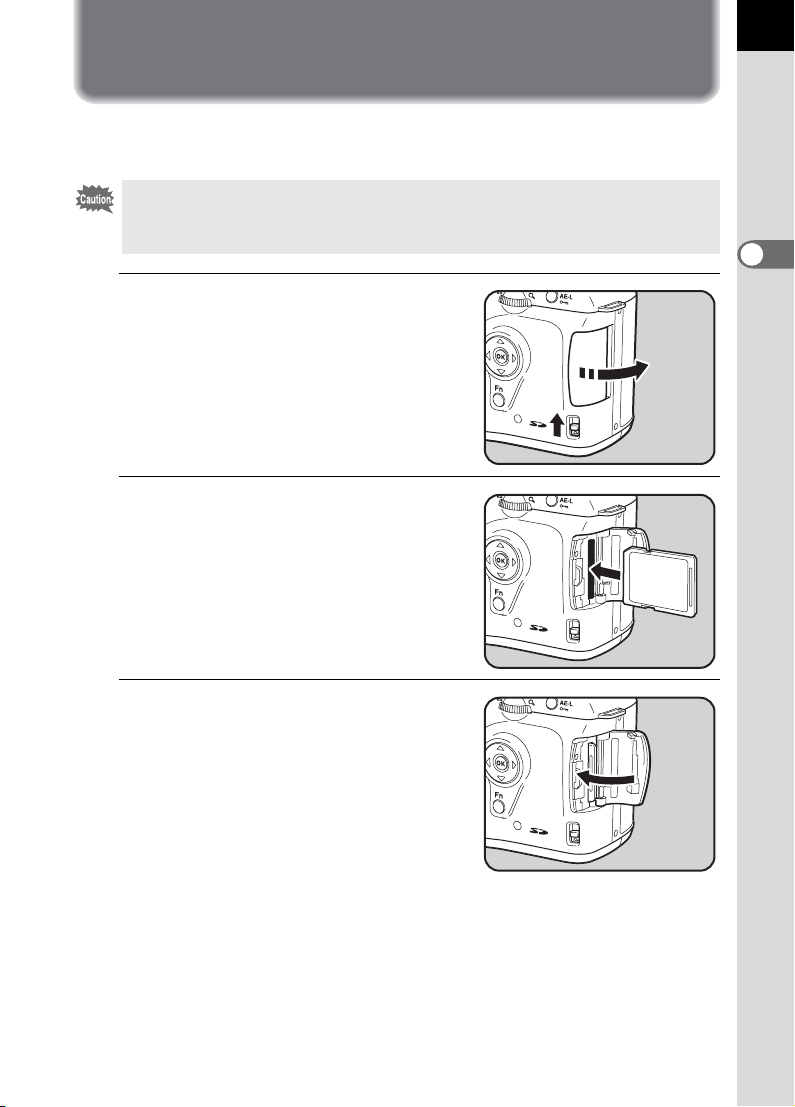

Inserting/Removing the SD Memory Card ................................. 29

Recorded Pixels and Quality Level.....................................................31

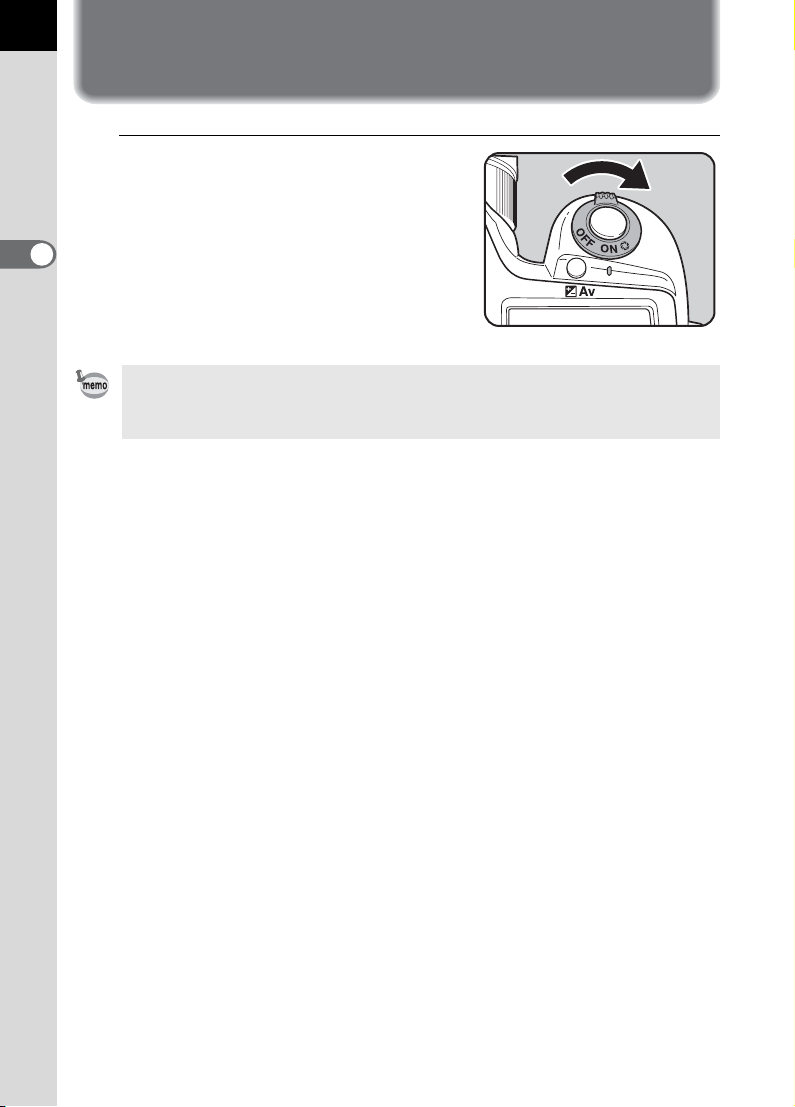

Turning the Camera On and Off.................................................. 32

Initial Settings .............................................................................. 33

Setting the Display Language.............................................................33

Setting the Date and Time..................................................................35

Attaching the Lens....................................................................... 37

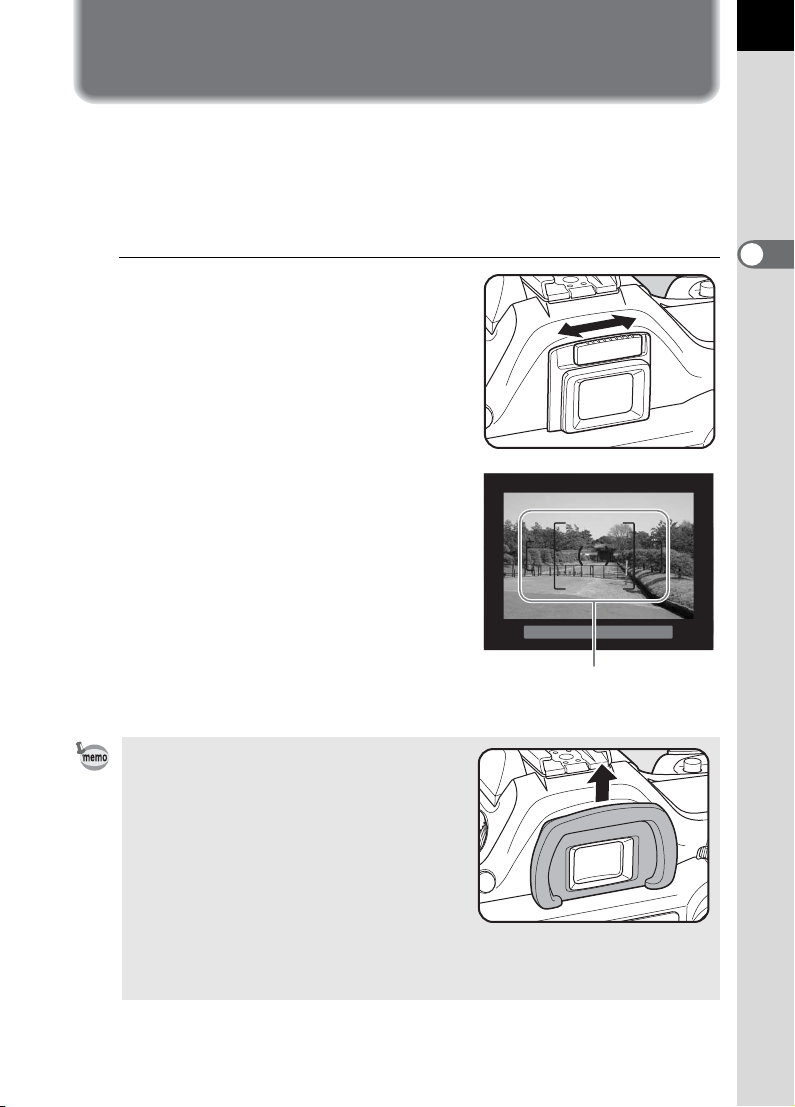

Adjusting the Viewfinder Diopter ............................................... 39

Basic Operations 41

Basic Shooting Operation ........................................................... 42

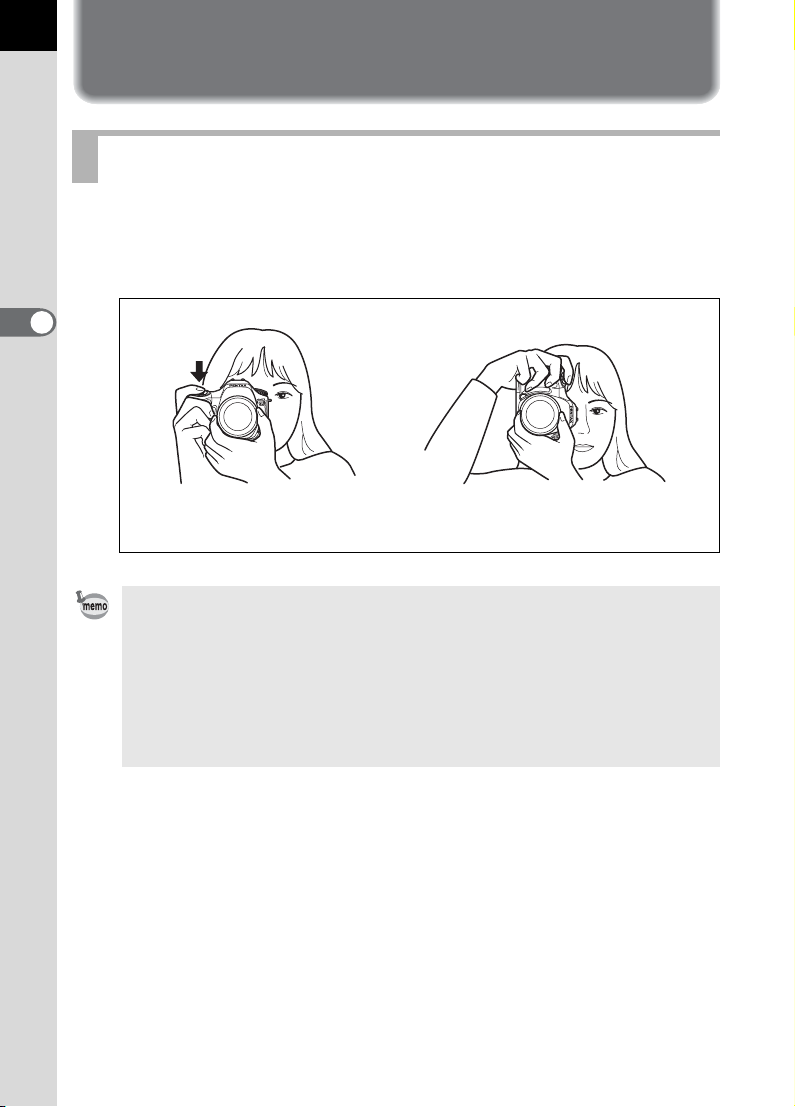

Holding the Camera............................................................................42

Letting the Camera Choose the Optimal Settings ..............................43

Selecting the Appropriate Capturing Mode for Scenes............ 47

Using the Zoom Lens .................................................................. 48

Using the Built-in Flash ............................................................... 49

Other Shooting Modes................................................................. 53

Continuous Shooting ..........................................................................53

Self-Timer Shooting............................................................................55

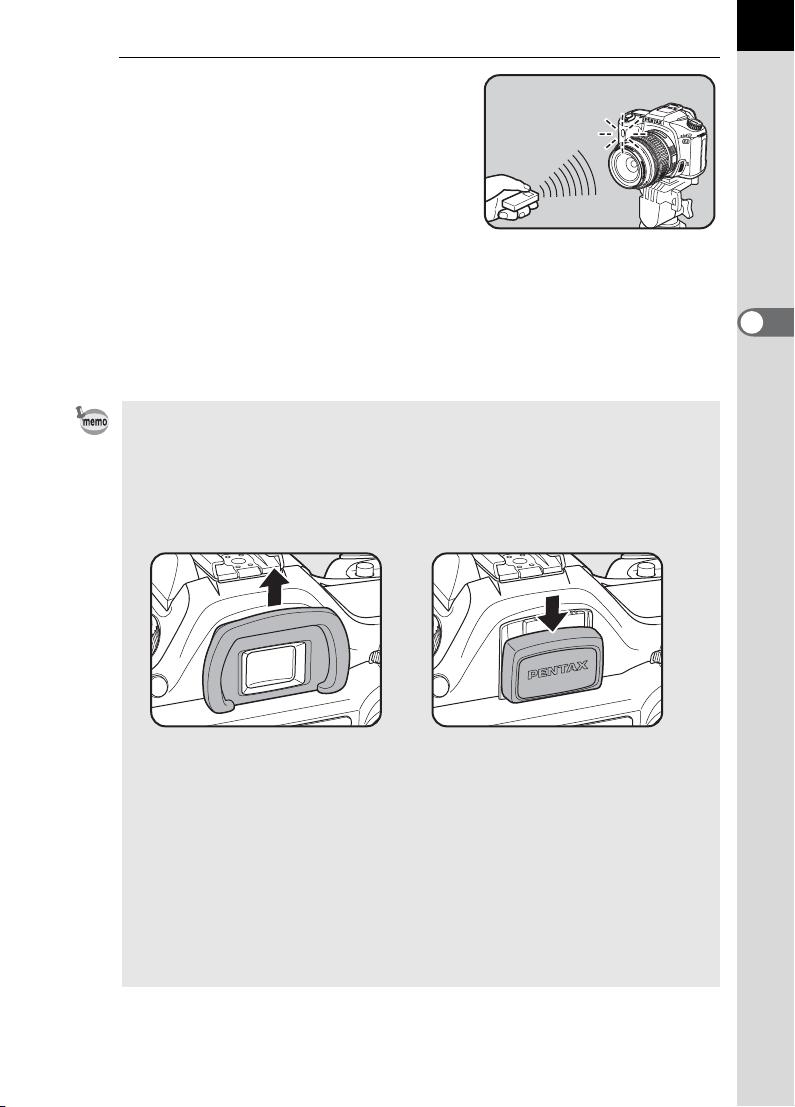

Remote Control Shooting (Remote Control F: Sold Separately) ........59

Using Mirror Lock Up Function to Prevent Camera Shake.................62

Playing Back Still Pictures .......................................................... 63

Playing Back Images..........................................................................63

Enlarging Playback Images ................................................................65

Nine-Image Display ............................................................................66

Slideshow ...........................................................................................68

Connecting the Camera to AV Equipment................................. 70

Processing Images with Filters .................................................. 71

Deleting Images ........................................................................... 73

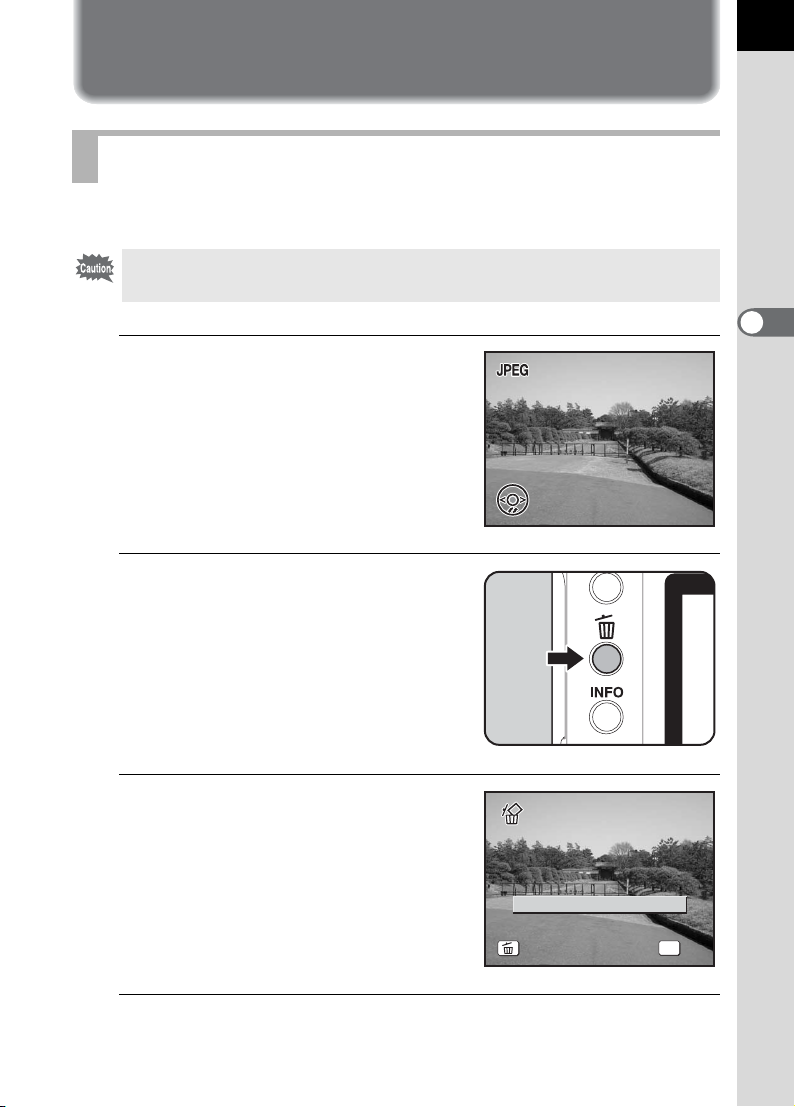

Deleting a Single Image......................................................................73

Deleting All Images.............................................................................74

Deleting Selected Images (from Nine-Image Display)........................75

Protecting Images from Deletion (Protect)..........................................77

Setting the Printing Service (DPOF)........................................... 79

Printing Single Images........................................................................79

Settings for All Images........................................................................81

Printing Using PictBridge............................................................ 83

Setting [Transfer Mode]......................................................................84

Connecting the Camera to the Printer ................................................85

Printing Single Images........................................................................86

Printing All Images..............................................................................88

Printing Images Using the DPOF Settings..........................................90

Disconnecting the Cable from the Printer...........................................90

Menu Reference 91

Using the Button Functions ........................................................ 92

Capture Mode.....................................................................................92

Playback Mode ...................................................................................94

Using the Menu ............................................................................ 96

How to Operate the Menu...................................................................96

[A Rec. Mode] Menu Setting Items...................................................98

[Q Playback] Menu Setting Items.....................................................98

[H Set-up] Menu Setting Items ..........................................................99

[A Custom Setting] Menu Setting Items...........................................100

Using the Fn Menu ..................................................................... 102

Capture Mode...................................................................................102

Playback Mode .................................................................................103

Using the Mode Dial................................................................... 104

Function Reference 107

Setting the Recorded Pixels and Quality Level....................... 108

Setting the Image Tone ....................................................................108

Setting the Recorded Pixels .............................................................109

Setting the Quality Level...................................................................110

Setting the Saturation/Sharpness/Contrast ......................................111

Setting the White Balance ................................................................112

Setting the Sensitivity .......................................................................115

Setting the Color Space....................................................................117

Focusing ..................................................................................... 118

Using the Autofocus..........................................................................118

Setting the AF Mode.........................................................................121

Selecting the Focusing Area (Focus Point) ......................................122

Fixing the Focus (Focus Lock)..........................................................124

Adjusting the Focus Manually (Manual Focus).................................126

Setting the Exposure ................................................................. 128

Effect of Aperture and Shutter Speed...............................................128

Selecting the Metering Method.........................................................131

Changing the Exposure Mode ..........................................................133

Setting the Exposure ........................................................................142

Changing the Exposure and Shooting (Auto Bracket)......................144

Using the Built-in Flash ............................................................. 147

Compensating Flash Output.............................................................147

Allowing Shooting while Charging Flash...........................................148

Flash Characteristics in Each Exposure Mode.................................148

Distance and Aperture when Using the Built-in Flash ......................150

DA, D FA , FA J, FA and F Lens Compatibility with

the Built-in Flash...............................................................................152

Using an External Flash (Optional)...................................................154

Settings During Playback.......................................................... 161

Changing Playback Display Method ................................................161

Displaying Bright Portion Warning....................................................161

Setting the Slideshow Display Interval..............................................162

Camera Settings......................................................................... 163

Formatting the SD Memory Card......................................................163

Turning the Beep On and Off............................................................164

Changing the Date and Time and the Display Style.........................164

Setting the World Time.....................................................................165

Setting the Display Language...........................................................168

Turning the Guide Display On and Off..............................................168

Adjusting the Brightness of the LCD Monitor....................................169

Selecting the Video Output Format...................................................169

Setting Auto Power Off .....................................................................170

Resetting the File Number................................................................170

Setting the Instant Review ................................................................171

Resetting to Default Settings .................................................... 172

Resetting Rec. Mode/Playback/Set-up Menu...................................172

Resetting the Custom Function Menu ..............................................173

Appendix 175

Default Settings.......................................................................... 176

Functions Available with Various Lens Combinations .......... 180

Notes on [Using Aperture Ring] ............................................... 182

Cleaning the CCD....................................................................... 183

Optional Accessories ................................................................ 185

Error Messages .......................................................................... 188

Troubleshooting......................................................................... 190

Main Specifications ................................................................... 192

Specifications for Remote Control F (Optional)................................195

Glossary...................................................................................... 196

Index............................................................................................ 200

WARRANTY POLICY.................................................................. 204

Composition of the Operating Manual

This operating manual contains the following chapters.

1 Before Using Your Camera

Explains camera characteristics, accessories and the names of various parts.

2 Getting Started

Explains your first steps from purchasing the camera to taking pictures. Be sure to read it and follow the instructions.

3 Basic Operations

Explains the procedures for taking, playing back, and printing still pictures. Read it to learn all of the basic operations about capturing, playing back, and printing.

4 Menu Reference

Explains the functions of U by buttons and menus.

5 Function Reference

Introduces functions to further enhance your U experience.

6 Appendix

Explains troubleshooting, introduces optional accessories and provides various resources.

The symbols used in this operating manual are explained below.

Shows reference page number explaining a related operation.

Shows useful information.

Shows precautions to take when operating the camera.

Memo

1 Before Using Your

Camera

Check the package contents and names of working parts before use.

U Camera Characteristics .....................12

Checking the Contents of the Package ..............13

Names of Working Parts ......................................14

U Camera Characteristics

• Features a 23.5×15.7 mm CCD with 6.1 million effective pixels for high

precision and a wide dynamic range.

• Features an AF sensor with 11 focusing points. The central 9 are wide

Before Using Your Camera

cross area sensors.

• Improved manual focusing using a viewfinder similar to a conventional

35 mm SLR camera, with 0.95× magnification. Also features a superimpose function in which the focus points on the viewfinder illuminate red.

• Uses CR-V3, AA lithium batteries, rechargeable AA Ni-MH batteries or

AA alkaline batteries.

• Features a large 2.5-inch LCD monitor with 210,000 pixels and a

brightness adjusting function for high-precision viewing performance.

• Concepts of Universal Design have been implemented to various parts

of the camera. The large, high-resolution LCD monitor and easy-to-use menus make the camera easier to operate.

The captured area (view angle) will differ between the U and 35 mm SLR cameras even if the same lens is used because the format size for 35 mm film and CCD are different.

Sizes for 35 mm film and CCD

35 mm film : 36×24 mm U CCD : 23.5×15.7 mm

Angles of view being equal, the focal length of a lens used with a 35 mm camera must be approximately 1.5 times longer than that of U. To obtain a focal length framing the same area, divide the focal length of the 35 mm lens by 1.5.

Example) To capture the same image as a 150 mm lens attached to a 35 mm

camera 150÷1.5=100 Use a 100 mm lens with the U.

Inversely, multiply the focal length of the lens used with U by 1.5 to determine the focal length for 35 mm cameras.

Example) If 300 mm lens is used with U

300×1.5=450 Focal length is equivalent to 450 mm lens on a 35 mm camera.

Checking the Contents of the Package

The following accessories are packaged with your camera. Check that all accessories are included.

Before Using Your Camera

Hot shoe cover FK

(Installed on camera)

Body mount cover

(Installed on camera)

Software (CD-ROM)

S-SW43

Operating Manual

(this manual)

Eyecup F

(Installed on camera)

USB cable

I-USB17

O-ST10

PENTAX PHOTO Browser 2.1/

PENTAX PHOTO Laboratory 2.1

Operating Manual

Strap

ME Viewfinder cap

Video cable

I-VC28

AA Alkaline batteries*

(four)

* The batteries packaged with the camera are for checking the camera's

functionality.

Names of Working Parts

Camera

Before Using Your Camera

Lens mount index

Shutter release

button

Main switch

Self-Timer lamp/

Remote control receiver

Lens unlock button

3 button

i button

Mirror

AF coupler

Focus mode lever

Lens information contacts

e-dial L/Z

button

Four-way controller

4 button

{ button

M button

Q button

Battery cover

Tripod socket

K button

Mode dial

Strap lug

Cable switch terminal

USB/Video terminal

DC input terminal

Terminal cover

LCD monitor

Built-in flash

Hot shoe

mc button

LCD panel

Diopter adjustment lever

Card cover

Card cover unlock lever

Card access lamp

Viewfinder

Before Using Your Camera

1600

Auto Pic tu re Program

2005

AF.S

LCD Monitor Indications

The following indicators appear on the LCD monitor depending on the status of the camera.

Before Using Your Camera

LCD monitor

While Power is On or Operating Mode Dial

Guides appear on the LCD monitor for 3 seconds when powered on or setting dial mode.

Select [Off] for [Guide display] in [H Set-up] to not show indicators. (p.99)

23 5467

AF.S

Auto Picture

Auto Picture Program

Program

2005

// 25

090909 2005//25

1212: 30

12 : 30

1600

1 Flash mode

(Active mode appears) (p.49)

2 Drive mode (p.102) 3 AE metering (p.131) 4 AF mode (p.121) 5 Switch focus point (p.122) 6 White balance (p.112) 7 Sensitivity (p.115) 8 Shooting mode

(Mode dial position) (p.104)

9 World time warning display (p.165)

10 Date and time (p.164)

* Indicators 3,4,5,6 and 7 only appear

when the setting other than the default setting is selected. 9 only appears when World Time is On (O).

Capture Mode

AF.S

sRGB

ISO

800

Detailed In fo

2005

Auto P ictur e Progra m

Detailed In fo

Decide s sub jct c ondit ion automa tical ly to fix op timum pict ure mode

Press the M button in capture mode to display the capture function settings on the LCD monitor for 15 seconds.

Detailed Information

Detailed Info

AF.S

ISO

800

ISO

800

090909 //2005/25/

sRGB

2005

/25

4040mm

12 : 30

1212: 30

1 AF mode (p.121) 10 Recorded pixels (p.109) 2 Shooting mode (p.104) 11 Color space (p.117) 3 AE metering (p.131) 12 White balance (p.112) 4 Flash mode (p.49) 13 Date and time (p.164) 5 Drive mode (p.102) 14 Focus point location (p.122) 6 Auto bracket (p.146) 15 Saturation (p.111) 7 ISO sensitivity (p.115) 16 Sharpness (p.111) 8 Image tone (p.108) 17 Contrast (p.111) 9 Quality level (p.110) 18 Lens focal length

Detailed InfoDetailed Info

15 1665432 1787

109

1811

Press the four-way controller (5) to view explanation of set mode dial.

Explanation of Set Mode Dial

Before Using Your Camera

Detailed Info

Decides subjct condition

Decides subjct condition automatically to

automatically to fix optimum picture mode

fix optimum picture mode

Auto Picture

Auto Picture Program

Program

2005

sRGB

AF.S

ISO

800

2000

100 - 0 0 01

Playback Mode

The camera switches screen displays every time you press M button during playback.

Before Using Your Camera

You can change the information initially displayed by pressing the Q button. (p.161)

Detailed Information

100-0001

AF.S

1 5.

090909 //2005/25/

sRGB

2005

/25

15.

EVEVEV

1212: 30

12 : 30

4040mm

12 13 14 15

2000

1 /

20001/ 228.F28.

ISO

800

1 Captured images 13 Flash mode (p.49) 2 Rotate icon (p.64) 14 Drive mode (p.102) 3 Image folder number and file

number (p.170)

15 Auto bracket (p.146)

16 Sharpness (p.111) 4 Protect icon (p.77) 17 ISO sensitivity (p.115) 5 AF mode (p.121) 18 Image tone (p.108) 6 Focus point information (p.122) 19 Contrast (p.111) 7 Shutter speed (p.135) 20 Quality level (p.110) 8 Aperture (p.137) 21 Recorded pixels (p.109) 9 EV compensation (p.142) 22 Color space (p.117)

10 Saturation (p.111) 23 Lens focal length 11 Shooting mode (p.104) 24 White balance (p.112) 12 AE metering (p.131) 25 Captured date and time (p.164)

10 16 19

Histogram Display

100- 0 0 4 6

100-0046

1 Capture quality (Image file type) 2 Image folder number and file number (p.170) 3 Protect icon (p.77) 4 Histogram

• Areas where blooming occurred blink if [Bright Portion] warning is on. (p.161)

• Press the four-way controller (23) in the histogram display to move the

Histogram display position up or down.

Before Using Your Camera

Viewfinder Indications

Before Using Your Camera

67 8 910

11 12 13 14

1 Autofocus frame (p.39) 2 Spot metering frame (p.131) 3 Focus point (p.122) 4 Flash status (p.49)

Appears when flash is available and blinks when flash is recommended but not set.

5 Picture mode icon (p.47)

Icon for Picture mode in use appears.

. Night Scene Portrait, \ Moving Object, q Macro, s Landscape, = Portrait, U Normal

6 Focus indicator (p.44)

Appears when image is focused. When blinking indicates an out of focus subject.

7 Shutter speed (p.135)

Shutter speed when capturing or adjusting (underlined when shutter speed can be adjusted with e-dial).

8 Aperture (p.137)

Aperture when capturing or adjusting (underlined when aperture can be adjusted with e-dial).

9 EV compensation (p.142)

Appears when EV compensation is available or in use. Blinks slowly when compensating flash output. Blinks quickly when compensating exposure and flash output. Adjusted value appears where number of recordable images is shown.

10 Number of recordable images/EV compensation

Show the number of recordable images with current quality and recorded pixel setting. Show the number of continuous shooting recordable images. (p.100) EV compensation value appears when EV compensation is being adjusted. (p.134) The difference with the appropriate exposure value appears if exposure mode is a. (p.139)

11 Manual white balance (p.113)

Appears when manual white balance is in use and blinks while adjusting.

12 Manual focus (p.126)

Appears when focus mode is \.

13 ISO sensitivity warning (p.116)

Appears when warning value is exceeded.

14 AE lock indicator (p.143)

Appears during AE lock.

The red indication of the focus point used for autofocus lightens superimposed when the shutter release button is pressed halfway. (p.122)

Before Using Your Camera

LCD Panel Indications

The following information appears in the LCD panel on top of the camera.

Before Using Your Camera

111065

1 Shutter speed (p.135) 6 AE metering (p.131) 2 Aperture (p.137) No indicator: 3 Flash mode (p.49)

b : Built-in flash is ready

(when blinking, flash should be used)

a :Flash off E : Auto discharge 8 White balance (p.112)

> :

Red-eye reduction flash on

4 Drive mode (p.102) 9 Battery level

9 : Single frame shooting 10 EV compensation (p.142) j : Continuous shooting 11 Number of recordable images/ g : Self-Timer shooting h : Remote control shooting

5 Focus point information (p.122)

No indicator: Auto

V : Select M :Center

7 Auto bracketing (p.146)

Multi-segment metering

M : Center-weighted

metering

N : Spot metering

(Not displayed when set to Auto)

EV compensation value/PC (Pb) (PC=Personal Computer (mass storage), Pb=PictBridge)

8 9

2 Getting Started

This chapter explains your first steps from purchasing the camera to taking pictures. Be sure to read it and follow the instructions.

Attaching the Strap ..............................................24

Inserting the Batteries .........................................25

Inserting/Removing the SD Memory Card .........29

Turning the Camera On and Off ..........................32

Initial Settings .......................................................33

Attaching the Lens ...............................................37

Adjusting the Viewfinder Diopter ........................39

Getting Started

Attaching the Strap

Pass the end of the strap through the strap lug, then secure on the inside of the clasp.

Pass the other end of the strap through the other strap lug on the camera, then secure on the inside of the clasp.

Inserting the Batteries

Insert batteries into the camera. Use two CR-V3 or four AA Ni-MH batteries, AA lithium batteries, or AA alkaline batteries.

This camera is packaged with AA alkaline batteries for checking the camera's functionality but some other kinds of batteries are also compatible. Refer to

“Batteries” (p.26) for details on compatible batteries and when to use them.

• CR-V3, AA lithium batteries and AA alkaline batteries are not rechargeable.

• Do not open the battery cover or remove the batteries while the power is on.

• Remove the batteries when you will not use the camera for a long while. The batteries may leak.

• If the date and time settings have been reset when you insert new batteries after a long while, follow the procedure for “Setting the Date and Time”. (p.35)

• Insert batteries correctly. Batteries inserted incorrectly may cause a camera breakdown. Wipe the electrodes of the batteries before inserting.

• Replace all the batteries at the same time. Do not mix battery type, brands or an old battery with a new one.

Push and hold the battery cover unlock lever as shown in the illustration ( ), and slide the battery cover toward the lens ( ), and then flip open.

Getting Started

Insert the batteries according to the +/– indicators in the battery chamber.

Press down on the batteries with the battery cover ( ) and slide it as shown in the illustration ( ) to close.

Getting Started

• Use the AC adapter (optional) when using the camera for a prolonged period. (p.28)

• Check the battery orientation if the camera does not operate properly after replacing the batteries.

Batteries

You can use four kinds of batteries with your camera. Battery performance differs by type. Please choose the type that best suits your purpose.

CR-V3

AA Ni-MH rechargeable batteries

AA lithium batteries Recommended in cold climates.

AA alkaline batteries

Oxyride batteries and rechargeable CR-V3 batteries may cause malfunctions due to their voltage characteristics so their use is not recommended.

The CR-V3 is a long-life battery and is convenient when traveling.

These are rechargeable and are economical.

Provided with the camera. These are easily obtainable when your usual batteries run out but they may not support all the camera functions under certain conditions. We do not recommend their use except in emergencies and checking the camera's functionality.

Battery Level Indicator

You can confirm remaining battery level by checking the { displayed on the LCD panel.

{ lit : Battery is full.

} lit : Battery is running low.

? lit : Battery is almost empty.

? blink : The camera turns off after displaying a message.

Approximate Image Storage Capacity and Playback Time (new batteries)

Getting Started

Batteries

CR-V3

AA lithium batteries

AA rechargeable batteries (NiMH 2500mAh)

AA Alkaline Batteries

The still picture storage capacity is based on measuring conditions in accordance with CIPA standards and the playback time is based on PENTAX measuring conditions. Some deviation from the above figures may occur in actual use depending on shooting mode and shooting conditions.

• Battery performance temporarily decreases as the temperature decreases. When using the camera in cold climates, have extra batteries on hand and keep them warm in your pocket. Battery performance will return to normal when returned to room temperature. AA alkaline batteries may not support all the camera functions. We do not recommend

• their use except in emergencies and checking the camera's functionality.

• Have extra batteries ready when traveling overseas, taking pictures in cold climates, or when you will be taking a lot of pictures.

(Temperature)

(23°C) 850 750 650 700 minutes

( 0°C) 560 500 410 470 minutes

(23°C) 750 650 550 470 minutes

( 0°C) 670 570 470 400 minutes

(23°C) 560 500 440 350 minutes

( 0°C) 500 440 380 300 minutes

(23°C) 90 70 50 140 minutes

(0°C)

Normal

recording

Not

applicable

Flash photography

50% use 100% use

Not

applicable

Not

applicable

Playback

time

70 minutes

Using the AC Adapter (Optional)

Getting Started

We recommend using the AC adapter D-AC10 (optional) when using the LCD monitor for a long time or when connecting to your PC.

Make sure the camera is turned off before opening the terminal cover.

Connect the DC terminal on the AC adapter to the DC input terminal on the camera.

Connect the AC plug cord to the AC adapter.

Plug the AC cord into the power outlet.

• Make sure the camera is turned off before connecting or disconnecting the AC adapter.

• Make sure connections are secure between the camera, AC adapter, AC plug cord terminal and the power outlet. SD Memory Card and data will be corrupted if disconnected while camera is recording or reading data.

• Be sure to read the AC adapter D-AC10 operating manual when using the AC adapter.

• The rechargeable batteries in your camera will not charge when connected to the AC adapter.

Inserting/Removing the SD Memory Card

Captured images are recorded on the SD Memory Card. Make sure the camera is turned off before inserting or removing the SD Memory Card (market product).

• Do not remove the SD Memory Card while card access lamp is lit.

•

Format new SD Memory Card. Also format SD Memory Card used with other cameras. Refer to “Formatting the SD Memory Card” (p.163) for details on formatting.

Press the card cover unlock lever in the indicated direction.

Card cover opens.

Insert the card all the way with the SD Memory Card label toward the LCD monitor.

Getting Started

Close the card cover.

Push the SD Memory Card in once to remove.

Precautions When Using the SD Memory Card

Getting Started

• The SD Memory Card is equipped with a write-protect switch. Setting the switch to LOCK protects the existing data by prohibiting recording of new data, deletion of existing data or formatting of the card.

• Care should be taken when removing the SD Memory Card immediately after using the camera because the card may be hot.

• Do not remove the SD Memory Card or turn the camera off while data is being saved to the card, images are being played back, or the camera is connected to a computer with the USB cable. This may cause the data to be lost or the card to be damaged.

• Do not bend the SD Memory Card or subject it to violent impact. Keep it away from water and store away from high temperatures. Do not remove the SD Memory Card during formatting. The card may be

• damaged beyond use.

• Data on the SD Memory Card may be deleted in the following circumstances. PENTAX does not accept any liability for data that is deleted if (1) the SD Memory Card is mishandled by the user. (2) the SD Memory Card is exposed to static electricity or electrical

interference. (3) the card has not been used for a long time. (4) the card is ejected or the battery is removed while the data on the card is

being recorded or accessed.

• The SD Memory Card has a limited service life. If it is not used for a long time, the data on the card may become unreadable. Be sure to regularly make a backup of important data on a computer.

• Avoid using or storing the card where it may be exposed to static electricity or electrical interference.

• Avoid using or storing the card in direct sunlight or where it may be exposed to rapid changes in temperature or to condensation.

• For information on compatible SD Memory Card, visit the PENTAX website or contact your nearest PENTAX customer service center.

• Format new SD Memory Cards. Also format SD Memory Card used with other cameras. 1Formatting the SD Memory Card (p.163)

Write-protect

switch

Recorded Pixels and Quality Level

Choose the number of pixels (size) and quality level (data compression rate) of pictures according to how you intend to use the pictures you have taken. Pictures with larger recorded size or the more E are clearer when printed. The number of pictures that can be taken (the number of pictures that can be recorded on an SD Memory Card) becomes less with larger file sizes. The quality of the captured photo or printed picture depends on the quality level, exposure control, resolution of the printer and a variety of other factors so you do not need to select more than the required number of pixels. For example, to print in postcard size, R (1536×1024) is adequate. Set the appropriate recorded size and quality level depending on purpose.

Choose the appropriate number of recorded pixels and quality level for images on the [A Rec. Mode] menu.

1Setting the Recorded Pixels (p.109) 1Setting the Quality Level (p.110)

Recorded Pixels, Quality Level and Approximate Image Storage

Capacity

Quality Level

Recorded Pixels

(3008×2008)

(3008×2000) (2400×1600)

(1536×1024)

• The above table shows the approximate image storage capacity and recording time when using a 128 MB SD Memory Card.

• The above figures may vary depending on the subject, shooting conditions, shooting mode and SD Memory Card, etc.

11 — — — —3470117 —5196161 — 106 173 271

Best

Better

Good

Getting Started

Turning the Camera On and Off

Move the main switch to [ON] position.

The camera will turn on.

Move the main switch to [OFF] position to turn off the camera.

• Always turn the camera off when not in use.

• The power will automatically turn off when you do not perform any operations within a set period of time. (Default setting is 1 minute) (p.170)

Initial Settings

The first time the camera is turned on after purchasing, the “Initial Settings” screen appears on the LCD monitor. Follow the procedure below to set the language displayed on the LCD monitor and the current date and time. Once setting is done, these will not need to be set again when turning your camera on.

Setting the Display Language

You can choose the language in which the menus, error messages, etc. are displayed from the following: English, French, German, Spanish, Italian, Swedish, Dutch, Russian, Korean, Chinese (traditional/simplified) and Japanese.

Press the four-way controller (5).

Initial Settings

English

New York

DST

Getting Started

Use the four-way controller (2345) to select your applicable language.

The default setting is English.

Press the 4 button.

English Français Deutsch Español Italiano Svenska

Nederlands

OKCancel

Press the four-way controller (3).

The cursor moves to [W].

Press the four-way controller (45) to select the city.

Press the four-way controller (3).

Getting Started

The cursor moves to DST (daylight saving time).

Use the four-way controller (45) to select O (On) or P (Off).

Press the 4 button.

The screen for setting the date and time will be displayed.

When an Incorrect Language is Set

Follow the procedure below to display the screen for setting the language, and go to Step 2 on p.33 to set the language again.

Turn the camera off and turn it on again.

Press the 3 button.

Press the four-way controller (5) twice.

Press the four-way controller (3) five times.

Press the four-way controller (5) once.

The screen for setting the language will be displayed.

Setting the Date and Time

Set the current date and time and the display style.

Press the four-way controller (5).

The frame moves to [mm/dd/yy].

Date Adjust

Date Style

Date

mm/dd/yy

2005/0101 /

24h

Getting Started

Time

Use the four-way controller (23) to choose the date style.

Press the four-way controller (5).

The frame moves to [24h].

Use the four-way controller (23) to select 24h (24-hour

Date Adjust

Date Style

Date

Time

00 : 00

mm/dd/yy

00 :

display) or 12h (12-hour display).

Press the four-way controller (5).

The frame returns to [Date Style].

Press the four-way controller (3).

OKCancel

24h

2005/0101 /

OKCancel

The frame moves to [Date].

Getting Started

Press the four-way controller (5).

The frame moves to the month.

Use the four-way controller (23) to set the month.

Set the day and year in the same manner.

Next, set the time.

If you select [12h] in Step 4, the setting switches between am and pm depending on the time.

Press the 4 button.

The camera is ready to take pictures. If you set the date and time with the menu operations, the screen will return to the [H Set-up] menu. Press the 4 button again.

You can cancel the setting operation and switch to Capture mode during initial settings by pressing the 3 button. In this case, the Initial Settings screen will appear again the next time you turn the camera on.

Date Adjust

Date Style

Date

Time

mm/dd/yy

00 :

24h

2005/0101 /

OKCancel

• When you finish the settings and press the 4 button, the camera clock is reset to 00 seconds. To set the exact time, press the 4 button when the time signal (on the TV, radio, etc.) reaches 00 seconds.

• You can change the language and date and time settings with the menu operations. (p.164, p.168)

Attaching the Lens

All camera exposure modes are available when using DA, D FA, FA J or other lenses with Aperture s (Auto) position. Some functions are restricted when lenses are not set to Aperture s (Auto). Also see “Notes on [Using Aperture Ring]” (p.182). Other lenses and accessories will not be available with factory default settings. Allow shutter release when using aperture ring in custom function settings. (p.101)

Turn the camera off before attaching or removing the lens to prevent unexpected lens movement.

Check that the camera is off.

Remove the body mount cover

1 2

( ) and lens mount cover ( ).

Be sure to put the lens down with the lens mount side facing upward to protect from damage to the area around the lens mount after removal.

Getting Started

Align the red dots on the camera and the lens, and secure by turning the lens clockwise until it clicks.

After attaching, check that the lens is secured. Also check that the red dots of the lens are on top and attachment portion does not move sideways.

Getting Started

Remove the front lens cap by pushing the indicated portions inward.

To detach the lens, hold down the lens unlock button ( ) and turn the lens counterclockwise.

• The body mount cover ( ) is a cover to prevent scratches and block dust when shipped. “Body Mount Cap K” is sold separately and has a lock function.

• We assume no responsibility nor liability for accidents, damages and malfunctions resulting from the use of lenses made by other manufacturers.

• The camera body and lens mount incorporate lens information contacts and an AF coupler. Dirt, dust, or corrosion may damage the electrical system. Clean the contacts with a soft dry cloth.

Adjusting the Viewfinder Diopter

Adjust the viewfinder to suit your eyesight. If it is difficult to see the viewfinder image clearly, slide the diopter adjustment lever sideways. You can slide the diopter from –2.5m

Look through the viewfinder and point the camera at a welllit scene. Slide the diopter adjustment lever left or right.

Adjust the lever until the AF frame in the viewfinder is focused.

-1

to +1.5m-1.

Getting Started

AF Frame

• Eyecup is attached to the viewfinder portion when camera leaves the factory. Diopter adjustment is available with the eyecup attached. However, adjustment is easier with the eyecup removed as shown above. To remove the eyecup, pull upward and remove as shown on the right.

• If it is difficult to see the viewfinder image clearly even if you set the diopter adjustment lever, use the diopter correction lens adapter M. However, the eyecup must be removed. (p.186)

Memo

3 Basic Operations

This chapter explains basic operations for shooting by setting mode dial to Picture mode (Auto Picture or Normal mode - Flash OFF mode) to ensure successful capturing.

For information about advanced functions and settings for taking pictures, refer to chapter 4 and onward.

Basic Shooting Operation ...................................42

Selecting the Appropriate Capturing Mode for

Scenes ...................................................................47

Using the Zoom Lens ...........................................48

Using the Built-in Flash .......................................49

Other Shooting Modes .........................................53

Playing Back Still Pictures ..................................63

Connecting the Camera to AV Equipment .........70

Processing Images with Filters ...........................71

Deleting Images ....................................................73

Setting the Printing Service (DPOF) ...................79

Printing Using PictBridge ....................................83

Basic Shooting Operation

Holding the Camera

How you hold the camera is important when taking pictures.

• Hold the camera firmly with both hands.

• Press the shutter release button gently when taking a picture.

Basic Operations

Horizontal position Vertical position

• To reduce camera shake, support your body or the camera on a solid object such as a table, tree, or wall.

• Although there are individual differences among photographers, the shutter speed for a handheld camera is generally 1/(focal length ×1.5). For example, it is 1/75 of a second for a focal length of 50 mm and 1/150 of a second for 100 mm. A tripod should be used for shutter speeds slower than this.

• When using a telephoto lens, a tripod that is heavier than the total weight of the camera and lens is recommended to avoid camera shake.

Letting the Camera Choose the Optimal Settings

How to set the camera so it will choose the optimum settings based on the subject lighting, distance and motion.

Set the mode dial to I.

The camera will select the optimal capturing mode for the subject.

1Selecting the Appropriate Capturing Mode for Scenes (p.47)

Basic Operations

Set the focus mode lever to =.

Autofocus mode is set. (p.118)

Basic Operations

Turn the zoom ring to determine the size of the subject.

Determine the size of the subject. 1Using the Zoom Lens (p.48)

Position the subject inside the autofocus frame and press the shutter release button halfway.

The autofocus system operates. The focus indicator ] appears in the viewfinder when the subject is in focus.

The flash pops up automatically when necessary (manually lift the flash when Flash mode is not set to [Auto]).

1Operating the shutter release button (p.45)

1Hard-to-Autofocus Subjects (p.46) 1Using the Built-in Flash (p.49)

Press the shutter release button fully.

The picture is taken.

Focus indicator

DeleteDel et eDelete

Review captured images on the LCD monitor.

Image displays for 1 second on the LCD monitor after capturing (Instant Review.)

You can delete the image during Instant Review by pressing the i button.

1Setting the Display Time (p.171) 1Deleting Images (p.73) 1Displaying Bright Portion Warning

(p.161)

Operating the shutter release button

The shutter release button has two positions.

Basic Operations

Not pressed Pressed halfway

(first position)

Pressed fully

(second position)

Pressing it down halfway (first position) turns on the viewfinder and LCD panel indicators and the autofocus system operates. Pressing it fully (second position) takes the picture.

• Press the shutter release button gently when taking a picture to prevent camera shake.

• Practice pressing the shutter release button halfway to learn where the first position is.

• The viewfinder indicators stay on while shutter release button is pressed. The indications stay on for about 10 seconds (default setting) after the button is released. (p.20)

Hard-to-Autofocus Subjects

The autofocus mechanism is not perfect. Focusing may be difficult when taking pictures under the following conditions ((a) to (f) below). These also apply to manual focusing using the focus indicator ] in the viewfinder. If the subject cannot be focused automatically, set the focus mode lever to \ and use the manual focus mode to focus on the subject with the aid of the matte field in the viewfinder. (p.127)

(a) Extremely low-contrast subjects such as a white wall in the focus

Basic Operations

points range.

(b) Subjects which do not reflect much light within the focus points

range. (c) Fast moving objects. (d) Strongly reflected light or strong backlighting (bright background). (e) If vertical or horizontal line patterns appear within the focus points

range. (f) Multiple subjects in the foreground and background within the

focus points range.

Subject may not be focused even when ] (focus indicator) is displayed when (f) above applies.

Selecting the Appropriate Capturing Mode for Scenes

The camera selects and set the optimum mode when I (Auto Picture) on the mode dial is set to the dial indicator.

Dial indicator

Select U (Normal), = (Portrait), s (Landscape), q (Macro), \ (Moving Object), . (Night Scene Portrait), a (Flash OFF) with the mode dial if desired image is not captured in Auto Picture mode. The modes are as follows.

I (Auto Picture)

U (Normal)

= (Portrait)

s (Landscape)

q (Macro)

\ (Moving Object)

. (Night Scene Portrait) Lets you capture people against a night view or dusk.

a (Flash OFF)

Selects automatically from Normal, Portrait, Landscape, Macro, and Moving Object modes.

The basic picture-taking mode.

Optimal for capturing portraits.

Deepens the focus range, emphasizes contour and saturation of trees and the sky, and produces a bright image.

Lets you take vibrant pictures of flowers and other small subjects at short distances.

Lets you take sharp pictures of a quickly moving subject, such as at a sporting event.

The built-in flash is deactivated. Other settings are the same as U (Normal).

Basic Operations

For . (Night Scene Portrait), the shutter speed becomes slower in dark places, even if the built-in flash is used. Use a tripod to avoid camera shake.

Using the Zoom Lens

Enlarge the subject (telephoto) or capture a wider area (wide angle) with a zoom lens. Adjust it to the desired size and take the picture.

Turn the zoom ring to the right or left.

Turn the zoom ring clockwise for

Basic Operations

telephoto and counterclockwise for wide angle.

• The smaller the number of the displayed focal length, the wider the angle. The larger the number, the more magnified the image appears.

• Power Zoom functions (Image Size Tracking, Zoom Clip, and Auto Zoom Effect) are not compatible with this camera.

Wide Angle Telephoto

Using the Built-in Flash

Use the following procedures to take a picture in low light or backlit conditions or when you want to manually use the built-in flash. The built-in flash is optimum at about 0.7 m to 4 m from the subject. Exposure will not be properly controlled and vignetting may occur when used at a distance closer than 0.7 m (this distance varies slightly depending on the lens being used and set sensitivity (p.150)).

Compatibility of built-in flash and lens

Vignetting (darkening of the corners of the image due to a lack of light) may occur depending on the lens being used and the capture conditions. We recommend taking a test shot to confirm this. 1DA, D FA , FA J, FA and F Lens Compatibility with the Built-in Flash (p.152)

• When using the built-in flash, remove the lens hood before shooting.

• The built-in flash fully discharges for lenses without a function to set

aperture lens ring to s (Auto).

Camera automatically determines surrounding light and built-in flash pops up and discharges

Auto discharge

Manual discharge

Auto flash+Redeye

reduct

Manl flash+Redeye

reduct

automatically when necessary (flash does not discharge even if it is popped up when not necessary).

Discharges flash manually. Flash discharges when popped up, does not discharge when retracted.

Lights a red-eye reduction light before automatic flash.

Discharges flash manually. Lights a red-eye reduction light before manual flash.

Basic Operations

Manual discharge mode (Flash ON) is used regardless of flash mode settings if the K button is pressed to pop up the flash manually.

Exit

AUTO

Auto dis ch ar ge

Flash Mo de

Selecting Flash Mode

Press the { button.

The Fn menu appears.

Basic Operations

Press the four-way controller (3).

The flash options screen appears.

When the mode dial is set to e, b, c, a or p, B and C appear gray and cannot be selected.

Use the four-way controller (45) to choose a flash mode.

Auto discharge

Flash Mode

AUTO

Exit

OKOKOK

Press the 4 button twice.

The camera is ready to take a picture.

Using Auto Discharge B, C (Automatic Flash Popup)

Set the mode dial to I, U, =, q, or ..

Press the shutter release button halfway.

The built-in flash pops up if necessary and begins charging. When the flash is fully charged, b appears in the LCD panel and viewfinder. (p.17, p.20, p.22)

Switch between Auto discharge mode and Manual discharge mode (Flash ON) by pressing the K button while the built-in flash is popped up. If Auto discharge is set, E appears on the LCD panel.

Press the shutter release button fully.

The picture is taken.

Push down on the portion indicated in the illustration to retract the flash.

Basic Operations

Using Manual Discharge (Flash ON) b,

Press the K button.

The built-in flash pops up and begins charging. Manual discharge mode (Flash ON) is used regardless of flash mode settings. When the flash is fully charged, b appears in the LCD panel and viewfinder. (p.17, p.20, p.22)

Switch between Auto discharge mode and Manual discharge mode by pressing the K button while the built-in flash is popped up when shooting mode is set to I, U, =, s, q, \, or ..

Press the shutter release button fully.

The flash discharges and the picture is taken.

Push the flash down to retract.

Using Red-eye Reduction Flash

“Red-eye” is the phenomenon where eyes look reddish in photographs taken in dark environments with a flash. This is caused by the reflection of the electronic flash in the retina of the eye. Red-eye occurs because pupils are dilated in dark environments. This phenomenon cannot be averted but the following measures can be used to combat it.

• Brighten the surroundings when shooting.

• Set to wide angle and shoot from closer if a zoom lens is in use.

• Use a flash that supports red-eye reduction.

• Position the flash as far away from the camera as possible when using

an external flash.

Basic Operations

The red-eye reduction function on this camera reduces red-eye by discharging the flash twice. With the red-eye reduction function, the pre-flash is discharged just before the shutter is released. This reduces pupil dilation. The main flash is then discharged while the pupils are smaller, reducing the red-eye effect. To use the red-eye reduction function, set C (Red-eye reduction auto flash) in Picture mode or D (Red-eye reduction manual flash) in other modes for Flash mode.

Daylight-Sync Shooting

In daylight conditions, the flash will eliminate shadows when a portrait picture is taken with a person’s face cast in shadow. Use of the flash in this way is called Daylight-Sync Shooting. Flash is discharged manually when shooting with Daylight-Sync Shooting.

Taking pictures (Auto Picture)

1 Confirm that the flash has popped up and the flash mode is set to b

(Manual discharge). (p.51) 2 Confirm that the flash is fully charged. 3 Take the picture.

The picture may be over-exposed if the background is too bright.

Without Daylight-Sync With Daylight-Sync

Other Shooting Modes

Exit

AUTO

Continuous Shooting

Pictures can be taken continuously while the shutter release button is held down.

Press the { button.

The Fn menu appears.

Basic Operations

AUTO

Exit

Drive Mo de

Single f ra me shooting

Drive Mo de

Continuo us s hooting

Basic Operations

Press the four-way controller (2).

The Drive Mode options screen appears.

Use the four-way controller (45) to select j.

Drive Mode

Single frame shooting

Drive Mode

Continuous shooting

Press the 4 button twice.

The camera is ready to take pictures.

Press the shutter release button halfway.

The autofocus system operates. The focus indicator ] appears in the viewfinder when the subject is in focus.

Set [2 No. cnt shtng rcd im ] in [Recordable Image No.] of the [A Custom Setting] menu. The number of continuously recordable images (buffer space) appears when shutter is pressed halfway. (p.100)

Press the shutter release button fully.

Pictures are taken continuously while the shutter release button is fully pressed. Take your finger off the shutter release button to stop.

Continuous shooting settings are retained when the power is turned off. Display the Fn menu again and set to 9 (Single frame shooting) to stop Continuous shooting.

• The focus is adjusted each time the shutter is released if the focus mode is

set to l (Single mode). (p.121)

• Focusing is continuously active when the mode dial is set to e, b, c or a and focus mode is set to k (Continuous mode), or when Picture mode is set to \ (Moving Object). Note that the shutter will release even if the focusing is not complete.

• The shutter cannot be released until charging is complete when using the built-in flash. Use a custom function to enable shutter release before the builtin flash is ready. (p.148)

Basic Operations

Self-Timer Shooting

This camera has two types of self-timers: g and Z.

Shutter will be released after about 12 seconds. Use this mode to

include the photographer in the picture.

A mirror pops up immediately after shutter release button is pressed. Shutter is released after about 2 seconds. Use this mode to avoid

camera shake when the shutter release button is pressed.

Mount the camera to a tripod.

Exit

AUTO

Basic Operations

Press the { button.

The Fn menu appears.

Press the four-way controller (2).

AUTO

Exit

The Drive Mode options screen

Drive Mo de

Single f ra me shooting

Drive Mo de

Self-Timer (12 s ec s)

appears.

Use the four-way controller (45) to select g or Z.

Press the 4 button twice.

The camera is ready to take pictures.

Drive Mode

Single frame shooting

Drive Mode

Self-Timer (12 secs)

Basic Operations

Confirm in the viewfinder that the subject you wish to shoot is in the display and press the shutter release button halfway.

The focus indicator ] appears when the subject is in focus.

Basic Operations

Press the shutter release button fully.

For g, the self-timer lamp starts blinking slowly and blinks rapidly 2 seconds before the shutter is released. The beep is heard and the rate increases. The shutter will be released about 12 seconds after the shutter release button is pressed fully.

For Z, the shutter will be released about 2 seconds after the shutter release button is pressed fully.

• The beep can be turned off. (p.164)

• Exposure may be affected if light enters the viewfinder. Attach the provided ME viewfinder cap or use the AE lock function (p.143). (Ignore the light entering the viewfinder when the exposure mode is set to a (Manual) (p.139).)

• Remove the Eyecup F such as the ME viewfinder cap.

L by pulling one side upward when using accessories

Removing the Eyecup FL Attaching the ME Viewfinder cap

Turn the camera off after shooting.

The next time the power is turned on, self-timer shooting is canceled and returns to single frame shooting.

Remote Control Shooting

Exit

AUTO

(Remote Control F: Sold Separately)

The shutter can be released with the optional remote control unit. You can select from h (remote control) and i (three-second delay) for remote control shooting.

The shutter will be released immediately after the shutter release button

on the remote control unit is pressed.

The shutter will be released 3 seconds after the shutter release button on

the remote control unit is pressed.

Mount the camera to a tripod.

Basic Operations

Press the { button.

The Fn menu appears.

AUTO

Exit

Drive Mo de

Remote C on tr ol Unit

Basic Operations

Press the four-way controller (2).

The Drive Mode options screen appears.

Use the four-way controller (45) to select h or i.

The self-timer lamp will blink to let you know that the camera is in remote control wait status.

Press the 4 button twice.

The camera is ready to take pictures.

Drive Mode

Remote Control Unit

Press the shutter release button halfway.

The autofocus system operates. The focus indicator ] appears in the viewfinder when the subject is in focus.

• You cannot focus with the remote control unit in default settings. Focus on the subject first before operating with the remote control. You can set [AF in remote control] to [On] in the custom function. (p.100)

• When using the Remote Control Unit, flash does not pop up automatically even when set to B (Auto discharge). Pop up the flash manually beforehand. (p.51)

Point the remote control unit towards the front of the camera and press the shutter release

button on the remote control.

The operating distance of the remote control unit is about 5 m from the front of the camera. The shutter will be released immediately or approximately 3 seconds after the shutter release button on the remote control unit is pressed depending on the drive mode selected. When the picture is taken, the self-timer lamp lights for 2 seconds and will then resume blinking.

• Exposure may be affected if light enters the viewfinder. Attach the provided ME viewfinder cap or use the AE lock function (p.143) (ignore the light entering the viewfinder when the exposure mode is set to a (manual) (p.139)).

• Remove the Eyecup F accessories such as the ME viewfinder cap.

N by pulling one side out and toward you when using

Basic Operations

Removing the Eyecup FL Attaching the ME Viewfinder cap

• Turn the power off to stop the remote control operation after it has been activated.

• The remote control may not operate in backlit conditions.

• The remote control does not work while the flash is being charged.

• When using the built-in flash, raise the flash into position first.

• The camera automatically returns to single frame shooting after the remote control shooting mode is left unused for 5 minutes.

• The remote control unit battery can send a remote control signal about 30,000 times. Contact PENTAX service center to replace the battery (this will involve a fee).

Using Mirror Lock Up Function to Prevent Camera Shake

Use the Mirror Lock Up function if camera shake is evident even when Cable Switch (optional) or Remote Control Unit (optional) is used. When shutter release button is pressed, mirror pops up and shutter is released 2 seconds later if 2 sec. Self-Timer is used. Avoid camera shake when mirror pops up by using this method. Follow the procedure below to take a picture with the mirror lock up.

Basic Operations

Mount the camera to a tripod.

Use the { button and the four-way controller (2) to select Z (2 sec. Self-Timer). (p.55)

Focus on the subject.

Press the shutter release button fully.

The mirror pops up and the picture is taken 2 seconds later. AE lock is enabled with the exposure value set immediately before the mirror goes up.

Playing Back Still Pictures

100- 0 0 4 6

Playing Back Images

You can play back captured still pictures with the camera.

Use the included “PENTAX PHOTO Browser 2.1” software to play back using a PC. Refer to the “PENTAX PHOTO Browser 2.1/PENTAX PHOTO Laboratory 2.1 Operating Manual” for details.

Press the Q button after taking a picture.

The most recently captured image (image with the largest file number) is displayed on the LCD monitor.

Basic Operations

100-0046

10 0-0 00 1

Press the four-way controller (45).

4 : The previous image appears. 5 : The next image appears.

Rotating Images

Basic Operations

You can rotate images 90° counterclockwise at a time. Make images shot vertically easier to view.

100-0001

100-0001100-0001

100-0001

100-0001100-0001

Press the Q button after taking a picture.

The most recently captured image (image with the largest file number) is displayed on the LCD monitor.

Press the four-way controller (3).

The image is rotated 90° counterclockwise each time the button is pressed.

OKOKOK

100- 0 0 4 6

Press the 4 button.

Image rotation information is saved.

Enlarging Playback Images

You can magnify images up to 12 times when displaying.

Press the Q button and use the four-way controller (45) to select an image.

The most recently captured image (image with the largest file number) is displayed first on the LCD monitor.

100-0046

Basic Operations

Turn the e-dial to the right (toward y).

Image enlarges at each calibration and can be enlarged to 12 times the original. Turn to the left (toward f) to return.

Press the 4 button to return to the original size.

Press four-way controller (2345) in

Basic Operations

zoom display to change the display area.

The first calibration on the e-dial is 1.2 times. You can change this in [Mag to Strt Zm Plybk] in [A Custom Setting] menu. (p.101)

Nine-Image Display

You can display nine images on the LCD monitor at the same time.

2 0.×20.×

100- 0 0 4 6

Press the Q button.

The most recently captured image (image with the largest file number) is displayed on the LCD monitor.

Turn the e-dial to the left (toward f).

Up to nine thumbnail images will be displayed at once. Use the four-way controller (2345) to select an image. A scroll bar appears at the right of the screen. With an image selected in the bottom row, pressing the fourway controller (3) displays the next nine images.

[?] appears for an image that cannot be displayed.

Frame

Select&Delete

100-0046

Scroll bar

Basic Operations

Turn the e-dial to the right (towards y) or press the 4 button.

A full screen display of the selected image appears.

100-0046

100- 0 0 4 6

Exit

Slideshow

You can play back all images recorded on your SD Memory Card successively. To start continuous playback, use the menu screen displayed on the LCD monitor.

Basic Operations

Press the Q button and use the four-way controller (45) to select an image to be displayed first.

100-0046

The most recently captured image (image with the largest file number) is displayed first on the LCD monitor.

Press the { button.

The Fn menu appears.

Exit

Start

Press the four-way controller (5).

Start screen is displayed and slideshow begins.

Press any button to end slideshow.

Press the shutter release button or the Q button, slide the main switch to | (preview) or turn the mode dial to change to Capture mode.

Set the display time for slideshow in the [Q Playback] menu. Alternatively, start the slideshow from the [Q Playback] menu. (p.162)

Start

Basic Operations

Connecting the Camera to AV Equipment

By using the video cable, you can play back images using a TV or other device with a video IN jack as your monitor. Make sure that both the TV and the camera are turned off before connecting the cable. 1Selecting the Video Output Format (p.169)

Basic Operations

Open the terminal cover and connect the video cable to the USB/Video terminal.

Connect the other end of the video cable to the video IN jack on the AV device.

Turn the AV device and camera on.

• If you intend to use the camera continuously for a long period, use of the AC adapter (optional) is recommended. (p.28)

• For AV equipment with multiple video IN jacks (such as TVs), check the operating manual of the AV device, and select the video IN jack to which the camera is connected.

• Depending on the country or region, images may fail to be played back if the video output format is set different from the one in use there. If this happens, change the video output format setting. (p.169)

• The camera LCD monitor turns off while the camera is connected to the AV device.

Processing Images with Filters

Exit

You can edit shot images using digital filters. Processed images are saved under a different name.

• RAW images cannot be processed using the digital filter.

• Additionally, set digital filters from the [Q Playback] menu.

Basic Operations

Digital Filter

B&W Convert to a black and white image.

Sepia Add a vintage touch to photos by converting them to sepia color.

Soft

Slim

Press the { button in

Create a soft image by lightly fading the entire image. Select from three levels.

Change the horizontal and vertical ratio of images. Adjust height or width up to two times the original size.

Playback mode.

The Fn menu appears.

Exit

B&W

Slim

Cancel

Save ima ge a s a new f il e

Basic Operations

Press the four-way controller (4).

The screen for selecting the filter appears.

Use the four-way controller

B&W

(45) to select an image.

Use the four-way controller (23) to select a filter.

Select a filter and preview the effects on the image. Proceed to Step 6 if [B&W] or [Sepia] is selected.

Adjust slimness with e-dial if slim filter is selected and

Slim

softness if soft filter is selected.

Turn counterclockwise for wider and clockwise for slimmer if slim filter is selected. Select softness from three levels if soft filter is selected. Use the four-way controller (45) to select an image. The image appears in the set slimness or softness.

OKOKOK

Press the 4 button.

The save confirmation screen appears.

Use the four-way controller (2) to select [Save as].

Press the 4 button.

The filtered image is saved under a different name.

Save image as a new file

Save as

Cancel

OKOKOK

Deleting Images

100- 0 0 4 6

Cancel

All imag es

Deleting a Single Image

You can delete one image at a time.

• Deleted images cannot be restored.

• Protected images cannot be deleted.

Press the Q button and use the four-way controller (45) to select an image to delete.

Press the i button.

The Delete screen appears.

100-0046

Basic Operations

Use the four-way controller (2) to select [Delete].

Press the 4 button.

The image is deleted.

Delete Cancel

Cancel

All images

100-0046

Delete Al l

Cancel

Delete a ll i mages on memor y ca rd?

Deleting All Images

You can delete all saved images at once.

• Deleted images cannot be restored.

• Protected images cannot be deleted.

Press the Q button.

Basic Operations

Press the i button twice.

The Delete All screen appears.

Use the four-way controller (2) to select [Delete All].

Delete all images

on memory card?

Press the 4 button.

All images are deleted.

Delete All

Cancel

OKOKOK

Deleting Selected Images

100- 0 0 4 6

(from Nine-Image Display)

You can delete multiple images from the nine-image display at once.

• Deleted images cannot be restored.

• Protected images cannot be deleted.

• Only files in the same folder can be selected at once.

Press the Q button.

The most recently captured image (image with the largest file number) is displayed first on the LCD monitor.

Turn the e-dial to the left (toward f).

Nine thumbnail images appear.

100-0046

Basic Operations

Select&Delete

100-0046

Cancel

All sele ct ed

images a re d eleted

Basic Operations

Press the i button.

9 appears above the images.

Use the four-way controller (2345) to move to the images to delete and press the 4 button.

Image is selected and O appears. Press { button to select all images

(the selection of images may take time to complete depending on the number of images).

Press the i button.

Delete

The Delete confirmation screen appears.

Use the four-way controller (2) to select [Select&Delete].

Press the 4 button.

The selected images are deleted.

All selected

images are deleted

Select&Delete

Cancel

OKOKOK

Protecting Images from Deletion (Protect)

100- 0 0 4 6

Unprotec t

All imag es

You can protect images from being accidentally deleted.

Even protected images are deleted if the SD Memory Card is formatted.

Press the Q button and use the four-way controller (45) to select an image.

The most recently captured images (image with the largest file number) are displayed first on the LCD monitor.

Press the Z button.

The Protect screen appears.

100-0046

Basic Operations

Use the four-way controller (2) to select [Protect].

Protect

Unprotect

All images

Press the 4 button.

The selected image is protected.

• Select [Unprotect] in Step 3 to cancel the Protect setting.

•The Y symbol is displayed when playing back protected images. (p.19)

100-0046

OKOKOK

Unprotec t

Protect al l images

Protecting All Images

Press the Q button.

Press the Z button twice.

The Protect all images screen appears.

Basic Operations

Press the four-way controller (2) to select [Protect] and press the 4 button.

Protect all images

All images saved in the SD Memory Card are protected.

Select [Unprotect] in Step 3 to cancel the Protect setting on all of the images.

Protect

Unprotect

OKOKOK

Setting the Printing Service (DPOF)

Exit

100- 0 0 4 6

All imag es

You can order conventional photograph prints by taking the SD Memory Card with recorded images to a store for a printing service. DPOF (Digital Print Order Format) settings allow you to specify the number of copies or to imprint the date.

DPOF settings cannot be applied to RAW images.

Printing Single Images

Set the following items for each image.

Copies Selects the number of copies. You can print up to 99 copies.

Date Specifies whether you want the date inserted on the print or not.

Press the Q button and use the four-way controller (45) to select an image.

Basic Operations

Press the { button.

The Fn menu appears.

Press the four-way controller (2).

The DPOF screen appears.

If DPOF settings have already been made for an image, the previous number of prints and date setting (O (on) or P (off)) will be displayed.

Copies

All images

Date

Exit

100-0046

OKAll images

100- 0 0 4 6

All imag es

Use the four-way controller (45) to choose the number of copies and press the four-way controller (3).

The frame moves to [Date].

Use the four-way controller (45) to choose whether to insert the date (O) or not (P).

100-0046

Basic Operations

O : The date will be imprinted. P : The date will not be imprinted.

Press the 4 button.

The DPOF settings are saved and the camera returns to playback status.

Depending on the printer or printing equipment at the photo processing lab, the date may not be imprinted on the pictures even if the DPOF setting was made.

To cancel DPOF settings, set the number of copies to [00] in Step 4 and press the 4 button.

Copies

All images

Date

OKOKOK

Settings for All Images

Exit

100- 0 0 4 6

All imag es

DPOF set ti ng for all

images

Press the { button in Playback mode.

The Fn menu appears.

Press the four-way controller (2).

The DPOF screen appears.

Exit

100-0046

Basic Operations

Press the { button.

The screen for making DPOF settings for all images appears.

Use the four-way controller (45) to choose the number of copies and whether to insert the date (O) or not (P).

Refer to Steps 4 and 5 in “Printing Single Images” (p.80) for details of how to make the settings.

Copies

Date

All images

DPOF setting for all

images

Copies

Date

OKAll images

OKOKOK

Basic Operations

Press the 4 button.

The DPOF settings for all the images are saved and the camera returns to playback status.

The number of copies specified in settings for all images applies to all the images. Before printing, check that the number is correct.

Settings for single images are canceled when settings are made for all images.

Printing Using PictBridge

This function lets you print images directly from the camera without using a PC (direct printing). Connect the camera and PictBridge compatible printer with the included USB cable (I-USB17) to print directly. Select the images you want to print, the number of copies and whether to insert the date or not on the camera after connecting to the printer. Direct printing is performed in the following steps.

Set [Transfer Mode] on camera to [PictBridge] (p.84)

Connect the camera to the printer (p.85)

Set the printing options (p.79)

Print single images (p.86) Print all images (p.88) Print with DPOF settings (p.90)

Disconnect the camera from the printer (p.90)

• Use of the AC adapter is recommended when connecting the camera to a printer. The printer may not work properly or the image data may be lost if the batteries run out of power while the camera is connected to the printer.

• Do not disconnect the USB cable during data transfer.

• Depending on the type of printer, not all the settings made on the camera (such as print settings and DPOF settings) may be valid.

• A printing error may occur if the selected number of copies exceeds 500.

• You cannot use the camera to select multiple images for printing on a single sheet. Make the settings on the printer. For details, refer to the operating manual for your printer.

• RAW images cannot be printed directly. Use a PC to print RAW images.

• See the “PENTAX PHOTO Browser 2.1/PENTAX PHOTO Laboratory 2.1 Operating Manual” when connecting to a PC.

Basic Operations

Setting [Transfer Mode]

Press the 3 button.

The [A Rec. Mode] menu appears.

Use the four-way controller (45) to select the [H Set-up] menu.

Set-up

Format Beep Date Adjust World Time

English

Guide display

Exit

Use the four-way controller (23) to select [Transfer Mode].

Press the four-way controller (5).

A pop-up menu appears.

Use the four-way controller (23) to select [PictBridge].

Press the 4 button.

The setting is changed.

Press the 3 button.

Brightness Level Video Out Transfer Mode Auto Power Off File # Sensor Cleaning

Connecting the Camera to the Printer

Turn the camera off.

Set-up

0 NTSC PC PictBridge PC-F

OKCancel

Basic Operations

Connect the camera and PictBridge compatible printer using the USB cable supplied with the camera.

The PictBridge logo is displayed on PictBridge compatible printers.

Select p ri nt ing mode

Date

Copies

100- 0 0 4 6

Date

Print th is i mage

Basic Operations

Turn the printer on.

After printer start-up is complete, turn the camera on.

Select printing mode

The PictBridge menu appears.

DPOF AUTOPRINT

PictBridge menu is not displayed if [Transfer Mode] is set to [PC] or [PC-F].

Printing Single Images

Use the four-way controller (23) to select [Print One] on the PictBridge menu.

Select printing mode

Print One

Print All

OKOKOK

Press the 4 button.

The Print one screen appears.

Use the four-way controller (45) to choose an image to print.

Print One

Print All

DPOF AUTOPRINT

Print this image

Copies

OKOKOK

100-0046

Date

Quality

Paper Type

Paper Si ze

Standard

Std. Std. Std.

Border S ta tu s

Change Setting

Print ac co rd ing

to setti ng s?

Use the four-way controller (23) to choose the number of copies.

You can print up to 99 copies.

Use the { button to choose whether to insert the date (O) or not (P).

O : The date will be printed. P : The date will not be printed.

Press the 4 button.

Print according

The print settings confirmation screen appears.

Proceed to Step 12 to print the images by default.

To change the print settings, go to Step

Press the { button.

The screen for changing print settings appears.

Print according

to settings?

Paper Size

Paper Size Standard Paper Type

Paper Type Quality

Quality Border Status

Border Status

Change Setting

PictBridge

Paper Size Paper Type Quality Border Status

Standard

Std.

Std. Std.

Std.

Standard

Std. Std. Std.

Basic Operations

OKCancel

Select [Paper Size] and press the four-way controller (5).

The Paper Size screen appears.

Use the four-way controller (2345) to choose the paper size.

You can only choose a size that is supported by your printer.

When the Paper Size is set to [Standard], images are printed according to the printer settings.

Paper Size

Standard Card L 100×150 Postcard 4”×6”

2L 8”×10” A4 Letter 11”×17” A3

OKCancel

Select p ri nt ing mode

Basic Operations

Press the 4 button.

Repeat Steps 8 to 10 to set [Paper Type], [Quality] and [Border Status].

The print settings change screen appears after each item has been set.

When the Paper Size is set to [Standard], images are printed according to the printer settings.

[Paper Type] with more E supports higher quality paper. [Quality] with more E indicates higher print quality.

Press the 4 button twice.

The image is printed according to the settings. Press the 3 button to cancel printing.

Printing All Images

Use the four-way controller (23) to select [Print All] on the PictBridge menu.

Select printing mode

Press the 4 button.

The Print all images screen appears.

Print One

Print All

DPOF AUTOPRINT

OKOKOK

Date

Copies

Tota l

100- 0 0 4 6

Date

Print al l im ages

Choose the number of copies and whether to imprint the date or not.

100-0046

Print all images

The number of copies and the date setting that you choose apply to all of

Copies

Tot a l

the images.

Refer to Steps 4 and 5 of “Printing Single Images” (p.87) for details on how to make the settings.

Press the 4 button.

The print settings confirmation screen appears.

Refer to Steps 7 and 11 of “Printing Single Images” (p.87 and 88) for details on how to change the settings.

Press the 4 button on the print settings confirmation screen.

All the images are printed according to the settings. Press the 3 button to cancel printing.

Date

Basic Operations

Date

Copies

Tota l

Print w/ DP OF settings

Printing Images Using the DPOF Settings

Use the four-way controller (23) to select [DPOF AUTOPRINT] on the PictBridge menu.

Press the 4 button.

Basic Operations

The Print w/DPOF settings screen appears. Use the four-way controller (45) to check the number of copies for each image, whether the date is imprinted or not, and total number of copies. Print settings are set with the Print Service. (p.79)

Press the 4 button.

The print settings confirmation screen appears.

Refer to Steps 7 and 11 of “Printing Single Images” (p.87 and 88) for details on how to change the settings.

Press the 4 button on the print settings confirmation

Print w/DPOF settings

Copies

Tot a l

screen.

The images are printed according to the settings. Press the 3 button to cancel printing.

Disconnecting the Cable from the Printer

Disconnect the cable from the printer when you have finished printing.

Date

Turn off the camera.

Disconnect the USB cable from the camera and printer.

4 Menu Reference

Explains the functions of U by buttons and menus.

Using the Button Functions ................................92

Using the Menu .....................................................96

Using the Fn Menu .............................................102

Using the Mode Dial ...........................................104

When using menus and Fn menu, items which cannot be changed due to camera settings appear gray and cannot be selected.

Using the Button Functions

Capture Mode

Functions of buttons used during shooting are noted.

Menu Reference

Shutter release button

Press to capture images. (p.45)

Main switch

Move to turn the power on/off (p.32) and confirm the depth of field (Preview) (p.130).

Lens unlock button

Press to detach lens. (p.38)

Focus mode lever

Switches between Autofocus mode (p.118) and Manual focus mode (p.126).

Mode dial

Changes the Shooting mode. (p.104)

K button

Press to pop up the built-in flash. (p.49)

3 button

Displays the [A Rec. Mode] menu (p.98). Next, press the four-way controller (5) to display [Q Playback] menu (p.98), [H Set-up] menu (p.99) and [A Custom Setting] menu. (p.100)

M button

Press to show shooting information on the LCD monitor. (p.17)

Q button

Switches to the Playback mode. (p.63)

mc button

Press to set aperture and EV compensation values. (p.137, p.142)

L button

Locks the exposure before shooting. (p.143) Automatically adjusts the appropriate exposure in a (Manual) mode. (p.141)

Menu Reference

e-dial

Sets shutter speed, aperture, and EV compensation values. (p.135, p.137, p.142)

4 button

Saves the setting you selected in the menu.

Four-way controller (2345)

Uses it to move cursor or change items in menus and Fn menu.

{ button

Press to display the Fn menu. Press the four-way controller (2345) to determine the following operation. (p.102)

Playback Mode

Functions of buttons used during playback are noted.

Menu Reference

Shutter release button

Press to switch to capture mode.

Main switch

Move to turn the camera on and off. (p.32)

3 button

Press to display the [Q Playback] menu (p.98). Next, press the fourway controller (45) to display [H Set-up] menu (p.99), [A Custom Setting] menu (p.100) and [A Rec. Mode] menu (p.98).

i button

Press to delete images. (p.73)

M button

Press to show shooting information on the LCD monitor. (p.18)

Q button

Press to switch to capture mode.

Z button

Press to protect images from being accidentally erased. (p.77)

e-dial

Uses it to enlarge an image (p.65) or display nine images at the same time (p.66).

4 button

Saves the setting you selected in the menu or playback screen.

Four-way controller (2345)

Uses it to move cursor or change items in menus, Fn menu and playback screen.

{ button

Press to display the Fn menu. Press the four-way controller (245) to determine the following operation. (p.102)

Menu Reference

Using the Menu

How to Operate the Menu

This section explains operation methods for [A Rec. Mode] menu, [Q Playback] menu, [H Set-up] menu and [A Custom Setting] menu.

Displaying the Menu screen

Press the 3 button in

Menu Reference

Capture mode.

The [A Rec. Mode] menu appears on the LCD monitor.

Rec. Mode

Image Tone Recorded Pixels Quality Level Saturation Sharpness Contrast

Exit

Press the four-way controller (5).

[Q Playback] menu, [H Set-up] menu and [A Custom Setting] menu appear in order each time the four-way controller is pressed.

Set-up

Format Beep Date Adjust World Time

English

Guide display

Exit

Select a menu item and set

Procedure to set the [Quality Level] on the [A Rec. Mode] menu is explained as an example.

Use the four-way controller (23) to choose an item.

Press the four-way controller (5).

Available [Quality Level] options appear.

Press the four-way controller (5) to move to the pop-up menu if there is one.

Rec. Mode

Image Tone Recorded Pixels Quality Level Saturation Sharpness Contrast

Exit

Rec. Mode

Image Tone Recorded Pixels Quality Level Saturation Sharpness Contrast

Cancel

Menu Reference

Use the four-way controller (23) to select a setting.

Press the 4 button.

The camera returns to the menu screen. Next, set other items. Press the 3 button to return to Capture or Playback mode.

Even after you press the 3 button and close the menu screen, your settings will not be saved if the camera is turned off improperly (such as by removing the batteries while the camera is on).

• You can use the e-dial to switch among the [A Rec. Mode] menu, the [Q

Playback] menu, [H Set-up] menu, and [A Custom Setting] menu when no pop-up menu is displayed.

• If the 3 button is pressed in Capture mode, the [A Rec. Mode] menu appears. If the 3 button is pressed in Playback mode, the [Q Playback] menu appears.

[A Rec. Mode] Menu Setting Items

Perform settings related to capturing in the [A Rec. Mode] menu.

Item Function Page

Image Tone Sets the color tone of pictures. p.108

Recorded Pixels Sets the recording size of images. p.109

Quality Level Sets the image quality. p.110

Saturation Sets the color saturation. p.111

Sharpness Makes the image outlines sharp or soft. p.111

Contrast Sets the image contrast. p.111

Instant Review Sets the Instant Review time. p.171

Auto Bracket Sets Auto Bracket shooting. p.146

Menu Reference

AE Metering

Swtch dst msr pt Selects the part of the screen to set focus to. p.122

AF Mode Selects the autofocus mode. p.121

Flash Exp. Comp.

Selects the part of the screen to use for measuring brightness and determining exposure.

Adjusts the flash exposure to brighten or darken the image.

p.131

p.147

[Q Playback] Menu Setting Items

Perform settings related to playback and editing images in the [Q Playback] menu.

Item Function Page

Plybk dsply mthd

Bright Portion

Digital Filter

Slideshow Plays back recorded images one after another. p.68

Sets capturing information to show during playback.

Sets to display over exposed area warning during Instant Review or Playback.

Edits captured images to black and white or sepia tint, or add softening and slimming effects.

p.161

p.71
