smc PENTAX-D FA
INTERCHANGEABLE LENS
OPERATING MANUAL
FOREWORD
Thank you for purchasing the smc PENTAX-D FA lens.
The smc PENTAX-D FA lens is an interchangeable lens for Pentax SLR cameras. Its
image circle covers the 35mm film format, and it also obtains optimum image clarity
with Pentax digital SLR cameras. When the lens is used with an -series digital SLR camera, the Quick-Shift Focus System enables manual touch-up focusing
after autofocus is achieved. For details, see page 12.
Before using the lens, read this manual carefully for proper use. Also refer to your
camera’s manual for more information.
In this operating manual, “smc PENTAX-D FA lens” is shortened to “D FA lens.”
The items appearing in the illustrations may look different from the actual product.
PENTAX and smc PENTAX are trademarks of PENTAX Corporation.
FOR SAFE USE OF YOUR LENS
1
Although we have carefully designed these lenses for safe operation, please pay special
attention to items marked with the following symbols when using this product.
WARNING This mark indicates precautions that if not followed,
could result in serious injury to the user.
CAUTION This mark indicates precautions that if not followed,
could result in minor or medium injury to the user
or damage to the equipment.
WARNING
• Never look at the sun through the lens or camera. Serious damage to the retina, or
total loss of eyesight may occur.
CAUTION
• Do not leave the lens in direct sunlight without lens caps. Direct sunlight passing
through the lens will be intensified, and should it focus on flammable materials, fire
may occur.
PRECAUTIONS AND LENS MAINTENANCE
2
1. Storage and mildew prevention
• Take the lens out of the protective case or camera bag, and store it in a dry, wellventilated place.
• Avoid storing the lens in a poorly ventilated location such as a closet, wardrobe, drawer,
vehicle, or where insect repellent or medicine is kept.
• Avoid storing the lens in areas of high temperature and humidity, where there is a risk of
mildew growth.
Store the lens with a desiccant in a dry cabinet, airtight container, or plastic bag. (Leaving
a saturated desiccant in the storage container can cause damage to the lens. Be sure to
read the instructions that came with the desiccant before use.)
2. The lens is not waterproof. When using the lens in a rain or mist, be careful not to allow
it to get wet.
3. Never use any organic solvent such as thinner, alcohol, or benzine, etc. to remove dust
on the lens.
4. The lens is a precise optical instrument. Be careful not to let it fall, or subject it to strong
shocks or pressure. Use a cushion or similar pad to protect the lens from the vibrations
of motorcycles or other vehicles, boats, etc.
3
5. Avoid subjecting the lens to rapid changes in temperature, otherwise condensation can
occur on both the inside and the outside of the lens. Put the lens in a plastic bag or
camera bag, and take it out after the lens has reached ambient temperature.
6. When the lens is not attached to the camera body, attach both the supplied lens cap and
lens mount cap to protect it from dust.
7. Do not leave the camera with the lens cap off attached to a tripod or other rigid camera
support. The inner parts of the camera can be damaged by direct sunlight.
8. Have the lens inspected by a dealer every one or two years to maintain its high
performance.
CONTENTS
4
°
FOREWORD
°
FOR SAFE USE OF YOUR LENS ··········································································· 1
°
PRECAUTIONS AND LENS MAINTENANCE ····················································· 2
°
smc PENTAX-D FA LENS ······················································································· 6
• About the Lens Mount ································································································ 7
• Camera / Lens Mount Compatibility ············································································· 8
°
MOUNTING AND REMOVING THE LENS ··························································· 9
°
FOCUSING ··················································································································· 10
• Switching the Focus Mode ······················································································· 10
• Using Autofocus ········································································································ 10
• Using Manual Focus ·································································································· 11
• Using the Quick-Shift Focus System ( -series cameras only) ························ 12
• How to use the Quick-Shift Focus System ································································ 12
°
HOW TO USE THE INFRARED INDEX ······························································· 13
°
APERTURE CONTROL ··························································································· 14
5
°
MACRO LENS ·········································································································· 16
• Magnification Scale···································································································· 17
• About the Clamp Switch ···························································································· 18
°
LENS HOOD ·············································································································· 19
°
FILTERS······················································································································ 20
• Precaution on filters ··································································································· 20
°
PRECAUTIONS WHEN USING THE LENS WITH A FLASH··························· 21
• Built-in Flash ·············································································································· 21
°
MAIN SPECIFICATIONS ························································································ 22
smc PENTAX-D FA LENS
6
Aperture ring
Distance scale
Front-ring threads
Depth-of-field scale
Aperture-A-lock button
Focusing ring
7
AF coupler
Lens information
contacts
About the Lens Mount
The D FA lens mount is called the “KAF - mount.” This lens mount enables autofocus and
autoexposure.
KAF-mount
CAUTION
Be careful not to damage or dirty the lens information contacts and AF coupler
on the mount surface of the lens. Otherwise, failure or malfunction may result.
8
Camera / Lens Mount Compatibility
Pentax camera/lens mount compatibility chart is shown below.
KAF2-mount
which is equipped with
°
Power contacts
°
AF coupler
°
Lens information contacts
KAF-mount
which is equipped with
°
AF coupler
°
Lens information contacts
KA-mount
which is equipped with
°
Lens information contacts
K-mount
(base mount)
1. To mount the lens on the camera body
Align the red dots on the lens and camera body, and then turn the lens clockwise until
it clicks into place.
Push the tabs in the directions shown by the arrows to remove the lens cap. Attach the
lens cap when the lens is not used.
✍ Memo:
• Do not hold down the lens unlock button while mounting the lens, otherwise the lens will
not be properly mounted.
• After mounting the lens, gently turn the lens counterclockwise to make sure it is locked
in place.
2. To remove the lens
Hold down the lens unlock button on the camera body and turn the lens
counterclockwise.
MOUNTING AND REMOVING THE LENS
9
1
2
FOCUSING
10
1.
Switching the Focus Mode
Use the camera’s focus mode switch to change between the autofocus mode and
manual-focus mode. For details, refer to your camera’s manual.
• If you use the lens with a manual-focus camera, focus the lens manually.
2. Using Autofocus
Set to autofocus with the camera’s focus mode, and press the shutter button halfway or
press the AF button of and MZ-S to autofocus.
• Note that during the autofocus operation, the D FA lens’ focusing ring does not rotate.
However, do not turn the focusing ring during the autofocus operation. Doing so will
cause a malfunction.
2
1
1
11
3. Using Manual Focus
Set to MF with the camera’s focus mode, and turn the focusing ring to focus manually.
• If the lens is used with a camera, you must set the focus mode switch to MF before
you focus manually.
Note:
When focusing manually, do not turn the focusing ring all the way to infinity or
to the minimum focusing distance.
3
12
Using the Quick-Shift Focus System ( -series cameras only)
If you use the lens with an camera and the focus mode is set to autofocus, you can
focus manually after autofocus is achieved. Just turn the focusing ring to manually touchup the focus. You can do this without switching the focus mode to MF.
How to use the Quick-Shift Focus System
1. Using Autofocus
Set the camera’s focus mode switch to autofocus, then press the shutter button halfway
(or press the AF button) to autofocus.
2. Adjust the focus by turning the focusing ring.
3. Finally, press the shutter release button to take the picture.
CAUTION
• During the autofocus operation, the focusing ring does not rotate. Do not
turn the focusing ring during the autofocus operation. Doing so will cause a
malfunction.
• When using the Quick Shift Focus System, keep pressing the shutter button
(or AF button) after you achieve focus and before taking the picture. If you
let go of the shutter button before taking the picture, you will have to focus
all over again when you press the shutter button again.
HOW TO USE THE INFRARED INDEX
13
If you use infrared film and attach an R2 or O2 filter to the lens to take infrared pictures, the
point of focus will be different from when you shoot normally (with visible light). A focusing
correction will be necessary. As shown above left, memorize the focusing point on the lens
distance scale when viewed through the viewfinder and turn the focusing ring until the point
you memorized aligns with the infrared index, red dot, as shown above right.
• Infrared film can not be used for MZ-S, MZ-60 and *ist since infrared ray is used for
detecting device of film transport. It will expose infrared film in the camera.
• Turn the focusing ring in the MANUAL focus mode only.
• For the exposure control requierd in this special photography, see the information
supplied with the infrared film.
APERTURE CONTROL
14

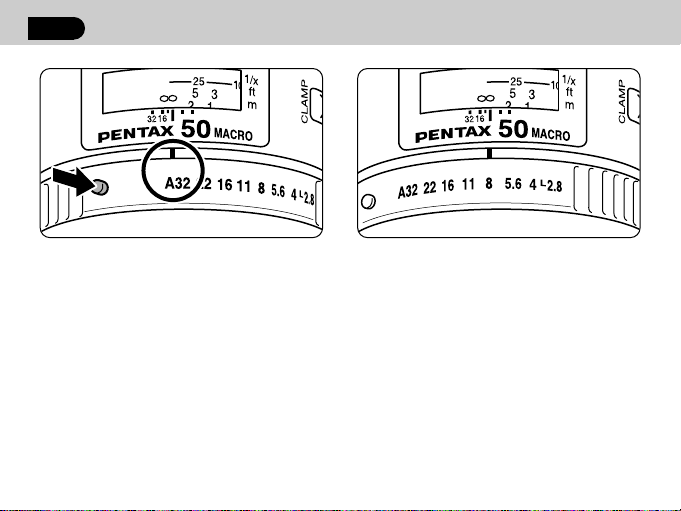

Setting the aperture to “A”(Auto)
Turn the aperture ring to align the aperture-A index with the white line while depressing the
Aperture-A-lock button. The aperture ring can be released from “A” in the same manner
to set your desired f-stop manually.
• If the camera has the K
AF2 lens mount and the aperture is not set to A, the approximate
aperture setting will be displayed on the display panel and in the viewfinder.
• If the camera has the K lens mount which has no electronic contacts to transmit the lens
information, set the aperture to any f-stop other than A.
15
Aperture Ring Cautions
The following restrictions apply to the respective cameras below.
-series,
MZ-60, MZ-30
MZ-50
If the camera is set to the default settings and the aperture ring
is not set to A, the camera will not work. Be sure to set the
aperture ring to A and set the aperture with the camera. Although
you can use the Custom Function menu or C Custom menu to
enable camera operation while the aperture ring is not set to A,
restrictions will apply. Refer to the camera’s manual for details.
If the aperture ring is not set to A, the camera will not work. Be
sure to set the aperture ring to A and set the aperture with the
camera.
MACRO LENS
16
The D FA Macro 50mm f/2.8 and D FA Macro 100mm f/2.8 lenses enable closeup
photography up to 1x magnification.
Clamp Switch
17

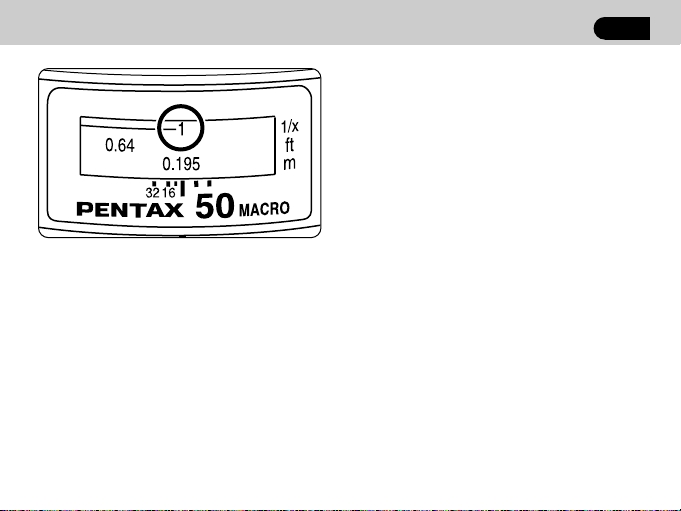

Magnification Scale
The magnification is indicated by denominators on the distance scale. “1” indicates “1x”.
For example, “1” on the magnification scale at the top will make the magnification 1/1x. If
you want to set the magnification first, turn the focusing ring to set the desired
magnification. Then focus the subject by moving the camera forward or back.
18
About the Clamp Switch
The D FA Macro 50mm f/2.8 and D FA Macro 100mm f/2.8 lenses are equipped with a
Clamp switch which is convenient for manual focus.
The Clamp switch locks the manual focus position. You can use it when taking close-ups
with a copy stand, for example.

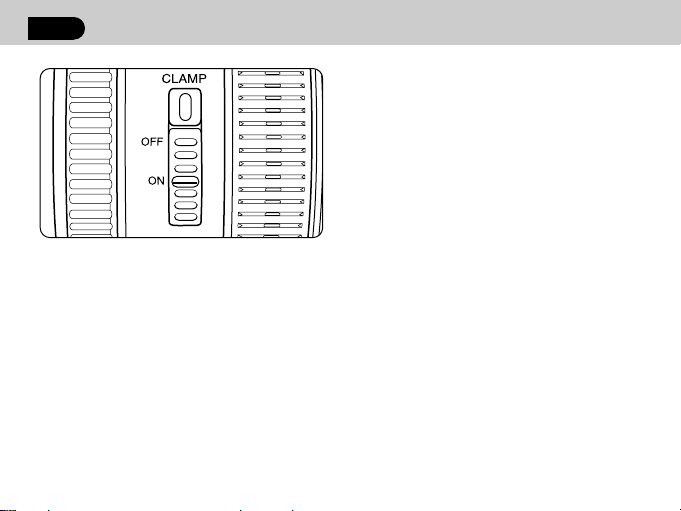

Using the Clamp Switch
Focus manually, then set the Clamp switch to ON.
The point of focus will be locked. Autofocus will also be disabled.
• Do not turn the focusing ring forcibly while setting the Clamp switch to ON because there
is a slight possibility that the point of focus may change.
• If you use the Clamp switch with any of the following cameras, be sure to first set the
camera’s focus mode switch to MF.
Z-10, Z-20, Z-20P, Z-50 P, Z-70P, MZ-5, MZ-10, and MZ-50
LENS HOOD
19
Using a lens hood is recommended to block stray light from entering the lens. The stray
light’s internal reflections degrade the image quality.
Lens hood for D FA lens

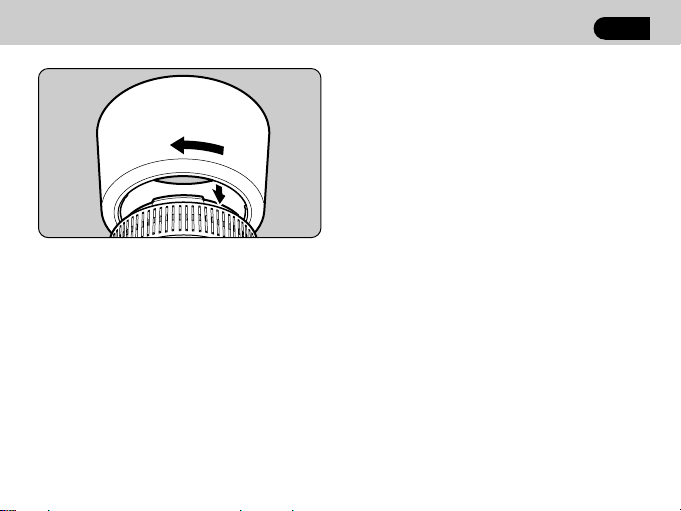

How to attach
Put the hood on the lens, and turn it as shown by the arrow until it clicks in place.
✍ Memo:
• When the lens hood is not in use, it can also be turned around and attached in the
reversed position.
FILTERS
20
The filter is mounted into the screw thread in front of the lens.
Precaution on filters
• Since the filter becomes a part of the optics when attached on the lens, handle it in the
same way you handle the lens with care to dust, dirt and scratches. Avoid using more
than one filter, unless it is a circular polarizing filter. Using two or more filters will degrade
the image quality and the filter effect will not be obtained.
• Use a circular polarizing filter with Autofocus camera for proper exposure and
autofocusing.
PRECAUTIONS WHEN USING THE LENS WITH A FLASH
21
Built-in Flash
The built-in flash can not be used when the distance is less than 0.7m. When the flash is
used within 0.7m, it causes incorrect exposure control.
• If the built-in flash is used with the lens hood attached to the lens, the flash light will be
blocked by the lens hood. Always make sure to remove the lens hood before using the
built-in flash.
MAIN SPECIFICATIONS
22
Lens smc PENTAX-D FA Macro 100mm f/ 2.8
Elements in groups 9-8
Angle of view 24.5˚ (16˚ when attached to -series)
Aperture f/2.8
Mount type KAF-mount
Minimum focus distance 0.303m (0.99ft) (0.130m (0.45ft) working distance)
Maximum magnification 1×
Filter size 49mm
Lens hood PH-RBB 49mm (provided)
Max. Diameter x Length 67.5mm × 80.5mm (2.6in × 3.2in)
Weight 345g/12.2oz
Soft case S80-120
23
Lens smc PENTAX-D FA Macro 50mm f/ 2.8
Elements in groups 8-7
Angle of view 47˚ (31.5˚ when attached to -series)
Aperture f/2.8
Mount type KAF-mount
Minimum focus distance 0.195m (0.64ft) (0.047m (0.15ft) working distance)
Maximum magnification 1×
Filter size 49mm
Lens hood PH-RBC 49mm (provided)
Max. Diameter x Length 67.5mm × 60mm (2.6in × 2.6in)
Weight 265g/9.3oz
Soft case S80-80
Specifications and external dimensions are subject to change without notice.
24
Memo :
25
For customers in the USA
STATEMENT OF FCC COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions
: (1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :
• Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
*Consult the dealer or an experienced radio/TV technician for help.
For customers in the Canada
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilleur du
Canada.
for your
precious moments
PENTAX
57451ENG Printed on recycled paper.
Copyright ©PENTAX Corporation 2004
01-200409 Printed in Japan
The CE Mark is a Directive conformity mark of the European Community.
PENTAX Corporation 2-36-9,Maeno-cho, Itabashi-ku, Tokyo 174-8639, JAPAN (http://www.pentax.co.jp/)
PENTAX Europe GmbH Julius-Vosseler-Strasse, 104, 22527 Hamburg, GERMANY
(European Headquarters) (HQ - http://www.pentaxeurope.com) (Germany - http://www.pentax.de)
PENTAX U.K. Limited PENTAX House, Heron Drive, Langley, Slough, Berks SL3 8PN, U.K. (http://www.pentax.co.uk)
PENTAX France S.A.S. 12/14, rue Jean Poulmarch, 95106 Argenteuil Cedex, FRANCE
PENTAX Benelux B.V. (for Netherlands) Spinveld 25, 4815 HR Breda, NETHERLANDS (http://www.pentax.nl)
(for Belgium & Luxembourg) Weiveldlaan 3-5, 1930 Zaventem, BELGIUM (http://www.pentax.be)
PENTAX (Schweiz) AG Widenholzstrasse 1 Postfach 367 8305 Dietlikon, SWITZERLAND (http://www.pentax.ch)
PENTAX Scandinavia AB P. O. Box 650, 75127 Uppsala, SWEDEN (http://www.pentax.se)
PENTAX Imaging Company
A Division of PENTAX of America, Inc.
(Headquarters)
600 12th Street, Suite 300 Golden, Colorado 80401, U.S.A.
(Distribution & Service Center)
16163 West 45th Drive, Unit H Golden, Colorado80403, U.S.A.(http://www.pentaximaging.com)
PENTAX Canada Inc. 1770 Argentia Road,Mississauga, Ontario L5N 3S7 CANADA (http://www.pentaxcanada.ca)
Loading...
