PENTAX Binoculars
and Optical Instruments:
Your Best Partners
for Top-Quality Viewing
Always a technological leader and
innovator in high-precision optical
products, PENTAX offers an excellent
selection of high-performance
binoculars and optical instruments to
accommodate the diversified needs of
the most discerning viewers around
the world.
Whatever your requirements or
applications, PENTAX has the perfect
choice to make your viewing
experiences more pleasant,
comfortable and enjoyable than ever
before!
The Backbone of PENTAX’s
Technological Excellence
High-Refraction BaK4 glass prism
Thanks to its outstanding refraction index,
the PENTAX-developed BaK4 glass prism is
highly acclaimed for its perfectly round exit
pupil and clear, unvignetted image.
BaK4
Multi-Layer Coating
Important optical elements of
the PENTAX binoculars are
treated with time-proven
multi-layer coating, which not
only improves light
transmission efficiency to
deliver bright, high-contrast
images without flare, but
also reduces eye fatigue
even during extended
observation.
Eyepiece
BK7
1 2
Aspherical Optical Element
The PENTAX-developed aspherical optical
element greatly improves image brightness
and sharpness, while minimizing disturbing
distortions.
High-Resolution Phase Coating
The roof prisms of all DCF-series models are
specially treated with high-resolution phase
The Backbone of PENTAX’s Technological Excellence
coating. Previously incorporated only in the
most expensive models, this special process
cancels the phase difference created on the
wave front of light passing through a roof
prism, thus producing sharp, high-contrast
images with much improved resolution.
Waterproof Construction
Featuring an airtight, nitrogen-filled
waterproof construction, all DCF-series
models, plus the PCF WP and PIF models and
the spotting scopes, are especially designed
for use on and around the water and at
extreme temperatures. The UCF WP models
also feature a waterproof body to protect the
internal mechanisms against rain, water and
moisture.*
* These binoculars and spotting scopes are not designed for
underwater use and should not be submerged in water.
Protective Rubber Housing
Most binoculars and all spotting scopes are
encased in highly durable rubber housings,
which are designed to protect the optical
mechanisms inside from shock and damage,
while enhancing holding comfort and
maneuverability even under adverse
conditions.
Aspherical lens
Conventional lens
Inner-Focus Optical Design
Incorporated in all DCF-series models, plus the
UCF WP and PCF WP models, this sophisticated
optical design is ideal for waterproof models
that require a fully airtight body construction.
It also contributes to a considerable reduction
in size and weight and improves overall
balance by minimizing a weight shift during
focusing.
Objective lens
Focusing lens
Roof prism
Eyepiece lens
Functional, Maneuverable Body Design
The body and optical mechanism of PENTAX
binoculars and spotting scopes are
computer-designed to ensure the easiest
handling possible and minimize overall size
and weight, without sacrificing optical
performance.
Long Eye Relief
The long eye relief offered in most PENTAX
binoculars and spotting scopes allows the
viewer to check the entire field of view clearly
and effortlessly. This feature is especially
beneficial for eyeglass wearers.
Binoculars
Eyepiece lens
Light flux
Long eye relief
3 4
Ordinary eye relief
Straight-Line Optics for
Topmost Quality and Performance
The PENTAX DCF series consists of four
different types: the top-of-the-line DCF SP,
heavy-duty DCF XP, sleek-styled DCF HRII,
and compact DCF MP.
All DCF-series models feature
high-performance straight-line optics with
high-resolution phase-coated roof prisms
and multi-coated optical elements. They
also come equipped with nitrogen-filled
Roof-Prism Binoculars
waterproof construction (JIS Class 6), with
a full-body protective rubber housing and
a sophisticated inner-focus optical design.
The PENTAX DCF series is the best choice
for uncompromising observers who
demand optimal image quality under all
viewing conditions.
DCF Series
Unsurpassed Quality and Performance
for Uncompromising Users
DCF SP
● A choice of five models in three different
magnifications (8, 10 and 12.5 times)
● Durable magnesium body with nitrogen-filled
waterproof construction (JIS Class 6)
● High-resolution phase-coated roof prisms
● Multi-coated optical elements
● Extra-short minimum focusing distance
● Helicoid-type extendible eyepiece rings
● Rain-shielding eyepiece caps
5 6
Compact Dimensions and
Heavy-Duty Construction
Sleek Design with
High-Resolution Images
Roof-Prism Binoculars
DCF Series
DCF XP
DCF HRII
● Large 42mm objective lenses with a choice
of two magnifications (8 and 10 times)
● Nitrogen-filled waterproof construction
(JIS Class 6)
● High-resolution phase-coated roof prisms
● Multi-coated optical elements
● Helicoid-type extendible eyepiece rings
● Rain-shielding eyepiece caps
Multi-Purpose Design with
Reliability and Portability
● Fiber-reinforced plastic body with
nitrogen-filled waterproof construction (JIS
Class 6)
● High-resolution phase-coated roof prisms
● Multi-coated optical elements
● Extra-short minimum focusing distance
(1.5m/4.9 ft.)
● Long eye relief (20mm for the 8x33; 18mm
for the 10x33)
● Helicoid-type extendible eyepiece rings
7 8
DCF MP
● A choice of two magnifications
(8 and 10 times)
● Nitrogen-filled waterproof construction
(JIS Class 6)
● High-resolution phase-coated roof prisms
● Multi-coated optical elements
● Helicoid-type extendible eyepiece rings
Eye-Catching Design with
Quality and Innovation
The PENTAX UCF series offers 10 distinctive
models in four types to accommodate a
wide range of user requirements: the
versatile UCF ZOOM, waterproof UCF WP,
multi-purpose UCF XII, and pocket-sized
UCF R. All UCF models feature
high-performance porro-prism optics and
are encased in a protective rubber
housing.
Variable Magnification for
All-Purpose Versatility
UCF ZOOM
Porro-Prism Binoculars
UCF Series
The PENTAX-developed dual-axis
eye-distance adjustment system minimizes
eye fatigue by preventing misalignment of
the lens barrels during viewing. The BaK4
glass prisms and aspherical lens elements
produce sharp, high-contract images with
minimal distortion.
The PENTAX UCF series is the ideal choice
for people with an active, fashionable
lifestyle.
● Compact dimensions and variable
magnification
● Effortless focusing and zooming operations
● High-refraction BaK4 glass prisms
● Dual-axis eye-distance adjustment system
● Long eye relief
9 10
Streamlined Design with
Waterproof Construction
High-Quality Viewing and
Multi-Purpose Design
Porro-Prism Binoculars
UCF Series
UCF WP
UCF XII
● A choice of four magnifications (8, 10, 12 and
16 times)
● Dual-axis eye-distance adjustment system
● Large 25mm objective lenses
● Multi-coated optical elements
● High-refraction BaK4 glass prisms
● Short minimum focusing distance (1.9m/6.2 ft.)
Compact, Lightweight Design for
Outstanding Portability
● Waterproof construction (JIS Class 6)
● Multi-coated optical elements and aspherical
eyepiece lens elements
● High-refraction BaK4 glass prisms
● Dual-axis eye-distance adjustment system
● Long eye relief (15mm) and short minimum
focusing distance (1.9m/6.2 ft.)
● Helicoid-type extendible eyepiece rings
11 12
UCF R
● A choice of two magnifications (8 and
10 times)
● Dual-axis eye-distance adjustment system
● Multi-coated optical elements and aspherical
eyepiece lens elements
● High-refraction BaK4 glass prisms
● Diopter adjuster with click-stop center pointer
Unmatched Portability with
Superb Optical Performance
Encased in a fashionably designed housing,
the ultra-compact PENTAX FB series
combines go-anywhere portability with
high-quality viewing.
Incorporating high-performance roof-prism
optics, all FB-series models are designed to
produce bright, clear images, despite their
Roof-Prism Binoculars
ultra-compact dimensions. Their
simple-to-use center-focusing system, easy
eye-distance adjustment mechanism, short
minimum focusing distance, and
user-friendly diopter adjustment
mechanism combine to enhance viewing
comfort and operational versatility.
Superb Versatility with
Variable Magnification

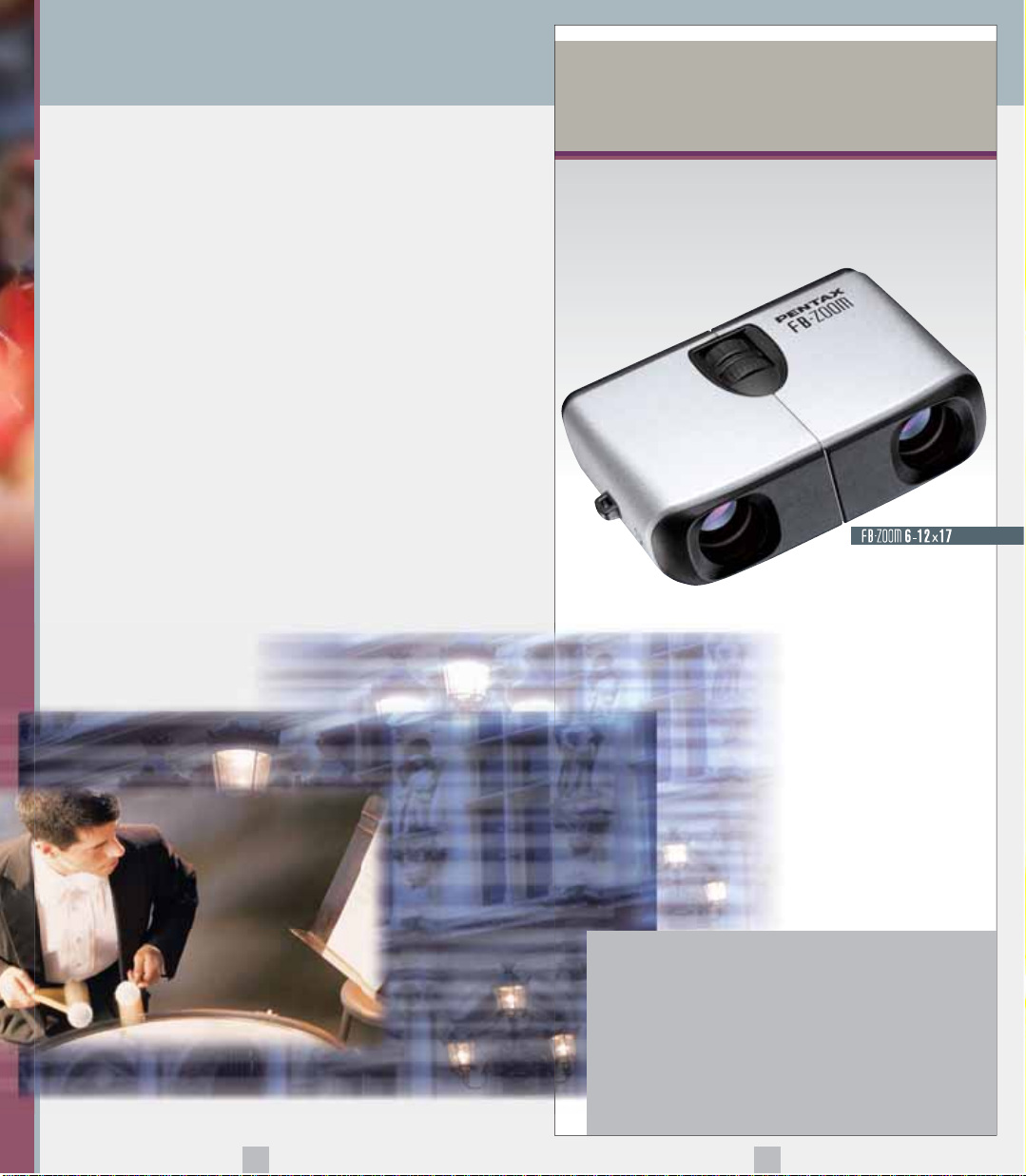

FB ZOOM
FB Series
Offering five attractive models in three
types, the PENTAX FB series is the perfect
partner for active urban people who enjoy
art, theater and sports in their everyday
life.
● Ultra-compact, go-anywhere design
● Stylish aluminum-alloy housing
● 6~12-times variable magnification
● Center-focusing system
● Short minimum focusing distance
(2.0m/6.6 ft.)
● Aspherical lens elements
13 14
Fashionable Aluminum-Alloy Housing
with High-Definition TV-Sized Image
Roof-Prism Binoculars
FB Series
High-Quality Images and
Great Portability

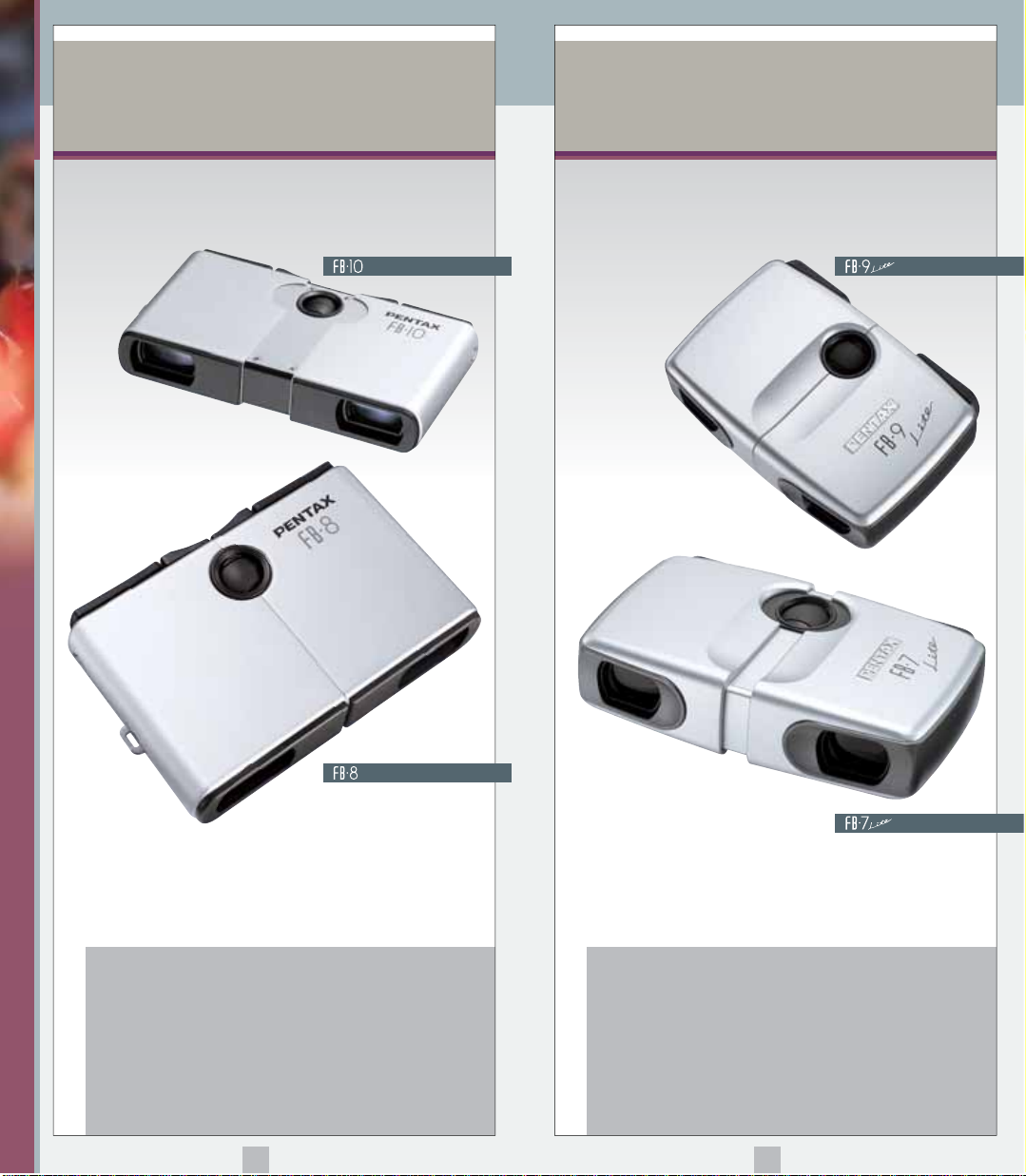

FB LiteFB
● Stylish aluminum-alloy housing
● 16:9 rectangular image area proportioned to
high-definition TV screen
● Center-focusing system
● Short minimum focusing distance
(1.9m/6.2 ft.)
● Aspherical lens elements
15 16
● Ultra-compact, go-anywhere design
● 4:3 rectangular image area
● Center-focusing system
● Short minimum focusing distance
(1.8m/5.9 ft.)
● Aspherical lens elements
Waterproof Reliability with
a Choice of Six Magnifications
Porro-Prism Binoculars
PCF Series
Multi-Purpose Design with
Excellent Viewing Comfort

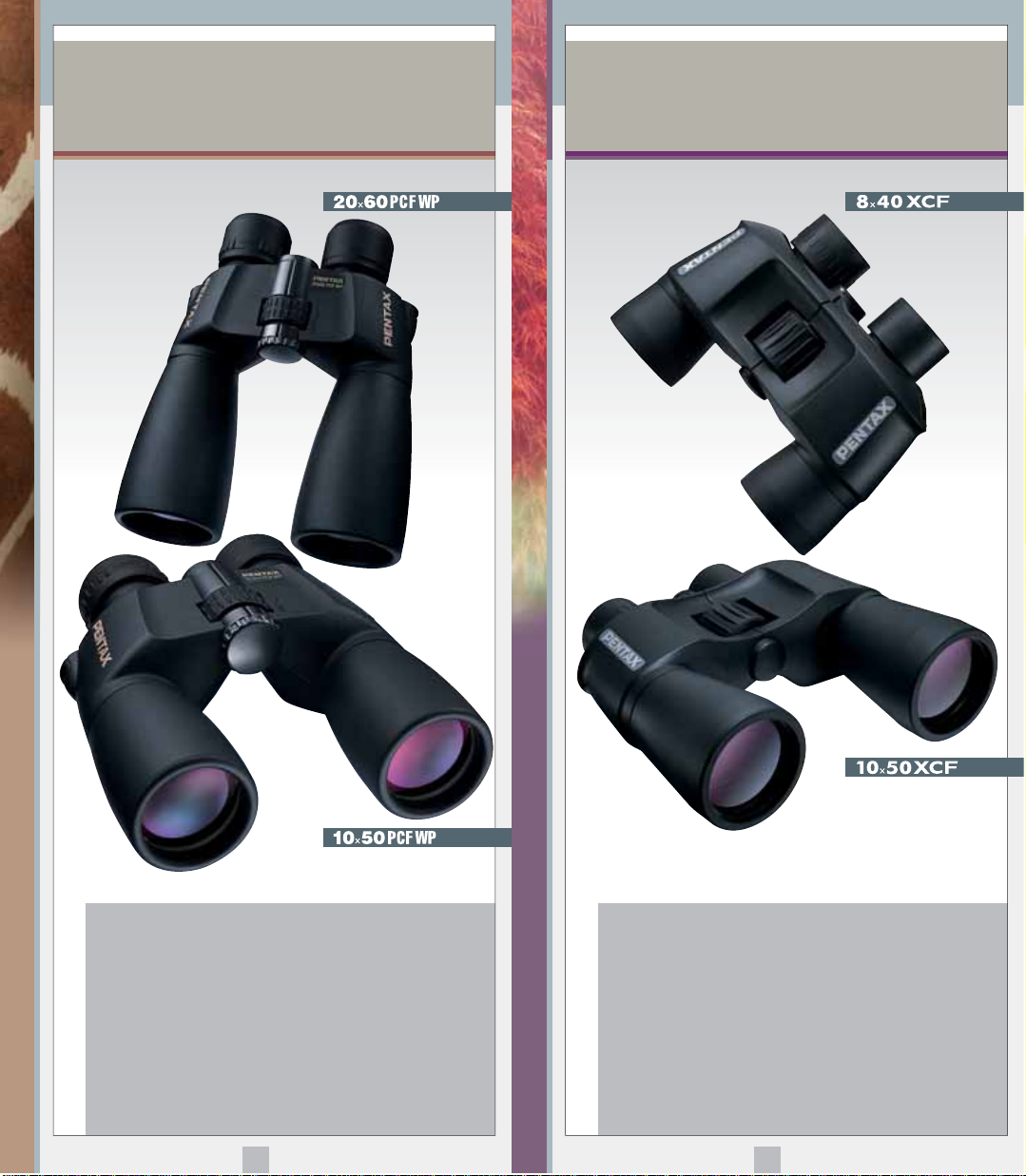

XCFPCF WP
Porro-Prism Binoculars
● High-performance porro-prism optics with a
choice of six magnifications (7, 8, 10, 12, 16
and 20 times)
● Nitrogen-filled waterproof construction with
full-body protective rubber housing
● High-refraction BaK4 glass prisms
● Multi-coated optical elements
● Inner-focus optical design with fully encased
focusing arm and focus-lock mechanism
17 18
XCF Series
● High-performance porro-prism optics with a
choice of four magnifications (8, 10, 12 and
16 times)
● High-refraction BaK4 glass prisms
● Multi-coated optical elements
● Full-body protective rubber housing
● Extra-large focus ring
● Fold-back-type eyepiece rings
Unmatched Reliability under
Extreme Conditions
Porro-Prism Binoculars
Fashionable Design and
Go-Anywhere Portability
PIF MCF II
Porro-Prism Binoculars
PIF Series
● High-performance porro-prism optics
● Nitrogen-filled waterproof construction
(JIS Class 7)
● Extra-durable full-body rubber housing
● Field flattener lenses
● Independent focus system
● Super-Multi-Coating optical elements
● Long eye relief
19 20
MCF II Series
● High-performance porro-prism optics
● Compact, ergonomic body design
● High-refraction BaK4 glass prisms
● Rubber eyepiece rings
● Detachable hand strap
Reliable Heavy-Duty Design for
the Most Demanding Field Work

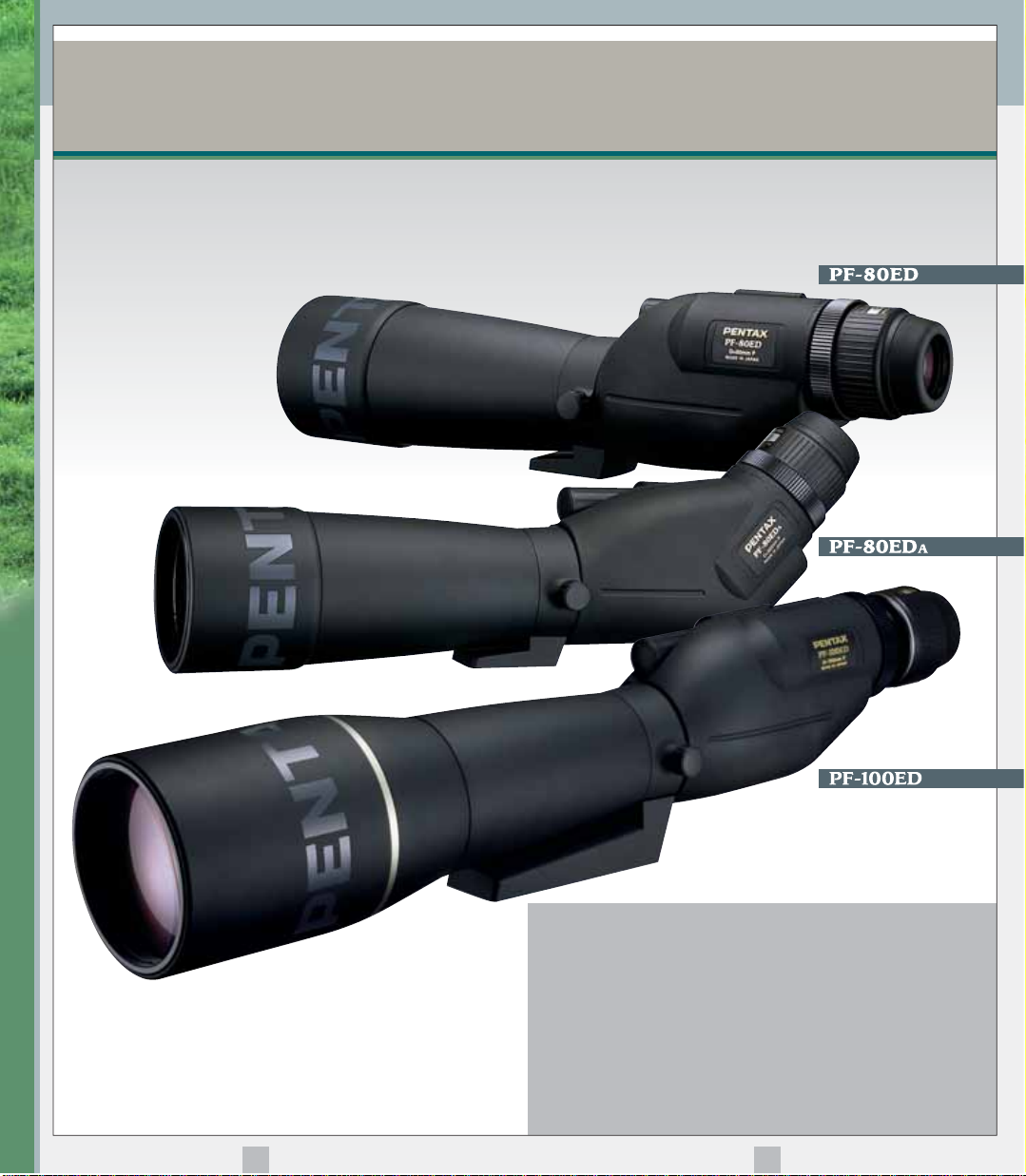

PENTAX offers three high-performance spotting
scopes to accommodate specialized viewing
applications in the field. With an optional camera
adapter, these spotting scopes can also be used as
high-resolution super-telephoto lenses.
Spotting Scopes
Spotting Scopes
● Lightweight magnesium-alloy body with
nitrogen-filled waterproof construction (JIS Class 6)
● Large-aperture objective lens with ED (Extra-low
Dispersion) glass elements
● Protective rubber housing
● Extra-long eye relief
● Built-in lens hood
● Choice of straight-line lens barrel (PF-80ED/PF-100ED)
or 45-degree slanted lens barrel (PF-80EDA)
21 22
Optimizing Image Quality and Viewing
Comfort of PENTAX Spotting Scopes

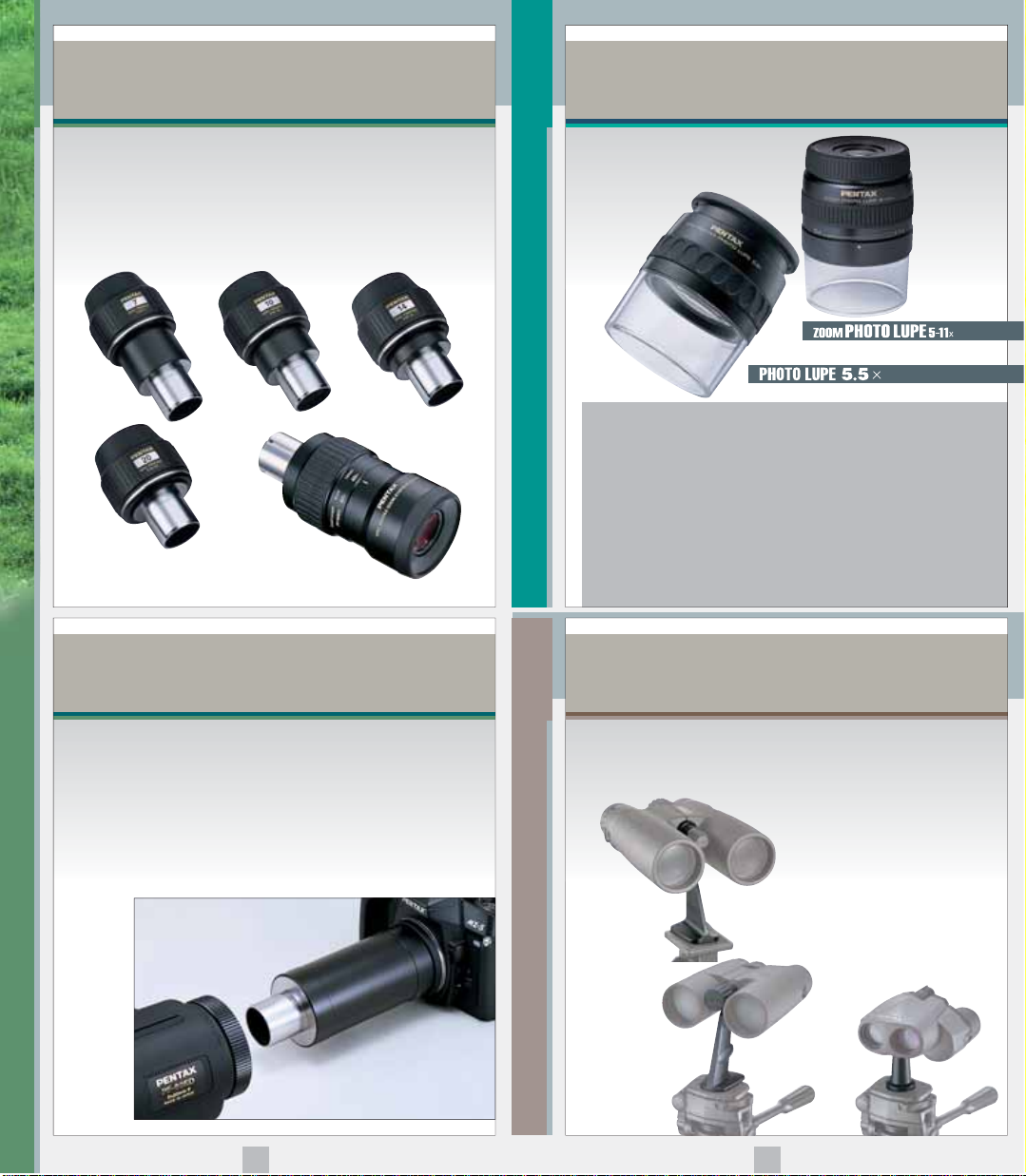

Eyepieces
With a lineup of four compact, high-performance
XW-series models and a versatile zoom model,
the smc PENTAX eyepieces are designed to
provide optimum performance with the PENTAX
spotting scopes.
XW7 XW10 XW14
Spotting Scope Accessories
XW20
ZOOM EYEPIECE 8-24mm
For Professional-Standard Viewing of
Photographic Images
Photo Lupes
Photo LupesTripod Adapters
● Large-aperture design with an extra-wide
viewing area
● Large rubber eyepiece ring
● 5~11-times variable magnification with
aspherical lens elements (the zoom model only)
● Super-Multi-Coating optical elements (the 5.5x
model only)
● Long eye relief
Converting PENTAX Spotting Scopes for
High-Magnification Photography
Used to mount a spotting scope onto a PENTAX
K-mount SLR camera body, the PF-CA35 camera
adapter turns the scope into a super-telephoto
lens (with a focal length of 1,000mm with the
PF-80ED and PF-80EDA and 1,250mm with the
PF-100ED).
23 24
For Speedy, Effortless Shift between
Handheld and Tripod-Mount Applications
Tripod AdaptersCamera Adapter
These adapters facilitate the setting and removal
of PENTAX binoculars onto and from a tripod.
Tripod Adapter TP-3
Tripod Adapter N Tripod Adapter U
How to Select
the Best Viewing Partner!
The following are several important yardsticks to
help you select the pair of binoculars that best suites
your requirements.
Roof Prism vs. Porro Prism
Both roof- and porro-prism optics are designed to
turn the image upside down — from an inverted
image to an erect image — by incorporating convex
optical elements in their objective and eyepiece
lenses. However, each design has some definite
advantages.
Featuring a straight-line axis and high-precision
optics, the roof-prism design is better equipped for
specialized applications. At the same magnification,
it also allows for a more compact, streamlined body
for enhanced maneuverability and portability.
On the other hand, the porro-prism design combines
time-honored optics and solid viewing performance
with a familiar, functional styling. It is customarily
employed in popular, multi-purpose models.
Roof Prism Porro Prism
were standing at a distance of 100 meters (approx.
89 yards). The greater the magnification, the less
bright the image and the narrower the angle of
view. Since high-magnification models also increase
the risk of binocular shake, use of a tripod is
recommended for these models. If your application
involves occasional high-magnification viewing, a
zoom model may be
a good option.
Image Brightness
When you hold your binoculars at 30 centimeters
(approx. one foot) away from your eye, you will see
a bright spot, or “exit pupil,” in the middle of the
eyepiece lens. The larger the diameter of the exit
pupil, the brighter the image field. As a simple
yardstick, a diameter of three millimeters assures
comfortable daytime viewing, while that of five to
seven millimeters is required for astronomical
observation.
The exit pupil can be easily calculated by dividing the
effective aperture of the objective lens by the
magnification, while the relative brightness can be
obtained by squaring the exit pupil. For the same
magnification, binoculars with a larger exit pupil
offer a brighter image field and are better equipped
for observations under poor lighting conditions at
dawn or dusk.
Eyepiece lens Eyepiece lens
Roof prism
Objective lens Objective lens
Porro prism
Magnification
The term “magnification” refers to the degree at
which your subject appears larger through binoculars
than with the naked eye. At eight-times
magnifi-cation, for instance, a subject standing at
800 meters (approx. 890 yards) away appears as if it
25 26
Angle of View
Expressed in degrees, the term “angle of view” is
a yardstick for the image field that can be seen
without moving the binoculars. The greater the
magnification, the narrower the angle of view. So
binoculars with a greater angle of view are
recommended for observation of fast-action sports
and active subjects, while a pair with a greater
magnification is better suited for observation of
subjects at great distance.
If the subject is at a distance of 1,000 meters (approx.
1,110 yards), for instance, binoculars with a
five-degree angle of view offer a circular image field
of 87 meters (approx. 97 yards) in diameter.
A 10x50 model with a 5 real angle of view
100m/110 yd.
(= 1,000m 10)
87m/97 yd.
Apparent angle
of view 50
1,000m/1,110 yd.
Angle of view 5
Which PENTAX is Best Suited for
Your Application?
The chart below indicates the pair of PENTAX
binoculars that is best recommended for your
intended application.
Outdoor/
Wildlife
Sports
Theater/
Concert
DCF SP ● ● ● ● ●
Travel/
Hiking
Marine Sports
Bird Watching
Astronomy
1)
DCF XP ● ● ● ● ●
DCF HRII ● ● ● ●
DCF MP ● ● ● ● ●
UCF ZOOM ● ● ● ●
UCF WP ● ● ● ● ●
2)
UCF XII ● ● ● ●
UCF R ● ● ●
FB ZOOM ● ● ●
FB ● ●
FB Lite ● ●
PCF WP ●
3)
●
3)
● ●
3)
●
XCF ● ● ● ●
PIF ● ●
MCFII ● ● ●
1) Excluding the 8x32 DCF SP
2) Excluding the 12x25 UCF XII and 16x25 UCF XII
3) Excluding the 12x50 PCF WP, 16x60 PCF WP and 20x60 PCF WP
27 28
Specifications
Model: 8x32 DCF SP 8x43 DCF SP 10x43 DCF SP 10x50 DCF SP 12.5x50 DCF SP
Magnification: 8X 8X 10X 10X 12.5X
Effective Aperture of Objective Lens: 32mm 43mm 43mm 50mm 50mm
Angle of View: 7.5 6.3 6.0 5.0 4.8
Field of View: At 1,000m: 131m 110m 105m 87m 84m
At 1,000 yd.: 393 ft. 330 ft. 315 ft. 261 ft. 252 ft.
Exit Pupil: 4.0mm 5.4mm 4.3mm 5.0mm 4.0mm
Eye Relief: 17mm 22mm 17mm 22mm 17mm
Relative Brightness: 16 29 18.5 25 16
Focus Range: 1.5m (4.9 ft.) ~ 2.0m (6.6 ft.) ~ 2.0m (6.6 ft.) ~ 3.5m (11.5 ft.) ~ 3.5m (11.5 ft.) ~
Dimensions (W x H x D): 126 x 127 x 52 mm 126 x 146 x 52 mm 126 x 146 x 52 mm 132 x 170 x 59 mm 132 x 170 x 59 mm
5.0 x 5.0 x 2.0 in. 5.0 x 5.7 x 2.0 in. 5.0 x 5.7 x 2.0 in. 5.2 x 6.7 x 2.3 in. 5.2 x 6.7 x 2.3 in.
Weight: 660g (23.2 oz.) 695g (24.5 oz.) 710g (25.0 oz.) 840g (29.6 oz.) 855g (30.2 oz.)
Model: 8x33 DCF XP 10x33 DCF XP
Magnification: 8X 10X
Effective Aperture of Objective Lens: 33mm 33mm
Angle of View: 6.5 5.3
Field of View: At 1,000m: 114m 93m
At 1,000 yd.: 342 ft. 279 ft.
Exit Pupil: 4.1mm 3.3mm
Eye Relief: 20mm 18mm
Relative Brightness: 17 10.9
Focus Range: 1.5m (4.9 ft.) ~ 1.5m (4.9 ft.) ~
Dimensions (W x H x D): 121 x 107 x 51 mm 121 x 106 x 51 mm
4.8 x 4.2 x 2.0 in. 4.8 x 4.2 x 2.0 in.
Weight: 500g (17.6 oz.) 500g (17.6 oz.)
Model: 8-16x21 UCF ZOOM 8-20x24 UCF ZOOM
Magnification: 8~16X 8~20X
Effective Aperture of Objective Lens: 21mm 24mm
Angle of View: 5.0 (8x) ~ 3.0 (16x) 5.3 (8x) ~ 2.5 (20x)
Field of View: At 1,000m: 87m (8x) ~ 52m (16x) 93m (8x) ~ 44m (20x)
At 1,000 yd.: 261 ft. (8x) ~ 156 ft. (16x) 279 ft. (8x) ~ 132 ft. (20x)
Exit Pupil: 2.6mm (8x) ~ 1.3mm (16x) 3.0mm (8x) x 1.2mm (20x)
Eye Relief: 14mm (8x) ~ 11mm (16x) 14mm (8x) ~ 15mm (20x)
Relative Brightness: 6.7 (8x) ~ 1.7(16x) 9.0 (8x) ~ 1.4 (20x)
Focus Range: 3.0m (9.8 ft.) ~ 1.9m (6.2 ft.) ~
Dimensions (W x H x D): 108 x 115 x 61 mm 122 x 134 x 66 mm
4.3 x 4.5 x 2.4 in. 4.8 x 5.3 x 2.6 in.
Weight: 330g (11.6 oz.) 485g (17.1 oz.)
8x42 DCF HRII 10x42 DCF HRII
8X 10X
42mm 42mm
6.3 6.0
110m 105m
330 ft. 315 ft.
5.2mm 4.2mm
22mm 17mm
27.6 17.6
4.0m (13.1 ft.) ~ 4.0m (13.1 ft.) ~
129 x 176 x 55 mm 129 x 173 x 55 mm
5.1 x 6.9 x 2.2 in. 5.1 x 6.8 x 2.2 in.
835g (29.5 oz.) 835g (29.5 oz.)
8x25 UCF WP 10x25 UCF WP
8X 10X
25mm 25mm
6.2 5.0
108m 87m
324 ft. 261 ft.
3.1mm 2.5mm
15mm 15mm
9.6 6.3
1.9m (6.2 ft.) ~ 1.9m (6.2 ft.) ~
116 x 110 x 69 mm 116 x 112 x 69 mm
4.6 x 4.3 x 2.7 in. 4.6 x 4.4 x 2.7 in.
350g (12.3 oz.) 350g (12.3 oz.)
Model: 8x25 UCF XII 10x25 UCF XII 12x25 UCF XII 16x25 UCF XII
Magnification: 8X 10X 12X 16X
Effective Aperture of Objective Lens: 25mm 25mm 25mm 25mm
Angle of View: 6.2 5.0 4.2 3.1
Field of View: At 1,000m: 108m 87m 73m 54m
At 1,000 yd.: 324 ft. 261 ft. 219 ft. 162ft.
Exit Pupil: 3.1mm 2.5mm 2.1mm 1.6mm
Eye Relief: 15mm 15mm 15mm 15mm
Relative Brightness: 9.6 6.3 4.4 2.6
Focus Range: 1.9m (6.2 ft.) ~ 1.9m (6.2 ft.) ~ 1.9m (6.2 ft.) ~ 1.9m (6.2 ft.) ~
Dimensions (W x H x D): 110 x 115 x 56 mm 110 x 115 x 56 mm 110 x 120 x 56 mm 110 x 120 x 56 mm
4.3 x 4.5 x 2.2 in. 4.3 x 4.5 x 2.2 in. 4.3 x 4.7 x 2.2 in. 4.3 x 4.7 x 2.2 in.
Weight: 300g (10.6 oz.) 300g (10.6 oz.) 305g (10.8 oz.) 310g (10.9 oz.)
8x28 DCF MP 10x28 DCF MP
8X 10X
28mm 28mm
6.0 5.0
105m 87m
315 ft. 261 ft.
3.5mm 2.8mm
20mm 19mm
12.3 7.8
3.0m (9.8 ft.) ~ 3.0m (9.8 ft.) ~
119 x 118 x 45 mm 119 x 118 x 45 mm
4.7 x 4.6 x 1.8 in. 4.7 x 4.6 x 1.8 in.
460g (16.3 oz.) 460g (16.3 oz.)
8x21 UCF R 10x21 UCF R
8X 10X
21mm 21mm
6.2 5.0
108m 87m
324 ft. 261 ft.
2.6mm 2.1mm
13mm 9.5mm
6.7 4.4
2.8m (9.2 ft.) ~ 2.8m (9.2 ft.) ~
110 x 83 x 48 mm 110 x 80 x 48 mm
4.3 x 3.2 x 1.9 in. 4.3 x 3.1 x 1.9 in.
210g (7.4 oz.) 210g (7.4 oz.)
29 30
Specifications
Model: FB ZOOM 6-12x17
Magnification: 6~12X
Effective Aperture of Objective Lens: 17mm
Angle of View: 7.0 (6x) ~ 4.4 (12x)
Field of View: At 1,000m: 123m (6x) ~ 77m (12x)
At 1,000 yd.: 369 ft. (6x) ~ 231 ft. (12x)
Exit Pupil: 2.8mm (6x) ~ 1.4mm (12x)
Eye Relief: 13mm (6x) ~ 10mm (12x)
Relative Brightness: 7.8 (6x) ~ 2.0(12x)
Focus Range: 2.0m (6.6 ft.) ~
Dimensions (W x H x D): 97 x 72 x 27 mm
3.8 x 2.8 x 1.1 in.
Weight: 188g (6.6 oz.)
FB-8 FB-10
8X 10X
18 x 8 mm 18 x 8 mm
7.5 6.0
131m 105m
393 ft. 315 ft.
2.3 x 1 mm 1.8 x 0.8 mm
11mm 10mm
2.9 1.8
1.9m (6.2 ft.) ~ 1.9m (6.2 ft.) ~
86 x 58 x 17 mm 86 x 58 x 17 mm
3.4 x 2.3 x 0.7 in. 3.4 x 2.3 x 0.7 in.
128g (4.5 oz.) 128g (4.5 oz.)
FB-7 Lite FB-9 Lite
7X 9X
17 x 11 mm 17 x 11 mm
7.1 5.6
124m 98m
372 ft. 294 ft.
2.4 x 1.6 mm 1.9 x 1.2 mm
11mm 8.5mm
4.5 2.7
1.8m (5.9 ft.) ~ 1.8m (5.9 ft.) ~
95 x 64 x 26.5 mm 95 x 64 x 26.5 mm
3.7 x 2.5 x 1.0 in. 3.7 x 2.5 x 1.0 in.
148g (5.2 oz.) 148g (5.2 oz.)
Model: 7x50 PCF WP 8x40 PCF WP 10x50 PCF WP 12x50 PCF WP 16x60 PCF WP 20x60 PCF WP
Magnification: 7X 8X 10X 12X 16X 20X
Effective Aperture of Objective Lens: 50mm 40mm 50mm 50mm 60mm 60mm
Angle of View: 6.2 6.3 5.0 4.2 2.8 2.2
Field of View: At 1,000m: 108m 110m 87m 73m 49m 38m
At 1,000 yd.: 324 ft. 330 ft. 261 ft. 219 ft. 147 ft. 114 ft.
Exit Pupil: 7.1mm 5.0mm 5.0mm 4.2mm 3.8mm 3.0mm
Eye Relief: 20mm 20mm 20mm 20mm 20mm 21mm
Relative Brightness: 51.0 25.0 25.0 17.4 14.0 9.0
Focus Range: 6.0m (20.0 ft.) ~ 3.5m (11.5 ft.) ~ 5.5m (18.0 ft.) ~ 5.5m (18.0 ft.) ~ 10.0m (33.0 ft.) ~ 8.0m (26.0 ft.) ~
Dimensions (W x H x D): 185 x 184 x 80 mm 175 x 134 x 75 mm 185 x 175 x 80 mm 185 x 177 x 80 mm 195 x 213 x 85 mm 195 x 223 x 85 mm
7.3 x 7.2 x 3.1 in. 6.9 x 5.3 x 3.0 in. 7.3 x 6.9 x 3.1 in. 7.3 x 7.0 x 3.1 in. 7.7 x 8.4 x 3.3 in. 7.7 x 8.8 x 3.3 in.
Weight: 1,050g (37.0 oz.) 830g (29.3 oz.) 1,010g (35.6 oz.) 1,030g (36.3 oz.) 1,280g (45.2 oz.) 1,300g (45.9 oz.)
Model: 8x40 XCF 10x50 XCF 12x50 XCF 16x50 XCF
Magnification: 8X 10X 12X 16X
Effective Aperture of Objective Lens: 40mm 50mm 50mm 50mm
Angle of View: 8.2 6.5 5.6 3.5
Field of View: At 1,000m: 143m 114m 98m 61m
At 1,000 yd.: 429 ft. 342 ft. 294 ft. 183 ft.
Exit Pupil: 5.0mm 5.0mm 4.2mm 3.1mm
Eye Relief: 13mm 13mm 11mm 13mm
Relative Brightness: 25.0 25.0 17.4 9.8
Focus Range: 6.0m (20.0 ft.) ~ 9.0m (30.0 ft.) ~ 9.0m (30.0 ft.) ~ 10.3m (34.0 ft.) ~
Dimensions (W x H x D): 187 x 131 x 56 mm 198 x 166 x 57 mm 198 x 160 x 57 mm 198 x 166 x 57 mm
7.4 x 5.1 x 2.2 in. 7.8 x 6.5 x 2.2 in. 7.8 x 6.3 x 2.2 in. 7.8 x 6.5 x 2.2 in.
Weight: 770g (27.2 oz.) 900g (31.7 oz.) 870g (30.7 oz.) 900g (31.7 oz.)
Model: 7x50 PIF 10x50 PIF
Magnification: 7X 10X
Effective Aperture of Objective Lens: 50mm 50mm
Angle of View: 7.3 6.5
Field of View: At 1,000m: 128m 114m
At 1,000 yd.: 384 ft. 341 ft.
Exit Pupil: 7.1mm 5.0mm
Eye Relief: 20mm 15mm
Relative Brightness: 50.4 25.0
Focus Range: 8.0m (26.2 ft.) ~ 8.0m (26.2 ft.) ~
Dimensions (W x H x D): 210 x 195 x 90 mm 210 x 195 x 90 mm
8.3 x 7.7 x 3.5 in. 8.3 x 7.7 x 3.5 in.
Weight: 1,650g (58.0 oz.) 1,650g (58.0 oz.)
31 32
8x20 MCF II 10x20 MCF II
8X 10X
20mm 20mm
6.2 5.0
108m 87m
324 ft. 261 ft.
2.5mm 2.0mm
10mm 8mm
6.3 4.0
3.0m (9.8 ft.) ~ 3.0m (9.8 ft.) ~
106 x 77 x 42 mm 106 x 77 x 42 mm
4.2 x 3.0 x 1.7 in. 4.2 x 3.0 x 1.7 in.
177g (6.2 oz.) 177g (6.2 oz.)
Specifications
Model: PF-80ED PF-80EDA PF-100ED
Effective Aperture of Objective Lens: 80mm 80mm 100mm
Eyepiece Ring: Collet type Collet type Collet type
Focus Range: 5.8m (19.0 ft.) ~ 5.8m (19.0 ft.) ~ 8.5m (28.0 ft.) ~
Dimensions (W x H x D): 397 x 120 x 98 mm 415 x 135 x 100 mm 510 x 134 x 117 mm
15.6 x 4.7 x 3.9 in. 16.3 x 5.3 x 3.9 in. 20.0 x 5.3 x 4.6 in.
Weight: 1,400g (49.4 oz.) 1,600g (56.4 oz.) 2,600g (92.0 oz.)
Eyepiece: XW7 XW10 XW14 XW20
Magnification: With PF-80ED: 71x 50x 36x 26x 20~60x
With PF-80EDA: 74x 52x 37x 27x 21~63x
With PF-100ED: 90x 62x 44x 32x 26~78x
Angle of View: With PF-80ED: 1.0 1.4 2.0 2.7 1.9~1.0
With PF-80EDA: 0.95 1.4 1.9 2.6 1.8~0.95
With PF-100ED: 0.8 1.1 1.6 2.2 1.5~0.8
Field of View: With PF-80ED:
At 1,000m: 17m 24m 35m 47m 33~17m
At 1,000 yd.: 51 ft. 72 ft. 105 ft. 141 ft. 99~51 ft.
With PF-80EDA:
At 1,000m: 16.5m 24m 33m 45m 31~16.5m
At 1,000 yd.: 49.5 ft. 72 ft. 99 ft. 135 ft. 93~49.5 ft.
With PF-100ED:
At 1,000m: 14m 19m 28m 38m 26~14m
At 1,000 yd.: 42 ft. 57 ft. 84 ft. 114 ft. 78~42 ft.
Exit Pupil: With PF-80ED: 1.1mm 1.6mm 2.2mm 3.1mm 4.0~1.3mm
With PF-80EDA: 1.1mm 1.6mm 2.2mm 3.0mm 3.8~1.3mm
With PF-100ED: 1.1mm 1.6mm 2.3mm 3.1mm 3.9~1.3mm
Eye Relief: 20mm 20mm 20mm 20mm 18~22mm
Relative Brightness:
With PF-80ED: 1.2 2.6 4.8 9.6 16~1.7
With PF-80EDA: 1.2 2.6 4.8 9.0 14.4~1.7
With PF-100ED: 1.2 2.6 5.3 9.6 15.2~1.7
Dimensions (L x ø): 120 x 61 mm 110 x 61 mm 97 x 61 mm 86 x 61 mm 144 x 69 mm
4.7 x 2.4 in. 4.3 x 2.4 in. 3.8 x 2.4 in. 3.4 x 2.4 in. 5.7 x 2.7 in.
Weight: 390g (13.8 oz.) 390g (13.8 oz.) 365g (12.9 oz.) 355g (12.5 oz.) 550g (19.4 oz.)
Model:
Lens Construction: 4 elements / 4 groups 8 elements / 7 groups
Magnification: 5.5X 5~11X
Effective Aperture: 49mm 41.5mm
Eye Relief: 40mm 14mm
Diopter: -4 ~ +0.5 m
Dimensions (L x ø): 67 x 75 mm 67 x 96 mm
2.6 x 3.0 in. 2.6 x 3.8 in.
Weight: 320g (11.3 oz.) 360g (12.7 oz.)
PHOTO LUPE 5.5x ZOOM PHOTO LUPE 5-11x
-1
-4 ~ +1 m
-1
Tripod Adapter Compatibility
Tripod Adapter TP-3 Tripod Adapter N Tripod Adapter U
DCF SP ●*
DCF HRII
PCF WP
PCF V
UCF ZOOM
UCF WP
UCF XII
Zoom Eyepiece
●
●
●
PF-CA 35 Camera Adapter:
Focal Length:
With PF-80ED: 1,000mm
With PF-80EDA: 1,000mm
With PF-100ED: 1,250mm
Effective Aperture: F12.5
Minimum Focusing Distance:
With PF-80ED: Approx. 6.5m (21.0 ft.)
With PF-80EDA: Approx. 6.5m (21.0 ft.)
With PF-100ED: Approx. 9.2m (30.2 ft.)
Dimensions (L x ø): 149 x 59 mm (5.9 x 2.3 in.)
Weight: 250g (8.8 oz.)
●
●
●
●
●
* An eye distance shorter than 60mm is not available when used with the 10x50 DCF SP
and 12.5x50 DCF SP models.
