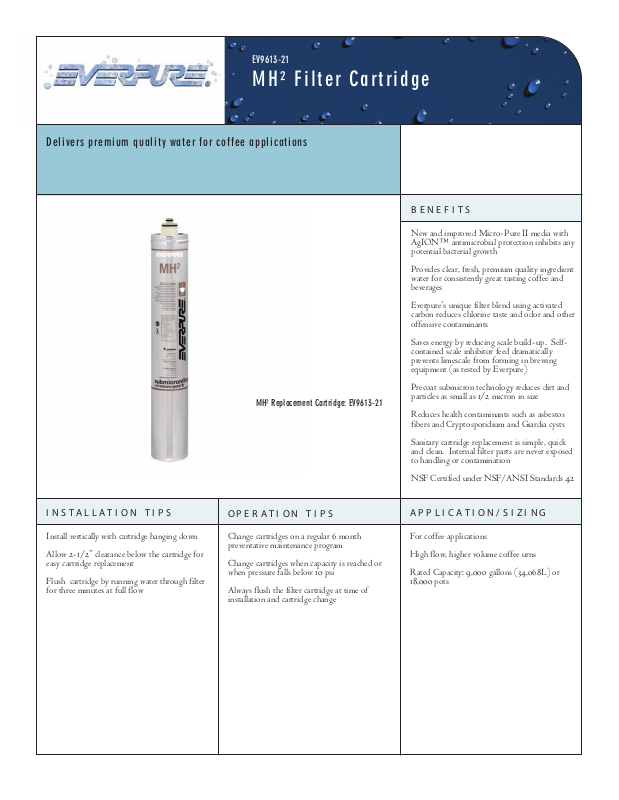

Pentair Everpure EV9613-21 Specifications

B E N E F I T S

A P P L I C A T I O N / S I Z I N G

I N S T A L L A T I O N T I P S

O P E R A T I O N T I P S

EV9613-21

MH² Filter Cartridge

Delivers premium quality water for coffee applications

New and improved Micro-Pure II media with AgION™ antimicrobial protection inhibits any potential bacterial growth

Provides clear, fresh, premium quality ingredient water for consistently great tasting coffee and beverages

Everpure's unique filter blend using activated carbon reduces chlorine taste and odor and other offensive contaminants

Saves energy by reducing scale build-up. Selfcontained scale inhibitor feed dramatically prevents limescale from forming in brewing equipment (as tested by Everpure)

Install vertically with cartridge hanging down

Allow 2-1/2” clearance below the cartridge for easy cartridge replacement

Flush cartridge by running water through filter for three minutes at full flow

MH² Replacement Cartridge: EV9613-21

Change cartridges on a regular 6 month preventative maintenance program

Change cartridges when capacity is reached or when pressure falls below 10 psi

Always flush the filter cartridge at time of installation and cartridge change

Precoat submicron technology reduces dirt and particles as small as 1/2 micron in size

Reduces health contaminants such as asbestos fibers and Cryptosporidium and Giardia cysts

Sanitary cartridge replacement is simple, quick and clean. Internal filter parts are never exposed to handling or contamination

NSF Certified under NSF/ANSI Standards 42

For coffee applications

High flow, higher volume coffee urns

Rated Capacity: 9,000 gallons (34,068L) or 18,000 pots

Overall Dimensions:

20.75”H x 3.25”Diameter

Service Flow Rate: Maximum 1.67 gpm (6.3 Lpm)

Rated Capacity: 9,000 gallons

Pressure Requirements: 10 - 125 psi (0.7 - 8.6 bar), non-shock

Temperature: 35 - 100°F (2 - 38°C)

No electrical connection required

MH² Filter Cartridge

MH² Precoat Replacement Cartridge

18.75"

The contaminants or other substances removed or reduced by this drinking water system are not necessarily in your water. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used with disinfected water that may contain filterable cysts.

Everpure water treatment systems (excluding replaceable elements) are covered by a limited warranty against defects in material and workmanship for a period of five years after date of purchase. Everpure replaceable elements (filter cartridges and water treatment cartridges) are covered by a limited warranty against defects in material and workmanship for a period of one year after date of purchase. See printed warranty for details. Everpure will provide a copy of the warranty upon request.

Nominal
