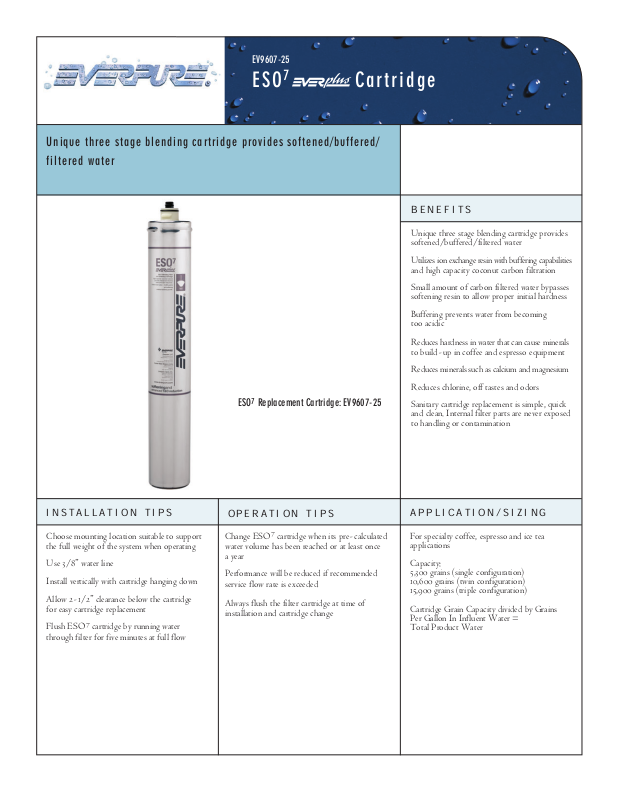

Pentair Everpure ESO 7 User Manual
B E N E F I T S
A P P L I C A T I O N / S I Z I N G
I N S T A L L A T I O N T I P S
O P E R A T I O N T I P S
EV9607-25
7
ES O Cartridge
Unique three stage blendin g cartridge provides softened/buffered/
filtered wate
r
Unique three stage blending cartridge provides
softened/buffered/filtered water
7
ESO Replacement Cartridge: EV9607-25
ESO Replacement Cartridge: EV9607-20
Utilizes ion exchange resin with buffering capabilities
and high capacity coconut carbon filtration
Small amount of carbon filtered water bypasses
softening resin to allow proper initial hardness
Buffering prevents water from becoming
too acidic
Reduces hardness in water that can cause minerals
to build-up in coffee and espresso equipment
Reduces minerals such as calcium and magnesium
Reduces chlorine, off tastes and odors
Sanitary cartridge replacement is simple, quick
and clean. Internal filter parts are never exposed
to handling or contamination
Choose mounting location suitable to support
the full weight of the system when operating
Use 3/8” water line
Install vertically with cartridge hanging down
Allow 2-1/2” clearance below the cartridge
for easy cartridge replacement
Flush ESO cartridge by running water
through filter for five minutes at full flow
7
Change ESO cartridge when its pre-calculated
water volume has been reached or at least once
a year
Performance will be reduced if recommended
service flow rate is exceeded
Always flush the filter cartridge at time of
installation and cartridge change
7
For specialty coffee, espresso and ice tea
applications
Capacity:
5,300 grains (single configuration)
10,600 grains (twin configuration)
15,900 grains (triple configuration)
Cartridge Grain Capacity divided by Grains
Per Gallon In Influent Water =
Total Product Water
20.75"
Overall Dimensions:
20.75”H x 3.25” Diameter
Service Flow Rate:
Maximum 0.5 gpm (1.9 Lpm)
Treatment Capacity:
600 gallons @ 150 ppm
2300 liters @ 150 ppm
Pressure Requirements:
10 - 125 psi (0.7 – 8.6 bar), non-shock
Temperature: 35 - 100°F (2 - 38°C)
No electrical connection required
Single cartridge changeout table:
Water Hardness Changeout #
(grains/gallon) (gallon) 8oz cups
7
ES O Cartridge
Specialty Re pl ac em en t Ca rtridge
3 1769 28300
4 1327 21225
5 1061 16980
6 884 14150
7 758 12129
8 663 10613
9 590 9433
10 531 8490
11 482 7718
12 442 7075
13 408 6531
14 379 6064
16 332 5306
18 295 4717
20 265 4245
22 241 3859
24 221 3538
The contaminants or other substances
removed or reduced by this drinking water
system are not necessarily in your water. Do
not use with water that is microbiologically
unsafe or of unknown quality without
adequate disinfection before or after the
system. Systems certified for cyst reduction
may be used with disinfected water that may
contain filterable cysts.
Everpure water treatment systems (excluding replaceable elements)
are covered by a limited warranty against defects in material and
workmanship for a period of five years after date of purchase.
Everpure replaceable elements (filter cartridges and water treatment
cartridges) are covered by a limited warranty against defects in
material and workmanship for a period of one year after date of
purchase. See printed warranty for details. Everpure will provide a
copy of the warranty upon request.
