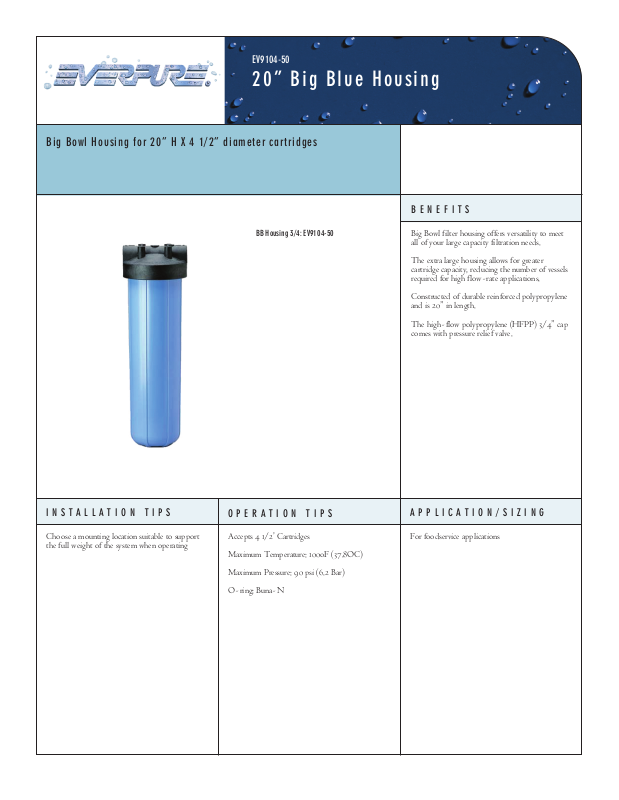

Page 1
BENEFITS
APPLICATION/SIZING
INSTALLATION TIPS
OPERATION TIPS
EV9104-50
20” Big Blue Housing
Big Bowl Housing for 20” H X 4 1/2” diameter cartridges
BB Housing 3/4: EV9104-50
BB Housing 3/4: EV9104-50
Big Bowl filter housing offers versatility to meet
all of your large capacity filtration needs.
The extra large housing allows for greater
cartridge capacity, reducing the number of vessels
required for high flow-rate applications.
Constructed of durable reinforced polypropylene
and is 20” in length.
The high-flow polypropylene (HFPP) 3/4” cap
comes with pressure relief valve.
Choose a mounting location suitable to support
the full weight of the system when operating
Accepts 4 1/2’ Cartridges
Maximum Temperature: 100oF (37.8OC)
Maximum Pressure: 90 psi (6.2 Bar)
O-ring: Buna-N
For foodservice applications
Page 2
Overall Dimensions:
23 3/8”H x 7.25”D
Inlet & outlet ports:
3/4” NPT
Maximum Temperature:
100°F (37.8°C)
Maximum Pressure:
90 psi (6.2 Bar)
O-ring:
Buna-N
The contaminants or other substances
removed or reduced by this system are not
necessarily in your water. Do not use with
water that is microbiologically unsafe or of
unknown quality with out adequate
disinfection before or after the system.
20” Big Blue Housing
Big Bowl Housing for 20” H X 4 1/2” diameter
Everpure water treatment systems (excluding replaceable elements)
are covered by a limited warranty against defects in material and
workmanship for a period of five years after the date of purchase.
Everpure replaceable elements (filter cartridges and water treatment
cartridges) are covered by a limited warranty against defects in
materials and workmanship for a period of one year after date of
purchase. See printed warranty for details. Everpure will provide a
copy of the warranty upon request.
Everpure
1040 Muirfield Drive
Hanover Park, IL 60133
