Pentair Everpure CGS-20 User Manual

BENEFITS

APPLICATION/SIZING

INSTALLATION TIPS

OPERATION TIPS

DEV9100-20

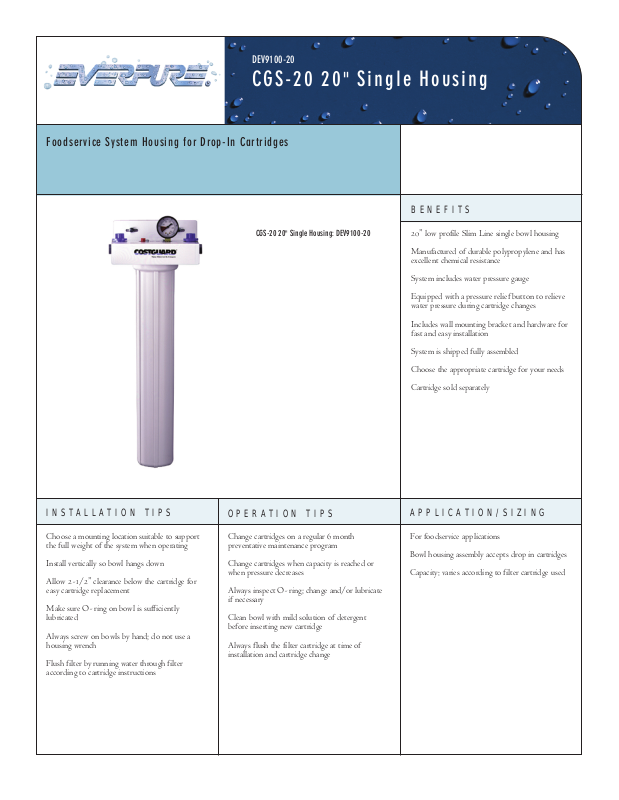

CGS-20 20" Single Housing

Foodservice System Housing for Drop-In Cartridges

CGS-20 20" Single Housing: DEV9100-20

20" low profile Slim Line single bowl housing

Manufactured of durable polypropylene and has excellent chemical resistance

System includes water pressure gauge

Equipped with a pressure relief button to relieve water pressure during cartridge changes

Includes wall mounting bracket and hardware for fast and easy installation

System is shipped fully assembled

Choose the appropriate cartridge for your needs

Cartridge sold separately

Choose a mounting location suitable to support the full weight of the system when operating

Install vertically so bowl hangs down

Allow 2-1/2” clearance below the cartridge for easy cartridge replacement

Make sure O-ring on bowl is sufficiently lubricated

Always screw on bowls by hand; do not use a housing wrench

Flush filter by running water through filter according to cartridge instructions

Change cartridges on a regular 6 month preventative maintenance program

Change cartridges when capacity is reached or when pressure decreases

Always inspect O-ring; change and/or lubricate if necessary

Clean bowl with mild solution of detergent before inserting new cartridge

Always flush the filter cartridge at time of installation and cartridge change

For foodservice applications

Bowl housing assembly accepts drop in cartridges

Capacity: varies according to filter cartridge used

Overall Dimensions: 25”H x 9.25”W x 5.25”D

Inlet connection: 3/8”

Outlet connection: 3/8”

Service Flow Rate: Maximum 2.0 gpm (7.6 Lpm)

Pressure Requirements: 30 - 125 psi (2.1 – 8.6 bar), non-shock

Temperature: 40 - 100°F (4.4 - 38°C)

No electrical connection required

CGS-20 20" Single Housing

The contaminants or other substances removed by this drinking water system are not necessarily in your water. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

Everpure water treatment systems (excluding replaceable elements) are covered by a limited warranty against defects in material and workmanship for a period of five years after date of purchase. Everpure replaceable elements (filter cartridges and water treatment cartridges) are covered by a limited warranty against defects in material and workmanship for a period of one year after date of purchase. See printed warranty for details. Everpure will provide a copy of the warranty upon request.
