Pentair Everpure CES-2850M-102 User Manual
B E N E F I T S
A P P L I C A T I O N / S I Z I N G
I N S T A L L A T I O N T I P S
O P E R A T I O N T I P S

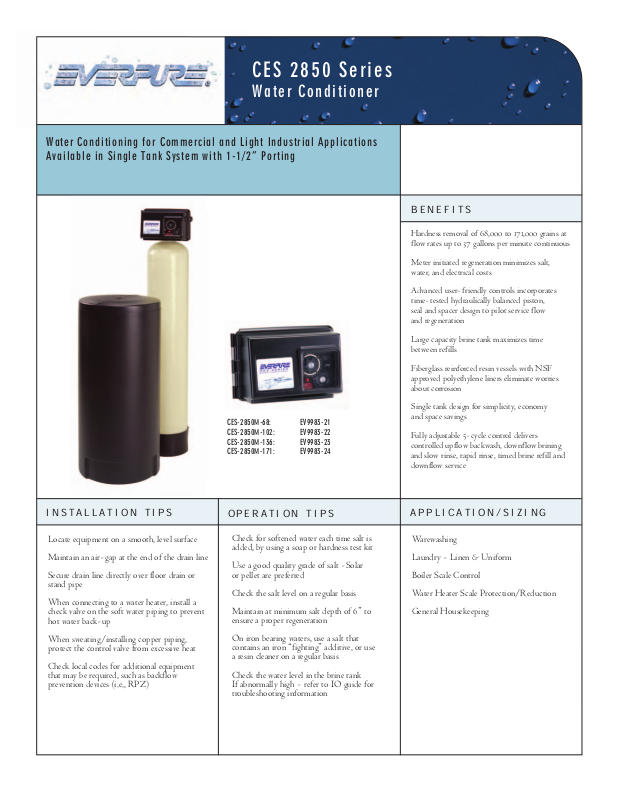

CE S 285 0 Ser ies
Wate r C onditio ner
Water Conditioning fo r Co mmer cial and Lig ht I ndus trial Applications
Available in Sing le T ank Syst em w ith 1-1/ 2” P orting
Hardness removal of 68,000 to 171,000 grains at
flow rates up to 37 gallons per minute continuous
Meter initiated regeneration minimizes salt,
water, and electrical costs
Advanced user-friendly controls incorporates
time-tested hydraulically balanced piston,
seal and spacer design to pilot service flow
and regeneration
Large capacity brine tank maximizes time
between refills
Locate equipment on a smooth, level surface
Maintain an air-gap at the end of the drain line
Secure drain line directly over floor drain or
stand pipe
When connecting to a water heater, install a
check valve on the soft water piping to prevent
hot water back-up
When sweating/installing copper piping,
protect the control valve from excessive heat
Check local codes for additional equipment
that may be required, such as backflow
prevention devices (i.e., RPZ)
CES-2850M-68: EV9983-21
MRS-20T System: EV9797-92
CES-2850M-102: EV9983-22
CES-2850
M-136: EV9983-23
CES-2850
M-171: EV9983-24
4MR-1 Cartridge: EV9273-69
Check for softened water each time salt is
added, by using a soap or hardness test kit
Use a good quality grade of salt -Solar
or pellet are preferred
Check the salt level on a regular basis
Maintain at minimum salt depth of 6” to
ensure a proper regeneration
On iron bearing waters, use a salt that
contains an iron “fighting” additive, or use
a resin cleaner on a regular basis
Check the water level in the brine tank
If abnormally high - refer to IO guide for
troubleshooting information
Fiberglass reinforced resin vessels with NSF
approved polyethylene liners eliminate worries
about corrosion
Single tank design for simplicity, economy
and space savings
Fully adjustable 5-cycle control delivers
controlled upflow backwash, downflow brining
and slow rinse, rapid rinse, timed brine refill and
downflow service
Warewashing
Laundry - Linen & Uniform
Boiler Scale Control
Water Heater Scale Protection/Reduction
General Housekeeping
Overall Dimensions (inches):
CE S 285 0 Ser i e s
CE S SE RI ES
WATER C O ND I T I ON E R
MRS-20T
Model
Number
CES-2850M-68
CES-2850M-102
CES-2850M-136
CES-2850M-171
Width Depth Height
(A) (B) (C)
37 23 63
45 28 74
46 28 74
49 28 77
Inlet Connection:
1.5” FNPT
Outlet Connection:
1.5” FNPT
Service Flow Rate (GPM):
Model
Number
CES-2850M-68
CES-2850M-102
CES-2850M-136
CES-2850M-171
Cont. @
15 PSI DP
27 35
32 42
34 44
37 48
Rated Capacity (grains):
CES-2850M-68 68,000
CES-2850M-102 102,000
CES-2850M-136 136,000
CES-2850M-171 171,000
Pressure Requirements:
25-100 PSI (1.7 -6.9 bar) non-shock
Peak @
25 PSI DP
C
2
"
Everpure water softening systems are covered by a limited warranty
against defects in material and workmanship for the following periods:
◆Complete System - 1 year
◆Control Valve - 5 years
◆Mineral Tank(s) -
◆6-13” diameter - 10 years
◆14” diameter and larger - 5 years
See printed warranty for details. Everpure will provide a copy of the
warranty upon request.
GREBIF
SSAL
ETFO
REN
S
KNAT
YLOP
ENIRB
KNAT
"2
A
"
2
B
"2
"2
The contaminants or other substances removed or
reduced by this water conditioning system are not
necessarily in your water. Do not use with water that is
microbiologically unsafe or of unknown quality
without adequate disinfection before or after the
system. Systems certified for cyst reduction may be used
with disinfected water that may contain filterable cysts.
Temperature:
40º F to 100º F
Electrical:
115 VAC/60 HZ/1 Phase
Shipping Weight:
CES-2850M-68 200 lbs.
CES-2850M-102 290 lbs.
CES-2850M-136 360 lbs.
CES-2850M-171 450 lbs.
Operating Weight:
CES-2850M-68 860 lbs.
CES-2850M-102 1420 lbs.
CES-2850M-136 1600 lbs.
CES-2850M-171 1820 lbs.
Everpure, LLC
1040 Muirfield Drive
Hanover Park, IL 60133
Ph: 630-307-3000 Fax: 630-307-3030
