Pentair MagicBowl Water Effect Installation And User Manual

COLORFX Water Bowl Installation and User’s Guide

IMPORTANT SAFETY INSTRUCTIONS

READ AND FOLLOW ALL INSTRUCTIONS

SAVE THESE INSTRUCTIONS

MAGICBOWL™ WATER EFFECT
WITH FIREFX™ LED LIGHT

FOR POOL AND SPA

INSTALLATION

AND

USER’S GUIDE

MAGICBOWL Water Effect Installation and User’s Guide

II

Technical Support

Phone: [phone]

Web sites: www.pentairpool.com.au

Contents

IMPORTANT WARNING AND SAFETY INSTRUCTIONS.....................................iii

Overview.................................................................................................................1

Operating MagicBowl Water Effect Using a Wall Switch.........................................1

Operating MagicBowl Water Effect Using Automation Control System..................1

Using an External Transformer for Multiple MagicBowl Water Effects .................. 2

Maximum wattage when using multiple FireFX LED Light and

IntelliBrite Color LED lights (using a 300 Watt Transformer)..................................2

Powering On the FireFX LED Light........................................................................2

Installing the MagicBowl Water Effect and Niche (new pool construction).............3

Installing the MagicBowl Water Effect Niche

(after electrical requirements are met)...................................................................4

Important General Precautions..............................................................................4

Installing the FireFX LED Light Assembly (After Niche Installation)......................6

Installing the MagicBowl Water Effect Assembly on the Niche..............................8

Replacing FireFX LED Light Assembly (in an existing installation)......................10

Replacing FireFX LED Light Assembly (after electrical requirements are met)....11

Winterizing the MagicBowl Water Effect..………..................................................12

Pressure Testing the MagicBowl Water Effect......................................................12

Connecting MagicBowl Water Effect to the Automation Control System..............13

Setting up MagicBowl Water Effect with the Automation Control System............15

Troubleshooting ..................................................................................................17

MagicBowl Water Effect Replacement Parts List.................................................18

MagicBowl Water Effect Niche Dimensions ........................................................19

READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL.

P/N 590181 Rev A - 12/2016

LISTED
E344048

MAGICBOWL WATER EFFECT Installation and User’s Guide

III

Most states and local codes regulate the construction, installation,
and operation of public pools and spas, and the construction of
residential pools and spas. It is important to comply with these codes, many of which
directly regulate the installation and use of this product. Consult your local building and
health codes for more information.

SERIOUS BODILY INJURY OR DEATH CAN RESULT IF THIS
PRODUCT IS NOT INSTALLED AND USED CORRECTLY.

INSTALLERS, POOL OPERATORS AND POOL OWNERS MUST
READ THESE WARNINGS AND ALL INSTRUCTIONS BEFORE
USING THE MAGICBOWL™ AND FIREFX™ LED LIGHT.

Before installing this product, read and follow all warning notices

and instructions in this Guide. Failure to follow warnings and
instructions can result in severe injury, death, or property damage.
Call [phone] for additional free copies of these instructions. Please refer to www.
pentairpool.com for more information related to this products.

IMPORTANT NOTICE - Attention Installer: This Installation and User’s

Guide (“Guide”) contains important information about the installation, operation
and safe use of this underwater light. This Guide should be given to the o wner
and/or operator of this equipment.

IMPORTANT WARNING AND SAFETY INSTRUCTIONS

Before working on or servicing lights, always disconnect
power to the lights at the source circuit breaker from the
light before servicing the light. Failure to do so could result
in death or serious injury to service person, pool users or
others due to electric shock. When installing and using this
electrical equipment, basic safety precautions should always
be followed, include the following:

This underwater light must be installed by a licensed or certified electrician or a
qualified pool professional in accordance with the current National Electrical Code
(NEC), NFPA 70 or the Canadian Electrical Code (CEC), CSA C22.1. All applicable
local installation codes and ordinances must also be adhered to. Improper
installation will create an electrical hazard which could result in death or serious
injury to pool users, installers or others due to electrical shock, and may also cause
damage to power source. Always disconnect the power to the pool light at the
circuit breaker before servicing the light. Failure to do so could result in death or
serious injury to ser viceman, pool users or others due to electrical shock.

RISK OF ELECTRICAL SHOCK OR ELECTROCUTION:
UNDERWATER POOL LIGHTS REQUIRE HIGH VOLTAGE WHICH
CAN SHOCK, BURN, OR CAUSE DEATH.

For countries in compliance with International Electrotechnical
Commission (IEC) regulatory standards: The light fixture must

be installed by a licensed or certified electrician or a qualified pool service person, in
accordance with IEC 364-7-702 and all applicable local codes and ordinance. Improper
installation will create an electrical hazard, which could result in death or serious injury
to pool user, installer or other due to electrical shock and may also cause damage to the
property.

MAGICBOWL Water Effect Installation and User’s Guide

IV

IMPORTANT WARNING AND SAFETY INSTRUCTIONS

NOTICE: The external flexible cable or cord of this luminaire cannot be replaced; if
the cord is damaged, the luminaire shall be destroyed.

The FIREFX™ LED light is a 12 VAC system. ONLY USE an
approved 12 volt AC transformer, sold separately. When using a Junction Box,
connect 12 volt AC connections to junction box terminals. Never connect the light
directly to high voltage lines.

Under no circumstances replace lights by splicing wire under water or
behind niche.

INSTALLERS AND INSPECTORS: THE FIREFX LIGHT AND PLASTIC NICHE
FORM A COMPLETE NON-METALLIC LOW VOLTAGE LIGHTING SYSTEM. THIS
CONFIGURATION DOES NOT REQUIRE BONDING OR GROUNDING WHEN
POWERED BY A LISTED 100 WATT OR 300 WATT 12 VAC TRANSFORMER AND
INSTALLED IN COMPLIANCE WITH THE CURRENT NATIONAL ELECTRIC CODE
(NEC). UNBONDED LIGHTING NEC PROVISIONS.

WHEN THE UL LISTED NON-METALLIC FIREFX LIGHT LOW VOLTAGE LIGHTS ARE
USED WITH THE LIGHT APPROVED NICHE, THE CURRENT NEC PROVIDES AN
EXCEPTION TO LUMINAIRE BONDING AND GROUNDING IN ARTICLE 680.6 AND

680.23 POOL WATER BONDING NEC PROVISIONS: FOR POOL WATER BONDING
REQUIRED BY NEC ARTICLE 680.26C, CONCRETE POOLS ARE CONSIDERED
CONDUCTIVE (REFER TO 680.26 (B)(1) DUE TO THE POROSITY OF CONCRETE
AND THE BONDING OF REBAR. NO ADDITIONAL BONDING IS REQUIRED.

IMPORTANT NOTICE:

THE FIREFX LIGHT IS A NON-SERVICEABLE LIGHT. THE

COMPLETE LIGHT ASSEMBLY MUST BE REPLACED.

MAGICBOWL WATER EFFECT Installation and User’s Guide

1

MagicBowl™ Water Effect With FireFX™ LED Light

Overview

This manual describes how to install and replace the MagicBowl Water Effect with FireFX
LED Light.

The MagicBowl Water Effect, in combination with the FireFX LED Light assembly (sold
separately), includes a water fountain bowl with an elegant lighted fire effect. The low
voltage and minimal water flow requirements make the MagicBowl Water Effect an ideal,
energy-efficient addition to pools, fountains, ponds and more. The sculpted bowl shape is
made of a durable UV-resistant material with a metallic composite finish, to suit your tastes
and accent your poolscape with style. Glowing and flickering lights create a dramatic flame
effect that brings the fountain to life.

The MagicBowl Water Effect bowls are hand crafted and hand finished for your enjoyment
with designed in surface irregularities to make the bowls unique. There may be a slight
difference in character, patina, and appearance from bowl to bowl, this is normal and
expected.

If multiple LED lighting is being used, it is recommended that these lights be run
independent of each other, using a separate transformer for each group or type of light.
Otherwise all lights connected to the same transformer will be working together. See page
2 for more information.

MagicBowl Water Effect can be controlled using a standard wall-mount light switch.
Multiple MagicBowl Water Effect can be connected via a junction box to a single switch so
that all lights can be switched on and off together. The lights are controlled by cycling the
AC power to the 12 VAC power supply and from there to the lights from a standard wall
switch.

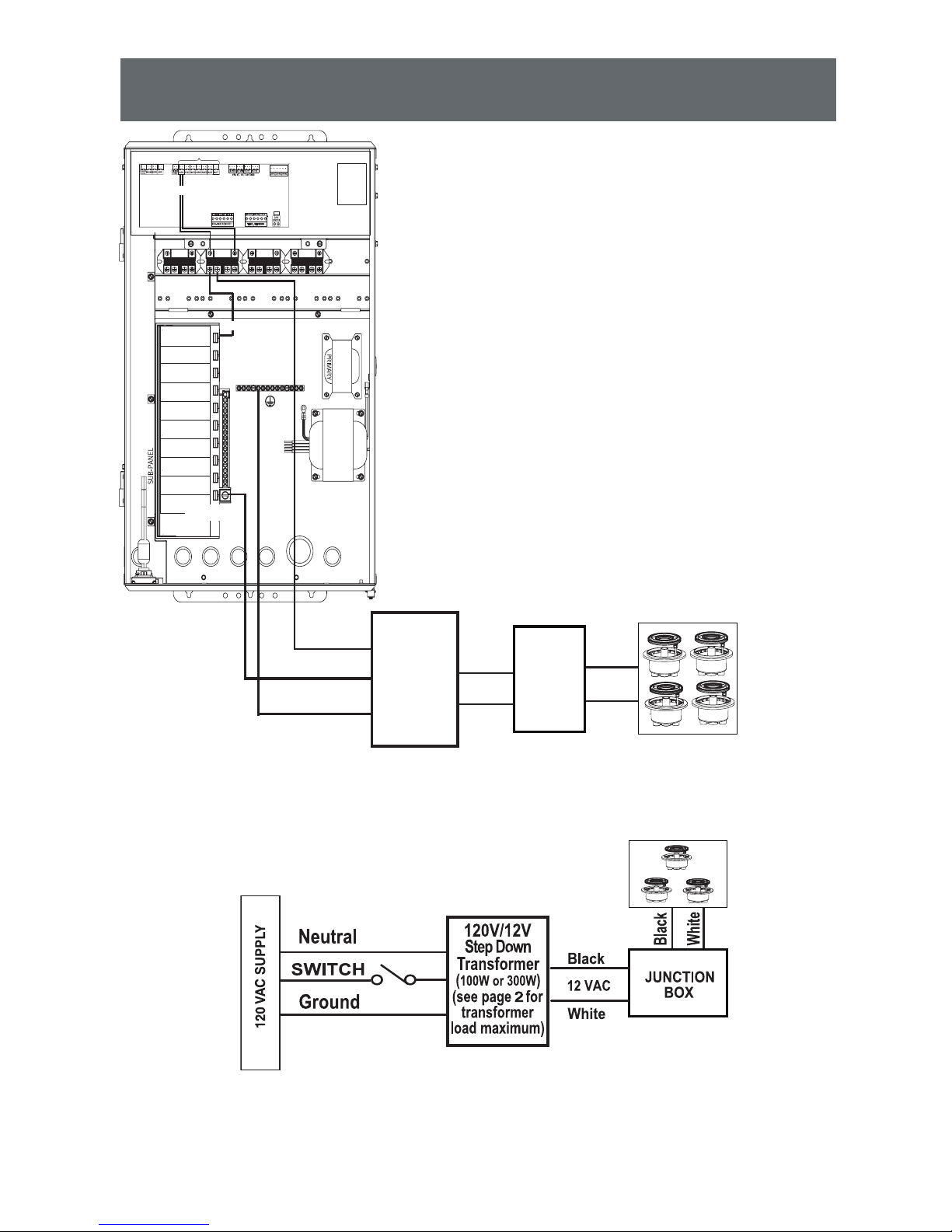

Operating MagicBowl Water Effect Using a Wall Switch

Operating MagicBowl Water Effect Using Automation Control
System

MagicBowl Water Effect can also be automatically controlled via a Pentair IntelliTouch®
and EasyTouch® Control Systems. For more information refer to the IntelliTouch Control
System User’s Guide (P/N 521075), EasyTouch Control System User’s Guide (P/N

521044). For more information, see page 15.

MAGICBOWL Water Effect Installation and User’s Guide

2

Maximum wattage when using multiple FireFX LED Lights and
IntelliBrite

®

Color LED lights (using a 300 Watt Transformer)

IMPORTANT! When using multiple 12 VAC FireFX LED Light, IntelliBrite® Light and

IntelliBrite Landscape Lights, the total allowable light wattage is 300 Watts maximum.
A transformer should only be loaded to 80% of its capability. For example, a 300 watt
transformer should have a maximum of 240 watts attached to it. FireFX LED Light and
IntelliBrite LED light wattages are as follows:

• One FireFX LED Light is 25 Watts maximum

• One ColorVision

™

Light is 15 Watts maximum

• One IntelliBrite Color LED Pool Light is 30 Watts maximum

• One IntelliBrite Color LED Spa Light is 18 Watts maximum

• One IntelliBrite Landscape Light is 15 Watts maximum

• One MagicStream® Laminar Light is 16 Watts maximum

• One GloBrite® LED Pool Light is 15 Watts maximum

• One AmerBrite® White LED (500W) Pool Light is 51 Watts maximum

• One AmerBrite White LED (400W) Pool light is 44 Watts maximum

• One AmerBrite White LED (300W) Pool Light is 36 Watts maximum

• One AmerBrite Color LED Pool Light is 36 Watts maximum

Note: If multiple LED lighting is being used, it is recommended that these lights be run
independent of each other, using a separate transformer for each group or type of light.
Otherwise all lights connected to the same transformer will be working together.

Powering On the FireFX LED Light

When the FireFX LED light is powered on, the light will begin to flicker different shades
of red, orange, yellow to mimic the glow of fire. This flickering is normal and is the
intended mode of operation.

Using an External Transformer for Multiple MagicBowl™ Water Effects

When using multiple FireFX™12 VAC LED Lights on a 100 Watt transformer, it is
recommended that no more than three (3) FireFX LED lights be used. It is also
recommended not to exceed 150 feet of total cable run between the transformer and
lights. Note: For long cable lengths, set transformer to 14 VAC, and use only FireFX
LED lights with the 150” cord option, see diagram below.

Note: If a longer cable
run is necessary, it is
recommended that
separate 100 Watt
12 V AC transformers
be used for each
light with no more
than 150 feet of total
cable run between the

transformer and lights.

J Box

12 Gauge

(Minimum)

150 ft.

100 Watt

Transformer

MAGICBOWL WATER EFFECT Installation and User’s Guide

3

The following describes how to install the MagicBowl Water Effect niche.

Be sure that the pool or spa meets the requirements of the current National Electrical
Code (NEC) Article 680-22 and all local codes and ordinances. A licensed or certified
electrician must install the electrical system to meet or exceed those requirements
before the underwater light is installed. Some of the requirements of the National
Electrical Code which the pool’s electrical system must meet are as follows:

• The lighting circuit has a Ground Fault Circuit Interrupter (GFCI) for
120 VAC line voltage models, and has an appropriately rated circuit
breaker. The conductors on the load side of the GFCI circuit shall
not occupy conduit, boxes, or enclosures containing other conductors
unless the additional conductors are also protected by a GFCI. Refer
to local codes for complete details.

• The Junction Box and the low voltage transformer is located at least
4 in (10.16 cm) above ground level or 8 in (20.3 cm) above maximum
water level in the bowl, whichever is higher. The Junction Box must be
at least 48 in (1.22 m) from the edge of the pool.

• To be cer tain that the pool or spa electrical system meets all
applicable requirements, the electrician should also consult the local
building department.

BEFORE STARTING: The following instructions must be completed by the
electrician before the FireFX™ LED Light fixture is installed.

INST ALLING THE MAGICBO WL™ WATER EFFECT AND NICHE

(NEW POOL CONSTRUCTION)

MAGICBOWL Water Effect Installation and User’s Guide

4

INSTALLING THE MAGICBOWL™ WATER EFFECT AND NICHE

(AFTER ELECTRICAL REQUIREMENTS ARE MET)

• The MagicBowl Water Effect niche is designed for 1-1/2 in (3.81 cm) PVC pipe for the
water supply and 1 in (2.54 cm) conduit for the light cable and drain line.

• Water supply line should be installed with a check valve so the bowl doesn’t drain off
water when not in use.

• Water line should be installed with an adjustable control valve so you can adjust the
water flow to the bowl for desired effect.

• The bowl should be installed so that the water flowing out of the bowl is flowing into
the pool, spa or fountain.

• The bowl must be installed level or water will not flow out evenly from the spout.

• Minimum water flow is 10 GPM. Actual flow will vary with individual preference,
typical flow is around 15-20 GPM. Water will start to overflow the bowl at 25 GPM.

• There is a groove cut on the underside of the spillway to prevent water from running
down the side of the bowl. Should water start to drip from the underside of the
spillway, the water flow should be adjusted to a flow rate that eliminates or minimizes
the drips. Some water dripping may be unavoidable due to water flow, surface
conditions, or irregularities on the lip.

• If the FireFX™ LED light assembly is not installed in the provided niche, the LED light
will be damaged and the warranty void.

• Splicing of the light engine cable is not permitted unless done in a waterproof junction
box. An unapproved wire splicing will void the warranty.

• The electrical junction box must be installed above the highest water level in the bowl.
If the junction box is installed below the top level of the bowl, water may leak from the
bowl into the conduit and fill the junction box with water.

• DO NOT REMOVE THE ATTACHED BULKHEAD ASSEMBLY FROM THE BOWL
PRIOR TO INSTALLA TION.

• The bulkhead assembly MUST be glued to the niche while installed on the bowl.

• Only install bowl after your finish tile and or cap stone as bowl will sit upon this
surface once installed.

• Be sure the niche is secured in its holding structure to prevent the bowl from tipping
over if pulled upon.

• A drain line should be plumbed in the niche to prevent water from collecting in the
niche.

Important General Precautions - Read this Information Before Installation
