Pentair Deck Jet II MagicStream User Manual

MagicStreamTM Deck Jet II

Installation Instructions

Kit (P/N 580003) Contents

• Deck Jet Body — (Qty 4)

• Nozzle Kit (P/N 590041) — (Qty 4)

• Deck Jet Cover (P/N 590042) — (Qty 4)

Note: Each kit contains parts for four (4) MagicStream Deck Jet II units.

W ARNING — FOR YOUR SAFETY: This product must be installed and serviced by

a professional pool/spa service technician. The procedures in this
manual must be followed exactly . Improper inst allation and/or
operation will void the warranty .

This document gives instructions for installing the Pentair
MagicStream Deck Jet II. Read through the instructions completely
before starting the procedure..

Technical support

Sanford, North Carolina (8 A.M. to 5 P.M. - ET)
Moorpark, California (8 A.M. to 5 P.M. - PT)

Phone: [phone]
Fax: [phone]

Web sites: www.pentairpool.com - www.staritepool.com

590043 ( Rev A) 2/1/2008

1

Overview

The MagicStream Deck Jet II is designed to be installed in the deck or landscaping surrounding the pool,
spa, fountain, or pond. The Deck Jet’ s swivel nozzle (Figure 1) produces a 5/16" stream of water. The
Deck Jet body is equipped with two, 3/16” drain holes to allow water to drain from the cup surrounding the
nozzle into the drain cavity at the base of the body (Figure 1). Be sure to keep the drain holes clear of
debris. T o aid in draining, Pentair recommends placing a gravel layer beneath the Deck Jet.

Deck Jet cover (P/N 590042)

Gravel layer

Figure 1

Water drains
into gravel layer

Swivel nozzle
Swivel base

Cup

Drain holes

Drain cavity

These 2 parts are
contained in the
nozzle kit (P/N
590041

Pentair recommends that each Deck Jet be fitted with a ¾" ball valve to allow flow control for each nozzle.
For installations involving multiple nozzles, we recommend installing a 3-way valve on the main line near the
pump for overall adjustment.

The Deck Jet is designed for a maximum flow rate of 5GPM at 11 ft of head (See table below).

Water/Pressure Specifications

Gallons (US GPM) 3.0 4.0 5.0
Feet of head 3..9 7.9 11.0
Height of jet 3.0 6.6 10.0

2

Installation

The Deck Jet body is designed to be connected to a 3/4” Sch40 PVC pipe (Figure 2). After the pipe is
pressure tested, solvent weld the Deck Jet body to the 3/4” supply pipe. NOTE: Use PVC/ABS glue only.
Anchor the Deck Jet body, with the Deck Jet cover attached, so the cover is level with the finished deck
surface.

Swivel base

By hand, push the swivel
nozzle on to the swivel base
until it snaps into place

Swivel nozzle

Attach Teflon tape to the swivel
base and screw the swivel
base into the Deck Jet body

¾” Sch40 pipe slip
connection

Solvent weld ¾” supply
pipe to ¾” Sch40 pipe
slip connection

¾” supply pipe

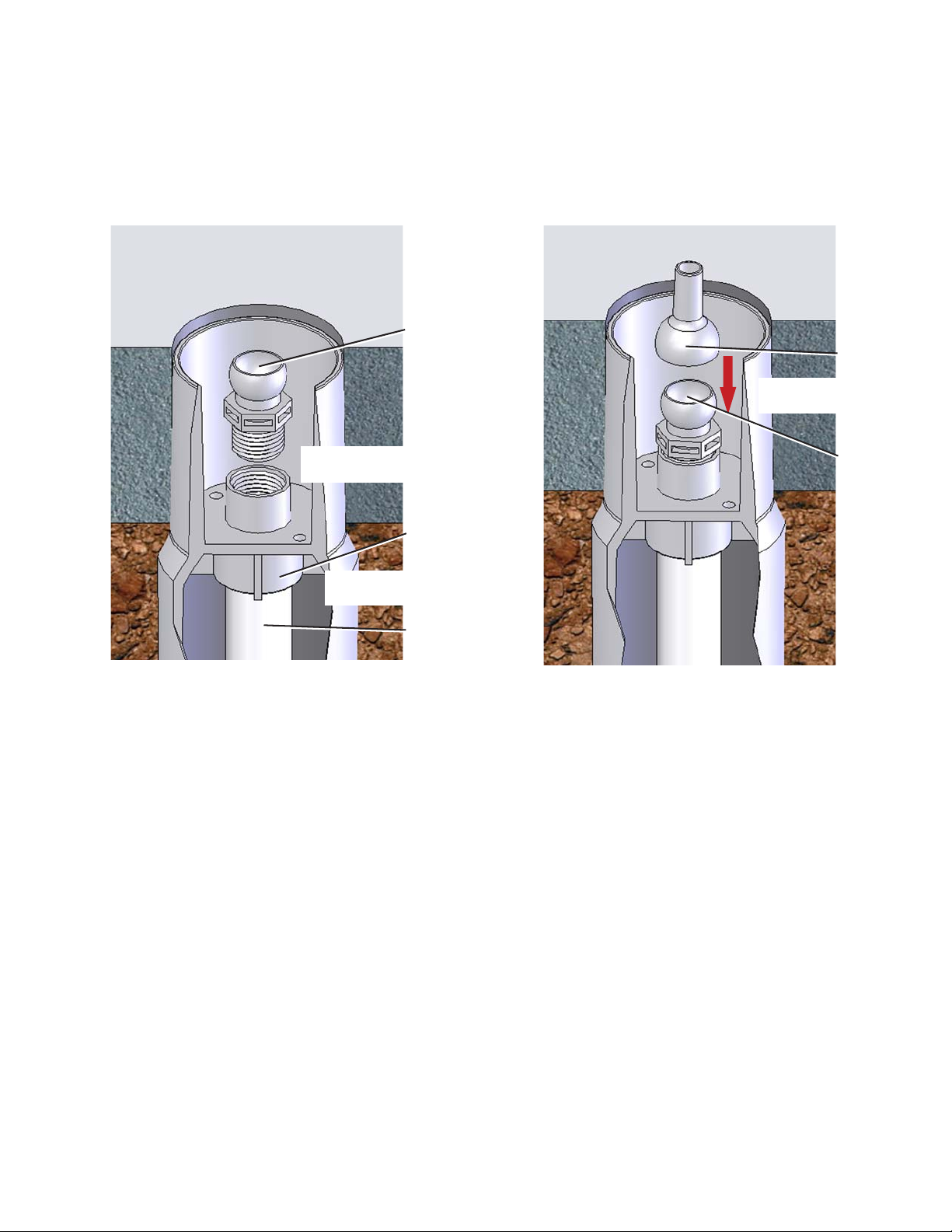

Figure 2

Figure 3

Once the deck is finished, flush any debris from the supply pipe using the pump and filter system that
supplies the Deck Jet. Apply Teflon® tape to the threads of the swivel base. Remove any debris from the
cup and screw the swivel base into the Deck Jet body (Figure 2).

By hand, push the swivel nozzle until it snaps onto the swivel base (Figure 3).

Operation

Start the pump and adjust the appropriate valves as necessary to create the desired water effect.

Swivel base

If the stream of water is disrupted, remove the Deck Jet Cover, Jet and Jet Swivel Base. Check to see if
there is any debris blocking the Jet.

To winterize, remove the Jet and Jet Swivel Base. Blow the lines clear with air, and install a 1/2” threaded
plug.

3
