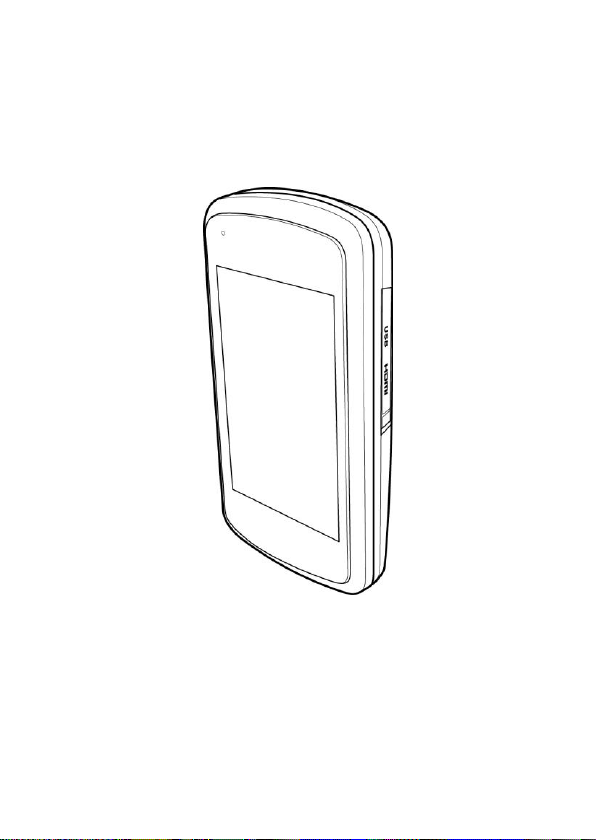

3D Digital Video Camera
User’s Manual
i
Table of Contents
About this manual ............................................................ iv
Copyright .......................................................................... iv
Precautions ....................................................................... v
Before You Start ............................................................. viii
Copyright information ................................................... viii
1 Introducing the camcorder........................ 1
1.1 System requirements ............................................... 1
1.1.1 Standard system requirements ....................... 1
1.1.2 System requirements (for 3D video playback)1
1.2 Features .................................................................. 1
1.3 Unpacking the camcorder ...................................... 2
1.4 About the camcorder .............................................. 3
1.4.1 Front view ................................................... 3
1.4.2 Bottom view ............................................... 3
1.4.3 Right view ................................................... 4
1.4.4 Left view ..................................................... 4
1.4.5 Back view .................................................... 5
1.4.6 Operating the camcorder .......................... 5
2 Getting started ............................................ 8

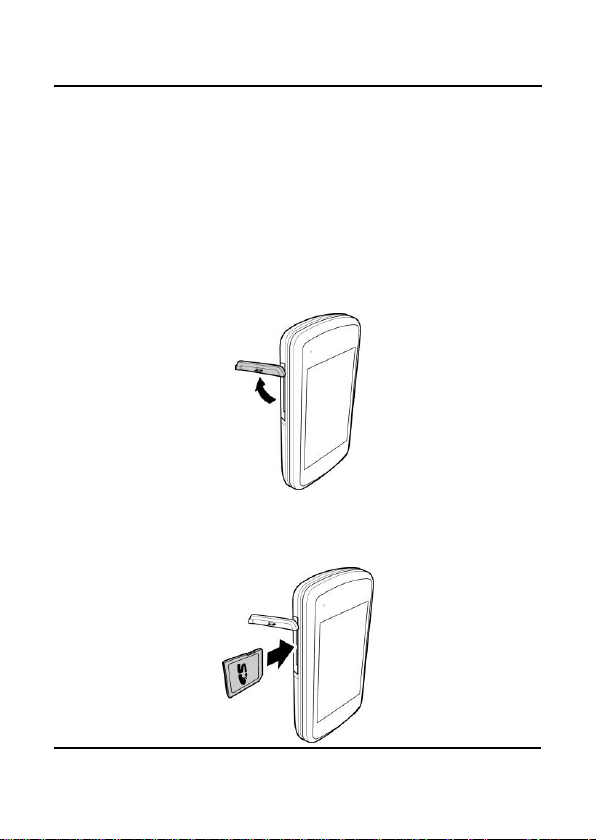

2.1 Inserting an SD card .............................................. 8
2.2 Inserting the battery ............................................... 9

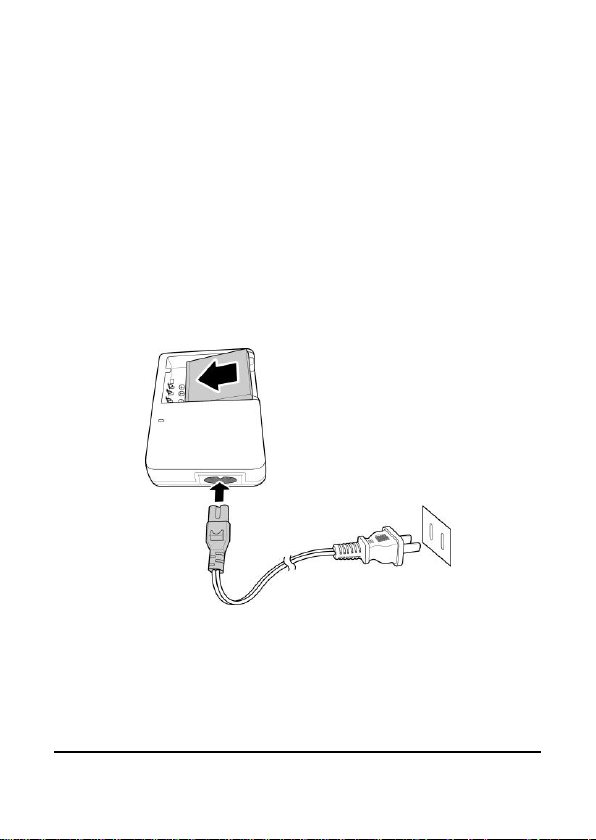

2.3 Charging the battery............................................. 11
2.4 Turning on/ off the camcorder ............................. 12

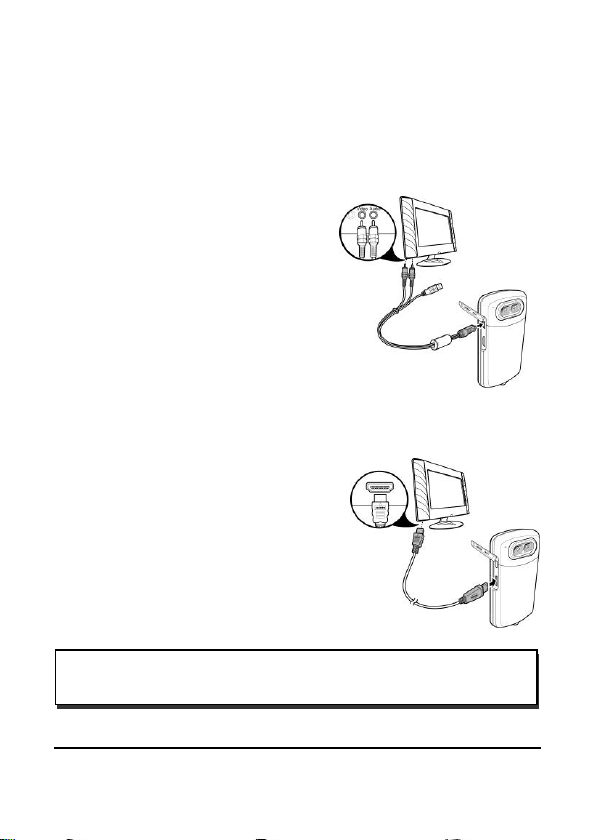

2.5 Connecting to TV (AV Cable) ............................... 12
ii
2.6 Connecting to TV (HDMI Cable)......................... 12
2.7 Connecting to PC (USB Cable) ............................ 13
2.8 Changing modes ................................................... 13
2.9 Before you start .................................................... 13

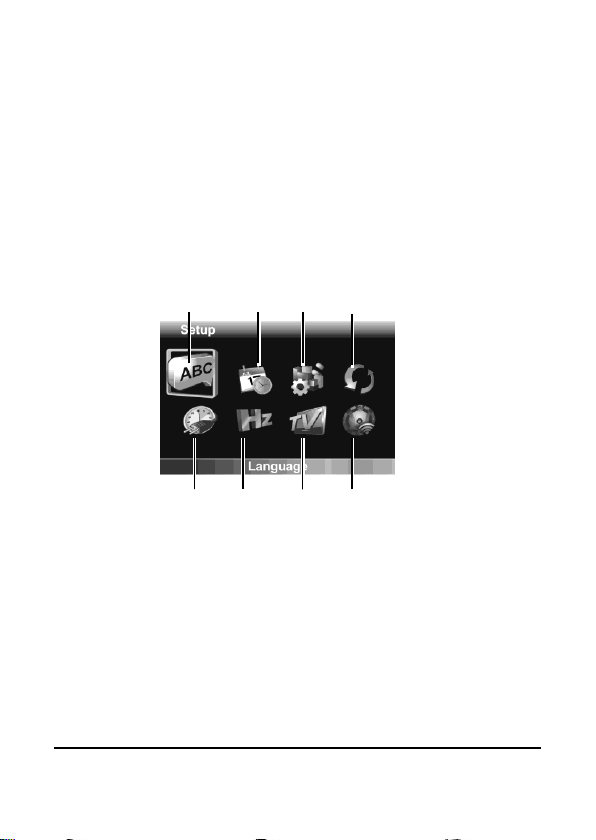

2.9.1 Managing the Setup mode ...................... 14
2.9.2 Language .................................................. 15
2.9.3 Date / Time .............................................. 15
2.9.4 Format ....................................................... 16
2.9.5 Default ....................................................... 16

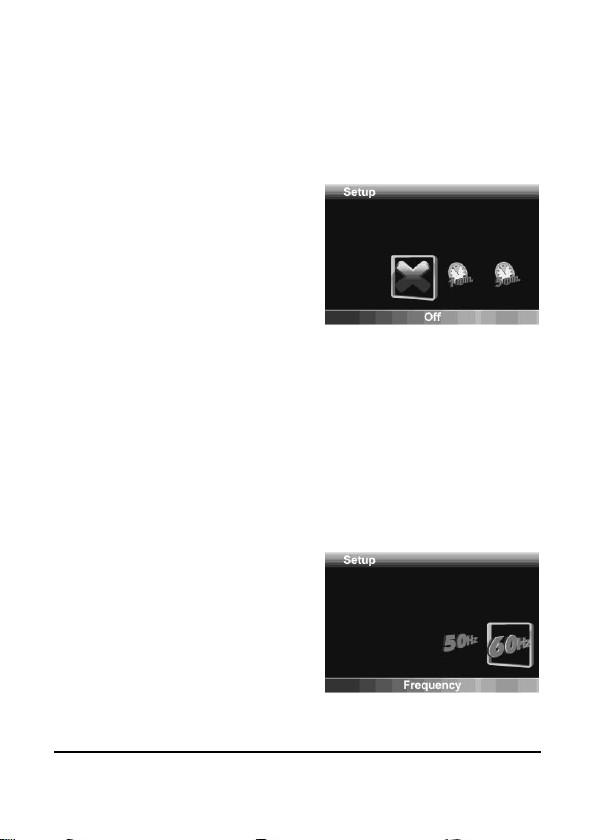

2.9.6 Auto Power Off ........................................ 17
2.9.7 Frequency ................................................. 17
2.9.8 TV Standard.............................................. 18
2.9.9 Beep ........................................................... 18
3 Using the Camcorder ............................... 19
3.1 Recording Videos .................................................. 19

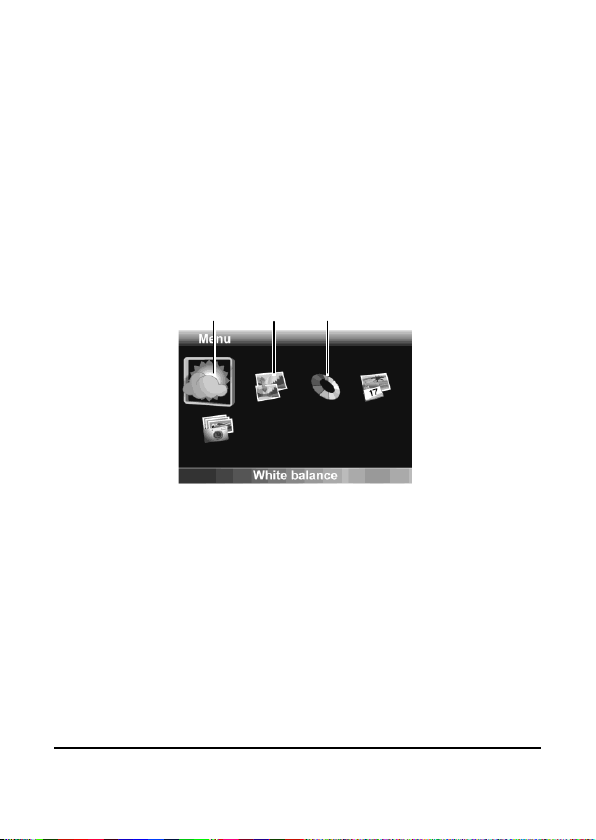

3.2 Video Mode Menu ................................................ 22
3.2.1 White Balance ........................................... 23
3.2.2 Resolution ................................................. 24
3.2.3 Color .......................................................... 24
3.3 Playback Videos .................................................... 25
3.3.1 Playback Videos ....................................... 25
3.4 Deleting Videos ..................................................... 27
3.5 Shooting Photos ................................................... 28
3.6 Camera Mode Menu............................................. 31
3.6.1 White Balance ........................................... 32
3.6.2 Resolution ................................................. 33
iii
3.6.3 Color .......................................................... 33
3.6.4 Date Stamp ............................................... 34
3.6.5 Continuous Shooting ............................... 34
3.7 Playback Photos ................................................... 35
3.7.1 Playback Photos ....................................... 35
3.8 Deleting Photos .................................................... 37
Specifications .................................................................. 38
Troubleshooting .............................................................. 40
iv
Preface
Congratulations on your purchase of this advanced camcorder.
Ensure that you read this manual carefully and keep it in a safe
place for future reference.
About this manual
Every effort has been made to ensure that the contents of this
manual are correct and up to date. However, no guarantee is made
regarding the accuracy of the contents. If the contents of this
manual do not tally with the camera, please take the camera as a
criterion, and our company reserves the right to change the
contents or technical rules without notice in advance. Also, the
manufacturer reserves the right to change the technical specification
in advance without notice.
If the accessories do not tally with the actual package, please take
the actual package as a criterion.
Copyright
© Copyright 2010.
All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system or translated
into any language or computer language, in any form or by any
means, electronic, mechanical, magnetic, optical, manual or
otherwise, without the prior written permission of the
manufacturer.
v
Precautions
General precautions
Do not use or store the product in dusty, dirty, or sandy areas,
as its components may be damaged.
Do not store the product in a hot environment. High
temperatures can shorten the life of electronic devices, damage
batteries and warp or melt certain plastics.
Do not store the product in cold areas. When the product
warms up to its normal temperature, moisture can form inside,
which may damage the electronic circuits.
Do not attempt to open the casing or attempt your own repairs.
High-voltage internal components create the risk of electric
shock when exposed.
Do not drop or knock the product. Rough handling may
damage the internal components.
Do not use harsh chemicals, cleaning solvents or strong
detergents to clean the product. Wipe the product with a
slightly damp soft cloth.
Do not open battery cover while an image is being recorded.
Doing so will not only make storage of the current image
impossible, it can also corrupt other image data already stored
in file.
If the product or any of its accessories are not working
properly, take them to your nearest qualified service center.
The personnel there will assist you and if necessary, arrange
for the product to be repaired.
Test for proper operation before using the camera.
vi
Notes on the LCD Screen
Be very careful to ensure the fluid contained in the LCD screen does
not escape if the screen becomes cracked or damaged. If this occurs,
follow these steps:
If the fluids make contact with skin, wipe it with a clean cloth
then rinse with a large amount of water.
If the fluid makes contact with eyes, wash eyes with clean
water for at least 15 minutes and go to the hospital as soon as
possible.
If the fluid is swallowed, first rinse mouth with water, then
drink a large amount of water and induce vomiting. Go to the
hospital as soon as possible.
Operation conditions
This camera is designed for use in temperatures ranging from
0°C to 40°C (32°F to 104°F).
Do not use or keep the camera in the following areas:
- In areas subject to direct sunlight
- In areas subject to high humidity or dust
- Near air conditioners, heaters, or other areas subject to
temperature extremes
- Inside of a closed vehicle, especially one parked in the sun.
- In areas subject to strong vibration
Power supply
Use only the type of battery that came with your camera.
Using any other type of battery may damage the equipment
and invalidate the warranty.
Ensure the battery is inserted correctly. Inserting the battery
incorrectly can cause damage to the product and possibly start
a fire.
vii
Remove the battery if the camera is not going to be used for a
long time. If the battery is left unused for more than 3 months,
you need to charge the battery before use.
viii
Before You Start
Take some test shots before performing a formal
recording.
Before taking pictures with this DV camera in any important
occasion (such as a wedding ceremony or an overseas trip), do test
the DV camera beforehand to ensure that it functions properly. Any
additional loss caused by the malfunction of this product (such as
costs of photography or any loss of benefit generated by the
photography) is not the responsibility of the manufacturer and no
compensation will be given for it.
Copyright information
Take care to observe "No Photography" notices in certain locations.
In these cases, you cannot record any live performance,
improvisation or exhibits, even for personal purposes. Any transfer
of pictures or memory card data must be conducted under the
constraints of copyright law.
1
1 Introducing the camcorder
Read this section to learn about the features and functions of the
camcorder. This chapter also covers system requirements, package
contents, and descriptions of the hardware components.
1.1 System requirements
1.1.1 Standard system requirements
The camcorder requires a PC with the following specifications:
Windows® 7 / Vista / XP operating system
Intel® / AMD Dual-Core CPU or higher
At least 1 GB of RAM or higher
At least DirectX 9 video card, DirectX 10 is recommended
Standard USB 1.1 port or higher
At least 2GB or greater available hard disk
1.1.2 System requirements (for 3D video playback)
The camcorder requires a PC with the following specifications:
Windows® 7 / Vista operating system
3D ready monitor (120Hz)
3D ready computer
3D vision kits
1.2 Features
The camcorder offers a variety of features and functions including:
3D and 2D video/image shooting and playback
3.2” LCD 3D display
Parallax barrier auto-stereoscopic technology
USB mass storage
3D and 2D video/image playback
3D glasses not required
2
1.3 Unpacking the camcorder
Camcorder
User’s Manual
CD Rom
Li-ion Battery
Charger
Power Cable
Pouch
USB AV Cable
HDMI Cable
(Optional)
The following items should be present in the package. If any item is
missing or appears damaged, contact your dealer immediately.
3
1.4 About the camcorder
3D Button
LED Indicator
3D LCD
Panel
Navigation
Button
Mode Button
Menu/Delete
Button
Playback
Button
Charger
LED
Tripod Socket
Strap Holder
Refer to the following illustrations to familiarize yourself with the
buttons and controls of this camcorder.
1.4.1 Front view
1.4.2 Bottom view
4
1.4.3 Right view
HDMI,
USB Out
SD Card Compartment
1.4.4 Left view
5
1.4.5 Back view
Lens
Microphone
1.4.6 Operating the camcorder
To turn on the power, rotate the LCD panel (90°).
6
See the table below for a description of each button’s function.
Name
Button
Function
Mode
Button
Press to switch to different
modes: Video, Camera, or
Setup.
Playback
Button
Press to playback recorded
videos or photos.
3D Button
Press to toggle between 3D
and 2D modes.
Menu /
Delete
Button
In Video/Camera
mode, press to access
the Video/Camera
menu.
In Video/Camera menu
mode, press to return to
Video/Camera mode.
In Playback mode, press
to display the delete
menu.
Navigation
Button
Use the four-way
control to select items in
the menu and press the
middle button to
confirm.
Press up/down in
7
Name
Button
Function
Video/Camera mode to
adjust the EV settings.
In Video mode, press
the middle button to
start recording a video.
Press it again to stop
recording.
In Camera mode, press
the middle button to
take a picture.
In 2D Video or Camera
mode, press right to
zoom in or press left to
zoom out when
shooting videos or
photos.
In Video playback
mode, press up/down
to adjust the volume
level.
In photo playback
mode, press down to
view 4 thumbnail
images.
8
2 Getting started
Read this section to learn how to start using the camcorder. This
section covers basic functions such as switching on, inserting the
battery and memory card, and configuring preliminary settings. See
later chapters for advanced functions.
2.1 Inserting an SD card
An SD card can be installed in the camcorder to provide additional
storage space for still images, video clips, or other files.
1. Open the SD card door as shown in the illustration.
2. Insert the memory card. We recommend using a memory
card with a capacity of 1 GB or higher.
9
3. Close the SD card door.
Note:
Install the battery exactly as described here. Installing the
battery incorrectly could cause damage to the camcorder and
possibly start a fire.
2.2 Inserting the battery
This camcorder is designed to use a rechargeable Li-ion battery.
Only use the battery supplied by the manufacturer or your dealer.
1. Remove the battery cover as shown in the illustration.
.
10
2. Insert the battery. Make sure that the + and – symbols on the
Note:
Make sure that the battery cover is tightly closed to ensure
proper operation.
battery line up with the + and – symbols on your camcorder.
3. Close the battery cover.
11
2.3 Charging the battery
You can charge the battery with the charging unit provided. Follow
the below steps to charge your battery.
1. Insert the Li-ion battery into the charging bay. Connect
one end of the power cord to the charging unit and then
plug the other end to the wall outlet as shown.
2. The orange LED will light up for proper charging.
3. After full charge, the LED turns to green.
4. Actual charging time depends on current battery capacity
and charging conditions.
Approximate charging time is 120 minutes with a charger and 150
minutes with an USB connection.
12
2.4 Turning on/ off the camcorder
Note:
For 3D video playback, you need to use a 3D HDTV.
Rotate the LCD panel (90°) to turn the camcorder on/off.
2.5 Connecting to TV (AV Cable)
To view pictures or videos on a TV,
connect the camcorder to a TV using
the supplied AV cable as shown.
2.6 Connecting to TV (HDMI Cable)
You can also connect the camcorder to
a TV using the HDMI cable
(Optional).
13
2.7 Connecting to PC (USB Cable)
Connect the camcorder to a computer with the USB cable provided
as shown.
2.8 Changing modes
The camcorder can operate in three modes, Video, Camera, and
Setup. Press the Mode Button to toggle between Video, Camera,
and Setup modes. You can also press the 3D Button to toggle
between the 2D and the 3D modes. While shooting movies or 2D
photos, press the Menu Button to enter the Video or Camera menu
to adjust White balance, Resolution, Color, Date stamp, or
Continuous shooting.
2.9 Before you start
Before you start using the camcorder, some basic settings such as
date and time, languages and beep function need to be configured.
14
5 6 7
8
2 3 4
1
2.9.1 Managing the Setup mode
1. Language
5. Auto power off
2. Date/Time
6. Frequency
3. Format
7. TV standard
4. Default
8. Beep
To select a menu in the Setup mode, please do the following:
1. Press the Mode Button to switch to the Setup mode screen.
2. Use the Navigation Button to scroll through the
options/pages until the desired menu is highlighted. Please
see below for the available options.
3. Press the middle Navigation Button to open the menu.
The following options are available in the Setup mode:
Please read the following section to learn how to operate each
menu.
15
2.9.2 Language
The Language menu allows you to select the language displayed.
To select the language, please do the following:
1. Use the left/right
Navigation Button to select
the desired language.
2. Press the middle
Navigation Button to
confirm.
2.9.3 Date / Time
The Date / Time menu allows you to adjust the date and time.
To adjust the Date / Time, please do the following:
1. Use the left/right
Navigation Button to select
the field to be adjusted.
2. Use the up/down
Navigation Button to adjust
the value.
3. Press the middle
Navigation Button to confirm.
16
2.9.4 Format
The Format menu allows you to format your memory card or the
internal memory when no memory card is inserted.
To format your memory card or internal memory, please do the
following:
1. Use the left/right
Navigation Button to
select √.
2. Press the middle
Navigation Button to
confirm.
Warning: Formatting will delete everything on the media.
2.9.5 Default
The Default menu allows you to reset the camcorder to factory
defaults.
To reset, please do the following:
1. Use the left/right
Navigation Button to
select √.
2. Press the middle
Navigation Button to
confirm.
17
2.9.6 Auto Power Off
The Auto Power Off menu allows you to set an idle time after
which the camcorder automatically sets to sleep mode to save
power.
To adjust the Auto Power Off, please do the following:
1. Use the left/right
Navigation Button to select:
X: Disable the Auto
Power Off function.
1 min.: Auto Power
Off after 1 minute.
5 min.: Auto Power
Off after 5 minutes.
2. Press the middle Navigation Button to confirm.
2.9.7 Frequency
The Frequency menu allows you to set the refresh rate of the
camcorder. Increasing the refresh rate decreases flickering, thereby
reducing eyestrain.
To set the refresh rate, please do the following:
1. Use the left/right
Navigation Button to select
60Hz or 50Hz.
2. Press the middle
Navigation Button to
confirm.
18
2.9.8 TV Standard
The TV Standard menu allows you to select the TV standard of the
recorded videos.
To adjust the TV Standard, please do the following:
1. Use the left/right
Navigation Button to select
NTSC or PAL.
2. Press the middle
Navigation Button to
confirm.
2.9.9 Beep
The Beep menu allows you to turn the operation sound off or on.
To adjust the Beep, please do the following:
1. Use the left/right
Navigation Button to select:
X: Turn the operation
sound off.
√: Turn the operation
sound on.
2. Press the middle Navigation Button to confirm.
19
3 Using the Camcorder
Notes:
1. For best results, maintain a 30-40 cm distance between your
eyes and the LCD panel when previewing 3D photos or
videos.
2. The maximum file size of each video recording mode is
approximately 3.9GB.
3.1 Recording Videos
To record a movie, do the following:
1. Rotate the LCD to turn on the camcorder.
2. Press the middle Navigation Button to start recording the
video.
To adjust the video, you may:
Press the 3D Button to switch to 3D or 2D mode. 3D
mode allows you to record videos with 3D effects; 2D
mode allows you to take regular 2D videos.
Press the down Navigation Button to decrease the EV
settings.
Press the up Navigation Button to increase the EV
settings.
Use the left/right Navigation Button to zoom out/in
in the 2D mode.
Press the Menu Button to go to the Video mode menu
for more adjustment options.
3. To stop movie recording, press the middle Navigation
Button again.
20
The Video Recording Screen
1
2
4
3
6 7 11
10 8 9
5
#
Icon
Description
1 Indicates that the camcorder is in
Video mode.
2 Indicates the current White Balance
mode.
3 Indicates the amount of zoom being
used.
4 Indicates the recording time.
5 Indicates the number of the current
video.
6 Indicates the amount of battery power
left.
21
#
Icon
Description
7 Indicates the current resolution.
8 Indicates the current Color mode being
used.
9 Indicates the current exposure value.
10 Indicates the memory card is inserted.
The icon disappears when no memory
card is inserted; files are stored in
internal memory.
11 Indicates the remaining space for your
memory card/internal memory.
22
2 3 1
3.2 Video Mode Menu
1. White balance
3. Color
2. Resolution
To select a menu in the Video mode, please do the following:
1. Press the Menu Button to open the Video mode menu
screen.
2. Use the Navigation Button to scroll through the options
until the desired menu is highlighted. Please see below for
the available options.
3. Press the middle Navigation Button to open the menu.
4. Press the Menu Button to go back to Video mode.
The following options are available in the Video mode menu:
Please read the following section to learn how to operate each
menu.
23
3.2.1 White Balance
The White Balance menu allows you to set the white balance when
capturing images under specific lighting conditions.
To set the White Balance, please do the following:
1. Use the left/right
Navigation Button to select
the desired option:
Auto: Select this
option to let the
camcorder set the
white balance
automatically.
Sunny: Select this option for daylight filming.
Cloudy: Select this option for filming in cloudy days.
Tungsten: Select this option for normal indoor
lighting conditions.
Fluorescent: Select this option for fluorescent lighting.
2. Press the middle Navigation Button to confirm.
24
3.2.2 Resolution
The Resolution menu allows you to set the resolution before you
capture an image or a video. The higher the resolution, the more
memory space is required.
To select the resolution, please do the following:
1. Use the left/right
Navigation Button to select
the desired option:
VGA: Select this
option for 640 x 480
resolution (3D only).
WVGA: Select this
option for 848 x 480 resolution.
720P: Select this option for 1280 x 720 resolution (2D
only).
2. Press the middle Navigation Button to confirm.
3.2.3 Color
The Color menu allows you to change the recording effect.
To set the Color, please do the following:
1. Use the left/right
Navigation Button to select
the desired option:
Color: Select it for
color photography.
Sepia: Select it for
brown color effect.
Black & White: Select it for black and white effect.
2. Press the middle Navigation Button to confirm.
25
Note:
Videos must be recorded in 3D mode to have 3D effects.
3.3 Playback Videos
3.3.1 Playback Videos
To playback videos, please do the following:
1. Make sure you are in the Video mode. Press the Mode
Button to switch to the Video mode if not.
2. Press the 3D Button to switch to 3D or 2D mode to view the
3D or 2D videos you recorded.
3. Press the Playback Button to enter the Video playback
screen.
4. Press the left/right Navigation Button to browse the
recorded videos.
5. Press the middle Navigation Button to playback the video.
Before starting the video playback, you can adjust the
volume level by pressing up/down Navigation
Button.
To stop playback, press the middle Navigation
Button.
To rewind/fast-forward, press and hold the left/right
Navigation Button to toggle different speeds (2X, 4X,
or 8X).
26
The Video Playback Screen
1
2
3
4
#
Icon
Description
1 Indicates that the camcorder is in
Playback mode.
2 Indicates the number of the current
video.
3 Indicates the amount of battery power
left.
4 Indicates the total recorded time.
27
3.4 Deleting Videos
To delete a video, please do the following:
1. Press the Playback Button
to switch to the Video
playback mode.
2. Press the left /right
Navigation Button to
switch to the file you want
to delete.
3. Press the Delete Button to open the delete video screen.
4. Use the left/right Navigation Button to select .
5. Press the middle Navigation Button to confirm.
28
3.5 Shooting Photos
To shoot a photo, do the following:
1. Flip open the LCD to turn on the camcorder.
2. Press the Mode Button to switch to Camera mode.
3. Press the middle Navigation Button to capture a photo.
To adjust the camera, you may:
Press the 3D Button to switch to 3D or 2D mode. 3D
mode allows you to record photos with 3D effects; 2D
mode allows you to take regular 2D photos.
Press the down Navigation Button to decrease the EV
settings.
Press the up Navigation Button to increase the EV
settings
Use the left/right Navigation Button to zoom out/in
and out in the 2D mode.
Press the Menu Button to enter the Camera mode
menu for more adjustment options.
29
The Camera Screen
1 2 4
3
5 6 10 9 7
8
#
Icon
Description
1 Indicates that the camcorder is in
Camera mode.
2 Indicates the current White Balance
mode.
3 Indicates the amount of zoom being
used.
4 Indicates the number of the current
photo.
5 Indicates the amount of battery power
left.
30
#
Icon
Description
6 Indicates the current resolution.
7 Indicates the current Effect mode being
used.
8 Indicates the current exposure value.
9 Indicates the memory card is inserted.
The icon disappears when no memory
card is inserted; files are stored in
internal memory.
10 Indicates the remaining space for your
memory card/internal memory.
31
2 3 4
1
5
3.6 Camera Mode Menu
1. White balance
4. Date stamp (2D only)
2. Resolution (2D only)
5. Continuous shooting (2D
only)
3. Color
To select a menu in the Camera mode, please do the following:
1. Press the Menu Button to open the Camera mode menu
screen.
2. Use the Navigation Button to scroll through the options
until the desired menu is highlighted. Please see below for
the available options.
3. Press the middle Navigation Button to open the menu.
4. Press the Menu Button to go back to the Camera mode.
The following options are available in the Camera mode menu:
Please read the following section to learn how to operate each
menu.
32
3.6.1 White Balance
The White Balance menu allows you to adjust the white balance
when capturing images under specific lighting conditions.
To set the White Balance, please do the following:
1. Use the left/right
Navigation Button to select
the desired option:
Auto: Select this
option to let the
camcorder set the
white balance
automatically.
Sunny: Select this option for daylight filming.
Cloudy: Select this option for filming in cloudy days.
Tungsten: Select this option for normal indoor
lighting conditions.
Fluorescent: Select this option for fluorescent lighting.
2. Press the middle Navigation Button to confirm.
33
3.6.2 Resolution
The Resolution menu allows you to set the resolution before you
capture an image or a video. The higher the resolution, the more
memory space is required. To select the resolution, please do the
following:
1. Use the left/right
Navigation Button to select
the desired option:
5M: Select this option
for 2592 x 1944
resolution.
8M: Select this option
for 3200x2400 resolution.
2. Press the middle Navigation Button to confirm.
3.6.3 Color
The Color menu allows you to change the camera effect.
To set the Color, please do the following:
1. Use the left/right
Navigation Button to select
the desired option:
Color: Select this
option for color
photography.
Sepia: Select this
option for brown color effect.
Black & White: Select this option for black and white
effect.
2. Press the middle Navigation Button to confirm.
34
3.6.4 Date Stamp
Date Stamp allows you to imprint a date/time stamp on the photo.
To turn on the Date Stamp, please do the following:
1. Use the left/right
Navigation Button to
select √.
2. Press the middle
Navigation Button to
confirm.
3.6.5 Continuous Shooting
Continuous Shooting allows you to shoot photos continuously
while the Shutter Button is held down.
To set the Continuous Shooting, please do the following:
1. Use the left/right
Navigation Button to
select √.
2. Press the middle
Navigation Button to
confirm.
35
3.7 Playback Photos
Note:
Photos must be recorded in 3D mode to have 3D effects.
3.7.1 Playback Photos
To playback photos, please do the following:
1. Make sure you are in the Camera mode. Press the Mode
Button to switch to the Camera mode if not.
2. Press the 3D Button to switch to 3D or 2D mode to view the
3D or 2D photos you recorded.
3. Press the Playback Button to enter the Photo playback
screen.
4. Press the left/right Navigation Button to browse the
recorded photos.
Use the down Navigation Button to view 4 thumbnail
images. Use the Navigation Button to select the
desired image and press the middle Navigation
Button to display the image at its regular size.
36
The Photo Playback Screen
1
2
3
#
Icon
Description
1 Indicates that the camcorder is in
Playback mode.
2 Indicates the number of the current
photo.
3 Indicates the amount of battery power
left.
37
3.8 Deleting Photos
To delete a photo, please do the following:
1. Make sure you are in the
Photo playback mode.
When in Camera mode,
press the Playback Button
to switch to the Photo
playback mode.
2. Press the left /right
Navigation Button to switch to the file you want to delete.
3. Press the Delete Button to open the delete photo screen.
4. Use the left/right Navigation Button to select .
5. Press the middle Navigation Button to confirm.
38
Appendix
General
Imaging
sensor
1/4” 5M CMOS Sensor x 2
Active pixels
5.0 Megapixel
Storage media
Internal: Built-in 128MB Flash Memory
SD Card: (Up to SDHC 32GB Class6)
Color effects
Color/Sepia/Black & White
Lens
F2.8, f=3.83mm
Focus range
Approx. 1.0m~infinity
Still image
Formats: JPEG (EXIF 2.2), DCF,
3D Still image: 1M
2D Still image: 5M, 8M (Firmware
Interpolation)
Specifications
39
General
Movie clips
H.264 (AVI)
3D Movie: VGA 640x480, WVGA 848 x 480
2D Movie: 720p30fps, WVGA30fps
Zoom
3D: NA
2D: 4X Digital Zoom
LCD monitor
3.2”color LCD monitor (320 x 480 pixels)
White balance
Auto/Sunny/Cloudy/Tungsten/
Fluorescent
EV
compensation
-2.0 EV~+2.0 EV
PC interface
USB 2.0 (high speed)
AV out format
NTSC/PAL/HDMI
Shutter
Electronic shutter
1/30-1/2000
Auto power
off
Off, 1 min., 5 min.
Power supply
KLIC 7001 Li-ion battery
Dimensions
(W x H x D)
Approx. 59 x 112 x 18.9 mm
Weight
Approx.112 +-5g (without battery and
memory card)
40
Troubleshooting
Problem
Possible
Cause
Solution
Cannot turn on
the camcorder.
The battery is not
inserted
correctly.
The battery have
no power.
Insert the battery
correctly.
Charge the
battery.
The camcorder
suddenly turns
off.
The auto power off
function is
enabled.
The camcorder is
running out of
battery power.
Turn the power
on again.
Replace the
battery.
The captured
image is not
stored in
memory.
Before the image
is saved the
power has been
cut off.
When the battery
indicator turns
red, replace the
battery
immediately.
The camcorder
turns off while
taking a
picture.
The camera is
running out of
battery power.
Replace the
battery.
The image is
out of focus.
The subject is
beyond focus
range.
Please take a
picture within
the available
focus range.
41
Problem
Possible
Cause
Solution
A black screen
appears on the
screen.
The EV setting
may be set too
low.
Adjust the EV
setting on the
camcorder.
Memory card
cannot be
used.
The memory
card is protected.
The memory
card contains
non-DCF images
taken by other
camcorders.
Unlock the
memory card.
Format the
memory card.
Before
formatting the
card, ensure you
back up the files.
All buttons are
inactive.
Short circuit
occurred when
connecting the
camera with
other devices.
Remove the
battery from the
camera and
insert again.
SDHC Logo is a trademark of SD-3C, LLC.
Loading...
