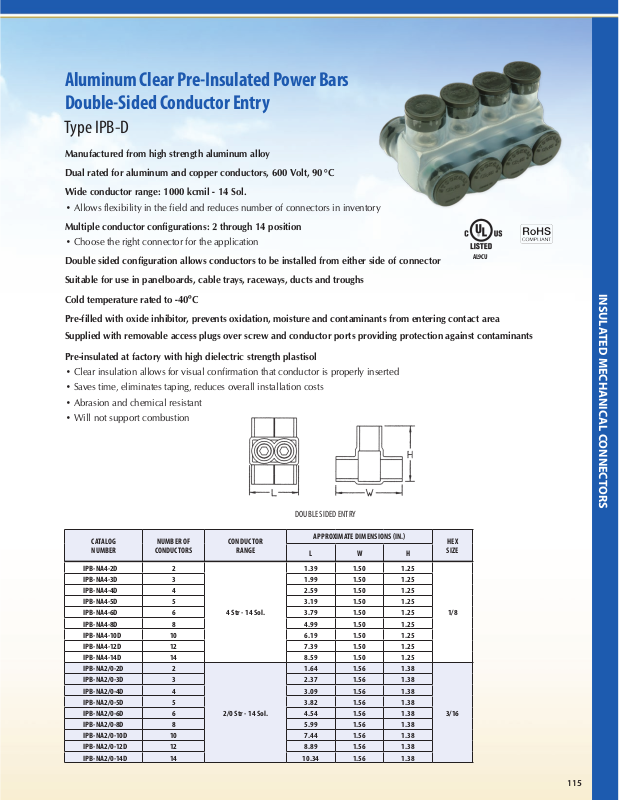

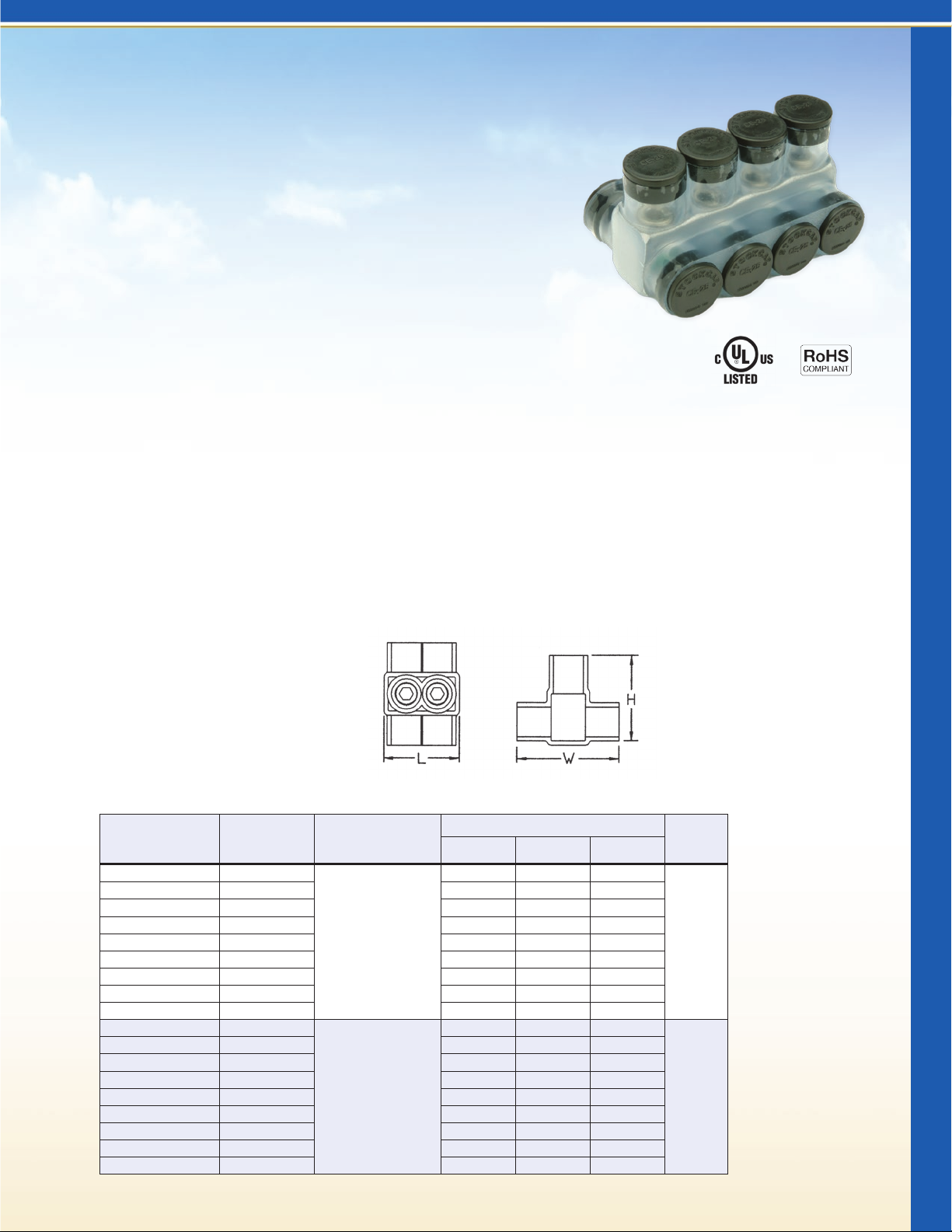

Aluminum Clear Pre-Insulated Power Bars
Double-Sided Conductor Entry
Type IPB-D
Manufactured from high strength aluminum alloy
Dual rated for aluminum and copper conductors, 600 Volt, 90°C
Wide conductor range: 1000 kcmil - 14 Sol.
• Allows flexibility in the field and reduces number of connectors in inventory
Multiple conductor configurations: 2 through 14 position
• Choose the right connector for the application
Double sided configuration allows conductors to be installed from either side of connector
Suitable for use in panelboards, cable trays, raceways, ducts and troughs
Cold temperature rated to -40ºC
Pre-filled with oxide inhibitor, prevents oxidation, moisture and contaminants from entering contact area
Supplied with removable access plugs over screw and conductor ports providing protection against contaminants
Pre-insulated at factory with high dielectric strength plastisol
• Clear insulation allows for visual confirmation that conductor is properly inserted
• Saves time, eliminates taping, reduces overall installation costs
• Abrasion and chemical resistant
• Will not support combustion
AL9CU
INSULATED MECHANICAL CONNECTORS
DOUBLE SIDED ENTRY
CATALOG
NUMBER
IPB-NA4-2D 2
IPB-NA4-3D 3 1.99 1.50 1.25
IPB-NA4-4D 4 2.59 1.50 1.25
IPB-NA4-5D 5 3.19 1.50 1.25
IPB-NA4-6D 6 3.79 1.50 1.25
IPB-NA4-8D 8 4.99 1.50 1.25
IPB-NA4-10D 10 6.19 1.50 1.25
IPB-NA4-12D 12 7.39 1.50 1.25
IPB-NA4-14D 14 8.59 1.50 1.25
IPB-NA2/0-2D 2
IPB-NA2/0-3D 3 2.37 1.56 1.38
IPB-NA2/0-4D 4 3.09 1.56 1.38
IPB-NA2/0-5D 5 3.82 1.56 1.38
IPB-NA2/0-6D 6 4.54 1.56 1.38
IPB-NA2/0-8D 8 5.99 1.56 1.38
IPB-NA2/0-10D 10 7.44 1.56 1.38
IPB-NA2/0-12D 12 8.89 1.56 1.38
IPB-NA2/0-14D 14 10.34 1.56 1.38
NUMBER OF
CONDUCTORS
CONDUCTOR
RANGE
4 Str - 14 Sol.
2/0 Str - 14 Sol.
APPROXIMATE DIMENSIONS IN.
L W H
1.39 1.50 1.25
1.64 1.56 1.38
HEX
SIZE
1/8
3/16
115

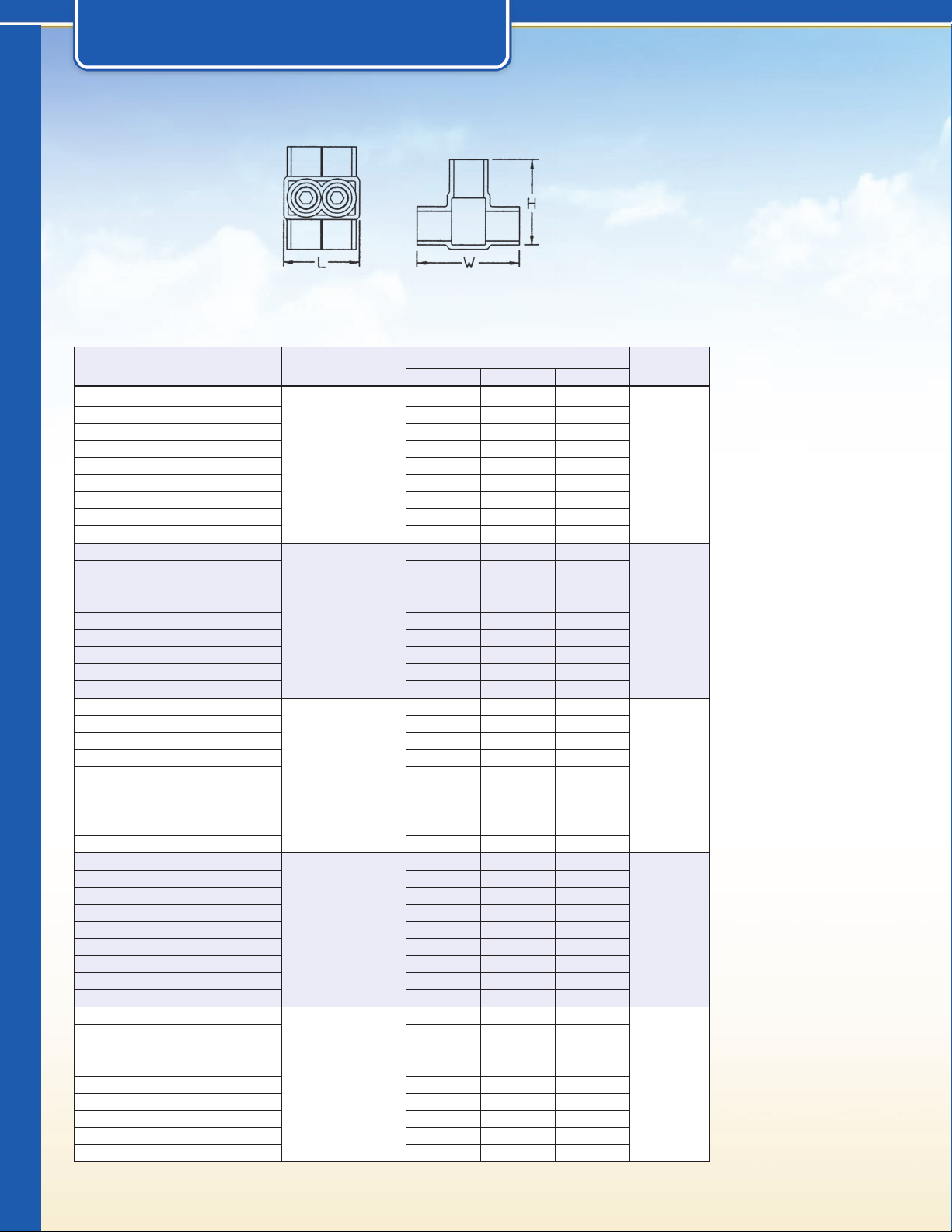

Page 2
INSULATED MECHANICAL
Type IPB-D (continued)
DOUBLE SIDED ENTRY
INSULATED MECHANICAL CONNECTORS
CATALOG
NUMBER
IPB-NA250-2D
IPB-NA250-3D 3 3.15 2.63 2.13
IPB-NA250-4D 4 4.15 2.63 2.13
IPB-NA250-5D 5 5.15 2.63 2.13
IPB-NA250-6D 6 6.15 2.63 2.13
IPB-NA250-8D 8 8.15 2.63 2.13
IPB-NA250-10D 10 10.15 2.63 2.13
IPB-NA250-12D 12 12.15 2.63 2.13
IPB-NA250-14D 14 14.15 2.63 2.13
IPB-NA350-2D 2
IPB-NA350-3D 3 3.53 3.00 2.50
IPB-NA350-4D 4 4.65 3.00 2.50
IPB-NA350-5D 5 5.78 3.00 2.50
IPB-NA350-6D 6 6.90 3.00 2.50
IPB-NA350-8D 8 9.15 3.00 2.50
IPB-NA350-10D 10 11.40 3.00 2.50
IPB-NA350-12D 12 13.65 3.00 2.50
IPB-NA350-14D 14 15.90 3.00 2.50
IPB-NA600-2D 2
IPB-NA600-3D 3 4.13 3.00 2.75
IPB-NA600-4D 4 5.45 3.00 2.75
IPB-NA600-5D 5 6.78 3.00 2.75
IPB-NA600-6D 6 8.10 3.00 2.75
IPB-NA600-8D 8 10.75 3.00 2.75
IPB-NA600-10D 10 13.40 3.00 2.75
IPB-NA600-12D 12 16.05 3.00 2.75
IPB-NA600-14D 14 18.70 3.00 2.75
IPB-NA750-2D 2
IPB-NA750-3D 3 4.46 3.38 3.00
IPB-NA750-4D 4 5.89 3.38 3.00
IPB-NA750-5D 5 7.33 3.38 3.00
IPB-NA750-6D 6 8.76 3.38 3.00
IPB-NA750-8D 8 11.63 3.38 3.00
IPB-NA750-10D 10 14.50 3.38 3.00
IPB-NA750-12D 12 17.37 3.38 3.00
IPB-NA750-14D 14 20.24 3.38 3.00
IPB-NA1000-2D 2
IPB-NA1000-3D 3 4.91 4.25 3.13
IPB-NA1000-4D 4 6.50 4.25 3.13
IPB-NA1000-5D 5 8.09 4.25 3.13
IPB-NA1000-6D 6 9.68 4.25 3.13
IPB-NA1000-8D 8 12.85 4.25 3.13
IPB-NA1000-10D 10 16.03 4.25 3.13
IPB-NA1000-12D 12 19.21 4.25 3.13
IPB-NA1000-14D 14 22.38 4.25 3.13
NUMBER OF
CONDUCTORS
2
CONDUCTOR
RANGE
250 kcmil - 10 Sol.
350 kcmil - 10 Sol.
600 kcmil - 4 Str.
750 kcmil - 2 Str.
1000 kcmil - 1/0 Str.
APPROXIMATE DIMENSIONS IN.
L W H
2.15 2.63 2.13
2.40 3.00 2.50
2.80 3.00 2.75
3.02 3.38 3.00
3.33 4.25 3.13
HEX
SIZE
5/16
5/16
3/8
3/8
1/2
