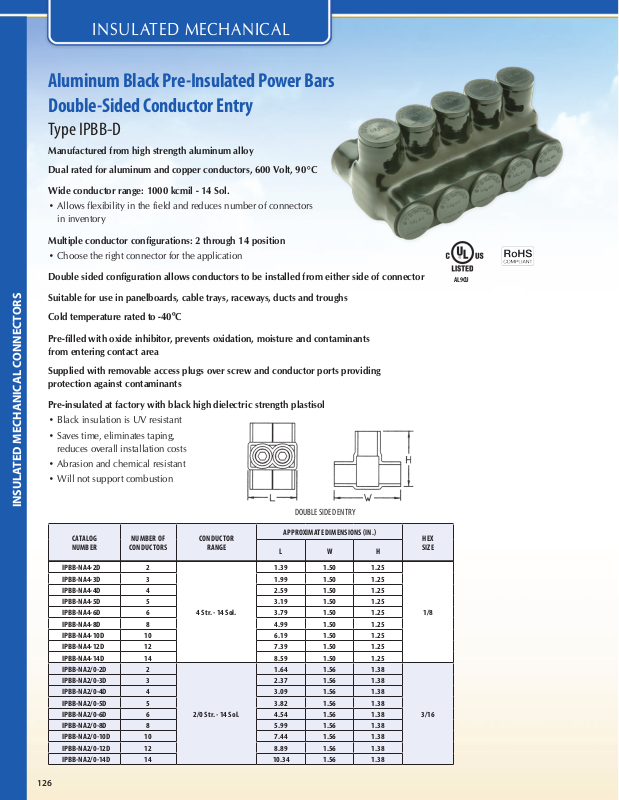

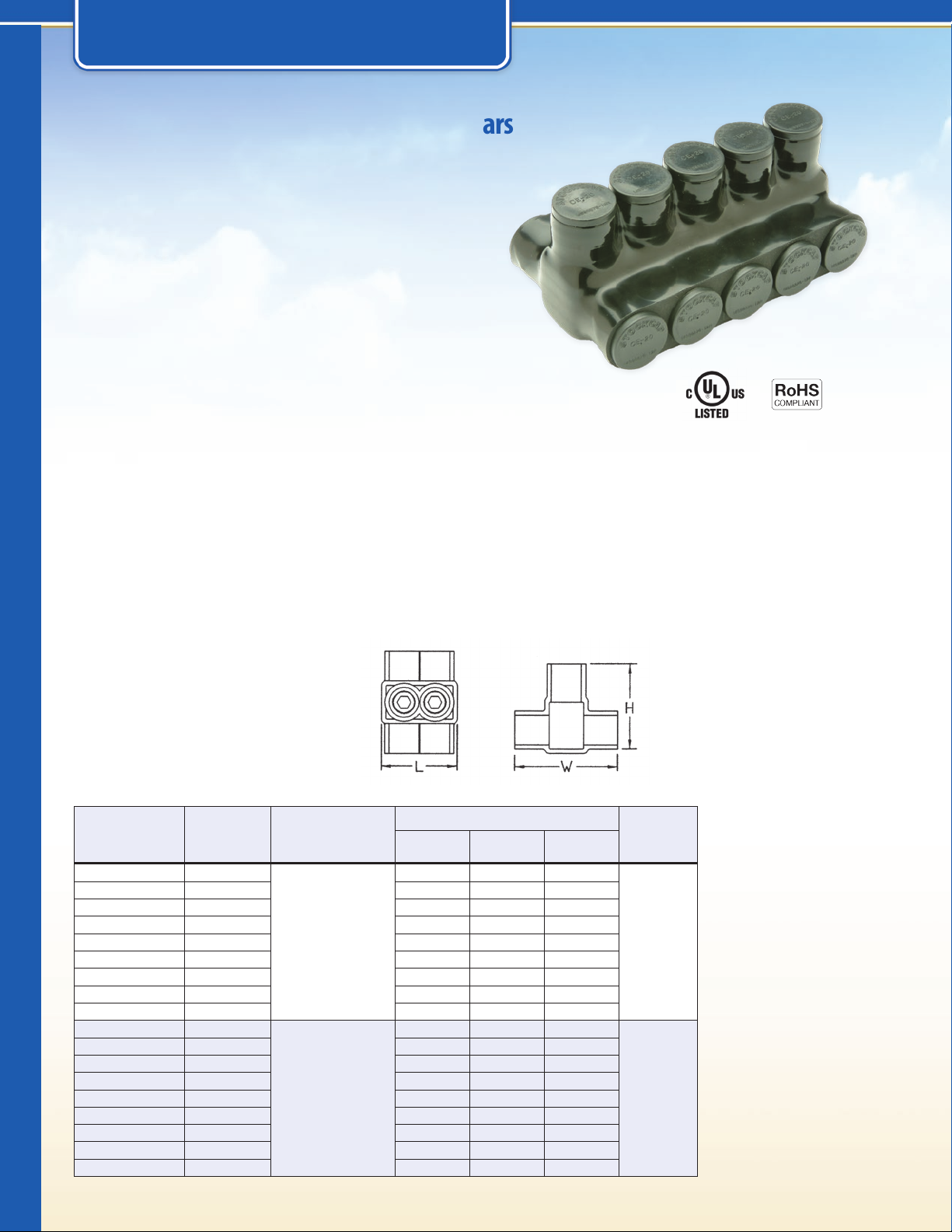

INSULATED MECHANICAL
Aluminum Black Pre-Insulated Power Bars
Double-Sided Conductor Entry
Type IPBB-D
Manufactured from high strength aluminum alloy
Dual rated for aluminum and copper conductors, 600 Volt, 90°C
Wide conductor range: 1000 kcmil - 14 Sol.
• Allows flexibility in the field and reduces number of connectors
in inventory
Multiple conductor configurations: 2 through 14 position
• Choose the right connector for the application
Double sided configuration allows conductors to be installed from either side of connector
Suitable for use in panelboards, cable trays, raceways, ducts and troughs
Cold temperature rated to -40ºC
Pre-filled with oxide inhibitor, prevents oxidation, moisture and contaminants
from entering contact area
Supplied with removable access plugs over screw and conductor ports providing
protection against contaminants
Pre-insulated at factory with black high dielectric strength plastisol
• Black insulation is UV resistant
• Saves time, eliminates taping,
reduces overall installation costs
• Abrasion and chemical resistant
• Will not support combustion
INSULATED MECHANICAL CONNECTORS
CATALOG
NUMBER
IPBB-NA4-2D 2
IPBB-NA4-3D 3 1.99 1.50 1.25
IPBB-NA4-4D 4 2.59 1.50 1.25
IPBB-NA4-5D 5 3.19 1.50 1.25
IPBB-NA4-6D 6 3.79 1.50 1.25
IPBB-NA4-8D 8 4.99 1.50 1.25
IPBB-NA4-10D 10 6.19 1.50 1.25
IPBB-NA4-12D 12 7.39 1.50 1.25
IPBB-NA4-14D 14 8.59 1.50 1.25
IPBB-NA2/0-2D 2
IPBB-NA2/0-3D 3 2.37 1.56 1.38
IPBB-NA2/0-4D 4 3.09 1.56 1.38
IPBB-NA2/0-5D 5 3.82 1.56 1.38
IPBB-NA2/0-6D 6 4.54 1.56 1.38
IPBB-NA2/0-8D 8 5.99 1.56 1.38
IPBB-NA2/0-10D 10 7.44 1.56 1.38
IPBB-NA2/0-12D 12 8.89 1.56 1.38
IPBB-NA2/0-14D 14 10.34 1.56 1.38
NUMBER OF
CONDUCTORS
CONDUCTOR
RANGE
4 Str. - 14 Sol.
2/0 Str. - 14 Sol.
DOUBLE SIDED ENTRY
APPROXIMATE DIMENSIONS IN.
L W H
1.39 1.50 1.25
1.64 1.56 1.38
AL9CU
HEX
SIZE
1/8
3/16
126
Page 2
Type IPBB-D (continued)
CATALOG
NUMBER
IPBB-NA250-2D 2
IPBB-NA250-3D 3 3.15 2.63 2.13
IPBB-NA250-4D 4 4.15 2.63 2.13
IPBB-NA250-5D 5 5.15 2.63 2.13
IPBB-NA250-6D 6 6.15 2.63 2.13
IPBB-NA250-8D 8 8.15 2.63 2.13
IPBB-NA250-10D 10 10.15 2.63 2.13
IPBB-NA250-12D 12 12.15 2.63 2.13
IPBB-NA250-14D 14 14.15 2.63 2.13
IPBB-NA350-2D 2
IPBB-NA350-3D 3 3.53 3.00 2.50
IPBB-NA350-4D 4 4.65 3.00 2.50
IPBB-NA350-5D 5 5.78 3.00 2.50
IPBB-NA350-6D 6 6.90 3.00 2.50
IPBB-NA350-8D 8 9.15 3.00 2.50
IPBB-NA350-10D 10 11.40 3.00 2.50
IPBB-NA350-12D 12 13.65 3.00 2.50
IPBB-NA350-14D 14 15.90 3.00 2.50
IPBB-NA600-2D 2
IPBB-NA600-3D 3 4.13 3.00 2.75
IPBB-NA600-4D 4 5.45 3.00 2.75
IPBB-NA600-5D 5 6.78 3.00 2.75
IPBB-NA600-6D 6 8.10 3.00 2.75
IPBB-NA600-8D 8 10.75 3.00 2.75
IPBB-NA600-10D 10 13.40 3.00 2.75
IPBB-NA600-12D 12 16.05 3.00 2.75
IPBB-NA600-14D 14 18.70 3.00 2.75
IPBB-NA750-2D 2
IPBB-NA750-3D 3 4.46 3.38 3.00
IPBB-NA750-4D 4 5.89 3.38 3.00
IPBB-NA750-5D 5 7.33 3.38 3.00
IPBB-NA750-6D 6 8.76 3.38 3.00
IPBB-NA750-8D 8 11.63 3.38 3.00
IPBB-NA750-10D 10 14.50 3.38 3.00
IPBB-NA750-12D 12 17.37 3.38 3.00
IPBB-NA750-14D 14 20.24 3.38 3.00
IPBB-NA1000-2D 2
IPBB-NA1000-3D 3 4.91 4.25 3.13
IPBB-NA1000-4D 4 6.50 4.25 3.13
IPBB-NA1000-5D 5 8.09 4.25 3.13
IPBB-NA1000-6D 6 9.68 4.25 3.13
IPBB-NA1000-8D 8 12.85 4.25 3.13
IPBB-NA1000-10D 10 16.03 4.25 3.13
IPBB-NA1000-12D 12 19.21 4.25 3.13
IPBB-NA1000-14D 14 22.38 4.25 3.13
NUMBER OF
CONDUCTORS
CONDUCTOR
RANGE
250 kcmil - 10 Sol.
350 kcmil - 10 Sol.
600 kcmil - 4 Str.
750 kcmil - 2 Str.
1000 kcmil - 1/0 Str.
L W H
2.15 2.63 2.13
2.40 3.00 2.50
2.80 3.00 2.75
3.02 3.38 3.00
3.33 4.25 3.13
APPROXIMATE DIMENSIONS IN.
HEX
SIZE
5/16
5/16
3/8
3/8
1/2
INSULATED MECHANICAL CONNECTORS
127
