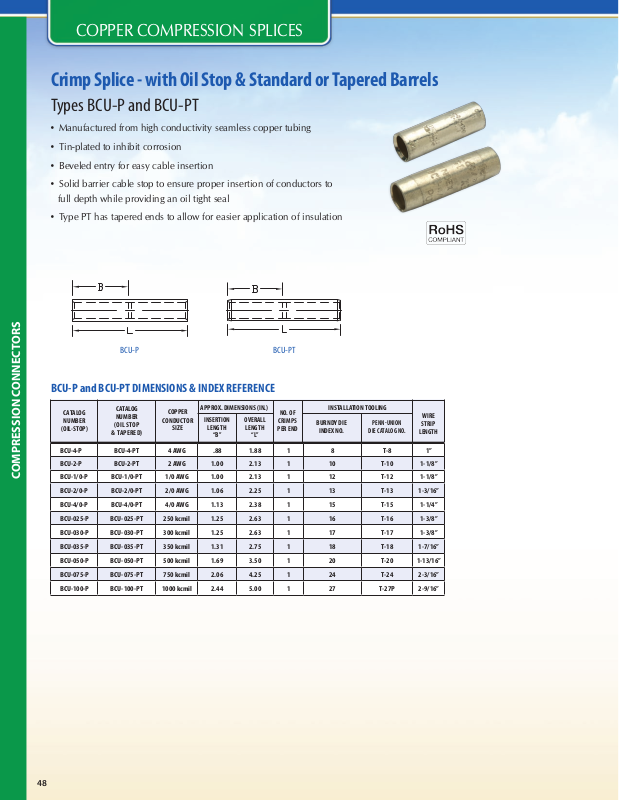

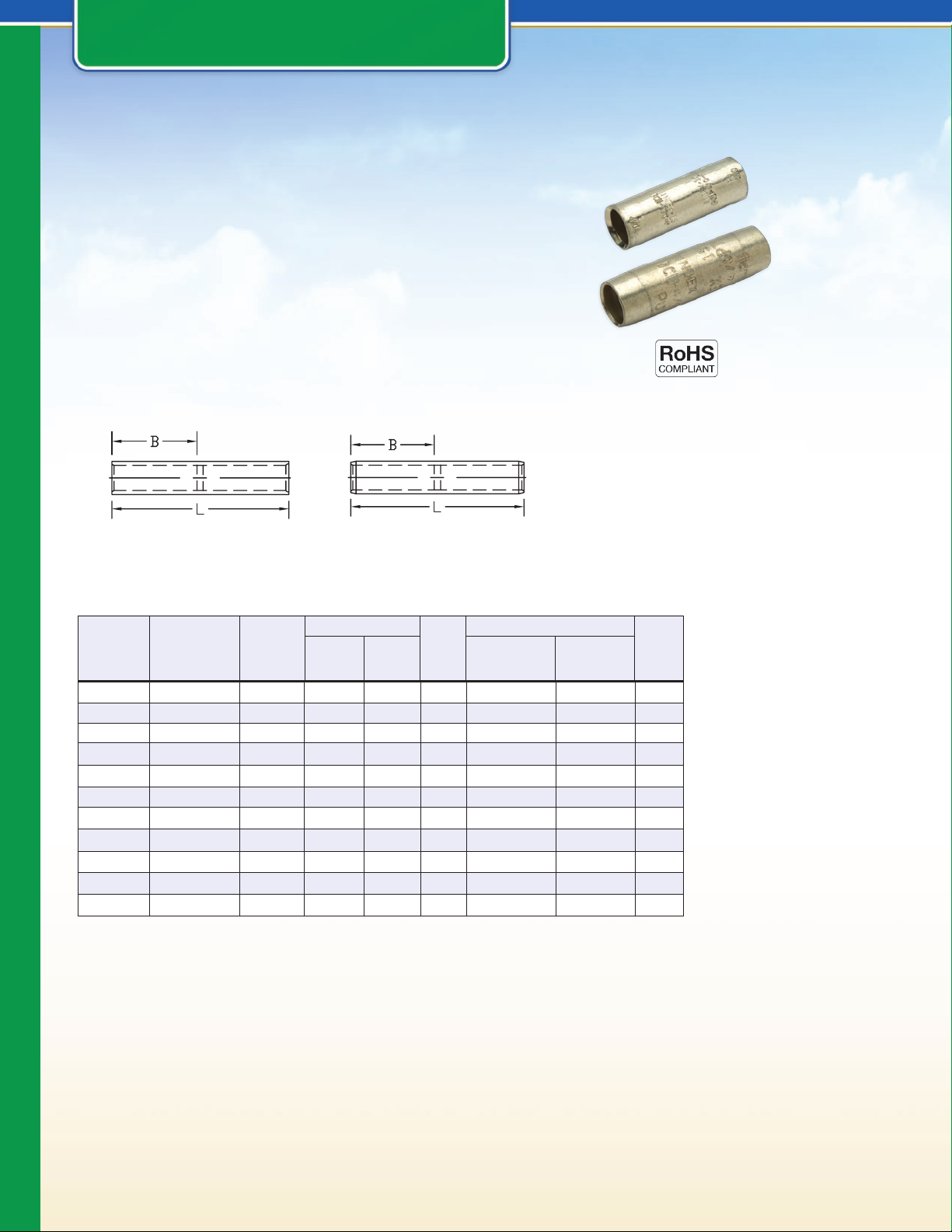

COPPER COMPRESSION SPLICES
Crimp Splice - with Oil Stop & Standard or Tapered Barrels
Types BCU-P and BCU-PT
• Manufactured from high conductivity seamless copper tubing
• Tin-plated to inhibit corrosion
• Beveled entry for easy cable insertion
• Solid barrier cable stop to ensure proper insertion of conductors to
full depth while providing an oil tight seal
• Type PT has tapered ends to allow for easier application of insulation
COMPRESSION CONNECTORS
BCU-P BCU-PT
BCU-P and BCU-PT DIMENSIONS & INDEX REFERENCE
CATALOG
NUMBER
(OIL-STOP)
BCU-4-P BCU-4-PT 4 AWG .88 1.88 1 8 T-8 1”
BCU-2-P BCU-2-PT 2 AWG 1.00 2.13 1 10 T-10 1-1/8”
BCU-1/0-P BCU-1/0-PT 1/0 AWG 1.00 2.13 1 12 T-12 1-1/8”
BCU-2/0-P BCU-2/0-PT 2/0 AWG 1.06 2.25 1 13 T-13 1-3/16”
BCU-4/0-P BCU-4/0-PT 4/0 AWG 1.13 2.38 1 15 T-15 1-1/4”
BCU-025-P BCU-025-PT 250 kcmil 1.25 2.63 1 16 T-16 1-3/8”
BCU-030-P BCU-030-PT 300 kcmil 1.25 2.63 1 17 T-17 1-3/8”
BCU-035-P BCU-035-PT 350 kcmil 1.31 2.75 1 18 T-18 1-7/16”
BCU-050-P BCU-050-PT 500 kcmil 1.69 3.50 1 20 T-20 1-13/16”
BCU-075-P BCU-075-PT 750 kcmil 2.06 4.25 1 24 T-24 2-3/16”
BCU-100-P BCU-100-PT 1000 kcmil 2.44 5.00 1 27 T-27P 2-9/16”
CATALOG
NUMBER
(OIL STOP
& TAPERED)
COPPER
CONDUCTOR
SIZE
INSERTION
LENGTH
“B”
OVERALL
LENGTH
“L”
NO. OF
CRIMPS
PER END
INSTALLATION TOOLINGAPPROX. DIMENSIONS (IN.)
BURNDY DIE
INDEX NO.
PENNUNION
DIE CATALOG NO.
WIRE
STRIP
LENGTH
