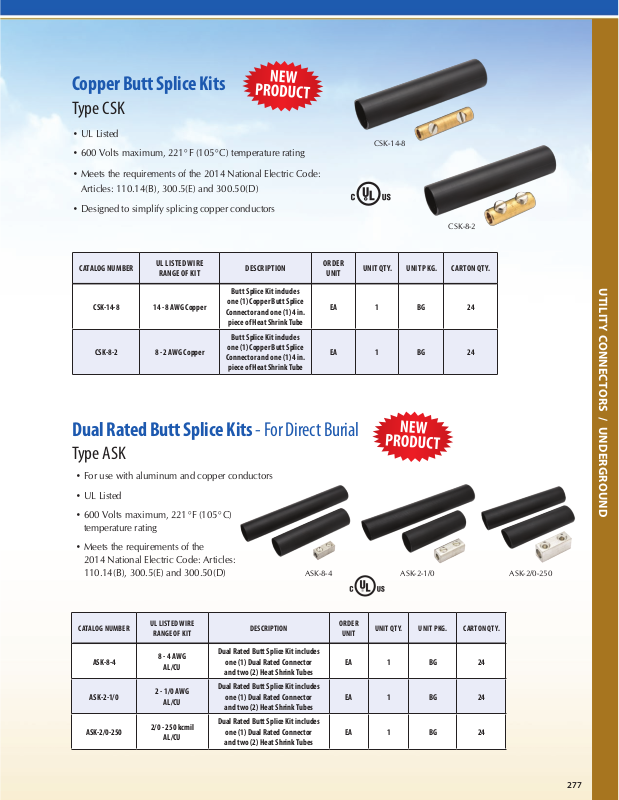

Copper Butt Splice Kits
Type CSK
• UL Listed
• 600 Volts maximum, 221°F (105°C) temperature rating
• Meets the requirements of the 2014 National Electric Code:
Articles: 110.14(B), 300.5(E) and 300.50(D)
• Designed to simplify splicing copper conductors
CATALOG NUMBER
CSK-14-8 14 - 8 AWG Copper
CSK-8-2 8 - 2 AWG Copper
UL LISTED WIRE
RANGE OF KIT
DESCRIPTION
Butt Splice Kit includes
one (1) Copper Butt Splice
Connector and one (1) 4 in.
piece of Heat Shrink Tube
Butt Splice Kit includes
one (1) Copper Butt Splice
Connector and one (1) 4 in.
piece of Heat Shrink Tube
CSK-14-8
CSK-8-2
ORDER
UNIT
EA 1 BG 24
EA 1 BG 24
UNIT QTY. UNIT PKG. CARTON QTY.
UTILITY CONNECTORS / UNDERGROUND
Dual Rated Butt Splice Kits - For Direct Burial
Type ASK
• For use with aluminum and copper conductors
• UL Listed
• 600 Volts maximum, 221°F (105°C)
temperature rating
• Meets the requirements of the
2014 National Electric Code: Articles:
110.14(B), 300.5(E) and 300.50(D)
CATALOG NUMBER
ASK-8-4
ASK-2-1/0
ASK-2/0-250
UL LISTED WIRE
RANGE OF KIT
8 - 4 AWG
AL/CU
2 - 1/0 AWG
AL/CU
2/0 - 250 kcmil
AL/CU
Dual Rated Butt Splice Kit includes
Dual Rated Butt Splice Kit includes
Dual Rated Butt Splice Kit includes
DESCRIPTION
one (1) Dual Rated Connector
and two (2) Heat Shrink Tubes
one (1) Dual Rated Connector
and two (2) Heat Shrink Tubes
one (1) Dual Rated Connector
and two (2) Heat Shrink Tubes
ASK-8-4 ASK-2-1/0 ASK-2/0-250
ORDER
UNIT
EA 1 BG 24
EA 1 BG 24
EA 1 BG 24
UNIT QTY. UNIT PKG. CARTON QTY.
277
