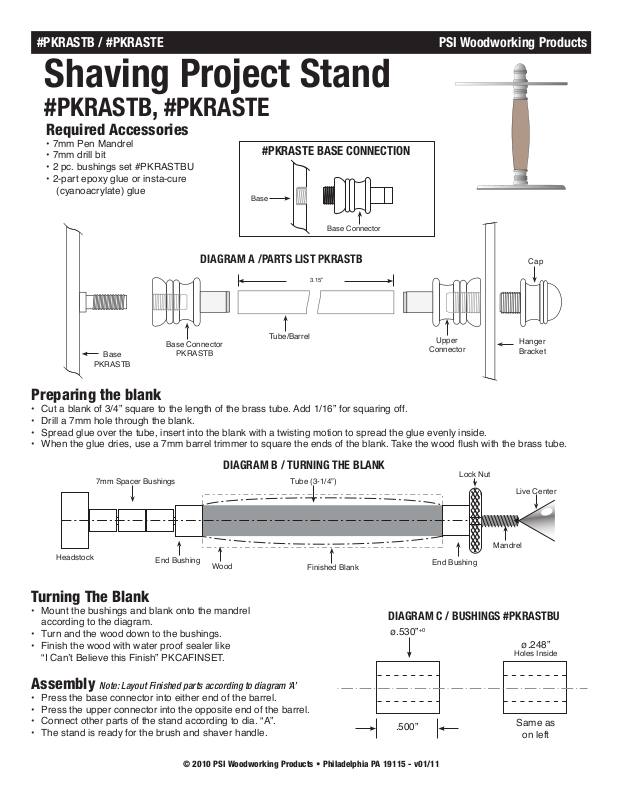

#PKRASTB / #PKRASTE PSI Woodworking Products
Shaving Project Stand
#PKRASTB, #PKRASTE
Required Accessories
• 7mm Pen Mandrel
• 7mm drill bit
• 2 pc. bushings set #PKRASTBU
• 2-part epoxy glue or insta-cure
(cyanoacrylate) glue
#PKRASTE BASE CONNECTION
Base
Base Connector
Base
PKRASTB

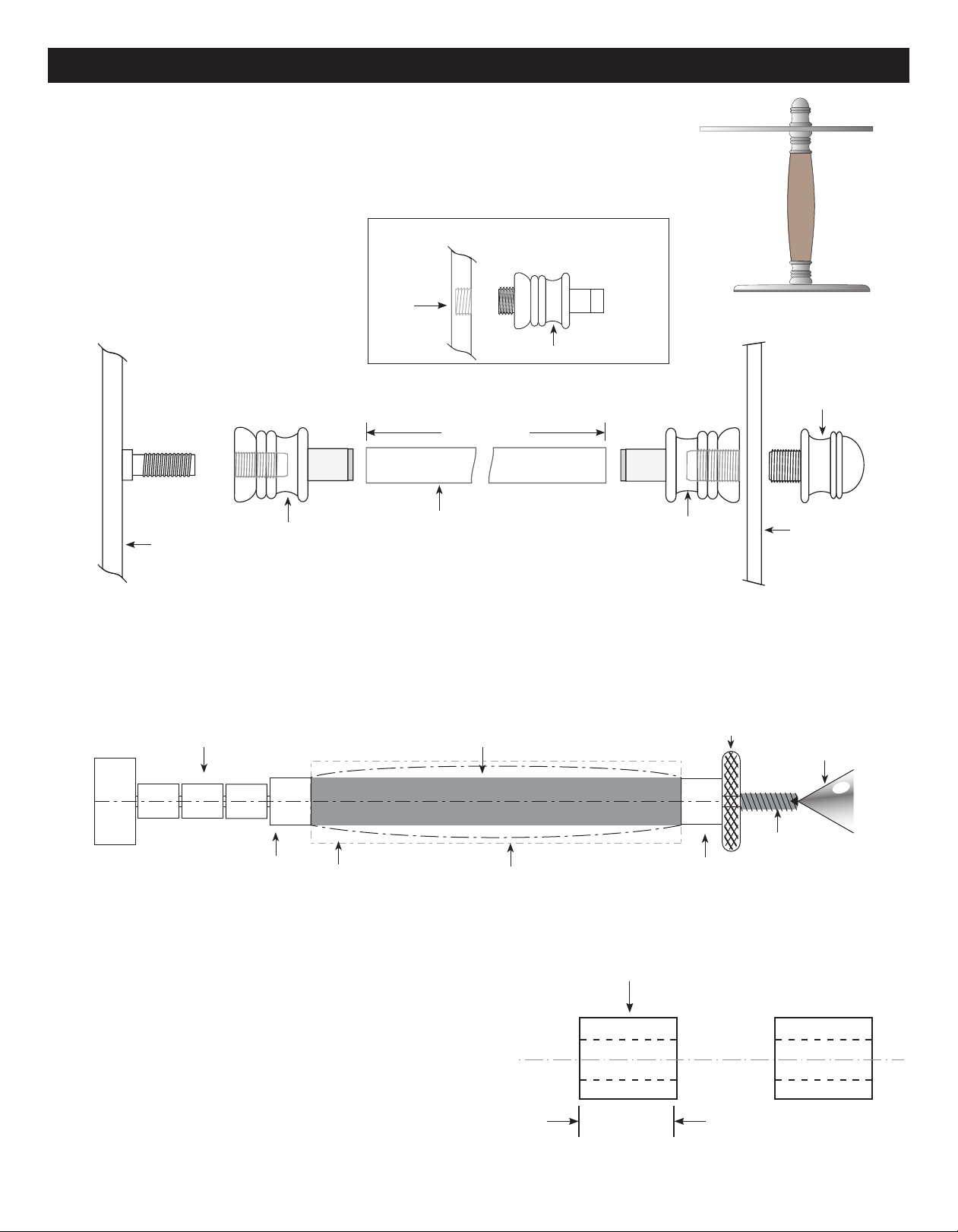

DIAGRAM A /PARTS LIST PKRASTB
Base Connector
PKRASTB
Tube/Barrel
3.15”
Upper
Connector
Cap
Hanger
Bracket
Preparing the blank
• Cut a blank of 3/4” square to the length of the brass tube. Add 1/16” for squaring off.
• Drill a 7mm hole through the blank.
• Spread glue over the tube, insert into the blank with a twisting motion to spread the glue evenly inside.
• When the glue dries, use a 7mm barrel trimmer to square the ends of the blank. Take the wood ush with the brass tube.
Headstock
DIAGRAM B / TURNING THE BLANK
7mm Spacer Bushings Tube (3-1/4”)
End Bushing
Wood
Finished Blank
Lock Nut
Live Center
Mandrel
End Bushing
Turning The Blank
• Mount the bushings and blank onto the mandrel
according to the diagram.
• Turn and the wood down to the bushings.
• Finish the wood with water proof sealer like
“I Can’t Believe this Finish” PKCAFINSET.
Assembly Note: Layout Finished parts according to diagram ‘A’
• Press the base connector into either end of the barrel.
• Press the upper connector into the opposite end of the barrel.
• Connect other parts of the stand according to dia. “A”.
• The stand is ready for the brush and shaver handle.
© 2010 PSI Woodworking Products • Philadelphia PA 19115 - v01/11
DIAGRAM C / BUSHINGS #PKRASTBU
+0
ø.530”
ø.248”
Holes Inside
.500”
Same as
on left
