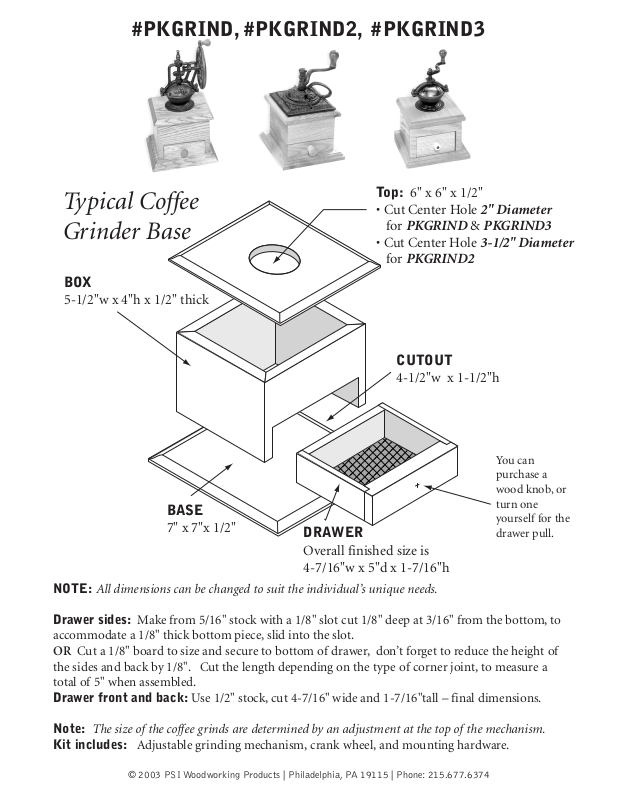

#PKGRIND, #PKGRIND2, #PKGRIND3

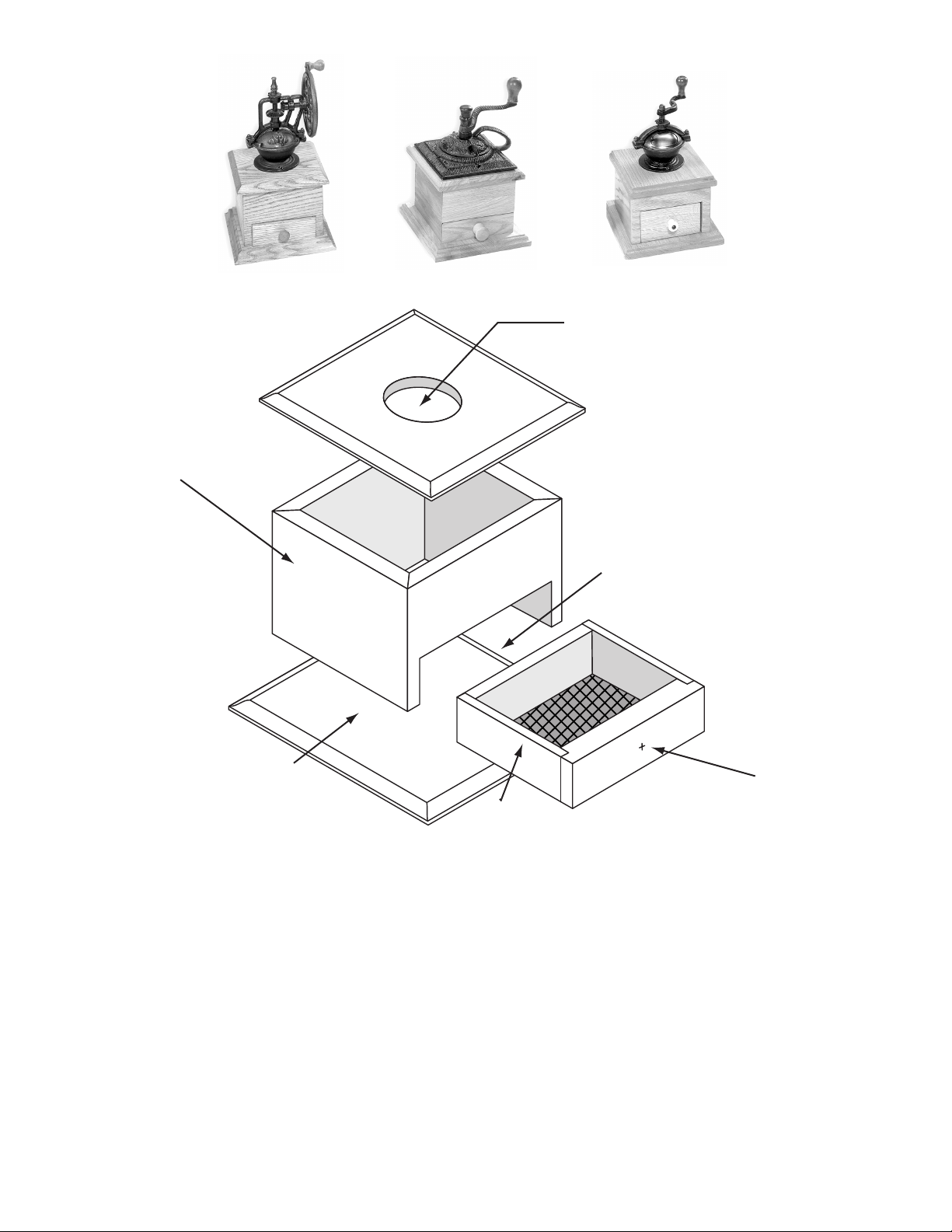

Typical Coffee
Grinder Base
BOX
5-1/2"w x 4"h x 1/2" thick
Top: 6" x 6" x 1/2"
• Cut Center Hole 2" Diameter
for PKGRIND & PKGRIND3
• Cut Center Hole 3-1/2" Diameter
for PKGRIND2
CUTOUT
4-1/2"w x 1-1/2"h
You can
purchase a
wood knob, or
BASE
7" x 7"x 1/2"
NOTE: All dimensions can be changed to suit the individual’s unique needs.
Drawer sides: Make from 5/16" stock with a 1/8" slot cut 1/8" deep at 3/16" from the bottom, to
accommodate a 1/8" thick bottom piece, slid into the slot.
OR Cut a 1/8" board to size and secure to bottom of drawer, don’t forget to reduce the height of
the sides and back by 1/8". Cut the length depending on the type of corner joint, to measure a
total of 5" when assembled.
Drawer front and back: Use 1/2" stock, cut 4-7/16" wide and 1-7/16"tall – final dimensions.
DRAWER
Overall finished size is
4-7/16"w x 5"d x 1-7/16"h
turn one
yourself for the
drawer pull.
Note: The size of the coffee grinds are determined by an adjustment at the top of the mechanism.
Kit includes: Adjustable grinding mechanism, crank wheel, and mounting hardware.
